Design for Privacy February 20 2007 Usable Privacy

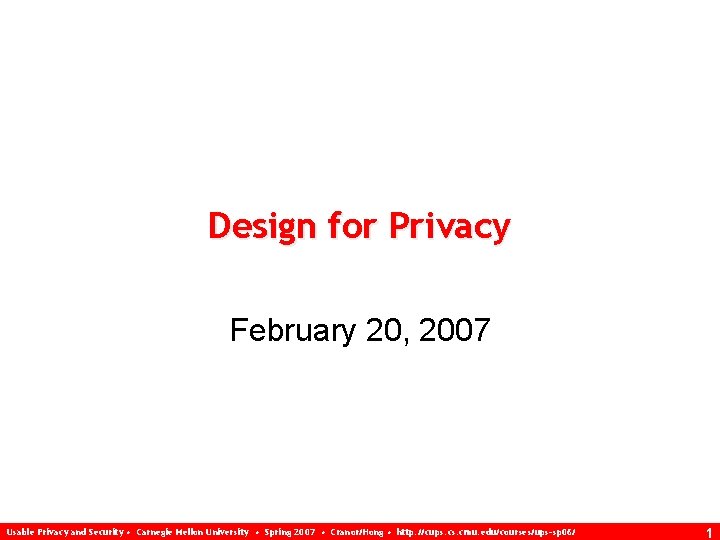

Design for Privacy February 20, 2007 Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 1

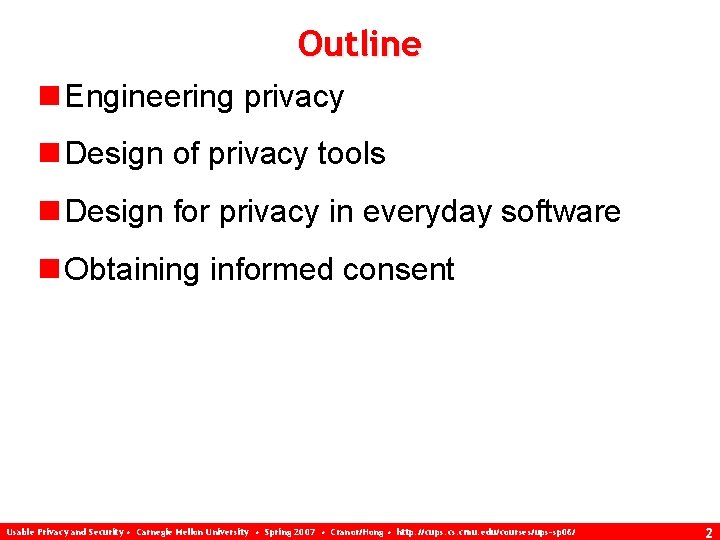

Outline n Engineering privacy n Design of privacy tools n Design for privacy in everyday software n Obtaining informed consent Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 2

Engineering privacy Layer 1 responsibility: Control of personal data collected User Privacy Concerns Data Recipient inflow outflow internal unauthorized 2 nd use external unauthorized 2 nd use improper access errors reduced judgments combining data unauthorized collection unauthorized execution exposure attention/ inflow of data Service Edge Network Edge Client Side Layer 2 responsibility: Access control Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 3

external parties: government/ litigation related parties peers content/service provider 3 rd party access provider primary User 3 rd party secondary user application/ system provider 3 rd party Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 4

non-identified data collection Privacy by Architecture s es il n Privacy by policy identified data collection cy a riv nd e ri f p network centric architecture client centric architecture Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 5

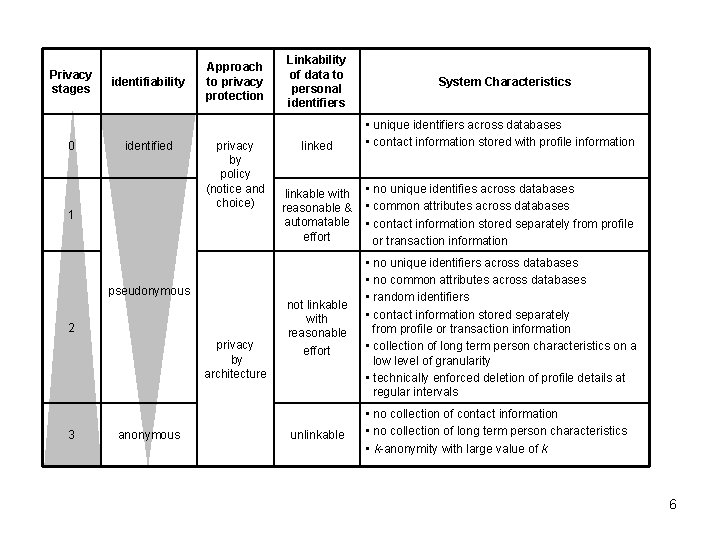

Privacy stages 0 identifiability identified 1 Approach to privacy protection privacy by policy (notice and choice) Linkability of data to personal identifiers linked • unique identifiers across databases • contact information stored with profile information linkable with reasonable & automatable effort • no unique identifies across databases • common attributes across databases • contact information stored separately from profile or transaction information not linkable with reasonable effort • no unique identifiers across databases • no common attributes across databases • random identifiers • contact information stored separately from profile or transaction information • collection of long term person characteristics on a low level of granularity • technically enforced deletion of profile details at regular intervals unlinkable • no collection of contact information • no collection of long term person characteristics • k-anonymity with large value of k pseudonymous 2 privacy by architecture 3 anonymous System Characteristics 6

Design of Privacy Tools Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 7

Privacy tool examples n Cookie managers n Anonymizers n Encryption tools n Disk wiping utilities n P 3 P user agents Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 8

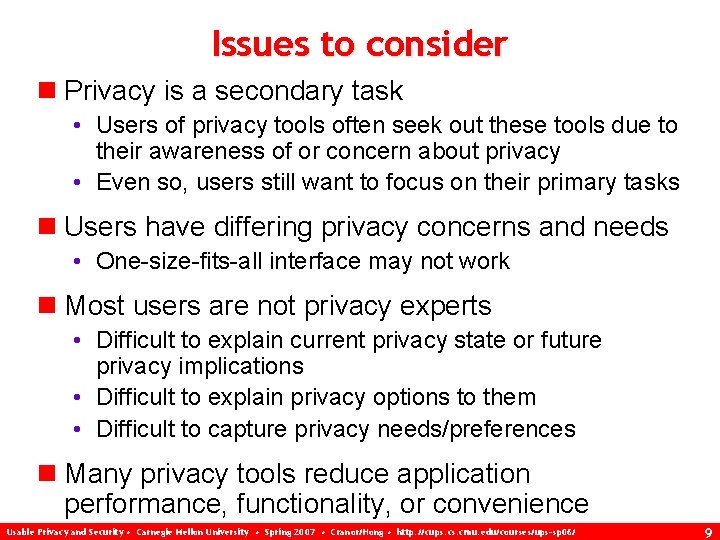

Issues to consider n Privacy is a secondary task • Users of privacy tools often seek out these tools due to their awareness of or concern about privacy • Even so, users still want to focus on their primary tasks n Users have differing privacy concerns and needs • One-size-fits-all interface may not work n Most users are not privacy experts • Difficult to explain current privacy state or future privacy implications • Difficult to explain privacy options to them • Difficult to capture privacy needs/preferences n Many privacy tools reduce application performance, functionality, or convenience Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 9

Case study: Tor n Internet anonymity system n Allows users to send messages that cannot be traced back to them (web browsing, chat, p 2 p, etc. ) n UI was mostly command line interface until recently n 2005 Tor GUI competition • CUPS team won phase 1 with design for Foxtor! Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 10

One-size-doesn’t-fit-all problem n Tor is configurable and different users will want to configure it in different ways • But most users won’t understand configuration options • Give users choices, not dilemmas n We began by trying to understand our users • No budget, little time, limited access to users • So we brainstormed about their needs, tried to imagine them, and develop personas for them n This process led to realization that our users had 3 categories of privacy needs • Basic, selective, critical n Instead of asking users to figure out complicated settings, most of our configuration involves figuring out which types of privacy needs they have Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 11

Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 12

Understand primary task n Anonymity is not a primary task n What are the primary tasks our users are engaged in when they want anonymity? n Lots of them …. Web browsing, chatting, file sharing, etc. , but we speculate that browsing will be most frequent for most users n So, instead of building anonymity tool that you can use to anonymize web browsing… n … build a web browser with built in anonymity functions Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 13

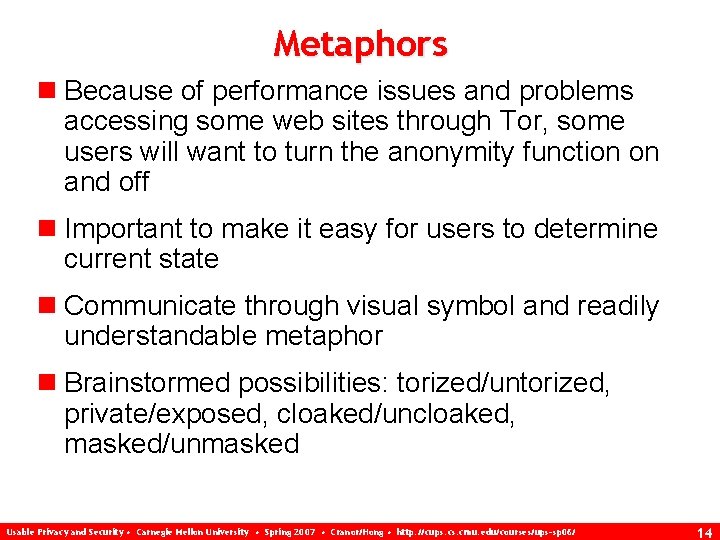

Metaphors n Because of performance issues and problems accessing some web sites through Tor, some users will want to turn the anonymity function on and off n Important to make it easy for users to determine current state n Communicate through visual symbol and readily understandable metaphor n Brainstormed possibilities: torized/untorized, private/exposed, cloaked/uncloaked, masked/unmasked Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 14

Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 15

Design for privacy in every day software Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 16

Examples n Ecommerce personalization systems • Concerns about use of user profiles n Software that “phones home” to fetch software updates or refresh content, report bugs, relay usage data, verify authorization keys, etc. • Concerns that software will track and profile users n Communications software (email, IM, chat) • Concerns about traffic monitoring, eavesdroppers n Presence systems (buddy lists, shared spaces, friend finders) • Concerns about limiting when info is shared and with whom Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 17

Issues to consider n Similar to issues to consider for privacy tools PLUS n Users may not be aware of privacy issues up front • When they find out about privacy issues they may be angry or confused, especially if they view notice as inadequate or defaults as unreasonable n Users may have to give up functionality or convenience, or spend more time configuring system for better privacy n Failure to address privacy issues adequately may lead to bad press and legal action Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 18

Amazon. com privacy makeover Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 19

Streamline menu navigation for customization 20

Provide way to set up default rules n Every time a user makes a new purchase that they want to rate or exclude they have to edit profile info • There should be a way to set up default rules Exclude all purchases shipped to my work address Exclude all movie purchases Exclude all purchases I had gift wrapped Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 21

Remove excluded purchases from profile n Users should be able to remove items from profile n If purchase records are needed for legal reasons, users should be able to request that they not be accessible online Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 22

Better: options for controlling recent history Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 23

Use personae n Amazon already allows users to store multiple credit cards and addresses n Why not allow users to create personae linked to each with option of keeping recommendations and history separate (would allow easy way to separate work/home/gift personae)? Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 24

Allow users to access all privacyrelated options in one place n Currently privacy-related options are found with relevant features n Users have to be aware of features to find the options n Put them all in one place n But also leave them with relevant features Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 25

I didn’t buy it for myself How about an “I didn’t buy it for myself” checkoff box (perhaps automatically checked if gift wrapping is requested) I didn’t buy it for myself Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 26

Other ideas for improving Amazon privacy interface? Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 27

Obtaining informed consent n Many software products contain phone home features, for example, for performing software updates or monitoring usage patterns. In some cases software phones homes quite frequently, for example, to update phishing black lists or check for fresh image files. Users may be concerned that the software company is using these features to track or profile them. Thus it is important that the software is up front about the fact that it is phoning home. Furthermore, some users may wish to disable such features or be prompted every time before they phone home (due to privacy or other concerns), whereas other users are happy to have them operate automatically. n Discuss the various approaches you have seen different software manufacturers take to addressing this problem. What do you like/dislike about them? n How should phone home features be designed so that they facilitate informed consent? Describe an example user interface design and general principles that might be applied to specific cases. n What sort of user studies should be performed to test this user interface design? Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 06/ 28
