Design for Manufacturing and Assembly Design for manufacturing

Design for Manufacturing and Assembly • Design for manufacturing (DFM) is design based on minimizing the cost of production and/or time to market for a product, while maintaining an appropriate level of quality. The strategy in DFM involves minimizing the number of parts in a product and selecting the appropriate manufacturing process. • Design For Assembly (DFA) involves making attachment directions and methods simpler. Ken Youssefi UC Berkeley 1

DFM and DFA Benefits It reduces part count thereby reducing cost. If a design is easier to produce and assemble, it can be done in less time, so it is less expensive. Design for manufacturing and assembly should be used for that reason if no other. It increases reliability, because if the production process is simplified, then there is less opportunity for errors. It generally increases the quality of the product for the same reason as why it increases the reliability. Ken Youssefi UC Berkeley 2

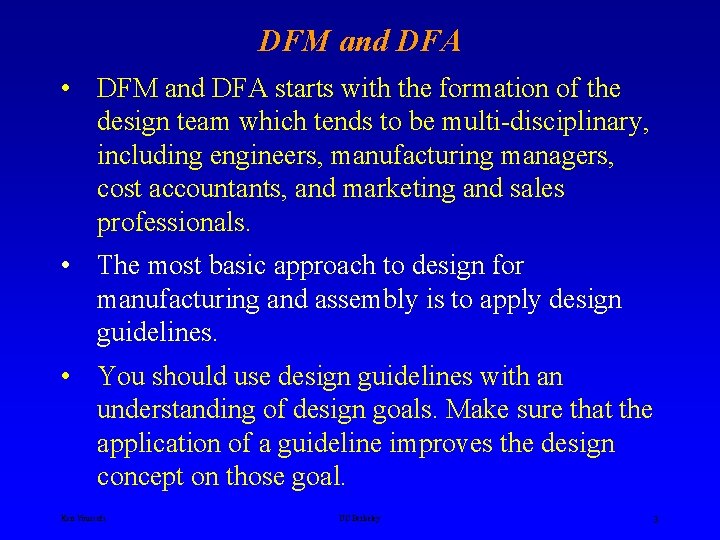

DFM and DFA • DFM and DFA starts with the formation of the design team which tends to be multi-disciplinary, including engineers, manufacturing managers, cost accountants, and marketing and sales professionals. • The most basic approach to design for manufacturing and assembly is to apply design guidelines. • You should use design guidelines with an understanding of design goals. Make sure that the application of a guideline improves the design concept on those goal. Ken Youssefi UC Berkeley 3

DFM and DFA Design Guidelines • Minimize part count by incorporating multiple functions into single parts. Several parts could be fabricated by using different manufacturing processes (sheet metal forming, injection molding). Ask yourself if a part function can be performed by a neighboring part. Ken Youssefi UC Berkeley 4

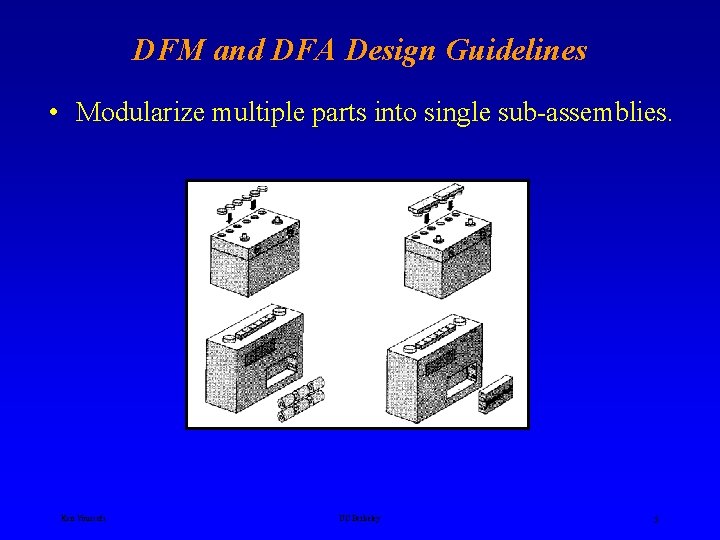

DFM and DFA Design Guidelines • Modularize multiple parts into single sub-assemblies. Ken Youssefi UC Berkeley 5

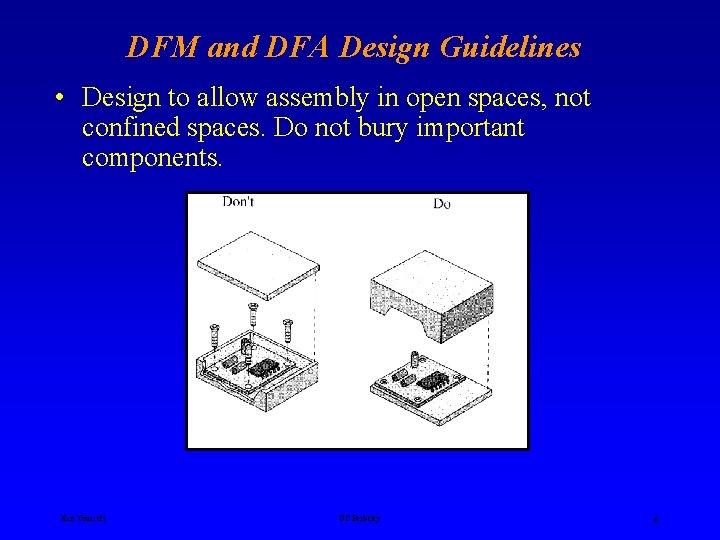

DFM and DFA Design Guidelines • Design to allow assembly in open spaces, not confined spaces. Do not bury important components. Ken Youssefi UC Berkeley 6

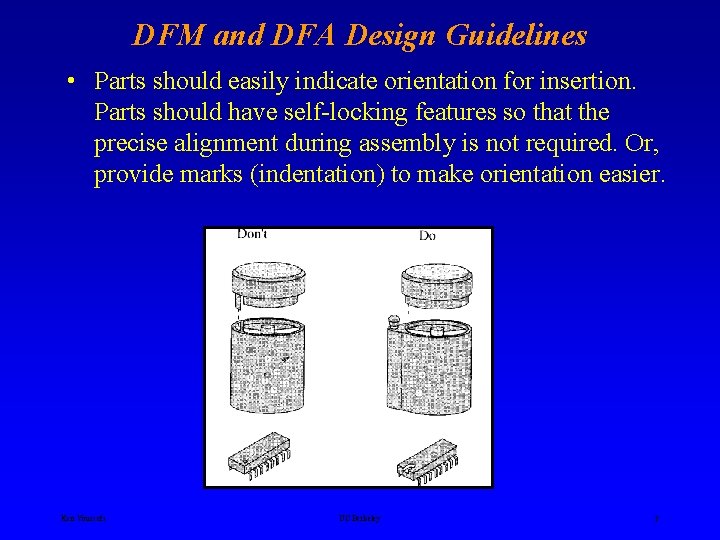

DFM and DFA Design Guidelines • Parts should easily indicate orientation for insertion. Parts should have self-locking features so that the precise alignment during assembly is not required. Or, provide marks (indentation) to make orientation easier. Ken Youssefi UC Berkeley 7

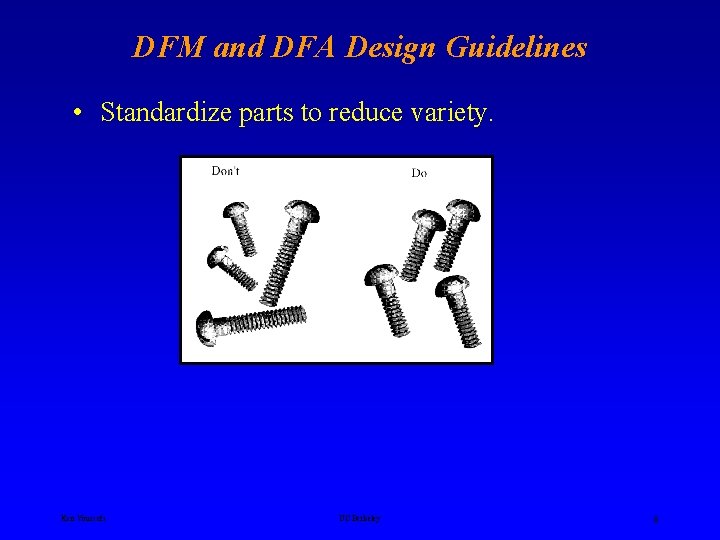

DFM and DFA Design Guidelines • Standardize parts to reduce variety. Ken Youssefi UC Berkeley 8

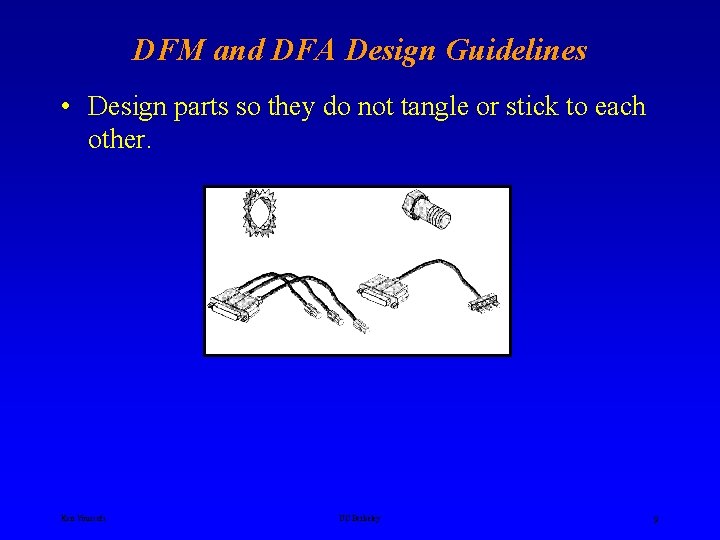

DFM and DFA Design Guidelines • Design parts so they do not tangle or stick to each other. Ken Youssefi UC Berkeley 9

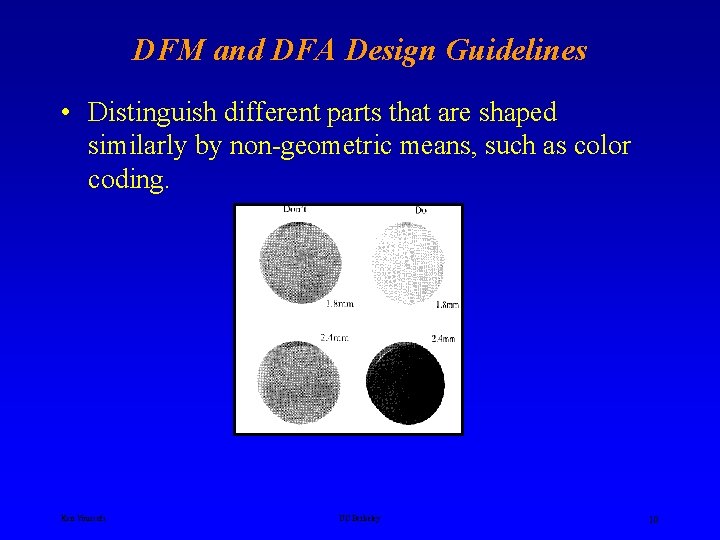

DFM and DFA Design Guidelines • Distinguish different parts that are shaped similarly by non-geometric means, such as color coding. Ken Youssefi UC Berkeley 10

DFM and DFA Design Guidelines • Design parts to prevent nesting. Nesting is when parts are stacked on top of one another clamp to one another, for example, cups and coffee lids Ken Youssefi UC Berkeley 11

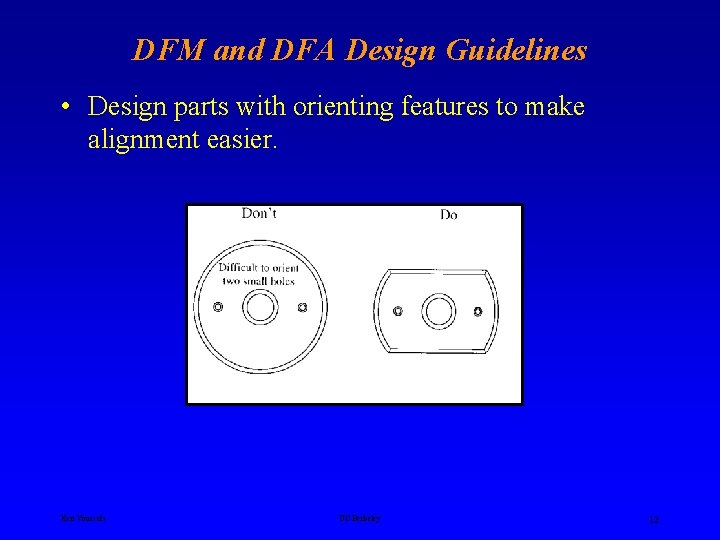

DFM and DFA Design Guidelines • Design parts with orienting features to make alignment easier. Ken Youssefi UC Berkeley 12

DFM and DFA Design Guidelines • Provide alignment features on the assembly so parts are easily oriented. Ken Youssefi UC Berkeley 13

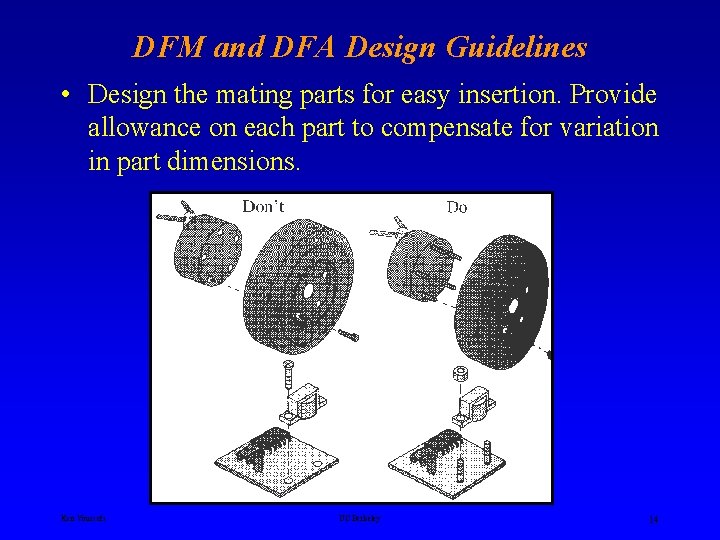

DFM and DFA Design Guidelines • Design the mating parts for easy insertion. Provide allowance on each part to compensate for variation in part dimensions. Ken Youssefi UC Berkeley 14

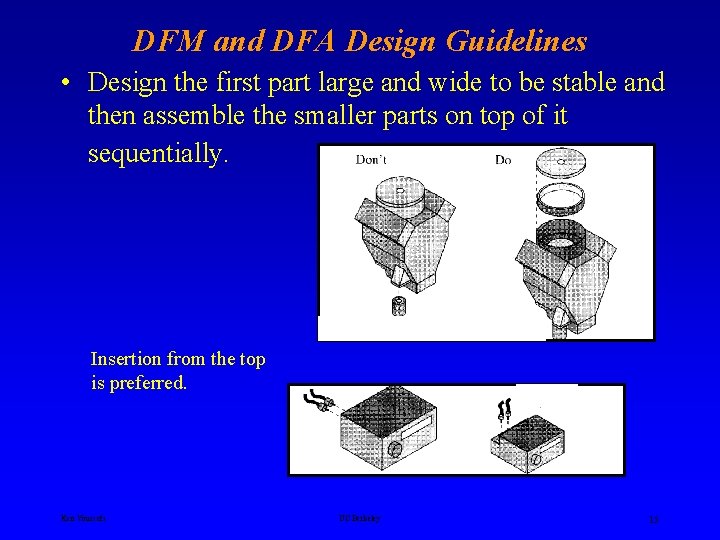

DFM and DFA Design Guidelines • Design the first part large and wide to be stable and then assemble the smaller parts on top of it sequentially. Insertion from the top is preferred. Ken Youssefi UC Berkeley 15

DFM and DFA Design Guidelines • If you cannot assemble parts from the top down exclusively, then minimize the number of insertion direction. Never require the assembly to be turned over. Ken Youssefi UC Berkeley 16

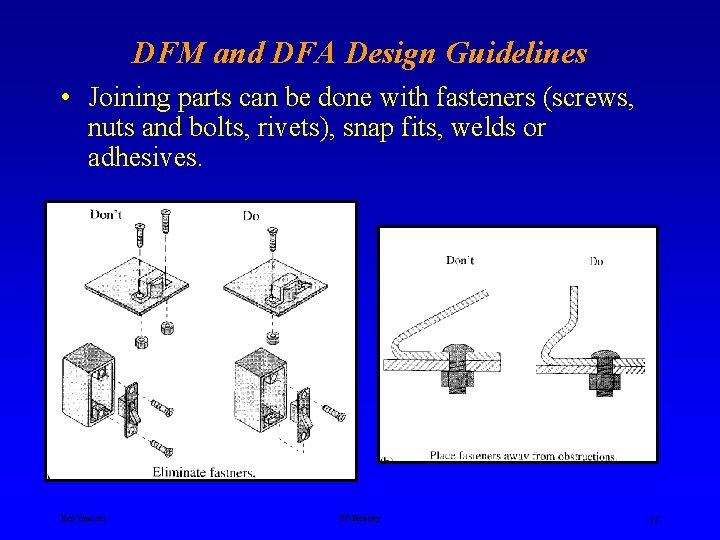

DFM and DFA Design Guidelines • Joining parts can be done with fasteners (screws, nuts and bolts, rivets), snap fits, welds or adhesives. Ken Youssefi UC Berkeley 17

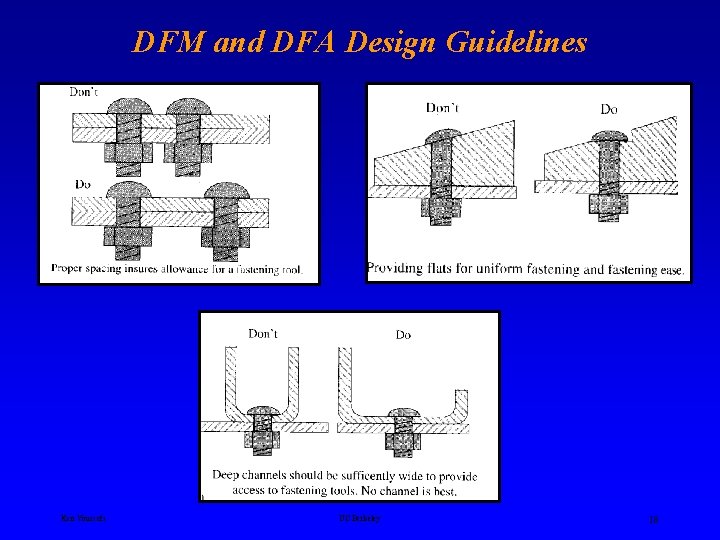

DFM and DFA Design Guidelines Ken Youssefi UC Berkeley 18

Minimizing the Number of Parts To determine whether it is possible to combine neighboring parts, ask yourself the following questions: • Must the parts move relative to each other? • Must the parts be electrically or thermally insulated? • Must the parts be made of different material? • Does combing the parts interfere with assembly of other parts? • Will servicing be adversely affected? If the answer to all questions is “NO”, you should find a way to combine the parts. Ken Youssefi UC Berkeley 19

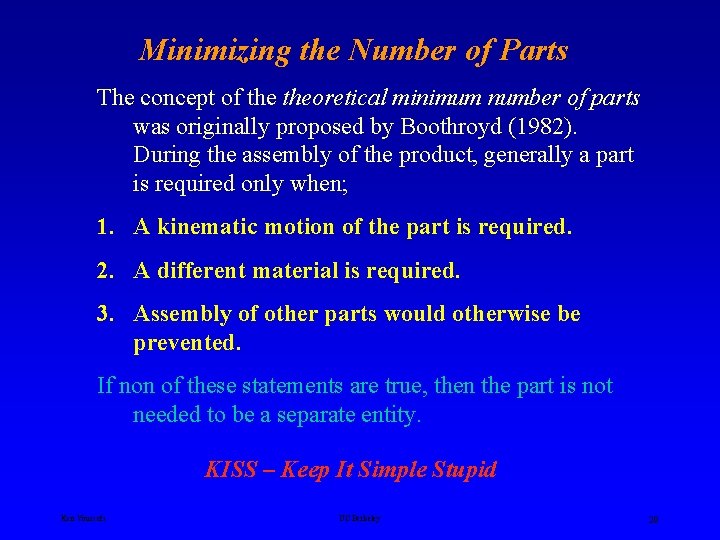

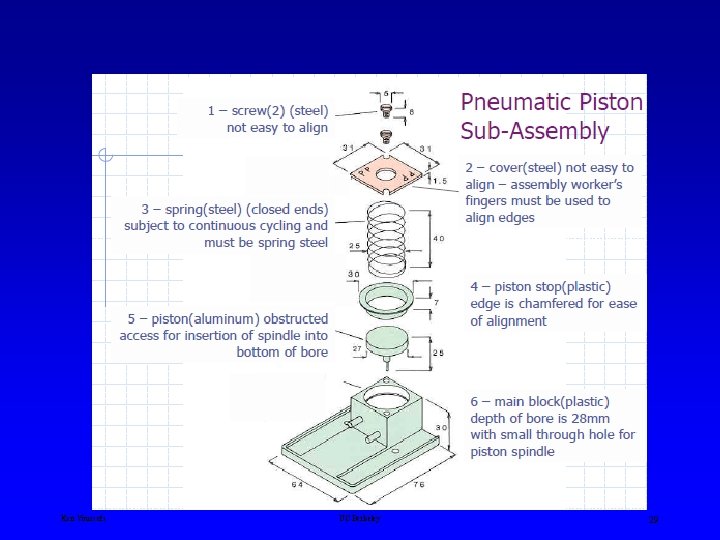

Minimizing the Number of Parts The concept of theoretical minimum number of parts was originally proposed by Boothroyd (1982). During the assembly of the product, generally a part is required only when; 1. A kinematic motion of the part is required. 2. A different material is required. 3. Assembly of other parts would otherwise be prevented. If non of these statements are true, then the part is not needed to be a separate entity. KISS – Keep It Simple Stupid Ken Youssefi UC Berkeley 20

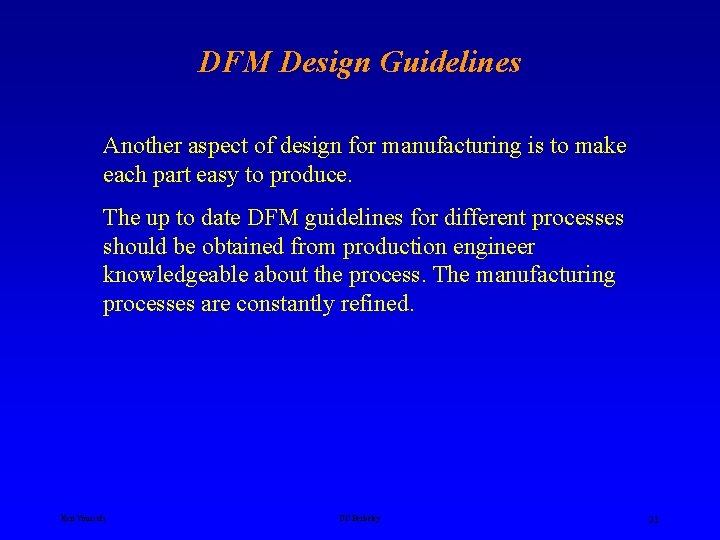

DFM Design Guidelines Another aspect of design for manufacturing is to make each part easy to produce. The up to date DFM guidelines for different processes should be obtained from production engineer knowledgeable about the process. The manufacturing processes are constantly refined. Ken Youssefi UC Berkeley 21

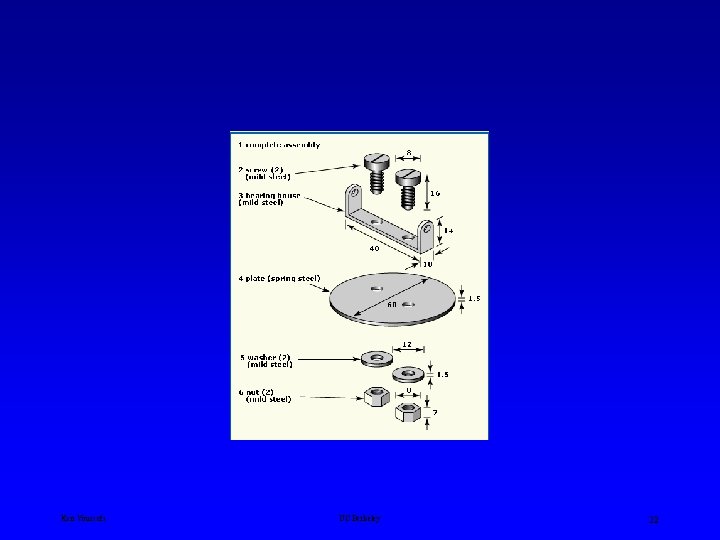

Ken Youssefi UC Berkeley 22

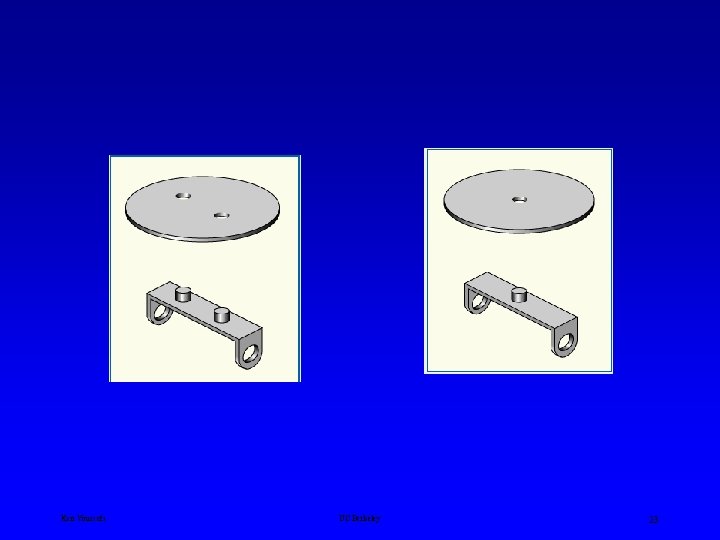

Ken Youssefi UC Berkeley 23

Ken Youssefi UC Berkeley 24

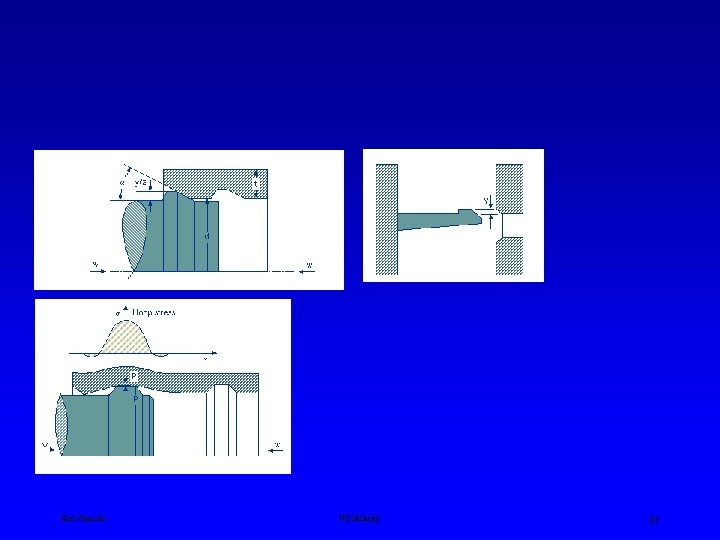

Ken Youssefi UC Berkeley 25

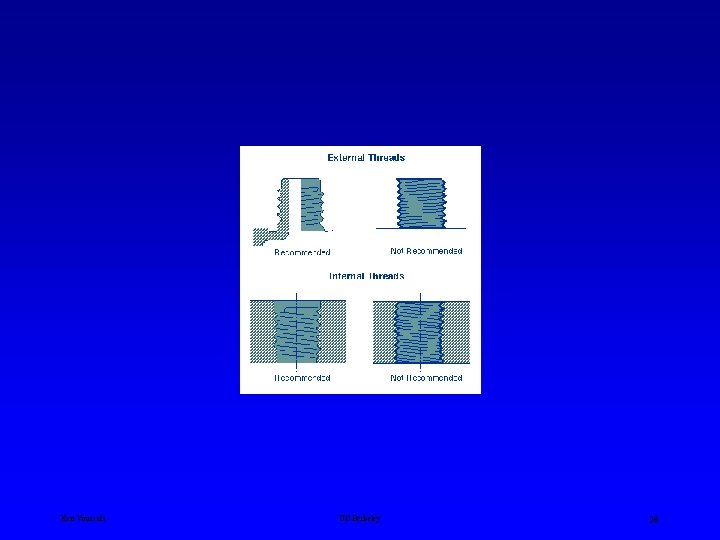

Ken Youssefi UC Berkeley 26

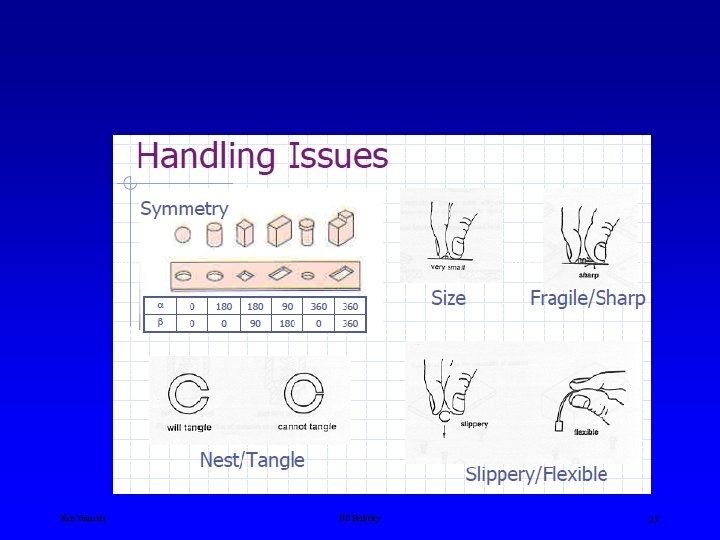

Ken Youssefi UC Berkeley 27

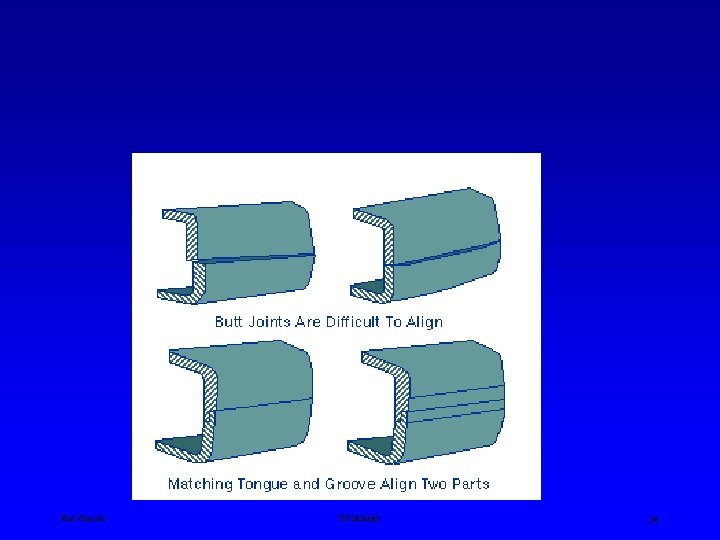

Ken Youssefi UC Berkeley 28

Ken Youssefi UC Berkeley 29

Ken Youssefi UC Berkeley 30

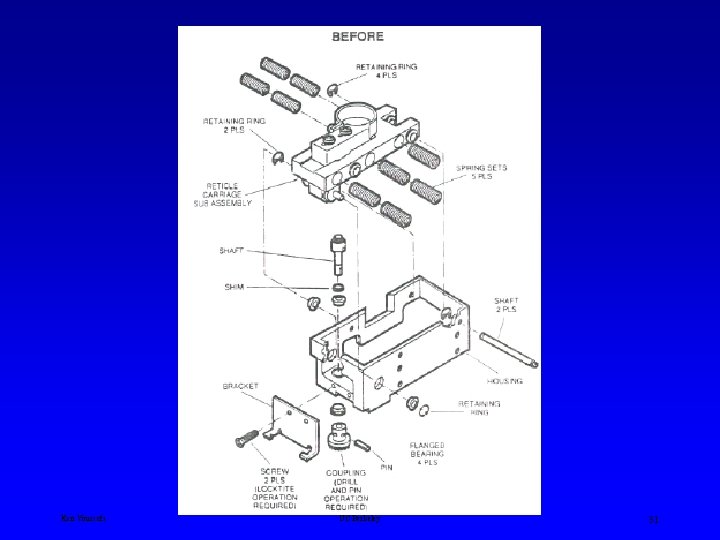

Ken Youssefi UC Berkeley 31

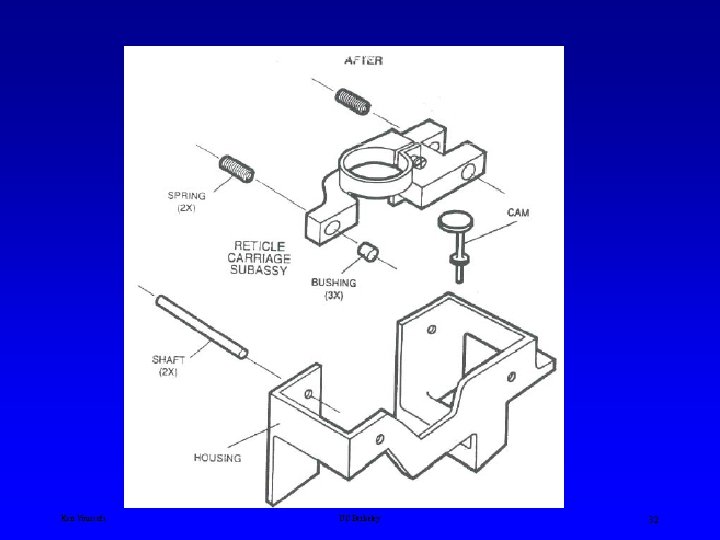

Ken Youssefi UC Berkeley 32

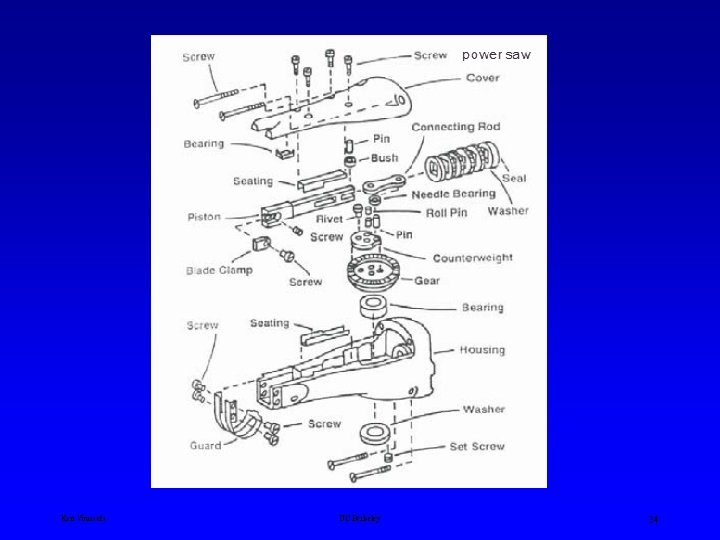

Ken Youssefi UC Berkeley 33

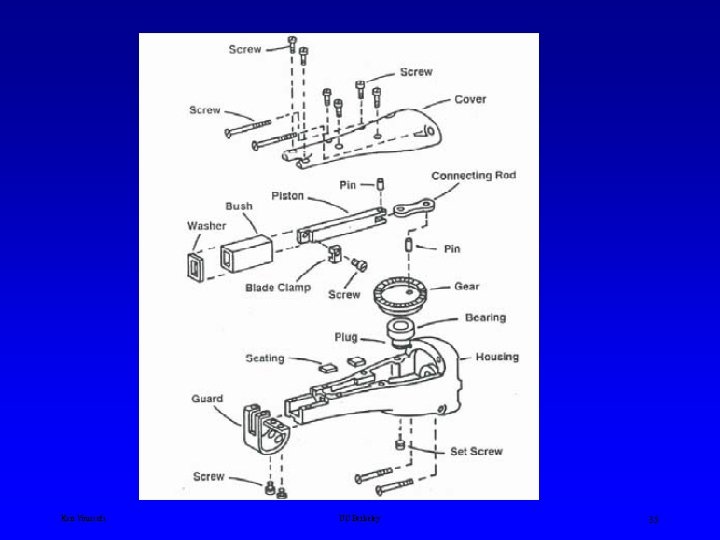

Ken Youssefi UC Berkeley 34

Ken Youssefi UC Berkeley 35

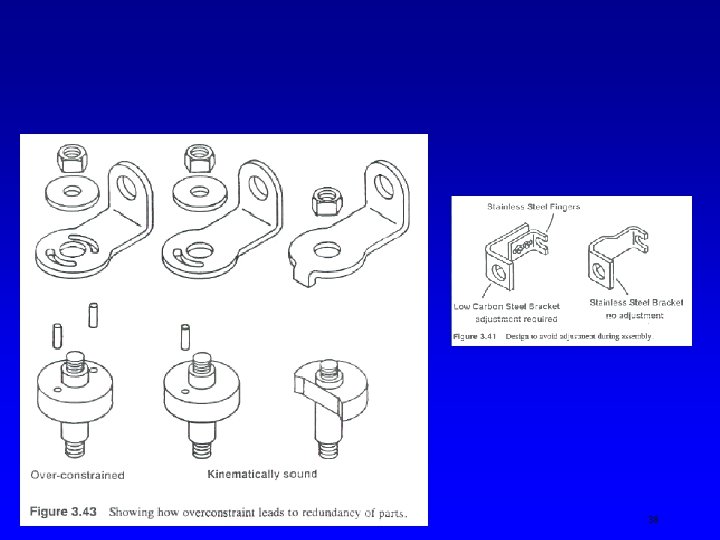

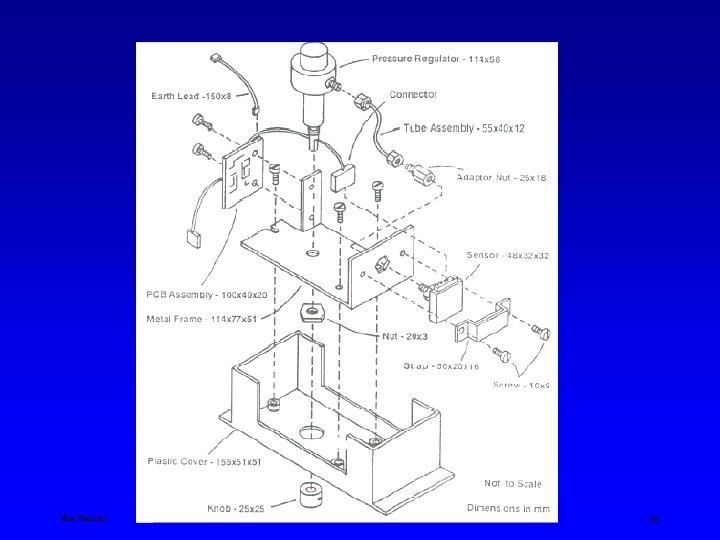

Ken Youssefi UC Berkeley 36

Ken Youssefi UC Berkeley 37

Ken Youssefi UC Berkeley 38

Ken Youssefi UC Berkeley 39

Ken Youssefi UC Berkeley 40

Ken Youssefi UC Berkeley 41

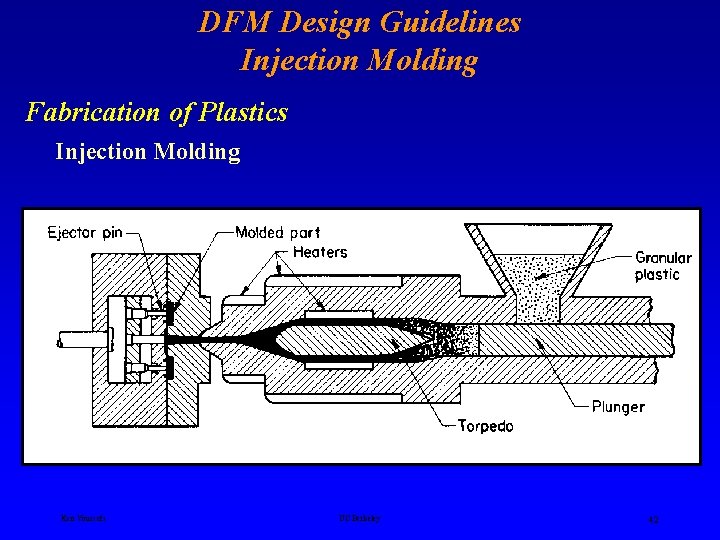

DFM Design Guidelines Injection Molding Fabrication of Plastics Injection Molding Ken Youssefi UC Berkeley 42

DFM Design Guidelines Injection Molding Provide adequate draft angle for easier mold removal. Minimize section thickness, cooling time is proportional to the square of the thickness, reduce cost by reducing the cooling time. Ken Youssefi UC Berkeley 43

DFM Design Guidelines Injection Molding Keep rib thickness less than 60% of the part thickness in order to prevent voids and sinks. Ken Youssefi Avoid sharp corners, they produce high stress and obstruct material flow. UC Berkeley 44

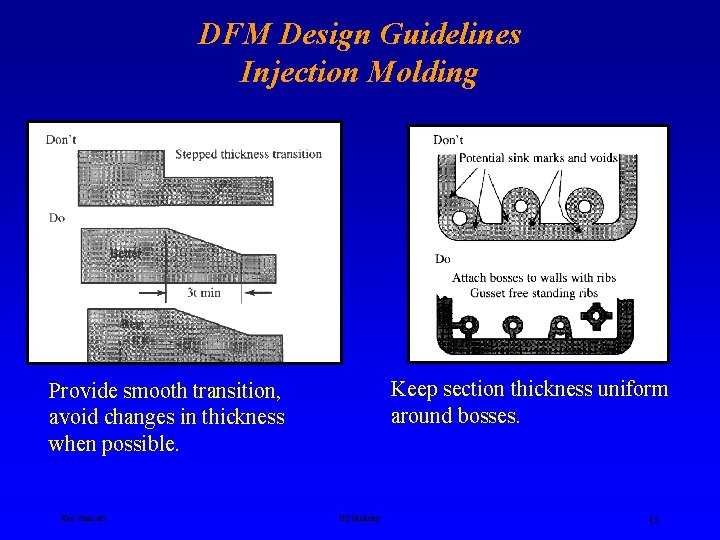

DFM Design Guidelines Injection Molding Keep section thickness uniform around bosses. Provide smooth transition, avoid changes in thickness when possible. Ken Youssefi UC Berkeley 45

DFM Design Guidelines Injection Molding • Use standard general tolerances, do not tolerance; Dimension Tolerance 0 ≤ d ≤ 25 ± 0. 5 mm 0 ≤ d ≤ 1. 0 ± 0. 02 inch 25 ≤ d ≤ 125 ± 0. 8 mm 1 ≤ d ≤ 5. 0 ± 0. 03 inch 125 ≤ d ≤ 300 ± 1. 0 mm 5 ≤ d ≤ 12. 0 ± 0. 04 inch 300 ± 1. 5 mm 12. 0 ± 0. 05 inch • Minimum thickness recommended; . 025 inch or. 65 mm, up to. 125 for large parts. • Round interior and exterior corners to. 01 -. 015 in radius (min. ), prevents an edge from chipping. Ken Youssefi UC Berkeley Standard thickness variation. 46

DFM Design Guidelines Rotational Molding Rotational molding process consists of six steps • A predetermined amount of plastic, powder or liquid form, is deposited in one half of a mold. • The mold is closed. • The mold is rotated biaxially inside an oven. • The plastics melts and forms a coating over the inside surface of the mold. • The mold is removed from the oven and cooled. • The part is removed from the mold. Ken Youssefi UC Berkeley 47

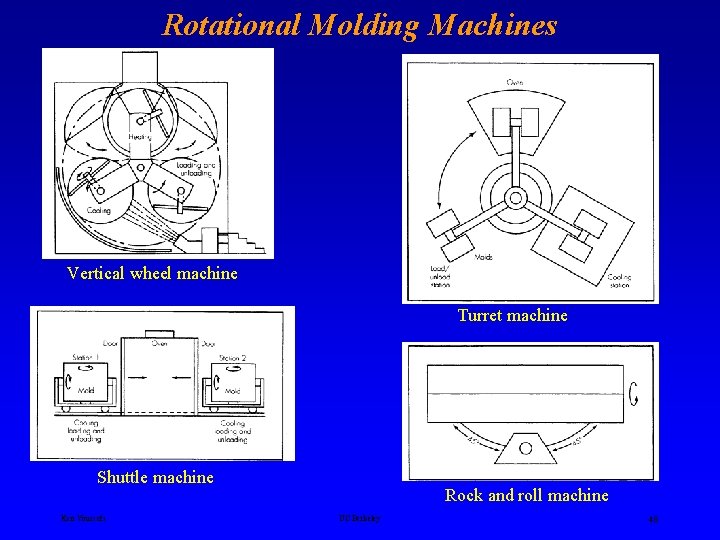

Rotational Molding Machines Vertical wheel machine Turret machine Shuttle machine Ken Youssefi Rock and roll machine UC Berkeley 48

Rotational Molding Advantages Ken Youssefi • Molds are relatively inexpensive. • Rotational molding machines are much less expensive than other type of plastic processing equipment. • Different parts can be molded at the same time. • Very large hollow parts can be made. • Parts are stress free. • Very little scrap is produced UC Berkeley 49

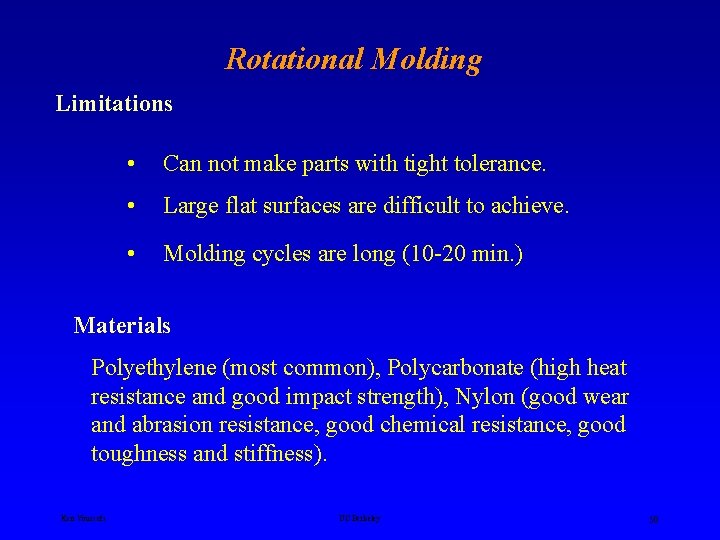

Rotational Molding Limitations • Can not make parts with tight tolerance. • Large flat surfaces are difficult to achieve. • Molding cycles are long (10 -20 min. ) Materials Polyethylene (most common), Polycarbonate (high heat resistance and good impact strength), Nylon (good wear and abrasion resistance, good chemical resistance, good toughness and stiffness). Ken Youssefi UC Berkeley 50

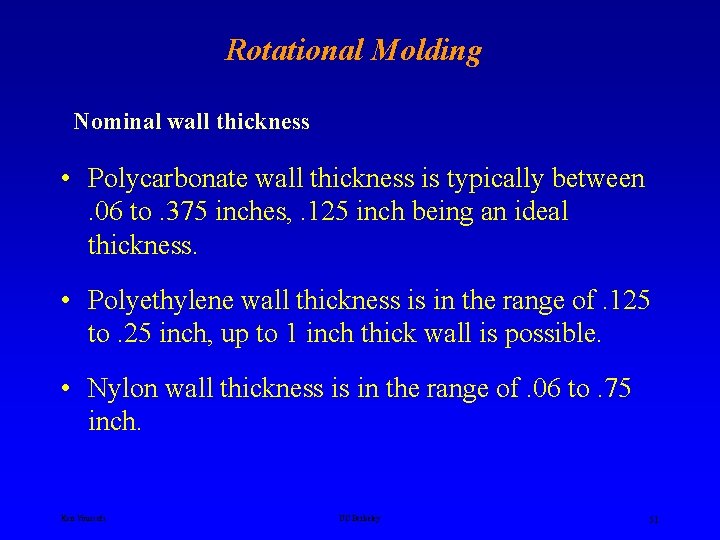

Rotational Molding Nominal wall thickness • Polycarbonate wall thickness is typically between. 06 to. 375 inches, . 125 inch being an ideal thickness. • Polyethylene wall thickness is in the range of. 125 to. 25 inch, up to 1 inch thick wall is possible. • Nylon wall thickness is in the range of. 06 to. 75 inch. Ken Youssefi UC Berkeley 51

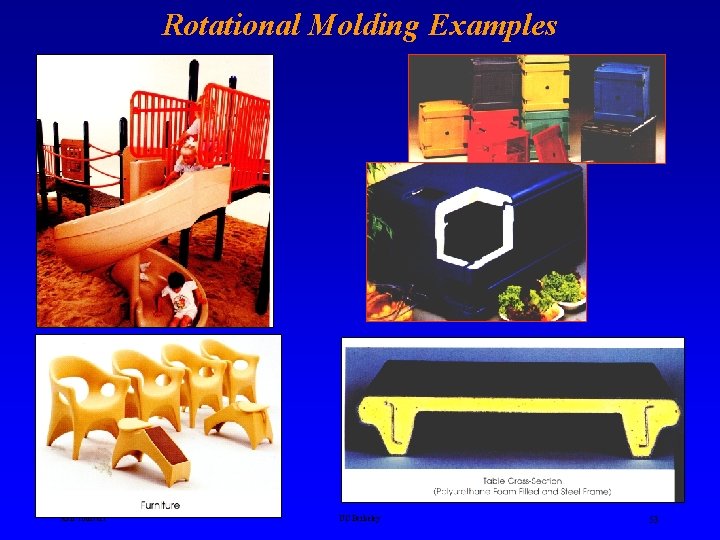

Rotational Molding Examples Ken Youssefi UC Berkeley 52

Rotational Molding Examples Ken Youssefi UC Berkeley 53

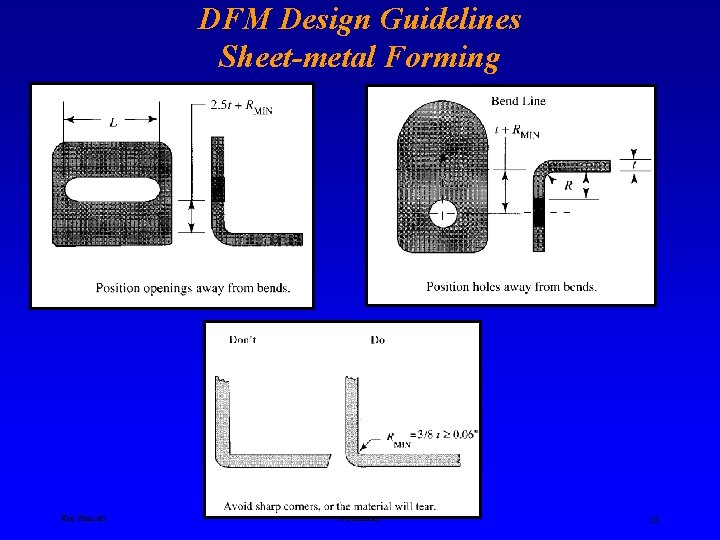

DFM Design Guidelines Sheet-metal Forming Ken Youssefi UC Berkeley 54

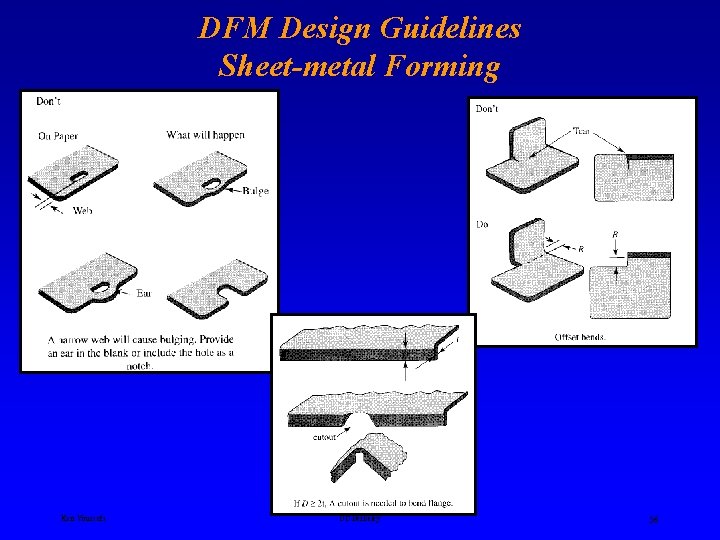

DFM Design Guidelines Sheet-metal Forming Ken Youssefi UC Berkeley 55

DFM Design Guidelines Sheet-metal Forming Ken Youssefi UC Berkeley 56

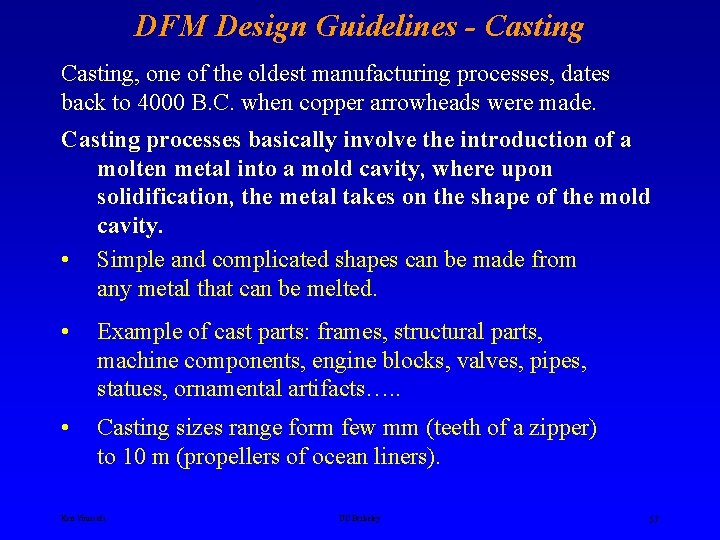

DFM Design Guidelines - Casting, one of the oldest manufacturing processes, dates back to 4000 B. C. when copper arrowheads were made. Casting processes basically involve the introduction of a molten metal into a mold cavity, where upon solidification, the metal takes on the shape of the mold cavity. • Simple and complicated shapes can be made from any metal that can be melted. • Example of cast parts: frames, structural parts, machine components, engine blocks, valves, pipes, statues, ornamental artifacts…. . • Casting sizes range form few mm (teeth of a zipper) to 10 m (propellers of ocean liners). Ken Youssefi UC Berkeley 57

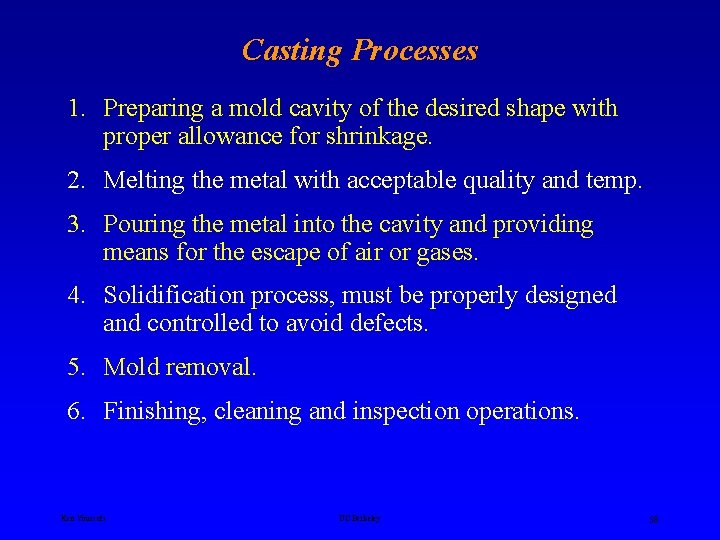

Casting Processes 1. Preparing a mold cavity of the desired shape with proper allowance for shrinkage. 2. Melting the metal with acceptable quality and temp. 3. Pouring the metal into the cavity and providing means for the escape of air or gases. 4. Solidification process, must be properly designed and controlled to avoid defects. 5. Mold removal. 6. Finishing, cleaning and inspection operations. Ken Youssefi UC Berkeley 58

Sand Casting Terminology Ken Youssefi UC Berkeley 59

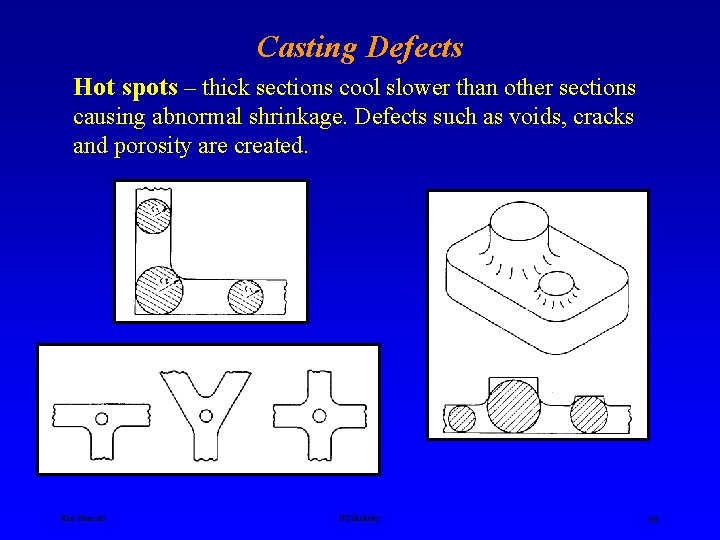

Casting Defects Hot spots – thick sections cool slower than other sections causing abnormal shrinkage. Defects such as voids, cracks and porosity are created. Ken Youssefi UC Berkeley 60

Casting Defects and Design Consideration Ken Youssefi UC Berkeley 61

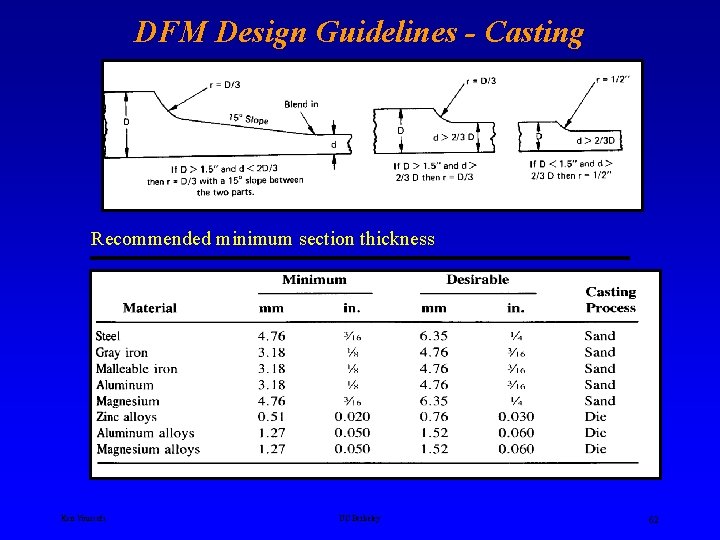

DFM Design Guidelines - Casting Recommended minimum section thickness Ken Youssefi UC Berkeley 62

DFM Design Guidelines - Casting Ken Youssefi UC Berkeley 63

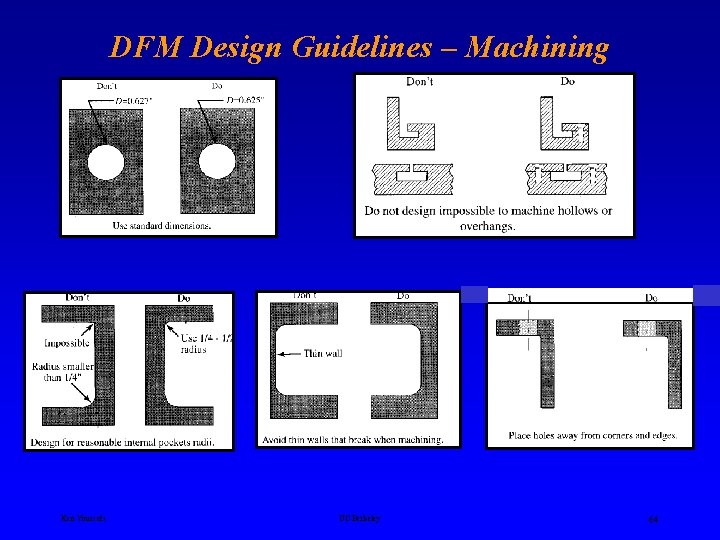

DFM Design Guidelines – Machining Ken Youssefi UC Berkeley 64
