DESIGN FOR MANUFACTURABILITY DEPARTMENT OF ELECTRICAL COMPUTER ENGINEERING
DESIGN FOR MANUFACTURABILITY DEPARTMENT OF ELECTRICAL & COMPUTER ENGINEERING

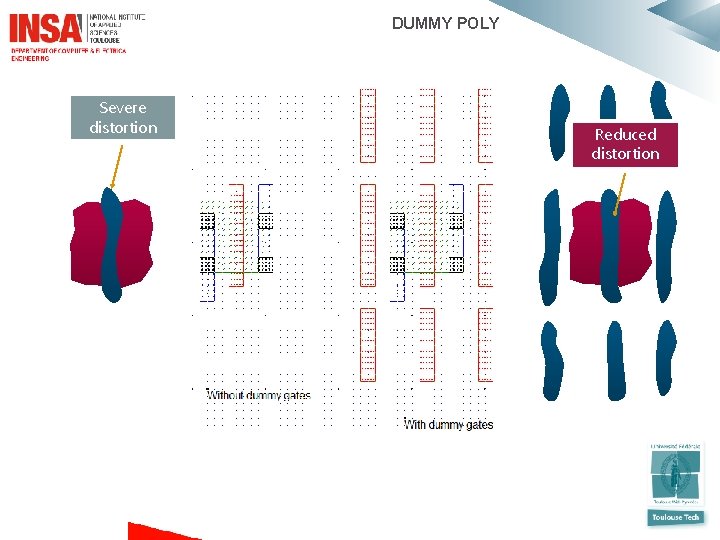

DUMMY POLY Severe distortion Reduced distortion
DUMMY POLY Dummy gates for increased manufacturability
DUMMY GATES Dummy gate Active gate Dummy gate Unused area Dummy gates induce spared silicon area Active gate
DUMMY GATES • Some nano-CMOS require 2 dummy gates per cell (Intel 14 -nm) • Shared dummy gates reduce the cell area (Intel 10 -nm) 10 nm technology leadership, KAIZAD MISTRY, TECHNOLOGY AND MANUFACTURING DAY, 2017
DUMMY GATES Active gate Shared Dummy gate Active gate
DOUBLE PATTERNING For pitch lower than 80 nm (M 2 -M 8): simple patterning For pitch lower than 80 nm (M 1 -M 2): double patterning
DOUBLE PATTERNING Initial M 1 layer 6 λ minimum pitch Bridge After fabrication in single patterning Open
DOUBLE PATTERNING 66 nm pitch M 1 patterns need double patterning First patterning Second patterning
FINFET MANUFACTURABILITY • Fins should be aligned and horizontal, regular pitch 6 (1+5) • Non-aligned fins may lead to gate distortion and current performance spread Ion Ioff

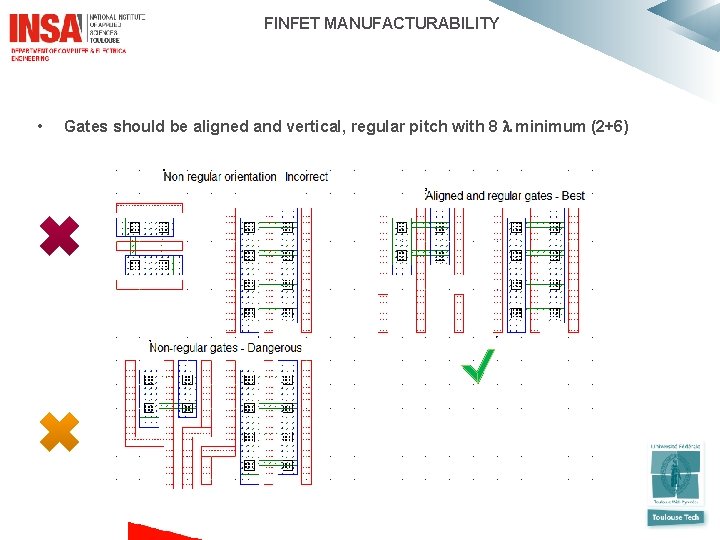

FINFET MANUFACTURABILITY • Gates should be aligned and vertical, regular pitch with 8 minimum (2+6)

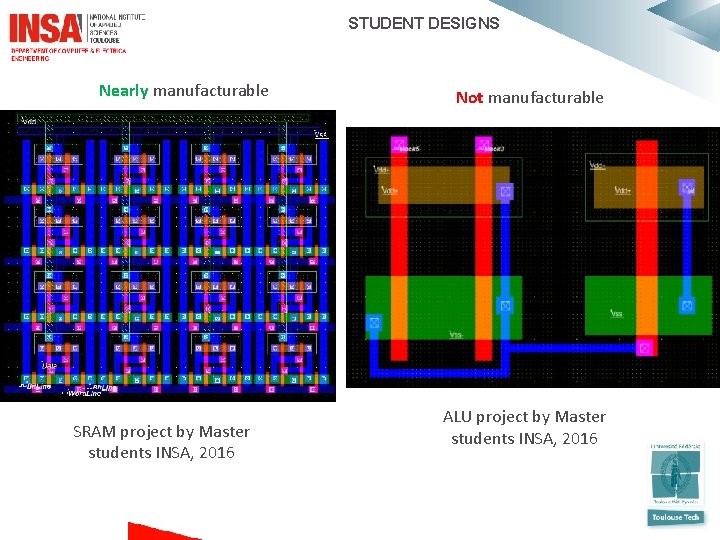

STUDENT DESIGNS Nearly manufacturable SRAM project by Master students INSA, 2016 Not manufacturable ALU project by Master students INSA, 2016
