Design Exceptions 101 Ed Fischer State TrafficRoadway Engineer

Design Exceptions 101 Ed Fischer, State Traffic-Roadway Engineer Mike Morrow, FHWA Field Operations Engineer Kent R. Belleque, Senior Interchange Engineer

Items to Cover Today • Design Exception Background • Key Items in Design Exceptions – Timelines – Evaluation Criteria – Justification – Helpful Tools • • Planning Level Design Exceptions Case Studies (Helpful Hints) Expectations from Ed and Mike Q&A

Chief Engineer’s Role • Authority for Design Standards • Outlined in Title 23 CFR 625 • Oregon Highway Design Manual (HDM) Approval of Exceptions to Standards • Delegated to State Roadway Engineer • Contact with FHWA on Process

Expectations from ODOT • Provide Enough Information that Convinces the Reviewer to Approve not Achieving the Standard Can we get to Yes?

When Should the Process Begin? • Start Discussion ASAP with ODOT • Allow Sufficient Time for Review • May also Require Approval by FHWA • Insufficient Data will Require More Time

What Should be Included? • • General Discussion on the Design Exception Evaluation of the Exception Justification Review and Approval (Tech Center and FHWA Level)

Areas of Special Note • Vertical Clearance and Motor Carrier Contact

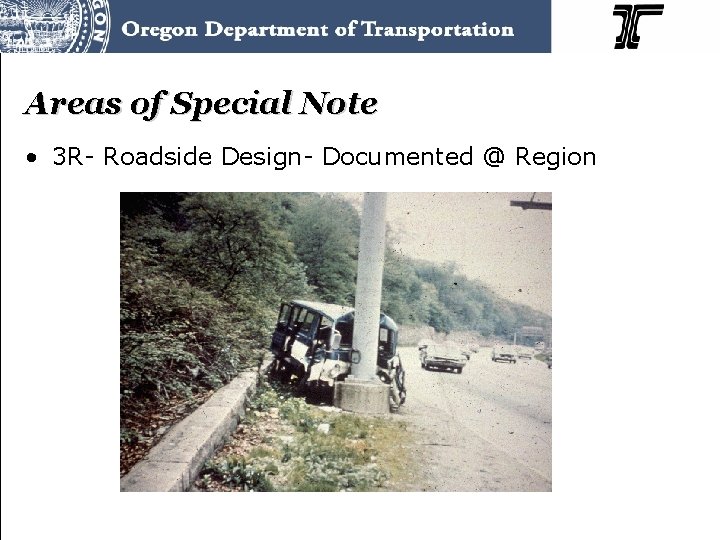

Areas of Special Note • 3 R- Roadside Design- Documented @ Region

Areas of Special Note • Form has been updated – Top 10% SPIS – Interchange Spacing

Other Available Tools • Highway Safety Analysis Tools – http: //www. oregon. gov/ODOT/HWY/TRAFFICROADWAY/highway_safety. shtml – Crash Data – SPIS/SIP – Crash Reduction Factors

Flexibility in Design-FHWA • Design Exceptions – Consideration of Safety and Operations – Consideration of Crash History and Roadway Character – Cost to Attain Full Standard and Impact on Environmental Features – Degree of Reduction • Impact on other Standards • Mitigation

Flexibility in Design-AASHTO • Similar to FHWA Guidance – Proper Justification – Crash analysis, Rationale for Exception • Stresses Importance of Documentation

Flexibility in Design- 1 R and SF • TRB Special Report 2143 R Practices • 1 R and Single Function Impact on Design Exceptions? ? ?

Design Exceptions on a National Level • Dealing with Same Issues as ODOT – Why are Design Exceptions Done? • 42%- Reduces Liability • 40%- Design Exception Documentation • Number of Exceptions Varies

NCHRP Synthesis 316 • Type of Exceptions Similar

Planning Design Exceptions • Planning Studies Need to Follow Design Standards – Design Elements Need to Meet Standard or Get an Exception – If Elements are Unknown, don't Show Specific Dimensions • Timing of Planning Design Exceptions – Construction in 5 years-Process the Exception Before Putting in Planning Document – Construction in 5 -10 years-Submit Draft Design Exception and Obtain Written Indication of Approval/Denial

Non-Design Exceptions Issues • PLA 01 -Review Process for Design Concepts on ORS 366. 215 Routes – Vehicle Carrying Capacity and Lane Reductions

Tech Services- To Do List • • Design Speed Horizontal and Vertical Angle Points 3 R- Criteria A & B Others? ?

Real Life Examples: Case 1 Specifically it is requested that the following design features not be further evaluated: horizontal alignment, vertical alignment, grades, lane width, shoulder width, bridge width and the correction of deficient bridge rails and missing ADA sidewalk features, roadway cross slopes, cut/fill/ditch slopes, access, and clear zone.

Case 2: Reasons for Not Attaining Standard

The Request: Case 3

Case 3 (Continued)

The Request: Case 4

Items to Remember • • Look at Crash Data Number and Type of Exceptions Cost by Itself is not a Good Justification Look for Ways to Mitigate – Striping – Signing – Illumination

Items to Remember • Identify Design Exceptions ASAP • Work with Design Exception Review Team in Salem – Christopher Henson Rural Roadway Engineer – Rich Crossler-Laird Urban Roadway Engineer – Kent Belleque Interchange Engineer – Dan Mac. Donald Roadside Safety Engineer – Dave Polly Standards Engineer – And Others • Allow Sufficient Time for Processing

Web Page Links • Design Exceptions – http: //egov. oregon. gov/ODOT/HWY/ENGSERVICES/ design_exceptions. shtml – Request Form Instructions – Required Signatures • Technical Bulletins – http: //egov. oregon. gov/ODOT/HWY/ENGSERVICES/ tech_bulletin. shtml

Comments from ODOT and FHWA • Ed Fischer and Mike Morrow • Q and A
