Design & Co-design of Embedded Systems The ODYSSEY Methodology: ASIP-Based Design of Embedded Systems from Object -Oriented System-Level Models Maziar Goudarzi 1

Outline • Motivation • Related Work • ODYSSEY: Theory • ODYSSEY: Implementation • ODYSSEY: Design Automation • Summary and Conclusion 2

Embedded Systems Market • Rapidly growing market – Compound Annual Growth Rate (CAGR) of 17. 3% The future of computing resides in embedded computing 3

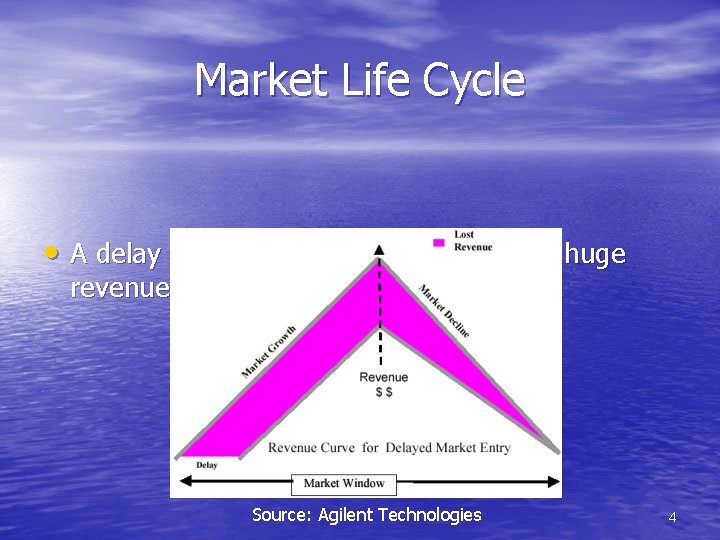

Market Life Cycle • A delay to the market window causes a huge revenue impact Source: Agilent Technologies 4

Motivation: Design Automation • Conclusion: – Design Automation Tools & Methodologies are needed for Embedded System Design • Question: – At what level of abstraction? 5

The Design Productivity Gap 6

Motivation: Electronic System-Level (ESL) design • Solution: – Raise the level of abstraction • Historical examples: – Place & route tools – Hardware description languages – Hardware synthesis • Latest suggestion: Source: Monterey Design Systems – ESL • Spans SW+HW 7

Motivation • Conclusion: – The embedded system industry is in need of ESL Design Methodologies and supporting Design Automation Tools • Question: – How to specify, implement, and validate the embedded system? 8

The First Challenge in ESL: Specification • Alternatives: – Extend HW modeling (e. g. VHDL) to SW – Extend SW modeling (e. g. Java) to HW – Use HW/SW-neutral or mathematical models (e. g. Codesign FSM) • Observations: – Software accounts for 80% of embedded system development cost [ITRS-2003] – Technology trend toward SW: • Catapult (Mentor Co. ) • Agility Compiler & DK Design Suite (Celoxica Co. ) • Cascade (Critical. Blue Co. ) 9

ESL Challenges (cont’d) • Conclusion: – Object-oriented design methodology is a reasonable answer • Questions: – What about other ESL challenges? • Implementation, verification, automation of the design • To be discussed later in the talk… 10

Thesis of this work There is scope to raise the abstraction-level of processors when designing embedded systems, and furthermore, such raise helps to address modelling, implementation, and reuse challenges in the design and designautomation of modern embedded systems. 11

Outline • Motivation • Related Work • ODYSSEY: Theory • ODYSSEY: Implementation • ODYSSEY: Design Automation • Summary and Conclusion 12

Related Work • OO used for hardware Modeling – Extensions of VHDL • Myriads of different proposals – Objective-VHDL, several flavours of OO-VHDL, SUAVE • Just a few consider synthesis – Java • HW components viewed as objects • Signals travelling among components viewed as objects – C++ • System. C • Cyn. Lib from Cyn. Apps 13

Related Work (cont’d) • OO used for hardware modeling (cont’d) – Modeling is good, but synthesis is the major concern • Major approaches to OO synthesis – – ODETTE OASE Enodia® Architecture Not in our area of work: • Wolf’s OO Co-synthesis • Matisse • j. HISC 14

The ODETTE Approach • ODETTE proposal: – View objects are Finite-State Machines (FSM) – Object attributes: FSM state variables – Method calls: FSM state transitions 15

The ODETTE Object FSM 16

Polymorphism in ODETTE 17

Analysis of ODETTE • Nice, but very high overhead – One FSM per object => High area and power overhead: O(no) – Polymorphism: Replication => High area and power overhead +Maximum potential concurrency – (Apparently) FSM => sequential method-call inside objects • Q: What if a method calls another one? • Q: How to extend to HW/SW systems? 18

The OASE Approach • OASE Proposal: – Reuse and customize behavioural synthesis techniques – Static analysis & transformation of the OO code – Converts OO constructs to non-OO ones • Access to object attributes • Non-virtual method calls • Virtual method calls (polymorphism) 19

OASE Transformation Process e Source Syntax Tree Scanner / Parser Semantic Analysis Control Flow Analysis Data Flow Analysis Concurrency Analysis Symbol Tables Control Flow Graph Output of Intermediate Format Verilog The transformation process from ‘e’ to Verilog [Kuhn et al. , DAC’ 01] 20

Polymorphism in OASE S 1 S 2 S 3 Object Reference variable Set x S 1, S 2 y S 2 z S 1, S 2, S 3 Results of static analysis switch (z) { case S 1: S 1_foo(); case S 2: S 2_foo(); case S 3: S 3_foo(); } An example in e language [Kuhn et al. , DAC’ 01] 21

Analysis of OASE • Nice extension of behavioural synthesis to OO, but still high overhead for polymorphism – Area/power overhead: O(no nmc) 22

The Enodia® Architecture • Silicon Infusion Co. (UK startup) • Enodia Proposal: – Bottom-up composition of a variety of their IP cores – An Object-Orientated So. C architecture • Patented in UK and US 23

Enodia® E 9610 product Internal architecture of Enodia E 9610 chip [Silicon Infusion Co. , 2004] 24

Analysis of Enodia® • Patent on high-performance caching • Chip architecture very similar to ours, but – uses firmware for polymorphism => performance overhead – Bottom-up approach => one manual chip design per application domain 25

Summary & Comparison ODETTE OASE Enodia Impl. Style ASIC Heterogeneous Multiprocessor Synthesis Approach Per-object method replication Static analysis + inlining Multiple objects per method impl. Language Objective-VHDL, System. C-Plus Java, System. C, e N. A. Optimization Dead-code removal object reachability N. A. Polymorphism Method replication & multiplexing Method inlining Firmware 26

Summary & Comparison (cont’d) ODETTE OASE Enodia HW-SW? Not provided Stub generation SW on multiprocessor Model of Concurrency Dynamic (de)allocation Objects invoked from processes Multiple processes in modules N. A. Not supported Supported 27

Summary & Comparison (cont’d) • Major shortcomings 1. 2. 3. 4. 5. Viewing objects as structural components Too verbose languages Unacceptable area/power overhead No or unclear path toward HW-SW system HW designers’ reluctance to OO – Object-oriented Design and s. Ynthe. Si. S of Embedded s. Ystems • We propose ODYSSEY 28

Outline • Motivation • Related Work • ODYSSEY: Theory • ODYSSEY: Implementation • ODYSSEY: Design Automation • Summary and Conclusion 29

ASIP vs. ASIC Source: K. Keutzer, S. Malik R. Newton, “From ASIC to ASIP: The Next Design Discontinuity”, ICCD, 2002 Application-specific instruction-processors (ASIPs) are replacing ASICs 30

OO-ASIP: Object-Oriented ASIP • Our proposal: – Let methods of a class library be the instruction-set of a processor The class library A i: int f() g() B c: char f() h() C f: float a 1 Data Memory The OO-ASIP b 1. h() b 1 a 2. g() a 2 ap->f() g() k() Instruction Memory 31

OO-ASIP vs. Traditional Processors • OO-ASIP for int/float = a traditional processor • Differentiating features – OO-ASIP instructions can call one another – OO-ASIP instructions can be implemented in software as well as in hardware – Big instructions ÞIndependent execution units for each HW instruction ÞDynamic power management by de-activating not-running instructions & Dynamic area management by caching most-recently-run instructions – OO-ASIP implements polymorphism in hardware 32

OO-ASIP vs. Other ASIPs • Typical ASIP-design flow Applications and Design Constraints Application Analysis Architectural Design-Space Exploration Instruction-set generation Code Synthesis Hardware Synthesis Object code Code Source: M. K. Jain, M. Balakrishnan, A. Kumar, “ASIP Design Methodologies: Survey and Issues”, VLSI-Design Conf. , 2001. • Disadvantage – No guarantee to suit future different (but related) applications • OO-ASIP: future related apps. shall use today class lib. 33

Design-Space Represented by OO-ASIP Given an OO application with No objects Implementation by a traditional processor Number of objects per OO-ASIP No OO-ASIP 2 1 All HW ODETTE implementation All SW Style of methods (HW or SW) 34

Design Flow using OO-ASIPs OO-ASIP Design Flow OO-ASIP Reuse Flow Disciplined Benchmarking (OO-ASIP, HW Class Lib. ) Choose suitable class lib. Database Hardware Class lib. HW class lib. Model+verify the App. OO-ASIP Synthesis The OO-ASIP Data memory OO-ASIP Compile toward the ASIP Instr. memory 35

Design Flow using OO-ASIP: Another View Application SW Model Software C++ ASIP ISA: Hardware In Obj sta ec nti t ati ASIP Programming on Path f, g, k System. C (C++) ASIP Synthesis Path Hardware Class Lib. D DD Software Class Lib. A f() h() f() g() h() B k() BB C System Class Lib. ASIP Hardware 36

Programming the OO-ASIP • Requirements on the OO-ASIP compiler – Retargetable to various OO-ASIPs – Retargetable to various processor cores – Capable of early hardware-software co-validation • Our solution: – Source-to-source transformation 37

38

The ODYSSEY Ultimate Goal • The ODYSSEY target chip: FPGA-like array of OO-ASIPs • Interconnection: – Packet-routing network – Motivation: • Network-on-Chip viewed as future paradigm in DSM technologies ODYSSEY System-Synthesizer On-Chip network of OO-ASIPs OO-ASIP 1 router OO-ASIP 2 OO-ASIP 3 router Processor OO-ASIP 4 router Processor 39

Outline • Motivation • Related Work • ODYSSEY: Theory • ODYSSEY: Implementation • ODYSSEY: Design Automation • Summary and Conclusion 40

A Simple OO-ASIP Architecture Functional Units (FUs) Implementation A Traditional Processor B: : f() routine B f() g() f() h() of A: : f() To Data Memory Implementation Object Management Unit (OMU) of A: : g() Implementation of B: : h() The OO-ASIP Method Invocation Unit (MIU) From Instruction Memory VMT OTT 41

Case Study 1: Traffic-Light Controller traffic_light status: int elapsed_time: int open() close() timekeeper() farmroad_light highway_light fixed_green: int min_green: int open() close() All methods implemented in hardware 42

Case Study 1: Traffic-Light Controller Values reported by Leonardo. Spectrum tool over a sample 0. 5 um process 43

Case Study 1: Traffic-Light Controller 15% reduction 20% reduction Values estimated by Synopsys Power. Compiler tool over a 1 um process with 5 V operating voltage 44

Analysis of the Architecture • Area/Power management – Static (application-specific) policy – Dynamic (application-independent) policy • Polymorphism overhead – Performance improved by HW MIU – Area/power overhead still present 45

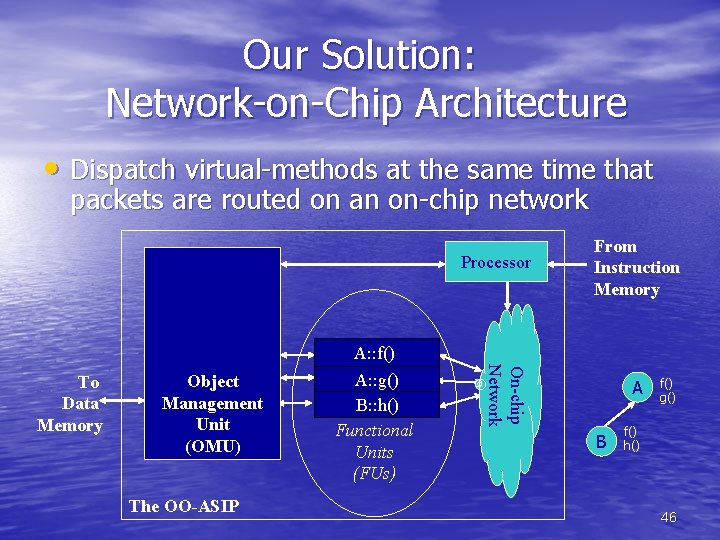

Our Solution: Network-on-Chip Architecture • Dispatch virtual-methods at the same time that packets are routed on an on-chip network Processor Object Management Unit (OMU) The OO-ASIP On-chip Network To Data Memory A: : f() A: : g() B: : h() Functional Units (FUs) From Instruction Memory A B f() g() f() h() 46

No. C: Network-on-Chip • No. C emergence: – Fully synchronous designs not feasible anymore – Unreliable communication in very deep submicron technologies (90 nm and beyond) – Solution: leverage computer networks and protocols for communication inside chips – No. C seems unavoidable Reference: L. Benini, G. De. Micheli, “Networks on Chips: a New So. C Paradigm, ” 47 IEEE Computer, 35(1): 70 -78, 2002.

Ordinary-Method Dispatch by Network Routing • FU-identifier: FU=<method. class> • Object-identifier: object=<class. num> • Method call = invoke a method on an object <method. object> = <method. <class. num>> = <<method. class>. num> = <FU. num> = Packet destined to the node addressed FU 48

Virtual-Method Dispatch by Network Routing • To dynamically bind a method call (e. g. objp->method(params) in C++) 1. Assemble a packet as <method, objp, params> 2. Send it over the on-chip network 3. The (probable) return value is sent back as another packet 49

Case Study 2: A Codec Engine data_block data[20]: byte Hardware methods Software methods print() encode() decode() xor_encoded_data swap_encoded_data cypher: byte convert_char(byte) encode() decode() swap(byte, byte) encode() decode() 50

Case Study 2: Implementation in System. C 51

Outline • Motivation • Related Work • ODYSSEY: Theory • ODYSSEY: Implementation • ODYSSEY: Design Automation • Summary and Conclusion 52

Input-Output Correspondence Class definition attributes HW-methods SW-methods main() function System Model (C++) The OO-ASIP Object-Management Unit (OMU) Processor Module thread__main() HW-method implementation SW-method implementation on-chip network System Implementation (System. C) 53

Big Picture of Tool Flow OO-ASIP System Model (C++) Synthesis HW-method Transformations Parsing + Analysis Partitioning HW-structure generator System-level Synthesis OO-ASIP Compilation SW-method Transformations SW-structure generator Hardware (System. C) Instr-set extenstions Software (C++) System. C Synthesis Traditional Processor C++ Compiler Gate-level HW Binary SW Final System Downstream Synthesis 54

HW-SW Co-simulation Model HW-method Transformations System Model (C++) Parsing + Analysis Partitioning HW-structure generator Co-simulation model System-level Synthesis SW-method Transformations SW-structure generator Hardware (System. C) Instr-set extenstions Software (C++) System. C Synthesis Traditional Processor C++ Compiler Gate-level HW Binary SW Final System Downstream Synthesis 55

Experiments on Co-simulation Performance* * All experiments done on a Celeron 2. 0 GHz processor with 256 MB of RAM ** Worst-case assumed: All methods are implemented in hardware 56

Analysis of Experimental Results • High MC/sec. = High Communication/Computation ratio = Most of the time spent in comm. instead of comp. = Potentially low performance in final implementation • Conclusion: – Low co-simulation performance ~ Potentially low final performance => Hint to the designer: Decrease comm. /comp. time (e. g. by combining methods) 57

Outline • Motivation • Related Work • ODYSSEY: Theory • ODYSSEY: Implementation • ODYSSEY: Design Automation • Summary and Conclusion 58

Summary • An ESL design methodology for embedded systems was – – – developed implemented automated – – – The design methodology The raise in abstraction-level of processor ISA The OO-ASIP processor • The main thrusts: 59

Further Research • Currently going-on: – Case studies on real-life industrial apps. • JPEG codec (Morteza Najaf. Vand) • MPEG decoder (Naser Mohammad. Zadeh) – Object-aware cache – – – • Application-specific data prefetching in hardware (Mehdi Modarressi) Synthesis of a Multiprocessor OO-ASIP (Hani Javan. Hemmat) RT-Level co-simulation (Ms. Zeinolabedini) Using IP-Cores in OO-ASIPs (Ms. Hashemi) Fault-Tolerance by software standby sparing Assertion-based verification • A few others – – – Application-specific memory synthesis for OO-ASIP Fault-tolerance by dynamic reconfiguration using polymorphism Multithreaded OO-ASIP 60

Conclusion There is scope to raise the abstraction-level of processors when designing embedded systems, and furthermore, such raise helps to address modelling, implementation, and reuse challenges in the design and designautomation of modern embedded systems. 61
