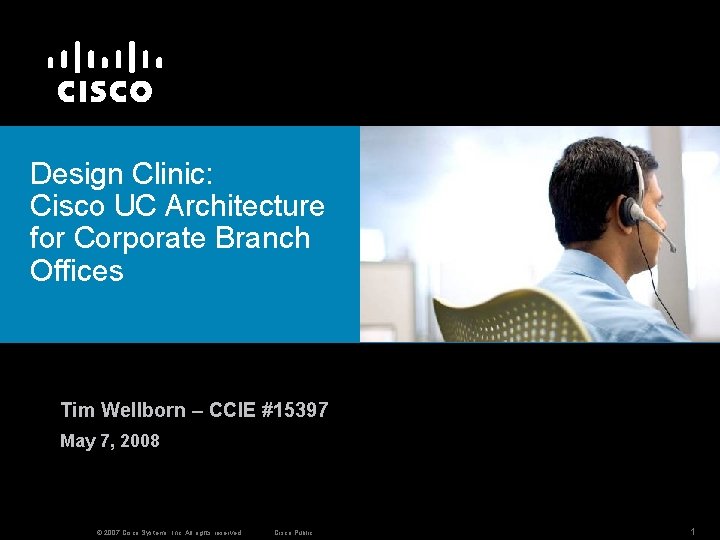

Design Clinic Cisco UC Architecture for Corporate Branch

Point of this Session: Two solutions – Same destination © 2007 Cisco Systems, Inc.

Agenda Customer Scenario “Standalone” Approach “Centralized” Approach Summary © 2007 Cisco Systems, Inc. All

Primary Focus § Voice (Call Control) § Voicemail © 2007 Cisco Systems, Inc. All

Customer Scenario § Branch Offices “X” number of sites – might acquire 10 more 12 – 75 people each Couple just 2 users Fax or two, some analog trunks, larger sites have PRI § Corporate IT/Telecom (help) manage branch systems § Standardize (features, components) § “ 4 -digit” dialing § Lower Costs / Reduce Long-Distance § Migration – Slow rollout Interoperate w/ HQ PBX © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 5

Devil’s in the details § High level requirements can mean more than one thing § Nip “ 4 -digit” dialing now – look to Universal Dial Plan § How standard? Literally one-size fits all or just similar technology? § Willing to adjust WAN/other to support Voice goals? § Interop – define please © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 6

More devilish details § Call Control Single PBX? Or networked independent? § Voicemail All on central? Or each site have own Voicemail? § If each have own – still be able to transfer/forward to central? Between branches? § Network with legacy VM at HQ? We’ll explore above © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 7

Approach One © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 8

Approach One § Per site Voice and Voicemail § Cisco Unified Communications Manager Express

How CUCME/CUE fits criteria § “Buy as you grow” § Leverage H. 323 for inter-site calling § Can use variety of ISR sizes – still ‘standardized’ § CUE for per-site VM § Remote management by central support team § Use Voice Gateway to connect to HQ PBX © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 10

CUCME/CUE - Step One • 1861/2800/3800 size to # phones BRANCH “A” 1861 (8) to 3845 (250) • Local phones • PSTN trunks Analog VIC PRI VWIC • CUE licensed for # mailbox AIM-CUE PSTN FAX NME-CUE © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 11

CUCME/CUE – Add branch BRANCH “B” BRANCH “A” CUCME/CUE Voice/Data Network PSTN FAX • Configure dial-peers so can call each other • Separate Voicemail © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 12

CUCME/CUE – Add HQ BRANCH “B” BRANCH “A” CUCME/CUE Voice/Data Network PSTN FAX WAN router • More dial-peers • Still separate VM © 2007 Cisco Systems, Inc. All rights reserved. V Voice Gateway Cisco Public Voice HEADQUARTERS 13

Directory Gatekeeper - Network Scaling Small Network - simplified with a Gatekeeper Small Network - Gateways only Medium Network - Multiple Gatekeepers Gateway © 2007 Cisco Systems, Inc. All rights reserved. Gatekeeper Cisco Public Medium-Large Network - Multiple Gatekeepers and a Directory Gatekeeper 14

H. 323 With RAS Registration, Admission and Status Gatekeeper Address Translation: Every GW needs to know only about the GK, not about all other GWs H. 22 5 CUCME A RA P) S D 5 IP Qo. S Network (U 2 U DP. 2 S ( H A ) R H. 225 (Q. 931) Call Setup (TCP) System B H. 245 Call Control (TCP) RTP (UDP) © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 15

Fancy Stuff Voice Networking § Make dialplan manageable § Provide redundancy to dialplan component SOLUTION: Cisco Gatekeeper Voicemail Networking § Network CUE systems § Network w/ central Avaya SOLUTION: Cisco Unified Messaging Gateway © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 16

Cisco Unified Messaging Gateway Messaging Challenges Today Cisco Unity Connection CUE with SRST or CME Cisco Unified Messaging Gateway Solution CUE with SRST or CME Cisco Unity CUE with SRST or CME Cisco Unity Cisco ISR with CUE with SRST or CME UMG Each UMG Scales up to 1, 000 CUE’s Unified Messaging Network Central CUE (Upto 10 sites) CME § Hub in a unified messaging network, centralizes message routing and rules § Supports all Cisco Unified Messaging solutions § Enables scaling of a unified messaging network as required by branch offices or enterprises § Simplifies configuration and management tasks § Helps customers migrate from legacy voicemail systems to Cisco Unified Communications solutions © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 17

CUCME/CUE “Final” Solution BRANCH “B” BRANCH “A” CUCME/CUE Voice/Data Network PSTN FAX • Build Slow • Dial anyone • Share VM FAX WAN router V UMG • Manage centrally © 2007 Cisco Systems, Inc. All rights reserved. Voice GK Voice Gateway Cisco Public HEADQUARTERS 18

OPTION - CUCME with centralized voicemail BRANCH “B” BRANCH “A” CUCME Voice/Data Network PSTN FAX WAN router Unity or UConn Voice CUCME MWI Relay © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public HEADQUARTERS 19

Approach Two © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 20

Approach Two § Cisco’s Centralized Call-processing model § Cisco Unified Communications Manager § Cisco

How CUCM / Unity (or UConn) fit Criteria § Single PBX § “single” point of mangement § Any call any (unless configured not to) § Simpler dialplan management (dialplan itself still pain) § Single VM for everyone § Easy to integrate voice to 3 rd-party PBX, or number of them § More 3 rd-party voicemail integrations. © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 22

CUCM/Unity - Step One • CUCM • Unity BRANCH “A” • 1861/2800/3800 size to # phones 1861 (8) to 3845 (250) • Local phones Voice/Data Network • PSTN trunks Analog VIC PSTN PRI VWIC © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public FAX 23

CUCM/Unity – Add branch Move/Add/Change to add a site BRANCH “B” BRANCH “C” BRANCH “A” V Voice/Data Network PSTN FAX • Can drop in remote by adding phones • Add gateway as/when needed © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 24

CUCM/Unity – Integrate HQ BRANCH “B” BRANCH “A” Voice/Data Network PSTN FAX Voice Gateway

CUCM/Unity – Build Out HQ Add phones at HQ BRANCH “B” BRANCH “A” Voice/Data

CUCM/Unity – “Final” Solution BRANCH “B” BRANCH “A” Voice/Data Network PSTN FAX Voice Gateway

What about use existing VM only? § Not really possible with CUCME No SMDI – low chance QSIG (no release transfer) § For CUCM have following options 1) Dual connect 3 rd-party VM 1) Box not likely to be set up for dual integration 2) Use QSIG link from CUCM to PBX © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 28

Criteria that immediately drive Centralized § True UM Requires Unity w/ customer’s Exchange or Notes Does not require centralized CUCM § Company-wide Presence Requires centralized CUCM w/ CUP § “agents any location” Contact Center Requires centralized CUCM and UCC Express or Enterprise, possibly CVP © 2007 Cisco Systems, Inc. All rights reserved. Cisco Public 29
