DESIGN by Derecktor and DAMEN have entered a

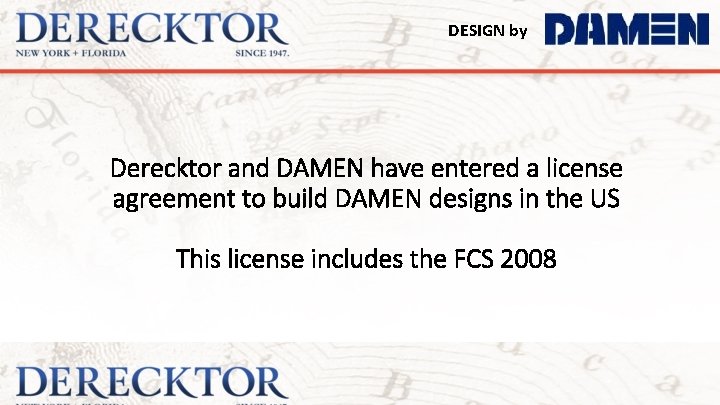

DESIGN by Derecktor and DAMEN have entered a license agreement to build DAMEN designs in the US This license includes the FCS 2008
FAST CREW SUPPLIER 2008 2 August 2008
“TWIN AXE” WORKBOAT FOR WINDFARM MAINTENANCE Twin Axe hull shape • Excellent seakeeping - Large wet deck clearance - Round tunnel shape - Cut-out in foredeck • Low resistance Deck lay-out • Fore and aft work deck with cargo carrying capacity • Wide and light superstructure aft for crew comfort

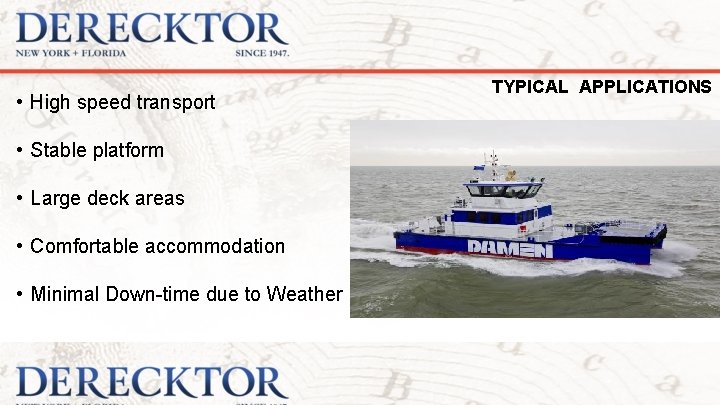

• High speed transport • Stable platform • Large deck areas • Comfortable accommodation • Minimal Down-time due to Weather TYPICAL APPLICATIONS
Based on Catamaran-version of “Damen Sea Axe” • Five years research with: - Delft University - Royal Netherlands Navy - Maritime Research Institute - US Coast Guard • Compared to conventional ships: - Peak accelerations 50% to 75% less - Flat water resistance 10 -15% less - Added resistance in waves 60% less • “Sea Axe” ships: - > 100 in service - ± 40 under construction TWIN AXE TECHNOLOGY

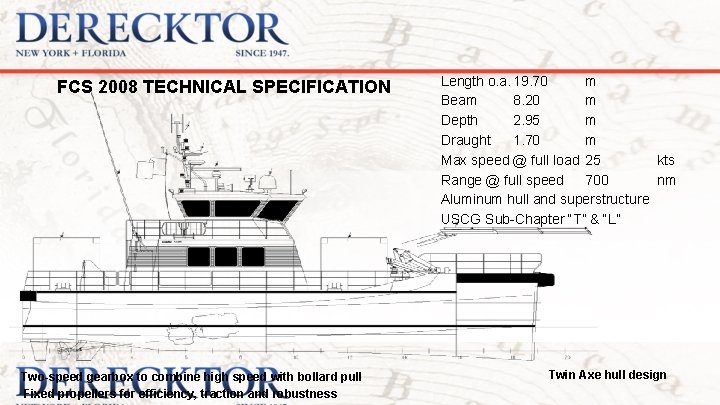

FCS 2008 TECHNICAL SPECIFICATION Two-speed gearbox to combine high speed with bollard pull Fixed propellers for efficiency, traction and robustness Length o. a. 19. 70 m Beam 8. 20 m Depth 2. 95 m Draught 1. 70 m Max speed @ full load 25 kts Range @ full speed 700 nm Aluminum hull and superstructure USCG Sub-Chapter “T” & “L” Twin Axe hull design
TECHNICAL SPECIFICATION – MAIN DECK Mess room Crew accommodation Robust fendering for bow-landing
TECHNICAL SPECIFICATION - WHEELHOUSE

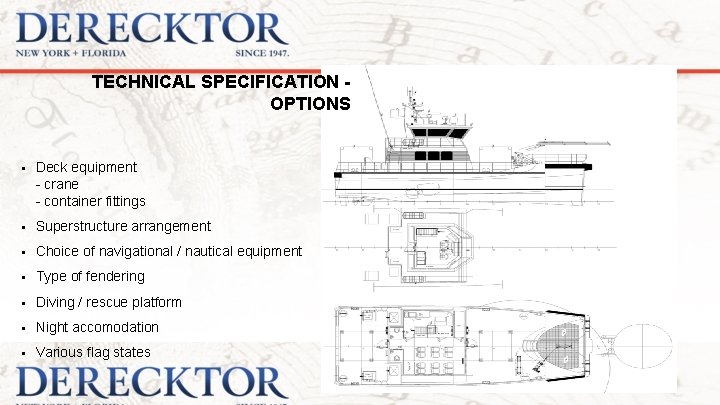

TECHNICAL SPECIFICATION OPTIONS § Deck equipment - crane - container fittings § Superstructure arrangement § Choice of navigational / nautical equipment § Type of fendering § Diving / rescue platform § Night accomodation § Various flag states
DESIGN by Advantages of Derecktor-built Damen FCS 2008 • • • Derecktor, in business since 1947 Proven Design by DAMEN Superior Seakeeping (minimize seasick technicians) Safe crew transfer in high sea state Operate in 2 m+ waves (minimize lost days due to weather) Reliable and quick-swap components to minimize maintenance down time
DESIGN by Derecktor “H” Series Craft • Reinforced topsides at boarding location • Hybrid-ready propulsion • Quick-access soft patch’s • US available components
• • • Founded in 1947 by Robert E. Derecktor Pioneered aluminum boat building in the US in the 1960’s Military: 270’ USCG Cutters, US Army Tugs, US Navy Patrol Craft Yachts: America’s Cup “Stars and Stripes” 85 m x 3000 ton “Cakewalk” Pioneered Hybrid propulsion in the US
Two Locations Mamaroneck, NY Dania, FL

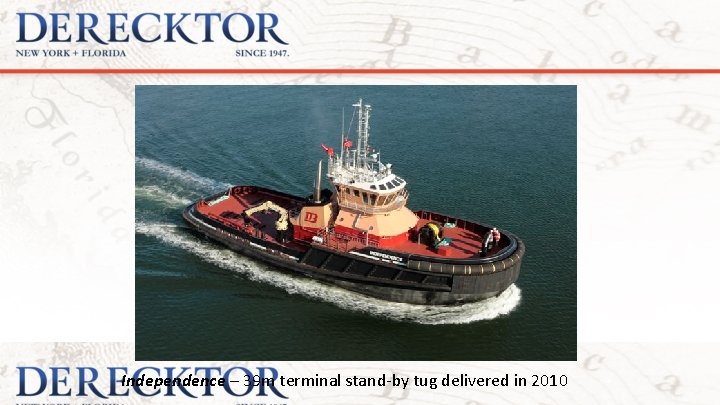

Independence – 39 m terminal stand-by tug delivered in 2010
Cakewalk V – 85 m super-yacht delivered in 2010 – largest ever in the USA
Tidal Turbines

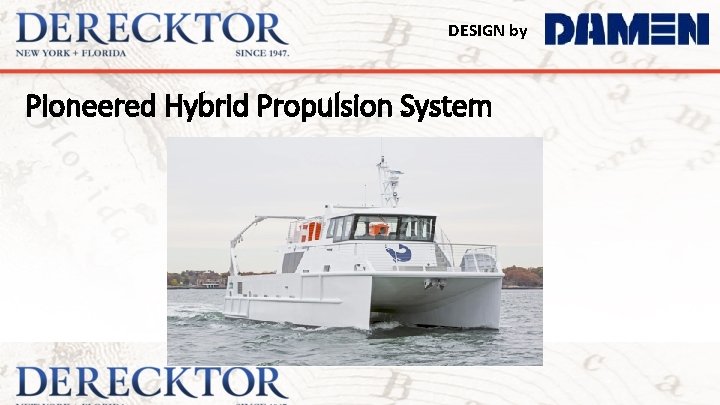

DESIGN by Pioneered Hybrid Propulsion System

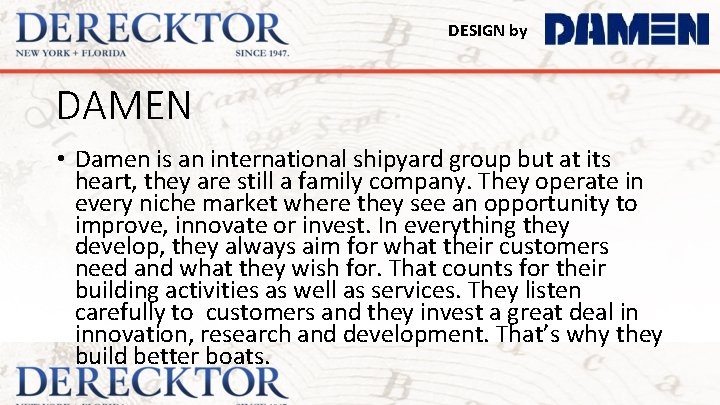

DESIGN by DAMEN • Damen is an international shipyard group but at its heart, they are still a family company. They operate in every niche market where they see an opportunity to improve, innovate or invest. In everything they develop, they always aim for what their customers need and what they wish for. That counts for their building activities as well as services. They listen carefully to customers and they invest a great deal in innovation, research and development. That’s why they build better boats.
