Design and Implementation of Object Oriented Dynamic Programming

Design and Implementation of Object Oriented Dynamic Programming Languages Jonathan Bachrach Greg Sullivan Kostas Arkoudous

Who am I? • Jonathan Bachrach • Ph. D in CS: neural networks applied to robotic control • Experience in real-time high performance electronic music • Involved in design of Sather and Dylan • Five years experience writing Dylan’s runtime and compiler at Harlequin

The Seminar • • 6. 894, 26 -311, 1 -2. 30, 3 -0 -9, 3 EDP’s Theme Proto running example Lectures Readings + Presentations Panels Assignments Projects

Today • • • Taste of the Seminar Evolutionary Programming Proto Language Design in the New Millenium Language Implementation Techniques Seminar Details

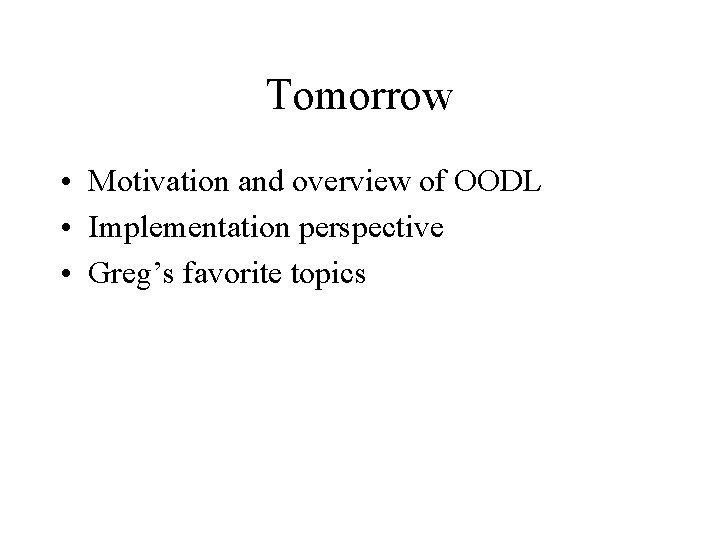

Tomorrow • Motivation and overview of OODL • Implementation perspective • Greg’s favorite topics

Language Renaissance • • Perl Python Meta. HTML PHP TCL Cecil C# Java • • Java. Script Sather Rebol Curl Dylan Isis Limbo …

The Stage • Increasing Demands for Quick Time to Market • Moore’s Law for Hardware but is software keeping up? • Most Time Spent after initial deployment • Complex environments – – Distributed Agents Real world Continuous, non-deterministic, dynamic inputs

Conventional Programming • Assume user knows exactly what they want before programming • Assume that specifications don’t change over time • Problem: Forces premature decisions and implementation effort • Example: Java Class Centric Methods

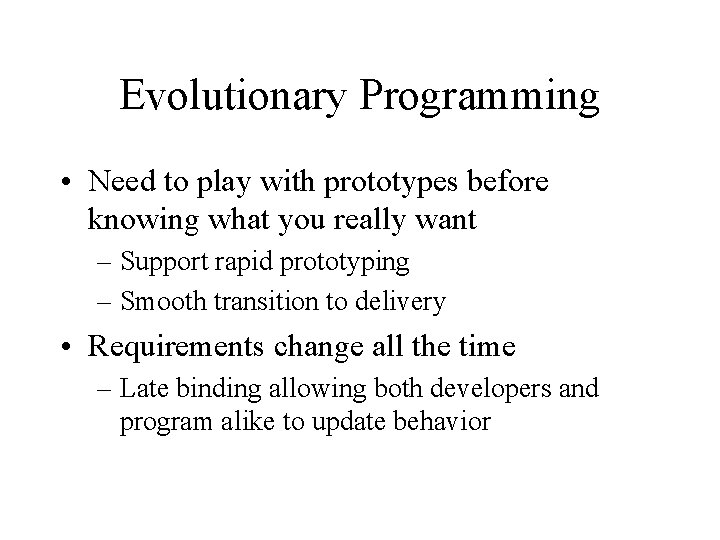

Evolutionary Programming • Need to play with prototypes before knowing what you really want – Support rapid prototyping – Smooth transition to delivery • Requirements change all the time – Late binding allowing both developers and program alike to update behavior

Language Design: User Oriented Goals • Perlis: “A language that doesn't affect the way you think about programming, is not worth knowing. ” • What user-oriented goals would you suggest would result in the best language?

Proto • • • Goals Examples Relation Definition State

Proto Hello World (format out “hello world”)

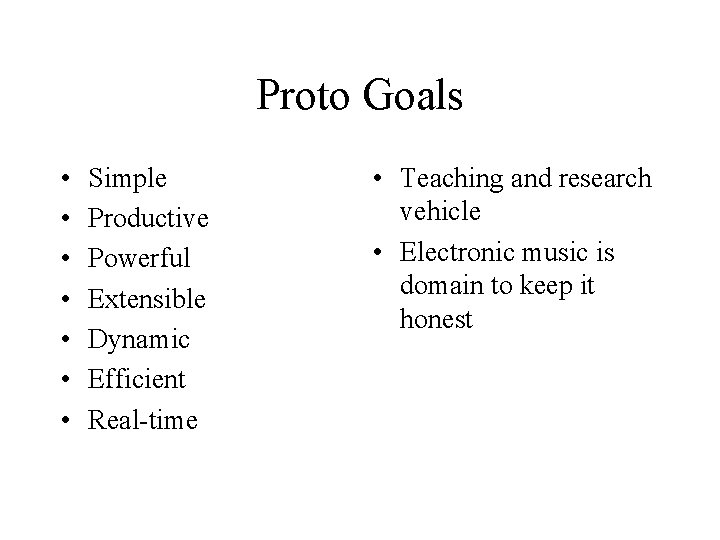

Proto Goals • • Simple Productive Powerful Extensible Dynamic Efficient Real-time • Teaching and research vehicle • Electronic music is domain to keep it honest

Proto Ancestors • Language Design is Difficult – Leverage proven ideas – Make progress in selective directions • Ancestors – Scheme – Cecil – Dylan

Proto <=> Scheme • Concise naming • Procedural macros • Objects all the way • Long-winded naming • Rewrite rule only • Only records

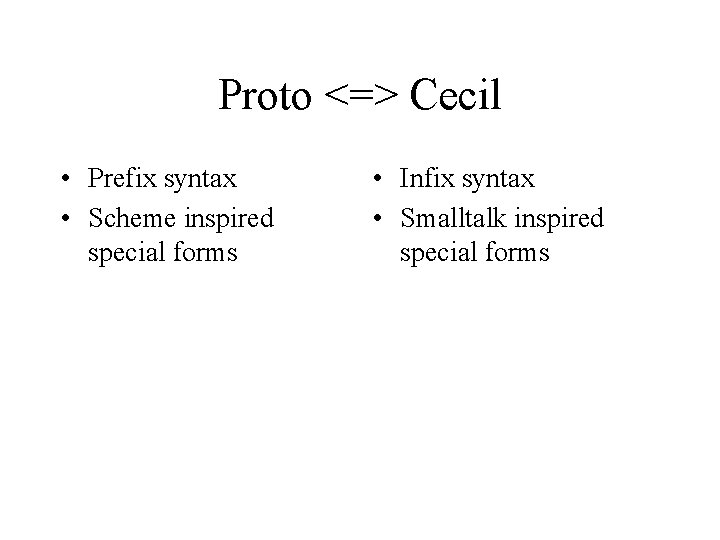

Proto <=> Cecil • Prefix syntax • Scheme inspired special forms • Infix syntax • Smalltalk inspired special forms

Proto <=> Dylan • • Prefix syntax Prototype-based Procedural macros Rationalized collection protocol / hierarchy • Always open • Predicate types • • Infix syntax Class-based Rewrite-rule only … Conflated collection protocol / hierarchy • Sealing • Fixed set of types

Object Orientation • Assume you know OO basics • Motivations: – Abstraction – Reuse – Extensibility

Prototype-based OO • Simplified object model • No classes • Cloning basic operation for instance and prototype creation • Prototypes are special objects that serve as classes • Inheritance follows cloned-from relation

Proto: OO & MM (dv <point> (isa <any>)) (slot <point> (point-x <int>) 0) (slot <point> (point-y <int>) 0) (dv p 1 (isa <point>)) (dm + ((p 1 <point>) (p 2 <point>) => <point>) (isa <point> (set point-x (+ (point-x p 1) (point-x p 2))) (set point-y (+ (point-y p 1) (point-y p 2))))

Language Design: User Goals -- The “ilities” • • • Learnability Understandability Writability Modifiability Runnability Interoperability

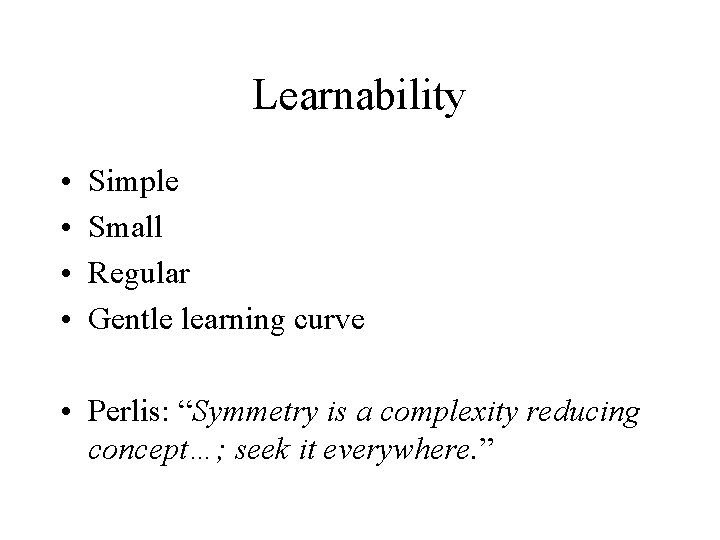

Learnability • • Simple Small Regular Gentle learning curve • Perlis: “Symmetry is a complexity reducing concept…; seek it everywhere. ”

Proto: Learnability • Simple and Small: – 16 special forms: if, seq, set, fun, let, loc, lab, fin, dv, dm, dg, isa, slot, ds, ct, quote – 7 macros: try, rep, mif, and, or, select, case • Gentle Learning Curve: – Graceful transition from functional to object-oriented programming – Perlis: “Purely applicative languages are poorly applicable. ”

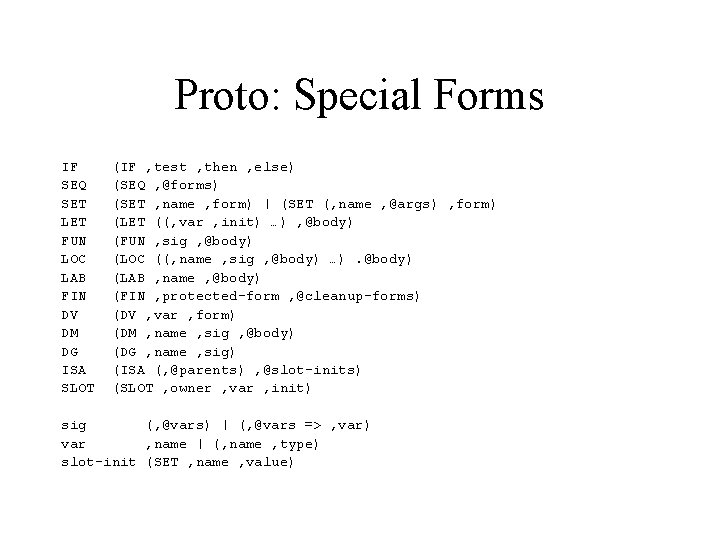

Proto: Special Forms IF SEQ SET LET FUN LOC LAB FIN DV DM DG ISA SLOT (IF , test , then , else) (SEQ , @forms) (SET , name , form) | (SET (, name , @args) , form) (LET ((, var , init) …) , @body) (FUN , sig , @body) (LOC ((, name , sig , @body) …). @body) (LAB , name , @body) (FIN , protected-form , @cleanup-forms) (DV , var , form) (DM , name , sig , @body) (DG , name , sig) (ISA (, @parents) , @slot-inits) (SLOT , owner , var , init) sig (, @vars) | (, @vars => , var) var , name | (, name , type) slot-init (SET , name , value)

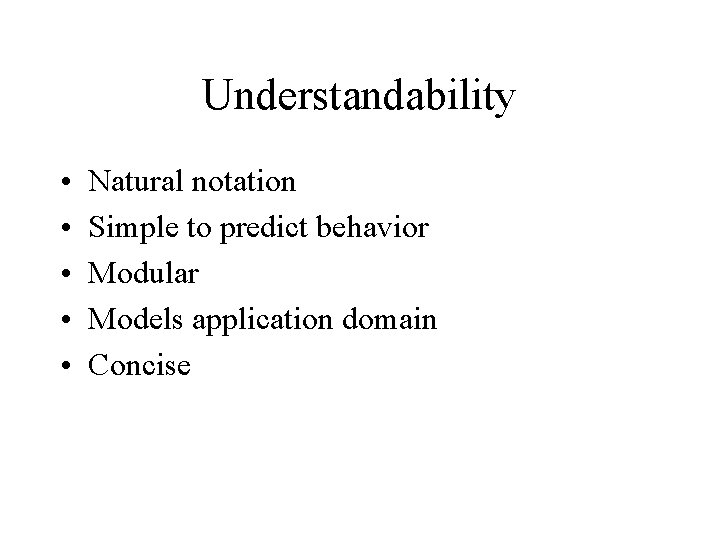

Understandability • • • Natural notation Simple to predict behavior Modular Models application domain Concise

Proto: Understandability • Describable by a small interpreter – Size of interpreter is a measure of complexity of language • Regular syntax – Debatable whether prefix is natural, but it’s simple, regular and easy to implement

Writability • Expressive features and abstraction mechanisms • Concise notation • Domain-specific features and support • No error-prone features • Internal correctness checks (e. g. , typechecking) to avoid errors

Tradeoff One: Abstraction <=> Writability • Abstraction can obscure code – Example: abuse of macros • Concision can obscure code – Example: APL

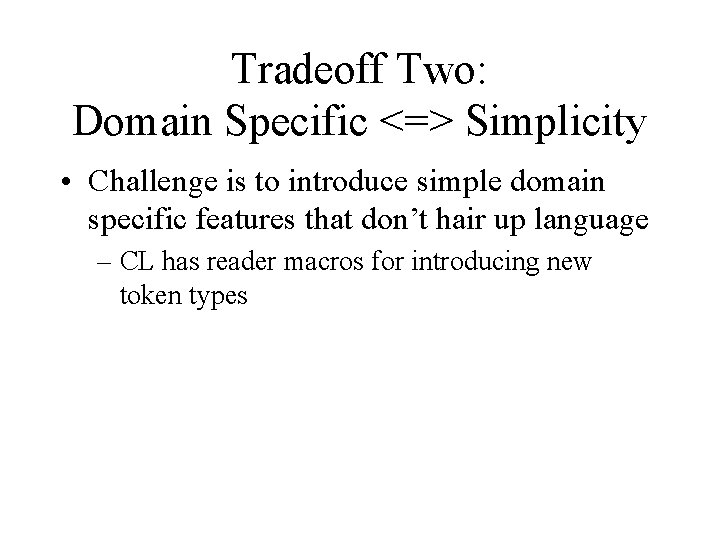

Tradeoff Two: Domain Specific <=> Simplicity • Challenge is to introduce simple domain specific features that don’t hair up language – CL has reader macros for introducing new token types

Proto: Error Proneness • No out of language errors – At worst all errors will be be caught in language at runtime – At best potential errors such as “no applicable methods” will be caught statically earlier and in batch • Unbiased dispatching and inheritance – Example: Method selection not based on lexicographical order as in CLOS

Design Principle Two: Planned Serendipity • Serendipity: – M-W: the faculty or phenomenon of finding valuable or agreeable things not sought for • Orthogonality – Collection of few independent powerful features combinable without restriction • Consistency

Proto: Serendipity • Objects all the way down • Slots accessed only through calls to generic’s • Simple orthogonal special forms • Expression oriented • Example: – Exception handling can be built out of a few special forms: lab, fin, loc, …

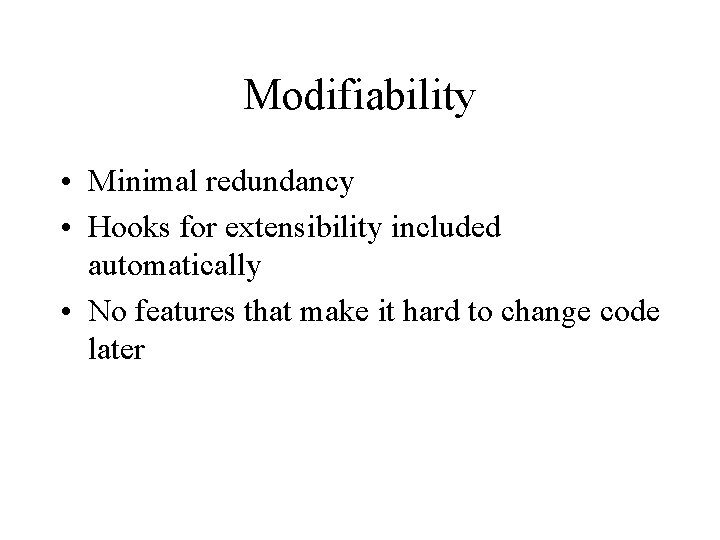

Modifiability • Minimal redundancy • Hooks for extensibility included automatically • No features that make it hard to change code later

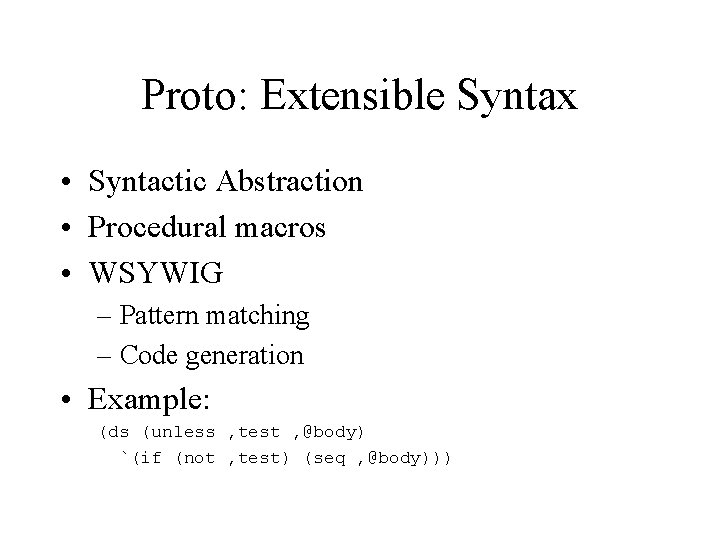

Proto: Extensible Syntax • Syntactic Abstraction • Procedural macros • WSYWIG – Pattern matching – Code generation • Example: (ds (unless , test , @body) `(if (not , test) (seq , @body)))

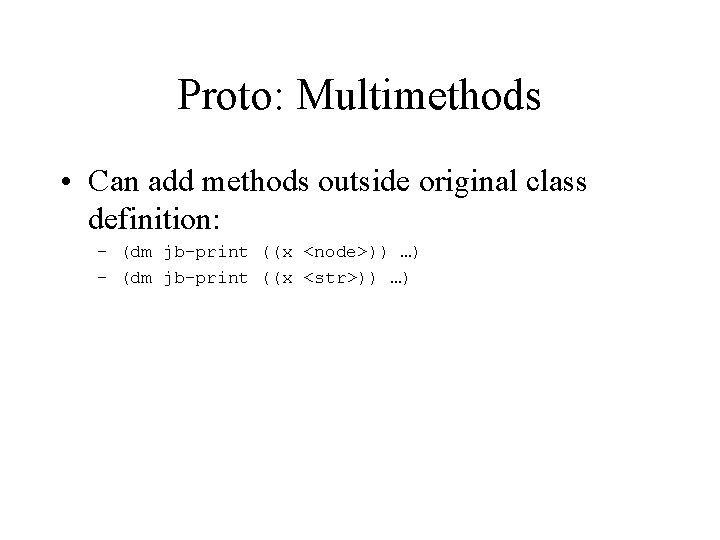

Proto: Multimethods • Can add methods outside original class definition: – (dm jb-print ((x <node>)) …) – (dm jb-print ((x <str>)) …)

Proto: Generic Accessors • All slot access goes through generic function calls • Can easily redefine these generic’s without affecting client code

Runnability • Features for programmers to control efficiency • Analyzable by compilers and other tools • Note: this will be a running theme!

Tradeoff Three: Runnability <=> Simplicity • Much of a language design can be dedicated to providing mechanisms to control efficiency (e. g. , sealing in Dylan) • Obscure algorithms • Perlis: “A programming language is low level when its programs require attention to the irrelevant. ”

Proto: Optional Types • All bindings and parameters can take optional types • Rapid prototype without types • Add types for documentation and efficiency • Example: (dm format (s msg (args …)) …) (dm format ((s <stream>)(msg <str>) (args …)) …)

Proto: Pay as You Go • Don’t charge for features not used • Pay more for features used in more complicated ways • Examples: – Dispatch • Just function call if method unambiguous from argument types • Otherwise require dynamic method lookup – Proto’s bind-exit called “lab” • Local exits are set + goto • Non local exits must create a frame and stack alloc an exit closure

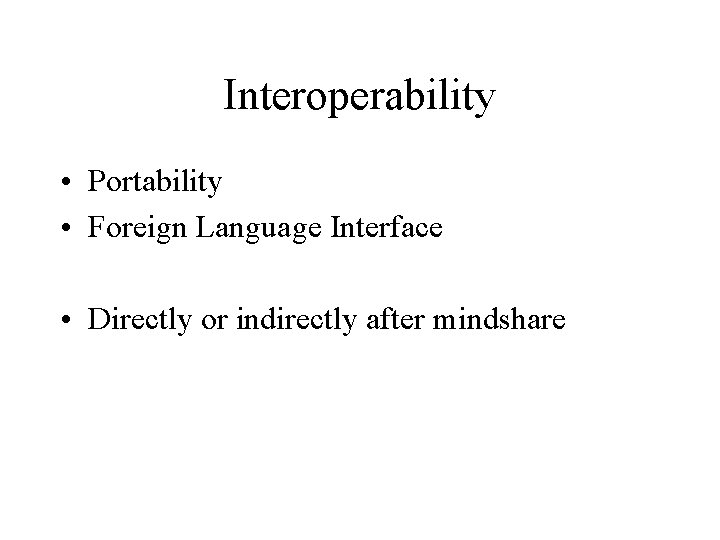

Interoperability • Portability • Foreign Language Interface • Directly or indirectly after mindshare

The Rub • Support for evolutionary programming creates a serious challenge for implementors • Straightforward implementations would exact a tremendous performance penalty

The Game • Every Problem in CS can be Solved with another Level of Indirection -- ancient proverb • Every Optimization Problem can be Viewed as Removing a Level of Indirection -- jb • Example: Procedures <=> Inlining

Implementation Techniques • System code techniques: – Often called runtime optimizations – Turbo charges user code – Example: caching • User code rewriting techniques: – Often called compile-time optimizations – Example: inlining

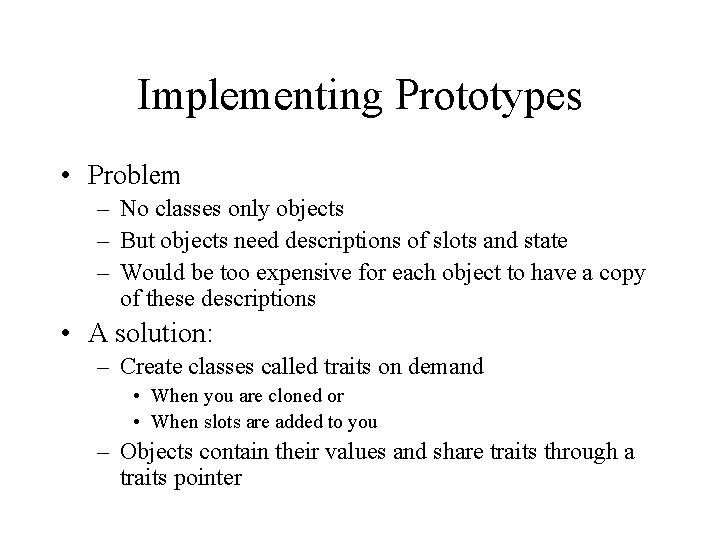

Implementing Prototypes • Problem – No classes only objects – But objects need descriptions of slots and state – Would be too expensive for each object to have a copy of these descriptions • A solution: – Create classes called traits on demand • When you are cloned or • When slots are added to you – Objects contain their values and share traits through a traits pointer

Proto: Traits on Demand

Implementing Generic Dispatch • Multimethod dispatch – Considers all arguments – Orders methods based on specializer type specificity • Naïve description: – Find applicable methods – Sort applicable methods – Call most specific method • Problem: too expensive

Dispatch Technique One: Dispatch Cache • Hierarchical cache – Each level discriminates one argument using associative mechanism – Keys are concrete object-traits – Values are either • Cache for remaining arguments or • Method to call with given arguments • Problems – Too many indirections: • generic call + method call • key and value lookups

Engine Node Dispatch • Glenn Burke and myself at Harlequin, Inc. circa 1996– Partial Dispatch: Optimizing Dynamically-Dispatched Multimethod Calls with Compile-Time Types and Runtime Feedback, 1998 • Shared decision tree built out of executable engine nodes • Incrementally grows trees on demand upon miss • Engine nodes are executed to perform some action typically tail calling another engine node eventually tail calling chosen method • Appropriate engine nodes can be utilized to handle monomorphic, polymorphic, and megamorphic discrimination cases corresponding to single, linear, and table lookup

Engine Node Dispatch Picture Define method + (x : : <i>, y : : <i>) … end; Define method + (x : : <f>, y : : <f>) … end; Seen (<i>, <i>) and (<f>, <f>) as inputs.

Dispatch Technique Two: Decision Tree • Intelligently number traits with id’s – Children tend to be in contiguous id range • Label all traits according to most applicable method • Construct decision tree constructing largest class id ranges by merging • Implement with simple numeric operations and JIT code generation • Problem: – Generic call + method call – Lost inlining opportunities

Class Numbering

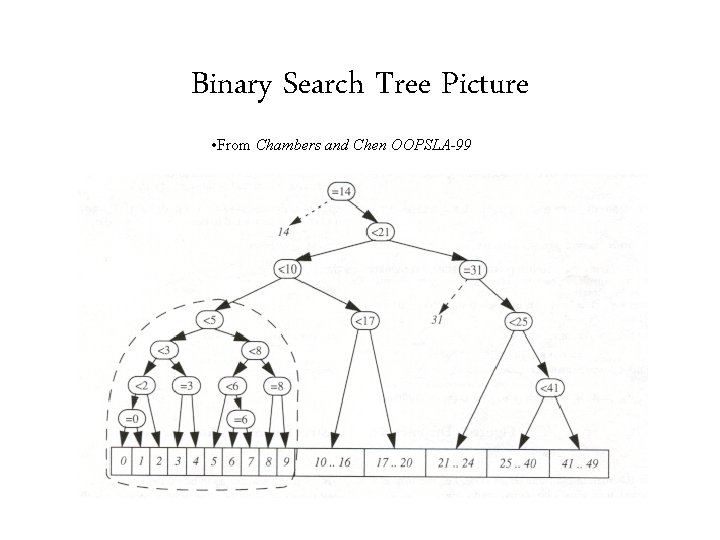

Binary Search Tree Picture • From Chambers and Chen OOPSLA-99

Code Rewriting Technique One: Inlining Dispatch • • Inline when number of methods is small When methods themselves are small Example: List operations Twist: Partially inline dispatch when there is a spike in the method frequencies • Example: Numeric operations • Problem: Lose downstream type inference possibilities because result of call gets merged back into all other possibilities

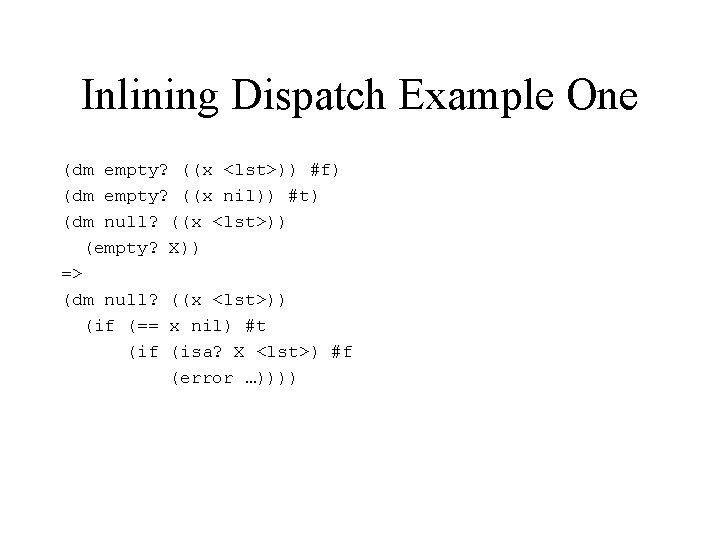

Inlining Dispatch Example One (dm empty? ((x <lst>)) #f) (dm empty? ((x nil)) #t) (dm null? ((x <lst>)) (empty? X)) => (dm null? ((x <lst>)) (if (== x nil) #t (if (isa? X <lst>) #f (error …))))

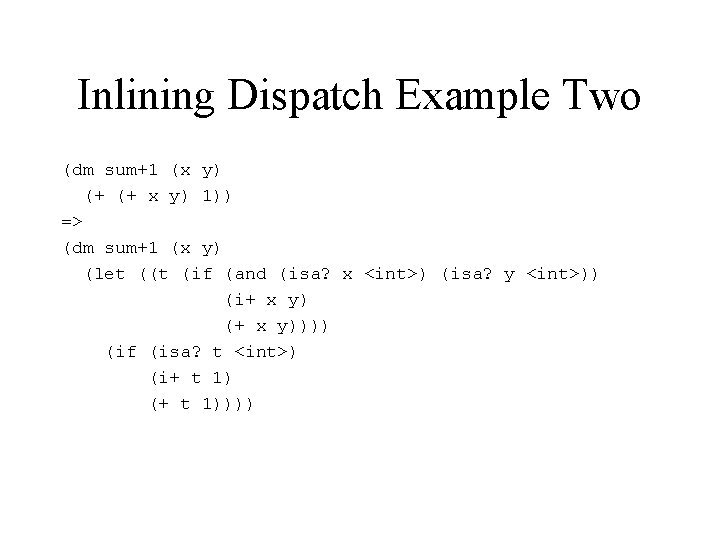

Inlining Dispatch Example Two (dm sum+1 (x y) (+ (+ x y) 1)) => (dm sum+1 (x y) (let ((t (if (and (isa? x <int>) (isa? y <int>)) (i+ x y) (+ x y)))) (if (isa? t <int>) (i+ t 1) (+ t 1))))

Code Rewriting Technique Two: Code Splitting • Clone code below typecase so each branch can run with tighter types • Problem: potential code explosion

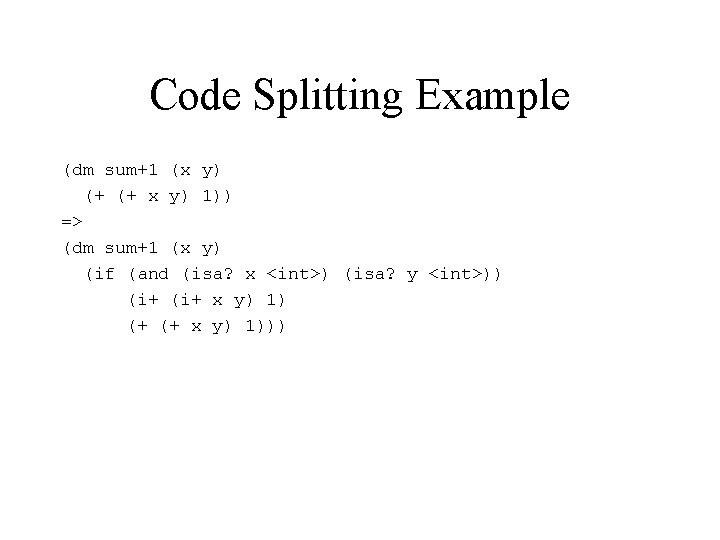

Code Splitting Example (dm sum+1 (x y) (+ (+ x y) 1)) => (dm sum+1 (x y) (if (and (isa? x <int>) (isa? y <int>)) (i+ x y) 1) (+ (+ x y) 1)))

Summary • • Touched on evolutionary programming Introduced Proto Discussed language design Sketched out several implementation techniques to gain back performance

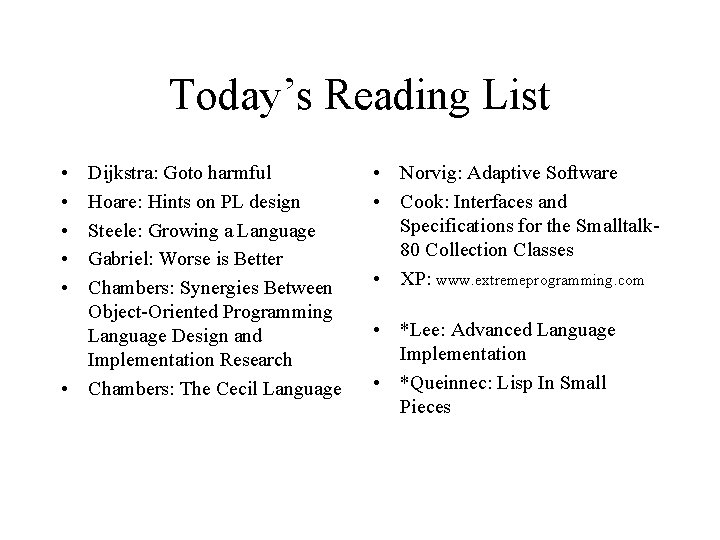

Today’s Reading List • • • Dijkstra: Goto harmful Hoare: Hints on PL design Steele: Growing a Language Gabriel: Worse is Better Chambers: Synergies Between Object-Oriented Programming Language Design and Implementation Research • Chambers: The Cecil Language • Norvig: Adaptive Software • Cook: Interfaces and Specifications for the Smalltalk 80 Collection Classes • XP: www. extremeprogramming. com • *Lee: Advanced Language Implementation • *Queinnec: Lisp In Small Pieces

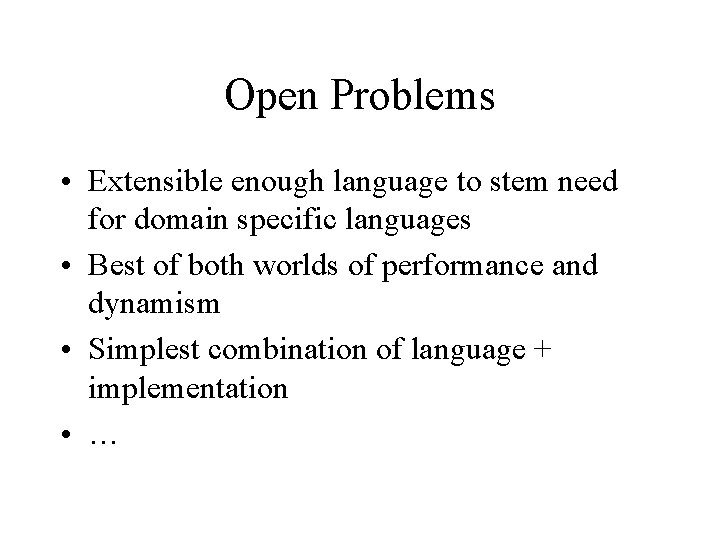

Open Problems • Extensible enough language to stem need for domain specific languages • Best of both worlds of performance and dynamism • Simplest combination of language + implementation • …

Credits • Craig Chambers’ notes on language design for UW CSE-505

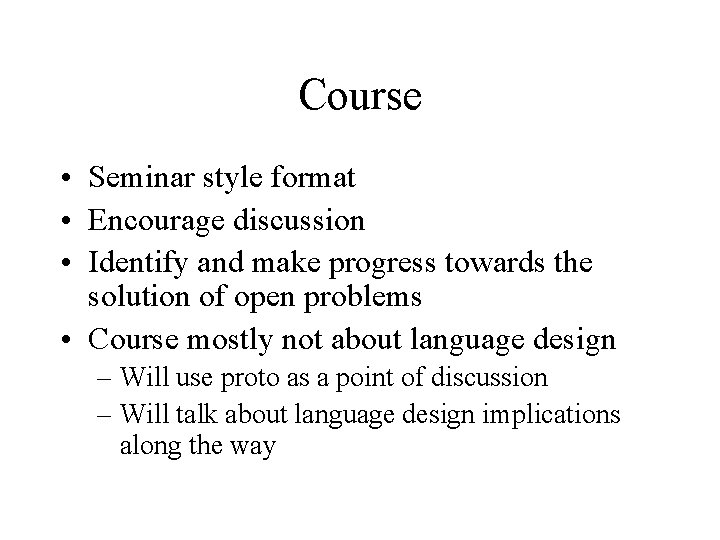

Course • Seminar style format • Encourage discussion • Identify and make progress towards the solution of open problems • Course mostly not about language design – Will use proto as a point of discussion – Will talk about language design implications along the way

Prerequisites • • 6. 001 (SICP) 6. 035 (Computer Language Engineering) 6. 821 (Programming Languages) preferred Or permission of instructor

Lectures • • Intro I & II Interpreters and VM’s Objects and Types Runtime Object Systems • Reflection • Memory Management • • • Macros Type Inference OO Optimizations Partial Evaluation Dynamic Compilation Proof-Based Compilation • Practical Aspects

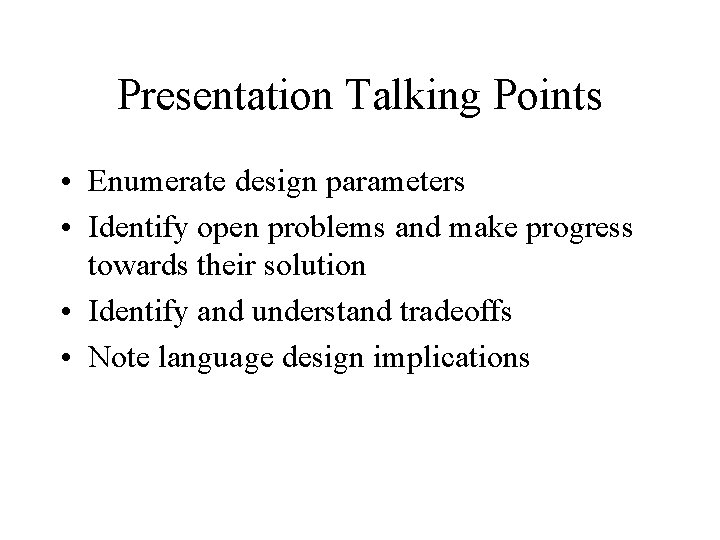

Presentation Talking Points • Enumerate design parameters • Identify open problems and make progress towards their solution • Identify and understand tradeoffs • Note language design implications

Paper Presentations • Each student will present one or two papers judged important to the course • Each presentation will be about a half hour • A reading list is available on the course web site • Other research can be presented at instructor’s discretion • Three slots in the following categories: • Language Design, Interpreters & VM’s • Types and Object Systems, Reflection, and Memory Management • Macros, Type Inference, and OO Optimizations, Partial Evaluation and Dynamic Compilation

Panels • • • Local experts System, Compiler, Language Design Positions Open Problems Secret Tricks Revealed Q&A

Assignments Small one week projects – – – Metacircular interpreter Simple VM Fast isa? Fast method dispatch Slot layout in Proto such as: – – Simple GC Type inferencer Specialization Feedback guided dispatch – Profile guided inlining

Project • Substantial project involving original language design and/or implementation • Produce a design and project plan • Working implementation • Present an overview of their project • 10+ page write-up

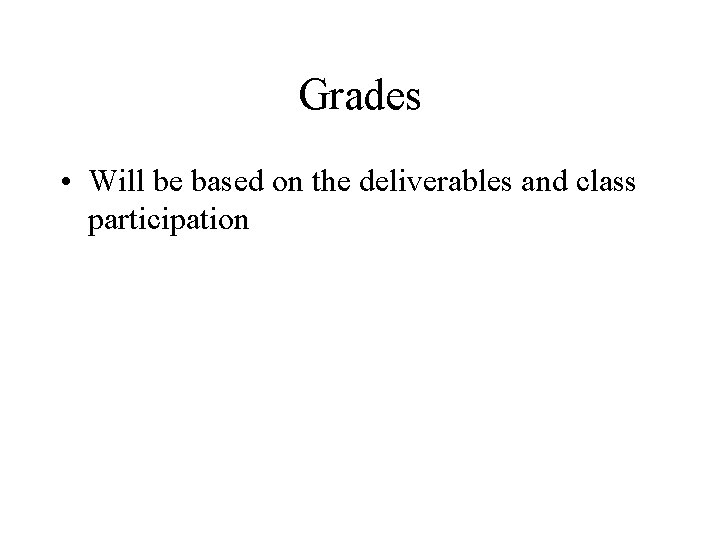

Grades • Will be based on the deliverables and class participation

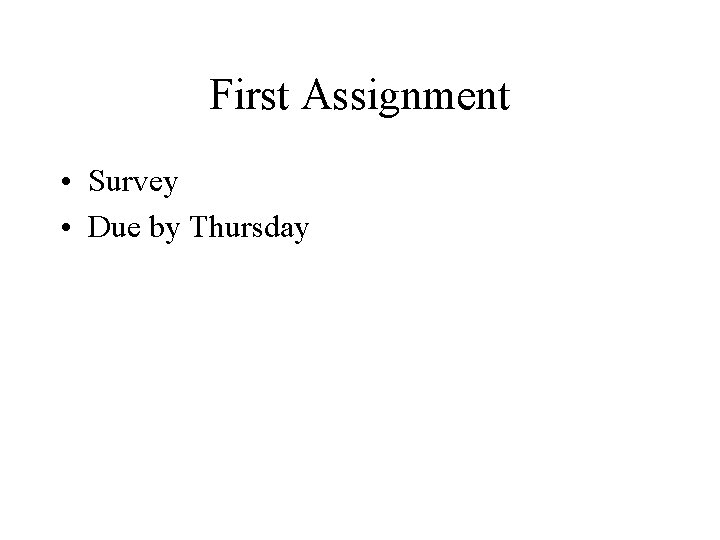

First Assignment • Survey • Due by Thursday
