DESIGN AND FABRICATION OF ELECTROMAGNETIC BRAKING SYSTEM IN
DESIGN AND FABRICATION OF ELECTRO-MAGNETIC BRAKING SYSTEM IN FOUR WHEEL VEHICLE Submitted by M. KALYAN G. NETAJI S. BHOJARAJU B. MOHANRAO M. VENKATESH
ELECTROMAGNETIC BRAKING Ø Ø Disc is rotating in the magnetic field Eddy cureent will be produced in the Disc Eddy current induced in disc will produce a torque. produced torque in disc opposes actual rotation of disc.

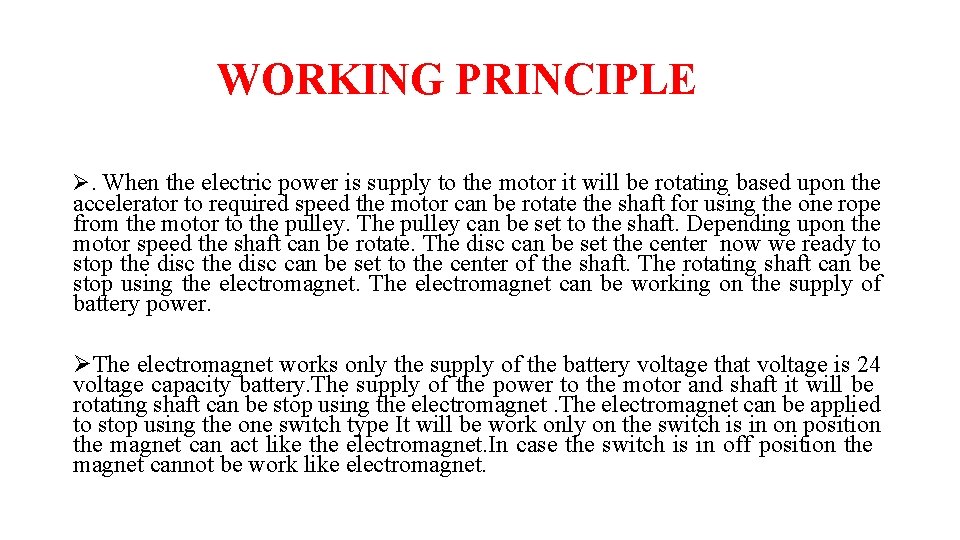

WORKING PRINCIPLE Ø. When the electric power is supply to the motor it will be rotating based upon the accelerator to required speed the motor can be rotate the shaft for using the one rope from the motor to the pulley. The pulley can be set to the shaft. Depending upon the motor speed the shaft can be rotate. The disc can be set the center now we ready to stop the disc can be set to the center of the shaft. The rotating shaft can be stop using the electromagnet. The electromagnet can be working on the supply of battery power. ØThe electromagnet works only the supply of the battery voltage that voltage is 24 voltage capacity battery. The supply of the power to the motor and shaft it will be rotating shaft can be stop using the electromagnet. The electromagnet can be applied to stop using the one switch type It will be work only on the switch is in on position the magnet can act like the electromagnet. In case the switch is in off position the magnet cannot be work like electromagnet.

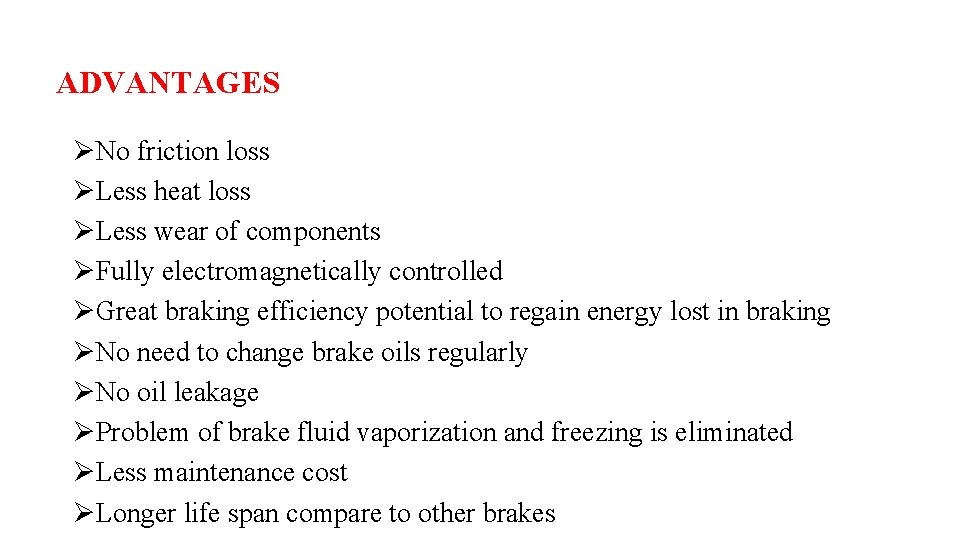

ADVANTAGES ØNo friction loss ØLess heat loss ØLess wear of components ØFully electromagnetically controlled ØGreat braking efficiency potential to regain energy lost in braking ØNo need to change brake oils regularly ØNo oil leakage ØProblem of brake fluid vaporization and freezing is eliminated ØLess maintenance cost ØLonger life span compare to other brakes

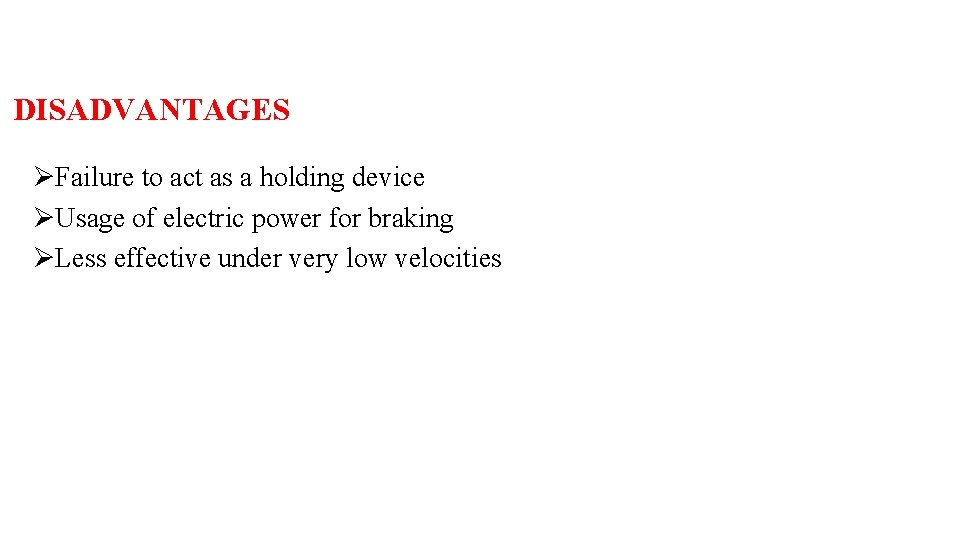

DISADVANTAGES ØFailure to act as a holding device ØUsage of electric power for braking ØLess effective under very low velocities

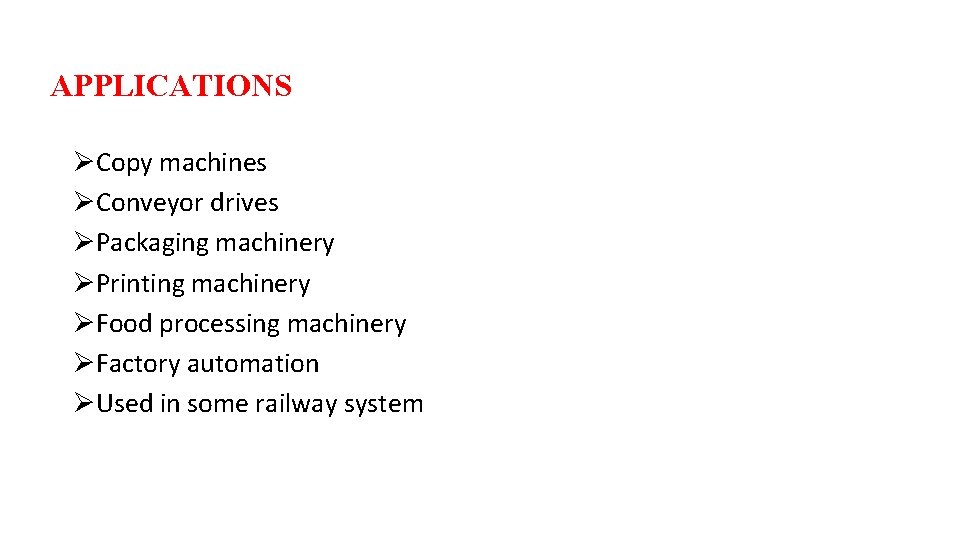

APPLICATIONS ØCopy machines ØConveyor drives ØPackaging machinery ØPrinting machinery ØFood processing machinery ØFactory automation ØUsed in some railway system

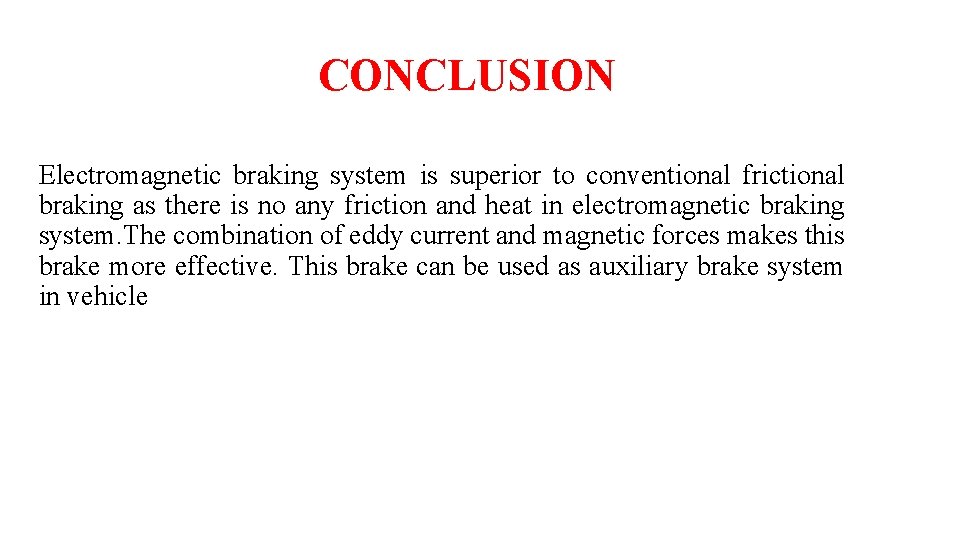

CONCLUSION Electromagnetic braking system is superior to conventional frictional braking as there is no any friction and heat in electromagnetic braking system. The combination of eddy current and magnetic forces makes this brake more effective. This brake can be used as auxiliary brake system in vehicle
THANK YOU
