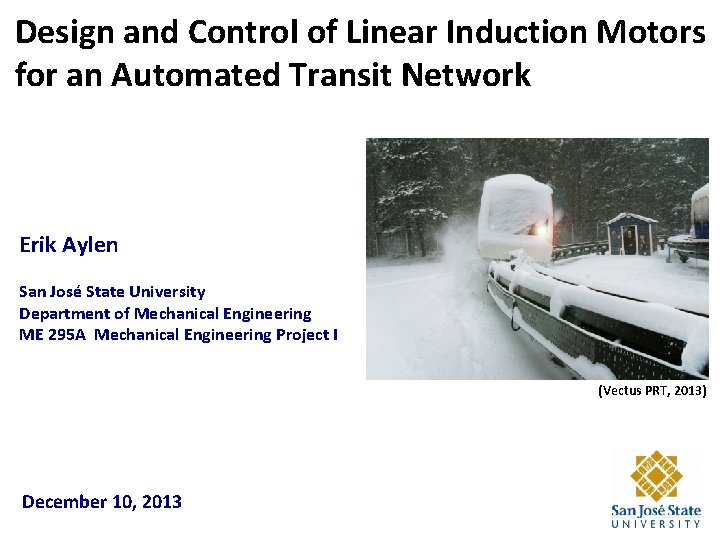

Design and Control of Linear Induction Motors for an Automated Transit Network Erik Aylen San José State University Department of Mechanical Engineering ME 295 A Mechanical Engineering Project I (Vectus PRT, 2013) December 10, 2013

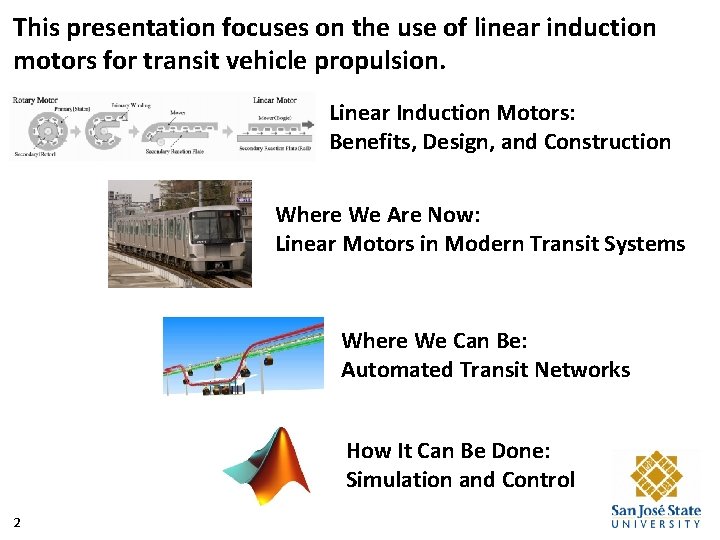

This presentation focuses on the use of linear induction motors for transit vehicle propulsion. Linear Induction Motors: Benefits, Design, and Construction Where We Are Now: Linear Motors in Modern Transit Systems Where We Can Be: Automated Transit Networks How It Can Be Done: Simulation and Control 2

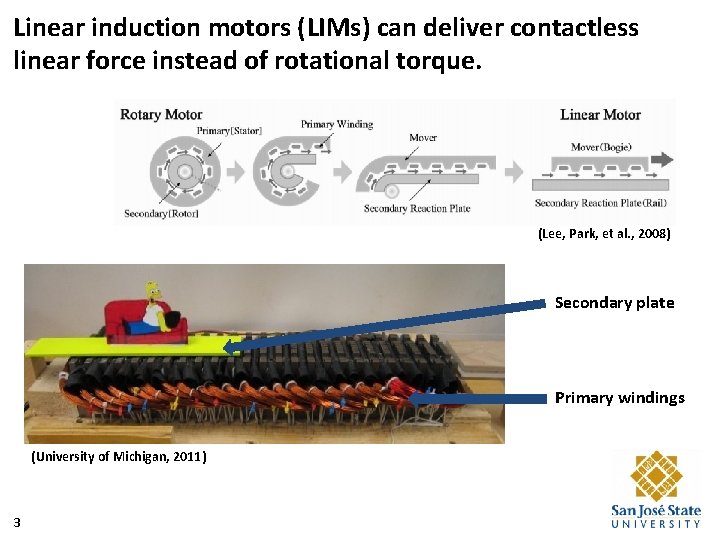

Linear induction motors (LIMs) can deliver contactless linear force instead of rotational torque. (Lee, Park, et al. , 2008) Secondary plate Primary windings (University of Michigan, 2011) 3

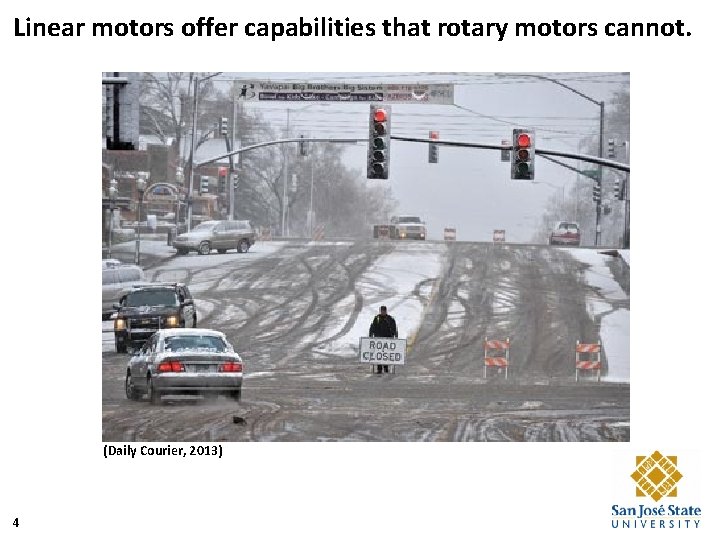

Linear motors offer capabilities that rotary motors cannot. (Daily Courier, 2013) 4

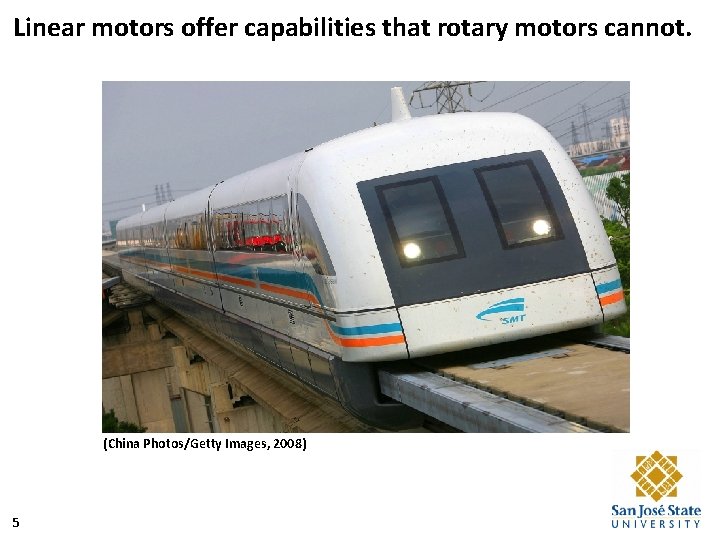

Linear motors offer capabilities that rotary motors cannot. (China Photos/Getty Images, 2008) 5

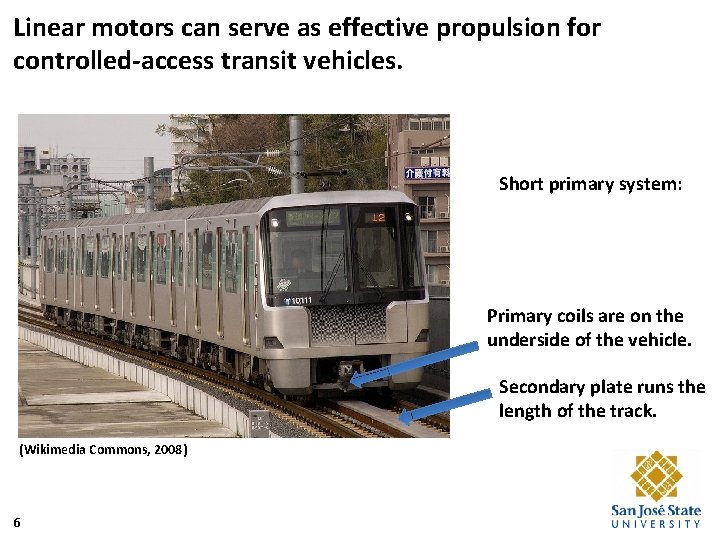

Linear motors can serve as effective propulsion for controlled-access transit vehicles. Short primary system: Primary coils are on the underside of the vehicle. Secondary plate runs the length of the track. (Wikimedia Commons, 2008) 6

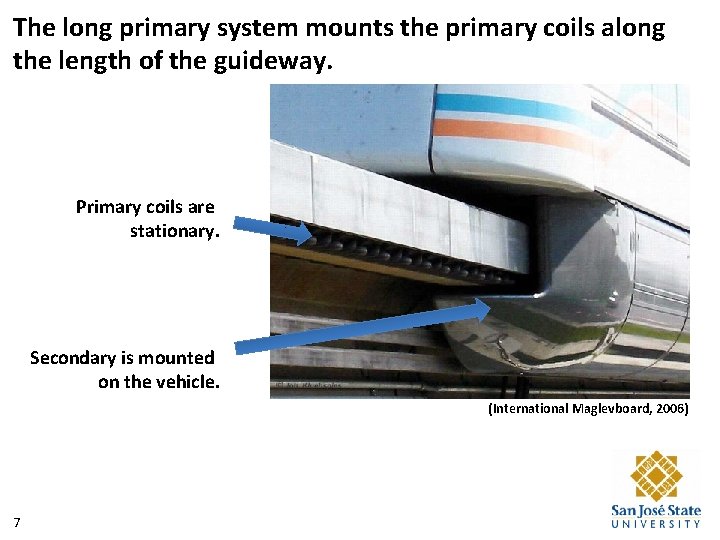

The long primary system mounts the primary coils along the length of the guideway. Primary coils are stationary. Secondary is mounted on the vehicle. (International Maglevboard, 2006) 7

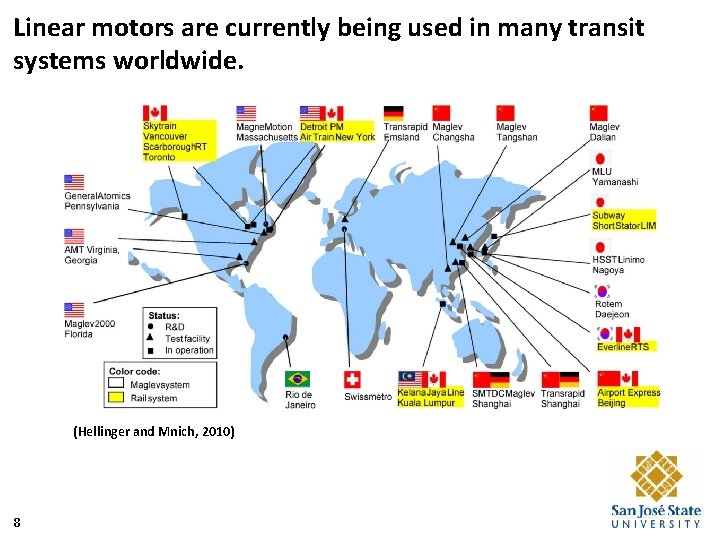

Linear motors are currently being used in many transit systems worldwide. (Hellinger and Mnich, 2010) 8

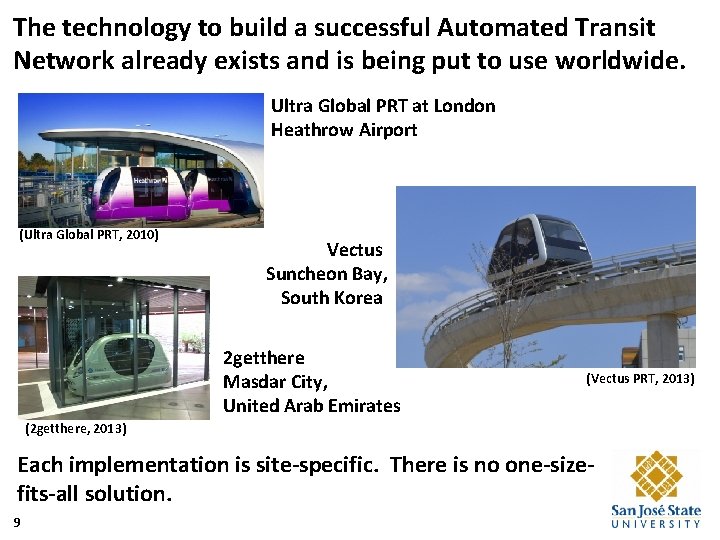

The technology to build a successful Automated Transit Network already exists and is being put to use worldwide. Ultra Global PRT at London Heathrow Airport (Ultra Global PRT, 2010) Vectus Suncheon Bay, South Korea 2 getthere Masdar City, United Arab Emirates (Vectus PRT, 2013) (2 getthere, 2013) Each implementation is site-specific. There is no one-sizefits-all solution. 9

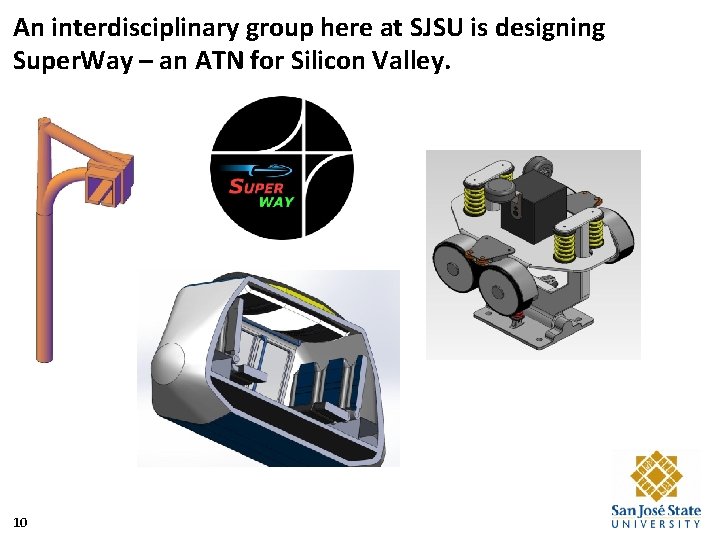

An interdisciplinary group here at SJSU is designing Super. Way – an ATN for Silicon Valley. 10

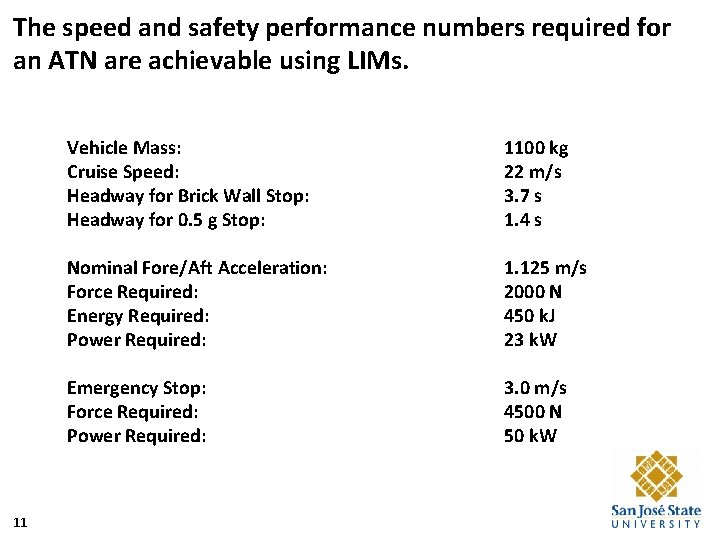

The speed and safety performance numbers required for an ATN are achievable using LIMs. 11 Vehicle Mass: Cruise Speed: Headway for Brick Wall Stop: Headway for 0. 5 g Stop: 1100 kg 22 m/s 3. 7 s 1. 4 s Nominal Fore/Aft Acceleration: Force Required: Energy Required: Power Required: 1. 125 m/s 2000 N 450 k. J 23 k. W Emergency Stop: Force Required: Power Required: 3. 0 m/s 4500 N 50 k. W

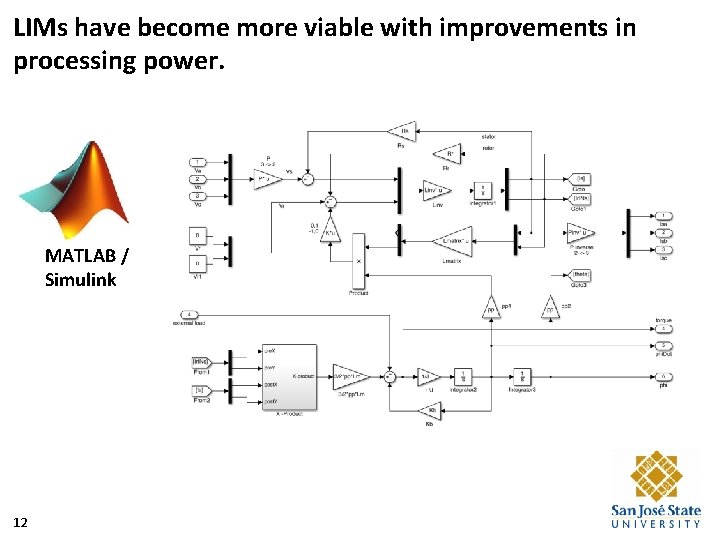

LIMs have become more viable with improvements in processing power. MATLAB / Simulink 12

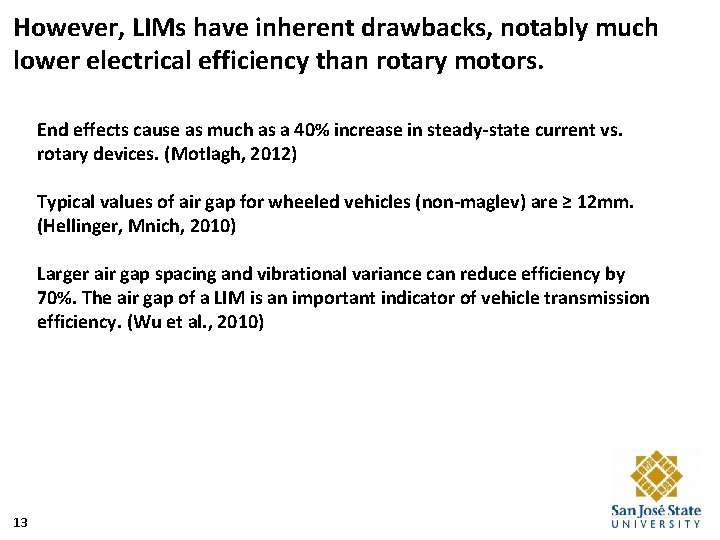

However, LIMs have inherent drawbacks, notably much lower electrical efficiency than rotary motors. End effects cause as much as a 40% increase in steady-state current vs. rotary devices. (Motlagh, 2012) Typical values of air gap for wheeled vehicles (non-maglev) are ≥ 12 mm. (Hellinger, Mnich, 2010) Larger air gap spacing and vibrational variance can reduce efficiency by 70%. The air gap of a LIM is an important indicator of vehicle transmission efficiency. (Wu et al. , 2010) 13

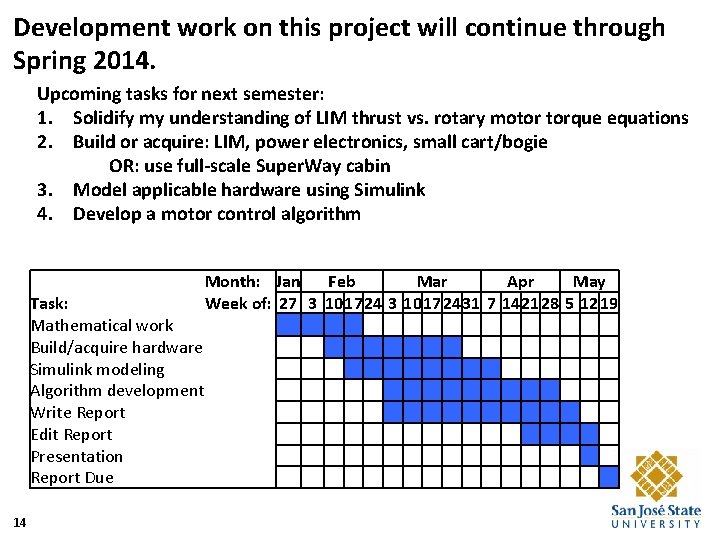

Development work on this project will continue through Spring 2014. Upcoming tasks for next semester: 1. Solidify my understanding of LIM thrust vs. rotary motor torque equations 2. Build or acquire: LIM, power electronics, small cart/bogie OR: use full-scale Super. Way cabin 3. Model applicable hardware using Simulink 4. Develop a motor control algorithm Month: Jan Feb Task: Week of: 27 3 101724 3 Mathematical work Build/acquire hardware Simulink modeling Algorithm development Write Report Edit Report Presentation Report Due 14 Mar Apr May 10172431 7 142128 5 1219

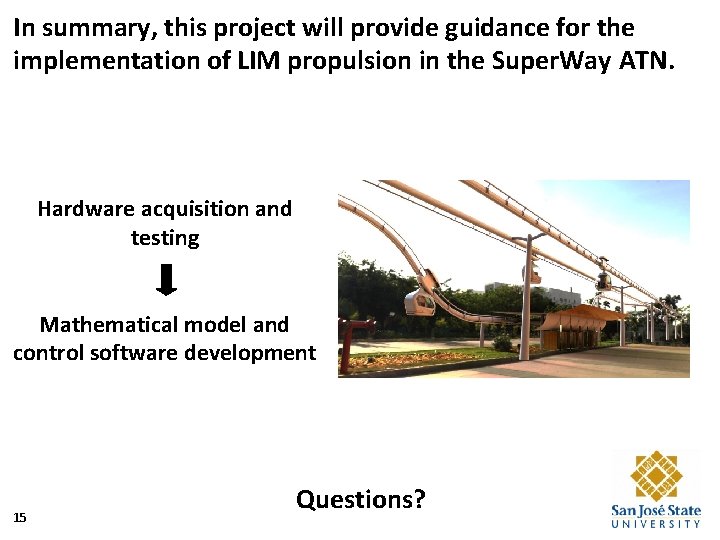

In summary, this project will provide guidance for the implementation of LIM propulsion in the Super. Way ATN. Hardware acquisition and testing Mathematical model and control software development 15 Questions?
