Design and Construction of a Spaghetti Bridge Michael

Design and Construction of a Spaghetti Bridge Michael Karweit Department of Chemical Engineering Johns Hopkins University

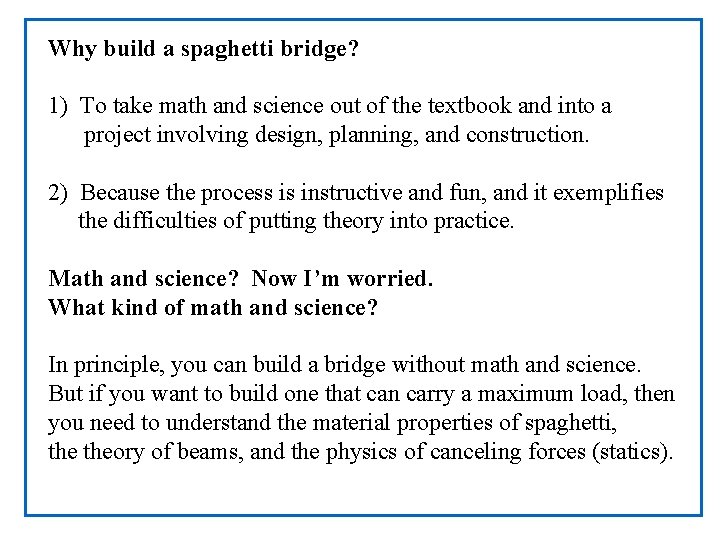

Why build a spaghetti bridge? 1) To take math and science out of the textbook and into a project involving design, planning, and construction. 2) Because the process is instructive and fun, and it exemplifies the difficulties of putting theory into practice. Math and science? Now I’m worried. What kind of math and science? In principle, you can build a bridge without math and science. But if you want to build one that can carry a maximum load, then you need to understand the material properties of spaghetti, theory of beams, and the physics of canceling forces (statics).

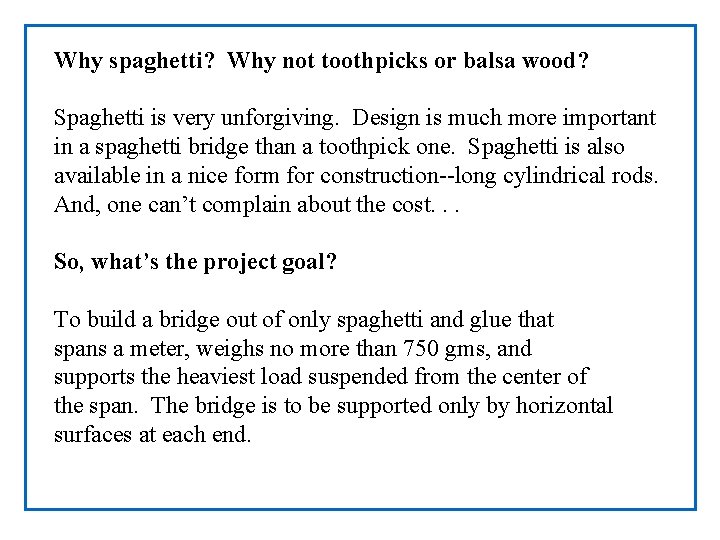

Why spaghetti? Why not toothpicks or balsa wood? Spaghetti is very unforgiving. Design is much more important in a spaghetti bridge than a toothpick one. Spaghetti is also available in a nice form for construction--long cylindrical rods. And, one can’t complain about the cost. . . So, what’s the project goal? To build a bridge out of only spaghetti and glue that spans a meter, weighs no more than 750 gms, and supports the heaviest load suspended from the center of the span. The bridge is to be supported only by horizontal surfaces at each end.

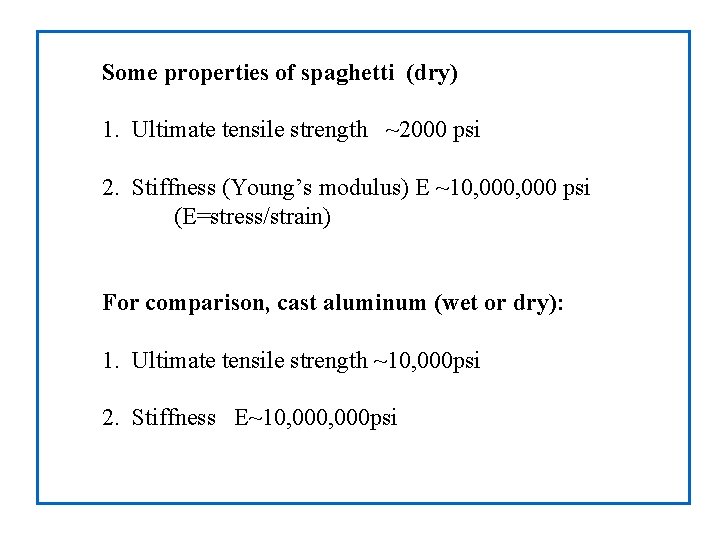

Some properties of spaghetti (dry) 1. Ultimate tensile strength ~2000 psi 2. Stiffness (Young’s modulus) E ~10, 000 psi (E=stress/strain) For comparison, cast aluminum (wet or dry): 1. Ultimate tensile strength ~10, 000 psi 2. Stiffness E~10, 000 psi

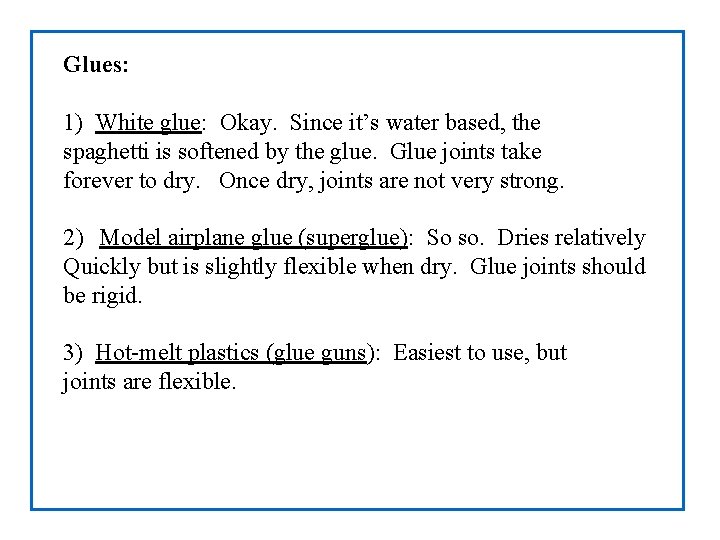

Glues: 1) White glue: Okay. Since it’s water based, the spaghetti is softened by the glue. Glue joints take forever to dry. Once dry, joints are not very strong. 2) Model airplane glue (superglue): So so. Dries relatively Quickly but is slightly flexible when dry. Glue joints should be rigid. 3) Hot-melt plastics (glue guns): Easiest to use, but joints are flexible.

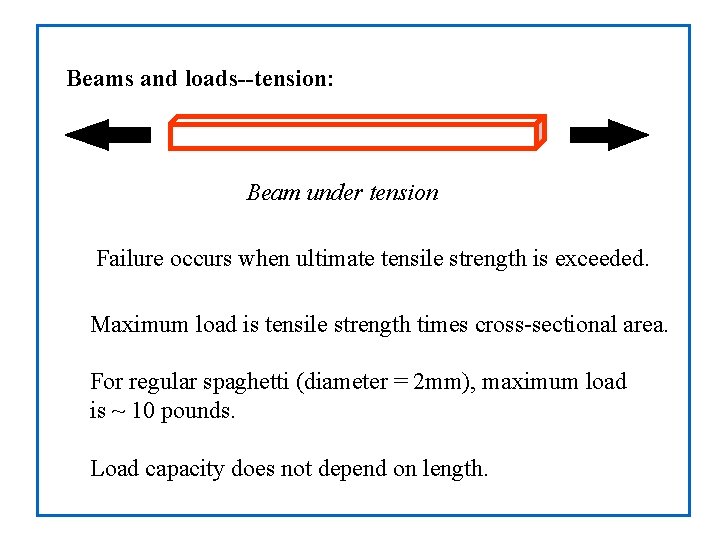

Beams and loads--tension: Beam under tension Failure occurs when ultimate tensile strength is exceeded. Maximum load is tensile strength times cross-sectional area. For regular spaghetti (diameter = 2 mm), maximum load is ~ 10 pounds. Load capacity does not depend on length.

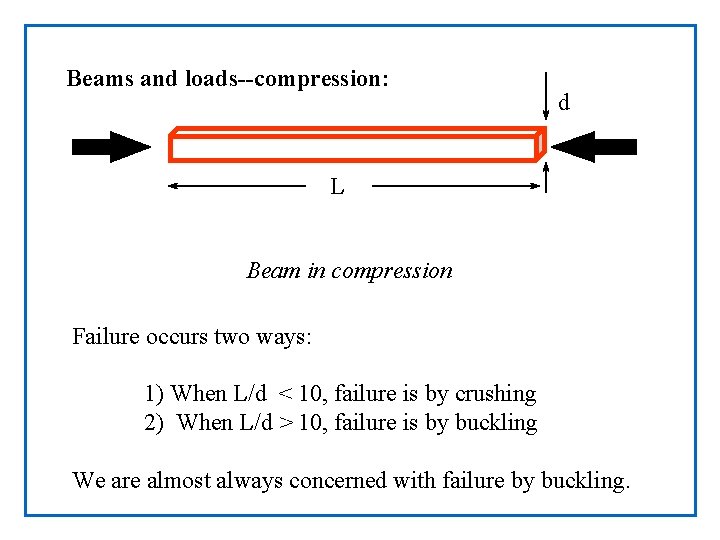

Beams and loads--compression: d L Beam in compression Failure occurs two ways: 1) When L/d < 10, failure is by crushing 2) When L/d > 10, failure is by buckling We are almost always concerned with failure by buckling.

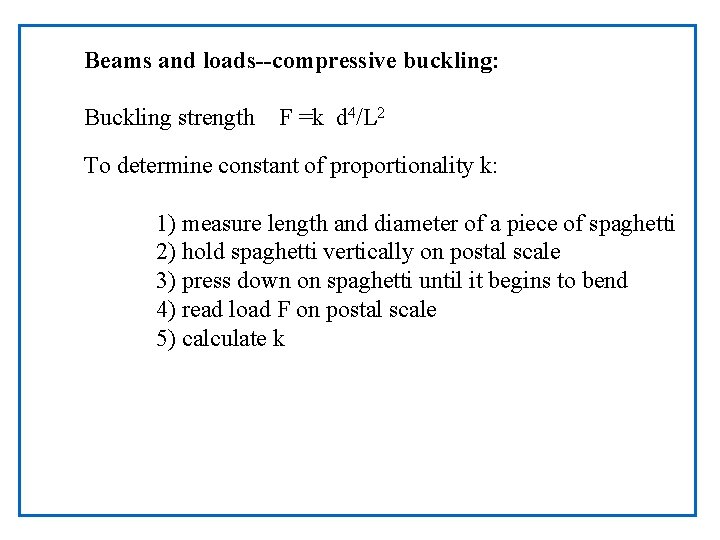

Beams and loads--compressive buckling: Buckling strength F =k d 4/L 2 To determine constant of proportionality k: 1) measure length and diameter of a piece of spaghetti 2) hold spaghetti vertically on postal scale 3) press down on spaghetti until it begins to bend 4) read load F on postal scale 5) calculate k

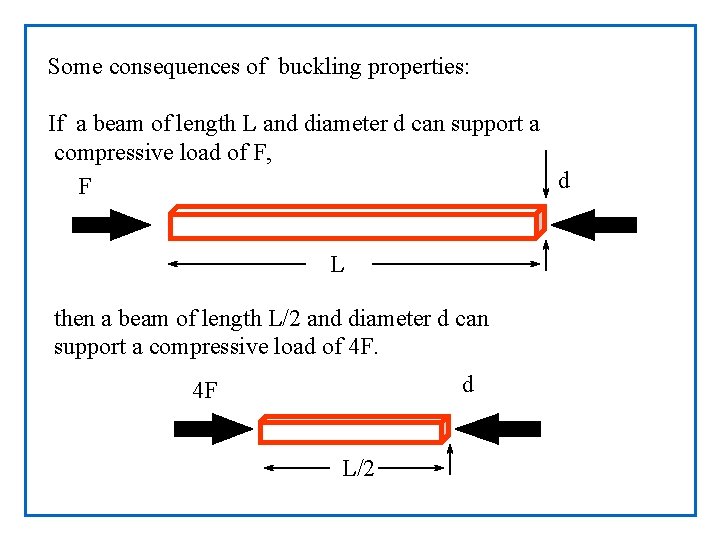

Some consequences of buckling properties: If a beam of length L and diameter d can support a compressive load of F, d F L then a beam of length L/2 and diameter d can support a compressive load of 4 F. d 4 F L/2

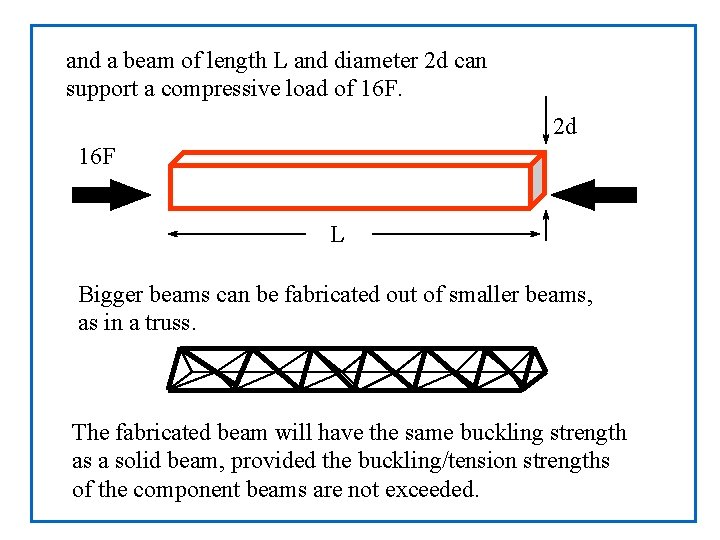

and a beam of length L and diameter 2 d can support a compressive load of 16 F. 2 d 16 F L Bigger beams can be fabricated out of smaller beams, as in a truss. The fabricated beam will have the same buckling strength as a solid beam, provided the buckling/tension strengths of the component beams are not exceeded.

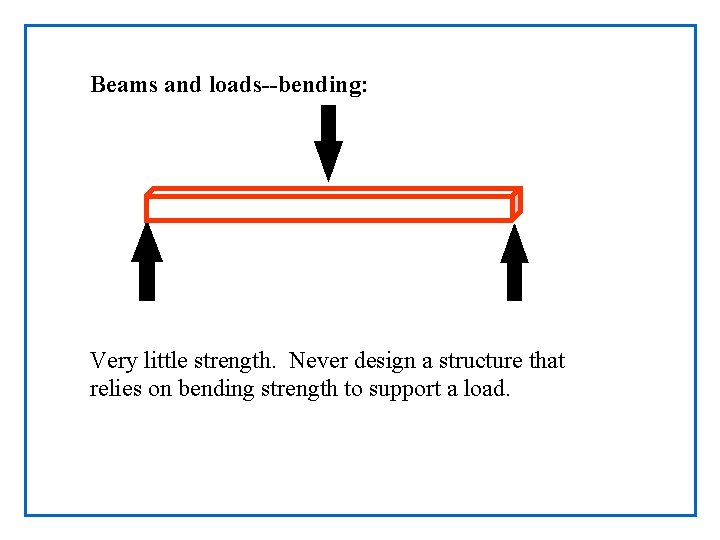

Beams and loads--bending: Very little strength. Never design a structure that relies on bending strength to support a load.

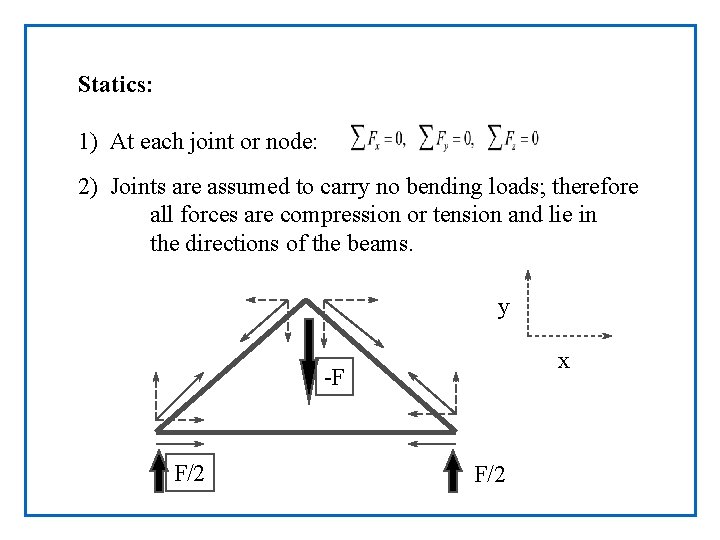

Statics: 1) At each joint or node: 2) Joints are assumed to carry no bending loads; therefore all forces are compression or tension and lie in the directions of the beams. y x -F F/2

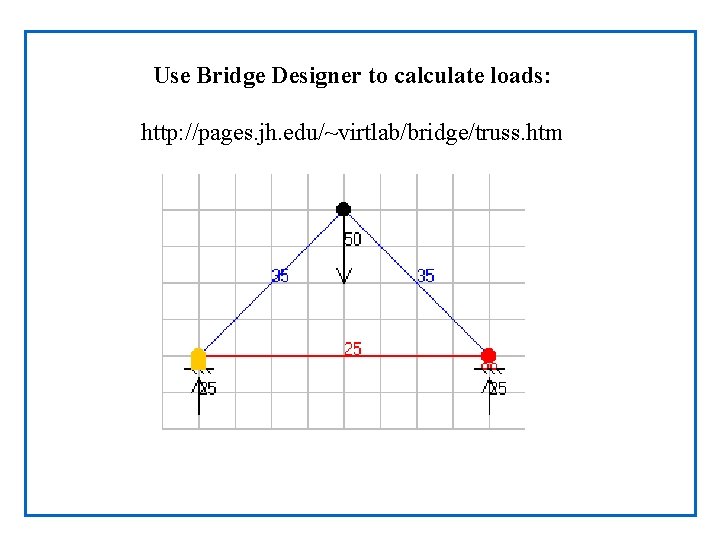

Use Bridge Designer to calculate loads: http: //pages. jh. edu/~virtlab/bridge/truss. htm

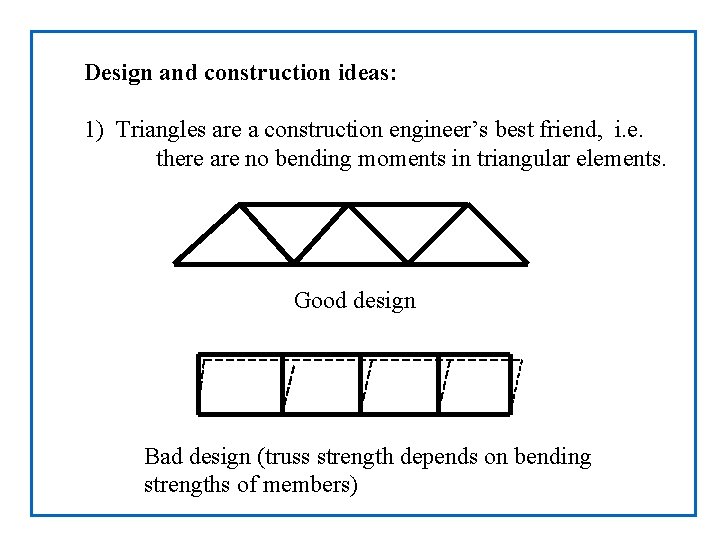

Design and construction ideas: 1) Triangles are a construction engineer’s best friend, i. e. there are no bending moments in triangular elements. Good design Bad design (truss strength depends on bending strengths of members)

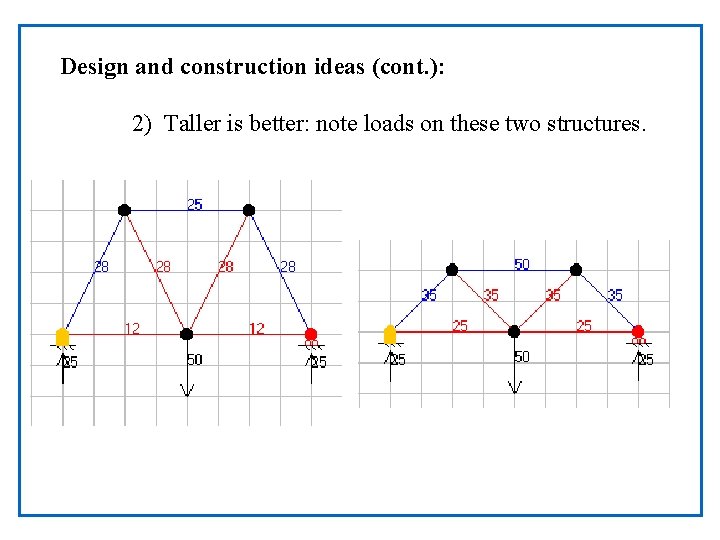

Design and construction ideas (cont. ): 2) Taller is better: note loads on these two structures.

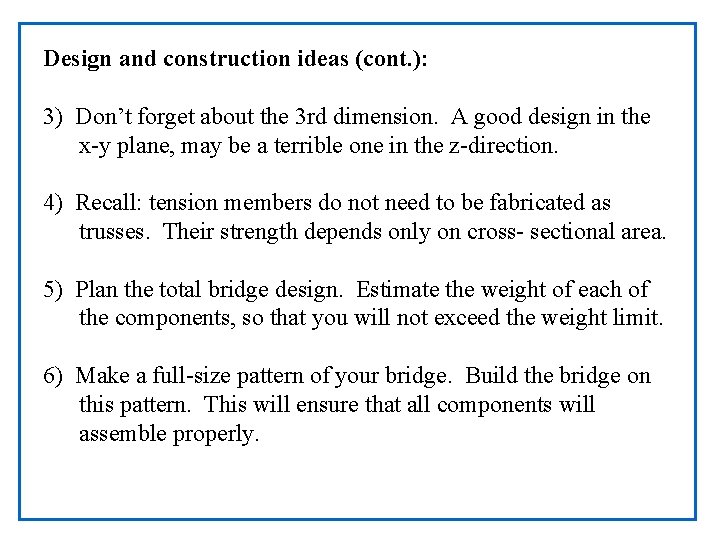

Design and construction ideas (cont. ): 3) Don’t forget about the 3 rd dimension. A good design in the x-y plane, may be a terrible one in the z-direction. 4) Recall: tension members do not need to be fabricated as trusses. Their strength depends only on cross- sectional area. 5) Plan the total bridge design. Estimate the weight of each of the components, so that you will not exceed the weight limit. 6) Make a full-size pattern of your bridge. Build the bridge on this pattern. This will ensure that all components will assemble properly.

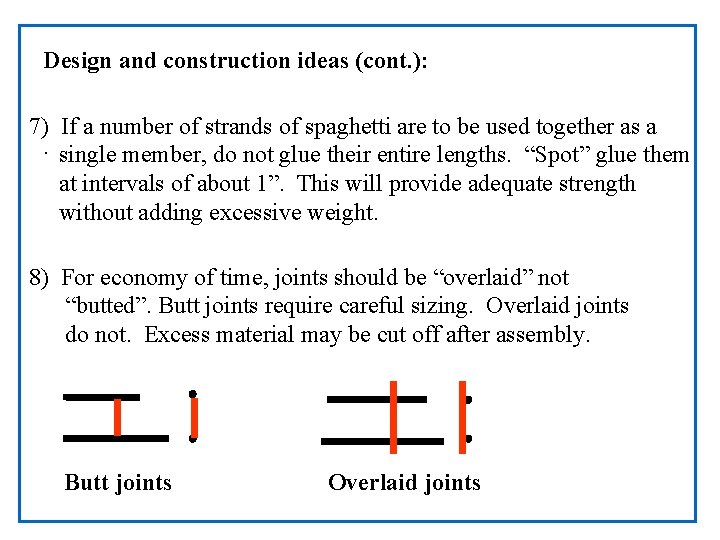

Design and construction ideas (cont. ): 7) If a number of strands of spaghetti are to be used together as a. single member, do not glue their entire lengths. “Spot” glue them at intervals of about 1”. This will provide adequate strength without adding excessive weight. 8) For economy of time, joints should be “overlaid” not “butted”. Butt joints require careful sizing. Overlaid joints do not. Excess material may be cut off after assembly. Butt joints Overlaid joints

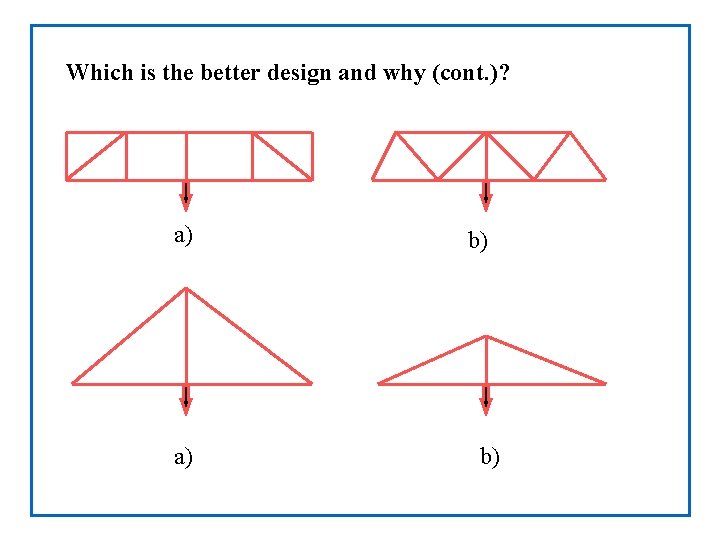

Which is the better design and why (cont. )? a) a) b) b)

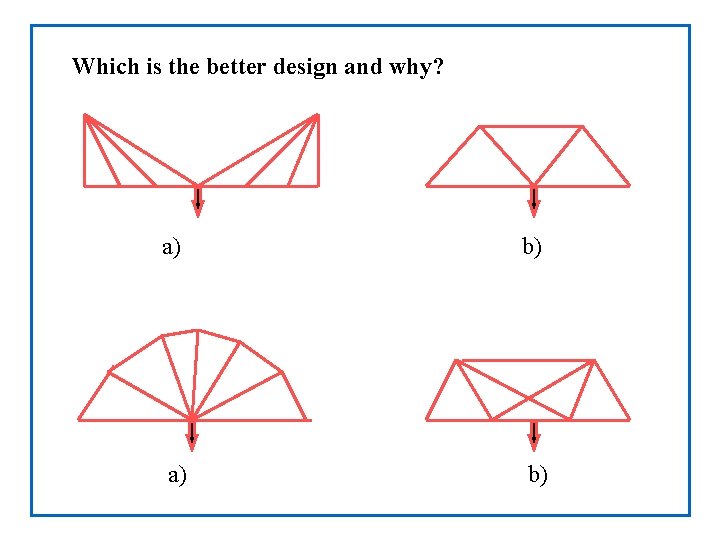

Which is the better design and why? a) b)
