Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. 응용전자회로 학습노트 7 생체의공학과 2010103805 이규락 1 이규락

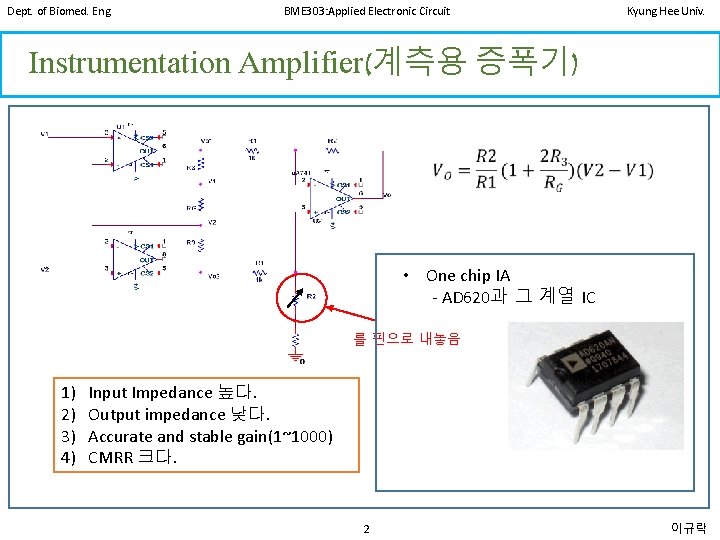

Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Instrumentation Amplifier(계측용 증폭기) • One chip IA - AD 620과 그 계열 IC 를 핀으로 내놓음 1) 2) 3) 4) Input Impedance 높다. Output impedance 낮다. Accurate and stable gain(1~1000) CMRR 크다. 2 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Dual Op Amp • Gain을 바꾸는 것이 쉽지 않다. =>RG장착 • 주파수에 따른 delay가 다르다. (phase distortion) -> 고주파일 때 심하다=>저주파용 3 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Dual Op Amp Stray capacitance 두 도체 사이에 교류전류가 흐르 면 capacitance가 생긴다. 4 이규락

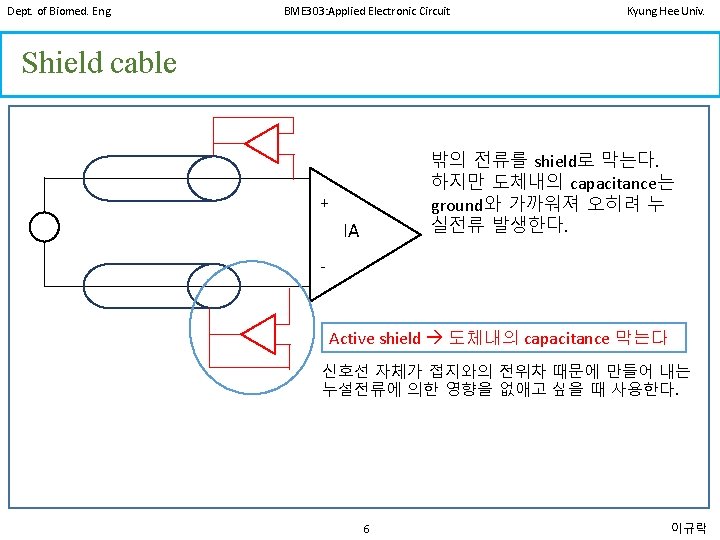

Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Shield cable 절연체 220 V 60 Hz 사람 Stray capacitance Coaxial cable 도체 Ground shield (접지차폐) 도선 Triaxial cable 접지 기준으로 된 모든 전원으로부터 Stray capacitance를 타고 들어오는 전류가 안으로 들어가지 못한다. 5 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Transducer Bridge Amp ◎Resistive Sensor: 온도나 압력 등에 따라 저항 값 변한다. • 온도센서(Temperature): thermistor, RTD • 빛(Light): photoresistors • Strain: Strain gage • 압력(Pressure): piezoresistive Sensor 7 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Transducer Bridge Amp AC를 사용 할 수 있음 Capacitance sensor Initiative sensor Balance 물리량의 변화 저항변화 전압변화 8 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Transducer Bridge Amp AC를 사용 할 수 있음 Capacitance sensor Initiative sensor Balance 물리량의 변화 저항변화 전압변화 9 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Conduction in Metal(Conductor) (원자의 열 energy로 인한 진동이 올라간다. ) 핵 : 진동, 자유전자 : 브라우니한 운동 10 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Conduction in Metal(Conductor) E N개의 자유전자 For Pt RTD T[s]동안 L[m]을 이동한다면 11 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Conduction in Metal(Conductor) Example 2. 11 Pt RTD R(T=0)=100Ω α=0. 00392/℃ R(T)=100(1+0. 00392 T)[Ω] R(25 ℃)=109. 8Ω R(100 ℃)=139. 2Ω R(-15 ℃)=94. 12 Ω 12 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Transducer Bridge 13 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Transducer Bridge Example 2. 12 최종적으로 0. 1 V/℃의 출력 온도 0℃~100℃→Vo=0~10 V 14 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Transducer Bridge ◎ 근사식 아닌 식을 사용하면 근사식인 경우에 비해 0. 26℃ 차이 발 생 ADC = 8 bit ADC = 10 bit IA 출력에서의 잡음 전압의 최대치 = 15 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Bridge Balancing 16 이규락
Dept. of Biomed. Eng. BME 303: Applied Electronic Circuit Kyung Hee Univ. Bridge Balancing 전원 전압이 14 V보다 작아지지 않는다. →A점의 전압: 14 V R 3에는 0~2 V To be safe, Choose R 2=500Ω 0℃에서 R 2조정 Vo=0 V 100℃에서 R 3조정 Vo=10 V 17 이규락
