Deposition Ms. Susinno Please view as a slideshow Toolbar Slideshow From Current Slide
Deposition: when wind, waves, glaciers, and gravity lose carrying power, particles are dropped onto the surface of the land. (Review book pgs 105 -108) When the agents slow down, sediments are deposited (+)
How a ri. Ver carries sediment: Not floating, not sinking… IN SUSPENSION! The bed load is Rollin’ and Bouncin’ (ions of molecules broken apart by chemical change…ya can’t see them, but ya can taste them! )
When a ri. Ver slows, what does it deposit first?
When the river meets the sea= Delta
Remember me? slow s DELTA = Horizontal sorting xx X slower Any time sediment is deposited by running water, it is sorted! Slowest…
Alluvial fan: When the river meets the land
The point bar is the depositional feature of a meander! slower faster
Now let’s talk about STILL water: L ! s e k a Glacial outwash- melt water at the end of a glacier
How does particle size, shape and density affect settling time in STILL water? See for yourself on the animation link below http: //hmxearthscience. com/Warehouse/geology/surface_processes/animations/settling. swf
How does particle size, shape and density affect settling time in still water? As density increases setting time _________, and settling rate ___________. As roundness increases setting time _________, and settling rate ___________.
Factors affecting deposition in still water: 1. Particle size- larger particles will settle faster. 2. Particle shape- round particles will settle faster than flat ones. 3. Particle density- higher density particles settle first. Density always wins
Vertical sorting or graded bedding- when sediment is deposited into still water (deep ocean or lake). Ooh yay! : 0) Another diagram: http: //www. eram. k 12. ny. us/education/page/download. php? fileinfo=dm. Vyd. HNvcn. Quc 3 dm. Ojo 6 L 3 d 3 dy 9 z. Y 2 hvb 2 xz. L 3 Nj. L 3 Jlb. W 90 ZS 9 pb. WFn. ZXMv. ZG 9 jb. Wdy. Lz. M 2 Zpb. GU 4 Mjkuc 3 dm
Graded bedding- vertical sorting When sediment is deposited into still water or lake… Second event First event The number of layers tells how many depositional events there were.
Deposition Animations Horizontal Sorting animation: http: //www. classzone. com/books/earth_science/terc/content/visualizations/es 0604 pag e 01. cfm? chapter_no=visualization http: //interactive-earth. com/visualizations/jela/4 -deltageological-history-v 2. 2. html http: //interactiveearth. com/visualizations/jela/1 -earthwatersheds-v 3. 2. html How deltas form: https: //youtu. be/t. GHAO 15 h. ROs
A Matching! Which #s go with each lettered diagram? 1. Delta 2. Sediment is sorted in layers called Graded Bedding 3. Associated with running water. 4. Associated with still water. B 5. Layers are created by pulses of depositional events. 6. Sediment is sorted horizontallyvelocity decreases and larger, denser sediments settle first and smaller, less dense particles are carried further.
Wind Erosion Why is the rock carved out more toward the bottom?
Deflation and Blowout
Sand Dune Profile http: //webs. cmich. edu/resgi/links. asp? mc=Other%20 Resource%20 Links&cad=Earth%20 Science%20 Animations&to=269&tod=Dune%20 Animations
1. Which particle size is the least likely to be found in a deposit of loess? (1) pebbles (2) sand (3) silt (4) clay 2. In what environment are you most likely to find wind erosion? (1) humid areas (2) deserts (3) forests 3. Winds transport sand other materials by (1) water and rolling (2) suspension and bouncing (3) ice and snow (4) ocean currents and waves 4. Shallow depressions produced by deflation and are called (1) sand dunes (2) loess (3) blow outs (4) ventifacts 5. Complete the chart by marking an X in the appropriate spot. Feature Loess Sand Dune Blow out Erosional Depositional

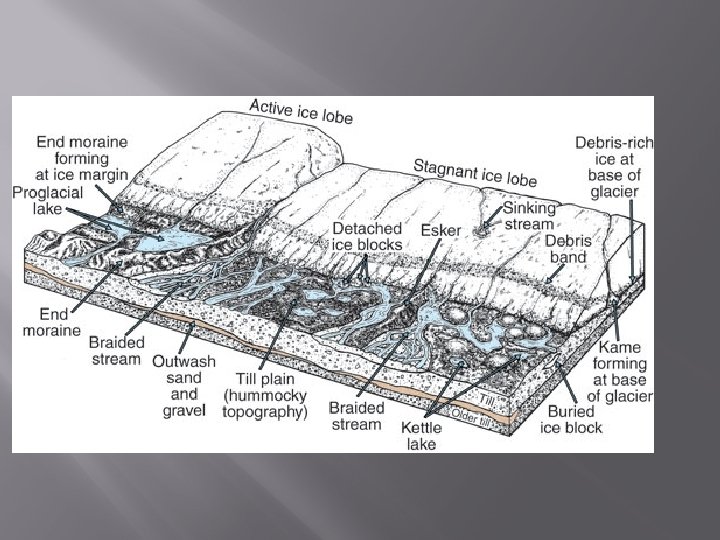

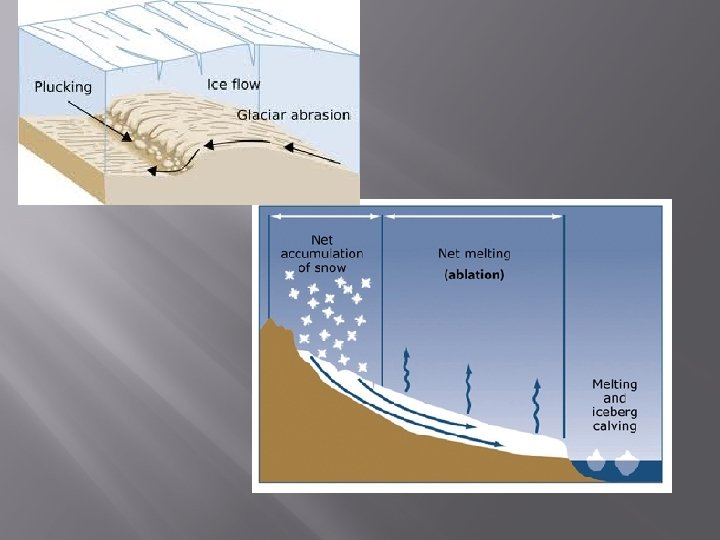

Glaciers Vanishing glacier on Mt Kilimanjaro http: //svs. gsfc. nasa. gov/vis/a 000000/a 003125/index. html Glacial advance: http: //www. wwnorton. com/college/geo/egeo/flash/18_1. swf Polished rock with striations
Continental Glaciers- very large glaciers (Antarctica and Greenland) so thick that they cover all landscape features except the highest mountains.
SNOW LINE VARIES WITH ALTITUDE

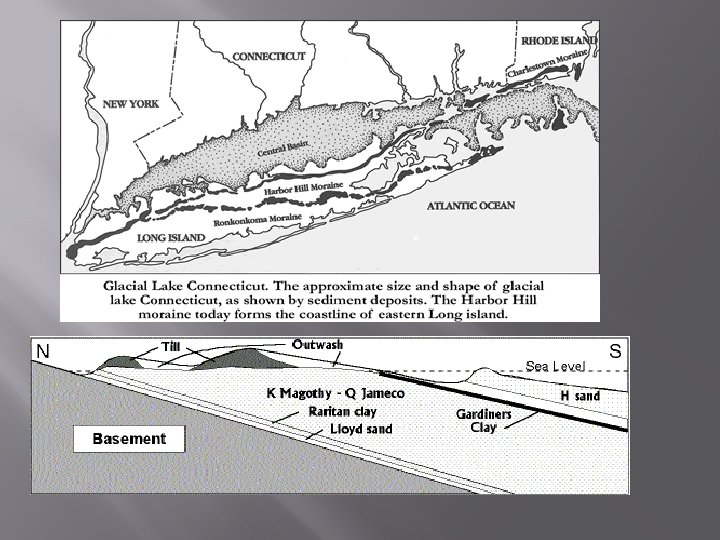

Long Island is the result of a continental glacier’s retreat!

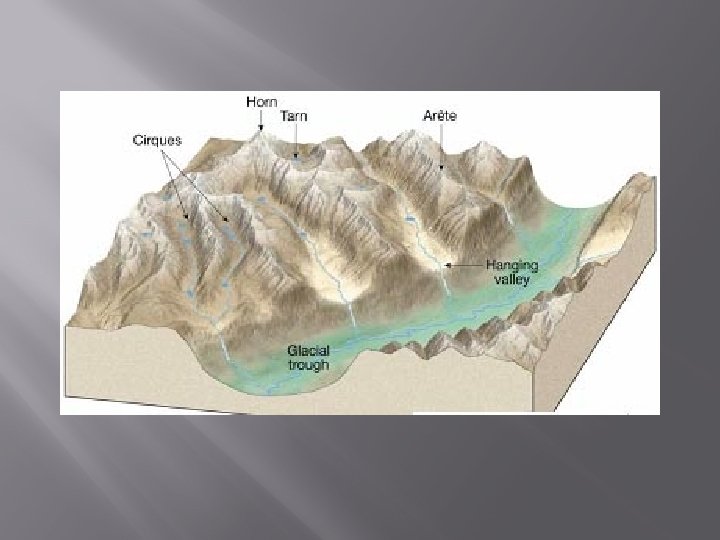

Snow line- Alpine Glacier http: //www. classzone. com/books/earth_science/terc/content/visualizations/es 150 1/es 1501 page 01. cfm? chapter_no=visualization What makes a glacier advance? http: //www. uky. edu/AS/Geology/howell/goodies/elearning/module 13 swf. swf
Which one is the Erratic?
