Deploying Open Stack with Cisco Compute Network and
- Slides: 38
Deploying Open. Stack with Cisco Compute, Network and Storage Duane De. Capite, Open. Stack Product Management Ashok Rajagopalan, UCS Product Management November 2013 © 2013 Cisco and/or its affiliates. All rights reserved. 1
COMMUNITY PARTICIPATION • Code Contributions and blueprints across Core services • Networking model, Compute Service and Dashboard, HA, Scheduling, • Open. Stack Foundation Board member Open. Stack @ Cisco CISCO OPENSTACK ENGINEERING • Automation (Puppet) and architectures (HA) for production deployment and operational support • Quantum/Neutron/Nova Plug-ins for Cisco product lines • UCS, Nexus, CSR 1000 V • Scalable networking services • FWaa. S, LBaa. S, VPNaa. S CUSTOMERS • Private, Public • Extend cloud model for rapid provisioning of network services, bare-metal, intelligent workload placement • Drive innovation through real-world use cases © 2013 Cisco and/or its affiliates. All rights reserved. 2
Innovation in Cloud Computing through Open. Stack’s Network Service and Cisco’s Open Network Environment (SDN) Applications each see their own logical DC API-driven Open Cloud Platform VM VM VM Open. Stack Compute Open. Stack Networking Open. Stack Storage (Nova) (Neutron) (Swift, Cinder, CEPH) l Physica Platform APIs Programmable Infrastructure One Platform Kit (one. PK) on ISR G 2, ASR 1 K © 2013 Cisco and/or its affiliates. All rights reserved. VM OPEN NETWORK ENVIRONMENT a Controllers and Agents Cisco ONE Controller SW Openflow Agents Virtual Overlays VXLAN Gateway, Openstack, Service Chaining CSR 1 KV 3
• Comprehensive Cisco Integrated Solution for Open. Stack • Operational efficiency with UCS and networking integrations with Open. Stack • Pre-defined reference configurations and performance optimized solutions • Saa. S applications and GRID scaleout applications © 2013 Cisco and/or its affiliates. All rights reserved. 4
© 2013 Cisco and/or its affiliates. All rights reserved. 5
§ As of Q 3 FY 13 UCS revenue reached a $2 B annualized run rate. § In Q 3 FY 13, Data Center revenue was 515 M growing 77% Y/Y § As of May 2013, there are over 23, 000 unique UCS customers which represents 89% Y/Y growth § More than half of all Fortune 500 customers have invested in UCS § Over 500 customers have booked over 1 Million in UCS solutions and over 1, 200 have booked over $500, 000 § Over 3, 400 Channel Partners are actively selling UCS worldwide and over 1700 UCS specialized partners in the channel world wide § As of CY 12 Q 4 Cisco is one of the Top 5 Server Vendors, #2 in Blade servers based on Worldwide Revenue Share 1 § 73 World Record Performance Benchmarks to date Source: 1 IDC Worldwide Quarterly Server Tracker, Q 1 2013, May 2013, Revenue Share © 2013 Cisco and/or its affiliates. All rights reserved. 6
Performance Optimized for Bare Metal, Virtualized, and Cloud Applications Cisco UCS: Many Server Form Factors, One System Rack Scale Out UCS C 24 M 3 Entry, Expandable Rack Server for Storage Intensive Workloads UCS C 240 M 3 Ideal Platform for Big Data, ERP, and Database Applications UCS C 420 M 3 Entry Rack Server for Distributed and Web Infrastructure Applications Versatile, General Purpose Enterprise Infrastructure, and Application Server Enterprise Class, 4 -Socket UCS C 460 M 2 Server for Large, Memory. Mission-Critical, 4 -Socket Intensive Bare Metal, and Server for Large, CPUVirtualized Applications UCS C 260 M 2 Intensive Applications Mission-Critical, 2 -Socket Extended Memory Server for Large, Memory-Intensive Applications UCS B 22 M 3 Entry Blade Server for IT Infrastructure and Web Applications UCS B 200 M 3 Optimal Choice for VDI, Private Cloud, or Dense Virtualization/ Consolidation Workloads Mission-Critical, 4 -Socket Enterprise Class, 4 -Socket Blade for Large, CPUBlade for Large, Memory. Intensive Bare Metal UCS B 230 M 2 and Virtualized Applications Density-optimized CPU and UCS C 22 M 3 Blade Industry-Leading Compute Without Compromise Enterprise Intensive / Mission Critical Performance UCS C 220 M 3 © 2013 Cisco and/or its affiliates. All rights reserved. UCS B 440 M 2 UCS B 420 M 3 Memory-Intensive 2 -Socket Blade for Bare Metal and Virtualized Applications 7
Blade and Rack Servers Managed a Cohesive Resource Pool UCS Manager UNIFIED MANAGEMENT A SINGLE UNIFIED SYSTEM FOR BLADE AND RACK SERVERS Service Profile: HR_App 1 UCS Profile C-Series Rack Optimized Servers A Major Market Transformation in Unified Server Management © 2013 Cisco and/or its affiliates. All rights reserved. VNIC 1 Unified Device Management MAC: 08: 00: 69: 02: 01: 2 E HR_WEB_VLAN (ID=50) Network Policy VNIC 2 MAC: 08: 00: 69: 02: 01: 2 F HR_DB_VLAN (ID=210) Storage Policy HBA 1 and 2 WWN: 5080020000075740 WWN: 5080020000075741 Server Policy VSAN ID: 12 Boot Order: SAN Boot Order: SAN BIOS Settings: Turbo On Hyper. Threading On Benefits of UCS Manager and Service Profiles for Both Blade and Rack-Optimized Servers B-Series Blade Servers Add Capacity Without Complexity 8
L 2/L 3 Switching Single Rack 16 servers Single Domain Up to 10 racks, 160 servers UCS Manager Multiple Domains, up to 10 K nodes UCS Central © 2013 Cisco and/or its affiliates. All rights reserved. 9
Cisco UCS Open. Stack Solution Accelerator Paks Compute-intensive (2) UCS 96 -Port 6296 Fabric Interconnect (2) Nexus 2232 PP (6) UCS C 220 M 3 Servers w/ dual Intel Xeon E 5 -2665 2. 4 GHz Processors, 192 GB of Memory, Mega RAID, 4 x 900 GB 10 K SAS HDDs © 2013 Cisco and/or its affiliates. All rights reserved. Mixed-use (2) UCS 96 -Port 6296 Fabric Interconnect (2) Nexus 2232 PP (6) UCS C 220 M 3 Servers w/ dual Xeon E 5 -2665 2. 7 GHz Proc, 192 GB of Memory, Mega RAID, 4 x 600 GB 10 K SAS HDDs (2) UCS C 240 M 3 Servers w/ dual Intel Xeon E 5 -2665 2. 4 GHz Proc, 192 GB of Memory, 1 x Mega RAID, 24 x 900 GB 10 K SAS HDDs Storage-intensive (2) UCS 96 -Port 6296 Fabric Interconnect (2) Nexus 2232 PP (8) UCS C 240 M 3 Servers w/ dual Intel Xeon E 5 -2665 2. 4 GHz Proc, 192 GB of Memory, 1 x Mega RAID, 24 x 900 GB 10 K SAS HDDs 10
High-Density 2 Control Nodes C 220 -M 3 s 2 Compute Nodes C 220 -M 3 s nova-api keystone-api glance-api cinder-api horizon-UI nova-api quantum-api cinder-api Network Node quantum-api CEPH MON/MDS/RAD OS KVM Hypervisor © 2013 Cisco and/or its affiliates. All rights reserved. 2 Storage Nodes C 220 -M 3 s cinder-api CEPH Deploy CEPH Object Storage Devices 11

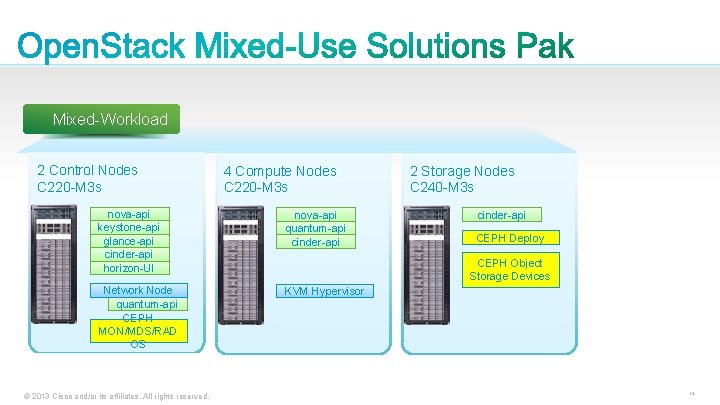

Mixed-Workload 2 Control Nodes C 220 -M 3 s 4 Compute Nodes C 220 -M 3 s nova-api keystone-api glance-api cinder-api horizon-UI nova-api quantum-api cinder-api Network Node quantum-api CEPH MON/MDS/RAD OS KVM Hypervisor © 2013 Cisco and/or its affiliates. All rights reserved. 2 Storage Nodes C 240 -M 3 s cinder-api CEPH Deploy CEPH Object Storage Devices 12
Storage-intensive 2 Control/Storage Nodes C 240 -M 3 s nova-api keystone-api glance-api cinder-api horizon-UI Network Node quantum-api CEPH MON/MDS/RAD OS © 2013 Cisco and/or its affiliates. All rights reserved. 6 Compute/Storage Nodes C 240 -M 3 s nova-api quantum-api cinder-api KVM Hypervisor CEPH Deploy CEPH Object Storage Devices 13
Client API calls Compute (Nova) 1 Infrastructure Hypervisors nova-api 4 Bare-metal Nodes nova-compute nova-volume 2 (will be replaced by Cinder) nova-network (will be replaced by Neutron) 3 nova-schedule © 2013 Cisco and/or its affiliates. All rights reserved. 14

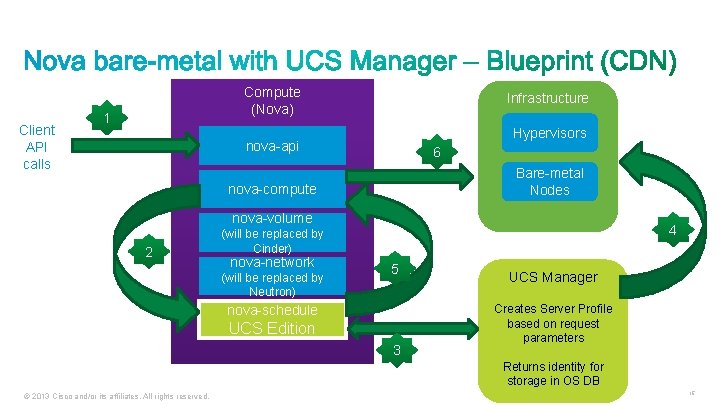

Client API calls Compute (Nova) 1 Infrastructure Hypervisors nova-api 6 Bare-metal Nodes nova-compute nova-volume 2 4 (will be replaced by Cinder) nova-network (will be replaced by Neutron) 5 nova-schedule UCS Edition 3 UCS Manager Creates Server Profile based on request parameters Returns identity for storage in OS DB © 2013 Cisco and/or its affiliates. All rights reserved. 15
© 2013 Cisco and/or its affiliates. All rights reserved. 16
Cisco Unified Fabric Continuous Market Leadership DC TECHNOLOGY LEADER 40, 000+ 11 M+ Cisco NX-OS Customers 10 GE Ports Shipped Cisco Fabric. Path Customers Cisco FEX Customers 1, 500+ 11, 000+ DATA CENTER SWITCHING LEADER 1 # Market share by revenue in Q 3 2012 for DC Ethernet Switching at 71. 7%* 1 # Market share by revenue in Q 3 2012 for FCo. E SAN Switching at 87. 3%** *Source: Infonetics, Q 3 2012 DC Network Equipment Report, December 2012 **Source: Dell’Oro, SAN Switching, November 2012 Data current as of December 2012. Subject to change without notice. Cisco Confidential © 2011 Cisco and/or its affiliates. All rights reserved. 17
LAN LAN/SAN Cisco Nexus 3000 Nexus 4000 Nexus 5000 Cisco Nexus ® 1010 Cisco Nexus 7000 Nexus 6000 Cisco Nexus 2000 Cisco Nexus 1000 V CISCO NX-OS: From Hypervisor to Core CISCO DCNM: Single Pane of Management DELIVERING TO YOUR DATA CENTER NEEDS Resilient, High Performance, Scalable Fabric © 2011 Cisco and/or its affiliates. All rights reserved. Workload Mobility Within/ Across DCs Secure Separation/ Multitenancy LAN+SAN Convergence Operational Efficiency Cisco Confidential 18
http: //docwiki. cisco. com/wiki/Open. Stack: Grizzly-Nexus-Plugin © 2013 Cisco and/or its affiliates. All rights reserved. 19
• Automated VLAN Provisioning Configure VLANs on the Nexus switch • Layer 3 Gateway Map Nexus Switch Virtual Interface (SVI) to tenant VLAN Scalability with Top of Rack (To. R) Nexus as default Layer 3 Gateway Eliminates configuration and bottleneck of host-based software L 3 forwarding Agent • Multi-Homed Host Deployments Virtual Port Channel (v. PC) for High Availability (HA) and link optimization to multiple Nexus switches • Hardware and Software-based Networking Performance benefits of hardware-based To. R switch (Nexus 3000, 5000, 6000, 7000) Flexibility of software-defined Networking with Nexus 1000 V © 2013 Cisco and/or its affiliates. All rights reserved. 20
Management Network nova-compute *-plugin-agent dhcp-agent • Flat Networking Traffic • VLAN Traffic across Nodes • GRE or VXLAN tunnels across Nodes *-plugin-agent Network Node Compute Node L 2 B/OVS Compute Node Data Network • Removes bottleneck of generic server-based network node with Linux IP tables © 2013 Cisco and/or its affiliates. All rights reserved. nova-scheduler neutron-server keystone L 2 B/OVS • SVI configured on Nexus for L 3 forwarding and external Gateway nova-api mysql, rabbit. . . Nexus PI Cloud Controller Node API Network External Network Internet API Network is typically routable to enable public access 21
• Foundation of Virtual Services Architecture • v. Path Service Insertion/Chaining • VXLAN Overlay Networking Management Network dhcp-agent *-plugin-agent l 3 -agent nova-compute *-plugin-agent VSM/N 1000 V Network Node Compute Node N 1000 V Compute Node nova-api nova-scheduler neutron-server keystone Data Network mysql, rabbit. . . Cloud Controller Node API Network External Network Internet © 2013 Cisco and/or its affiliates. All rights reserved. API Network is typically routable to enable public access 22
Management Network or Compute node(s) hosts CSR nova-compute *-plugin-agent dhcp-agent CSR Provides per tenant isolation and full IOS capabilities including VPN, BGP, OSFP, MPLS, etc. *-plugin-agent nova-api nova-scheduler quantum-server keystone CSR 1000 V VSM/N 1000 V Network Node Compute Node N 1000 V Compute Node Data Network mysql, rabbit. . . Cloud Controller Node API Network External Network Internet © 2013 Cisco and/or its affiliates. All rights reserved. API Network is typically routable to enable public access 23
New Open. Stack Services from Cisco Advanced Services Portfolio Strategy and Assessment (Available Now) Validation (Available Now) Design & Deployment (December 2013) Optimization (December 2013) Problems Solved Key Deliverables ü Is Open. Stack the correct platform for my business ü What are my key requirements for Open. Stack? ü Strategy Assessment high level roadmap and architecture ü Prioritization of use cases ü Pre-defined design ü Rapid installation & Test ü Lack of Open. Stack skillsets ü Pre-defined design ü Test plan ü Knowledge Transfer ü How to create or add production safety, availability and scale to my openstack deployment. ü Custom application assistance ü Topology and requirements evolution © 2013 Cisco and/or its affiliates. All rights reserved. ü Network Scale and High availability design ü Storage Integration ü Cell deployment design ü Design review ü Software Upgrade procedures ü Day 2 Support for Customized deployments Key Benefits ü Understand role of Open. Stack in your DC/Cloud strategy ü Experiment with Open. Stack installation in your data center environment ü Accelerate production readiness ü Optimally deployed on Cisco hardware ü Ensure deployment evolution ü Targeted support expertise for your customized solution 24
© 2013 Cisco and/or its affiliates. All rights reserved. 25
To run the install script, copy and paste the following on your command line (as root with your proxy set if necessary as above): curl -s -k -B https: //raw. github. com/Cisco. Systems/grizzly-manifests/multi-node/install_os_puppet | /bin/bash With a proxy, use: https_proxy=http: //proxy. example. com: 80/ curl -s -k -B https: //raw. github. com/Cisco. Systems/ grizzly-manifests/multinode/install_os_puppet > install_os_puppet chmod +x install_os_puppet. /install_os_puppet -p http: //proxy. example. com: 80/

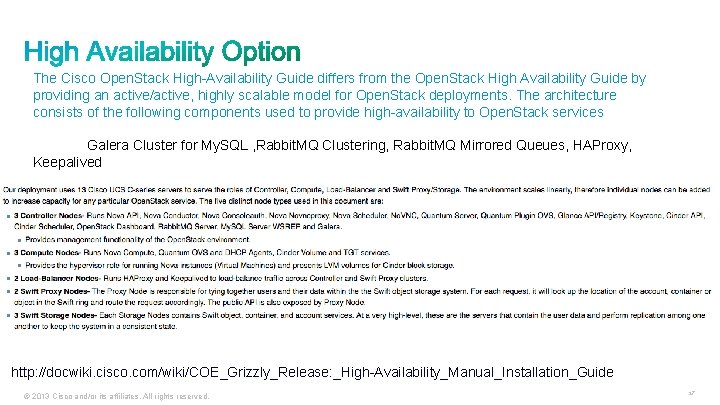

The Cisco Open. Stack High-Availability Guide differs from the Open. Stack High Availability Guide by providing an active/active, highly scalable model for Open. Stack deployments. The architecture consists of the following components used to provide high-availability to Open. Stack services Galera Cluster for My. SQL , Rabbit. MQ Clustering, Rabbit. MQ Mirrored Queues, HAProxy, Keepalived http: //docwiki. cisco. com/wiki/COE_Grizzly_Release: _High-Availability_Manual_Installation_Guide © 2013 Cisco and/or its affiliates. All rights reserved. 27
Cisco offers a complete Compute, Networking and Storage Solution for Open. Stack Cisco provides Advanced and Technical Services to help migrate from Pilot to Production Please let us know how we can help you with Open. Stack by contacting us at Openstack-support@cisco. com More information can be found at www. cisco. com/go/Open. Stack
Back Up © 2010 Cisco and/or its affiliates. All rights reserved. © 2013 Cisco and/or its affiliates. All rights reserved. 29
Pre-configure UCS Provision UCS Servers Hostname / IP address Chassis/Server Discovery Logical credentials Service Profile Association Resource allocation preferences PXE boot devices deployed Register Nodes Cobbler database update Only Point of User Touch Event Listener Host OS Install Updates the newly added node info in puppet PXE boot for initial OS install Puppet apply RHEL 6. 4 installation on bare-metal servers Add hosts/system in Open. Stack Sync all the plugins from Puppet Master Open. Stack Handover Inventory of nova nodes on controller VM Provisioning Open. Stack Services Deployment
Build Node 1. Read conf file 2. Apply policies 3. Update Puppet/Cobbler DB 5. Puppet sync 4. PXE Boot Control Node (glance, scheduler, API-deamons) Compute Nodes (novacompute, libvirtd) © 2013 Cisco and/or its affiliates. All rights reserved. 32
© 2013 Cisco and/or its affiliates. All rights reserved. 33
Clients © 2013 Cisco and/or its affiliates. All rights reserved. Neutron (Formerly Quantum) Service Networks 34

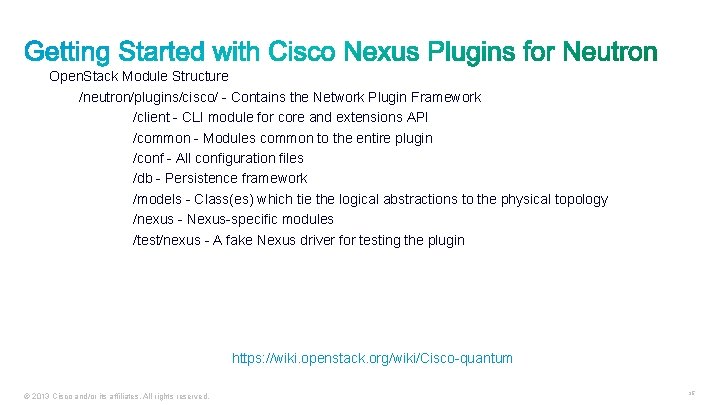

Open. Stack Module Structure /neutron/plugins/cisco/ - Contains the Network Plugin Framework /client - CLI module for core and extensions API /common - Modules common to the entire plugin /conf - All configuration files /db - Persistence framework /models - Class(es) which tie the logical abstractions to the physical topology /nexus - Nexus-specific modules /test/nexus - A fake Nexus driver for testing the plugin https: //wiki. openstack. org/wiki/Cisco-quantum © 2013 Cisco and/or its affiliates. All rights reserved. 35
core_plugin = neutron. plugins. cisco. network_plugin. Plugin. V 2 [keystone_authtoken] auth_host = <authorization host's IP address> auth_port = 35357 auth_protocol = http admin_tenant_name = service admin_user = <keystone admin name> admin_password = <keystone admin password> https: //wiki. openstack. org/wiki/Cisco-quantum © 2013 Cisco and/or its affiliates. All rights reserved. 36
/neutron/plugins/cisco_plugins. ini file mysql -u<mysqlusername> -p<mysqlpassword> -e "create database neutron_l 2 network” vswitch_plugin=neutron. plugins. openvswitch. ovs_neutron_plugin. OVSNeutron. Plugin. V 2 /neutron/plugins/openvswitch/ovs_neutron_plugin. ini [OVS] bridge_mappings = physnet 1: br-eth 1 network_vlan_ranges = physnet 1: 1000: 1100 Tenant_network_type = vlan https: //wiki. openstack. org/wiki/Cisco-quantum © 2013 Cisco and/or its affiliates. All rights reserved. 37

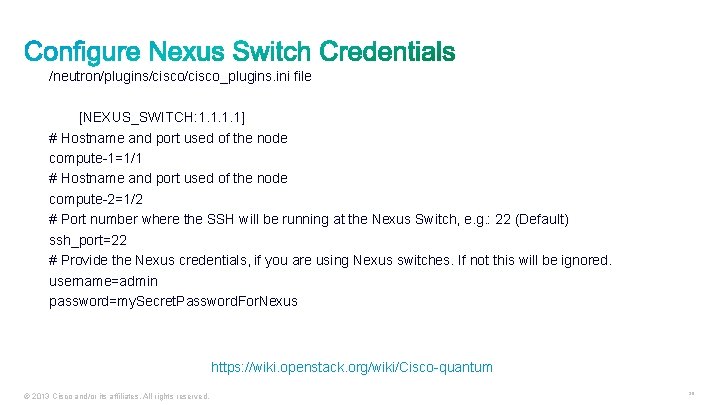

/neutron/plugins/cisco_plugins. ini file [NEXUS_SWITCH: 1. 1] # Hostname and port used of the node compute-1=1/1 # Hostname and port used of the node compute-2=1/2 # Port number where the SSH will be running at the Nexus Switch, e. g. : 22 (Default) ssh_port=22 # Provide the Nexus credentials, if you are using Nexus switches. If not this will be ignored. username=admin password=my. Secret. Password. For. Nexus https: //wiki. openstack. org/wiki/Cisco-quantum © 2013 Cisco and/or its affiliates. All rights reserved. 38
