Deploying Firewalls By: Keith Reiter COSC 356

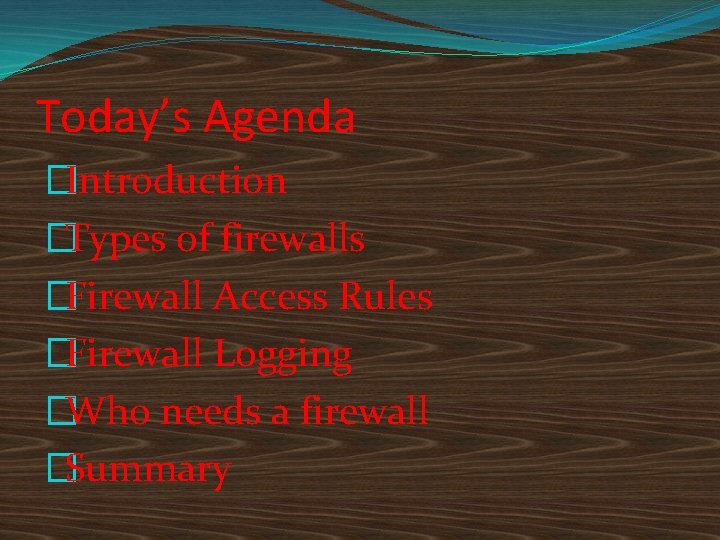

Today’s Agenda �Introduction �Types of firewalls �Firewall Access Rules �Firewall Logging �Who needs a firewall �Summary

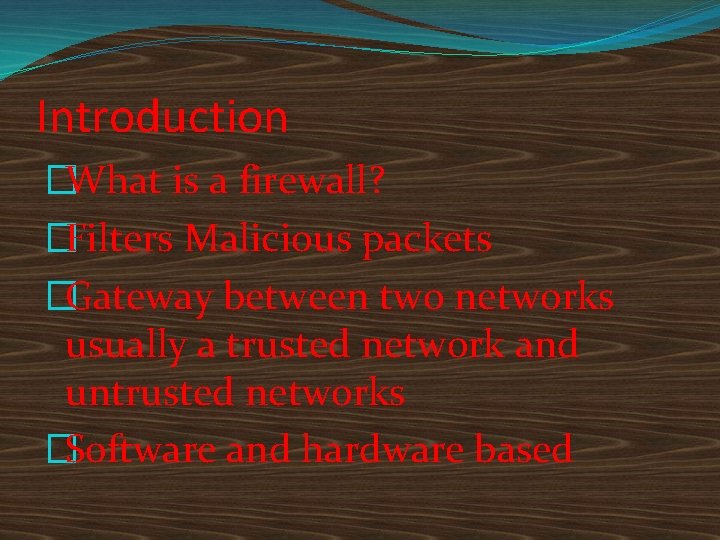

Introduction �What is a firewall? �Filters Malicious packets �Gateway between two networks usually a trusted network and untrusted networks �Software and hardware based

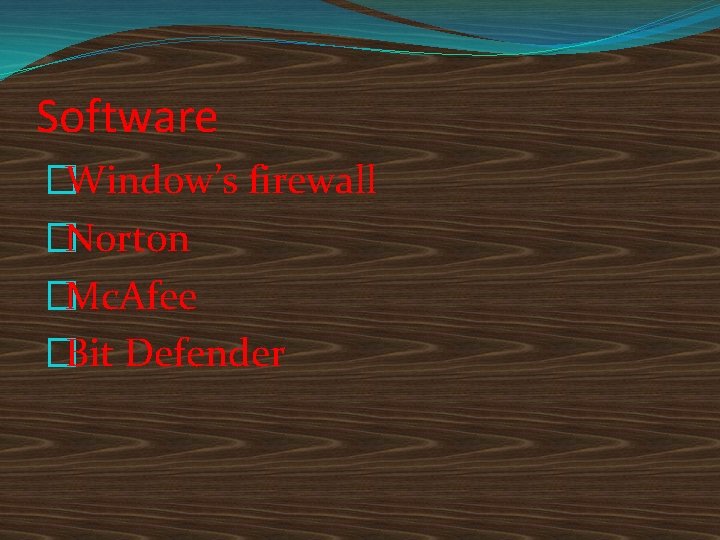

Software �Window’s firewall �Norton �Mc. Afee �Bit Defender

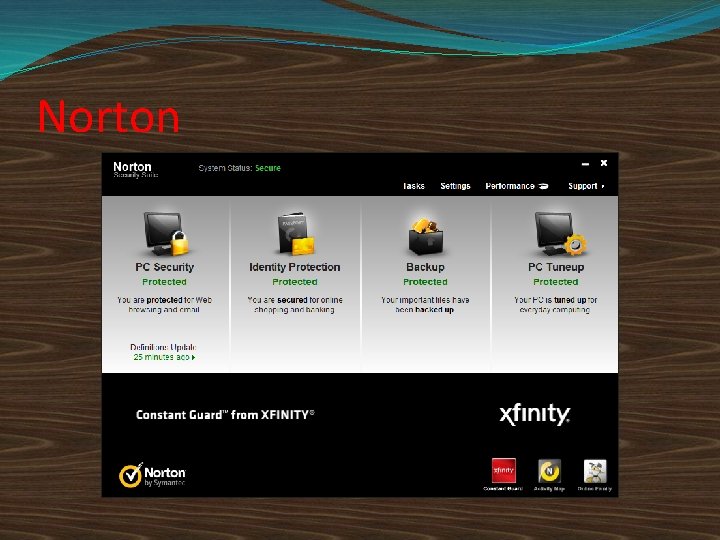

Norton

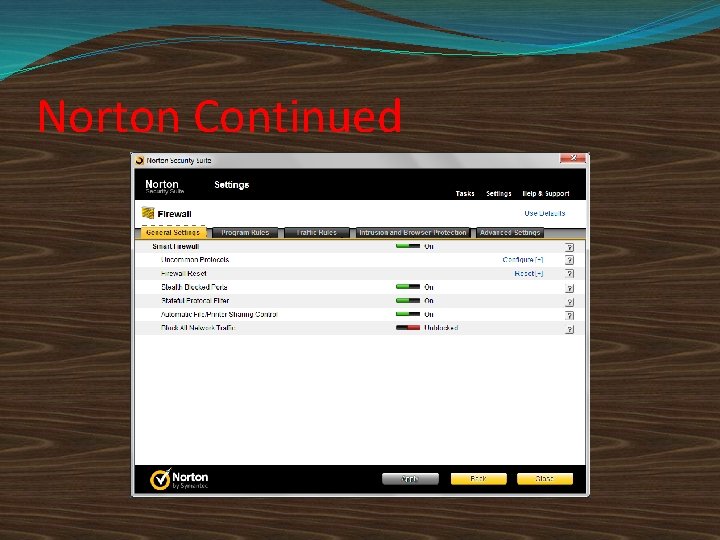

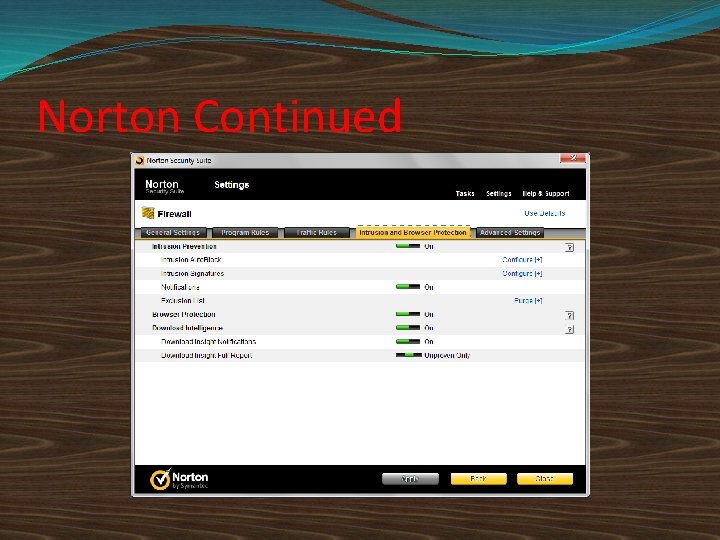

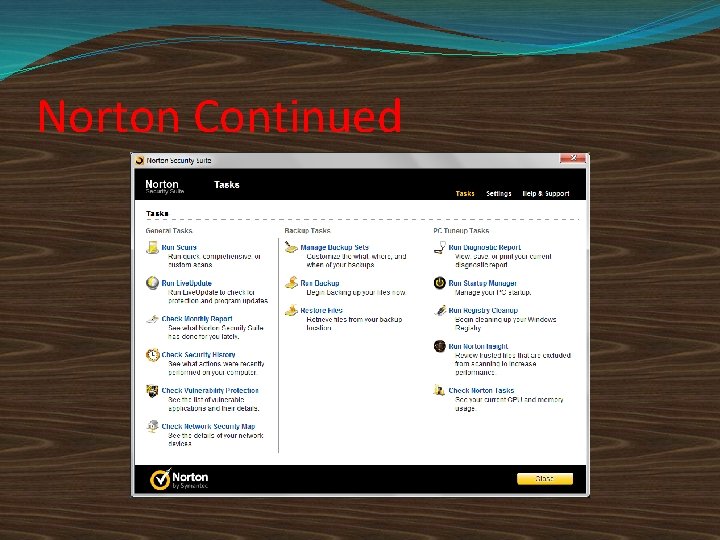

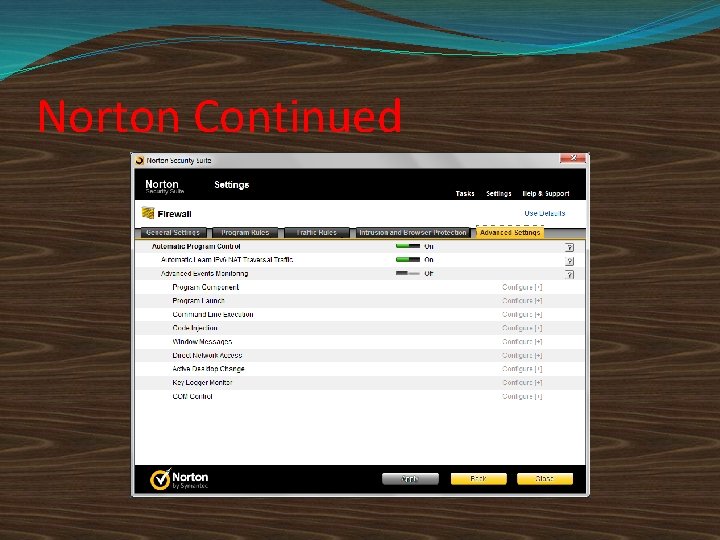

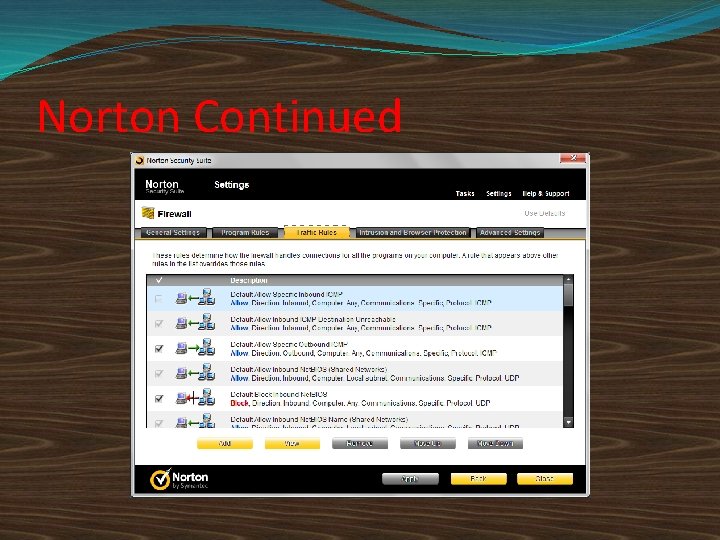

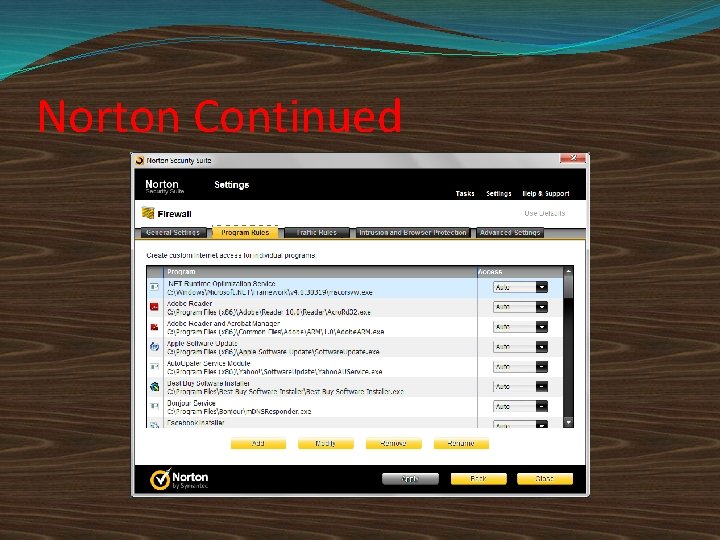

Norton Continued

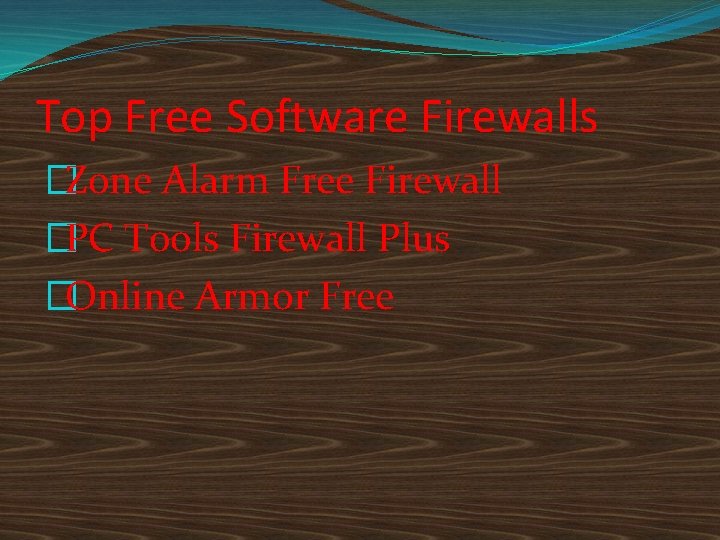

Top Free Software Firewalls �Zone Alarm Free Firewall �PC Tools Firewall Plus �Online Armor Free

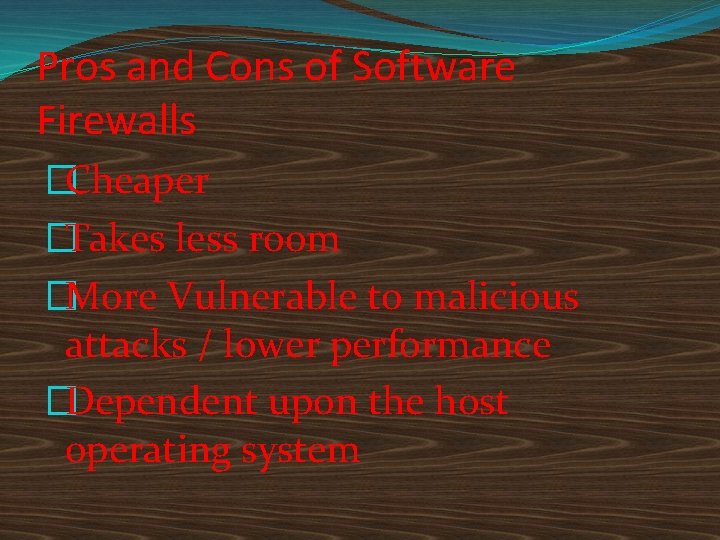

Pros and Cons of Software Firewalls �Cheaper �Takes less room �More Vulnerable to malicious attacks / lower performance �Dependent upon the host operating system

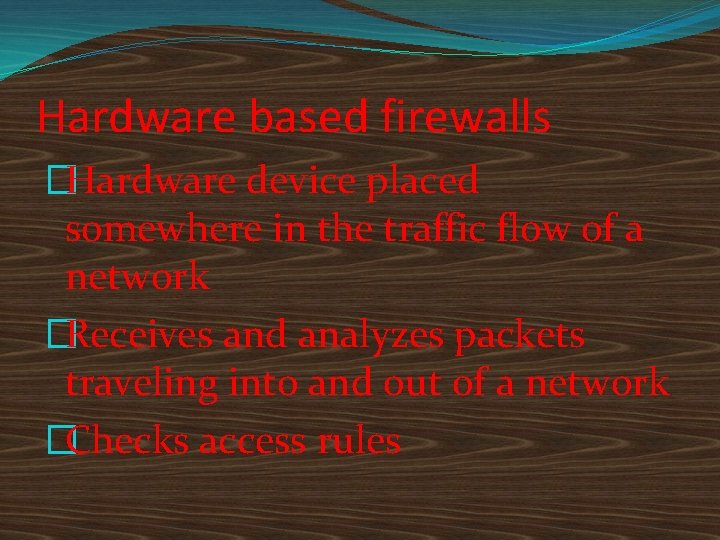

Hardware based firewalls �Hardware device placed somewhere in the traffic flow of a network �Receives and analyzes packets traveling into and out of a network �Checks access rules

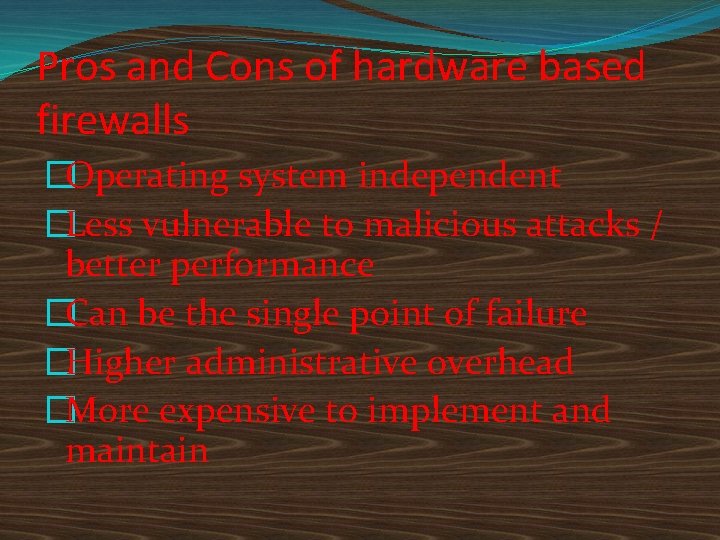

Pros and Cons of hardware based firewalls �Operating system independent �Less vulnerable to malicious attacks / better performance �Can be the single point of failure �Higher administrative overhead �More expensive to implement and maintain

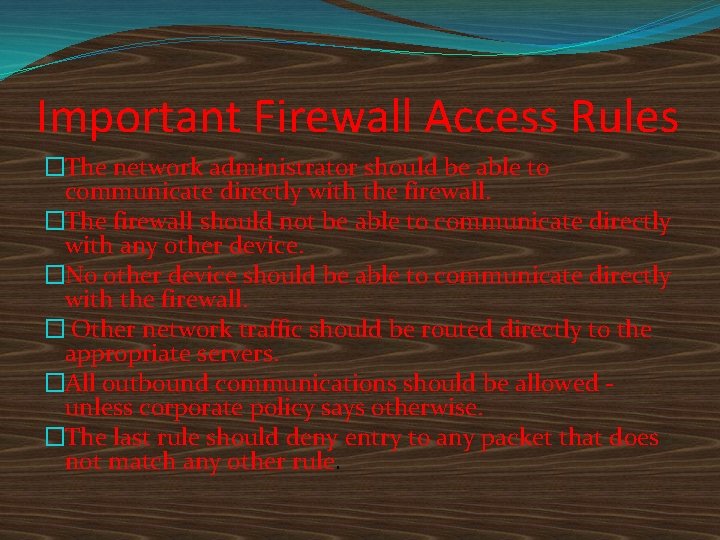

Important Firewall Access Rules �The network administrator should be able to communicate directly with the firewall. �The firewall should not be able to communicate directly with any other device. �No other device should be able to communicate directly with the firewall. � Other network traffic should be routed directly to the appropriate servers. �All outbound communications should be allowed unless corporate policy says otherwise. �The last rule should deny entry to any packet that does not match any other rule.

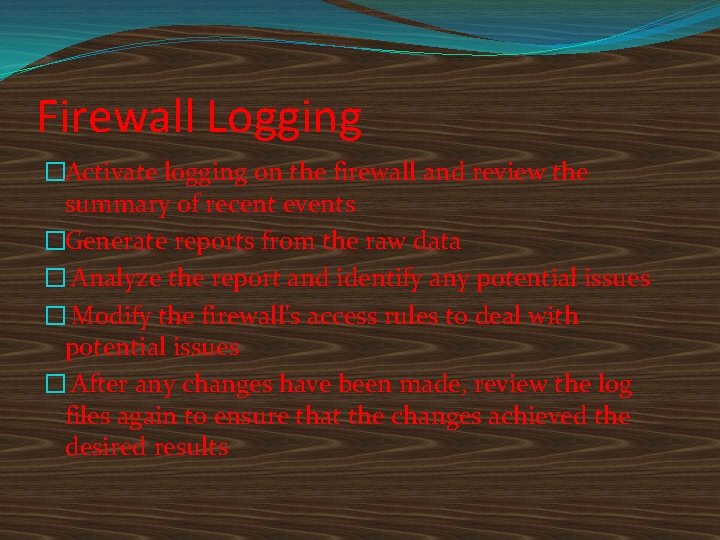

Firewall Logging �Activate logging on the firewall and review the summary of recent events �Generate reports from the raw data � Analyze the report and identify any potential issues � Modify the firewall's access rules to deal with potential issues � After any changes have been made, review the log files again to ensure that the changes achieved the desired results

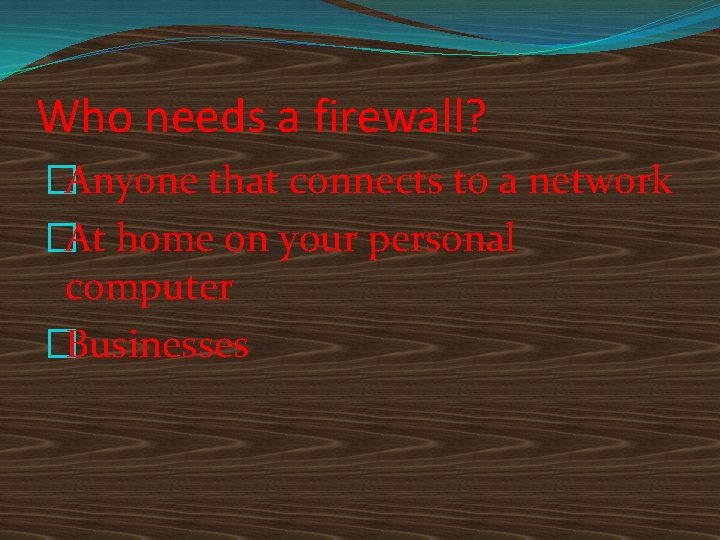

Who needs a firewall? �Anyone that connects to a network �At home on your personal computer �Businesses

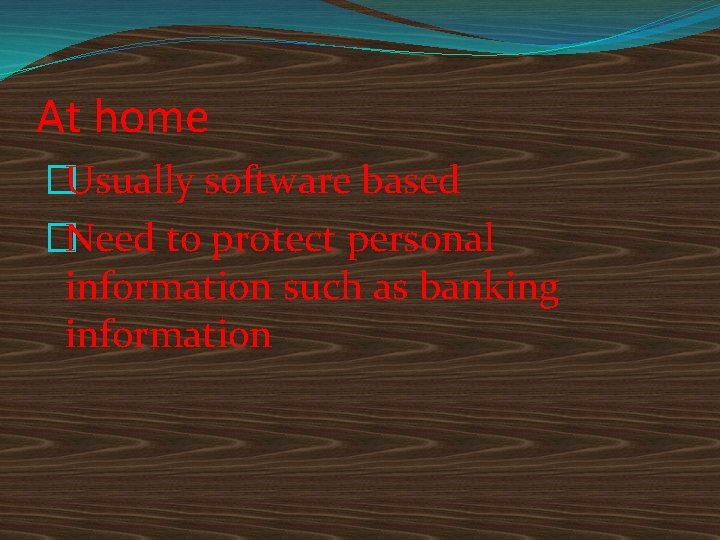

At home �Usually software based �Need to protect personal information such as banking information

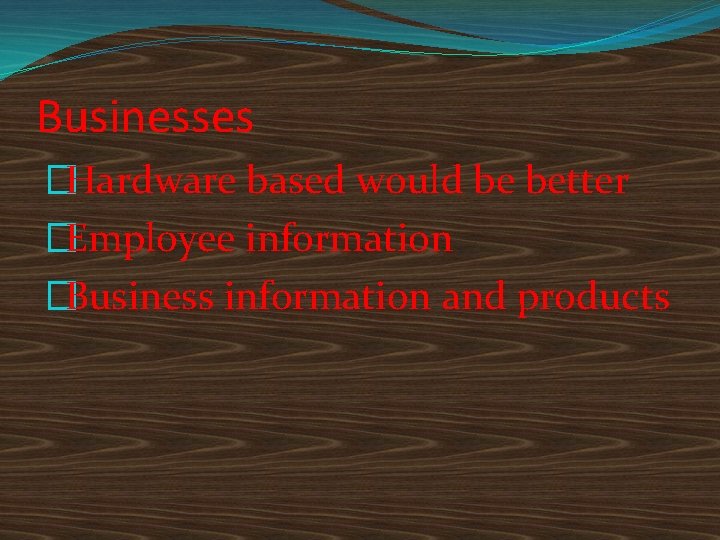

Businesses �Hardware based would be better �Employee information �Business information and products

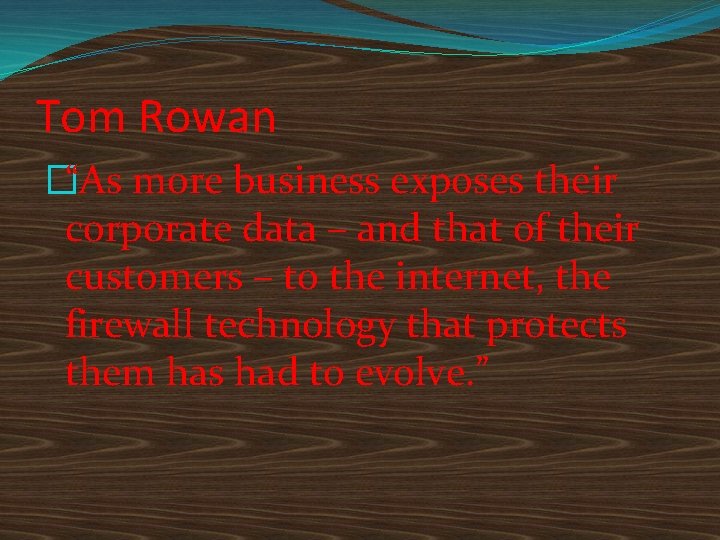

Tom Rowan �“As more business exposes their corporate data – and that of their customers – to the internet, the firewall technology that protects them has had to evolve. ”

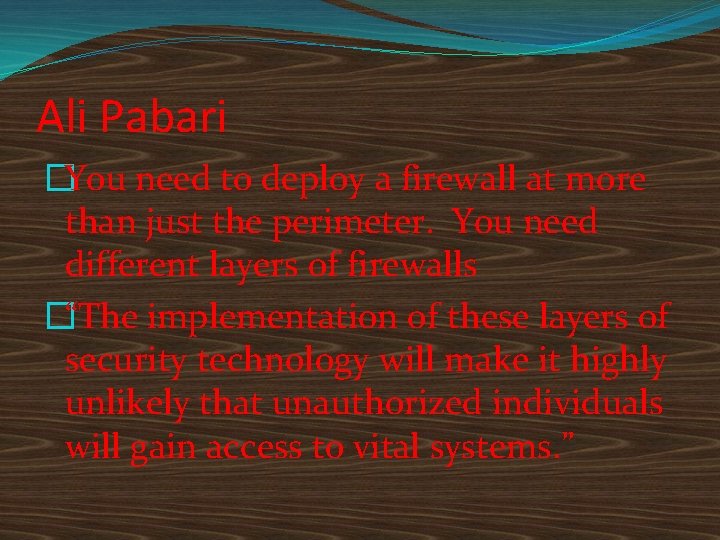

Ali Pabari �You need to deploy a firewall at more than just the perimeter. You need different layers of firewalls �“The implementation of these layers of security technology will make it highly unlikely that unauthorized individuals will gain access to vital systems. ”

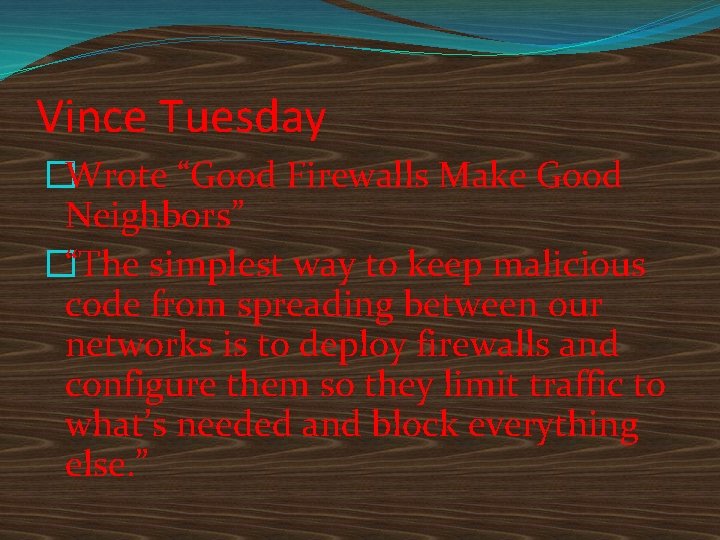

Vince Tuesday �Wrote “Good Firewalls Make Good Neighbors” �“The simplest way to keep malicious code from spreading between our networks is to deploy firewalls and configure them so they limit traffic to what’s needed and block everything else. ”

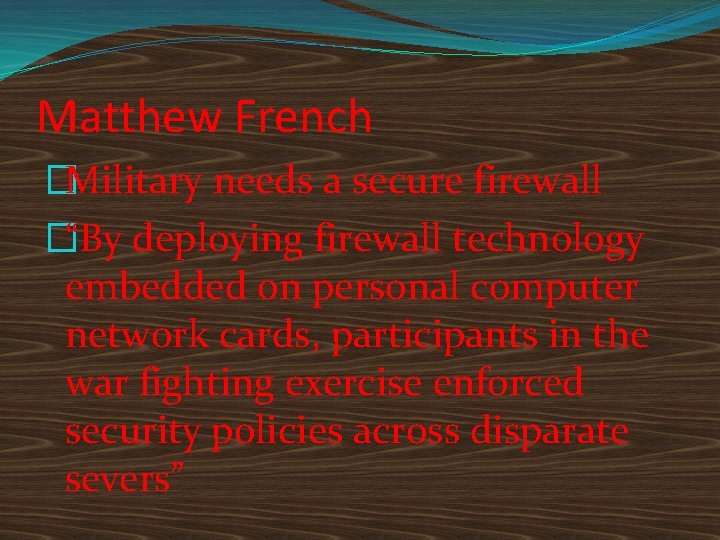

Matthew French �Military needs a secure firewall �“By deploying firewall technology embedded on personal computer network cards, participants in the war fighting exercise enforced security policies across disparate severs”

Summary �Types of firewalls �Firewall Access Rules �Firewall Logging �Who needs a firewall

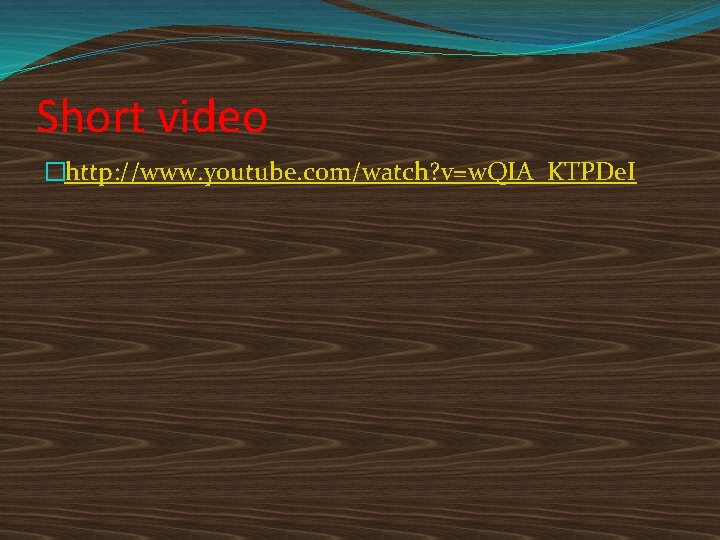

Short video �http: //www. youtube. com/watch? v=w. QIA_KTPDe. I

QUESTIONS?

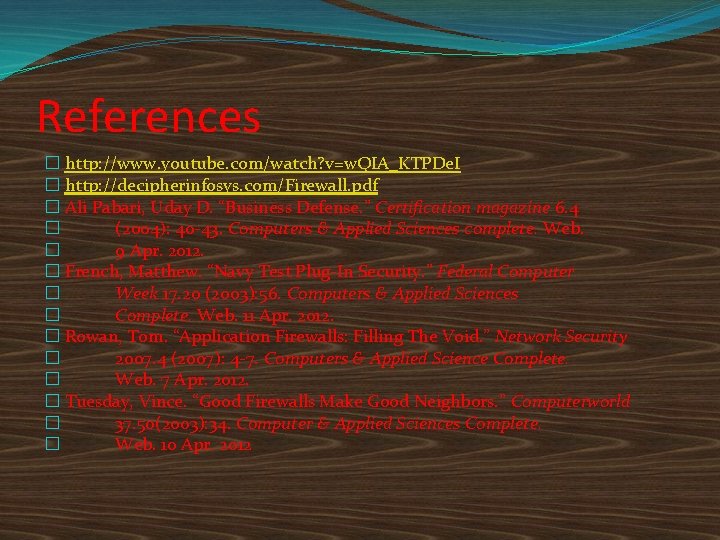

References � http: //www. youtube. com/watch? v=w. QIA_KTPDe. I � http: //decipherinfosys. com/Firewall. pdf � Ali Pabari, Uday D. “Business Defense. ” Certification magazine 6. 4 � (2004): 40 -43. Computers & Applied Sciences complete. Web. � 9 Apr. 2012. � French, Matthew. “Navy Test Plug-In Security. ” Federal Computer � Week 17. 20 (2003): 56. Computers & Applied Sciences � Complete. Web. 11 Apr. 2012. � Rowan, Tom. “Application Firewalls: Filling The Void. ” Network Security � 2007. 4 (2007): 4 -7. Computers & Applied Science Complete. � Web. 7 Apr. 2012. � Tuesday, Vince. “Good Firewalls Make Good Neighbors. ” Computerworld � 37. 50(2003): 34. Computer & Applied Sciences Complete. � Web. 10 Apr. 2012
