教育部智慧電子跨領域應用專題課程 生醫監控晶片系統 Department of Electrical Engineering National Cheng Kung University Tainan, Taiwan, R. O. C. Apr 2012 2020/11/30 1 NDT & NBMIS LAB

Outline □ ECG Introduction □ ECG Circuit Design □ Q&A 2020/11/30 2/26 NDT & NBMIS LAB

ECG Introduction 2020/11/30 4/26 NDT & NBMIS LAB

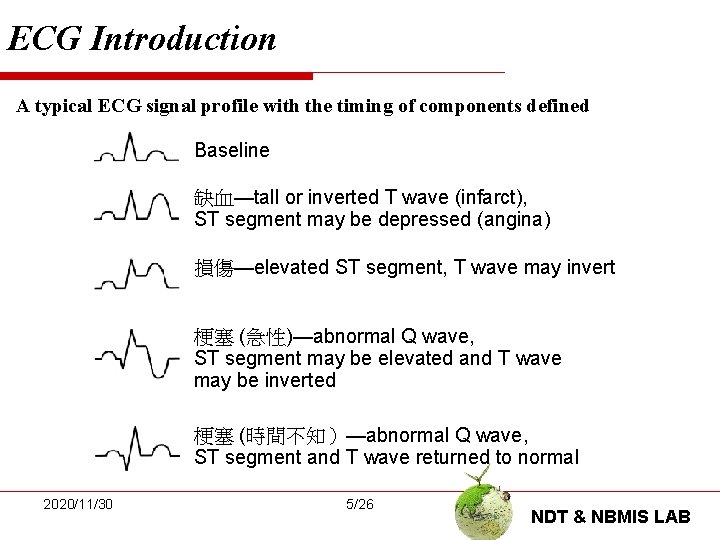

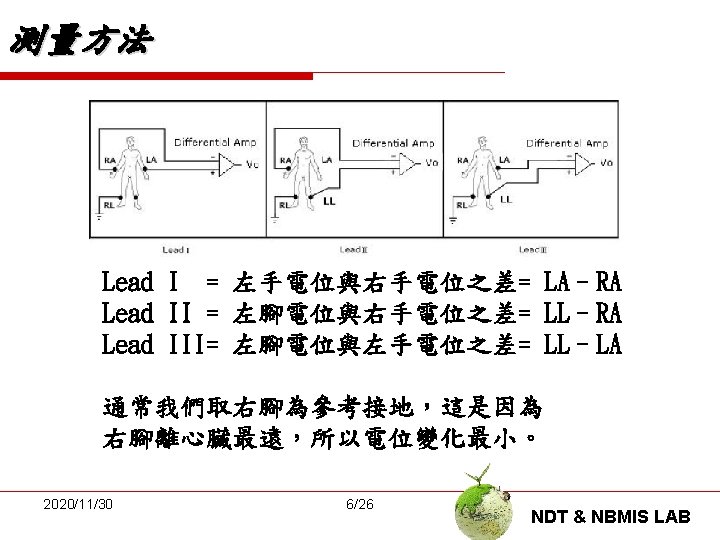

ECG Introduction A typical ECG signal profile with the timing of components defined Baseline 缺血—tall or inverted T wave (infarct), ST segment may be depressed (angina) 損傷—elevated ST segment, T wave may invert 梗塞 (急性)—abnormal Q wave, ST segment may be elevated and T wave may be inverted 梗塞 (時間不知）—abnormal Q wave, ST segment and T wave returned to normal 2020/11/30 5/26 NDT & NBMIS LAB

ECG Circuit Design 2020/11/30 8/26 NDT & NBMIS LAB

ECG Circuit Design 2020/11/30 9/26 NDT & NBMIS LAB

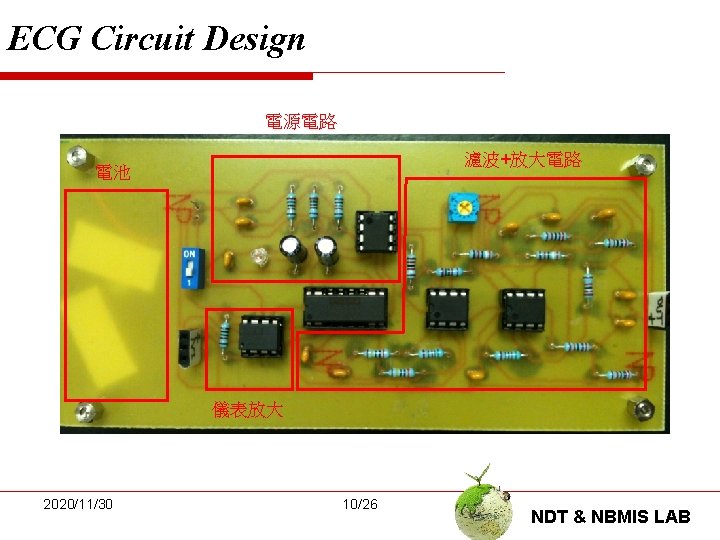

ECG Circuit Design 電源電路 濾波+放大電路 電池 儀表放大 2020/11/30 10/26 NDT & NBMIS LAB

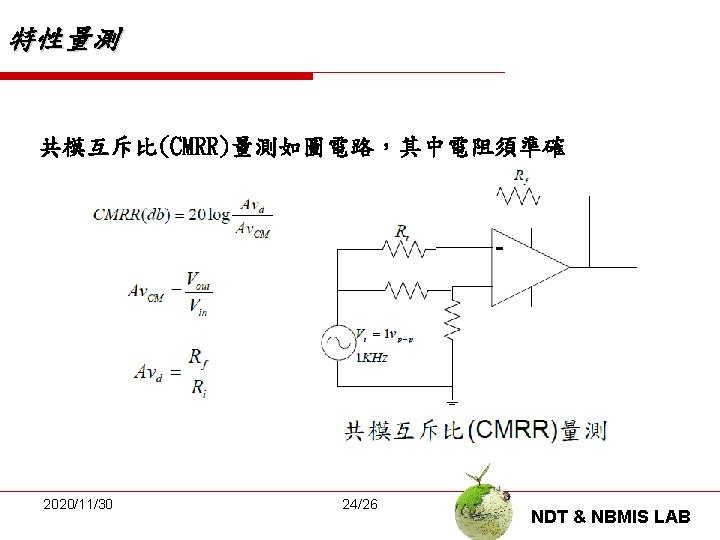

CMRR 頻率 DC 0. 05 0. 1 0. 5 10 50 100 500 Ad 40 X 50 52 54 52 52 52 Ac 4. 74 m X 4. 74 m 4. 74 m CMRR 8440 X 10548 10970 11392 10970 10970 CMRR(d. B) 78. 5 X 80. 5 80. 8 81. 1 80. 8 500 Hz 2020/11/30 17/26 NDT & NBMIS LAB

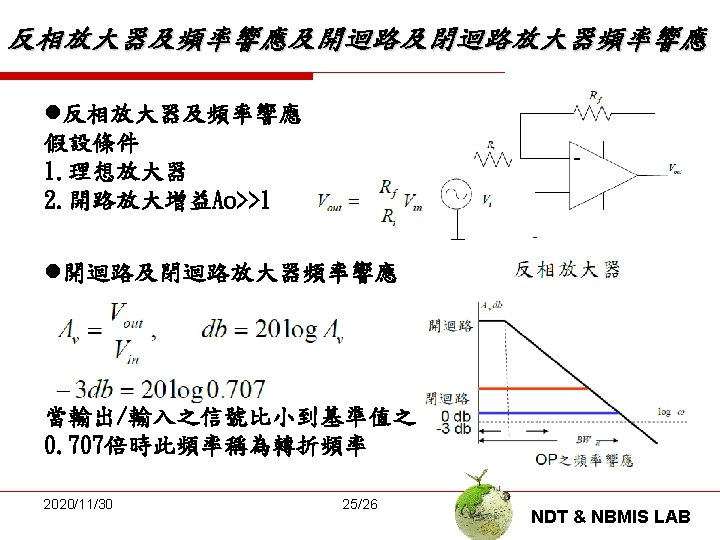

電阻色碼表 2020/11/30 25/26 NDT & NBMIS LAB

Thank You for Your Attention! 2020/11/30 NDT & NBMIS LAB
