Dental Anatomy

Arrangement of Teeth • Primary Dentition refers to the twenty deciduous teeth, also called “baby teeth”. • Secondary Dentition refers to the thirty-two permanent teeth. • The dentition is divided into two arches: upper and lower, also known as maxillary and mandibular arches. • Each arch is arranged into a right and a left half. Thus there are four quadrants. • The line that divides left and right quadrants is the median line or midline of the face.

Arrangement of Teeth

Arrangement of Teeth • The permanent teeth that replace the deciduous teeth are called succedaneous teeth. • Permanent molars are nonsuccedaneous teeth. • The permanent premolars replace the deciduous molars. • A mixed dentition is composed of some permanent and some deciduous teeth.

Naming and Coding Teeth • Dentition-arch-quadrant-tooth ex: permanent-max-left-central incisor • Universal System • 1 -32 permanent teeth • A-T deciduous teeth

Palmer Notation System • Each of the four quadrants is given his own prefix symbol. • The number or letter assigned to the tooth depends on its position relative to the midline. • The first number indicates the quadrant and whether the tooth is permanent or deciduous.

Mandibular Right Third molar Second molar First molar Second premolar First premolar Canine Maxillary Right Lateral incisor Midline Central incisor Palmer Notation System 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 Permanent Teeth Maxillary Left Maxillary. Mandibular dividing line Mandibular Left

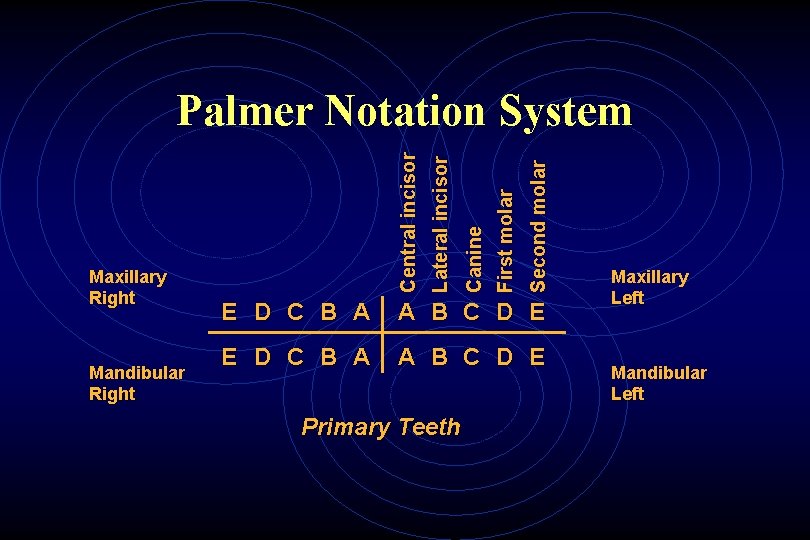

Mandibular Right Second molar First molar Canine Lateral incisor Maxillary Right Central incisor Palmer Notation System E D C B A A B C D E Primary Teeth Maxillary Left Mandibular Left

FDI System (Fédération Dentaire Internationale) • Each tooth – permanent or deciduous is given a two-digit number • The second digit indicates the position of the tooth relative to the midline • The first number indicates the quadrant and whether the tooth is permanent or deciduous

FDI System of Permanent Teeth

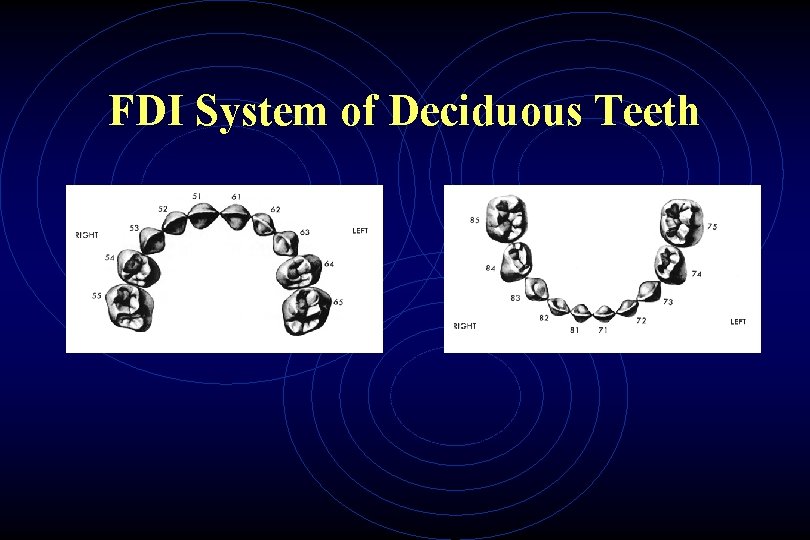

FDI System of Deciduous Teeth

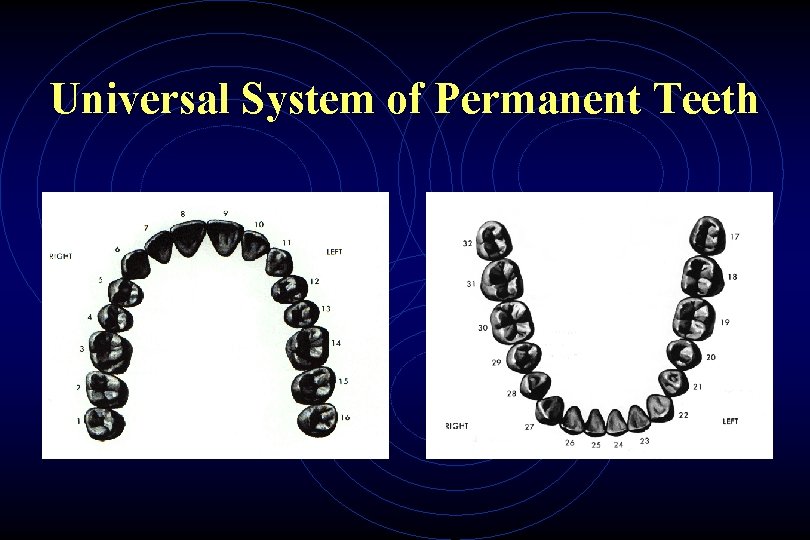

Universal System of Permanent Teeth

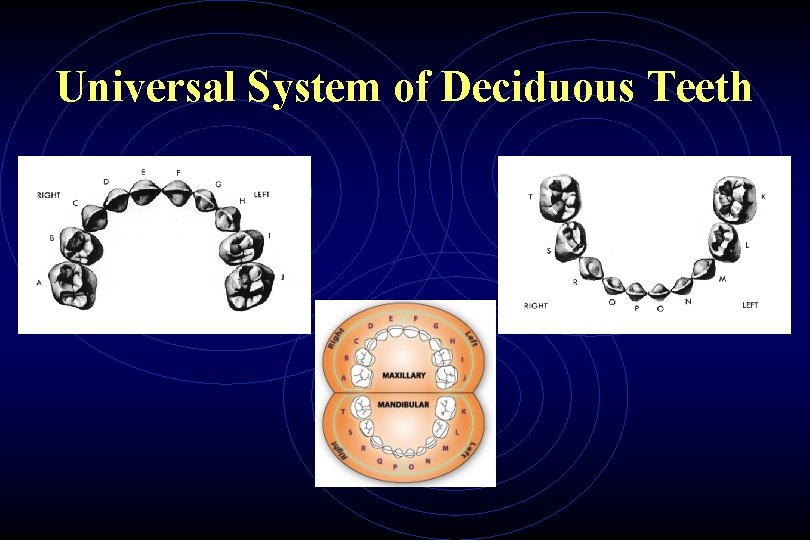

Universal System of Deciduous Teeth

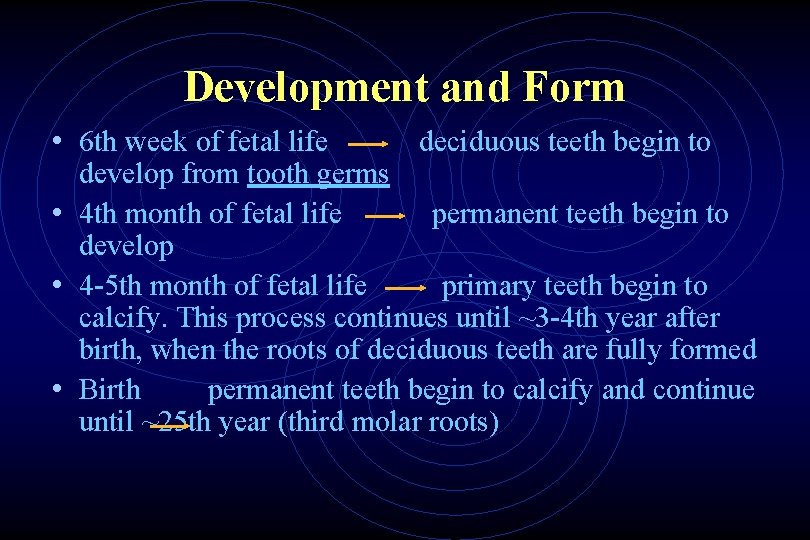

Development and Form • 6 th week of fetal life deciduous teeth begin to develop from tooth germs • 4 th month of fetal life permanent teeth begin to develop • 4 -5 th month of fetal life primary teeth begin to calcify. This process continues until ~3 -4 th year after birth, when the roots of deciduous teeth are fully formed • Birth permanent teeth begin to calcify and continue until ~25 th year (third molar roots)

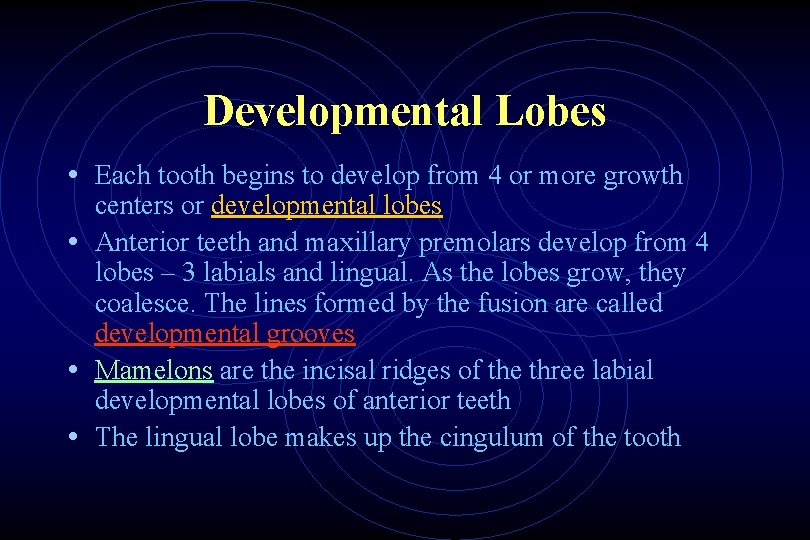

Developmental Lobes • Each tooth begins to develop from 4 or more growth centers or developmental lobes • Anterior teeth and maxillary premolars develop from 4 lobes – 3 labials and lingual. As the lobes grow, they coalesce. The lines formed by the fusion are called developmental grooves • Mamelons are the incisal ridges of the three labial developmental lobes of anterior teeth • The lingual lobe makes up the cingulum of the tooth

Developmental Lobes

Lobes and Cusps • Maxillary premolars – 3 facial lobes/1 lingual lobe 3 facial 1 high buccal cusp 1 lingual large lingual cusp • Mandibular 1 st premolar same as above except smaller lingual cusp • Mandibular 2 nd premolar a) b) 2 cusp variety same as mand. 1 st premolar 3 cusp variety 3 buccal lobes-2 lingual lobes leading to two lingual cusps (ML and DL)

Four lobes of Maxillary Second Premolar

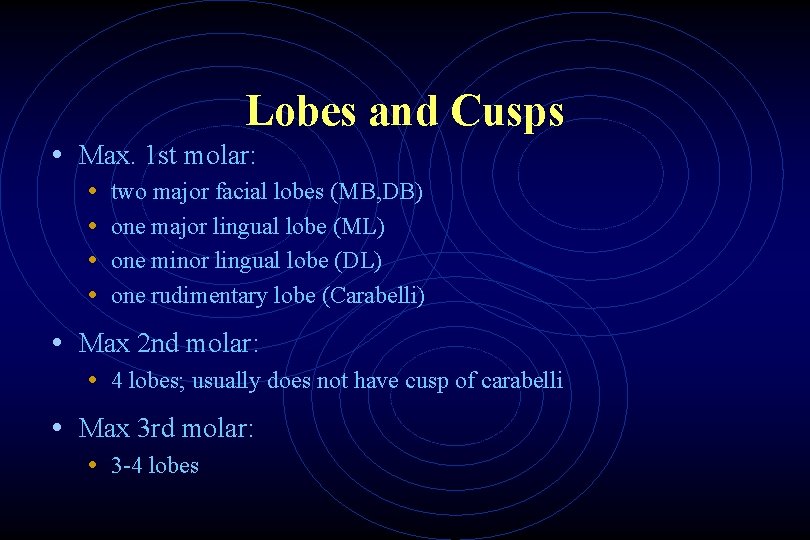

Lobes and Cusps • Max. 1 st molar: • • two major facial lobes (MB, DB) one major lingual lobe (ML) one minor lingual lobe (DL) one rudimentary lobe (Carabelli) • Max 2 nd molar: • 4 lobes; usually does not have cusp of carabelli • Max 3 rd molar: • 3 -4 lobes

Lobes and Cusps of Maxillary Molars

Lobes and Cusps • Mand. 1 st molar: 5 lobes • 4 major cusps (MB, DB, ML, DL) • 1 minor cusp (D) • Mand 2 ed molar: 4 lobes, cusps. • Mand. 3 rd molar: 4 lobes, cusps. • The most unpredictable teeth in size and shape. They are also the most likely to be missing.

Lobes and Cusps of Mandibular Molars

Eruption • General rules: • Mandibular teeth usually precede maxillary (about 1 month). • Teeth in both jaws erupt in pairs ( one on the right and one on the left). • Teeth usually erupt earlier in girls than in boys. • all deciduous teeth usually erupted by 2 3/4 years old.

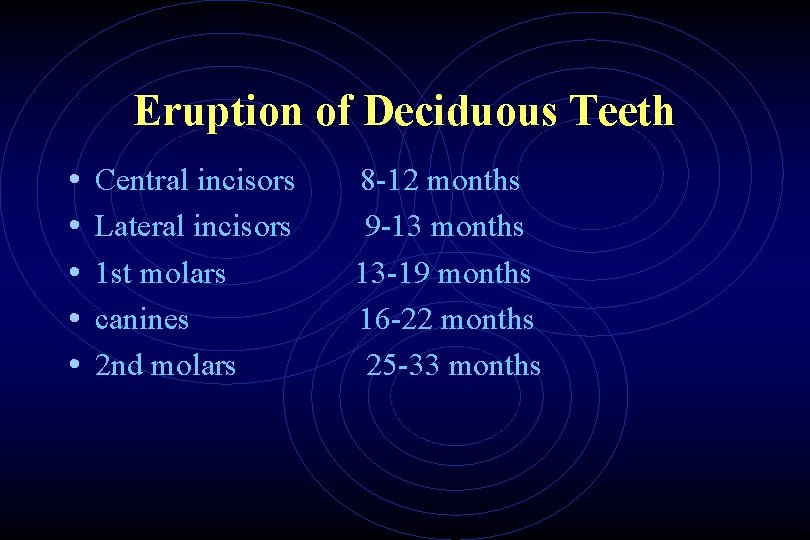

Eruption of Deciduous Teeth • • • Central incisors Lateral incisors 1 st molars canines 2 nd molars 8 -12 months 9 -13 months 13 -19 months 16 -22 months 25 -33 months

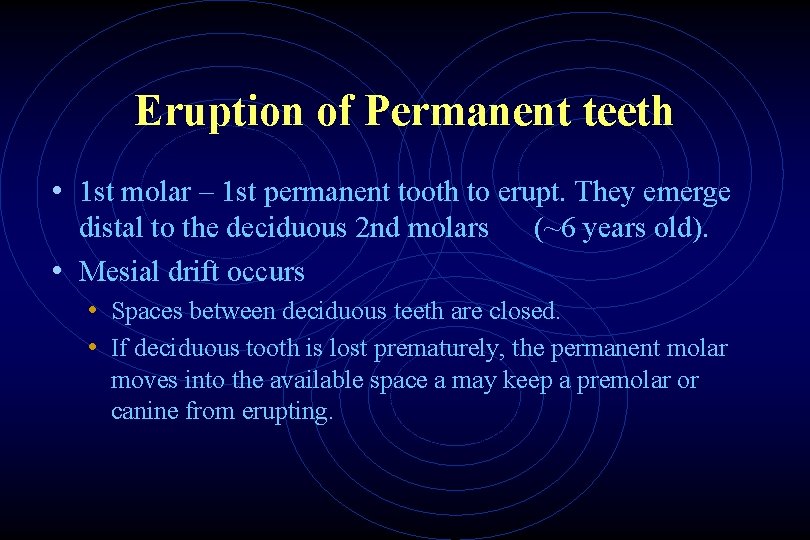

Eruption of Permanent teeth • 1 st molar – 1 st permanent tooth to erupt. They emerge distal to the deciduous 2 nd molars (~6 years old). • Mesial drift occurs • Spaces between deciduous teeth are closed. • If deciduous tooth is lost prematurely, the permanent molar moves into the available space a may keep a premolar or canine from erupting.

Eruption of Permanent Teeth • Exfoliation: process by which the roots of a baby tooth are resorbed and dissolved until the tooth falls out. • As a permanent tooth erupts, the pressure activates osteoclasts which in turn destroy the roots of deciduous teeth. • Permanent teeth erupt lingually to the deciduous teeth.

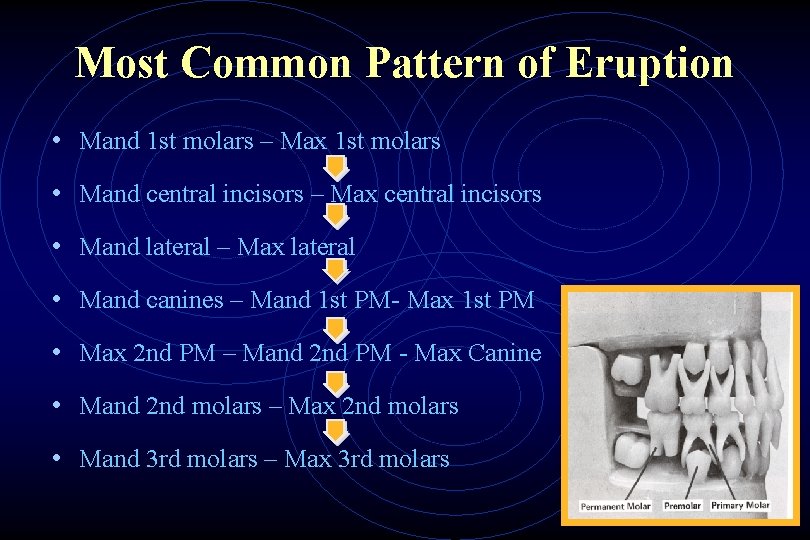

Most Common Pattern of Eruption • Mand 1 st molars – Max 1 st molars • Mand central incisors – Max central incisors • Mand lateral – Max lateral • Mand canines – Mand 1 st PM- Max 1 st PM • Max 2 nd PM – Mand 2 nd PM - Max Canine • Mand 2 nd molars – Max 2 nd molars • Mand 3 rd molars – Max 3 rd molars

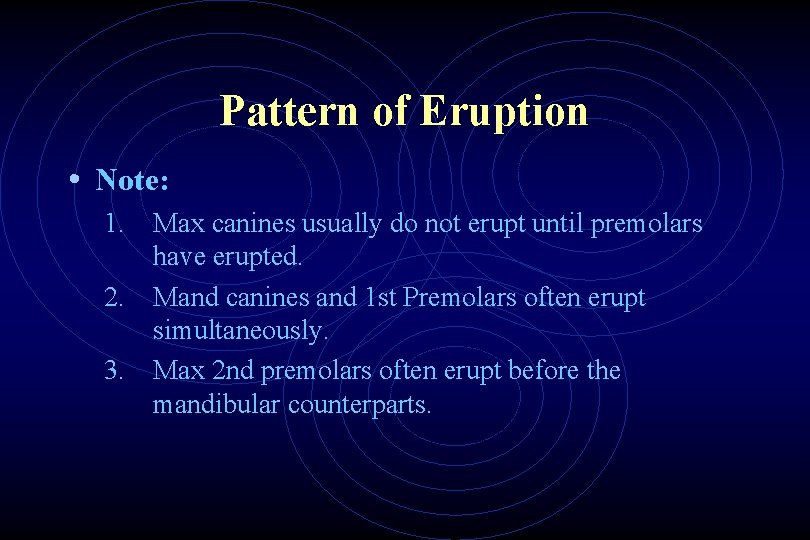

Pattern of Eruption • Note: 1. 2. 3. Max canines usually do not erupt until premolars have erupted. Mand canines and 1 st Premolars often erupt simultaneously. Max 2 nd premolars often erupt before the mandibular counterparts.

Pattern of Eruption 3 rd molars: • Do not appear until 17 years of age or later • Most likely to be impacted • (Mandibular > Maxillary) • Most common teeth to be congenitally missing

Pattern of Eruption • As teeth erupt and meet their antagonist on the opposing arch, they form the occlusal plane. • The line of the occlusal surfaces is known as occlusal plane. • The curved alignment of the occlusal plane is known as curve of Spee.
