Density Curves and Normal Distributions Density Curves So
Density Curves and Normal Distributions
Density Curves • So far we have worked only with jagged histograms and stem plots to analyze data • As we begin to explore more fully the many statistical calculations and analyses one can perform on data it will become clear that working with smooth curves is much easier than jagged histograms
Density Curves Continued… • A density curve is a smooth curve that describes the overall pattern of a distribution by showing what proportions of observations (not counts) fall into a range of values.

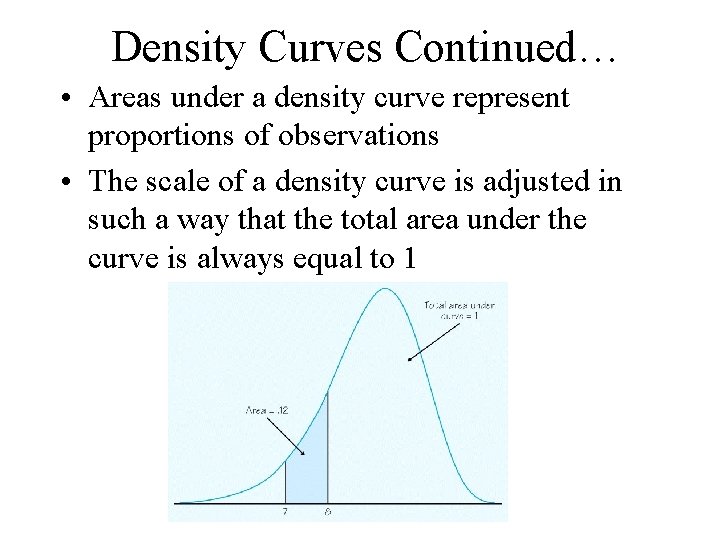

Density Curves Continued… • Areas under a density curve represent proportions of observations • The scale of a density curve is adjusted in such a way that the total area under the curve is always equal to 1

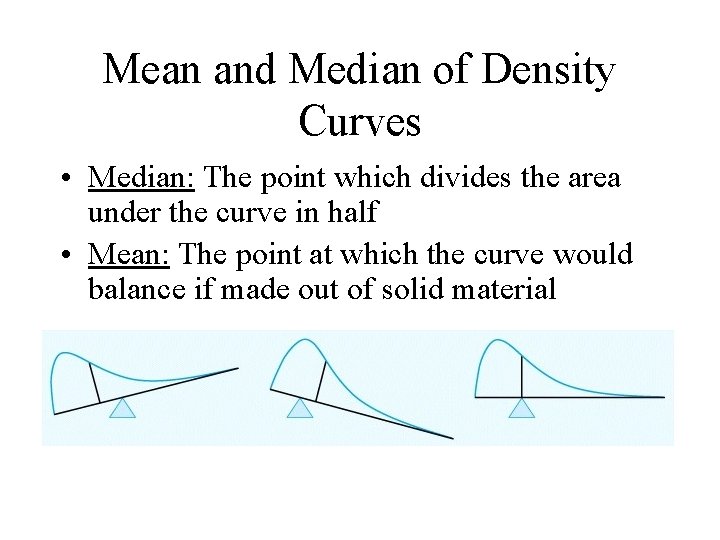

Mean and Median of Density Curves • Median: The point which divides the area under the curve in half • Mean: The point at which the curve would balance if made out of solid material
For a symmetric Density curve… For a skewed density curve…
Constructing a simple density curve for dice simulation… 1) 2) 3) We will simulate rolling a 6 sided die 120 times using the command rand. Int(1, 6, 120) L 2

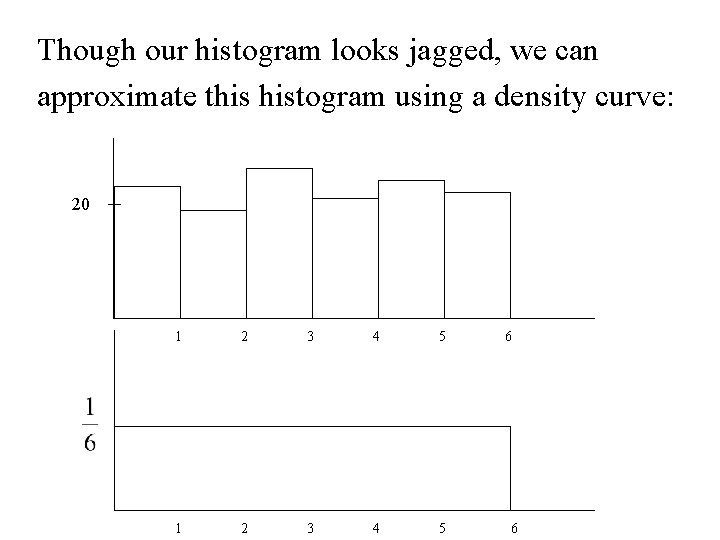

Though our histogram looks jagged, we can approximate this histogram using a density curve: 20 1 2 3 4 5 6 6

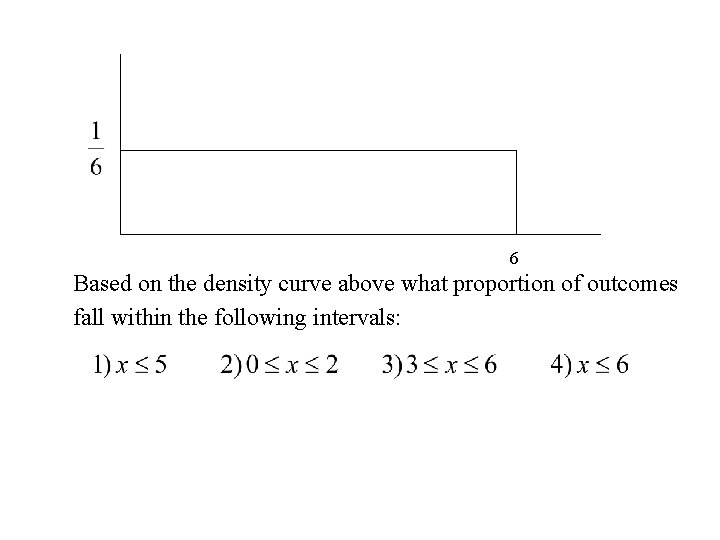

6 Based on the density curve above what proportion of outcomes fall within the following intervals:
Normal Curves • A Particularly important class of density curves • Symmetric, single peak, bell shape • The mean of a density curve (including the normal curve) is denoted by and the standard deviation is denoted by • All Normal distributions have the same overall shape. Any differences can be explained by and

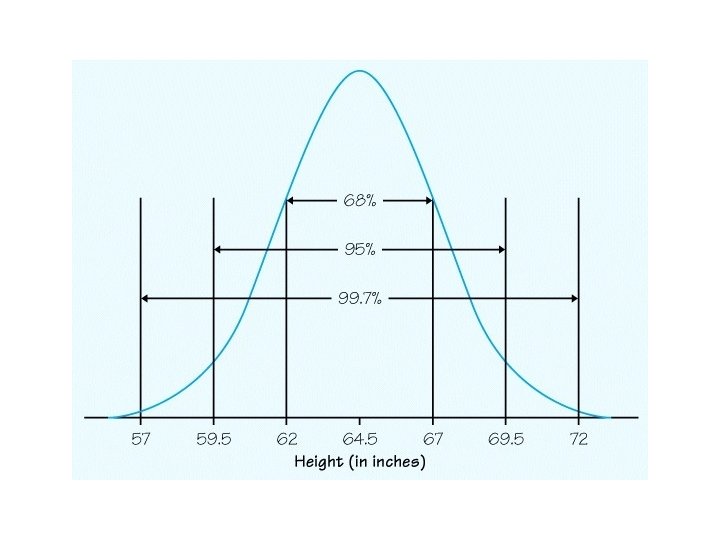

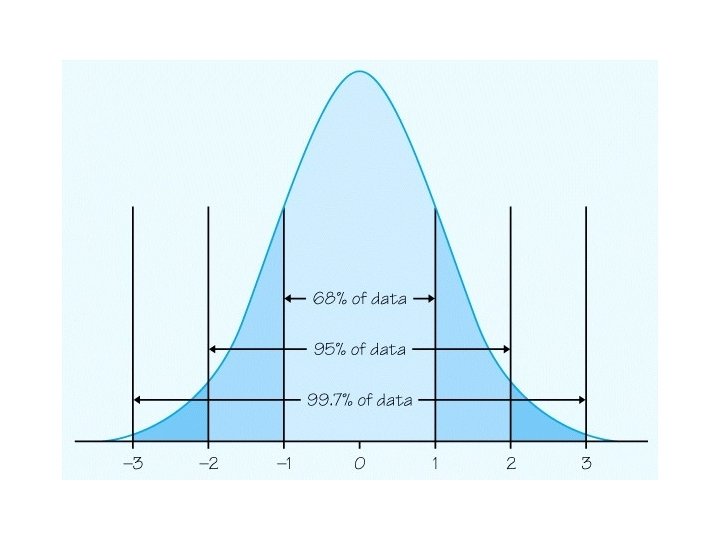

In a normal distribution with mean deviation : and standard - 68% of the observations fall within of the mean - 95% of the observations fall within of the mean - 99. 7% of the observations fall within mean of the
