Demonstration of Wire Scanners Logs Analysis Application BI
Demonstration of Wire Scanners Logs Analysis Application BI Seminar 22. 02. 2015 Aleksander Cudny Emiliano Piselli Ismael Posada Trobo IT-OIS-WLS Guillaume Baud
Goals: • Easier access to logging database than trough Timber application • Wire Scanner customs settings • Static set of variables designated to Wire Scanners • Easy manipulation of charts • CSV and PNG data download • Plot of numeric values in respect of timestamps • Possibility of bunch-by-bunch plot for SPS/LHC • Possible Gaussian fitting to acquired profiles • Introduced scan quality factor 2
Current set of variables Vectonumeric values: Numeric values: • Data IN/OUT • Selected filter • Position IN/OUT • Gain • Resistance IN/OUT • POT_READ • Current IN/OUT • Number of bunches • Position Probed (only for the LHC) Calculated values: • PROJ_BUNCH IN/OUT (only for the SPS) • Sigma IN/OUT • Bunch selection (for the SPS and the LHC) • Scan quality 3
General system architecture AFS Server Site resources (htmls, images etc. ) W e b s i t e 3. 4. Java. jar Python listener 1. PHP script for data download 2. Python script 5. Login specifications D a t a b a s e 6. Output CSV files 4

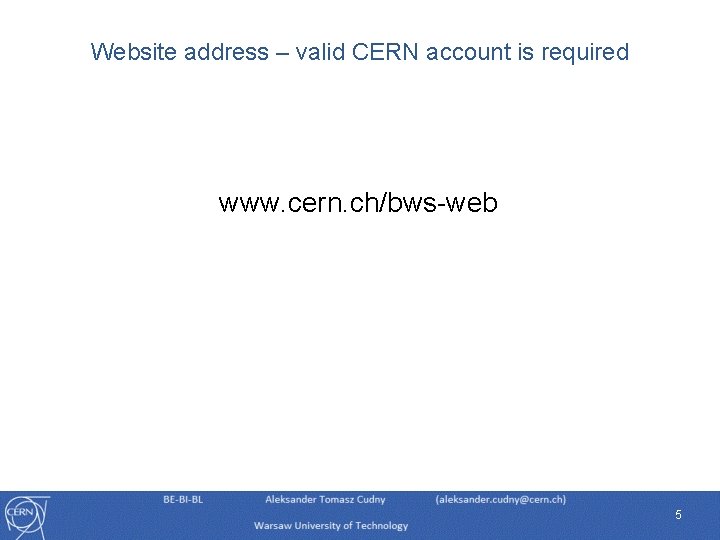

Website address – valid CERN account is required www. cern. ch/bws-web 5
Online presentation 6
Thank you for your attention 7
Scan quality Formula -3σ +3σ Example 8
Initial fit values Max value = Initial amplitude Profile width in the middle = Initial σ Slope between first and last points= Initial slope Position of max value = Initial µ Minimum value = Initial offset 9
