Demetz Clment ECE 539 Final Project Fall 2003

Demetz Clément ECE 539 Final Project Fall 2003 Lip-recognition Software using a Kohonen Algorithm for Image Compression

Outline -Problem and motivation -Data creation: preprocessing -Kohonen self organization map (SOM) -Multi-Layer perceptron -Final results -Conclusion -References

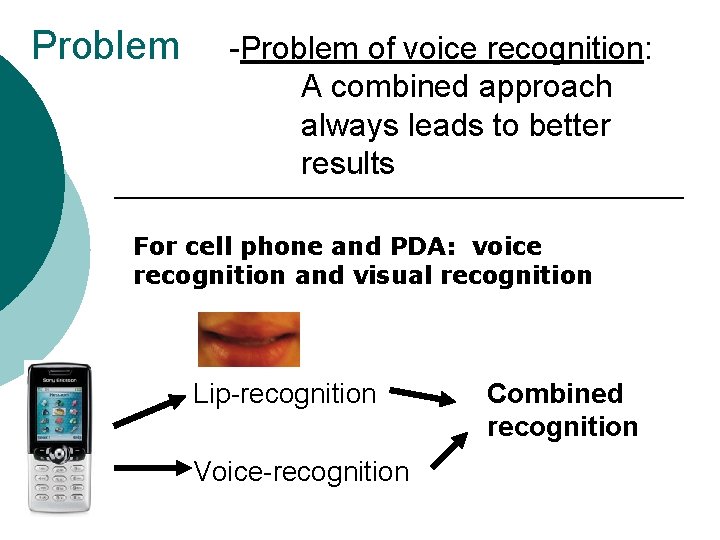

Problem -Problem of voice recognition: A combined approach always leads to better results For cell phone and PDA: voice recognition and visual recognition Lip-recognition Voice-recognition Combined recognition

Problem of lip-recognition software -Need high computational power. -Need to be implement on low-power systems (PDA, cell phone) How can we reduce the size of the information? Pb: Find a way to implement such an algorithm with few computation.

Motivation Reduce the size of the image with a Kohonen Self organization map Filter Image of a cell phone digital camera Kohonen SOM Contour of the mouth Multi-Layer perceptron

Preprocessing -Starting with low quality JPEG pictures -Gradient filters are applied to only keep the contour of the mouths. -the opening of the mouth is a relevant input: needs to follow a certain pattern to pronounce a sound. JPEG picture of the mouth Dark part of the mouth Contour of the dark part Pb: a contour corresponds to thousands points: it is still too large to have a low computation time

Kohonen Self Organisation Map (SOM) -Idea of using a Kohonen self organization map to reduce the information to 12 neurons -problems: • Initialization • Bad stretching or turning of the SOM

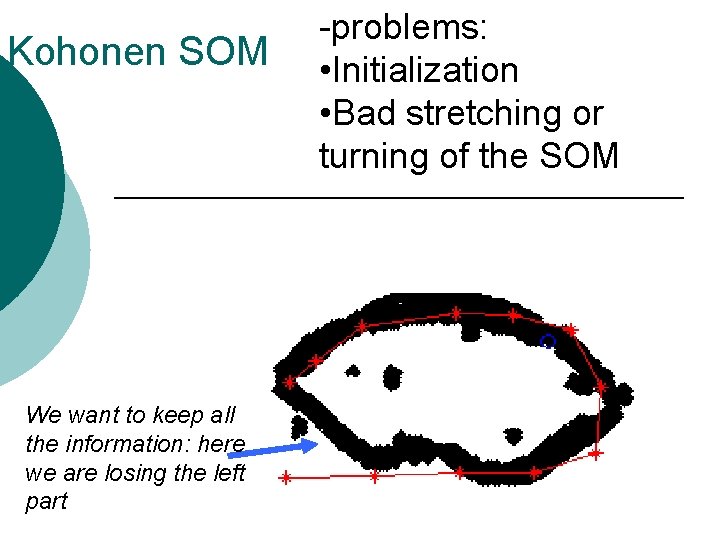

Kohonen SOM We want to keep all the information: here we are losing the left part -problems: • Initialization • Bad stretching or turning of the SOM

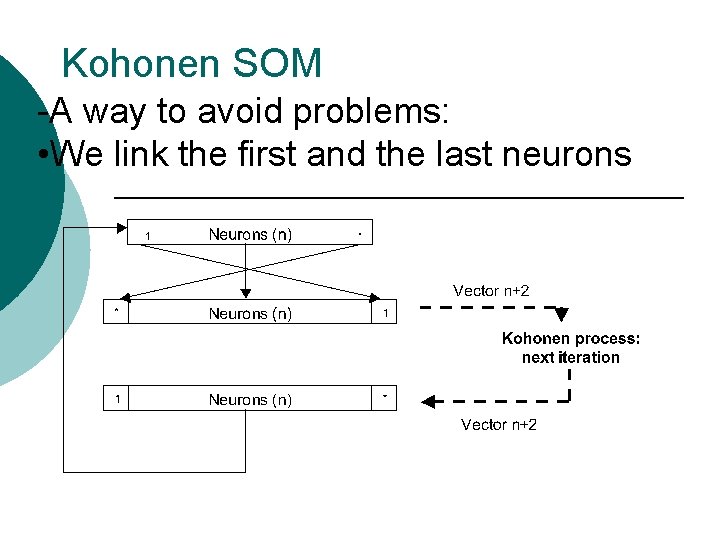

Kohonen SOM -A way to avoid problems: • We link the first and the last neurons

Kohonen SOM -Results of the Kohonen Map: we keep 12 points representing the contour:

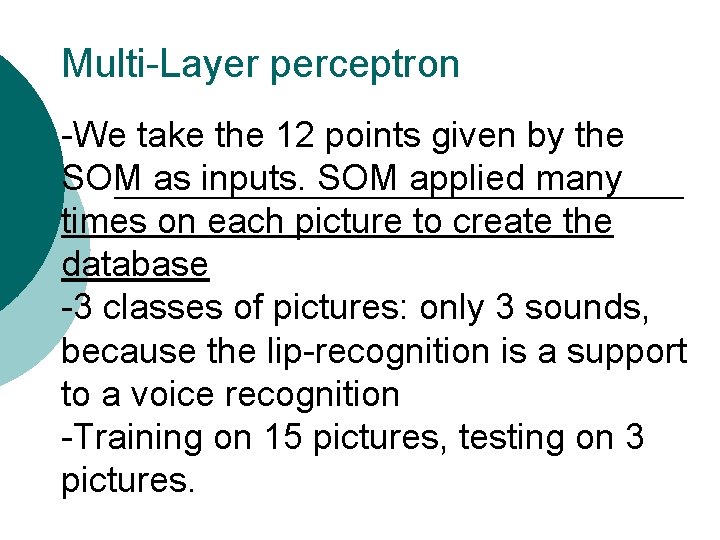

Multi-Layer perceptron -We take the 12 points given by the SOM as inputs. SOM applied many times on each picture to create the database -3 classes of pictures: only 3 sounds, because the lip-recognition is a support to a voice recognition -Training on 15 pictures, testing on 3 pictures.

Multi-Layer perceptron: Result Layers alpha momentum Configuration (hidden l) Testing classification rate(%) Training classification rate(%) 2 0. 1 0. 8 10 27 33 2 0. 05 10 73. 33 93 2 0. 01 10 92 100 3 0. 1 0. 8 10 10 52 76 3 0. 01 10 10 100 100% Classification rate is obtained

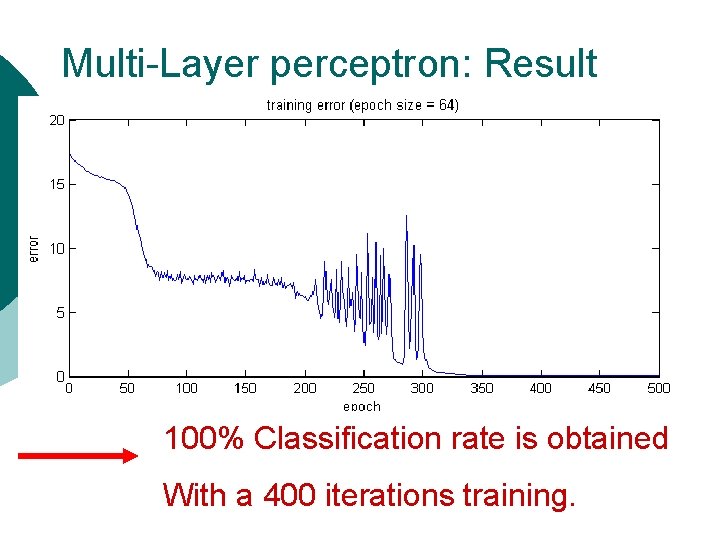

Multi-Layer perceptron: Result 100% Classification rate is obtained With a 400 iterations training.

Conclusion • Kohonen SOM reduces the problem to a 12 dimension problem (previously, working on pictures mean thousands dimension). • Multi-Layer perceptron needs a training, but once it is trained computations are made very fast. • we can obtain a 100% classification rate with 3 sounds. • Pb: because of Matlab, transforming picture into Matrix needs computations. (solution: use another language more picture processing-oriented)

Some references -Image compression by Self-Organized kohonen Map Christophe Amerijckx, Philippe Thissen. . IEE Transition on Neural Networks 1998. http: //www. dice. ucl. ac. be/~verleyse/papers/ieeetnn 98 ca. pdf -SRAM bitmap shape recognition and sorting Using Neural Networks. Randall S. Collica. IEEE. http: //www. ibexprocess. com/solutions/wp_SRAM. pdf -From your lips to your printer. James Fallow. -SRAM bitmap shape recognition and sorting using neural networks. Collica, R. S. , Card, J. P. , and Martin. W. ISBN 0894 -6507 -A kohonen Neural Network Controlled All-optical router system. E. E. E Frietman, M. T. Hill, G. D. Khoe. http: //www. ph. tn. tudelft. nl/~ed/pdfs/IJCR. pdf
