Delta Motion Product Motion System DVP 10 MC
- Slides: 10
Delta Motion Product – Motion System • DVP 10 MC Motion Controller

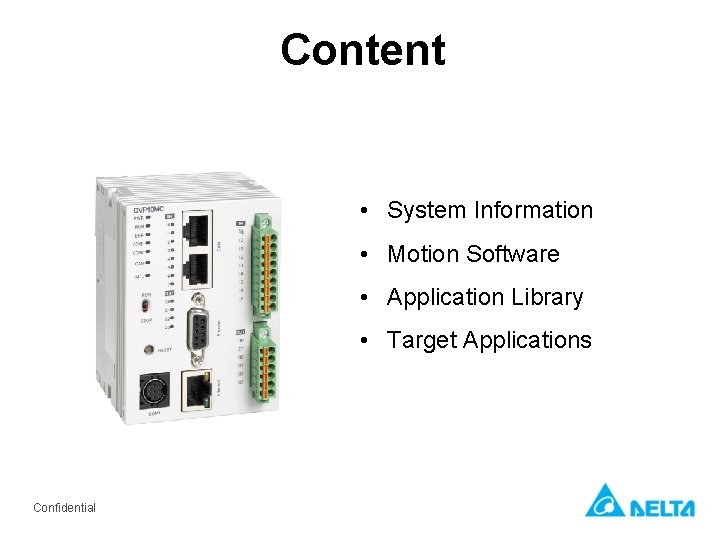

Content • System Information • Motion Software • Application Library • Target Applications Confidential

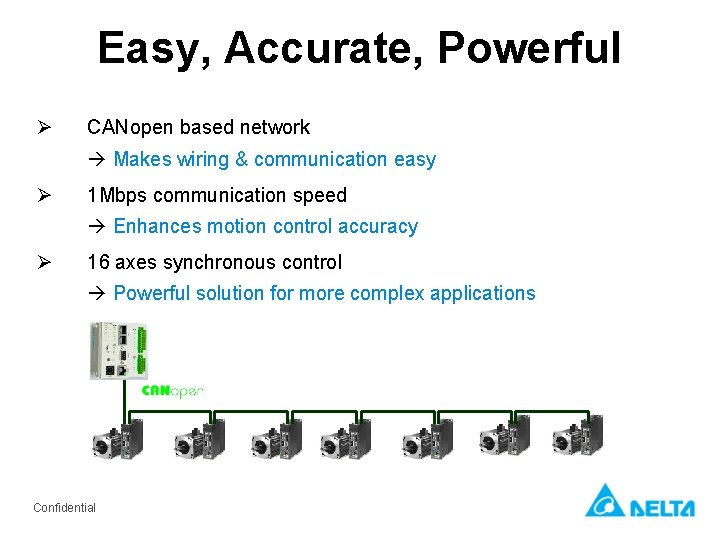

Easy, Accurate, Powerful Ø CANopen based network Makes wiring & communication easy Ø 1 Mbps communication speed Enhances motion control accuracy Ø 16 axes synchronous control Powerful solution for more complex applications Confidential
Professional Motion Control Ø Various motion instructions Makes motion program easier Ø E-CAM (Electronic cam) function Perfect for flying shear or rotary cut applications Ø Supports G-codes input function Easy to adapt Multi-axis applications Confidential

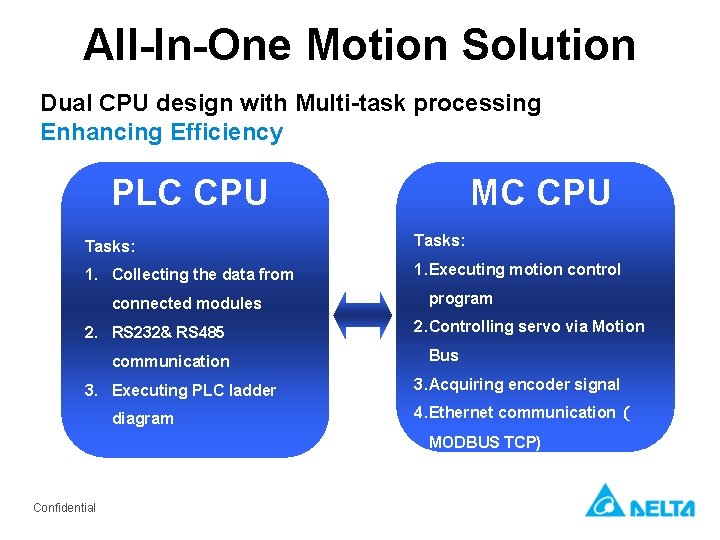

All-In-One Motion Solution Dual CPU design with Multi-task processing Enhancing Efficiency PLC CPU MC CPU Tasks: 1. Collecting the data from 1. Executing motion control connected modules 2. RS 232& RS 485 communication 3. Executing PLC ladder diagram program 2. Controlling servo via Motion Bus 3. Acquiring encoder signal 4. Ethernet communication( MODBUS TCP) 5. RS 485 communication Confidential
All-In-One Motion Solution Ø Built-in Ethernet, CANopen, RS-485 and Encoder interface All-in-one design. Compact and powerful Ø Supports two-side extension modules Makes configuration expanding easier Confidential

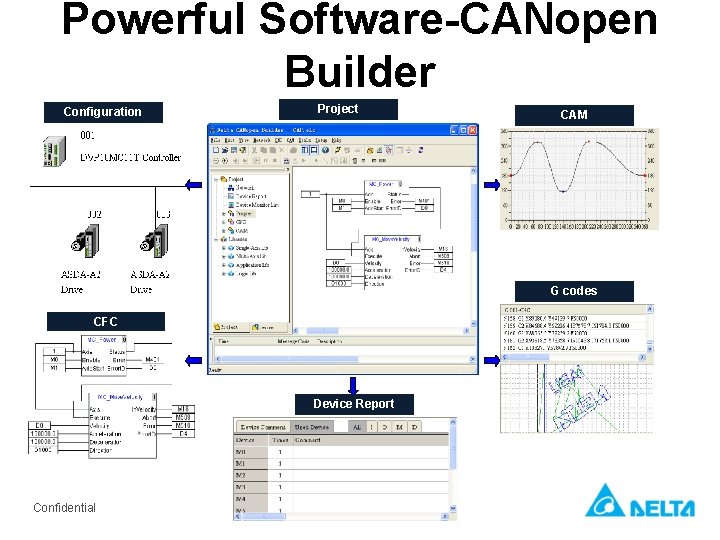

Powerful Software-CANopen Builder Configuration Project CAM G codes CFC Device Report Confidential
Provide Various Application Libraries Confidential
Targeting Applications Targeting & Successful applications n. Package machinery n. Food & beverage processing n. Material handling system n. Winding machines Material handling Robot Confidential Package Machine
Thank You To learn more about Delta please visit www. deltaww. com
