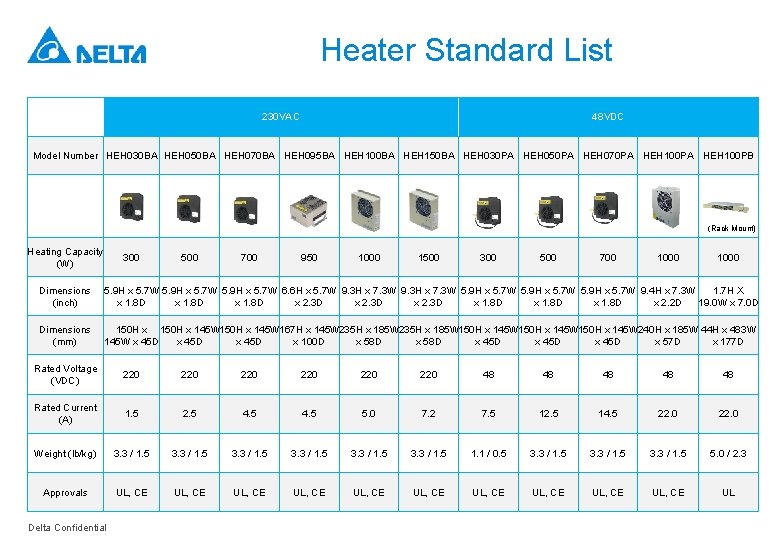

Heater Standard List 230 VAC 48 VDC Model Number HEH 030 BA HEH 050 BA HEH 070 BA HEH 095 BA HEH 100 BA HEH 150 BA HEH 030 PA HEH 050 PA HEH 070 PA HEH 100 PB (Rack Mount) Heating Capacity (W) 300 500 700 950 1000 1500 300 500 700 1000 Dimensions (inch) 5. 9 H x 5. 7 W 6. 6 H x 5. 7 W 9. 3 H x 7. 3 W 5. 9 H x 5. 7 W 9. 4 H x 7. 3 W 1. 7 H X x 1. 8 D x 2. 3 D x 1. 8 D x 2. 2 D 19. 0 W x 7. 0 D Dimensions (mm) 150 H x 145 W 167 H x 145 W 235 H x 185 W 150 H x 145 W 240 H x 185 W 44 H x 483 W 145 W x 45 D x 100 D x 58 D x 45 D x 57 D x 177 D Rated Voltage (VDC) 220 220 220 48 48 48 Rated Current (A) 1. 5 2. 5 4. 5 5. 0 7. 2 7. 5 12. 5 14. 5 22. 0 Weight (lb/kg) 3. 3 / 1. 5 1. 1 / 0. 5 3. 3 / 1. 5 5. 0 / 2. 3 Approvals UL, CE UL, CE UL, CE UL Delta Confidential

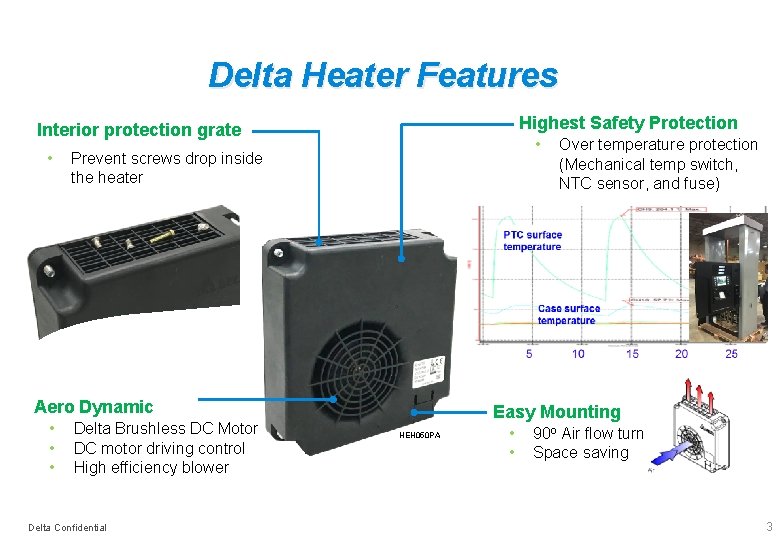

Delta Heater Features Highest Safety Protection Interior protection grate • • Prevent screws drop inside the heater Aero Dynamic • • • Delta Brushless DC Motor DC motor driving control High efficiency blower Delta Confidential Over temperature protection (Mechanical temp switch, NTC sensor, and fuse) Easy Mounting HEH 050 PA • • 90 o Air flow turn Space saving 3

Heater overall Features Wall Mount Rack Mount Foot Mount Advantages p p p Compact size Low noise Easy to install High safety LED alarm for fan and heater status (HEH 100/150) Auto self-test button (HEH 100/150) DC fan selected p p High efficiency Rotor lock shutdown & auto re-start Stable airflow Variable speed control (HEH 100/150) Overheat alarm Fan fail alarm heating element fail alarm Safety Protection p p Double isolation on PTC device (HEH 100/150) Safety protection (mechanical temp switch, NTC sensor, and fuse) Delta Confidential 4

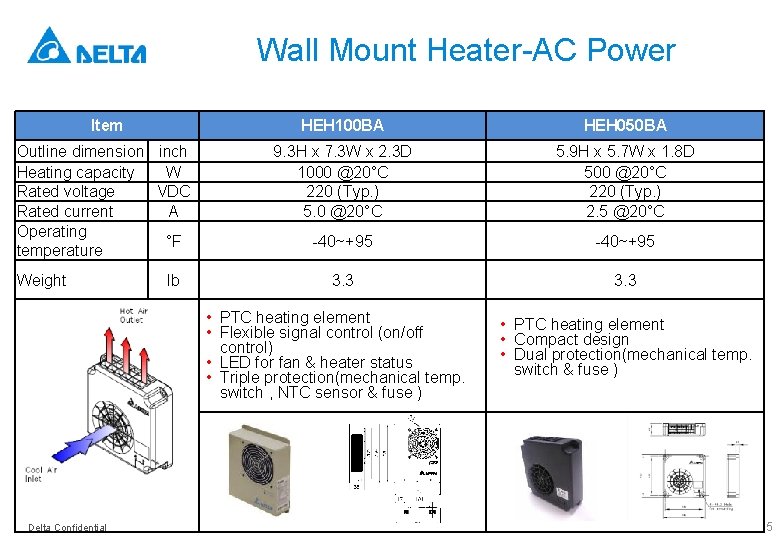

Wall Mount Heater-AC Power Item HEH 100 BA HEH 050 BA Outline dimension inch Heating capacity W Rated voltage VDC Rated current A Operating °F temperature 9. 3 H x 7. 3 W x 2. 3 D 1000 @20°C 220 (Typ. ) 5. 0 @20°C 5. 9 H x 5. 7 W x 1. 8 D 500 @20°C 220 (Typ. ) 2. 5 @20°C -40~+95 3. 3 Weight lb • PTC heating element • Flexible signal control (on/off control) • LED for fan & heater status • Triple protection(mechanical temp. switch , NTC sensor & fuse ) Delta Confidential • PTC heating element • Compact design • Dual protection(mechanical temp. switch & fuse ) 5

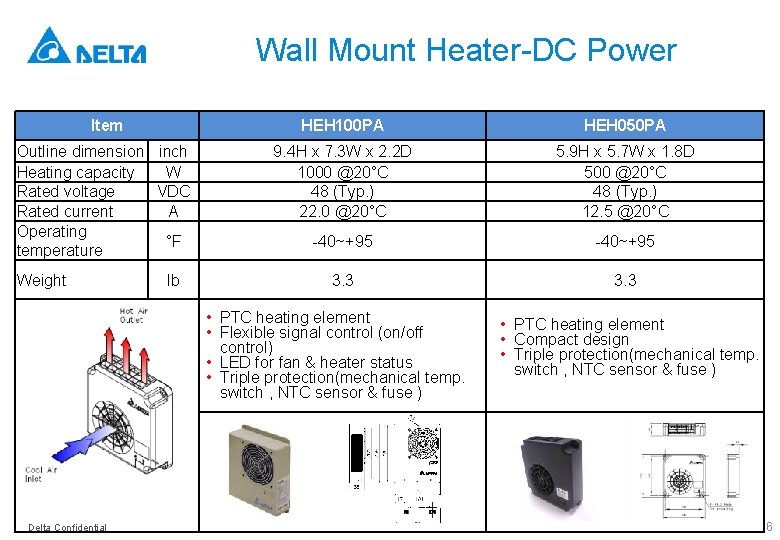

Wall Mount Heater-DC Power Item HEH 100 PA HEH 050 PA Outline dimension inch Heating capacity W Rated voltage VDC Rated current A Operating °F temperature 9. 4 H x 7. 3 W x 2. 2 D 1000 @20°C 48 (Typ. ) 22. 0 @20°C 5. 9 H x 5. 7 W x 1. 8 D 500 @20°C 48 (Typ. ) 12. 5 @20°C -40~+95 3. 3 Weight lb • PTC heating element • Flexible signal control (on/off control) • LED for fan & heater status • Triple protection(mechanical temp. switch , NTC sensor & fuse ) Delta Confidential • PTC heating element • Compact design • Triple protection(mechanical temp. switch , NTC sensor & fuse ) 6

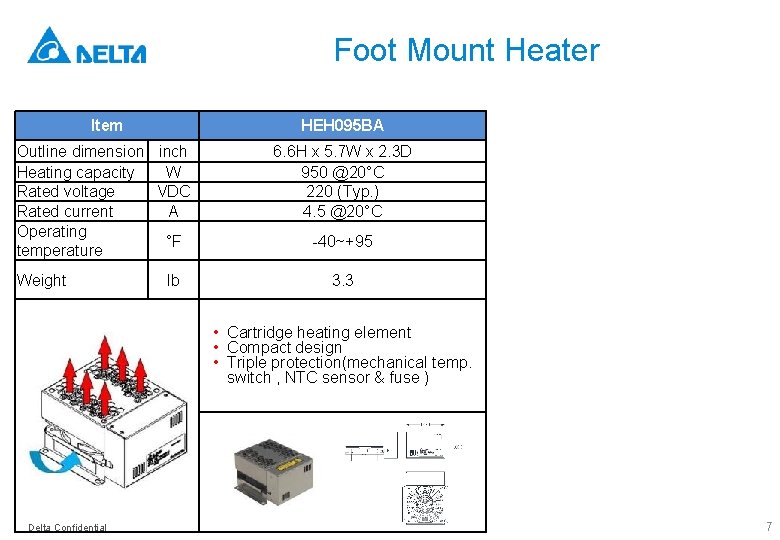

Foot Mount Heater Item HEH 095 BA Outline dimension inch Heating capacity W Rated voltage VDC Rated current A Operating °F temperature 6. 6 H x 5. 7 W x 2. 3 D 950 @20°C 220 (Typ. ) 4. 5 @20°C Weight lb -40~+95 3. 3 • Cartridge heating element • Compact design • Triple protection(mechanical temp. switch , NTC sensor & fuse ) Delta Confidential 7

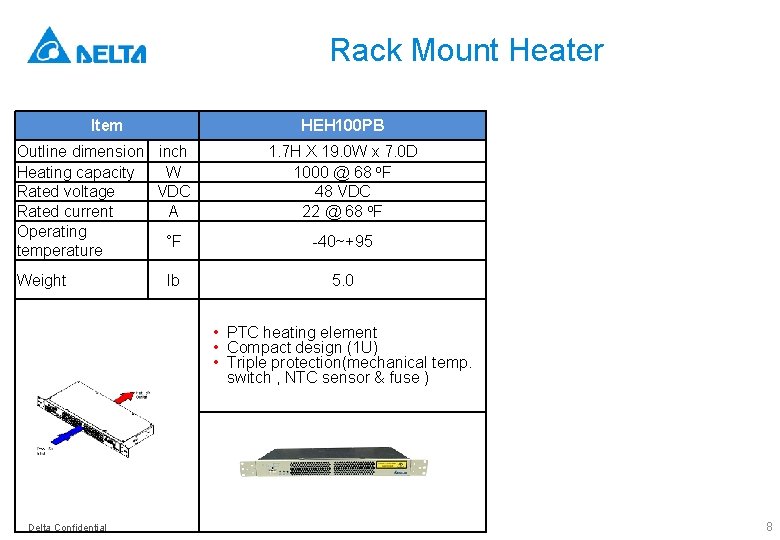

Rack Mount Heater Item HEH 100 PB Outline dimension inch Heating capacity W Rated voltage VDC Rated current A Operating °F temperature 1. 7 H X 19. 0 W x 7. 0 D 1000 @ 68 o. F 48 VDC 22 @ 68 o. F Weight lb -40~+95 5. 0 • PTC heating element • Compact design (1 U) • Triple protection(mechanical temp. switch , NTC sensor & fuse ) Delta Confidential 8

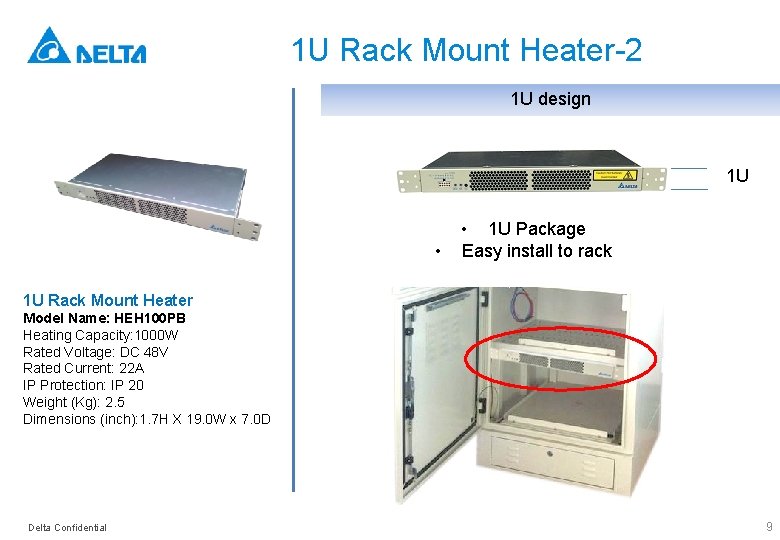

1 U Rack Mount Heater-2 1 U design 1 U • • 1 U Package Easy install to rack 1 U Rack Mount Heater Model Name: HEH 100 PB Heating Capacity: 1000 W Rated Voltage: DC 48 V Rated Current: 22 A IP Protection: IP 20 Weight (Kg): 2. 5 Dimensions (inch): 1. 7 H X 19. 0 W x 7. 0 D Delta Confidential 9

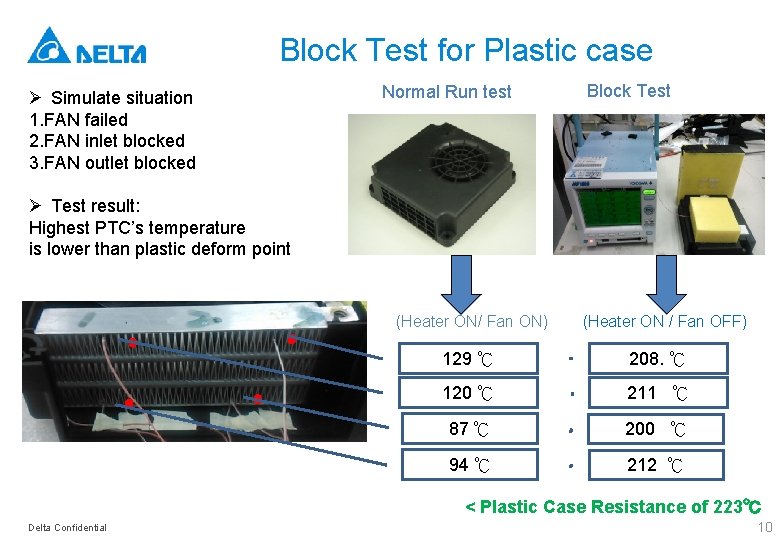

Block Test for Plastic case Ø Simulate situation 1. FAN failed 2. FAN inlet blocked 3. FAN outlet blocked Normal Run test Block Test Ø Test result: Highest PTC’s temperature is lower than plastic deform point (Heater ON/ Fan ON) (Heater ON / Fan OFF) 129 ℃ 208. ℃ 120 ℃ 211 ℃ 87 ℃ 200 ℃ 94 ℃ 212 ℃ < Plastic Case Resistance of 223℃ Delta Confidential 10

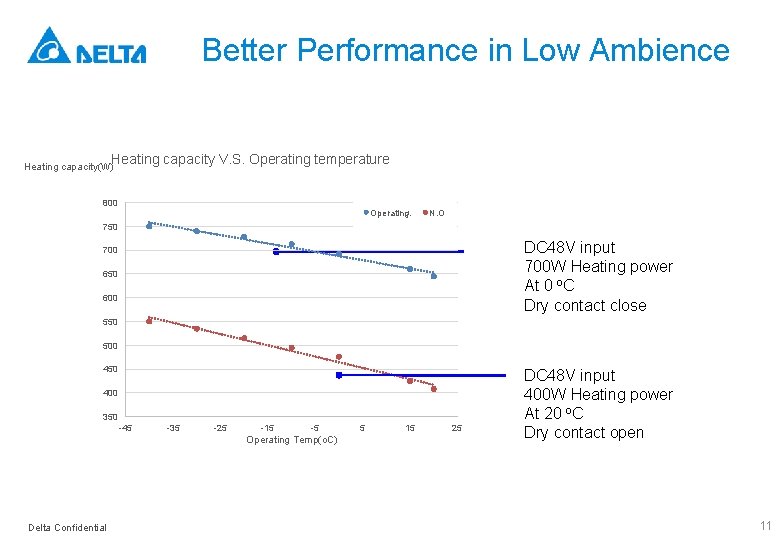

Better Performance in Low Ambience Heating capacity(W) DC 48 V input 700 W Heating power At 0 o. C Dry contact close Operating Temp(o. C) Delta Confidential 11
