Dell Precision T 3610 Modular Agenda v Target

Dell Precision T 3610 표준 제안서

Modular Agenda v Target Market v Key Messages v Positioning v Features & Benefits v Product Specifications v Ecosystem Global Marketing

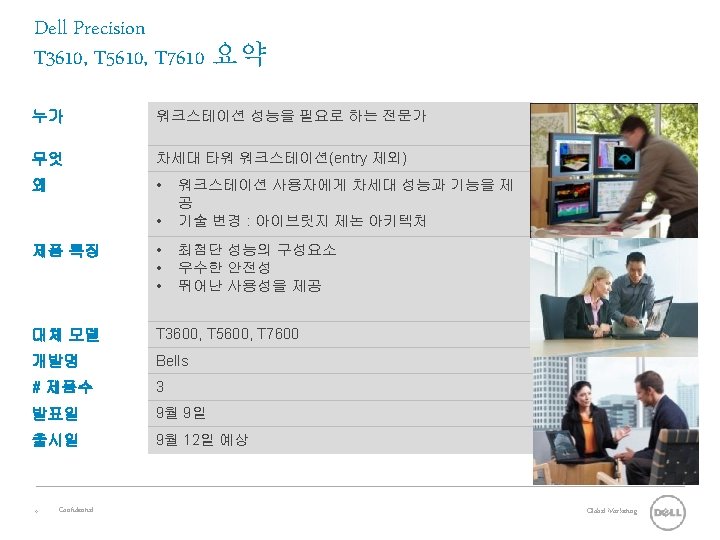

Precision 제품군 개요 3

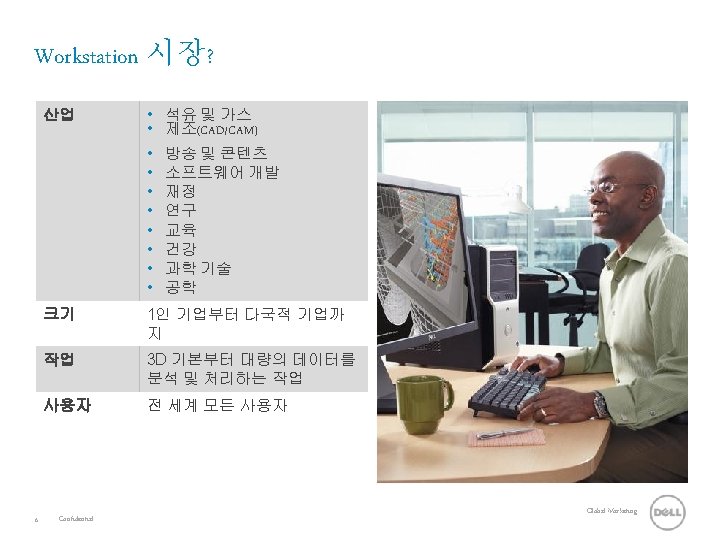

Target Market 5 Confidential

Key Messages 7 Confidential

Elevator Pitch 생각 이상의 빠른 속도 – Dell Precision 타워형 워크스테이션은 인증된 응용 프로그램에 대해 신뢰할 수 있는 최상의 성능을 제공합니다 Dell Precision T 3610 8 Confidential Dell Precision T 7610 Dell Precision T 5610 Global Marketing

Positioning

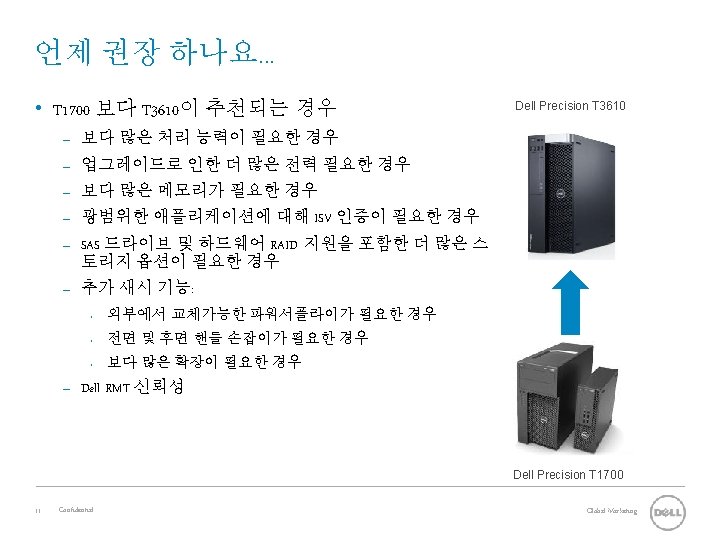

Dell Precision 타워형 워크스테이션 라인업 10 T 7610 T 5610 T 3610 T 1700 Ultra high-end 2 소켓 workstation High-end 2 소켓 workstation Mainstream 1 소켓 workstation Entry level 1 소켓 workstation = 신규 출시 장비

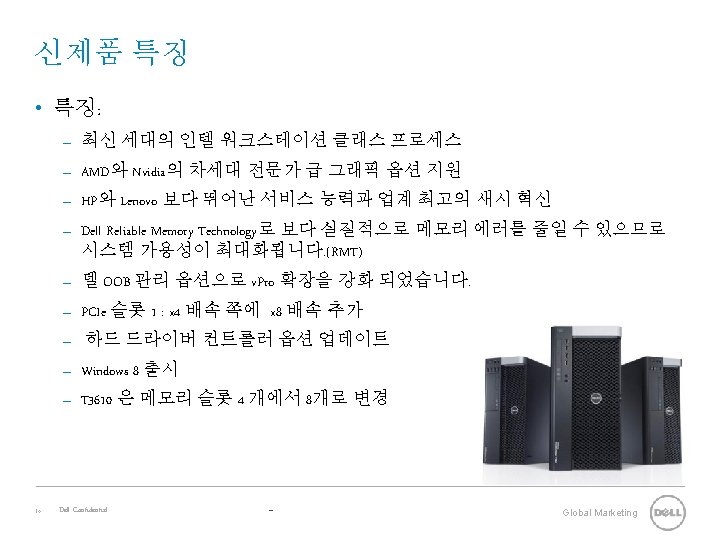

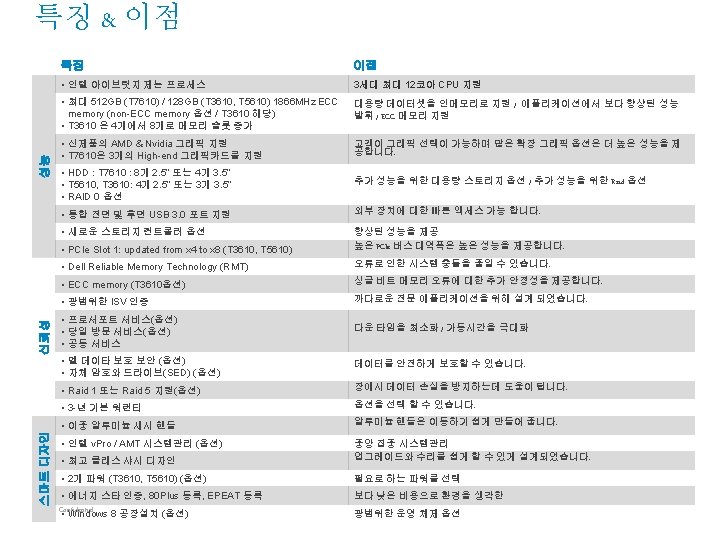

Features & Benefits

Dell Precision 타워형 워크스테이션 라인업 T 7610 T 5610 T 3610 T 1700 Full Tower Mid-Tower Mini-Tower # CPUs 1/2 1 1 CPU type Xeon E 5 -2600 v 2 Xeon E 5 -1600 v 2 / v 1 Intel Core i 3, i 5, i 7 / Xeon E 3 -1200 v 3 Max memory 512 GB 128 GB 32 GB Max power for graphics 675 W 300 W 150 W MT 41 W SFF Hard drives 4개 3. 5” / 8개 2. 5” 3개 3. 5” / 4개 2. 5” 2개 3. 5” / 4개 2. 5” MT 1개 3. 5” / 2개 2. 5” SFF Global Marketing

그래픽카드 옵션 Graphics option 16 T 7610 T 5610 T 3610 Nvidia Quadro K 6000 � Nvidia Quadro K 5000 � � Nvidia Quadro K 4000 � � � AMD Fire. Pro W 7000 � � � Nvidia Quadro K 2000 � � � AMD Fire. Pro W 5000 � � � AMD Fire. Pro V 4900 � � � Nvidia Quadro K 600 � � � AMD Fire. Pro 2270* � � � Nvidia Quadro NVS 510* � � � Nvidia Quadro NVS 310* � � � Nvidia Tesla K 20 C GPGPU � � Confidential *we don’t certify this card in the platforms Global Marketing

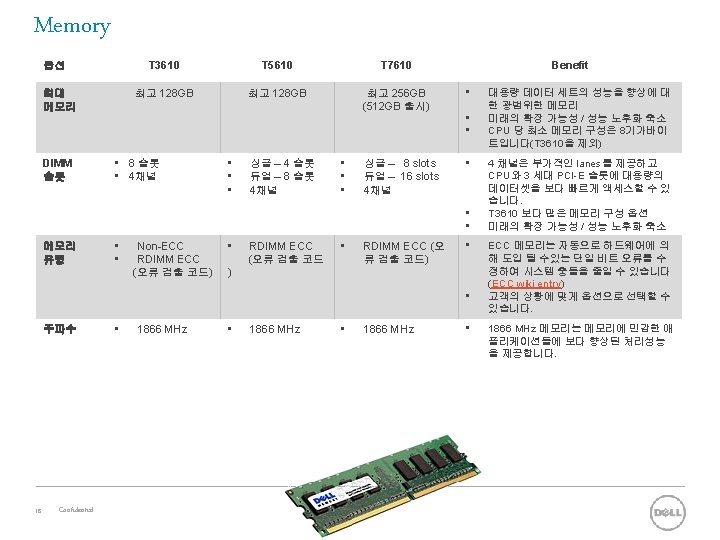

• • • T 3610 / T 5610 Memory Matrix 산업이 빠르게 2 GB RDIMM ECC 메모리로 전환 – 4 GB 항목 CPU 당 8 GB (채널 당 2 DIMM은) Bells 5/7 (2 CPU에 대한 16 GB) › R 7610이 아이브릿지일때 지원 Bells 3 1600 MHz non-ECC SKUs 두 개로 집중 Dell Confidential until 9/12/13 Global Marketing 7/17/13

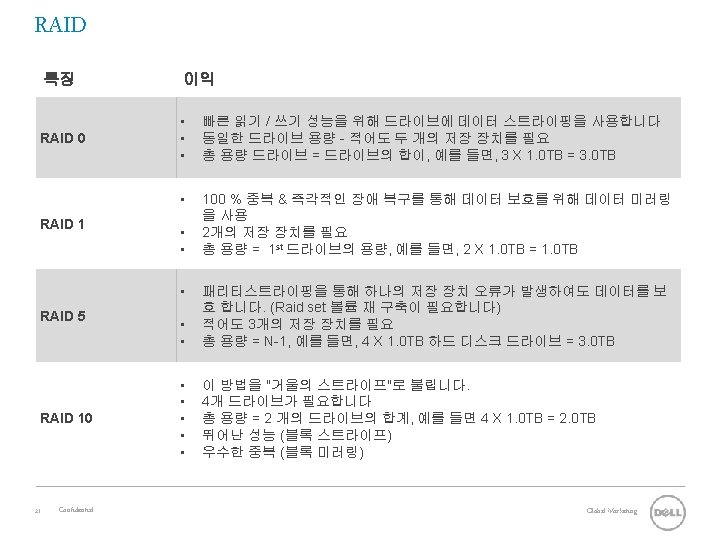

하드 옵션 Option T 5610 최대 (3 x) 3. 5” 또 는 (4 x) 2. 5” RAID 기본: • T 3610 & T 5610: dual AHCI 6 Gb/s SATA (no RAID) • T 7610: Integrated LSI 2308 SATA/SAS 6 Gb/s controller with host based RAID 0, 1, 10 옵션: • T 3610 & T 5610: • LSI 9217 -8 i 6 Gb/s SAS/SSD controller with software RAID 0, 1, 10 • LSI 9271 -8 i 6 Gb/s SATA/SAS PCIe controller (1 GB cache) with hardware RAID 0, 1, 5, 10 • T 7610: • LSI 9271 -8 i 6 Gb/s SATA/SAS PCIe controller (1 GB cache) with hardware RAID 0, 1, 5, 10 Confidential • • • 최대 (3 x) 3. 5” 또 는 (4 x) 2. 5” T 7610 최대 스토리 지 드라이브 스토리지 타 입 20 T 3610 최대 (4 x) 3. 5” 또는 (8 x) 2. 5” SATA 7200 최대 3 TB SATA 10 k 최대500 GB SAS 10 k 최대 900 GB SAS 15 k 최대 300 GB Solid State Drive 최대 512 GB PCIe SSD 최대 350 GB Benefit • • • 유연한 확장성 대용량 데이타셋을 위한 광범위한 저장 공간 T 7610 에 전면 드라이버 잠금 기능 • • 사용자에 맞게 스토리지 옵션을 선택가능 Raid 0 / Raid 10 데이타 스트라이핑은 향상된 성능을 제공 Raid 1 / Raid 10 미러링은 데이타의 안전성 및 가용성을 향상 Raid 5 는 Raid 10 보다 낮은 비용으로 향상된 가용성과 스트라이핑을 결합 1 GB cache는 쓰기 성능을 향상 • • • 처리량 증가를 위한 다양한 옵션(SAS 10 k, 15 k) 향상된 데이타 신뢰성 (SSD) Global Marketing

T 3610 Xeon Ivy Bridge EP CPU Xeon E 5 -1600, E 5 -2600 T 3610 - IVB* Xeon E 5 -1600, E 5 -2600 T 3600 - SB • Turbo Advanced • DDR 3 -1866 • 12 M cache • HT enabled • Turbo Increments: 0. 1 GHz • HT enabled • DDR 3 -1600 • Turbo+ 8 C: 4/4/5/5/6/6/7/7 6 C: 3/3/4/4/6/6 • Turbo 6 C: 3/3/4/5/6/6 Increments: 0. 1 GHz • Turbo 6 C: TBD Standard E 5 -1650 v 2 6 C 130 W 3. 50 GHz, 12 M, Turbo • DDR 3 -1866 • 10 M cache • HT enabled • Turbo E 5 -2665 8 C 130 W 2. 4 GHz, 20 M, Turbo+ E 5 -1660 6 C 130 W 3. 3 GHz, 15 M, Turbo+ E 5 -1650 6 C 130 W 3. 2 GHz, 10 M, Turbo E 5 -1620 v 2 4 C 130 W 3. 70 GHz, 10 M, Turbo • Turbo Increments: 0. 1 GHz E 5 -1620 4 C 130 W 3. 60 GHz, 10 M, Turbo • HT enabled • DDR 3 -1600 • Turbo 4 C: TBD 4 C: 1/1/2/2 Ivy Bridge Sandy Bridge Basic • DDR 3 • E 5 -1607 v 2: 1600 • E 51603: 1066 • 10 M cache • No HT • No Turbo 1 E 5 -1607 v 2 4 C 130 W 3. 00 GHz , 10 M E 5 -1603 4 C 2. 8 GHz, 10 M 130 W 1 • DDR 3 - 1066 E 5 -1607 4 C 130 W 3. 00 GHz , 10 M E 5 -1603 4 C 2. 8 GHz, 10 M E 5 -1603 Post RTS - October Dell Confidential Under NDA *Under Intel NDA until Sept 12, 2013 130 W Global Marketing

T 3610 Slot Layout (x 16 slot) PCIe x 8 Slot 1 Slot 2 – Default for Factory Installed PCIe x 16 PCIe x 1 graphics card Slot 3 Slot 4 – Second graphics card PCIe x 16 PCIe x 4 (x 16 slot) Slot 5 Slot 6 Mechanical Slot 7 PCI 2개 이상의 그래픽카드를 설치할 경우 적용 슬롯 Dell Confidential

OS 지원 • Microsoft® – Genuine Windows® 8 Pro 64 -bit – Genuine Windows® 7 Ultimate 32 -bit & 64 -bit – Genuine Windows® 7 Professional 32 -bit & 64 -bit • Redhat® – Red Hat Enterprise Linux version 6. 4 • Ubuntu – 12. 04 SP 1 Linux (China only) 25 Dell Confidential Global Marketing

Product Specifications 26 Confidential

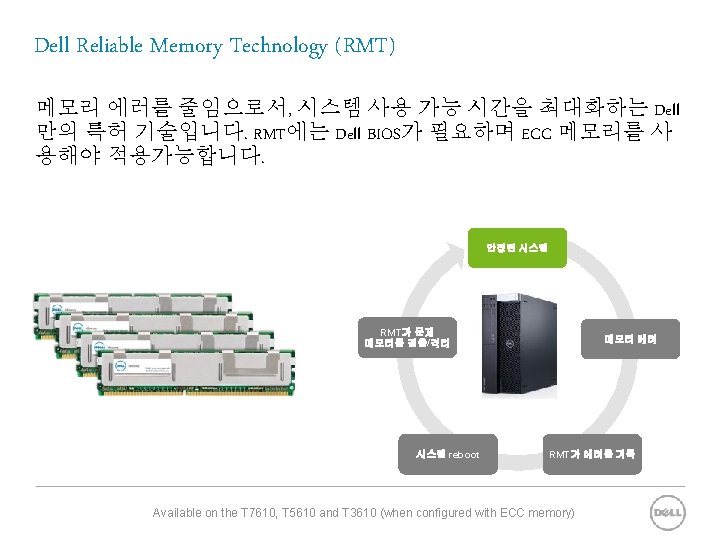

T 3610 vs T 3600 비교 CPU/Chipset Processor Memory Slots Storage Bus Slots/Type Graphics I/O Chassis Bays Power Supply T 3610 T 3600 Ivy Bridge / Patsburg Architecture New Sandy Bridge / Patsburg Architecture Single CPU, 4 C/6 C up to 130 W Single CPU, 4 C/6 C/8 C, up to 130 W 1600/1866 MHz DDR 3, ECC or Non-ECC, up to 128 GB “Reliable memory Technology” 1600 MHz DDR 3, ECC or Non-ECC, up to 64 GB “Reliable memory Technology” 8 Intel chipset AHCI SATA - 2 ports @ 6. 0 Gb/s, 4 @ 3. 0 Gb/s RAID 0, 1, 5, 10 LSI 9217 -8 i 6. 0 Gb/s SAS/SSD RAID 0, 1, 10 (add-in card) LSI 9271 -8 i 6. 0 Gb/s SATA/SAS HW RAID 0, 1, 5, 10 (add-in card) Up to three 3. 5” / four 2. 5” SATA ODD slim line Optional 2 nd 5. 25” ODD or Memory Card Reader 6 slots (2) PCIe x 16 Gen 3 (1) PCIe x 16 wired as x 8 Gen 3 (Slot 1) (1) PCIe x 4 Gen 2 (1) PCIe x 1 Gen 2, (1) PCI 32/33 (1) Mechanical only slot (1) (All slots either x 16 or open ended) Single 150 W + Single 75 W (total 225) Dual 150 W (total 300 W Gfx) 4 Intel chipset SCU SATA - 4 ports @ 3. 0 Gb/s RAID 0, 1, 5, 10 , 2 6. 0 Gb/s AHCI ports for ODD PERC H 310/H 710 P (HW RAID) SATA/SAS 6. 0 Gb/s RAID 0, 1, 5, 10 (add-in cards) Up to two 3. 5” / four 2. 5” SATA ODD slim line Optional 2 nd 5. 25” ODD or Memory Card Reader 6 slots (2) PCIe x 16 Gen 3 (1) PCIe x 16 wired as x 4 Gen 3 (1) PCIe x 4 Gen 2 (1) PCIe x 1 Gen 2, (1) PCI 32/33 (1) Mechanical only slot (All slots either x 16 or open ended) Single 150 W + Single 75 W (total 225) Dual 150 W (total 300 W Gfx) (11) USB 2. 0(9) USB 2. 03 front, 3 internal, 5 rear; (2) USB 3. 0 -1 rear, 1 3 front, 3 internal, 3 rear; (4) USB 3. 0 -3 rear, 1 front, front 1394 a via optional add-in card (1) Serial, (2) PS/2, (1) 1 Gb Nic (LOM), (1) 10 Gb Add in card, (1) Serial, (2) PS/2, (1) 1 Gb Nic (LOM), (1) 10 Gb Add (1)1 Gb Add in card, (1) 350 GB PCIe SSD card in card, (1)1 Gb Add in card Rackable Chassis (via OU S & P shelf kit) 2 Internal 3. 5” bays 1 External 5. 25” bay 1 slimline bay PSU options: 425 W, 685 W New rackable Chassis (via OU S & P shelf kit) 2 Internal 3. 5” bays 1 External 5. 25” bay 1 slimline bay PSU options: 425 W, 635 W Global Marketing

Ecosystem 28 Confidential

Dell Precision 액세서리 Tx 610 View Adjust Dell Dual U 2413 Ultra. Sharp Monitors Dell MDS 14 Dual Monitor Stand Dell E-Port Plus Replicator Print C 3765 dnf Multifunction Color Laser Printer 29 Confidential Dell Global S&P Messaging Back to table of contents
