Deforming the Earth’s Crust Faults and Folds Chapter 7 Section 4

Deforming the Earth’s Crust Faults and Folds Chapter 7 Section 4

Deformation • The process by which the shape of a rock changes because of

Deformation • The process by which the shape of a rock changes because of stress. • There are two types of stress that occur in rocks: • Compression • Tension

Compression • Compression occurs when rock is squeezed. • Compression happens when two plates

Compression • Compression occurs when rock is squeezed. • Compression happens when two plates collide at a convergent boundary. • Compression occurs and forms large mountain ranges.

Compression/ Mountain Building The Himalayas, for example, were raised by the compression that accompanied

Compression/ Mountain Building The Himalayas, for example, were raised by the compression that accompanied collision of the Indian plate with the Eurasian plate. Another example is Europe's Alps and Jura mountains which were also formed by horizontal compression, generated in their case by collision with the African plate and the Eurasian plate.

Tension • Tension occurs when an object is stretched. • Tension occurs when plates

Tension • Tension occurs when an object is stretched. • Tension occurs when plates move away from each other at plate boundaries • Example: mid-ocean ridge

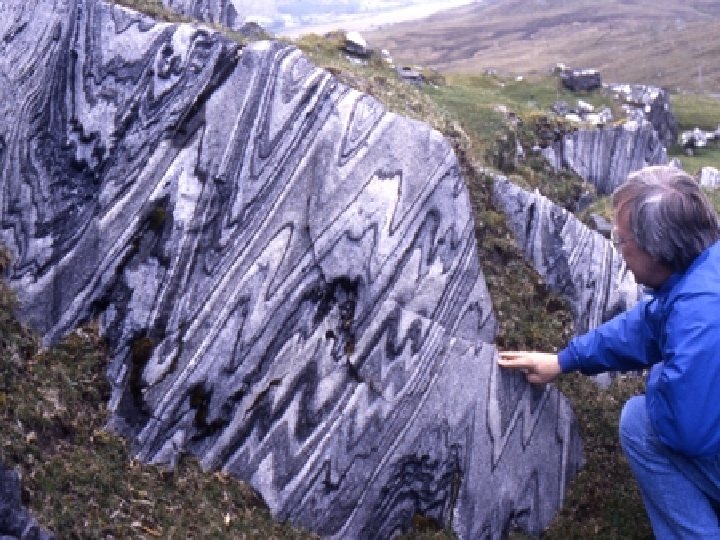

Folding n Folding is the bending of rock layers due to stress in the

Folding n Folding is the bending of rock layers due to stress in the Earth’s crust. Caused by compression. n Depending on how rock layers deform, different types of folds occur: n Anticline n Syncline n Monocline

FOLDS Upward arch Downward arch

FOLDS Upward arch Downward arch

Anticline • An anticline is an upward-arching fold. • An anticline is formed when

Anticline • An anticline is an upward-arching fold. • An anticline is formed when there is horizontal stress on rock layers. Horizontal stress

Syncline • Synclines are downward folds. • They are also caused by horizontal stress.

Syncline • Synclines are downward folds. • They are also caused by horizontal stress. Horizontal Stress

Monocline • Monoclines are rock layers that are folded so that both ends of

Monocline • Monoclines are rock layers that are folded so that both ends of the fold are horizontal.

Faults • Some rock layers break when stress is applied to them. • The

Faults • Some rock layers break when stress is applied to them. • The surface along which rocks break is called a fault. • The blocks of crust on each side of the fault are called fault blocks. • A fault has a foot wall and a hanging wall.

Footwall You could walk up this face of the fault, on foot, hence the

Footwall You could walk up this face of the fault, on foot, hence the name footwall.

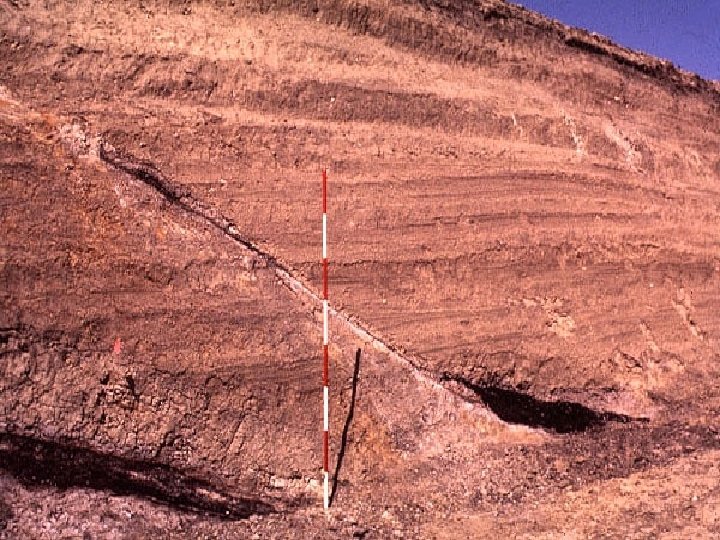

Hanging Wall n You could hang from this wall. This is a normal fault.

Hanging Wall n You could hang from this wall. This is a normal fault. Notice how the rock layers are the same at the red lines. Hanging Wall

Hanging wall and Footwall

Hanging wall and Footwall

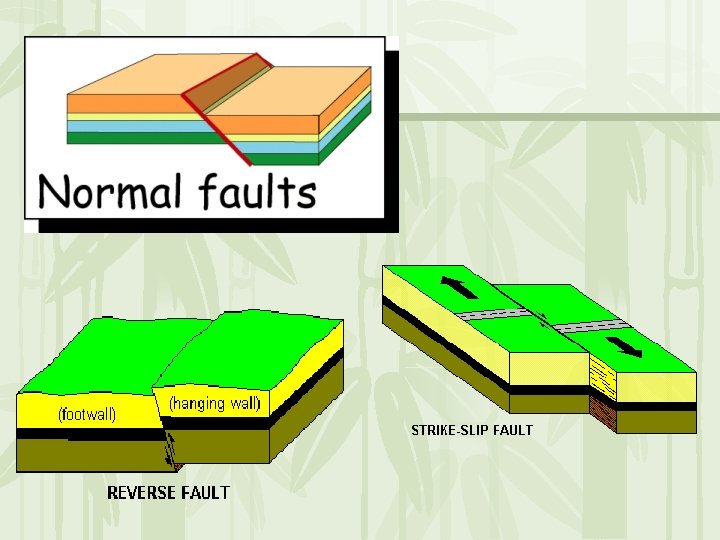

3 Types of Faults • Normal Fault • Reverse Fault • Strike-Slip Fault

3 Types of Faults • Normal Fault • Reverse Fault • Strike-Slip Fault

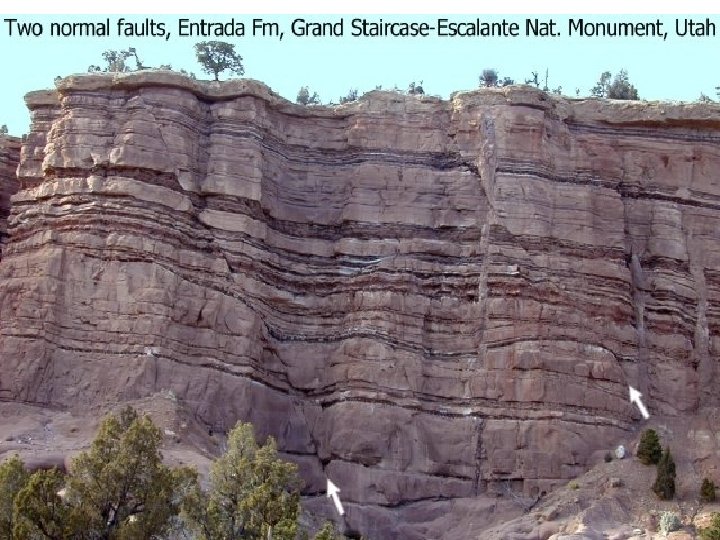

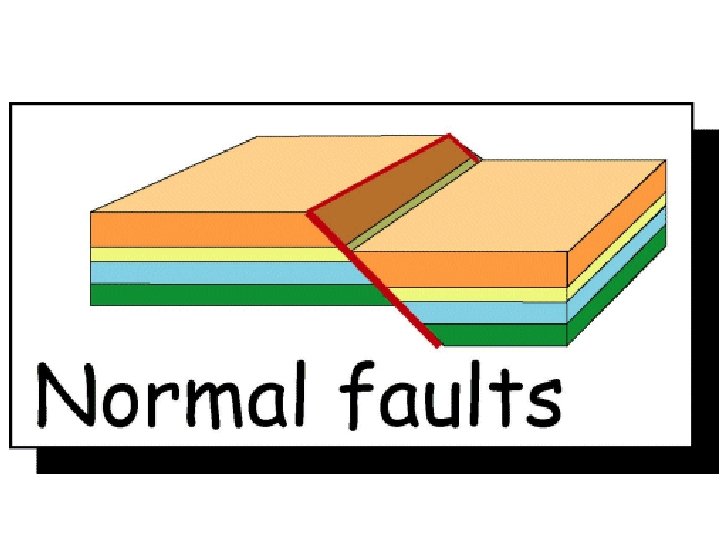

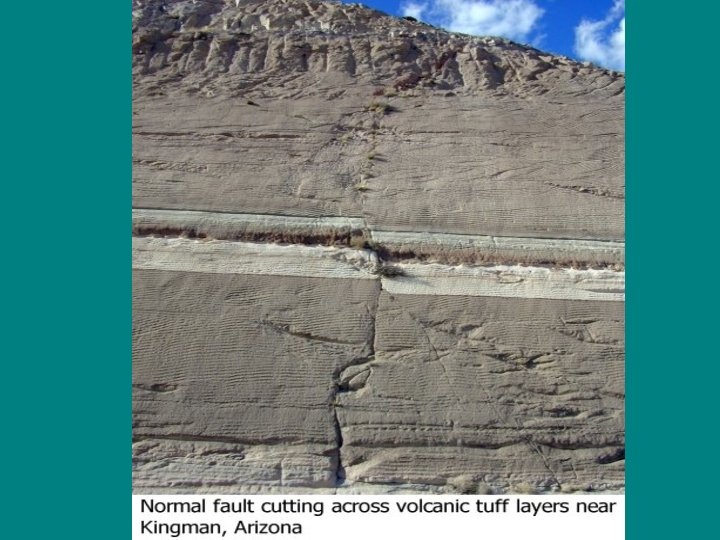

Normal Fault • Rocks are pulled apart because of tension. Footwall Hanging wall In

Normal Fault • Rocks are pulled apart because of tension. Footwall Hanging wall In a normal Fault, the hanging wall slides down the footwall.

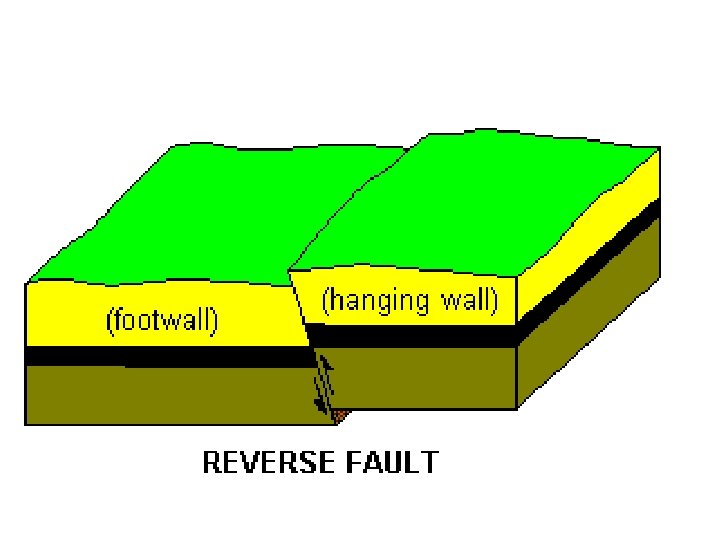

Reverse Fault In a reverse fault the hanging wall is pushed upward due to

Reverse Fault In a reverse fault the hanging wall is pushed upward due to compression.

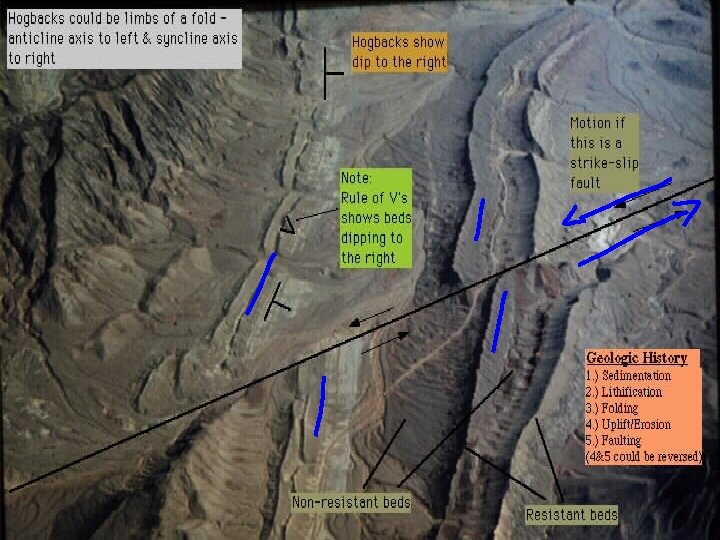

Strike-Slip Fault Opposing forces cause rocks to move horizontally. Earthquakes occur along these faults.

Strike-Slip Fault Opposing forces cause rocks to move horizontally. Earthquakes occur along these faults.

San Andreas Fault, California Strike-Slip Fault

San Andreas Fault, California Strike-Slip Fault

3 Most Common Types of Mountains • Mountains exist because tectonic plates are continually

3 Most Common Types of Mountains • Mountains exist because tectonic plates are continually moving around and colliding with each other. • There are 3 types of mountains, named for how they form: • Folded Mountains • Fault-Block Mountain • Volcanic Mountain

Folded Mountains (Compression) • Folding is a process in which the Earth's plates are

Folded Mountains (Compression) • Folding is a process in which the Earth's plates are pushed together in a roller coaster like series of high points and low points. • Folding bends many layers of rocks without breaking them. The Appalachian Mountains and Rocky Mountains of the United States, and the Alps of Europe are examples of mountain ranges that were formed by folding.

Fault- Block Mountains (Tension) • Mountains sometimes form when many layers of the Earth's

Fault- Block Mountains (Tension) • Mountains sometimes form when many layers of the Earth's crust are moved vertically upward at fault lines by pressures caused by plates colliding. Fault lines are great cracks in the crust. The mountains that are formed in this way are called fault-block mountains. The Sierra Nevada mountains in California and Nevada, and the Grand Teton range of Wyoming are examples of fault-block mountains. Fault block mountains form when tension causes large blocks of crust to drop down relative to other blocks.

Volcanic Mountains • Volcanic mountains are forms when magma erupts from a divergent boundary

Volcanic Mountains • Volcanic mountains are forms when magma erupts from a divergent boundary and hardens. • Many volcanic mountains exist under the sea. • Some volcanic mountains rise above the surface of the ocean to from islands. • The islands of Hawaii are volcanic mountains.

Hawaiian Islands

Hawaiian Islands
