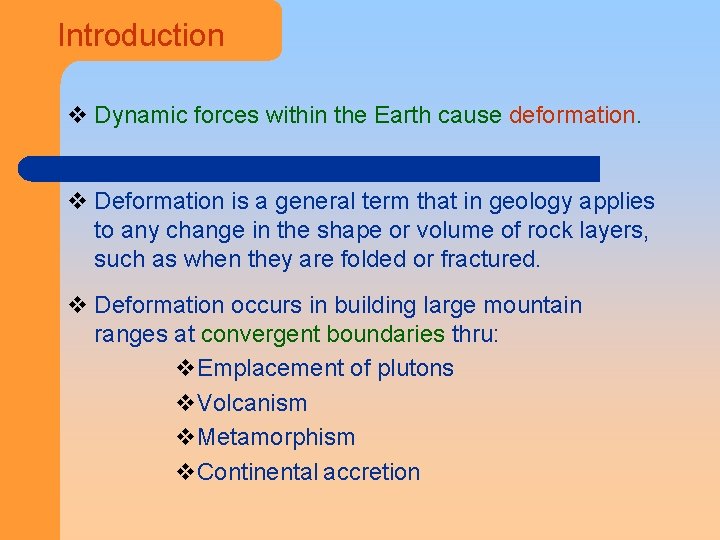

Introduction v Dynamic forces within the Earth cause deformation. v Deformation is a general term that in geology applies to any change in the shape or volume of rock layers, such as when they are folded or fractured. v Deformation occurs in building large mountain ranges at convergent boundaries thru: v. Emplacement of plutons v. Volcanism v. Metamorphism v. Continental accretion

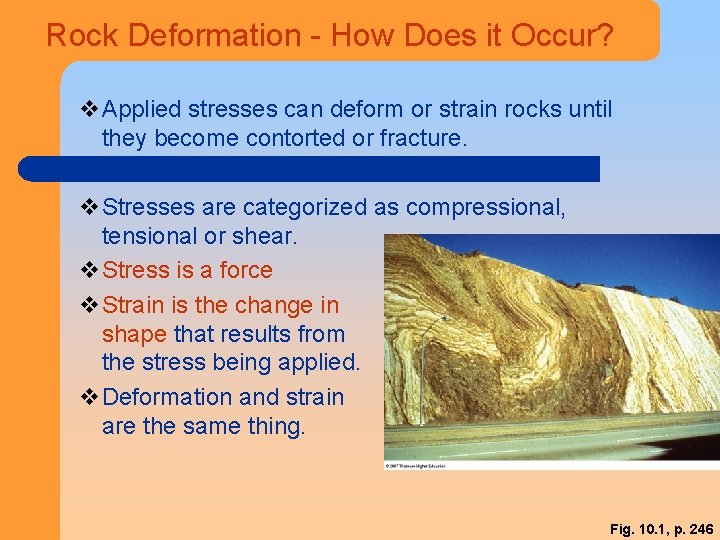

Rock Deformation - How Does it Occur? v. Applied stresses can deform or strain rocks until they become contorted or fracture. v. Stresses are categorized as compressional, tensional or shear. v. Stress is a force v. Strain is the change in shape that results from the stress being applied. v. Deformation and strain are the same thing. Fig. 10. 1, p. 246

Rock Deformation-How Does it Occur? v Stress and Strain v. How can you explain stress and strain by using an example of an ice-covered pond? v. When subjected to stress (force), ice on a pond may bend (elastic deformation), or if the stress is great enough, it will fracture, that is, the ice strained or deformed in response to stress. Fig. 10. 2, p. 247

Rock Deformation-How Does it Occur? v Types of Strain v. Compression v. In compression the rocks are squeezed towards one another along the same line. v. Rock layers in compression are shortened the rocks by folding or faulting Fig. 10. 3 a, p. 247

Rock Deformation-How Does it Occur? v Types of Strain v. Tension v. In tension the forces along the same line act in opposite directions. v. Tension lengthens the rocks or pulls them apart. Fig. 10. 3 b, p. 247

Rock Deformation-How Does it Occur? v Types of Strain v. Shear v. In shear the forces act parallel to one another, but in opposite directions v. Deformation occurs along closely spaced planes like the slip between cards in a deck. Fig. 10. 3 c, p. 247

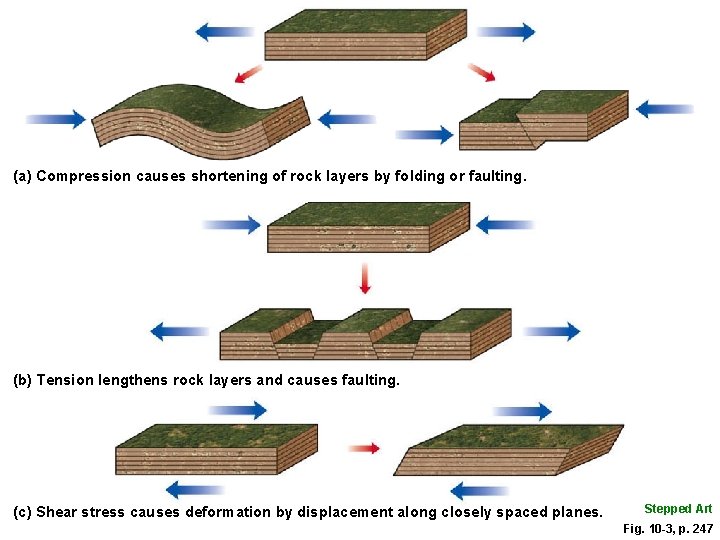

(a) Compression causes shortening of rock layers by folding or faulting. (b) Tension lengthens rock layers and causes faulting. (c) Shear stress causes deformation by displacement along closely spaced planes. Stepped Art Fig. 10 -3, p. 247

Rock Deformation-How Does it Occur? v Types of Strain v Rocks will deform elastically until they reach the elastic limit unless the force is applied quickly. v. Elastic strain occurs if rocks return to their original shape when the stress is released. v. Plastic strain occurs when rocks fold or fracture when stress is applied and do not recover their original shape. Fig. 10. 4, p. 248

Rock Deformation-How Does it Occur? v Types of Strain v What determines whether a rock will bend elastically, plastically or fracture? v. Type of stress applied v. Pressure and temperature v. Rock type v. Length of time Fig. 10. 4, p. 248

Rock Deformation-How Does it Occur? v Types of Strain v Rocks will deform elastically until they reach the elastic limit unless the force is applied quickly. v. Ductile rocks show a great amount of plastic strain (they bend) before they fracture v. Brittle rocks fracture after only a small amount of plastic strain. Fig. 10. 4, p. 248

Strike and Dip-The Orientation of Deformed Rock Layers v. Principle of original horizontality states that most rocks are originally laid down horizontally. v. When we see rocks inclined, they have been deformed by folding and/or fracturing. Fig. 10. 5 a p. 249

Strike and Dip-The Orientation of Deformed Rock Layers v. Strike and dip are measurements used to describe a rock body's orientation with respect to the horizontal. v. Strike is the intersection of a horizontal plane with an inclined plane. v. Dip is the maximum angle of an inclined plane. Fig. 10. 5 b p. 249

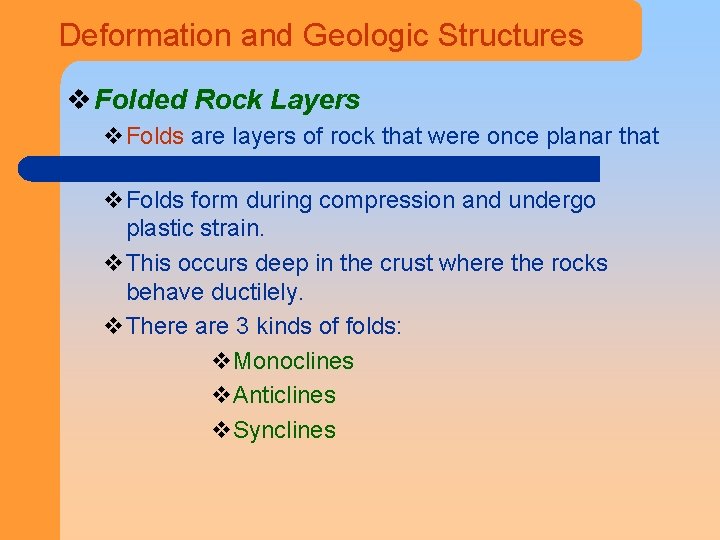

Deformation and Geologic Structures v Folded Rock Layers v. Folds are layers of rock that were once planar that are bent or crumpled. v. Folds form during compression and undergo plastic strain. v. This occurs deep in the crust where the rocks behave ductilely. v. There are 3 kinds of folds: v. Monoclines v. Anticlines v. Synclines

Deformation and Geologic Structures v Folded Rock Layers All folds exhibit their own fold anatomy. v. Folds have an axial plane that divides the fold in half. v. Each half is called a limb. Adjacent anticlines and synclines share a limb. v. The axis is an imaginary line formed by the intersection of the axial plane and the folded beds. Figure 10. 8, p. 254

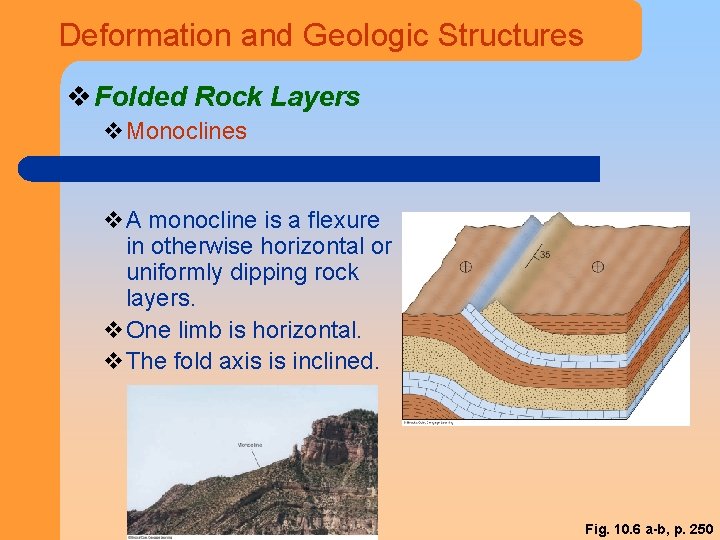

Deformation and Geologic Structures v Folded Rock Layers v. Monoclines v. A monocline is a flexure in otherwise horizontal or uniformly dipping rock layers. v. One limb is horizontal. v. The fold axis is inclined. Fig. 10. 6 a-b, p. 250

Deformation and Geologic Structures v Folded Rock Layers v. Anticlines and Synclines v. Anticlines are uparched folds. The oldest rocks are in the core. v. Synclines are downarched folds. The youngest rocks are in the core. Figure 10. 8, p. 254

Deformation and Geologic Structures v Folded Rock Layers v. Anticlines and Synclines v. Upright folds v. Axial plane is vertical v. Both limbs dip at the same angle. Figure 10. 7, p. 251

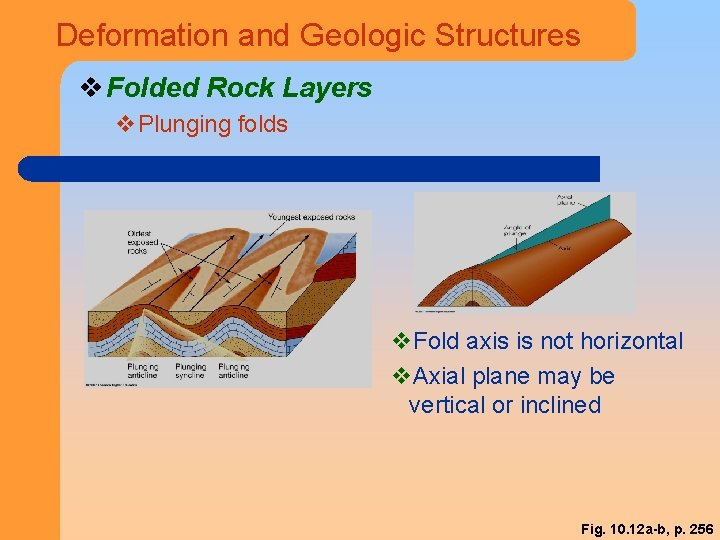

Deformation and Geologic Structures v Folded Rock Layers v. Plunging folds v. Fold axis is not horizontal v. Axial plane may be vertical or inclined Fig. 10. 12 a-b, p. 256

Plunging fold Fig. 10. 12 c, p. 256

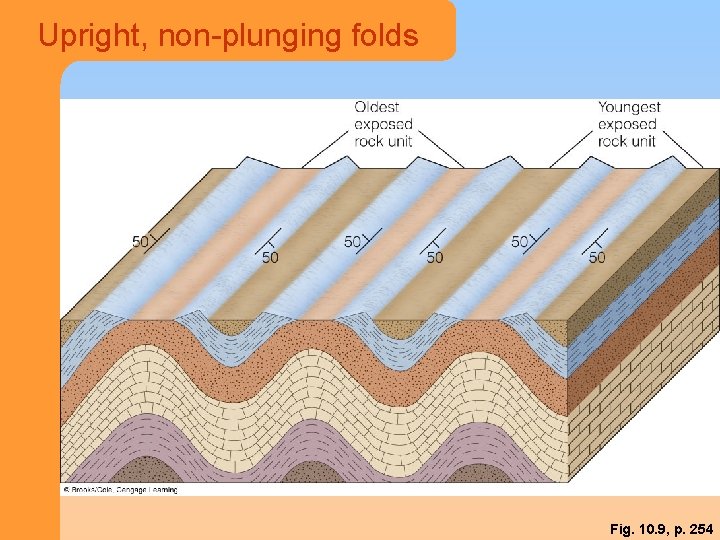

Upright, non-plunging folds Fig. 10. 9, p. 254

Deformation and Geologic Structures v Folded Rock Layers v. Inclined and Overturned folds v In these folds the axial plane is inclined. v Usually form under compression at convergent boundaries. v Overturned folds have both limbs dipping in the same direction Fig. 10. 11 b, p. 255

Deformation and Geologic Structures v Folded Rock Layers v. Recumbent folds v In these folds the axial plane is horizontal or nearly horizontal. v Usually form under compression at convergent boundaries. Fig. 10. 11 c, p. 255

Deformation and Geologic Structures v Folded Rock Layers v. Domes and basins are circular to oval structures which have rock layers occurring in age-position contexts which are the same as anticlines and synclines, respectively. Fig. 10. 13 a, c, p. 257

Black Hills of South Dakota A Dome Fig. 10. 13 b, p. 257

Deformation and Geologic Structures v Joints v. Joints are fractures along which no movement has taken place. v. Joints occur in almost all surface rocks. v. Form in response to compression, tension, and shearing. Fig. 10. 14 a, p. 258

Deformation and Geologic Structures v Faults are fractures along which the opposite sides have moved relative to one another and parallel to the fracture surface. Fig. 10. 15 a-c, p. 259

Deformation and Geologic Structures v Faults v. Dip-slip Faults v. All movement is in the direction of dip along dipslip faults. v. Dip-slip faults are categorized as normal or reverse. Fig. 10. 15 a, p. 259

Deformation and Geologic Structures v Faults v. Dip-slip Faults v. Normal faults form in response to tensional forces. Fig. 10. 16 a, p. 260

Deformation and Geologic Structures v Faults v. Normal faults Geo-in. Sight 1. , 2. , , p. 262

Deformation and Geologic Structures v Faults v. Normal faults Fig. 10. 18 a-b, p. 264

Deformation and Geologic Structures v Faults v. Dip-slip faults v. Reverse faults form in response to compressional forces. v. Thrust faults are a type of reverse fault that dips at less than 45 degrees, often as low as 5 degrees! Fig. 10. 16 b-c, p. 260

Joints and Faults Deformation by Fracturing v Faults v. Reverse Faults Geo-in. Sight 3. and 4. , p. 262

Deformation and Geologic Structures v Faults v. Thrust Faults – Lewis Overthrust Geo-in. Sight 5. -7. , p. 262

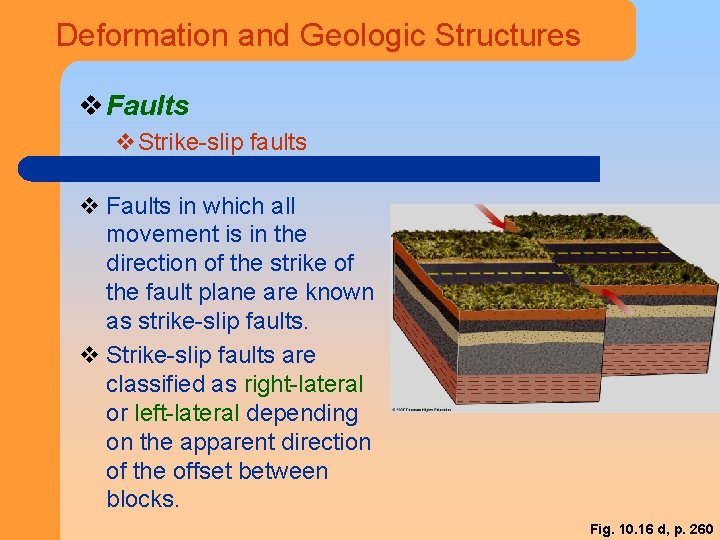

Deformation and Geologic Structures v Faults v. Strike-slip faults v Faults in which all movement is in the direction of the strike of the fault plane are known as strike-slip faults. v Strike-slip faults are classified as right-lateral or left-lateral depending on the apparent direction of the offset between blocks. Fig. 10. 16 d, p. 260

Deformation and Geologic Structures v Faults v. Strike-slip faults – Great Glen Fault Geo-in. Sight 8. and 9. , p. 263

Deformation and Geologic Structures v Faults v. Strike-slip faults – San Andreas fault Geo-in. Sight 10. - 12. , p. 263

Deformation and Geologic Structures v Faults v. Oblique-slip faults have both strike-slip and dipslip components of movement. Fig. 10. 16 e, p. 260

Deformation and the Origin of Mountains v A mountain is an area of land that stands at least 300 meters above the surrounding country and has a restricted summit area. v A mountain range is a group of linear peaks and ridges that formed together. v A mountain system is a complex group of linear peaks and ridges that is composed of several mountain ranges. Mountain systems are the result of plate movements and interactions along plate boundaries. The Tetons Range is part of the Rocky Mountain system. The Smoky Mountains are a range in the Appalachian mountain system.

Deformation and the Origin of Mountains v Mountain Building v. Mountain building can involve faulting and folding, but can arise without these types of deformation. Ways mountain form v. Volcanism v. Erosion v. Compression v. Block-faulting - tension

Deformation and the Origin of Mountains v Plate Tectonics and Mountain Building Orogeny – an episode of mountain building v. Most orogenies are produced along convergent plate boundaries where one plate is subducted beneath another or where two continents collide. v. Orogenies are accompanied by the emplacement of batholiths, metamorphism and thickening of the Earth’s crust. v. Sedimentary rocks that formed in marine environments are often found emplaced high in the mountains as a result of orogenies.

Deformation and the Origin of Mountains v Plate Tectonics and Mountain Building v Orogenies are also closely associated with v. Mass Wasting, including land-slides v. Glaciers v. Running Water v Erosion is responsible for carving the most majestic peaks!

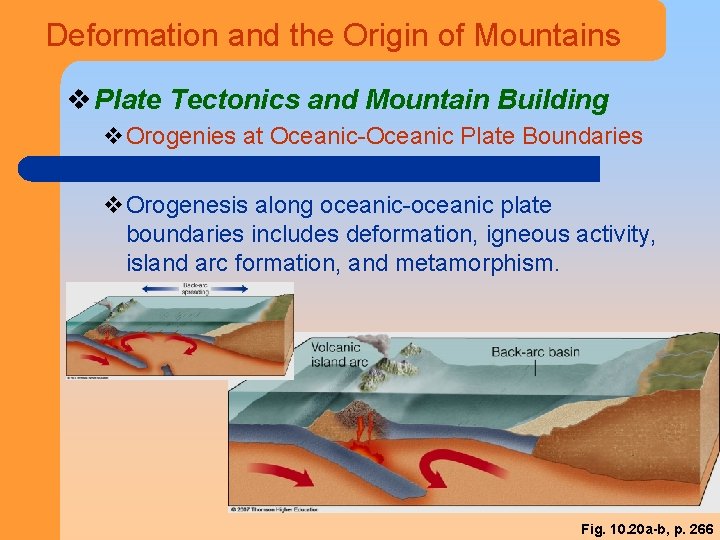

Deformation and the Origin of Mountains v Plate Tectonics and Mountain Building v. Orogenies at Oceanic-Oceanic Plate Boundaries v. Orogenesis along oceanic-oceanic plate boundaries includes deformation, igneous activity, island arc formation, and metamorphism. Fig. 10. 20 a-b, p. 266

Deformation and the Origin of Mountains v Plate Tectonics and Mountain Building v. Orogenies at Oceanic-Continental Plate Boundaries v Subduction of oceanic lithosphere along an oceaniccontinental plate boundary also results in orogeny. Fig. 10. 20 c-d, p. 266

Deformation and the Origin of Mountains v Plate Tectonics and Mountain Building v. Continent-Continent Boundaries v Mountain systems such as the Himalayas occur within continents, distant from present plate boundaries as the result of continent collisions and suturing. Fig. 10. 22 ab, p. 268

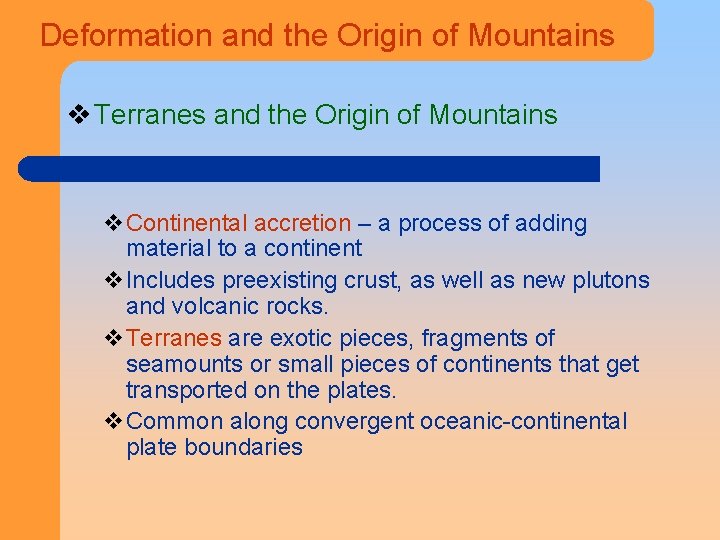

Deformation and the Origin of Mountains v Terranes and the Origin of Mountains v. Continental accretion – a process of adding material to a continent v. Includes preexisting crust, as well as new plutons and volcanic rocks. v. Terranes are exotic pieces, fragments of seamounts or small pieces of continents that get transported on the plates. v. Common along convergent oceanic-continental plate boundaries

Earth’s Continental Crust v Continental crust is less dense and much thicker than oceanic crust. v This helps explain why mountains on land stand higher on continents than in ocean basins. v Floating continents? v Gravity allows the continents to float v A gravimeter detects gravity anomalies.

Earth’s Continental Crust v Principle of Isostacy – Earth’s crust floats in the denser mantle. v Airy and Pratt’s Models v Airy stated that mountains have a low density root that allows them to project both far above and far below the surface. v Pratt stated that mountains are high because they are less dense than the adjacent rocks. (like the mantle and the ocean crust) v Both models explain the behavior of the crust.

Origin of the Himalayas and Isostacy Fig. 10. 22 a-b, p. 268 Fig. 10. 23 a-b, p. 268

Earth’s Continental Crust v Isostatic Rebound – When glaciers melt or mountains erode away, the crust rises back up to its equilibrium level. v Rebound occurs slowly. v The ice sheets that covered Alaska and most of Europe 10, 000 years ago have melted away but the continents are still rebounding! v Scandinavia is rebounding at about 1 meter per century, Alaska is rebounding at about 5 meters every 10 years! Fig. 10. 25, p. 269

Continental crust Mountains Low-density mountain root Mantle Transport Deposition Erosion Subsidence Uplift Stepped Art Fig. 10 -25, p. 269

Learning Objectives Upon completion of this material, the student should understand the following. • Rock deformation involves changes in the shape or volume or both of rocks in response to applied forces. • Geologists use several criteria to differentiate among geologic structures such as folds, joints, and faults. • Correctly interpreting geologic structures is important in human endeavors such as constructing highways and dams, choosing sites for power plants, and finding and extracting some resources. • Deformation and the origin of geologic structures are important in the origin and evolution of mountains. • Most of Earth's large mountain systems formed, and in some cases, continue to form, at or near the three types of convergent plate boundaries. • Terranes have special significance in mountain building. • Earth's continental crust, and especially mountains, stands higher than adjacent crust because of its composition and thickness.
