Definition Carbohydrates literally mean hydrates of carbon carbon

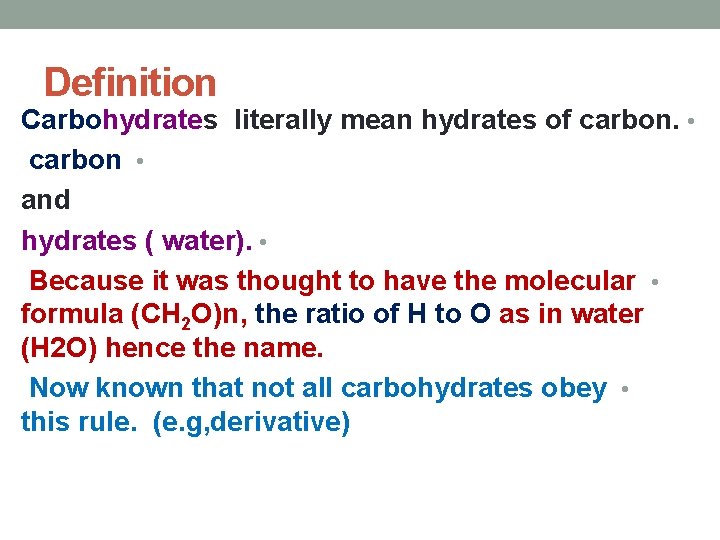

Definition Carbohydrates literally mean hydrates of carbon. • carbon • and hydrates ( water). • Because it was thought to have the molecular • formula (CH 2 O)n, the ratio of H to O as in water (H 2 O) hence the name. Now known that not all carbohydrates obey • this rule. (e. g, derivative)

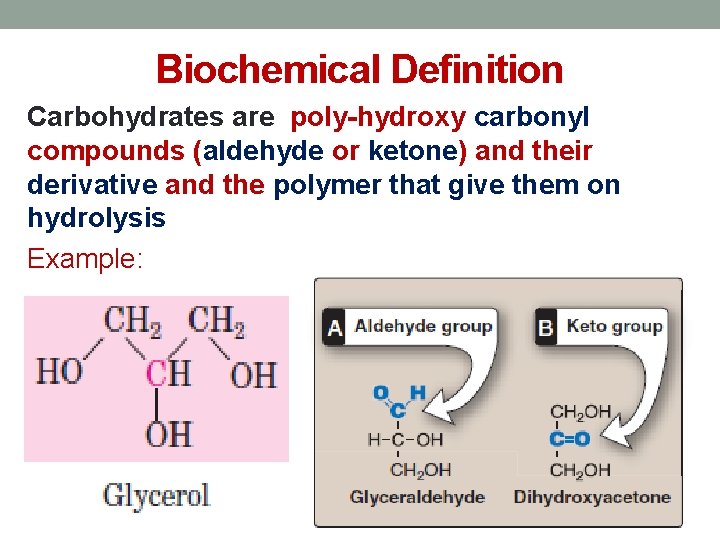

Biochemical Definition Carbohydrates are poly-hydroxy carbonyl compounds (aldehyde or ketone) and their derivative and the polymer that give them on hydrolysis Example:

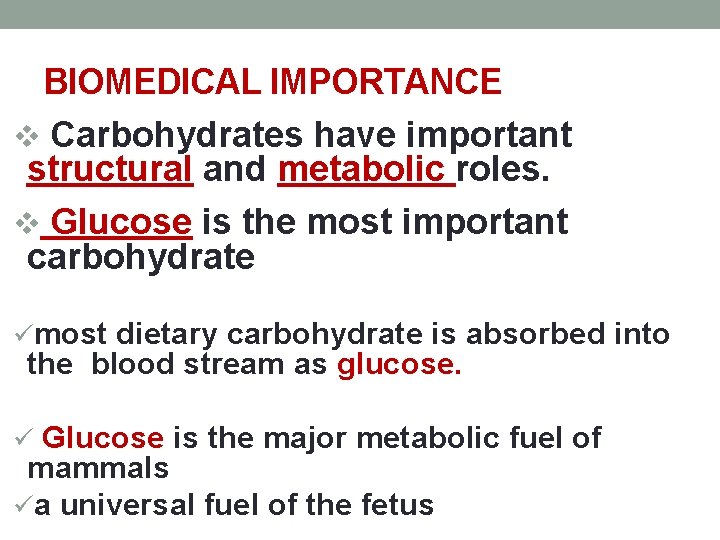

BIOMEDICAL IMPORTANCE v Carbohydrates have important structural and metabolic roles. v Glucose is the most important carbohydrate ümost dietary carbohydrate is absorbed into the blood stream as glucose. ü Glucose is the major metabolic fuel of mammals üa universal fuel of the fetus

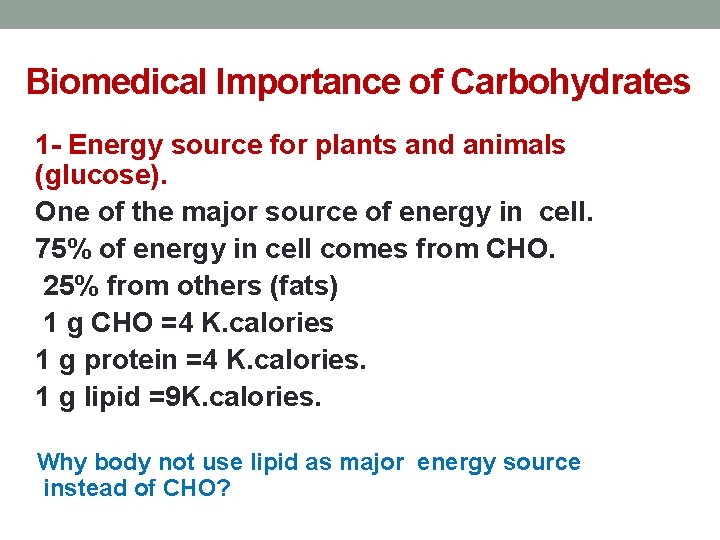

Biomedical Importance of Carbohydrates 1 - Energy source for plants and animals (glucose). One of the major source of energy in cell. 75% of energy in cell comes from CHO. 25% from others (fats) 1 g CHO =4 K. calories 1 g protein =4 K. calories. 1 g lipid =9 K. calories. Why body not use lipid as major energy source instead of CHO?

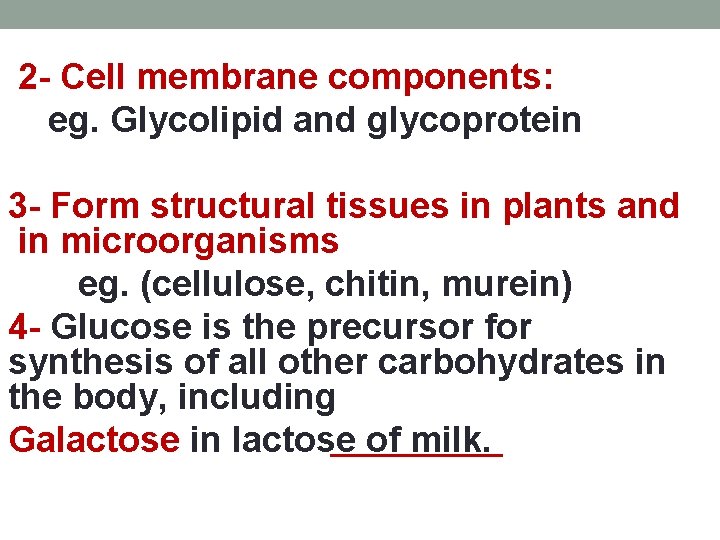

2 - Cell membrane components: eg. Glycolipid and glycoprotein 3 - Form structural tissues in plants and in microorganisms eg. (cellulose, chitin, murein) 4 - Glucose is the precursor for synthesis of all other carbohydrates in the body, including Galactose in lactose of milk.

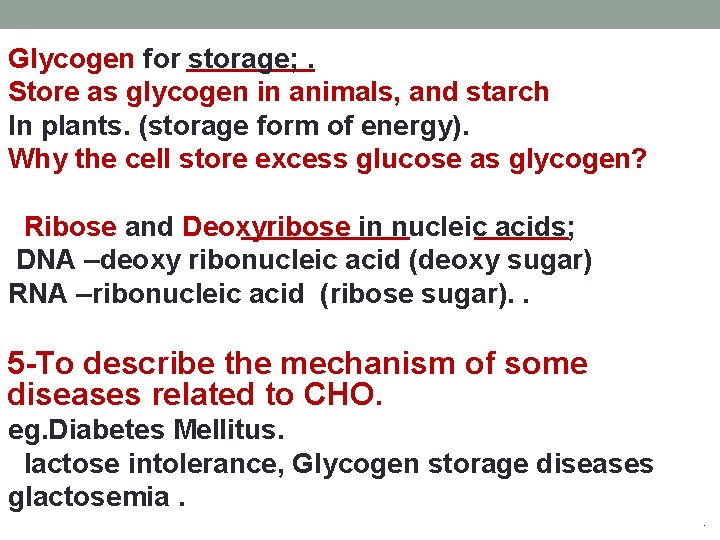

Glycogen for storage; . Store as glycogen in animals, and starch In plants. (storage form of energy). Why the cell store excess glucose as glycogen? Ribose and Deoxyribose in nucleic acids; DNA –deoxy ribonucleic acid (deoxy sugar) RNA –ribonucleic acid (ribose sugar). . 5 -To describe the mechanism of some diseases related to CHO. eg. Diabetes Mellitus. lactose intolerance, Glycogen storage diseases glactosemia. ,

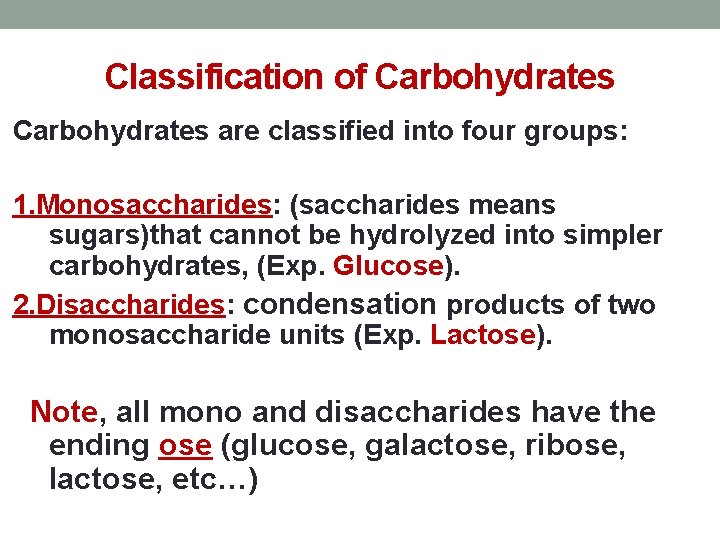

Classification of Carbohydrates are classified into four groups: 1. Monosaccharides: (saccharides means sugars)that cannot be hydrolyzed into simpler carbohydrates, (Exp. Glucose). 2. Disaccharides: condensation products of two monosaccharide units (Exp. Lactose). Note, all mono and disaccharides have the ending ose (glucose, galactose, ribose, lactose, etc…)

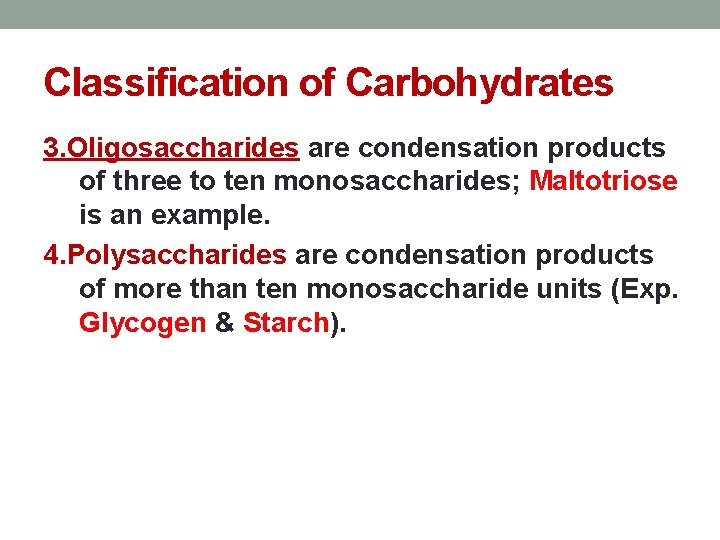

Classification of Carbohydrates 3. Oligosaccharides are condensation products of three to ten monosaccharides; Maltotriose is an example. 4. Polysaccharides are condensation products of more than ten monosaccharide units (Exp. Glycogen & Starch).

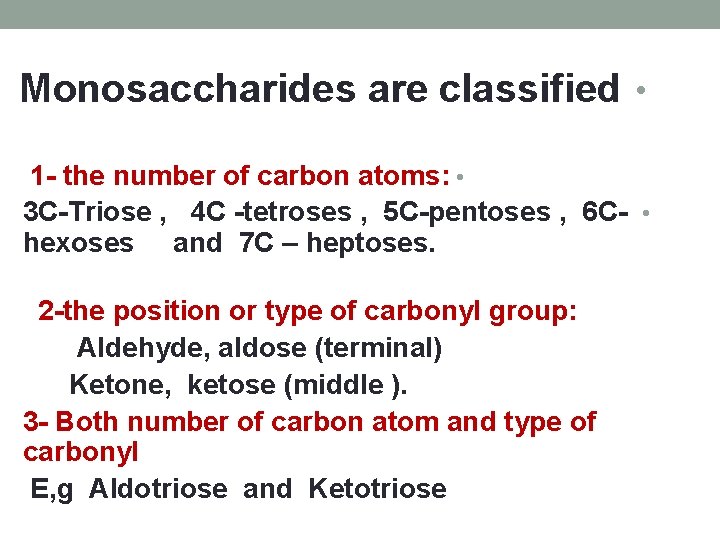

Monosaccharides are classified • 1 - the number of carbon atoms: • 3 C-Triose , 4 C -tetroses , 5 C-pentoses , 6 C- • hexoses and 7 C – heptoses. 2 -the position or type of carbonyl group: Aldehyde, aldose (terminal) Ketone, ketose (middle ). 3 - Both number of carbon atom and type of carbonyl E, g Aldotriose and Ketotriose

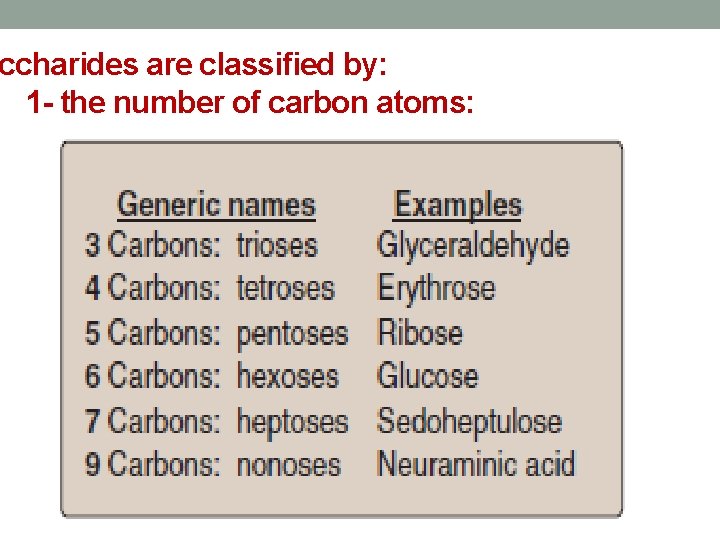

ccharides are classified by: 1 - the number of carbon atoms:

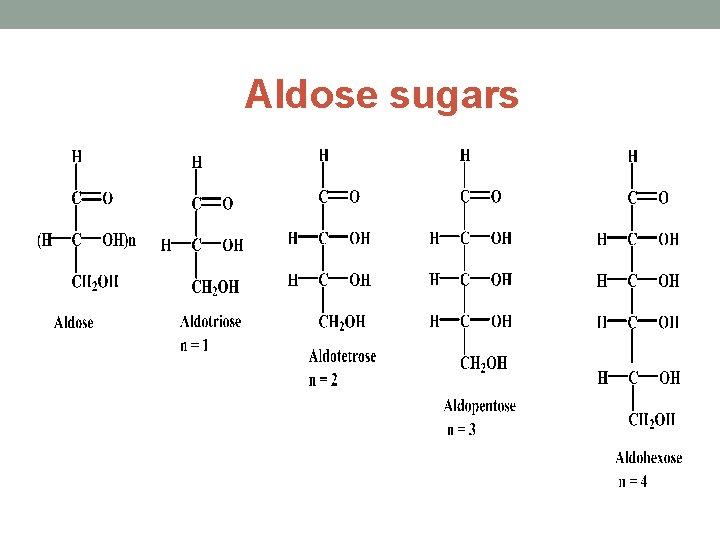

Aldose sugars

Ketose sugars

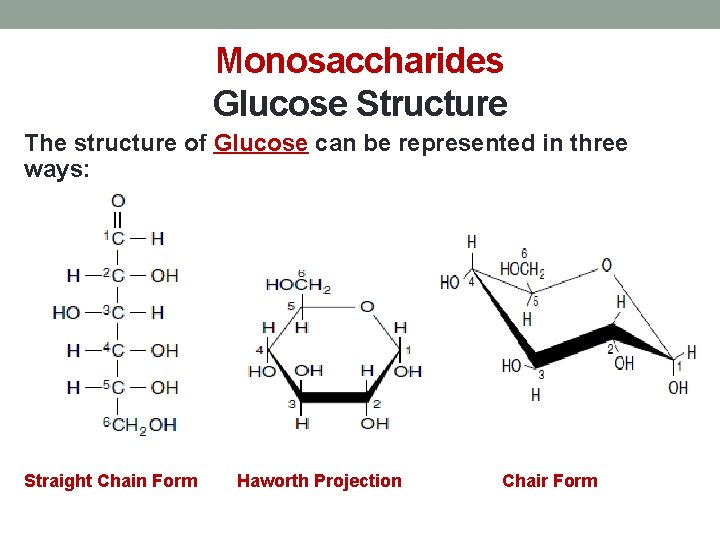

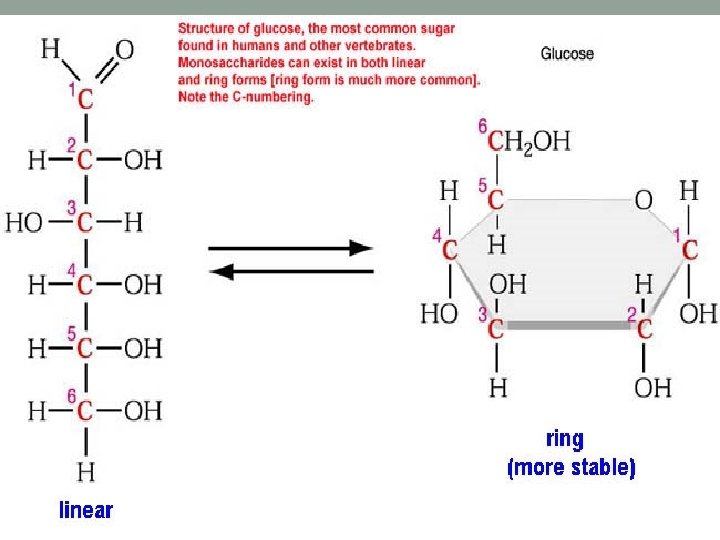

Monosaccharides Glucose Structure The structure of Glucose can be represented in three ways: Straight Chain Form Haworth Projection Chair Form

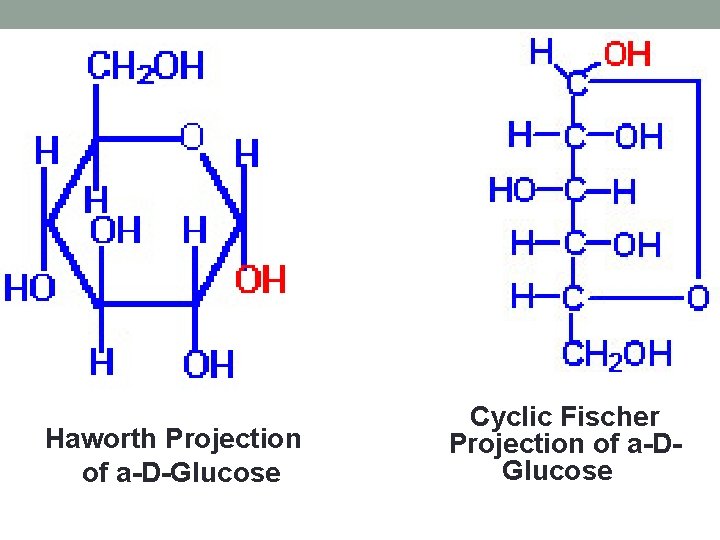

Haworth Projection of a-D-Glucose Cyclic Fischer Projection of a-DGlucose

Almost all monosaccharides (except q dihydroxy acetone DHA )contain at least q one asymmetrical carbon atom (chiral centre) are, therefore, have optical activitity (ability to rotate plane polarized light) and optical isomers. The number of isomers is obtained by the q formula 2 n n=No of asymmetric carbons atom. q

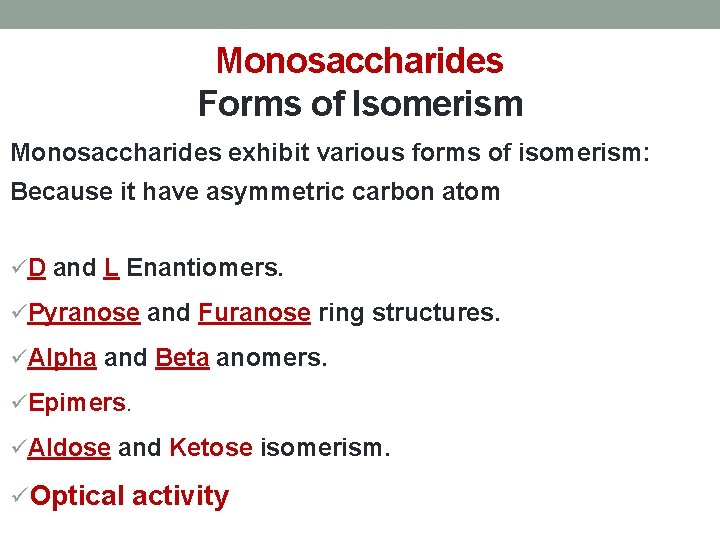

Monosaccharides Forms of Isomerism Monosaccharides exhibit various forms of isomerism: Because it have asymmetric carbon atom üD and L Enantiomers. üPyranose and Furanose ring structures. üAlpha and Beta anomers. üEpimers. üAldose and Ketose isomerism. üOptical activity

1 - D & L isomers (enantiomers)q Those monosaccharides that are of physiological q significance exist in the D-configuration, where the hydroxyl group is on the right side. The mirror-image, called enantiomers, are in the L-q configuration. They are related to glyceraldehyde which exists in q two isomers D and Lq

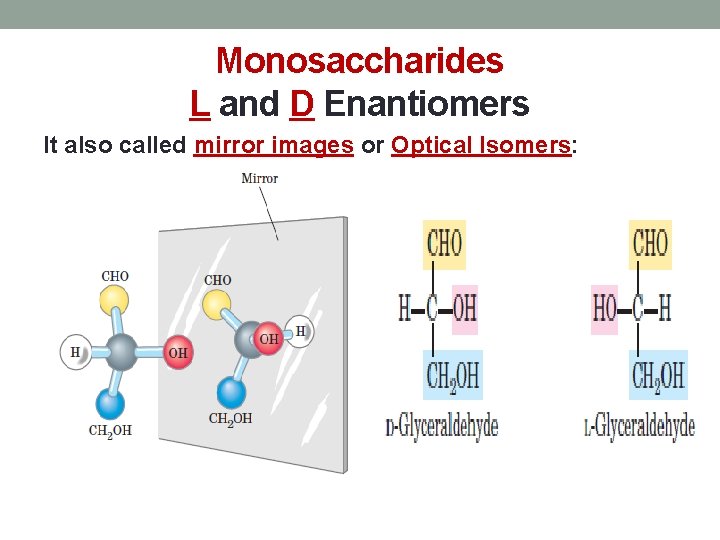

Monosaccharides L and D Enantiomers It also called mirror images or Optical Isomers:

Monosaccharides can exist in q either of two configurations, as determined by the orientation of the hydroxyl group about the asymmetric carbon farthest from the carbonyl group. e, g D & L form of glucose is q determine by carbon 5.

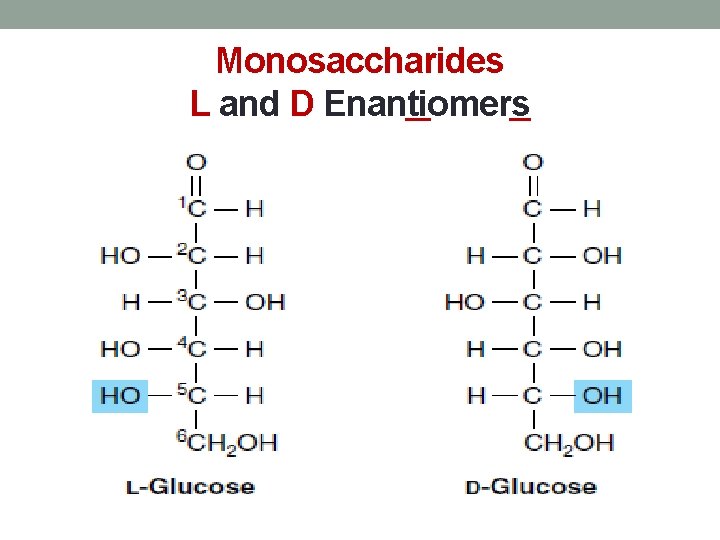

Monosaccharides L and D Enantiomers

2 -pyranose and furanose ring (isomer) Monosaccharide with 5 or 6 carbon atoms tend to cyclyze in solution. This terminology indicate that the ring structure of monosaccharide is similar to either pyran or furan

Monosaccharides 2 -Pyranose and Furanose

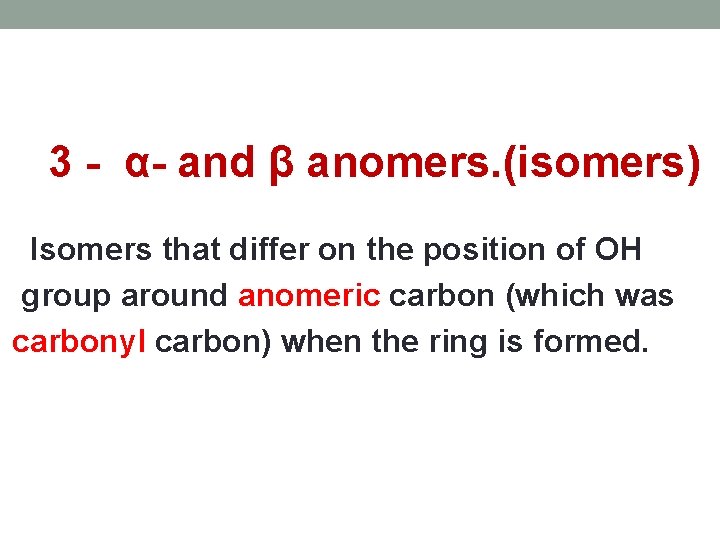

3 - α- and β anomers. (isomers) Isomers that differ on the position of OH group around anomeric carbon (which was carbonyl carbon) when the ring is formed.

Monosaccharides 3 -Alpha and Beta Anomers

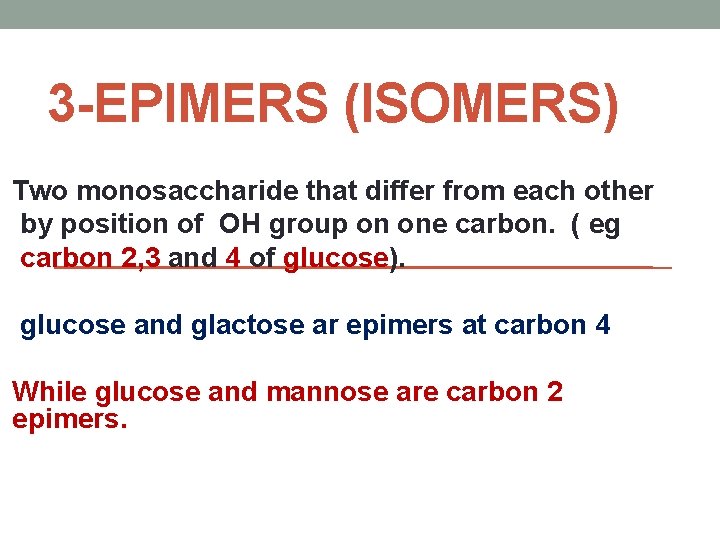

3 -EPIMERS (ISOMERS) Two monosaccharide that differ from each other by position of OH group on one carbon. ( eg carbon 2, 3 and 4 of glucose). glucose and glactose ar epimers at carbon 4 While glucose and mannose are carbon 2 epimers.

Monosaccharides Epimers Mannose Glucose Galactose

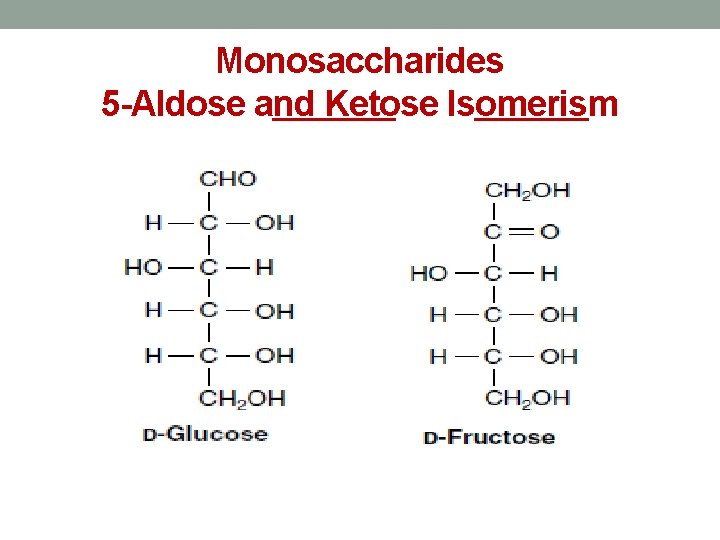

Monosaccharides 5 -Aldose and Ketose Isomerism

Optical activity The ability to rotate plane-polarized light to • the right (dextrorotatory) +sign o the left (levorotatory) - sign Glucose is dexrtoratotry hence the name • dextrose in clinical practice eg IV fluid • Fructose is levorotatory hence the name • levulose •

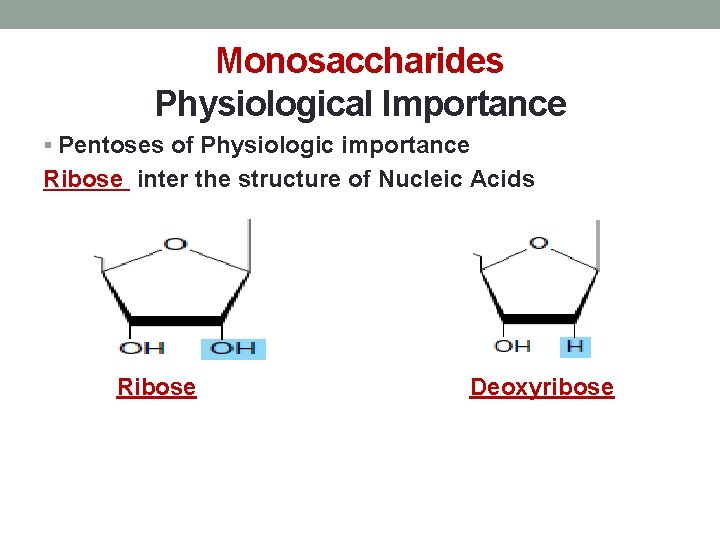

Monosaccharides Physiological Importance § Pentoses of Physiologic importance Ribose inter the structure of Nucleic Acids Ribose Deoxyribose

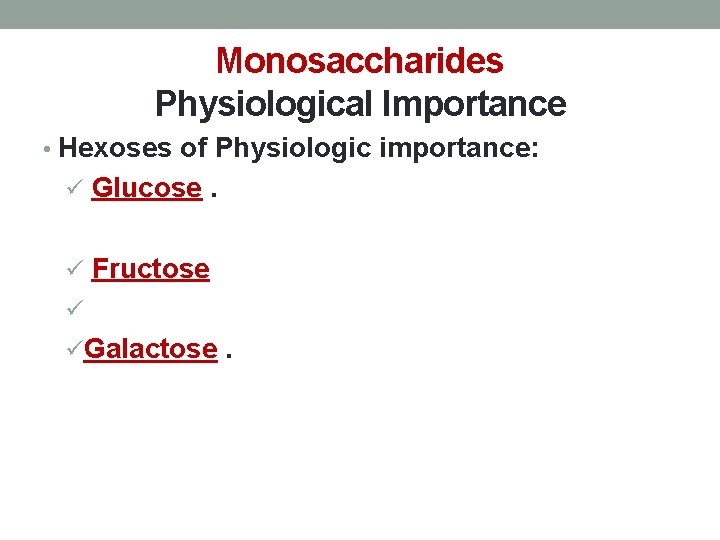

Monosaccharides Physiological Importance • Hexoses of Physiologic importance: ü Glucose. ü Fructose ü üGalactose.

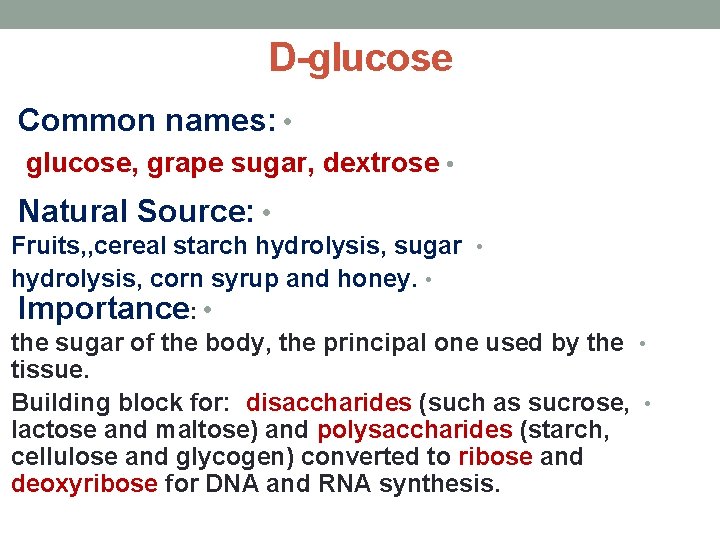

D-glucose Common names: • glucose, grape sugar, dextrose • Natural Source: • Fruits, , cereal starch hydrolysis, sugar • hydrolysis, corn syrup and honey. • Importance: • the sugar of the body, the principal one used by the • tissue. Building block for: disaccharides (such as sucrose, • lactose and maltose) and polysaccharides (starch, cellulose and glycogen) converted to ribose and deoxyribose for DNA and RNA synthesis.

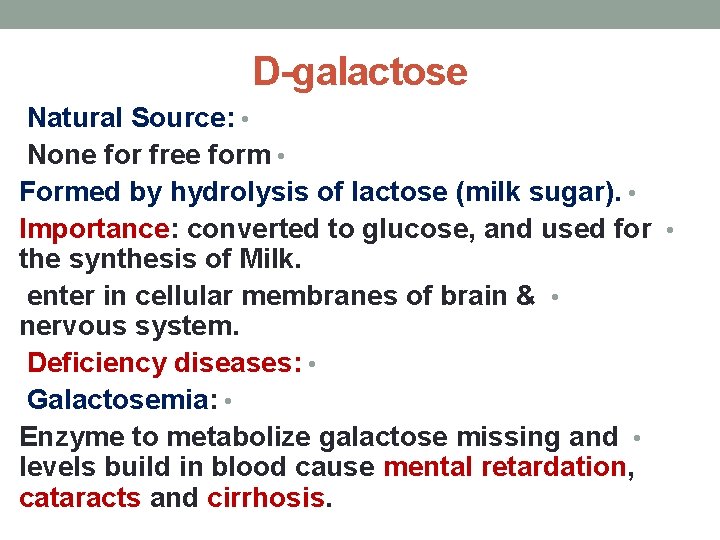

D-galactose Natural Source: • None for free form • Formed by hydrolysis of lactose (milk sugar). • Importance: converted to glucose, and used for • the synthesis of Milk. enter in cellular membranes of brain & • nervous system. Deficiency diseases: • Galactosemia: • Enzyme to metabolize galactose missing and • levels build in blood cause mental retardation, cataracts and cirrhosis.

D-fructose Common names: • Levulose and fruit sugar • Natural Source: • Fruit juice and honey • Hydrolysis of cane and beat sugar • Importance: converted to glucose in liver, • source of energy for spermatozoa Due to sweetness, used as sweetener. •

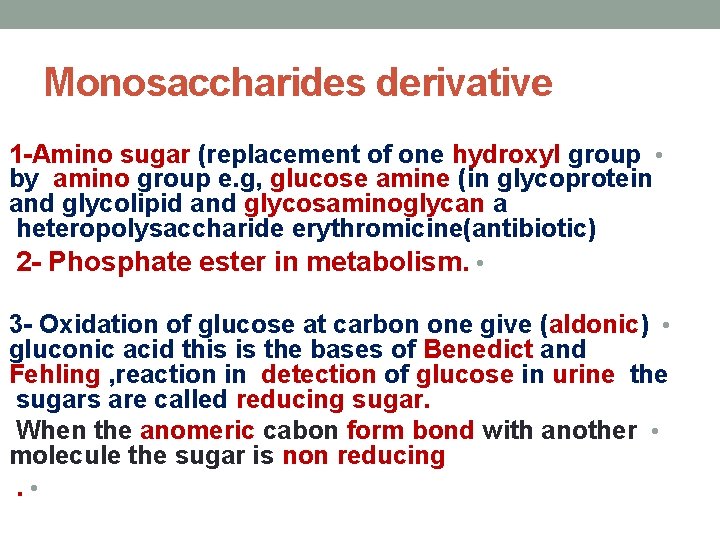

Monosaccharides derivative 1 -Amino sugar (replacement of one hydroxyl group • by amino group e. g, glucose amine (in glycoprotein and glycolipid and glycosaminoglycan a heteropolysaccharide erythromicine(antibiotic) 2 - Phosphate ester in metabolism. • 3 - Oxidation of glucose at carbon one give (aldonic) • gluconic acid this is the bases of Benedict and Fehling , reaction in detection of glucose in urine the sugars are called reducing sugar. When the anomeric cabon form bond with another • molecule the sugar is non reducing. •

while oxidation at carbon 6 give (uronic) • glucuronic important in detoxification reaction and in glycosaminoglycan a heterpolysaccharide 4 - Reduction of glucose at carbon one give • sugar alcohol sorbitol (which in high level as in diabetic leads to cataract formation)

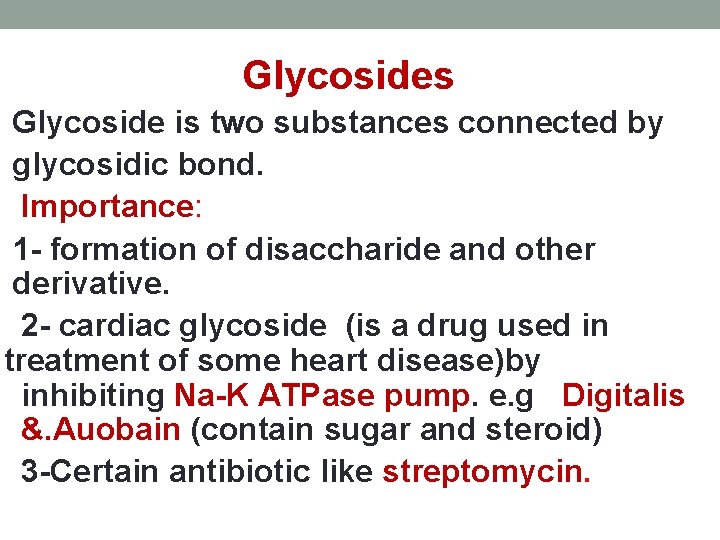

Glycosides Glycoside is two substances connected by glycosidic bond. Importance: 1 - formation of disaccharide and other derivative. 2 - cardiac glycoside (is a drug used in treatment of some heart disease)by inhibiting Na-K ATPase pump. e. g Digitalis &. Auobain (contain sugar and steroid) 3 -Certain antibiotic like streptomycin.

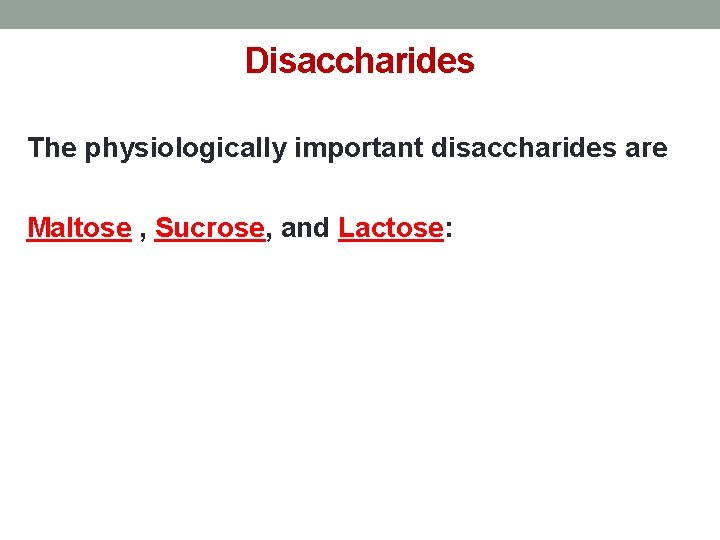

Disaccharides The physiologically important disaccharides are Maltose , Sucrose, and Lactose:

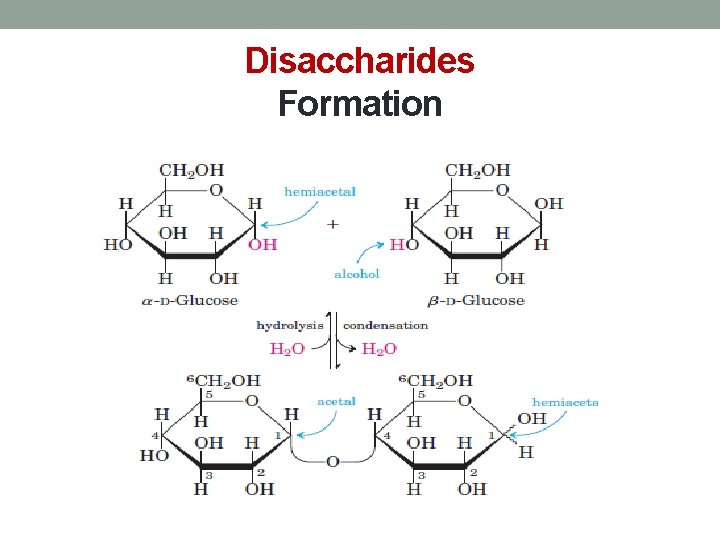

Disaccharides Formation

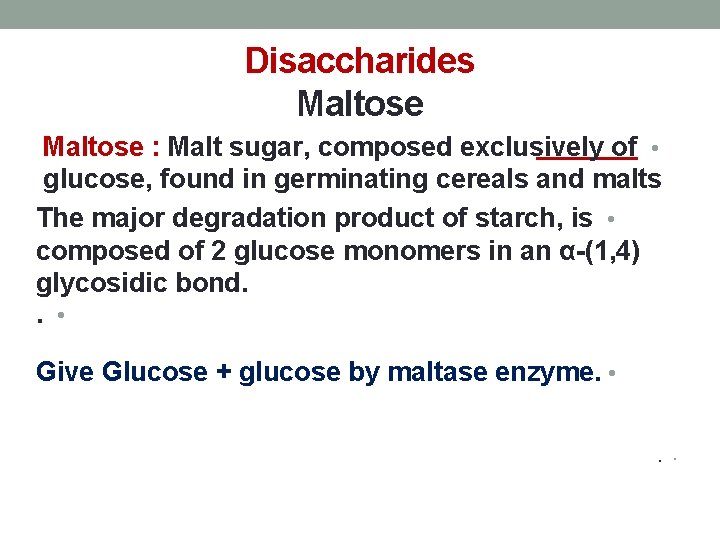

Disaccharides Maltose : Malt sugar, composed exclusively of • glucose, found in germinating cereals and malts The major degradation product of starch, is • composed of 2 glucose monomers in an α-(1, 4) glycosidic bond. . • Give Glucose + glucose by maltase enzyme. •

Disaccharides Maltose

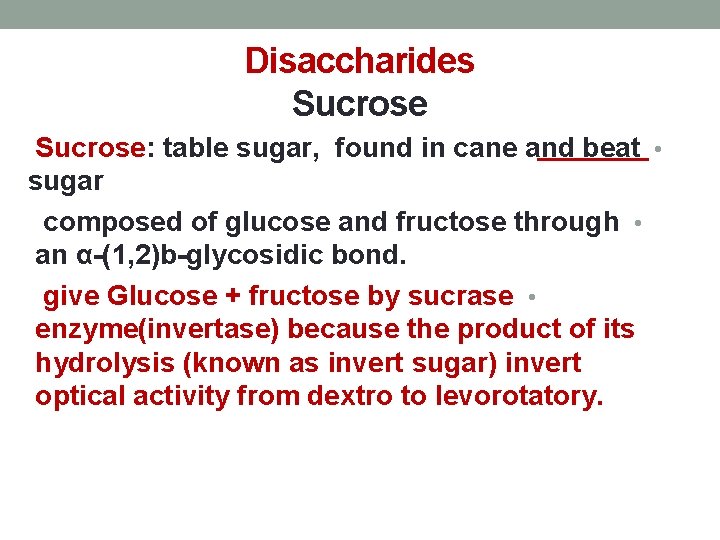

Disaccharides Sucrose: table sugar, found in cane and beat • sugar composed of glucose and fructose through • an α-(1, 2)b-glycosidic bond. give Glucose + fructose by sucrase • enzyme(invertase) because the product of its hydrolysis (known as invert sugar) invert optical activity from dextro to levorotatory.

Disaccharides Sucrose

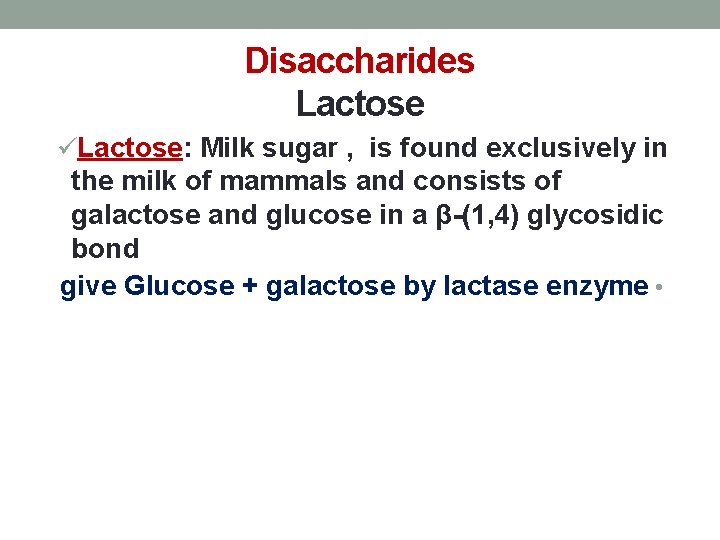

Disaccharides Lactose üLactose: Milk sugar , is found exclusively in the milk of mammals and consists of galactose and glucose in a β-(1, 4) glycosidic bond give Glucose + galactose by lactase enzyme •

Disaccharides Lactose

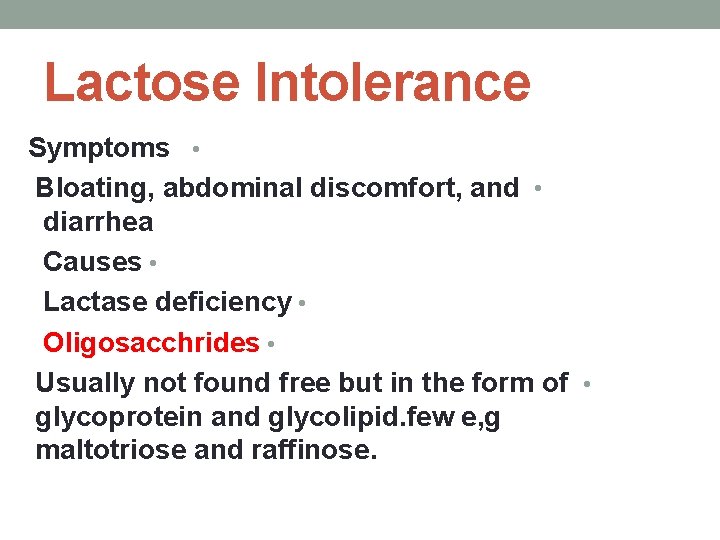

Lactose Intolerance Symptoms • Bloating, abdominal discomfort, and • diarrhea Causes • Lactase deficiency • Oligosacchrides • Usually not found free but in the form of • glycoprotein and glycolipid. few e, g maltotriose and raffinose.

Sucrose: prevalent in sugar cane and sugar beets, is composed of glucose and fructose through an α-(1, 2)b-glycosidic bond. Lactose: is found exclusively in the milk of mammals and consists of galactose and glucose in a β(1, 4) glycosidic bond

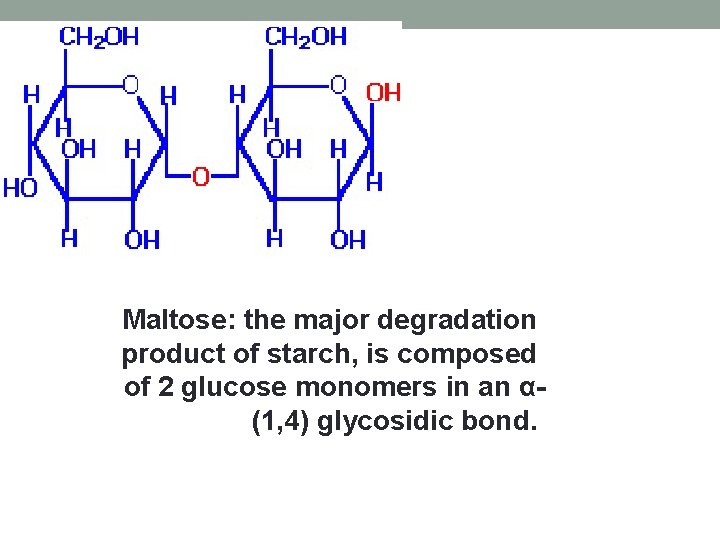

Maltose: the major degradation product of starch, is composed of 2 glucose monomers in an α(1, 4) glycosidic bond.

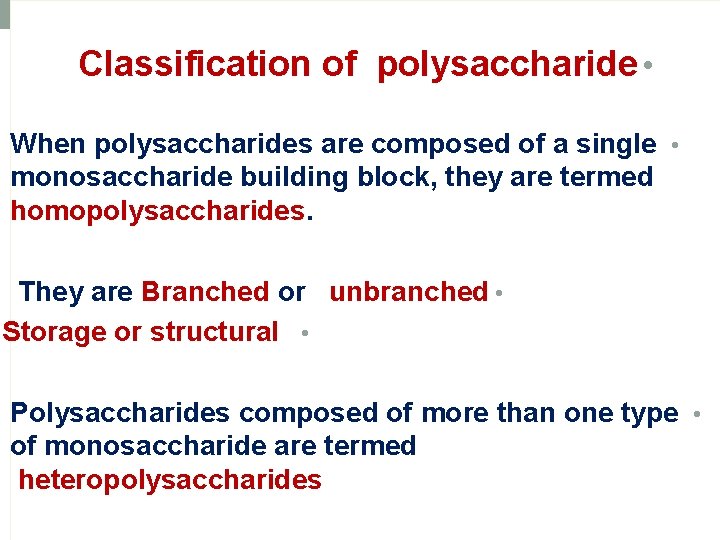

Classification of polysaccharide • When polysaccharides are composed of a single • monosaccharide building block, they are termed homopolysaccharides. They are Branched or unbranched • Storage or structural • Polysaccharides composed of more than one type • of monosaccharide are termed heteropolysaccharides

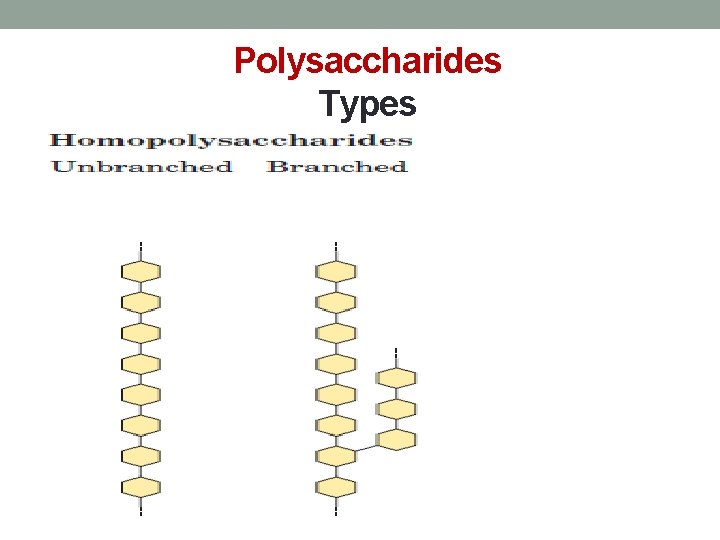

Polysaccharides Types

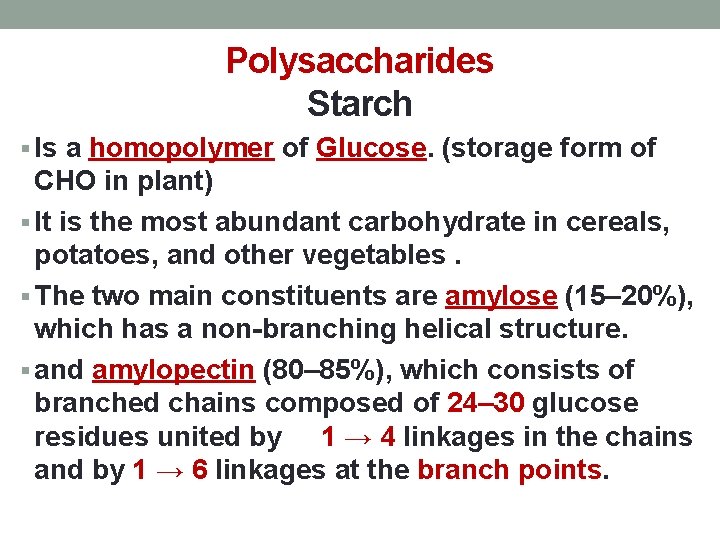

Polysaccharides Starch § Is a homopolymer of Glucose. (storage form of CHO in plant) § It is the most abundant carbohydrate in cereals, potatoes, and other vegetables. § The two main constituents are amylose (15– 20%), which has a non-branching helical structure. § and amylopectin (80– 85%), which consists of branched chains composed of 24– 30 glucose residues united by 1 → 4 linkages in the chains and by 1 → 6 linkages at the branch points.

Polysaccharides Starch (Amylopectin)

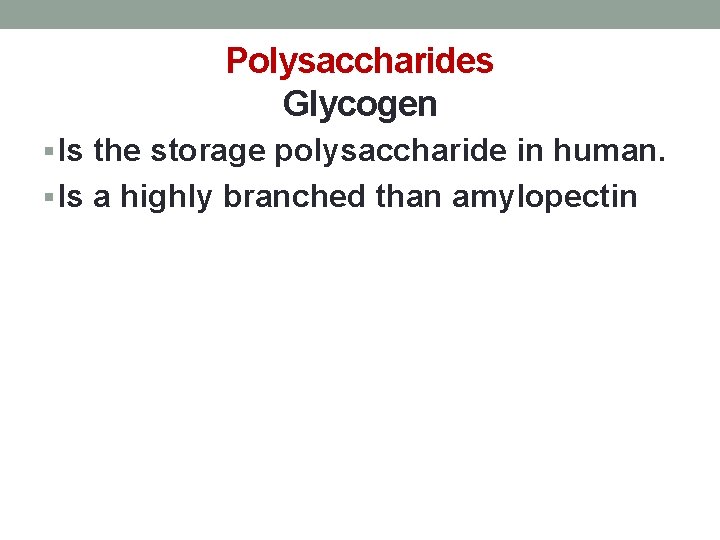

Polysaccharides Glycogen § Is the storage polysaccharide in human. § Is a highly branched than amylopectin

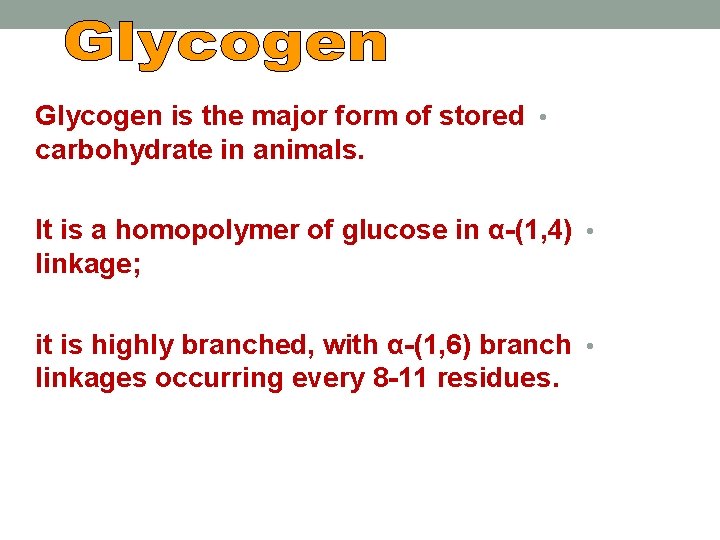

Glycogen is the major form of stored • carbohydrate in animals. It is a homopolymer of glucose in α-(1, 4) • linkage; it is highly branched, with α-(1, 6) branch • linkages occurring every 8 -11 residues.

Glycogen is a very compact structure. • This compactness allows large amounts of • carbon energy to be stored in a small volume, with little effect on cellular osmolarity.

Glycogen is primarily stored in liver and muscles. • Liver glycogen contributes to maintenance of • blood glucose level Muscle glycogen is used as readily available • source of energy within muscles during exercise

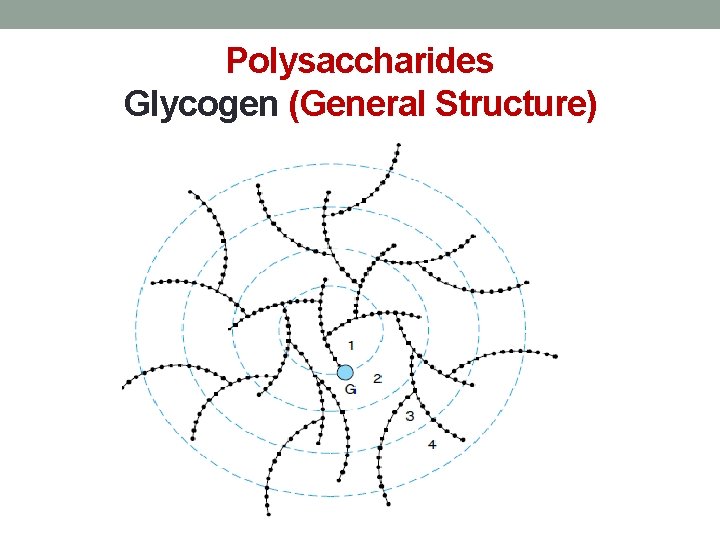

Polysaccharides Glycogen (General Structure)

Polysaccharides Glycogen (Branch Point)

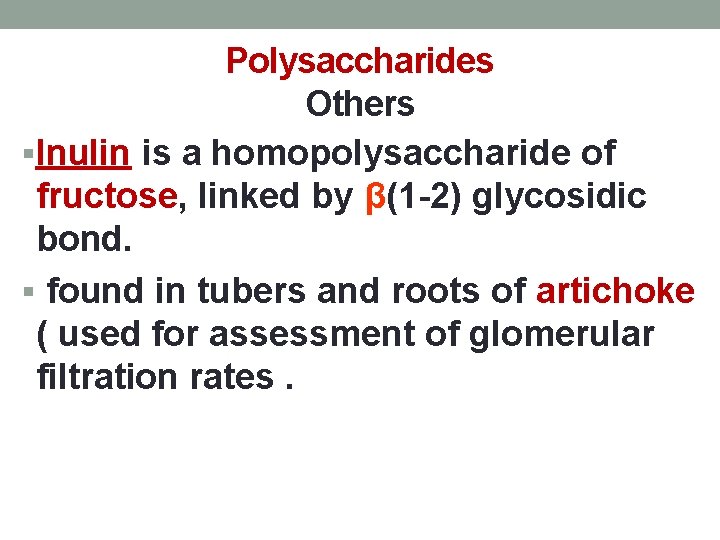

Polysaccharides Others §Inulin is a homopolysaccharide of fructose, linked by β(1 -2) glycosidic bond. § found in tubers and roots of artichoke ( used for assessment of glomerular filtration rates.

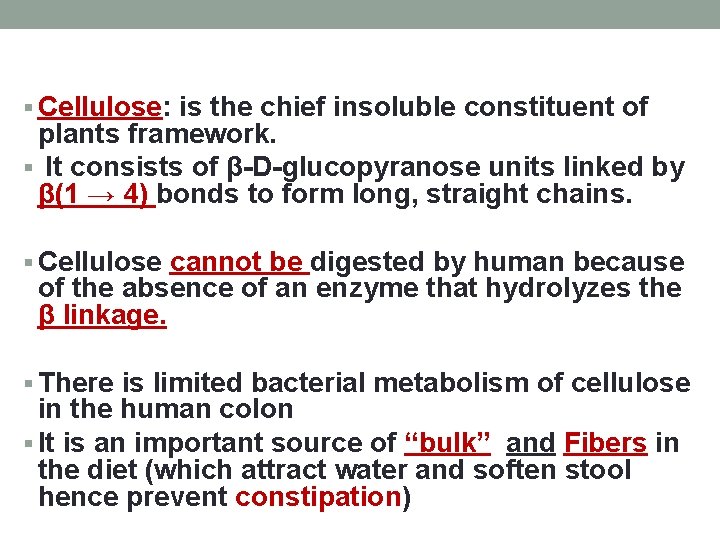

§ Cellulose: is the chief insoluble constituent of plants framework. § It consists of β-D-glucopyranose units linked by β(1 → 4) bonds to form long, straight chains. § Cellulose cannot be digested by human because of the absence of an enzyme that hydrolyzes the β linkage. § There is limited bacterial metabolism of cellulose in the human colon § It is an important source of “bulk” and Fibers in the diet (which attract water and soften stool hence prevent constipation)

Heteropolysaccharide Polysaccharides composed of more than one • type of monosaccharide are termed heteropolysaccharides • E. g, Heparin (anticoogulant) • Hyluronic acid Keratan and Dermatan sulfate in • extracellular matrix of connective tissue and synovial fluid
