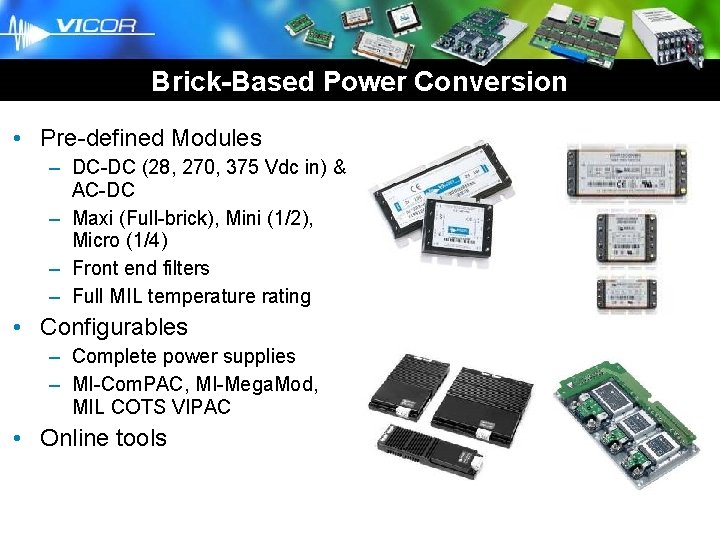

Brick Business Unit Brick-Based Power Conversion • Pre-defined Modules – DC-DC (28, 270, 375 Vdc in) & AC-DC – Maxi (Full-brick), Mini (1/2), Micro (1/4) – Front end filters – Full MIL temperature rating • Configurables – Complete power supplies – MI-Com. PAC, MI-Mega. Mod, MIL COTS VIPAC • Online tools

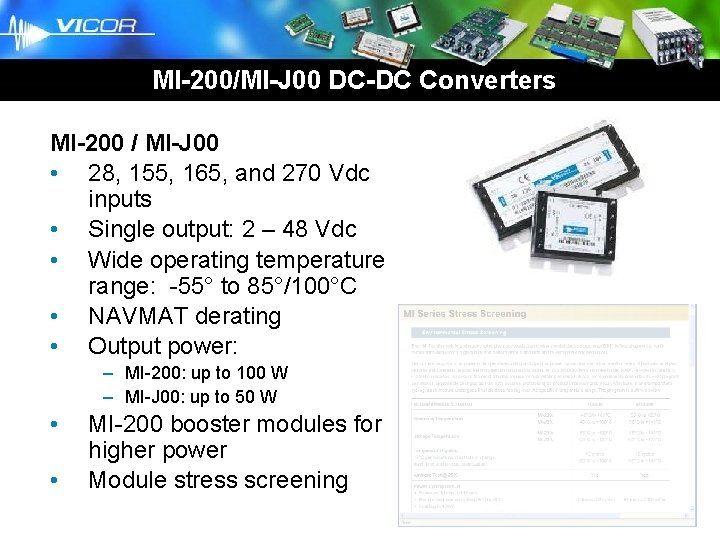

Brick Business Unit MI-200/MI-J 00 DC-DC Converters MI-200 / MI-J 00 • 28, 155, 165, and 270 Vdc inputs • Single output: 2 – 48 Vdc • Wide operating temperature range: -55° to 85°/100°C • NAVMAT derating • Output power: – MI-200: up to 100 W – MI-J 00: up to 50 W • • MI-200 booster modules for higher power Module stress screening

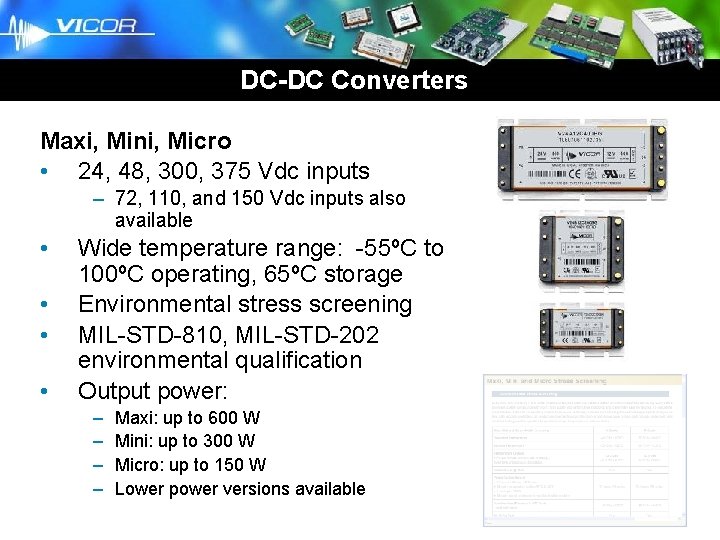

Brick Business Unit DC-DC Converters Maxi, Mini, Micro • 24, 48, 300, 375 Vdc inputs – 72, 110, and 150 Vdc inputs also available • • Wide temperature range: -55ºC to 100ºC operating, 65ºC storage Environmental stress screening MIL-STD-810, MIL-STD-202 environmental qualification Output power: – – Maxi: up to 600 W Mini: up to 300 W Micro: up to 150 W Lower power versions available

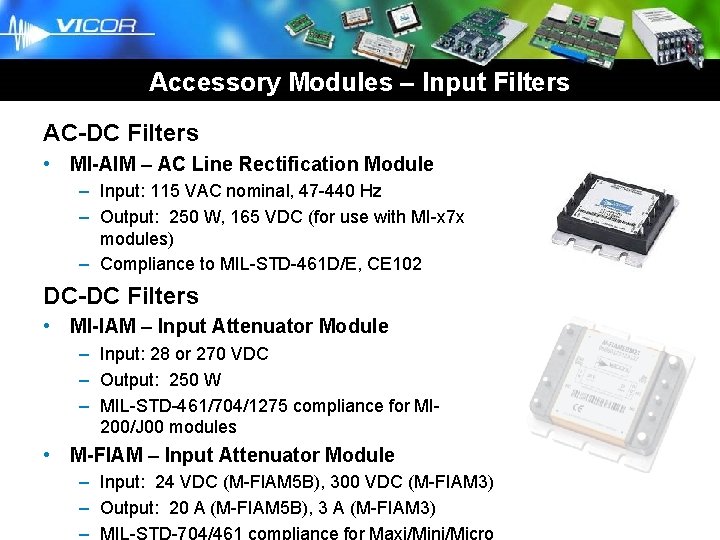

Brick Business Unit Accessory Modules – Input Filters AC-DC Filters • MI-AIM – AC Line Rectification Module – Input: 115 VAC nominal, 47 -440 Hz – Output: 250 W, 165 VDC (for use with MI-x 7 x modules) – Compliance to MIL-STD-461 D/E, CE 102 DC-DC Filters • MI-IAM – Input Attenuator Module – Input: 28 or 270 VDC – Output: 250 W – MIL-STD-461/704/1275 compliance for MI 200/J 00 modules • M-FIAM – Input Attenuator Module – Input: 24 VDC (M-FIAM 5 B), 300 VDC (M-FIAM 3) – Output: 20 A (M-FIAM 5 B), 3 A (M-FIAM 3) – MIL-STD-704/461 compliance for Maxi/Mini/Micro

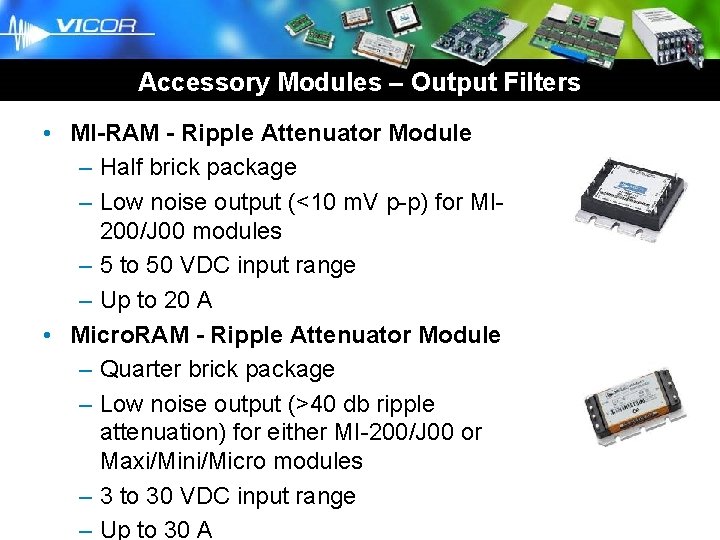

Brick Business Unit Accessory Modules – Output Filters • MI-RAM - Ripple Attenuator Module – Half brick package – Low noise output (<10 m. V p-p) for MI 200/J 00 modules – 5 to 50 VDC input range – Up to 20 A • Micro. RAM - Ripple Attenuator Module – Quarter brick package – Low noise output (>40 db ripple attenuation) for either MI-200/J 00 or Maxi/Mini/Micro modules – 3 to 30 VDC input range – Up to 30 A

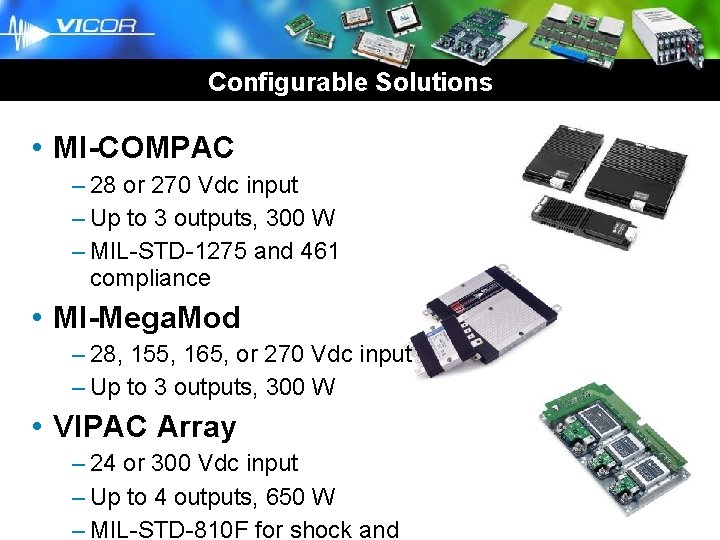

Brick Business Unit Configurable Solutions • MI-COMPAC – 28 or 270 Vdc input – Up to 3 outputs, 300 W – MIL-STD-1275 and 461 compliance • MI-Mega. Mod – 28, 155, 165, or 270 Vdc input – Up to 3 outputs, 300 W • VIPAC Array – 24 or 300 Vdc input – Up to 4 outputs, 650 W – MIL-STD-810 F for shock and

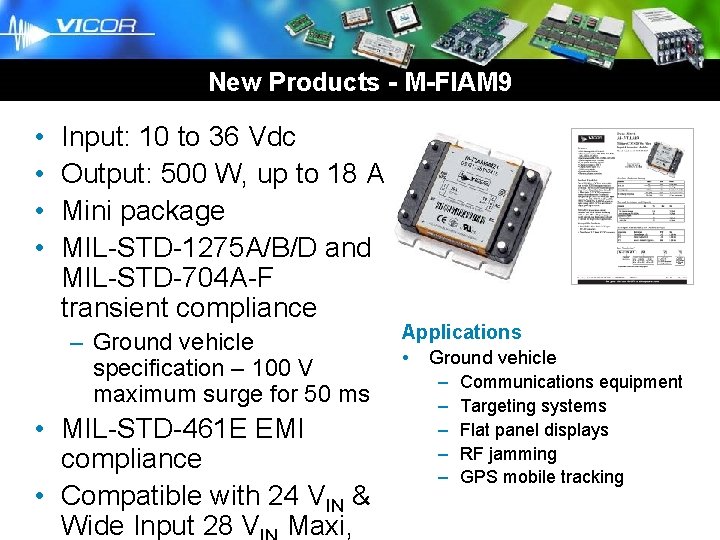

Brick Business Unit New Products - M-FIAM 9 • • Input: 10 to 36 Vdc Output: 500 W, up to 18 A Mini package MIL-STD-1275 A/B/D and MIL-STD-704 A-F transient compliance – Ground vehicle specification – 100 V maximum surge for 50 ms • MIL-STD-461 E EMI compliance • Compatible with 24 VIN & Wide Input 28 V Maxi, Applications • Ground vehicle – – – Communications equipment Targeting systems Flat panel displays RF jamming GPS mobile tracking

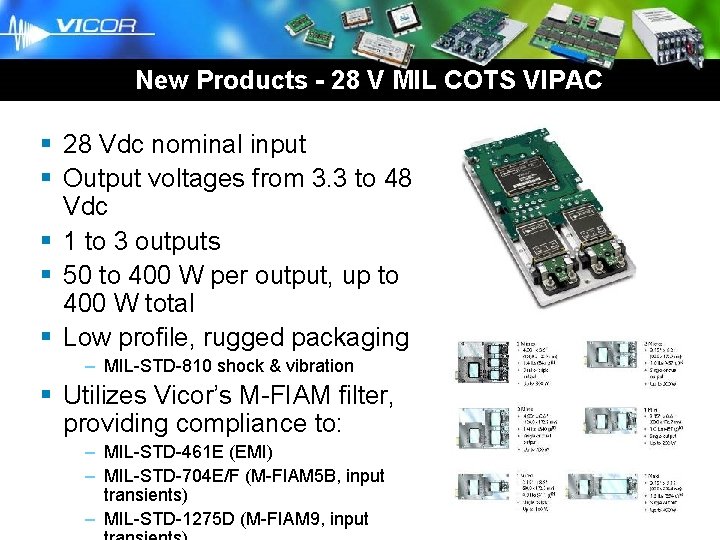

Brick Business Unit New Products - 28 V MIL COTS VIPAC § 28 Vdc nominal input § Output voltages from 3. 3 to 48 Vdc § 1 to 3 outputs § 50 to 400 W per output, up to 400 W total § Low profile, rugged packaging – MIL-STD-810 shock & vibration § Utilizes Vicor’s M-FIAM filter, providing compliance to: – MIL-STD-461 E (EMI) – MIL-STD-704 E/F (M-FIAM 5 B, input transients) – MIL-STD-1275 D (M-FIAM 9, input

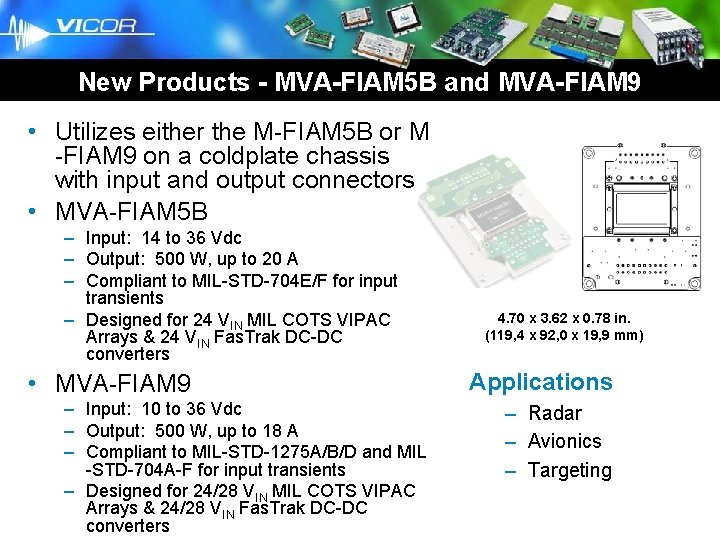

Brick Business Unit New Products - MVA-FIAM 5 B and MVA-FIAM 9 • Utilizes either the M-FIAM 5 B or M -FIAM 9 on a coldplate chassis with input and output connectors • MVA-FIAM 5 B – Input: 14 to 36 Vdc – Output: 500 W, up to 20 A – Compliant to MIL-STD-704 E/F for input transients – Designed for 24 VIN MIL COTS VIPAC Arrays & 24 VIN Fas. Trak DC-DC converters • MVA-FIAM 9 – Input: 10 to 36 Vdc – Output: 500 W, up to 18 A – Compliant to MIL-STD-1275 A/B/D and MIL -STD-704 A-F for input transients – Designed for 24/28 VIN MIL COTS VIPAC Arrays & 24/28 VIN Fas. Trak DC-DC converters 4. 70 x 3. 62 x 0. 78 in. (119, 4 x 92, 0 x 19, 9 mm) Applications – Radar – Avionics – Targeting

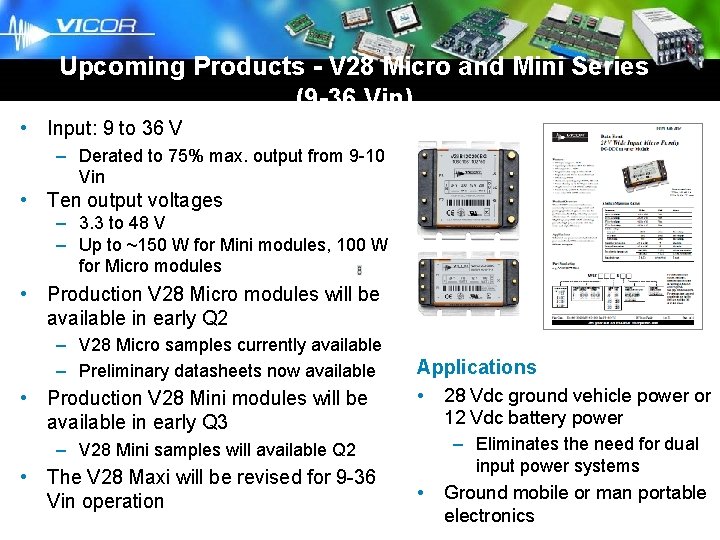

Brick Business Unit Upcoming Products - V 28 Micro and Mini Series (9 -36 Vin) • Input: 9 to 36 V – Derated to 75% max. output from 9 -10 Vin • Ten output voltages – 3. 3 to 48 V – Up to ~150 W for Mini modules, 100 W for Micro modules • Production V 28 Micro modules will be available in early Q 2 – V 28 Micro samples currently available – Preliminary datasheets now available • Production V 28 Mini modules will be available in early Q 3 Applications • 28 Vdc ground vehicle power or 12 Vdc battery power – Eliminates the need for dual – V 28 Mini samples will available Q 2 • The V 28 Maxi will be revised for 9 -36 Vin operation input power systems • Ground mobile or man portable electronics

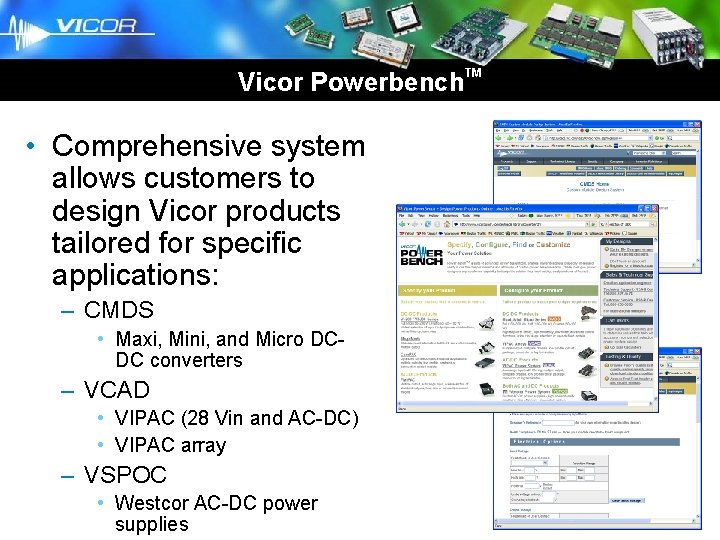

Brick Business Unit Vicor Powerbench • Comprehensive system allows customers to design Vicor products tailored for specific applications: – CMDS • Maxi, Mini, and Micro DCDC converters – VCAD • VIPAC (28 Vin and AC-DC) • VIPAC array – VSPOC • Westcor AC-DC power supplies TM

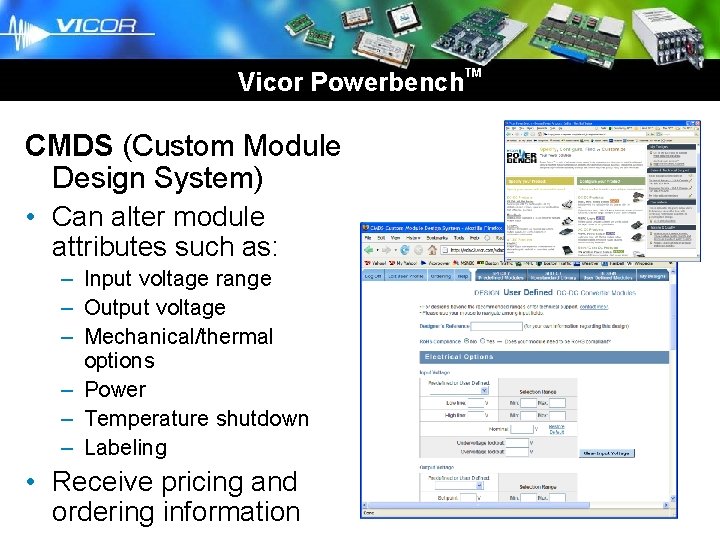

Brick Business Unit Vicor Powerbench CMDS (Custom Module Design System) • Can alter module attributes such as: – Input voltage range – Output voltage – Mechanical/thermal options – Power – Temperature shutdown – Labeling • Receive pricing and ordering information TM

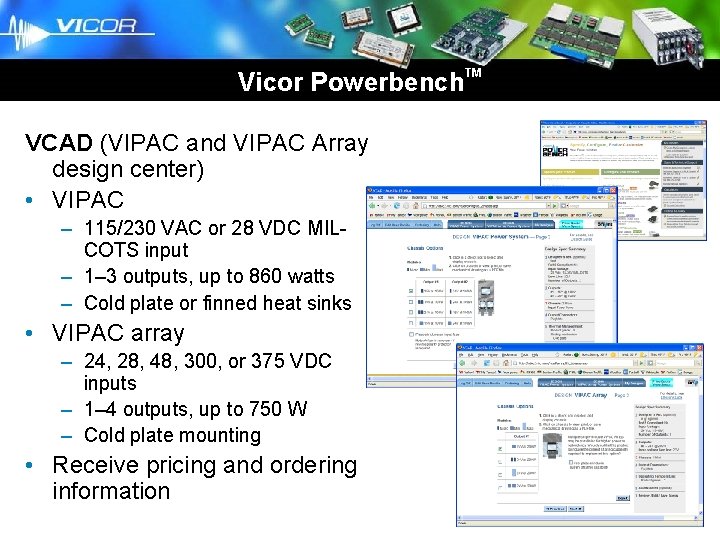

Brick Business Unit Vicor Powerbench VCAD (VIPAC and VIPAC Array design center) • VIPAC – 115/230 VAC or 28 VDC MILCOTS input – 1– 3 outputs, up to 860 watts – Cold plate or finned heat sinks • VIPAC array – 24, 28, 48, 300, or 375 VDC inputs – 1– 4 outputs, up to 750 W – Cold plate mounting • Receive pricing and ordering information TM

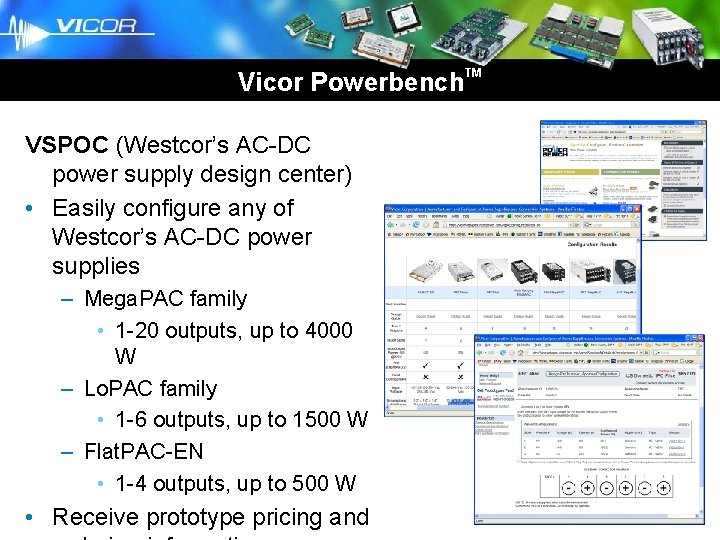

Brick Business Unit Vicor Powerbench VSPOC (Westcor’s AC-DC power supply design center) • Easily configure any of Westcor’s AC-DC power supplies – Mega. PAC family • 1 -20 outputs, up to 4000 W – Lo. PAC family • 1 -6 outputs, up to 1500 W – Flat. PAC-EN • 1 -4 outputs, up to 500 W • Receive prototype pricing and TM
