Deeper Understanding Natural Disaster Mitigation Training Program Case

Deeper Understanding Natural Disaster Mitigation Training Program Case Study of Flood Conditions in Middle Region of Myanmar Phyo Pa Pa Tun and Myint Sein UCSY 19. 8. 2019

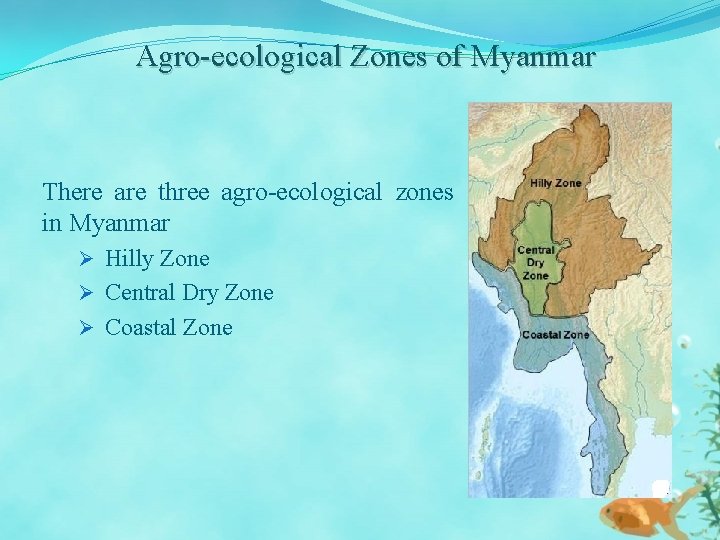

Agro-ecological Zones of Myanmar There are three agro-ecological zones in Myanmar Ø Hilly Zone Ø Central Dry Zone Ø Coastal Zone

Major Disasters in Myanmar Fire Flood Storm Others 12% 15% 62% 11%

Disaster Area in Myanmar

Myanmar Hazard Calendar Hazard Cyclone High Temperature Low Temperature Drought Squalls and Thunderstorm Flood Heavy Rain Monsoon Depression Hail Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

Causing Flood Dam Break Storm Ø Continuous Heavy Rain Ø Dam Break

Causing Flood Storm and Cyclone

Flood in Myanmar - 2019

Myanmar Flood - 2019 10000 8000 6000 4000 3 Bago 5047 6 2000 Kayin 4868 21 0 Magway 3267 15 Mandalay 8215 9 Mon 7246 28 Sagaing 9385 3 55 1 38372 86 Tanintharyi Total ya r w ad d y 289 A ye Ayeyarwaddy Number of Number People of Evacuated (Current) Sites (Current) Ba go K ay M in ag M way an da la y M Sa on Ta gai ni ng nt ha ry i Affected State/Region Number of People Evacuated (Current) Population Displace

Useful of Dam

Dams in Myanmar No Location Total Dams 1. Kayah State 5 2. Kayin Stae 2 3. Chin State 2 4. Sagaing Region 48 5. Bago Region 39 6. Magway Region 40 7. Mandalay Region 64 8. Mon State 5 9. Rakhine State 12 10. Yangon Region 9 11. Shan State 7 12. Ayeyarwaddy Region 6 Total Dams in Myanmar 239

Dams of Overflow Water from Spillway No Dam’s Name Location Overflow water from Spillway (feet) Rainfall (inches) 1 Yay Bote Dam Hpa-an State 1. 53 1. 60 2 Lai Bar Dam Chin State 0. 43 0. 50 3 Yar Za Gyo Dam Sagaing Region 0. 12 2. 20 4 Yay Thoe Dam Bago Region (East) 0. 86 0. 70 5 Min Yae` Dam Bago Region (East) 0. 30 0. 40 6 Nga Mway Dam Bago Region (East) 0. 30 0. 40 7 Phyu Chaung Dam Bago Region (East) 0. 19 1. 65 8 Shwe Pyi-3 Dam Bago Region (East) 1. 60 0. 60 9 Myit Thar Dam Magway Region - 0. 60 10 Mone Chaung Dam Magway Region 1. 93 6. 40 11 Mann Chaung Dam Magway Region - 1. 50 12 Kyee-on Kyee-wa Dam Magway Region 0. 32 6. 30 13 War Par Dam Maw La Myaing 1. 95 0. 25 14 Shwe Nat Taung Dam Maw La Myaing 3. 64 1. 15 15 Azin Dam Maw La Myaing 0. 31 0. 20 16 Pyine Chaung Dam Rakhine State 2. 60 2. 10 17 Gayin Gyin Rakhine State - 0. 20 18 Kyat tat Rakhine State - 0. 10 19 Shout Chaung Dam Rakhine State 3. 0 1, 0 20 Ta Mann Duu Dam Rakhine State - 0. 30 21 Nan Ka Thu Dam Ayeyarwaddy Region 0. 85 1. 40 22 Ka Nyin Dam Ayeyarwaddy Region 0. 75 2. 20

Study Area Ø Case study area, Mone Chaung Dam in Magway region which is one of the most affected region of flood damage in Myanmar. Ø It is situated on Middle West region of Myanmar and built across on Mone creek. Ø Mone creek can be overflow water due to torrential rain from Chin hill and Rakhine hill.

Conditions of Flood in Mone Chaung Dam

Conditions of Flood in Mone Chaung Dam

Mone Chaung Dam Ø Mone Chaung Dam is situated in Magway region and it is very mountainous area. Ø The other dam (Kyee-on Kyee-wa) is situated on low lying area and if it will break or overflow water, affect on about 300 villages and two towns in that region. Ø Its alarm level is 540' and Dam crack level is 560'. Year Water Level (ft) Overflow water (ft) Overflow Capacity (cu. ft/s) 2010 RL 540. 30 20. 30 99, 200 2011 RL 536. 30 16. 30 71, 400 2015 RL 535. 90 15. 90 66, 800

Rainfall Amount of Sidoktaya

Monthly Rainfall Amount Rainfall (inches) January 0. 24 February 0. 27 March 0. 35 April 1. 89 May 8. 42 June 26. 53 July 29. 41 August 24. 17 September 14. 89 October 8. 62 November 2. 91 December 0. 51 Total 118. 21 35 30 25 20 15 10 5 0 Ja nu Fe ary br ua r M y ar ch A pr il M ay Ju ne Ju A ly Se ugu pt st em O ber c N tob ov er e D mb ec er em be r Month Rainfall (inches)

System Design Start Water Level Weather data from weather API Arrive alarm level? No Heavy rain? Yes Predict flood based on Markov Chain Calculate Flood Conditions according to Threshold Value Show flood conditions End System Flow Diagram of Flood Alarm System Yes No No flood

Conclusion Ø Flood is one of the most crucial disasters all over the world. Ø Flood management system is important factor to prevent, control and reduce of damage hazard. Ø This presentation intends to know about the case study of flood conditions in Myanmar and propose the flood prediction system Ø It will provide to inform people living in low laying area of Mone Chaung Dam to take precaution before facing the flood.
