Deep Groove ball bearing having oscillating movement Bearing

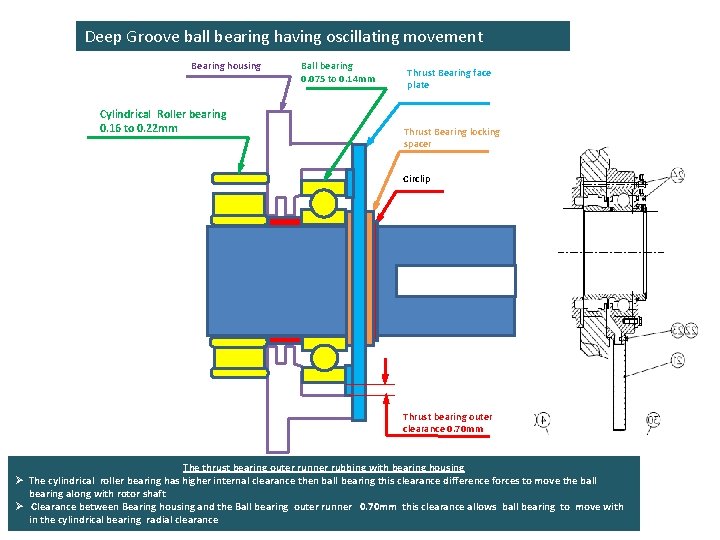

Deep Groove ball bearing having oscillating movement Bearing housing Cylindrical Roller bearing 0. 16 to 0. 22 mm Ball bearing 0. 075 to 0. 14 mm Thrust Bearing face plate Thrust Bearing locking spacer Circlip Thrust bearing outer clearance 0. 70 mm The thrust bearing outer runner rubbing with bearing housing Ø The cylindrical roller bearing has higher internal clearance then ball bearing this clearance difference forces to move the ball bearing along with rotor shaft Ø Clearance between Bearing housing and the Ball bearing outer runner 0. 70 mm this clearance allows ball bearing to move with in the cylindrical bearing radial clearance

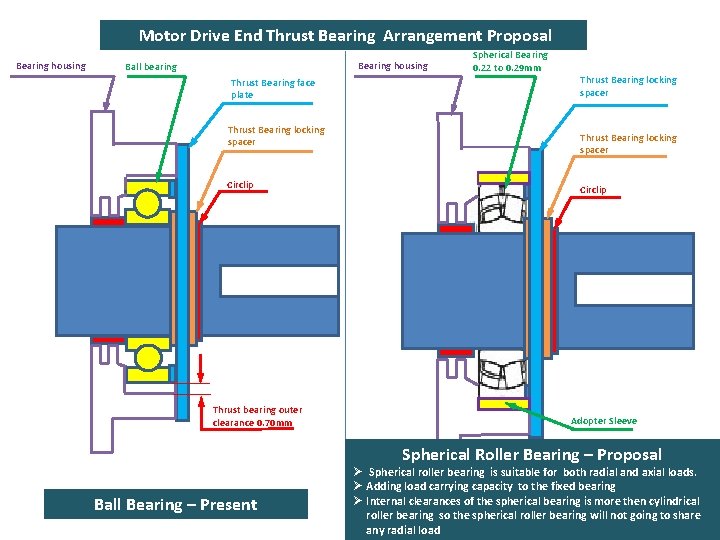

Motor Drive End Thrust Bearing Arrangement Proposal Bearing housing Ball bearing Thrust Bearing face plate Thrust Bearing locking spacer Circlip Thrust bearing outer clearance 0. 70 mm Spherical Bearing 0. 22 to 0. 29 mm Thrust Bearing locking spacer Circlip Adopter Sleeve Spherical Roller Bearing – Proposal Ball Bearing – Present Ø Spherical roller bearing is suitable for both radial and axial loads. Ø Adding load carrying capacity to the fixed bearing Ø Internal clearances of the spherical bearing is more then cylindrical roller bearing so the spherical roller bearing will not going to share any radial load
BO 3151. 01, 02 Motor And Fan Bearings Dimensions & Internal Clearances Location Of Bearings Motor Thrust Bearing 6044 M/C 3 Ball Bearing NU 1044 M/C 3 Motor Radial bearing Cylindrical Roller Bearing RTL 10 Fan Fixed Bearing Sleeve Bearing With Thrust Collar Fan Free Bearing RTL 10 Sleeve Bearing Internal Radial Clearance 0. 075 to 0. 14 mm ID OD Width 220 mm 340 mm 56 mm 0. 16 to 0. 22 mm 250 mm -- 450 mm 0. 27 to 0. 40 mm Bearing Dimensions comparison Ball Bearing Vs Spherical Roller Bearings 6044 M/C 3 Ball Bearing 23944 CC/C 3 Spherical Roller Bearing ID OD Width Internal Radial Clearance 220 mm 340 mm 56 mm 0. 075 to 0. 14 mm 220 mm 300 mm 60 mm 0. 22 to 0. 29 mm
Bearing Load Comparison - Ball Bearing Vs Spherical Roller Bearing Type of Load Ball Bearing 6044 M/C 3 Cylindrical Bearing NU 1044 M/C 3 Cylindrical Bearing NU 1044 M/C 4 Total Load Static Radial Load - C 0 Dynamic Radial Load - C Axial Load - Fa 290 k. N 247 k. N 145 k. N 735 k. N 495 k. N 0 1760 k. N 1237 k. N 145 k. N Type of Load Static Radial Load - C 0 Dynamic Radial Load - C Axial Load - Fa Spherical Roller Bearing 29344 CC/C 3 1080 k. N 630 k. N 1080 k. N Cylindrical Bearing NU 1044 M/C 3 735 k. N 495 k. N 0 Cylindrical Bearing NU 1044 M/C 4 735 k. N 495 k. N 0 Total Load 2550 k. N 1620 k. N 1080 k. N Note: Deep Groove Ball Bearing: Pure Axial Load Fa ≤ 0. 5 C 0 Spherical Roller Bearing : Pure Axial load P = Fa
