Decision and Risk Analysis Financial Modelling & Risk Analysis Kiriakos Vlahos Spring 2000

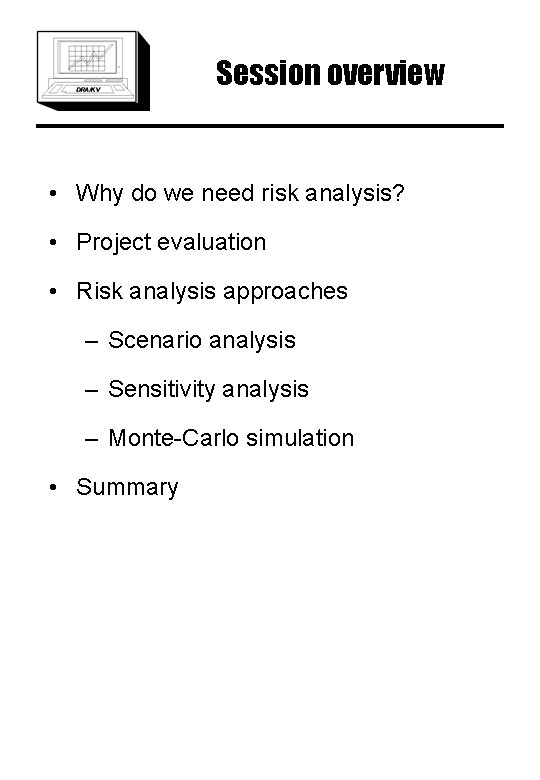

Session overview • Why do we need risk analysis? • Project evaluation • Risk analysis approaches – Scenario analysis – Sensitivity analysis – Monte-Carlo simulation • Summary

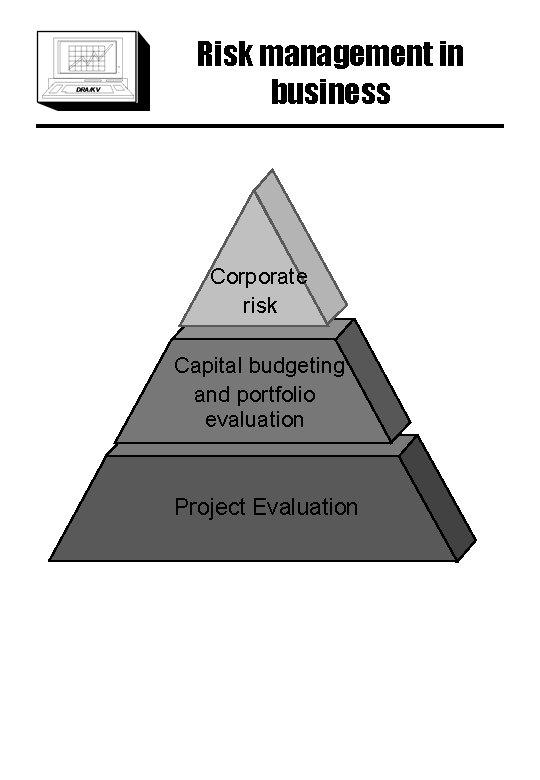

Risk management in business Corporate risk Capital budgeting and portfolio evaluation Project Evaluation

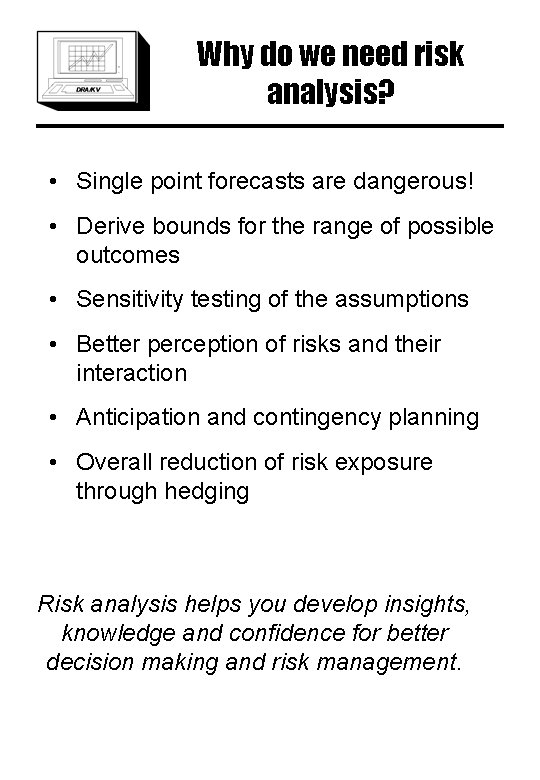

Why do we need risk analysis? • Single point forecasts are dangerous! • Derive bounds for the range of possible outcomes • Sensitivity testing of the assumptions • Better perception of risks and their interaction • Anticipation and contingency planning • Overall reduction of risk exposure through hedging Risk analysis helps you develop insights, knowledge and confidence for better decision making and risk management.

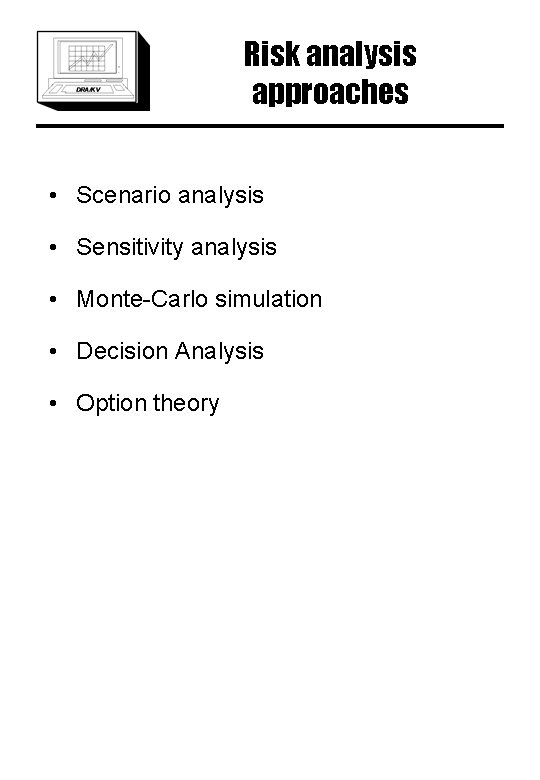

Risk analysis approaches • Scenario analysis • Sensitivity analysis • Monte-Carlo simulation • Decision Analysis • Option theory

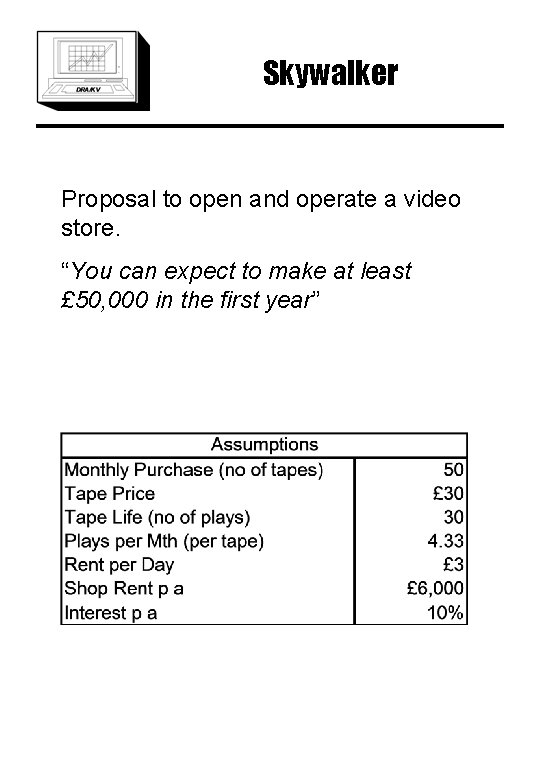

Skywalker Proposal to open and operate a video store. “You can expect to make at least £ 50, 000 in the first year”

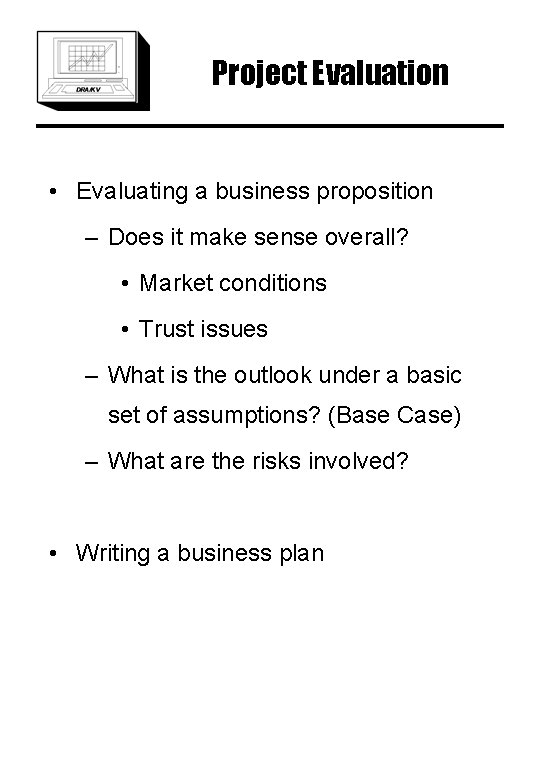

Project Evaluation • Evaluating a business proposition – Does it make sense overall? • Market conditions • Trust issues – What is the outlook under a basic set of assumptions? (Base Case) – What are the risks involved? • Writing a business plan

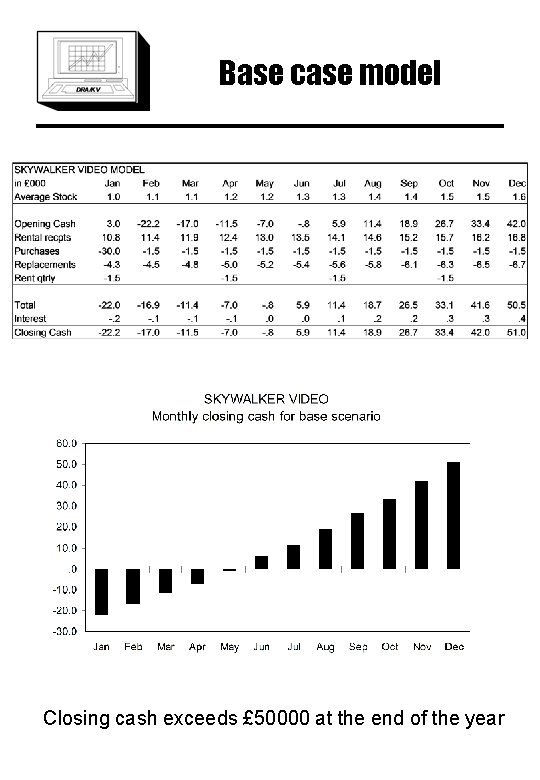

Base case model Closing cash exceeds £ 50000 at the end of the year

Scenario analysis “Scenarios are discrete internally consistent views of how the world will look in the future, which can be selected to bound the possible range of outcomes that might occur. ” Michael Porter in “Competitive Strategy” “Shell flavour” of scenarios Scenarios should present testing conditions for the business. The future will of course be different from all of these views/scenarios, but if the company is prepared to cope with any of them, it will be able to cope with the real world. Do not assign probabilities to scenarios!

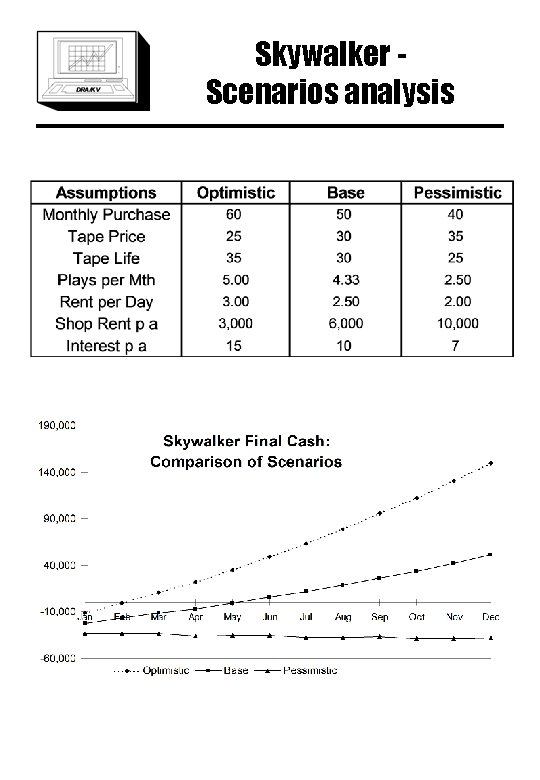

Skywalker Scenarios analysis

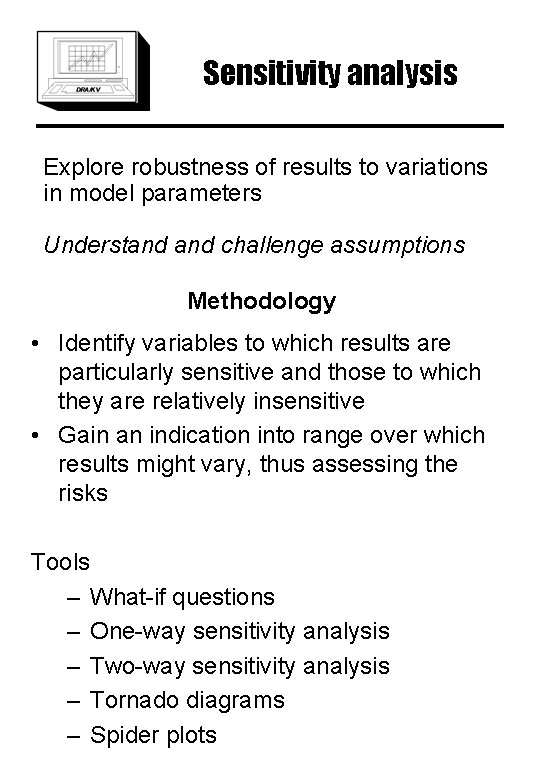

Sensitivity analysis Explore robustness of results to variations in model parameters Understand challenge assumptions Methodology • Identify variables to which results are particularly sensitive and those to which they are relatively insensitive • Gain an indication into range over which results might vary, thus assessing the risks Tools – What-if questions – One-way sensitivity analysis – Two-way sensitivity analysis – Tornado diagrams – Spider plots

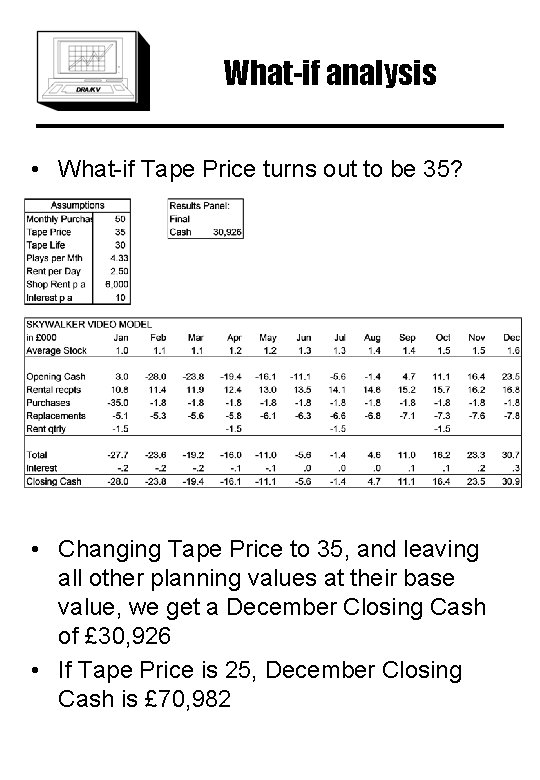

What-if analysis • What-if Tape Price turns out to be 35? • Changing Tape Price to 35, and leaving all other planning values at their base value, we get a December Closing Cash of £ 30, 926 • If Tape Price is 25, December Closing Cash is £ 70, 982

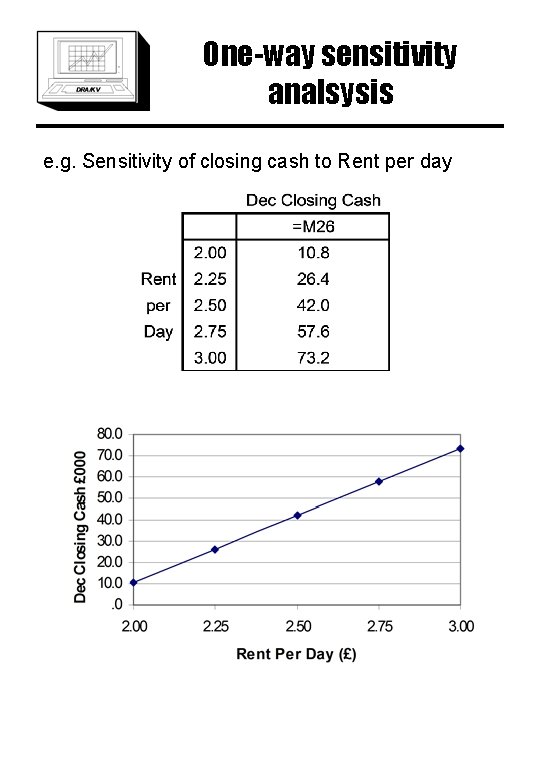

One-way sensitivity analsysis e. g. Sensitivity of closing cash to Rent per day

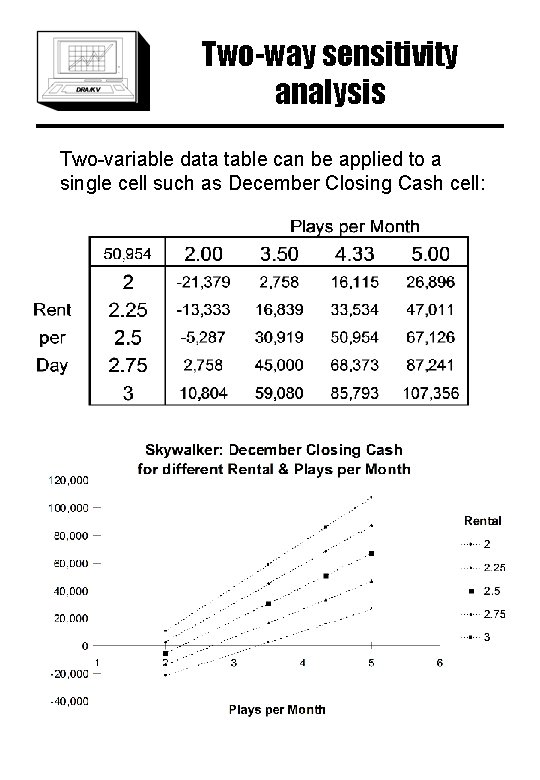

Two-way sensitivity analysis Two-variable data table can be applied to a single cell such as December Closing Cash cell:

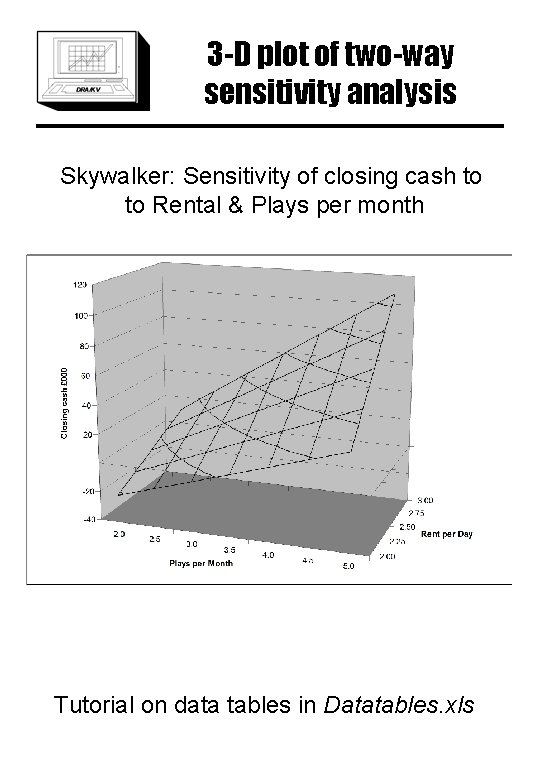

3 -D plot of two-way sensitivity analysis Skywalker: Sensitivity of closing cash to to Rental & Plays per month Tutorial on data tables in Datatables. xls

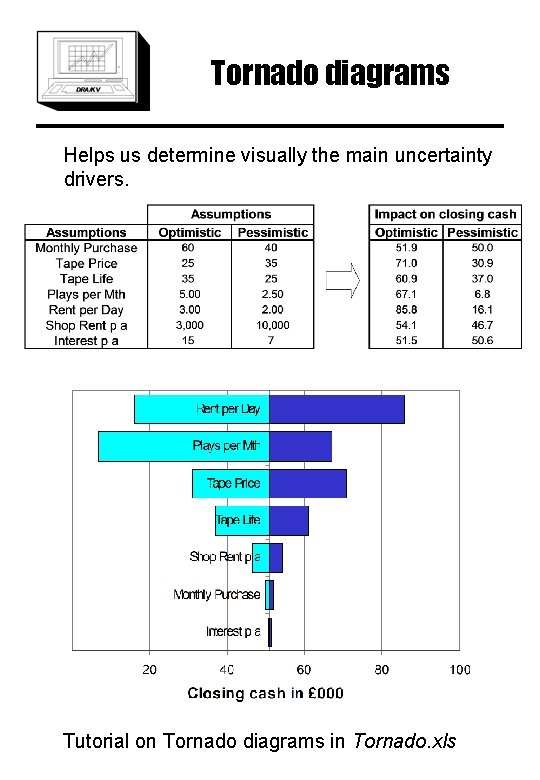

Tornado diagrams Helps us determine visually the main uncertainty drivers. Tutorial on Tornado diagrams in Tornado. xls

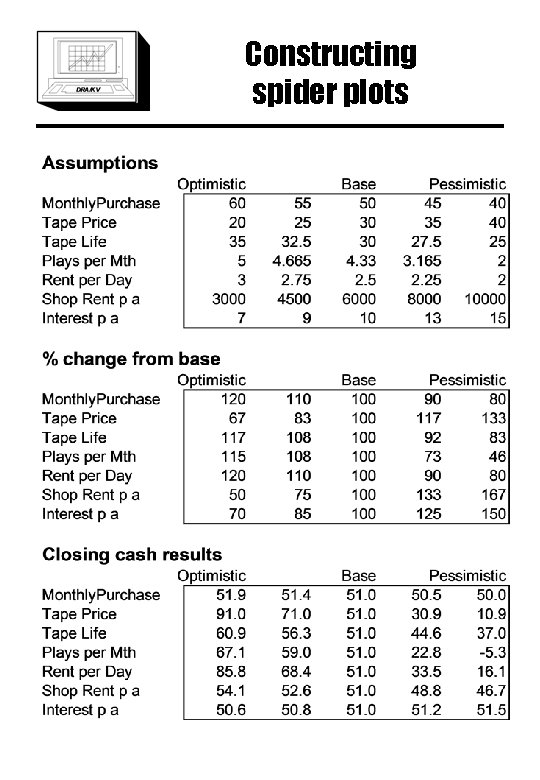

Constructing spider plots

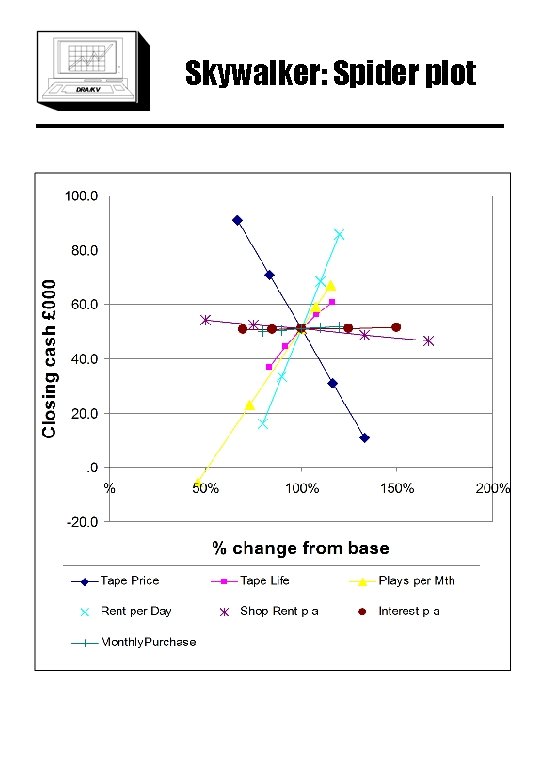

Skywalker: Spider plot

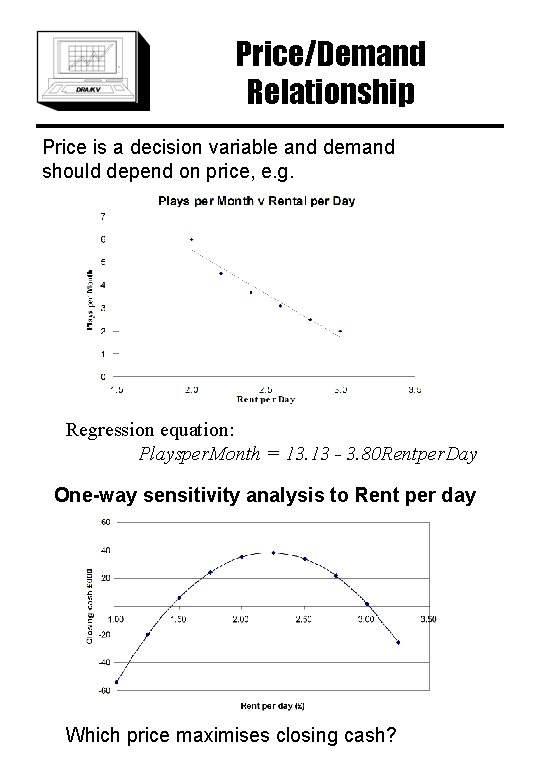

Price/Demand Relationship Price is a decision variable and demand should depend on price, e. g. Regression equation: Playsper. Month = 13. 13 - 3. 80 Rentper. Day One-way sensitivity analysis to Rent per day Which price maximises closing cash?

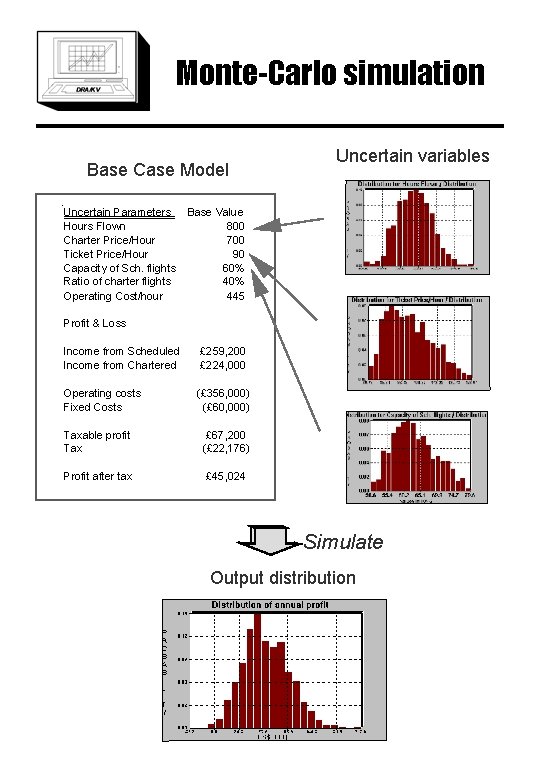

Monte-Carlo simulation Base Case Model Uncertain Parameters Hours Flown Charter Price/Hour Ticket Price/Hour Capacity of Sch. flights Ratio of charter flights Operating Cost/hour Uncertain variables Base Value 800 700 90 60% 445 Profit & Loss Income from Scheduled Income from Chartered Operating costs Fixed Costs £ 259, 200 £ 224, 000 (£ 356, 000) (£ 60, 000) Taxable profit Tax £ 67, 200 (£ 22, 176) Profit after tax £ 45, 024 Simulate Output distribution

Merck’s Research Planning Model Scientific, Medical constraints R&D variables Manufacturing variables Marketing variables Monte-Carlo Simulation Technological constraints Economic relationships Projections of variables Macroeconomic assumptions Probability distributions for cash-flow ROI, NPV

@RISK - How it works Single simulation trial INPUTS MODEL CALCULATIONS RESULT Sales * Price - Cost = Profit = $62 211 $5 $993 Multiple simulation trials INPUTS MODEL CALCULATIONS RESULT Profit Trial 1: 211 * 5 - 993 = $62 Trial 1: 193 * 8 - 700 = $884 Trial 1: 219 * 6 - 999 = $315 . . . Trial N: 233 * 6 - 975 = $423

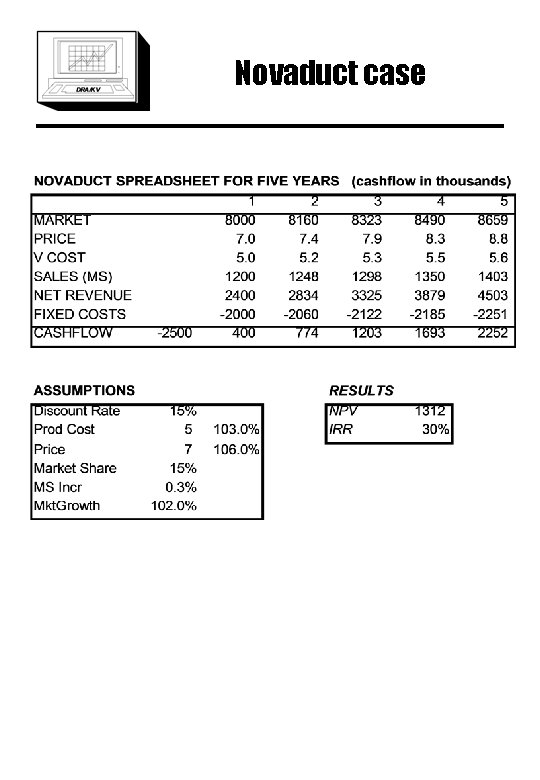

Novaduct case

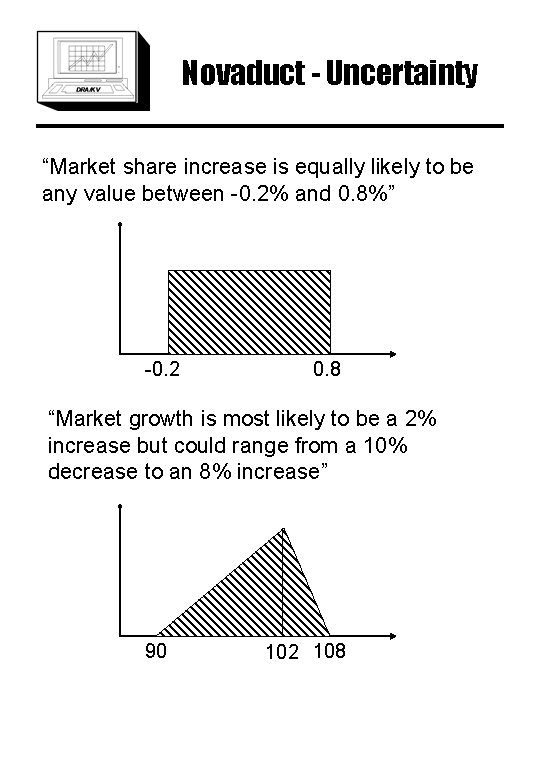

Novaduct - Uncertainty “Market share increase is equally likely to be any value between -0. 2% and 0. 8%” -0. 2 0. 8 “Market growth is most likely to be a 2% increase but could range from a 10% decrease to an 8% increase” 90 102 108

Using @RISK 1. Introduce uncertainty into base model eg =Risk. Uniform(min, max) =Risk. Triang(min, most likely, max) =Risk. Normal(mean, std. dev. ) 2. Select output cells (Cells for which we want simulation results) 3. Select simulation settings Number of iterations, random number seed 4. Execute simulation 5. View results Graphs, summary statistics 6. Return to spreadsheet and possibly repeat previous steps

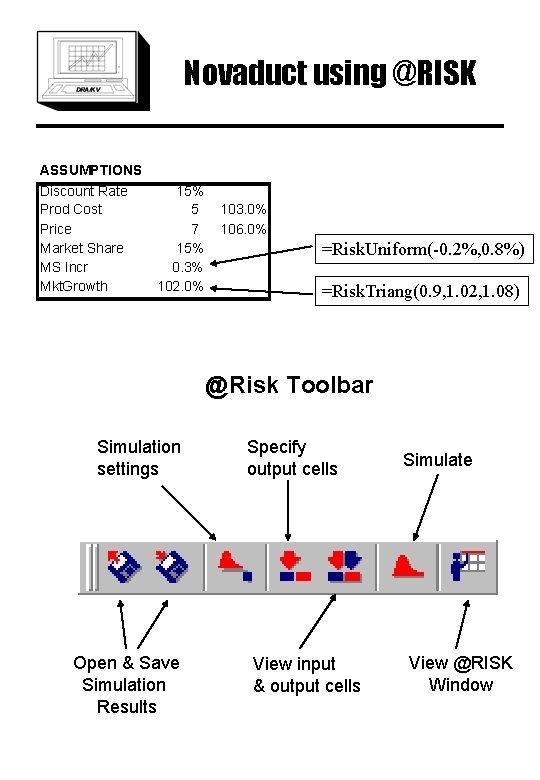

Novaduct using @RISK ASSUMPTIONS Discount Rate Prod Cost Price Market Share MS Incr Mkt. Growth 15% 5 7 15% 0. 3% 102. 0% 103. 0% 106. 0% =Risk. Uniform(-0. 2%, 0. 8%) =Risk. Triang(0. 9, 1. 02, 1. 08) @Risk Toolbar Simulation settings Open & Save Simulation Results Specify output cells View input & output cells Simulate View @RISK Window

Simulation settings

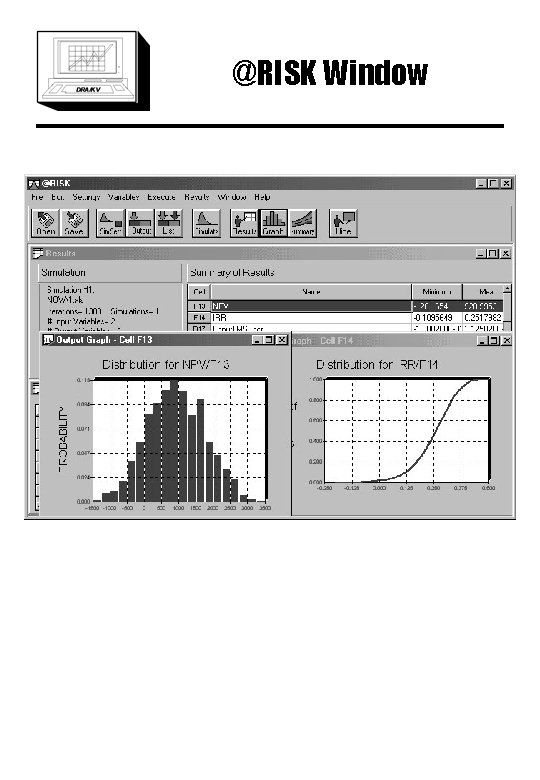

@RISK Window

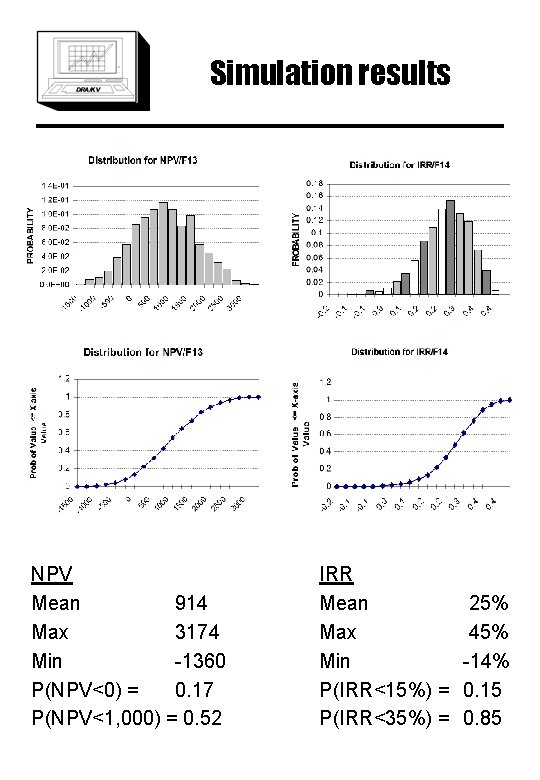

Simulation results NPV Mean 914 Max 3174 Min -1360 P(NPV<0) = 0. 17 P(NPV<1, 000) = 0. 52 IRR Mean Max Min P(IRR<15%) = P(IRR<35%) = 25% 45% -14% 0. 15 0. 85

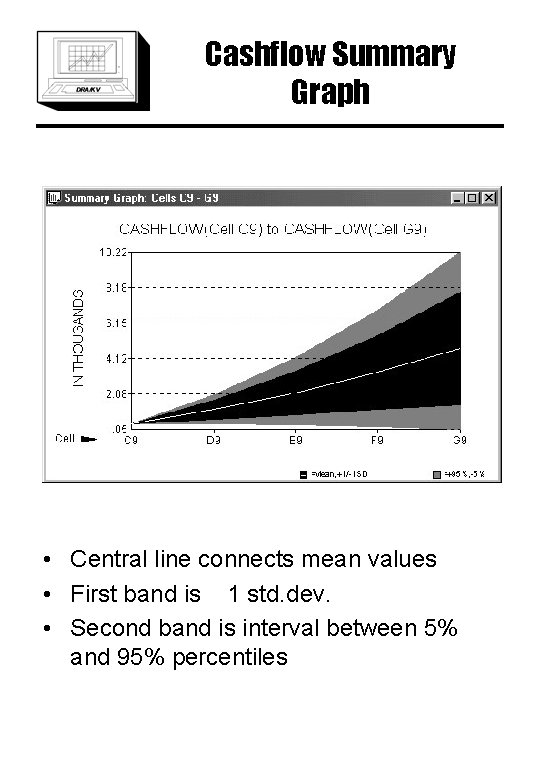

Cashflow Summary Graph • Central line connects mean values • First band is 1 std. dev. • Second band is interval between 5% and 95% percentiles

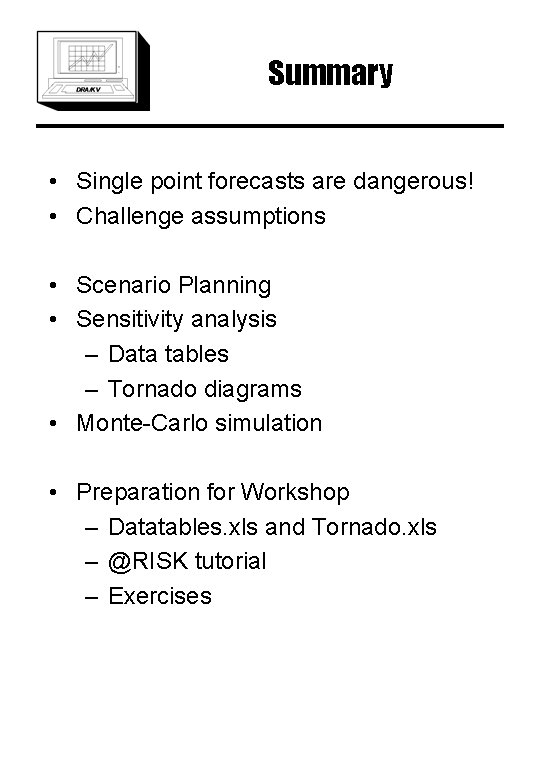

Summary • Single point forecasts are dangerous! • Challenge assumptions • Scenario Planning • Sensitivity analysis – Data tables – Tornado diagrams • Monte-Carlo simulation • Preparation for Workshop – Datatables. xls and Tornado. xls – @RISK tutorial – Exercises
