Decimation-in-frequency FFT algorithm The decimation-in-time FFT algorithms are all based on structuring the DFT computation by forming smaller and smaller subsequences of the input sequence x[n]. Alternatively, we can consider dividing the output sequence X[k] into smaller and smaller subsequences in the same manner. The even-numbered frequency samples are

Since and The above equation is the (N/2)-point DFT of the (N/2)-point sequence obtained by adding the first and the last half of the input sequence. Adding the two halves of the input sequence represents time aliasing, consistent with the fact that in computing only the evennumber frequency samples, we are sub-sampling the Fourier transform of x[n].

We now consider obtaining the odd-numbered frequency points: Since

We obtain The above equation is the (N/2)-point DFT of the sequence obtained by subtracting the second half of the input sequence from the first half and multiplying the resulting sequence by W N n. Let g[n] = x[n]+x[n+N/2] and h[n] = x[n] x[x+N/2], the DFT can be computed by forming the sequences g[n] and h[n], then computing h[n] WNn, and finally computing the (N/2)-point DFTs of these two sequences.

Flow graph of decimation-in-frequency decomposition of an Npoint DFT (N=8).

Recursively, we can further decompose the (N/2)-point DFT into smaller substructures:

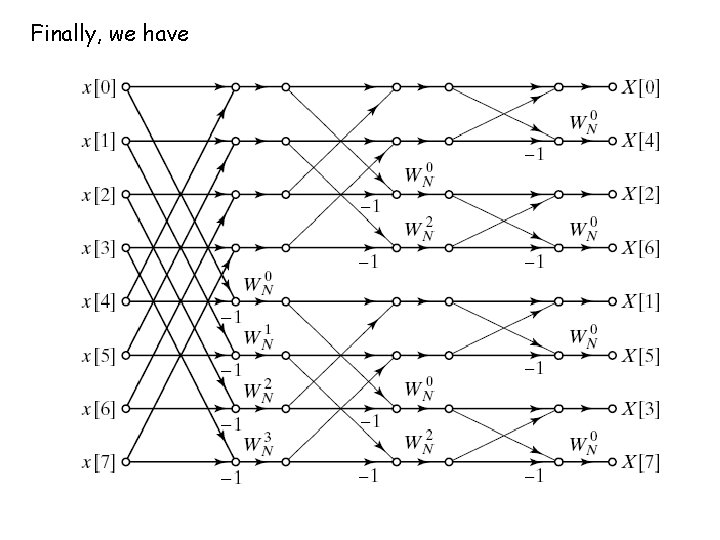

Finally, we have

Butterfly structure for decimation-in-frequency FFT algorithm: The decimation-in-frequency FFT algorithm also has the computation complexity of O(N log 2 N)

Chirp Transform Algorithm (CTA) This algorithm is not optimal in minimizing any measure of computational complexity, but it has been used to compute any set of equally spaced samples of the DTFT on the unit circle. To derive the CTA, we let x[n] denote an N-point sequence and X(ejw) its DTFT. We consider the evaluation of M samples of X(ejw) that are equally spaced in angle on the unit cycle, at frequencies

When w 0 =0 and M=N, we obtain the special case of DFT. The DTFT values evaluated at wk are with W defined as we have The Chirp transform represents X(ejwk) as a convolution: To achieve this purpose, we represent nk as

Then, the DTFT value evaluated at wk is Letting we can then write To interpret the above equation, we obtain more familiar notation by replacing k by n and n by k: X(ejwk) corresponds to the convolution of the sequence g[n] with the sequence W n 2/2.

The block diagram of the chirp transform algorithm is Since only the outputs of n=0, 1, …, M 1 are required, let h[n] be the following impulse response with finite length (FIR filter): Then

The block diagram of the chirp transform algorithm for FIR is Then the output y[n] satisfies that Evaluating frequency responses using the procedure of chirp transform has a number of potential advantages: Ø We do not require N=M as in the FFT algorithms, and neither N nor M need be composite numbers. => The frequency values can be evaluated in a more flexible manner. Ø The convolution involved in the chirp transform can still be implemented efficiently using an FFT algorithm. The FFT size must be no smaller than (M+N 1). It can be chosen, for example, to be an appropriate power of 2.
![In the above the FIR filter hn is noncausal For certain realtime implementation it In the above, the FIR filter h[n] is non-causal. For certain realtime implementation it](https://slidetodoc.com/presentation_image_h2/56e976dd917ded3b1aea92a6cb3ddb5f/image-14.jpg)
In the above, the FIR filter h[n] is non-causal. For certain realtime implementation it must be modified to obtain a causal system. Since h[n] is of finite duration, this modification is easily accomplished by delaying h[n] by (N 1) to obtain a causal impulse response: and the DTFT transform values are ØIn hardware implementation, a fixed and pre-specified causal FIR can be implemented by certain technologies, such as chargecoupled devices (CCD) and surface acoustic wave (SAW) devices.

Two-dimensional Transform Revisited (c. f. Fundamentals of Digital Image Processing, A. K. Jain, Prentice Hall, 1989) One-dimensional orthogonal (unitary) transforms v=Au u = A*T v = AH v where A*T = A 1, i. e. , AAH = AHA = I. That is, the columns of AH form a set of orthonormal bases, and so are the columns of A. The vector ak* {ak, n*, 0 n N 1} are called the basis vector of A. The series coefficients v[k] give a representation of the original sequence u[k], and are useful in filtering, data compression, feature extraction, and other analysis.
![Twodimensional orthogonal unitary transforms Let um n be an n n image where ak Two-dimensional orthogonal (unitary) transforms Let {u[m, n]} be an n n image. where {ak,](https://slidetodoc.com/presentation_image_h2/56e976dd917ded3b1aea92a6cb3ddb5f/image-16.jpg)
Two-dimensional orthogonal (unitary) transforms Let {u[m, n]} be an n n image. where {ak, l[m, n]}, called an image transform, is a set of complete orthonormal discrete basis functions satisfying the properties: Orthonormality: where [a, b] is the 2 D delta function, which is one only when a=b=0, and is zero otherwise.
![V vk l is called the transformed image The orthonormal property assures that V = {v[k, l]} is called the transformed image. The orthonormal property assures that](https://slidetodoc.com/presentation_image_h2/56e976dd917ded3b1aea92a6cb3ddb5f/image-17.jpg)
V = {v[k, l]} is called the transformed image. The orthonormal property assures that any expansion of the basis images will be minimized by the truncated series When P=Q=N, the error of minimization will be zero. Separable Unitary Transforms The number of multiplications and additions required to compute the transform coefficients v[k, l] is O(N 4), which is quite excessive. The dimensionality can be reduced to O(N 3) when the transform is restricted to be separable.
![A transform ak lm n is separable iff for all 0 k l m A transform {ak, l[m, n]} is separable iff for all 0 k, l, m,](https://slidetodoc.com/presentation_image_h2/56e976dd917ded3b1aea92a6cb3ddb5f/image-18.jpg)
A transform {ak, l[m, n]} is separable iff for all 0 k, l, m, n N 1, it can be decomposed as follows: where A {a[k, m]} and B {b[l, n]} should be unitary matrices themselves, i. e. , AAH = AHA = I and BBH = BHB = I. Often one choose B to be the same as A, so that Hence, we can simplify the transform as V = AUAT, and U = A*TVA* where V = {v[k, l]} and U = {u[m, n]}.

A more general form: for an M N rectangular image, the transform pair is V = AMUANT, and U = AM*TUAN* where AM and AN are M M and N N unitary matrices, respectively. themselves, i. e. , AAH = AHA = I and BBH = BHB = I. These are called two-dimensional separable transforms. The complexity in computing the coefficient image is O(N 3). Ø The computation can be decomposed as computing T=UAT first, and then compute V= AT (for an N N image) Ø Computing T=UAT requires N 2 inner products (of N-point vectors). Each inner product requires N operations, and so in total O(N 3). Ø Similarly, V= AT also requires O(N 3) operations, and finally we need O(N 3) to compute V.

A closer look at T=UAT: Let the rows of U be {U 1, U 2, …, UN}. Then T=UAT = [U 1 T, U 2 T, …, UNT]TAT = [U 1 AT, U 2 AT, …, UNAT] T. Note that each Ui. AT (i=1 … N) is a one-dimensional unitary transform. That is, this step performs N one-dimensional transforms for the rows of the image U, obtaining a temporary image T. Then, the step V= AT performs N 1 -D unitary transforms on the columns of T. Totally, 2 N 1 -D transforms are performed. Each 1 -D transform is of O(N 2).

Remember that the two-dimensional DFT is where The 2 D DFT is separable, and so it can be represented as V = FUF where F is the N N matrix with the element of k-th row and nth element be F=

Fast computation of two-dimensional DFT: Ø According to V = FUF, it can be decomposed as the computation of 2 N 1 -D DFTs. Ø Each 1 -D DFT requires N log 2 N computations. Ø So, the 2 -D DFT can be efficiently implemented in time complexity of O(N 2 log 2 N ) 2 -D DFT is inherent in many properties of 1 -D DFT (e. g. , conjugate symmetry, shifting, scaling, convolution, etc. ). A property not from the 1 -D DFT is the rotation property. Rotation property: if we represent (m, n) and (k, l) in polar coordinate, and then That is, the rotation of an image implies the rotation of its DFT.

Discrete-time Random Signals (c. f. Oppenheim, et al. , 1999) • Until now, we have assumed that the signals are deterministic, i. e. , each value of a sequence is uniquely determined. • In many situations, the processes that generate signals are so complex as to make precise description of a signal extremely difficult or undesirable. • A random or stochastic signal is considered to be characterized by a set of probability density functions.

Stochastic Processes • Random (or stochastic) process (or signal) – A random process is an indexed family of random variables characterized by a set of probability distribution function. – A sequence x[n], <n< . Each individual sample x[n] is assumed to be an outcome of some underlying random variable Xn. – The difference between a single random variable and a random process is that for a random variable the outcome of a random-sampling experiment is mapped into a number, whereas for a random process the outcome is mapped into a sequence.
![Stochastic Processes continue Probability density function of xn Joint distribution of xn Stochastic Processes (continue) • Probability density function of x[n]: • Joint distribution of x[n]](https://slidetodoc.com/presentation_image_h2/56e976dd917ded3b1aea92a6cb3ddb5f/image-25.jpg)
Stochastic Processes (continue) • Probability density function of x[n]: • Joint distribution of x[n] and x[m]: • Eg. , x 1[n] = Ancos(wn+ n), where An and n are random variables for all < n < , then x 1[n] is a random process.
![Independence and Stationary xn and xm are independent iff x is a Independence and Stationary • x[n] and x[m] are independent iff • x is a](https://slidetodoc.com/presentation_image_h2/56e976dd917ded3b1aea92a6cb3ddb5f/image-26.jpg)
Independence and Stationary • x[n] and x[m] are independent iff • x is a stationary process iff for all k. • That is, the joint distribution of x[n] and x[m] depends only on the time difference m n.

Stationary (continue) • Particularly, when m = n for a stationary process: It implies that x[n] is shift invariant.

Stochastic Processes vs. Deterministic Signal • In many of the applications of discrete-time signal processing, random processes serve as models for signals, in the sense that a particular signal can be considered a sample sequence of a random process. • Although such a signals are unpredictable – making a deterministic approach to signal representation is inappropriate – certain average properties of the ensemble can be determined, given the probability law of the process.

Expectation • Mean (or average) • denotes the expectation operator • For independent random variables

Mean Square Value and Variance • Mean squared value • Variance

Autocorrelation and Autocovariance • Autocorrelation • Autocovariance

Stationary Process • For a stationary process, the autocorrelation is dependent on the time difference m n. • Thus, for stationary process, we can write • If we denote the time difference by k, we have

Wide-sense Stationary • In many instances, we encounter random processes that are not stationary in the strict sense. • If the following equations hold, we call the process wide-sense stationary (w. s. s. ).
![Time Averages For any single sample sequence xn define their time average to Time Averages • For any single sample sequence x[n], define their time average to](https://slidetodoc.com/presentation_image_h2/56e976dd917ded3b1aea92a6cb3ddb5f/image-34.jpg)
Time Averages • For any single sample sequence x[n], define their time average to be • Similarly, time-average autocorrelation is

Ergodic Process • A stationary random process for which time averages equal ensemble averages is called an ergodic process:

Ergodic Process (continue) • It is common to assume that a given sequence is a sample sequence of an ergodic random process, so that averages can be computed from a single sequence. n In practice, we cannot compute with the limits, but instead the quantities. n Similar quantities are often computed as estimates of the mean, variance, and autocorrelation.

Properties of correlation and covariance sequences • Property 1:

Properties of correlation and covariance sequences (continue) • Property 2: • Property 3

Properties of correlation and covariance sequences (continue) • Property 4:

Properties of correlation and covariance sequences (continue) • Property 5: – If

Fourier Transform Representation of Random Signals • Since autocorrelation and autocovariance sequences are all (aperiodic) one-dimensional sequences, there Fourier transform exist and are bounded in |w| . • Let the Fourier transform (DTFT) of the autocorrelation and autocovariance sequences be

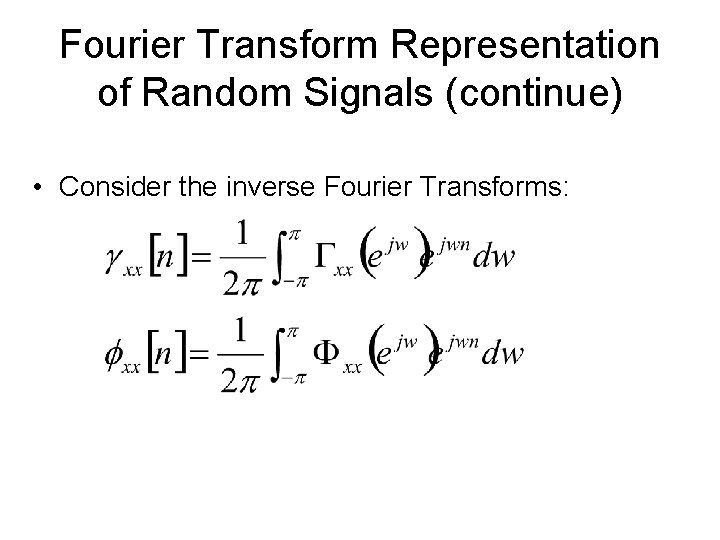

Fourier Transform Representation of Random Signals (continue) • Consider the inverse Fourier Transforms:

Fourier Transform Representation of Random Signals (continue) • Consequently, • Denote to be the power density spectrum (or power spectrum) of the random process x.

Power Density Spectrum (using Fourier transform to represent a random signal) • The total area under power density in [ , ] is the total energy of the signal. • Pxx(w) is always real-valued since xx(n) is conjugate symmetric • For real-valued random processes, Pxx(w) = xx(ejw) is both real and even.
![Mean and Linear System Consider a linear system with frequency response hn If Mean and Linear System • Consider a linear system with frequency response h[n]. If](https://slidetodoc.com/presentation_image_h2/56e976dd917ded3b1aea92a6cb3ddb5f/image-45.jpg)
Mean and Linear System • Consider a linear system with frequency response h[n]. If x[n] is a stationary random signal with mean mx, then the output y[n] is also a stationary random signal with mean mx equaling to • Since the input is stationary, mx[n k] = mx , and consequently, DC response
![Stationary and Linear System If xn is a real and stationary random signal Stationary and Linear System • If x[n] is a real and stationary random signal,](https://slidetodoc.com/presentation_image_h2/56e976dd917ded3b1aea92a6cb3ddb5f/image-46.jpg)
Stationary and Linear System • If x[n] is a real and stationary random signal, the autocorrelation function of the output process is • Since x[n] is stationary , {x[n k]x[n+m r] } depends only on the time difference m+k r.

Stationary and Linear System (continue) • Therefore, The output power density is also stationary. • Generally, for a LTI system having a wide-sense stationary input, the output is also wide-sense stationary.

Power Density Spectrum and Linear System • By substituting l = r k, where • A sequence of the form of chh[l] is called a deterministic autocorrelation sequence.

Power Density Spectrum and Linear System (continue) • A sequence of the form of Chh[l], l = r k, where Chh(ejw) is the Fourier transform of chh[l]. • For real h, • Thus

Power Density Spectrum and Linear System (continue) • We have the relation of the input and the output power spectrums to be the following:

Power Density Property • Key property: The area over a band of frequencies, wa<|w|<wb, is proportional to the power in the signal in that band. • To show this, consider an ideal band-pass filter. Let H(ejw) be the frequency of the ideal band pass filter for the band wa<|w|<wb. • Note that |H(ejw)|2 and xx(ejw) are both even functions. Hence, after ideal low pass filtering,

White Noise (or White Gaussian Noise) • A white noise signal is a signal for which – Hence, its samples at different instants of time are uncorrelated. • The power spectrum of a white noise signal is a constant • The concept of white noise is very useful in quantization error analysis.

White Noise (continue) • The average power of a white-noise is therefore • White noise is also useful in the representation of random signals whose power spectra are not constant with frequency. – A random signal y[n] with power spectrum yy(ejw) can be assumed to be the output of a linear time-invariant system with a white-noise input.

Cross-correlation • The cross-correlation between input and output of a LTI system: • That is, the cross-correlation between the input output is the convolution of the impulse response with the input autocorrelation sequence.

Cross-correlation (continue) • By further taking the Fourier transform on both sides of the above equation, we have • This result has a useful application when the input is white noise with variance x 2. – These equations serve as the bases for estimating the impulse or frequency response of a LTI system if it is possible to observe the output of the system in response to a white-noise input.
