Decentration & Minimum Blank Size California State Society for Opticians January 29, 2017

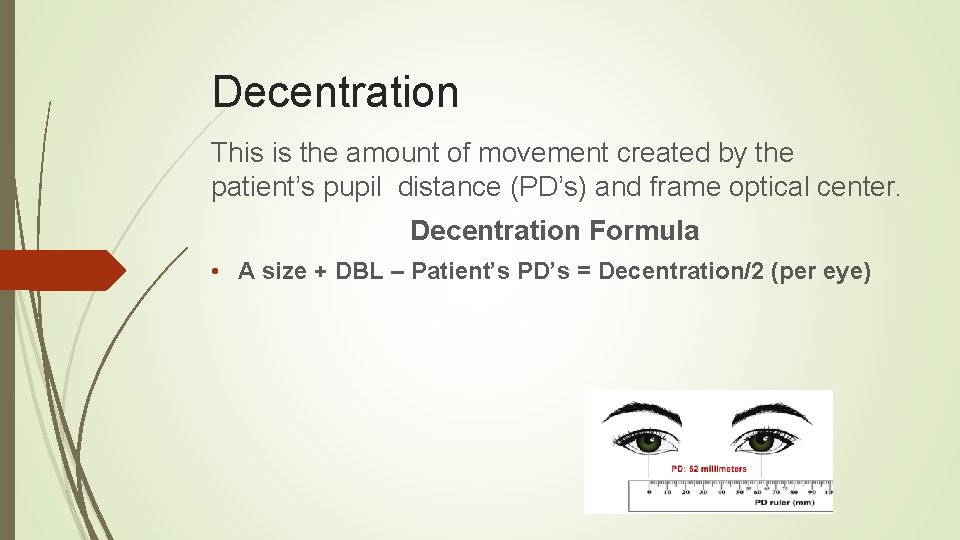

Decentration This is the amount of movement created by the patient’s pupil distance (PD’s) and frame optical center. Decentration Formula • A size + DBL – Patient’s PD’s = Decentration/2 (per eye)

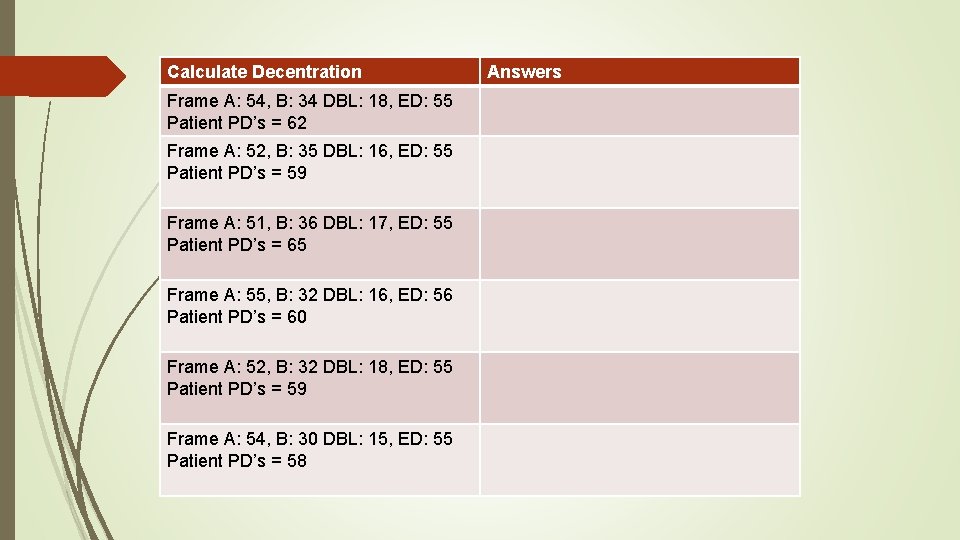

Calculate Decentration Frame A: 54, B: 34 DBL: 18, ED: 55 Patient PD’s = 62 Frame A: 52, B: 35 DBL: 16, ED: 55 Patient PD’s = 59 Frame A: 51, B: 36 DBL: 17, ED: 55 Patient PD’s = 65 Frame A: 55, B: 32 DBL: 16, ED: 56 Patient PD’s = 60 Frame A: 52, B: 32 DBL: 18, ED: 55 Patient PD’s = 59 Frame A: 54, B: 30 DBL: 15, ED: 55 Patient PD’s = 58 Answers

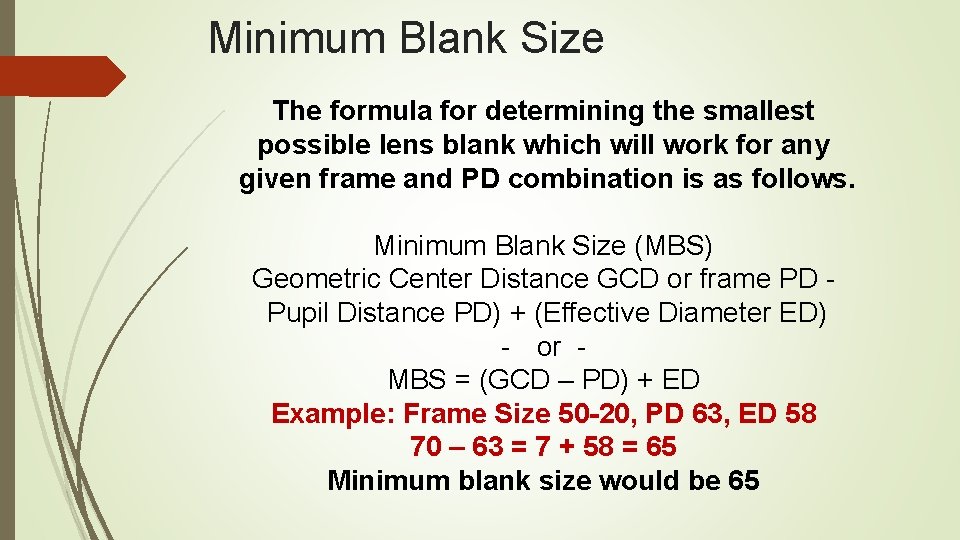

Minimum Blank Size The formula for determining the smallest possible lens blank which will work for any given frame and PD combination is as follows. Minimum Blank Size (MBS) Geometric Center Distance GCD or frame PD Pupil Distance PD) + (Effective Diameter ED) - or MBS = (GCD – PD) + ED Example: Frame Size 50 -20, PD 63, ED 58 70 – 63 = 7 + 58 = 65 Minimum blank size would be 65

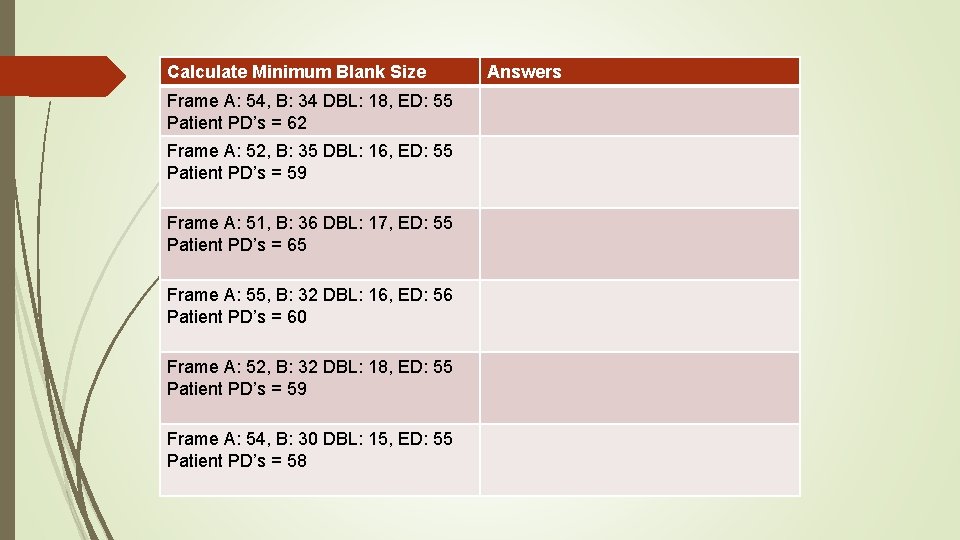

Calculate Minimum Blank Size Frame A: 54, B: 34 DBL: 18, ED: 55 Patient PD’s = 62 Frame A: 52, B: 35 DBL: 16, ED: 55 Patient PD’s = 59 Frame A: 51, B: 36 DBL: 17, ED: 55 Patient PD’s = 65 Frame A: 55, B: 32 DBL: 16, ED: 56 Patient PD’s = 60 Frame A: 52, B: 32 DBL: 18, ED: 55 Patient PD’s = 59 Frame A: 54, B: 30 DBL: 15, ED: 55 Patient PD’s = 58 Answers

Extra Work Research Glaucoma & Cataract
