Debunking the 100 X GPU vs CPU Myth

Debunking the 100 X GPU vs. CPU Myth: An Evaluation of Throughput Computing on CPU and GPU Presented by: Ahmad Lashgar ECE Department, University of Tehran Seminar of Parallel Processing. Instructor: Dr. Fakhraie 29 Dec 11 ISCA 2010 Original authors: Victor W Lee et al. Intel Corporation Some slides are included from original paper only for educational purposes 1

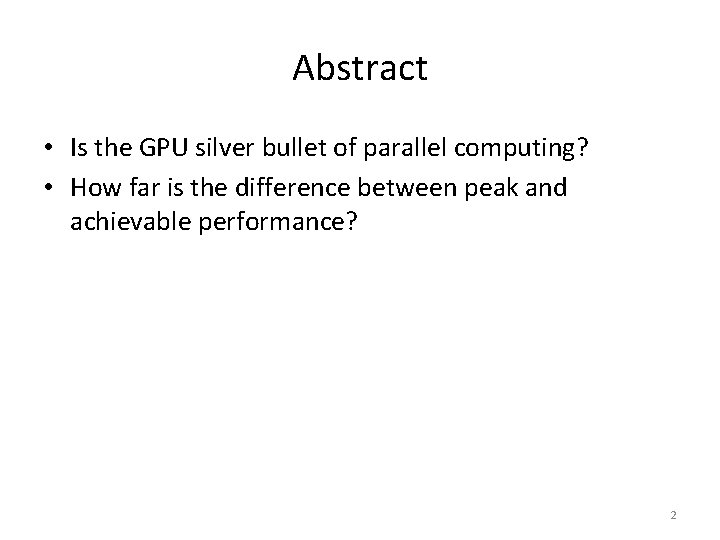

Abstract • Is the GPU silver bullet of parallel computing? • How far is the difference between peak and achievable performance? 2

Overview • Abstract • Architecture – CPU: Intel core i 7 – GPU: Nvidia GTX 280 • • • Implications for throughput computing applications Methodology Results Analyzing the results Platform optimization guides Conclusion 3

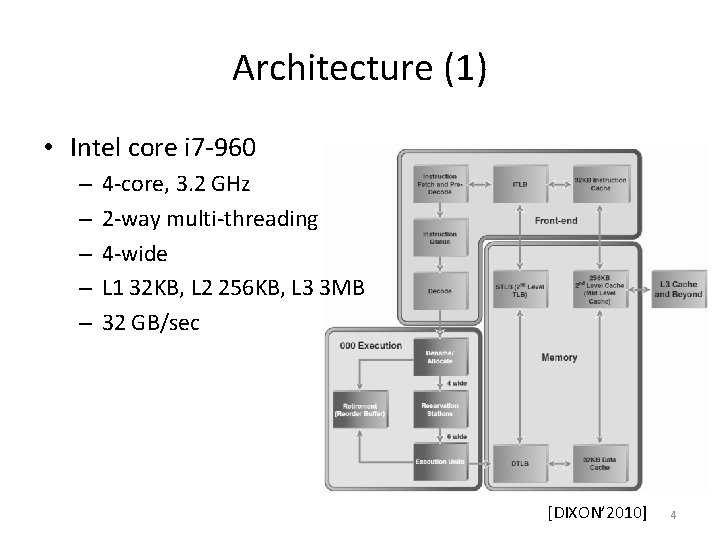

Architecture (1) • Intel core i 7 -960 – – – 4 -core, 3. 2 GHz 2 -way multi-threading 4 -wide L 1 32 KB, L 2 256 KB, L 3 3 MB 32 GB/sec [DIXON’ 2010] 4

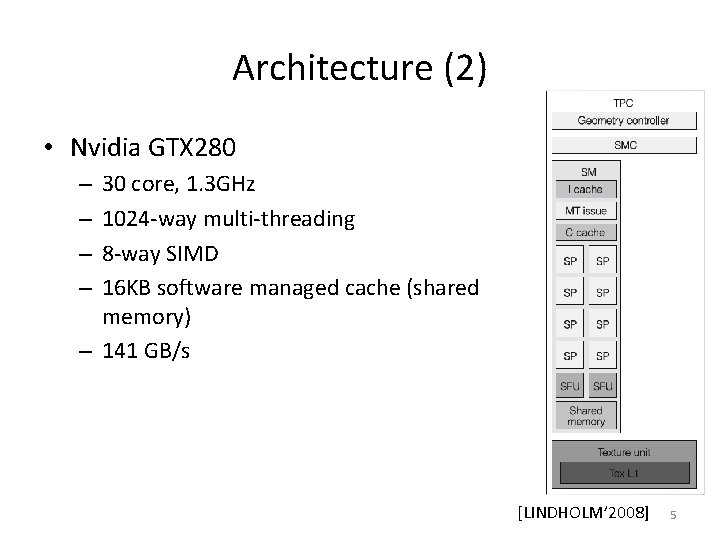

Architecture (2) • Nvidia GTX 280 30 core, 1. 3 GHz 1024 -way multi-threading 8 -way SIMD 16 KB software managed cache (shared memory) – 141 GB/s – – [LINDHOLM’ 2008] 5

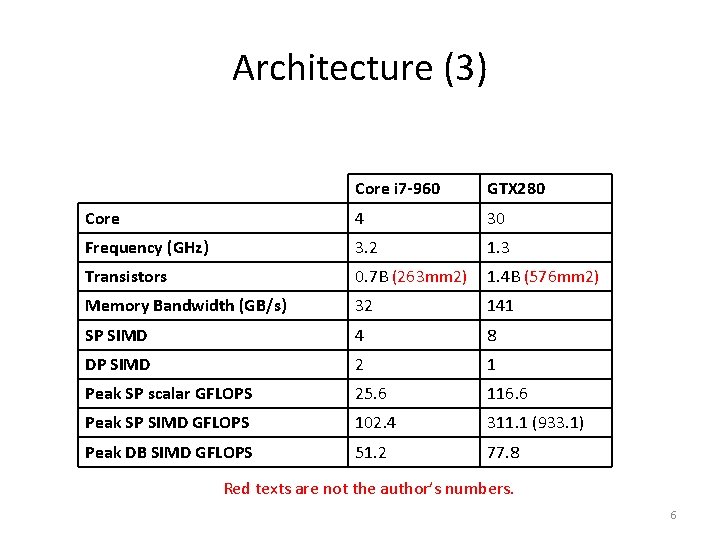

Architecture (3) Core i 7 -960 GTX 280 Core 4 30 Frequency (GHz) 3. 2 1. 3 Transistors 0. 7 B (263 mm 2) 1. 4 B (576 mm 2) Memory Bandwidth (GB/s) 32 141 SP SIMD 4 8 DP SIMD 2 1 Peak SP scalar GFLOPS 25. 6 116. 6 Peak SP SIMD GFLOPS 102. 4 311. 1 (933. 1) Peak DB SIMD GFLOPS 51. 2 77. 8 Red texts are not the author’s numbers. 6

Implications for throughput computing applications 1. Number of core difference 2. Cache size/multi-threading 3. Bandwidth difference 7

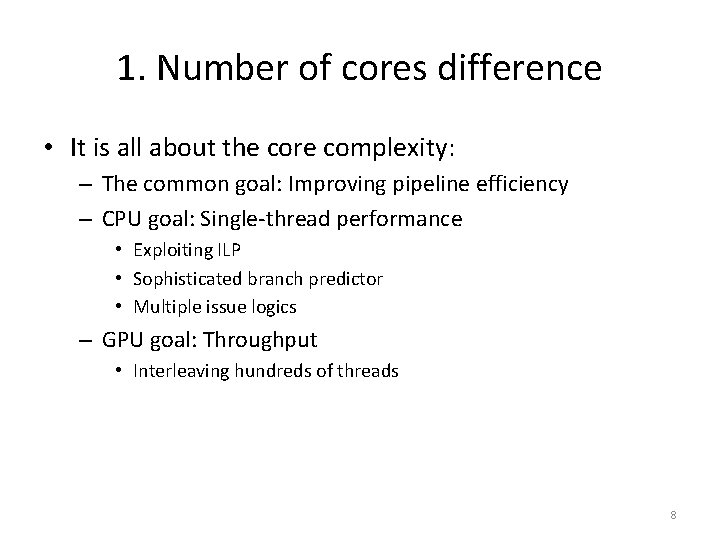

1. Number of cores difference • It is all about the core complexity: – The common goal: Improving pipeline efficiency – CPU goal: Single-thread performance • Exploiting ILP • Sophisticated branch predictor • Multiple issue logics – GPU goal: Throughput • Interleaving hundreds of threads 8

2. Cache size/multi-threading • CPU goal: reducing memory latency – Programmer-transparent data caching • Increasing the cache size to capture the working set – Prefetching (HW/SW) • GPU goal: hiding memory latency – Interleave the execution of hundreds of threads to hide the latency of each other • Notice: – CPU uses multi-threading for latency hiding – GPU uses software controlled caching (shared memory) for reducing memory latency 9

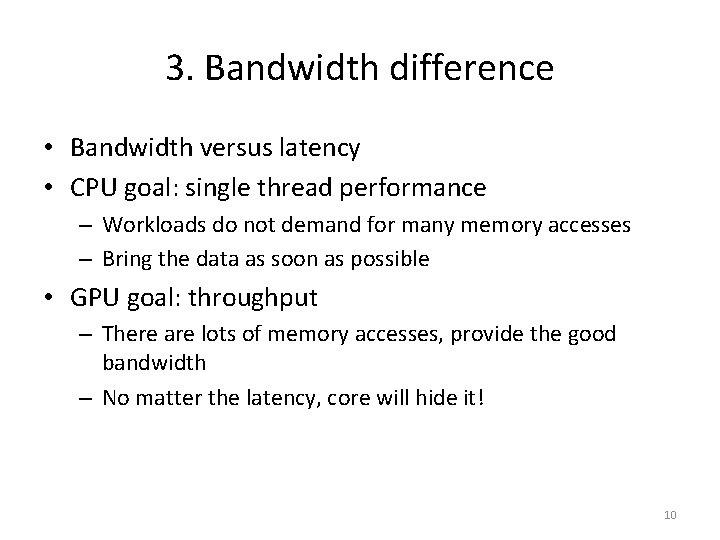

3. Bandwidth difference • Bandwidth versus latency • CPU goal: single thread performance – Workloads do not demand for many memory accesses – Bring the data as soon as possible • GPU goal: throughput – There are lots of memory accesses, provide the good bandwidth – No matter the latency, core will hide it! 10

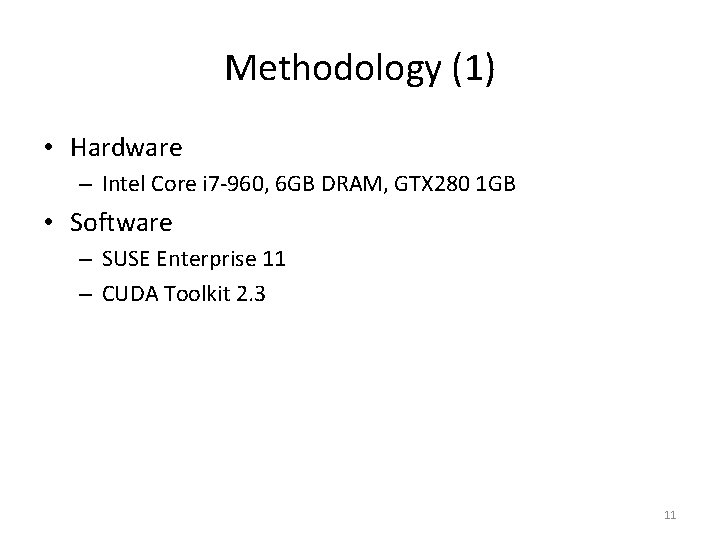

Methodology (1) • Hardware – Intel Core i 7 -960, 6 GB DRAM, GTX 280 1 GB • Software – SUSE Enterprise 11 – CUDA Toolkit 2. 3 11

Methodology (2) • Optimizations – On CPU: • SGEMM, Sp. MV and FFT from Intel MKL 10 • Always 2 threads per core – On GPU: • Best possible algorithm for Sp. MV, FFT and MC • Often 128 to 256 threads per core (to leverage shared memory and register-file usage) – Interleaving GPU execution and HD/DH memory transfers where possible 12

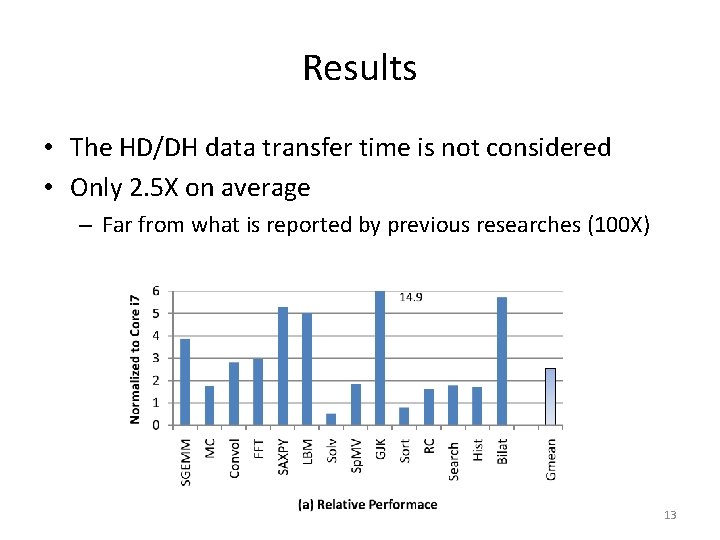

Results • The HD/DH data transfer time is not considered • Only 2. 5 X on average – Far from what is reported by previous researches (100 X) 13

Where is the speedup of previous researches? ! • What CPU and GPU are compared? • How much optimization is performed on CPU and GPU? – Where they optimize both platforms, they reported much lower speedup (like this paper) 14

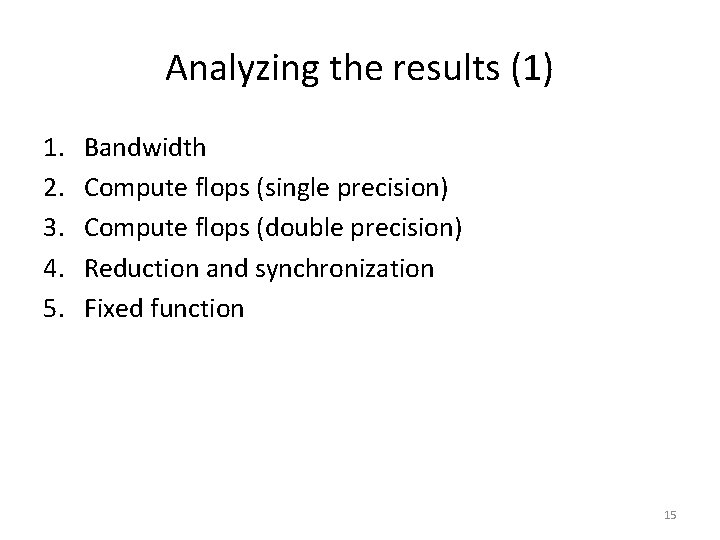

Analyzing the results (1) 1. 2. 3. 4. 5. Bandwidth Compute flops (single precision) Compute flops (double precision) Reduction and synchronization Fixed function 15

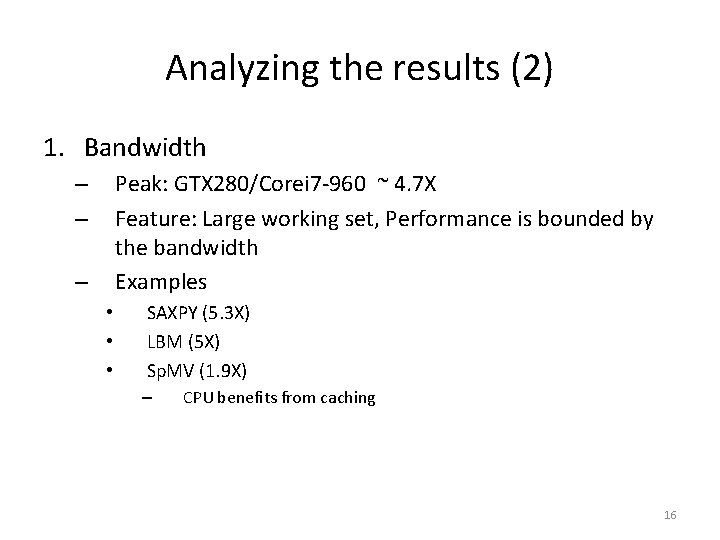

Analyzing the results (2) 1. Bandwidth Peak: GTX 280/Corei 7 -960 ~ 4. 7 X Feature: Large working set, Performance is bounded by the bandwidth Examples – – – • • • SAXPY (5. 3 X) LBM (5 X) Sp. MV (1. 9 X) – CPU benefits from caching 16

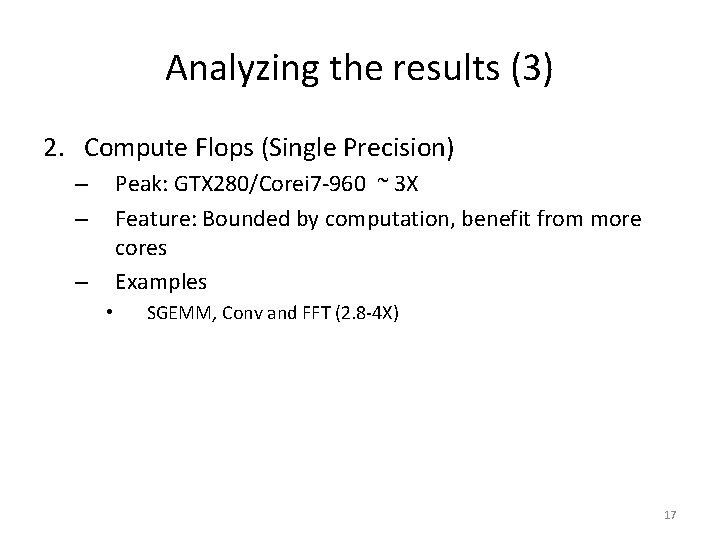

Analyzing the results (3) 2. Compute Flops (Single Precision) Peak: GTX 280/Corei 7 -960 ~ 3 X Feature: Bounded by computation, benefit from more cores Examples – – – • SGEMM, Conv and FFT (2. 8 -4 X) 17

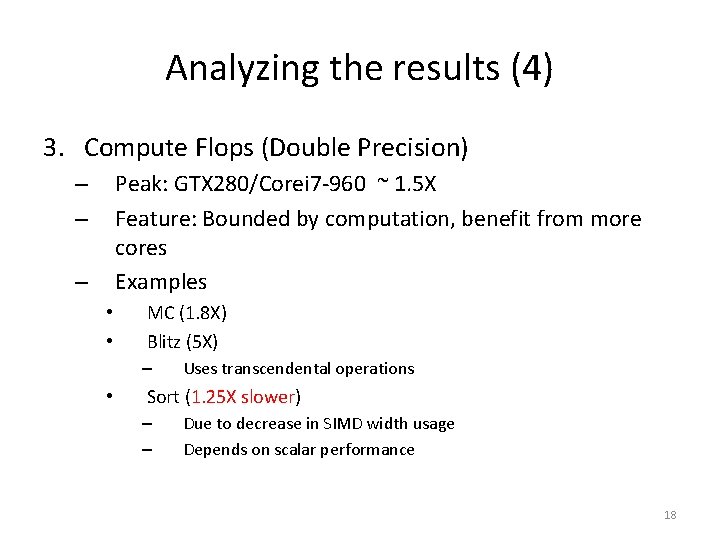

Analyzing the results (4) 3. Compute Flops (Double Precision) Peak: GTX 280/Corei 7 -960 ~ 1. 5 X Feature: Bounded by computation, benefit from more cores Examples – – – • • MC (1. 8 X) Blitz (5 X) – • Uses transcendental operations Sort (1. 25 X slower) – – Due to decrease in SIMD width usage Depends on scalar performance 18

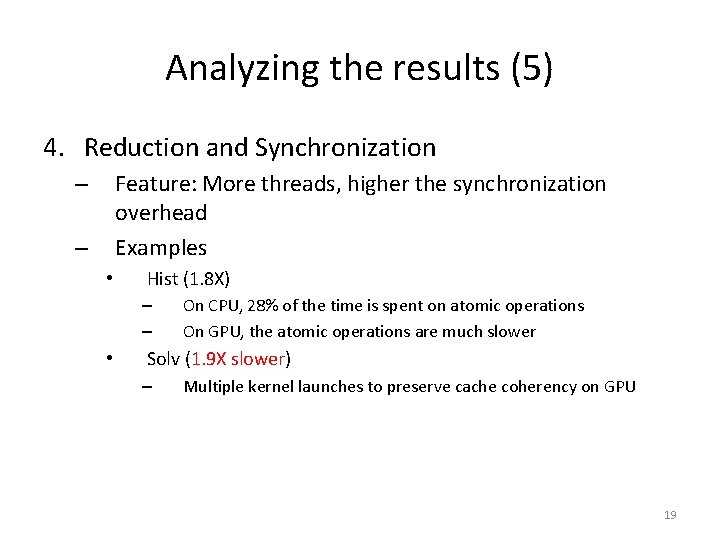

Analyzing the results (5) 4. Reduction and Synchronization Feature: More threads, higher the synchronization overhead Examples – – • Hist (1. 8 X) – – • On CPU, 28% of the time is spent on atomic operations On GPU, the atomic operations are much slower Solv (1. 9 X slower) – Multiple kernel launches to preserve cache coherency on GPU 19

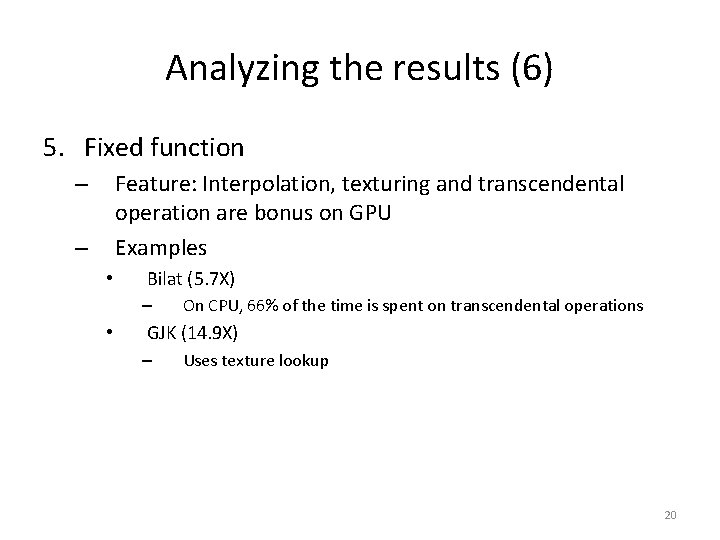

Analyzing the results (6) 5. Fixed function Feature: Interpolation, texturing and transcendental operation are bonus on GPU Examples – – • Bilat (5. 7 X) – • On CPU, 66% of the time is spent on transcendental operations GJK (14. 9 X) – Uses texture lookup 20

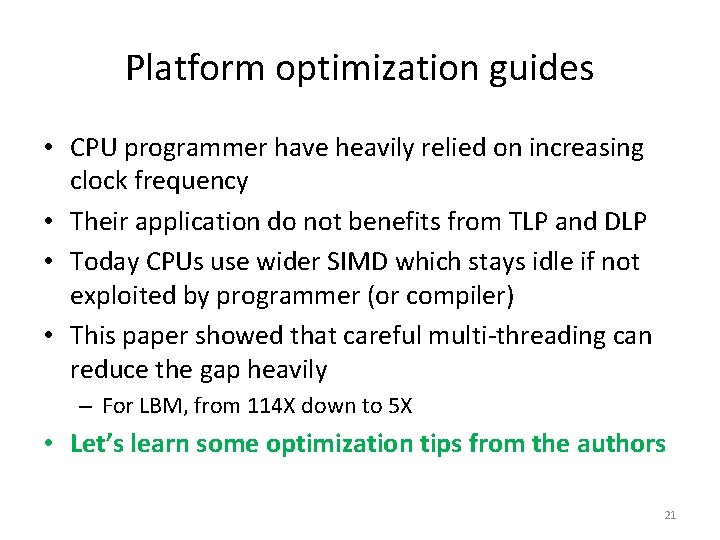

Platform optimization guides • CPU programmer have heavily relied on increasing clock frequency • Their application do not benefits from TLP and DLP • Today CPUs use wider SIMD which stays idle if not exploited by programmer (or compiler) • This paper showed that careful multi-threading can reduce the gap heavily – For LBM, from 114 X down to 5 X • Let’s learn some optimization tips from the authors 21

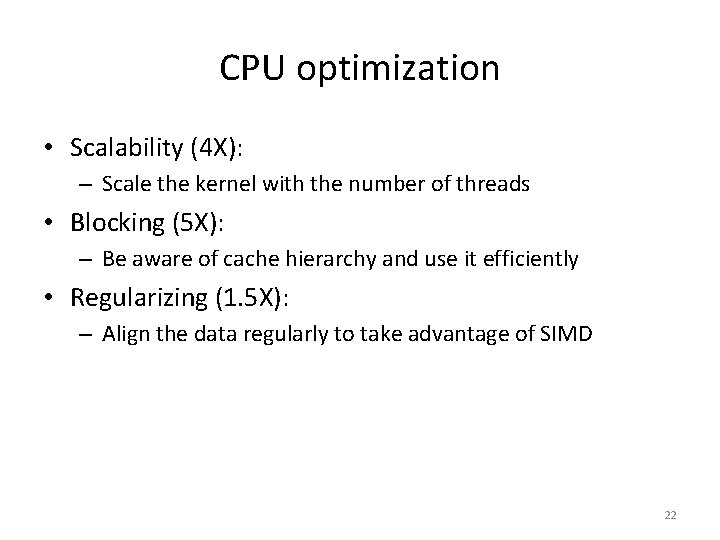

CPU optimization • Scalability (4 X): – Scale the kernel with the number of threads • Blocking (5 X): – Be aware of cache hierarchy and use it efficiently • Regularizing (1. 5 X): – Align the data regularly to take advantage of SIMD 22

GPU optimization • Global synchronization – Reduce the atomic operations • Shared memory – Use shared memory to reduce of-chip demand – Shared memory is multi-banked and is efficient for gathers/scatters operations 23

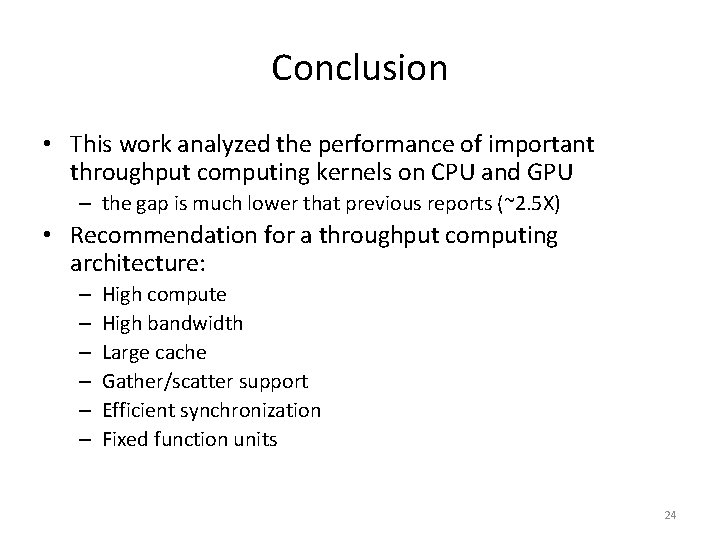

Conclusion • This work analyzed the performance of important throughput computing kernels on CPU and GPU – the gap is much lower that previous reports (~2. 5 X) • Recommendation for a throughput computing architecture: – – – High compute High bandwidth Large cache Gather/scatter support Efficient synchronization Fixed function units 24

Thank you for your attention. any question? 25

References [LEE’ 2010] V. W. Lee et al, Debunking the 100 X GPU vs. CPU Myth: An Evaluation of Throughput Computing on CPU and GPU, ISCA 2010 [DIXON’ 2010] M. Dixon et al, The next-generation Intel® Core ™ Microarchitecture, Intel® Technology Journal, Volume 14 Issue 3, 2010 [LINDHOLM’ 2008] E. Lindholm et al, NVIDIA Tesla A Unified Graphics and Computing Architecture, IEEE Micro 2008 26
