Deblurring in Atomic Force Microscopy (AFM) images Supervisor: Prof. Anil Kokaram Co-Supervisor: Dr. David Corrigan Student: Yun feng Wang
Project Description �SFI project: collaboration with Nanoscale Function Group (NFG) in UCD �The principal measurement tool: Atomic Force Microscope (AFM) – artefacts �Project Target: AFM image restoration/artefacts removal
AFM Background �In this project, the image data was collected under liquid in 1 m. M HCL on a bespoke low noise AFM using nanosensor
The Subject – AFM imaging of amyloid fibrils �Approximately 20 nm in diameter. In each example, slightly different copy of fibril with different brightness can be observed �Blurring artefact with a dramatic form distortion which is caused by the damage of the scanning probe �Use existing Bayesian deblurring algorithms in natural
An Initial Guess of Blur Kernel � As shown on right, a number of pixel pairs (highlighted in red) can be found with the same displacement (x, y) and intensity ratio µ between the fibril and its echo � Use Hough Transform technique to find a set of values (x, y, µ) which has the highest of corresponding pixelspace pairs was modelled �number The distortion in the image using the following equation: �where denotes the intensity of location (h, k) � is an echo of offset by a vector (x, y) � µ denotes the intensity ratio between the pixel intensity and its echo.
Hough Transform (HT) Results By applying Hough Transform, the image is then transform into a 3 -D Hough Space. The bin with the highest number of votes denotes an initial guess of the blur kernel. A slice in the Hough Space containing the bin with the highest number of votes (dark red point). HT resultant kernel smoothed with a 7 -tap Gaussian filter. Advantages: offers a good initial guess of blur kernel which can speed up the convergence & help with finding the global minimum instead of local minimum
Bayesian Deblurring � Nature Image Blur Model: � Blind Deconvolution: �Step 1: Optimise latent image L with blur kernel k fixed �The latent image L can be optimised by finding the minimum of the function: Likelihood/Noise Latent Image Prior �Solution: Fast TV-l 1 Deconvolution method introduced in Xu 2010. �Step 2: Optimise blur kernel k with latent image L fixed �Novel blur kernel prior: assumes the new estimated blur kernel should be sparse and very similar to the HT blur kernel. �The blur kernel k can be optimised by finding the minimum of the Likelihood/Noise’s Blur Kernel Prior function: gradients �Solution: Rewritten as matrix multiplication form and optimised using the Conjugate Gradient (CG) based method introduced in Cho 2009.

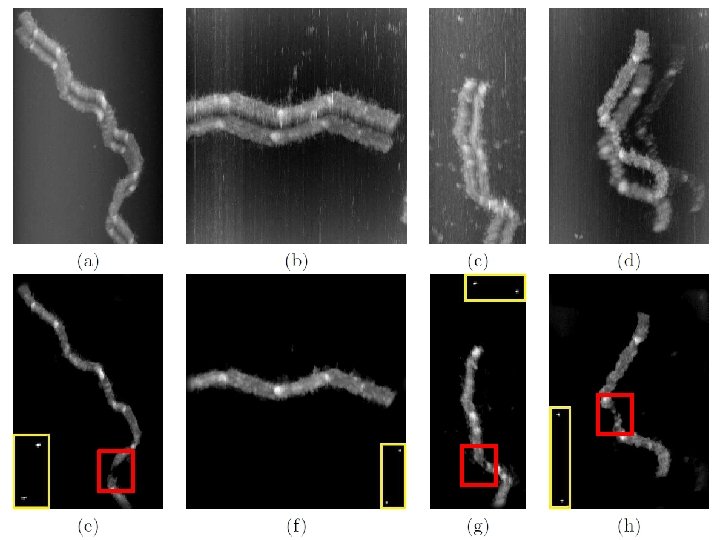

Limitations �The poorly deconvolved regions in the results (regions inside red window) are the regions in which the real fibril feature overlaps with its echoes �In this scenario, the AFM imaging process is thought to obey an overwrite model rather than a summation model of convolution as assumed in our algorithm
Conclusion & Future Work �As proved by the deblurring results, the proposed algorithm is successful at removing the large distortion artefact in AFM image. Also, the details inside the fibrils can be satisfactorily recovered with very few artefacts. �A direction of future work is to investigate potential alternative ways of treating the overlap regions including investigating the possibility of a supervised deblurring algorithm
