DC Specifications: input capacitance, leakage current, input impedance, reference voltage range, INL, and DNL

DC Specifications: input capacitance, leakage current, input impedance, reference voltage range, INL, and DNL TIPL 4001 TI Precision Labs – ADCs Created by Art Kay Presented by Peggy Liska

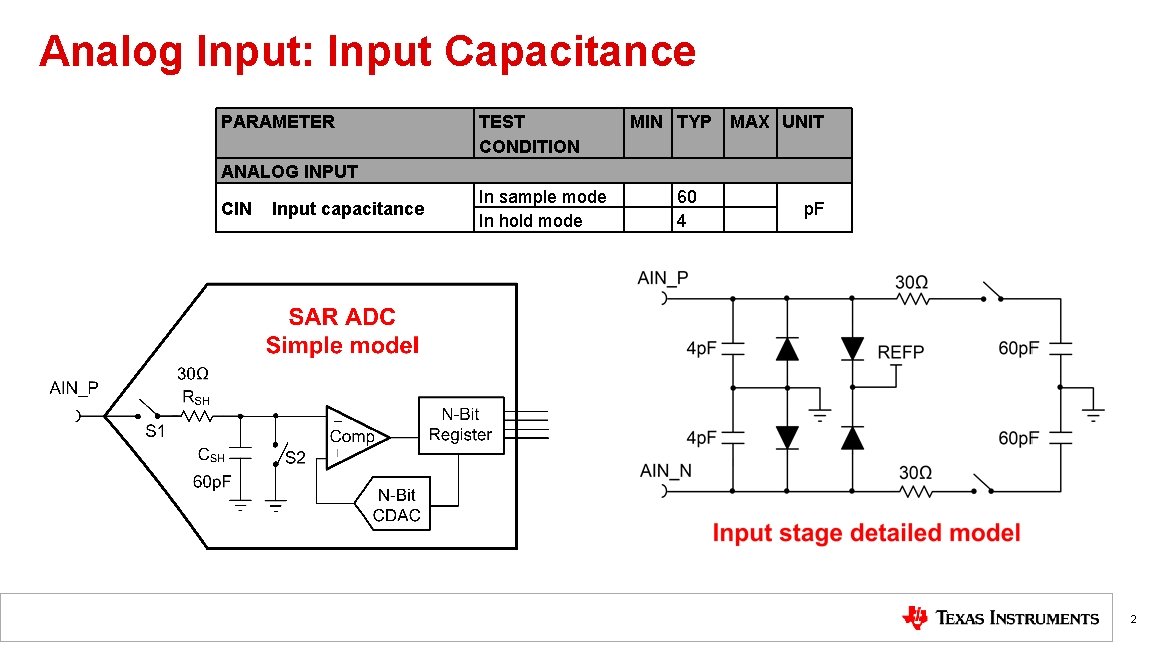

Analog Input: Input Capacitance PARAMETER TEST CONDITION MIN TYP MAX UNIT ANALOG INPUT CIN

Analog Input: Input Capacitance PARAMETER TEST CONDITION MIN TYP MAX UNIT ANALOG INPUT CIN Input capacitance In sample mode In hold mode 60 4 p. F 2

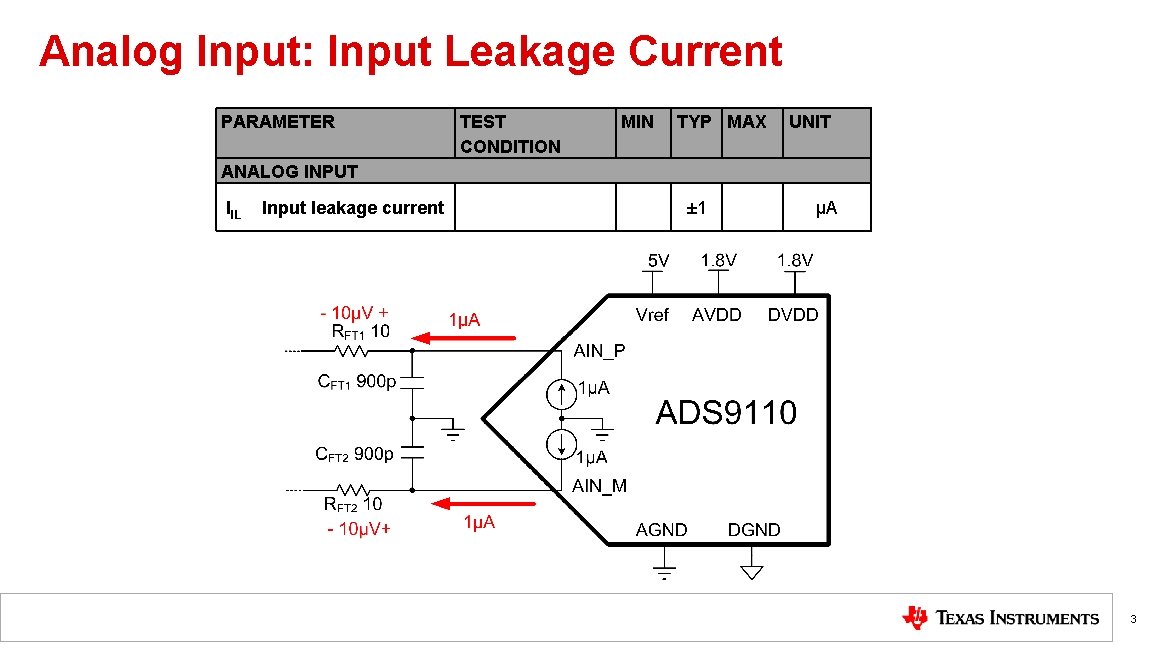

Analog Input: Input Leakage Current PARAMETER TEST CONDITION MIN TYP MAX UNIT ANALOG INPUT

Analog Input: Input Leakage Current PARAMETER TEST CONDITION MIN TYP MAX UNIT ANALOG INPUT IIL Input leakage current ± 1 µA 3

Analog Input: Input Impedance 4

Analog Input: Input Impedance 4

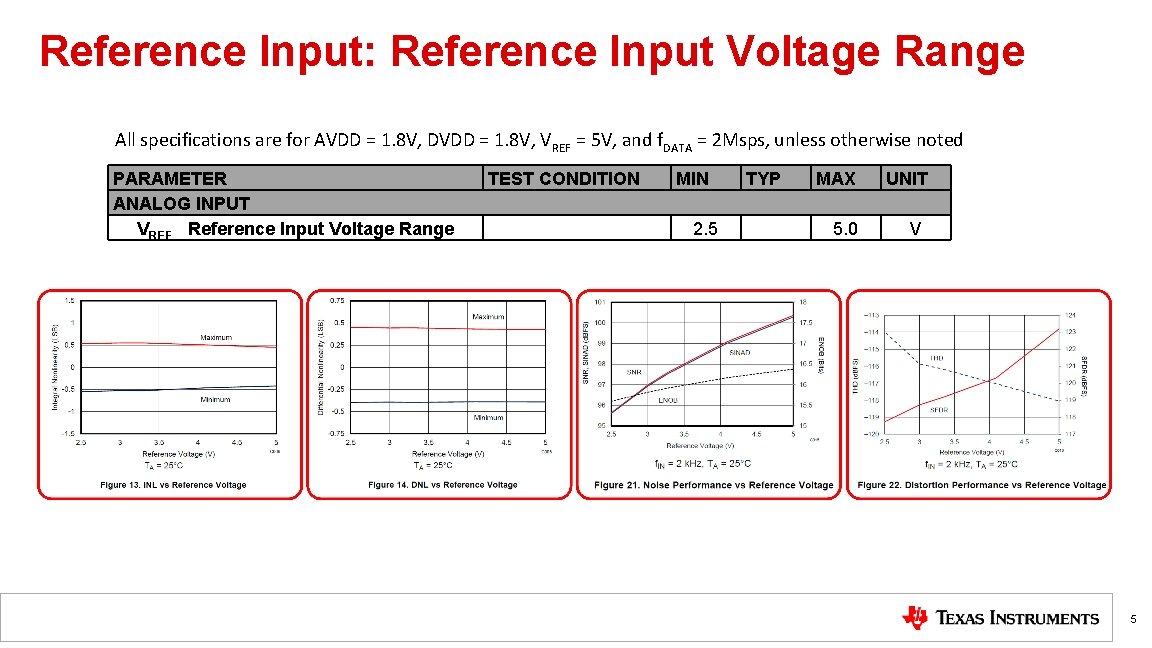

Reference Input: Reference Input Voltage Range All specifications are for AVDD = 1. 8

Reference Input: Reference Input Voltage Range All specifications are for AVDD = 1. 8 V, DVDD = 1. 8 V, VREF = 5 V, and f. DATA = 2 Msps, unless otherwise noted PARAMETER ANALOG INPUT VREF Reference Input Voltage Range TEST CONDITION MIN 2. 5 TYP MAX 5. 0 UNIT V 5

Reference Input: Reference current PARAMETER EXTERNAL REFERENCE INPUT Reference input current Input leakage Current

Reference Input: Reference current PARAMETER EXTERNAL REFERENCE INPUT Reference input current Input leakage Current CREF Decoupling capacitor at the reference input TEST CONDITION MIN During conversion, 1 MHz sample rate, midcode 10 TYP MAX UNIT 300 µA 250 22 p. A µF 6

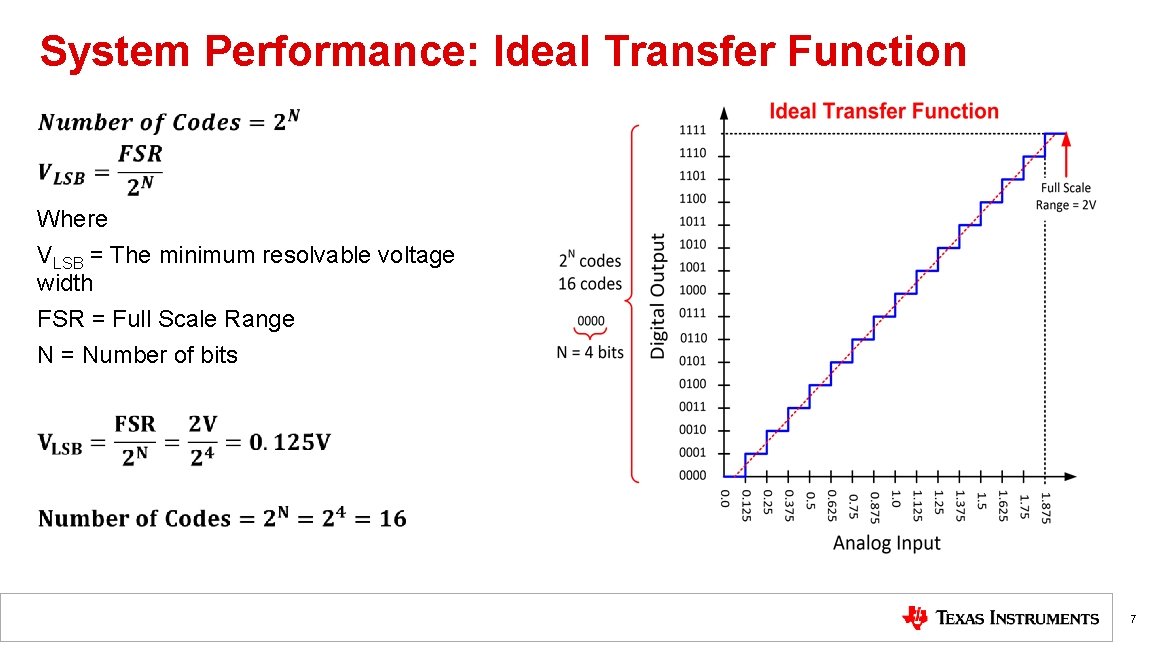

System Performance: Ideal Transfer Function Where VLSB = The minimum resolvable voltage width FSR

System Performance: Ideal Transfer Function Where VLSB = The minimum resolvable voltage width FSR = Full Scale Range N = Number of bits 7

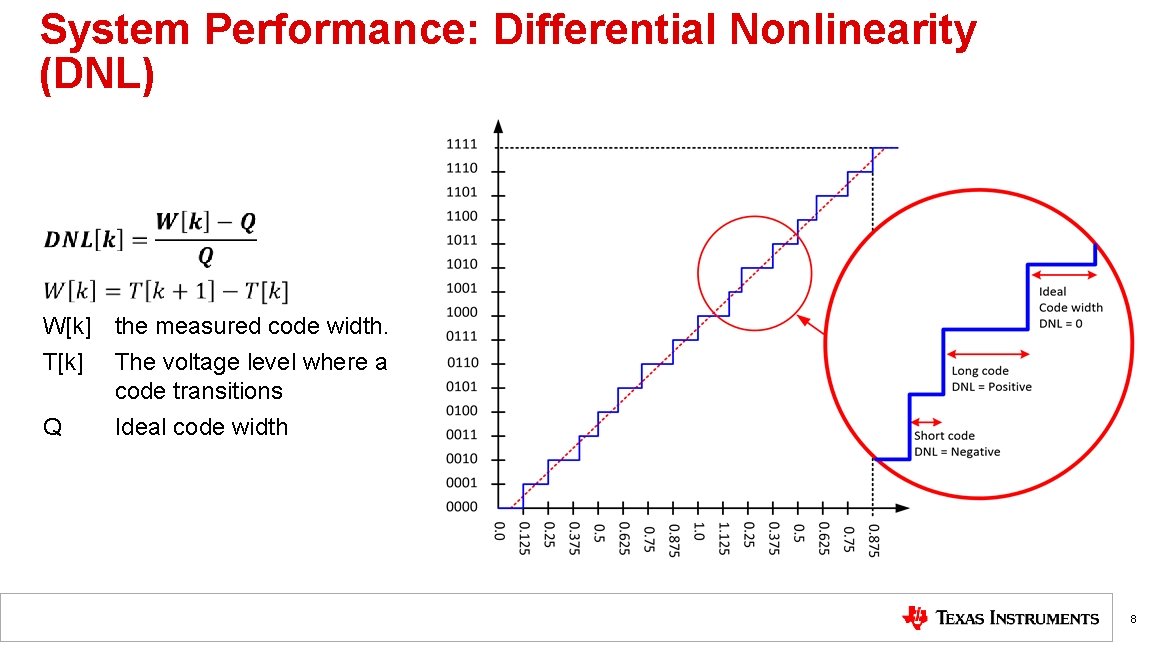

System Performance: Differential Nonlinearity (DNL) W[k] the measured code width. T[k] The voltage level

System Performance: Differential Nonlinearity (DNL) W[k] the measured code width. T[k] The voltage level where a code transitions Q Ideal code width 8

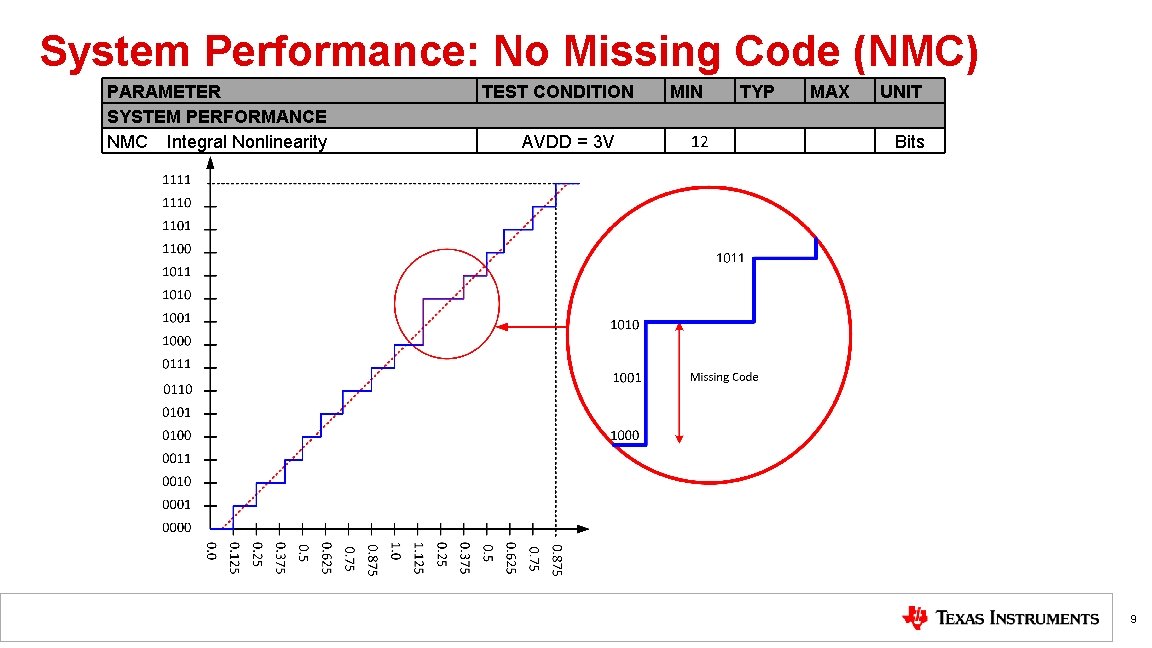

System Performance: No Missing Code (NMC) PARAMETER SYSTEM PERFORMANCE NMC Integral Nonlinearity TEST CONDITION

System Performance: No Missing Code (NMC) PARAMETER SYSTEM PERFORMANCE NMC Integral Nonlinearity TEST CONDITION AVDD = 3 V MIN 12 TYP MAX UNIT Bits 9

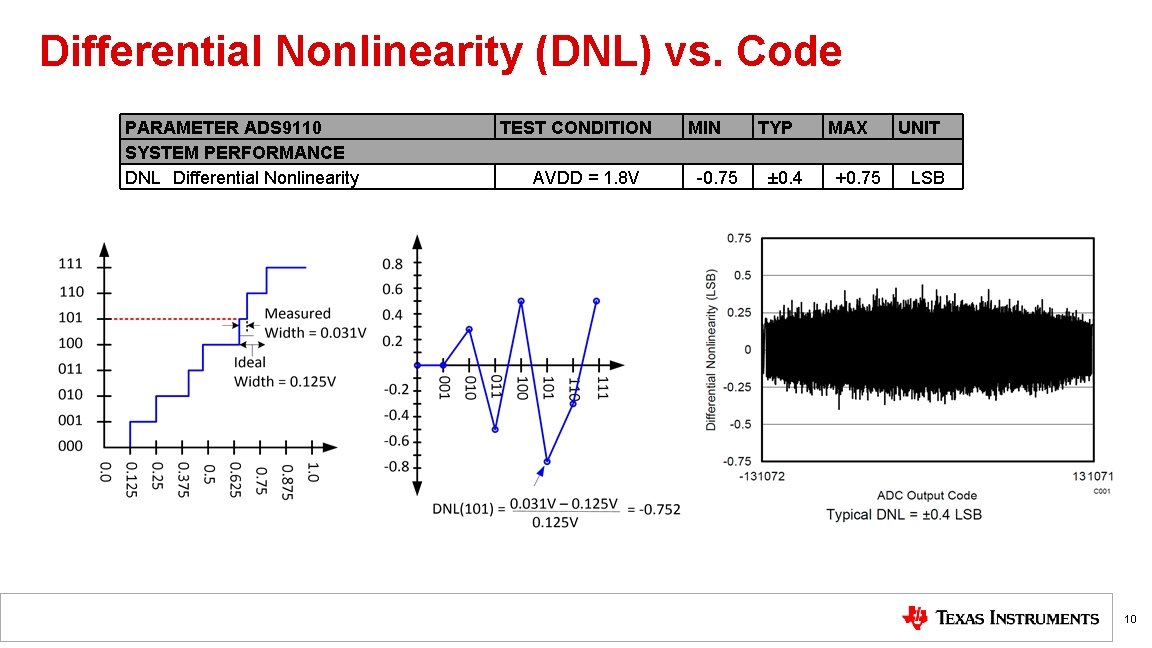

Differential Nonlinearity (DNL) vs. Code PARAMETER ADS 9110 SYSTEM PERFORMANCE DNL Differential Nonlinearity TEST

Differential Nonlinearity (DNL) vs. Code PARAMETER ADS 9110 SYSTEM PERFORMANCE DNL Differential Nonlinearity TEST CONDITION AVDD = 1. 8 V MIN -0. 75 TYP ± 0. 4 MAX +0. 75 UNIT LSB 10

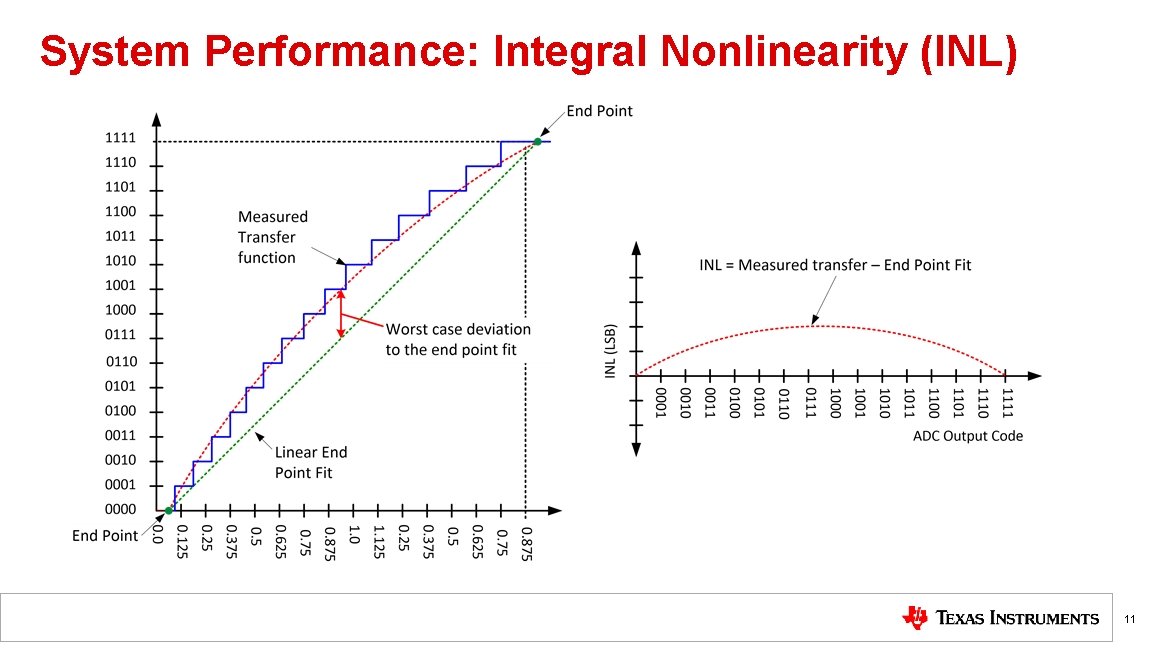

System Performance: Integral Nonlinearity (INL) 11

System Performance: Integral Nonlinearity (INL) 11

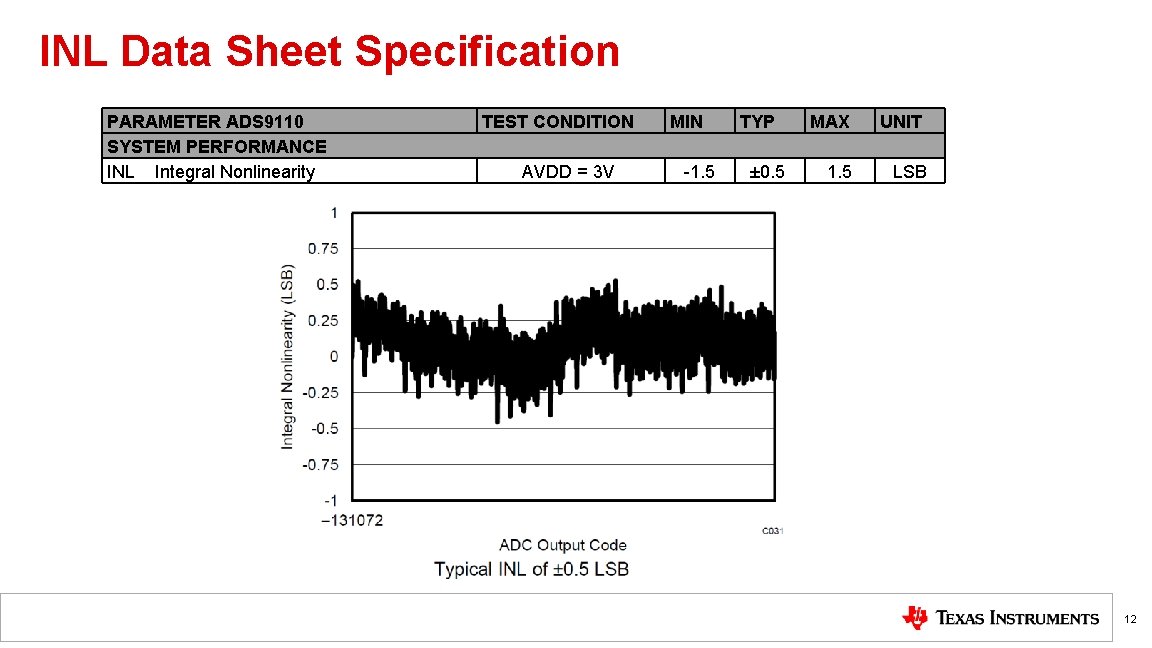

INL Data Sheet Specification PARAMETER ADS 9110 SYSTEM PERFORMANCE INL Integral Nonlinearity TEST CONDITION

INL Data Sheet Specification PARAMETER ADS 9110 SYSTEM PERFORMANCE INL Integral Nonlinearity TEST CONDITION AVDD = 3 V MIN -1. 5 TYP ± 0. 5 MAX UNIT 1. 5 LSB 12

Thanks for your time! Please try the quiz. 13

Thanks for your time! Please try the quiz. 13
