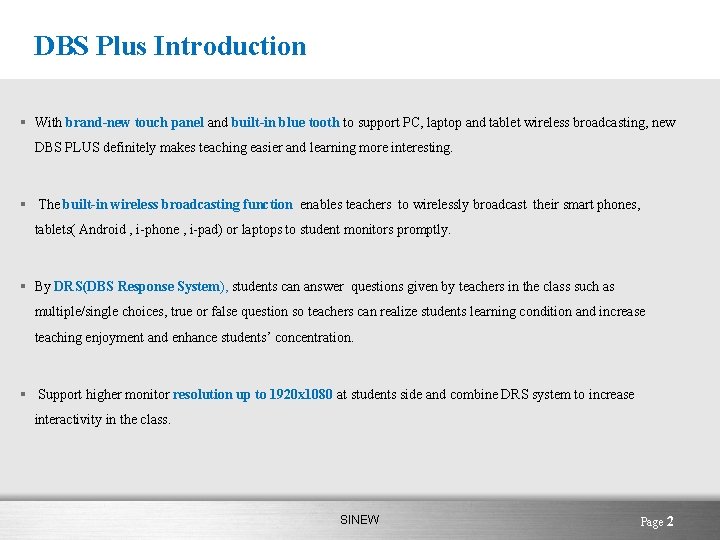

DBS Plus Introduction § With brand-new touch panel and built-in blue tooth to support PC, laptop and tablet wireless broadcasting, new DBS PLUS definitely makes teaching easier and learning more interesting. § The built-in wireless broadcasting function enables teachers to wirelessly broadcast their smart phones, tablets( Android , i-phone , i-pad) or laptops to student monitors promptly. § By DRS(DBS Response System), students can answer questions given by teachers in the class such as multiple/single choices, true or false question so teachers can realize students learning condition and increase teaching enjoyment and enhance students’ concentration. § Support higher monitor resolution up to 1920 x 1080 at students side and combine DRS system to increase interactivity in the class. SINEW Page 2

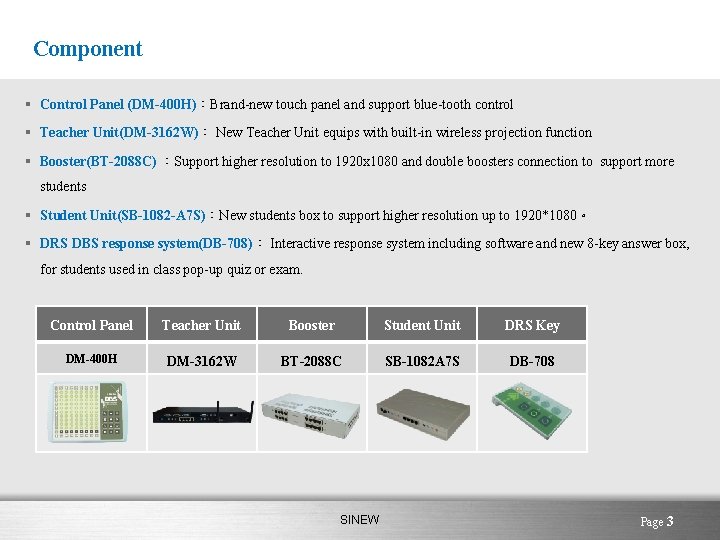

Component § Control Panel (DM-400 H):Brand-new touch panel and support blue-tooth control § Teacher Unit(DM-3162 W): New Teacher Unit equips with built-in wireless projection function § Booster(BT-2088 C) :Support higher resolution to 1920 x 1080 and double boosters connection to support more students § Student Unit(SB-1082 -A 7 S):New students box to support higher resolution up to 1920*1080。 § DRS DBS response system(DB-708): Interactive response system including software and new 8 -key answer box, for students used in class pop-up quiz or exam. Control Panel Teacher Unit Booster Student Unit DRS Key DM-400 H DM-3162 W BT-2088 C SB-1082 A 7 S DB-708 SINEW Page 3
Teacher Panel (DM-400 H-EBBT) Introduction 6 7 5 1. Main function 2. Students ID 3. Group switch 4. Source signal switch 5. DRS system: self study & exam 1 2 6. Output signal selection 7. Observing time, exclude and center monitor 3 4 SINEW Page 4

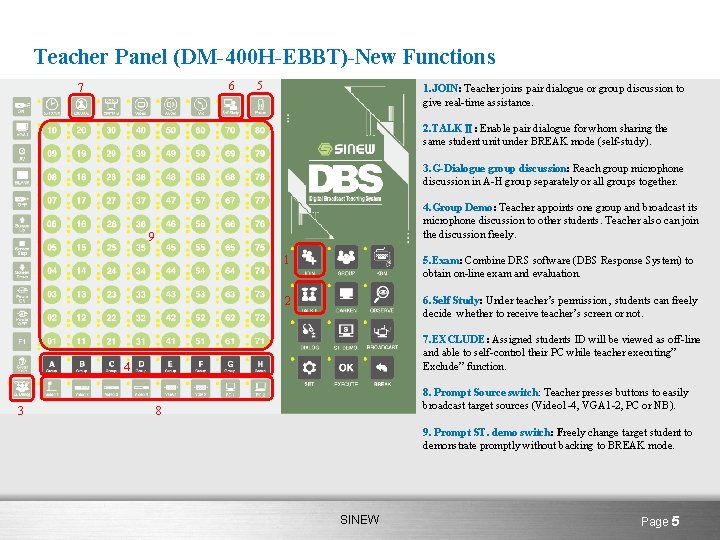

Teacher Panel (DM-400 H-EBBT)-New Functions 6 7 5 1. JOIN: Teacher joins pair dialogue or group discussion to give real-time assistance. 2. TALKⅡ: Enable pair dialogue for whom sharing the same student unit under BREAK mode (self-study). 3. G-Dialogue group discussion: Reach group microphone discussion in A-H group separately or all groups together. 4. Group Demo: Teacher appoints one group and broadcast its microphone discussion to other students. Teacher also can join the discussion freely. 9 1 5. Exam: Combine DRS software (DBS Response System) to obtain on-line exam and evaluation. 2 6. Self Study: Under teacher’s permission , students can freely decide whether to receive teacher’s screen or not. 7. EXCLUDE: Assigned students ID will be viewed as off-line and able to self-control their PC while teacher executing” Exclude” function. 4 3 8. Prompt Source switch: Teacher presses buttons to easily broadcast target sources (Video 1 -4, VGA 1 -2, PC or NB). 8 9. Prompt ST. demo switch: Freely change target student to demonstrate promptly without backing to BREAK mode. SINEW Page 5

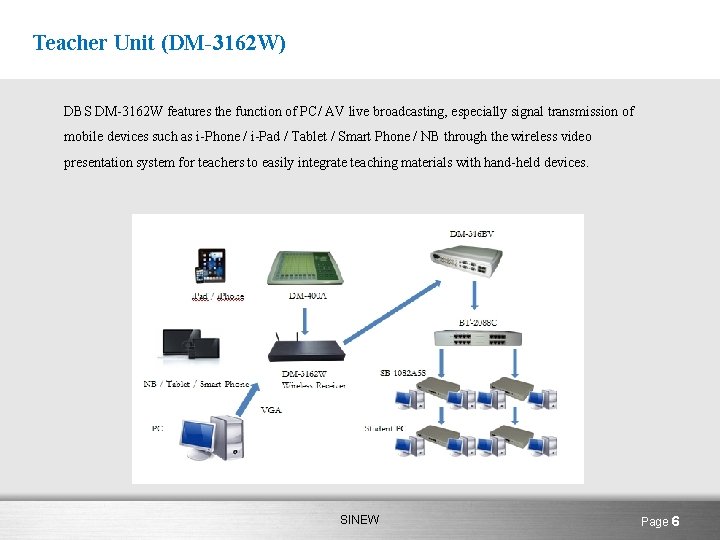

Teacher Unit (DM-3162 W) DBS DM-3162 W features the function of PC/ AV live broadcasting, especially signal transmission of mobile devices such as i-Phone / i-Pad / Tablet / Smart Phone / NB through the wireless video presentation system for teachers to easily integrate teaching materials with hand-held devices. SINEW Page 6

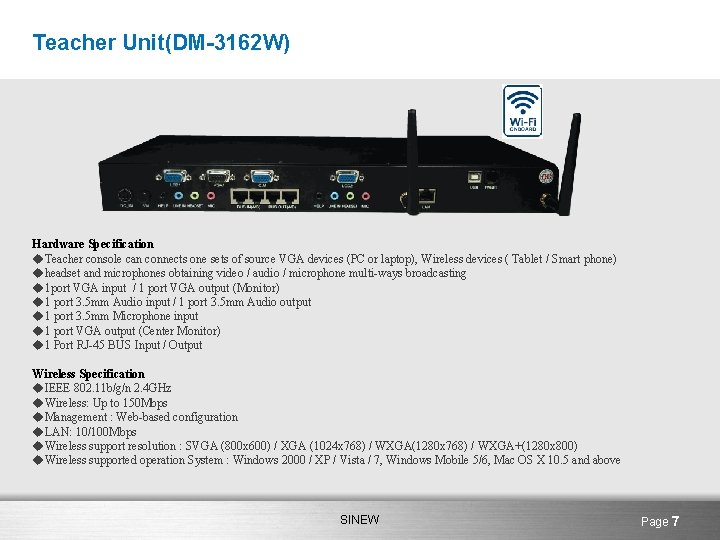

Teacher Unit(DM-3162 W) Hardware Specification u. Teacher console can connects one sets of source VGA devices (PC or laptop), Wireless devices ( Tablet / Smart phone) uheadset and microphones obtaining video / audio / microphone multi-ways broadcasting u 1 port VGA input / 1 port VGA output (Monitor) u 1 port 3. 5 mm Audio input / 1 port 3. 5 mm Audio output u 1 port 3. 5 mm Microphone input u 1 port VGA output (Center Monitor) u 1 Port RJ-45 BUS Input / Output Wireless Specification u. IEEE 802. 11 b/g/n 2. 4 GHz u. Wireless: Up to 150 Mbps u. Management : Web-based configuration u. LAN: 10/100 Mbps u. Wireless support resolution : SVGA (800 x 600) / XGA (1024 x 768) / WXGA(1280 x 768) / WXGA+(1280 x 800) u. Wireless supported operation System : Windows 2000 / XP / Vista / 7, Windows Mobile 5/6, Mac OS X 10. 5 and above SINEW Page 7

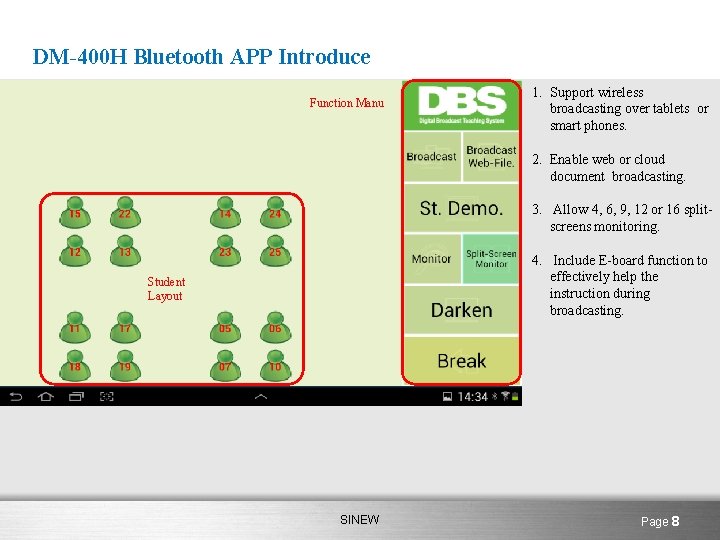

DM-400 H Bluetooth APP Introduce Function Manu 1. Support wireless broadcasting over tablets or smart phones. 2. Enable web or cloud document broadcasting. 3. Allow 4, 6, 9, 12 or 16 splitscreens monitoring. 4. Include E-board function to effectively help the instruction during broadcasting. Student Layout SINEW Page 8

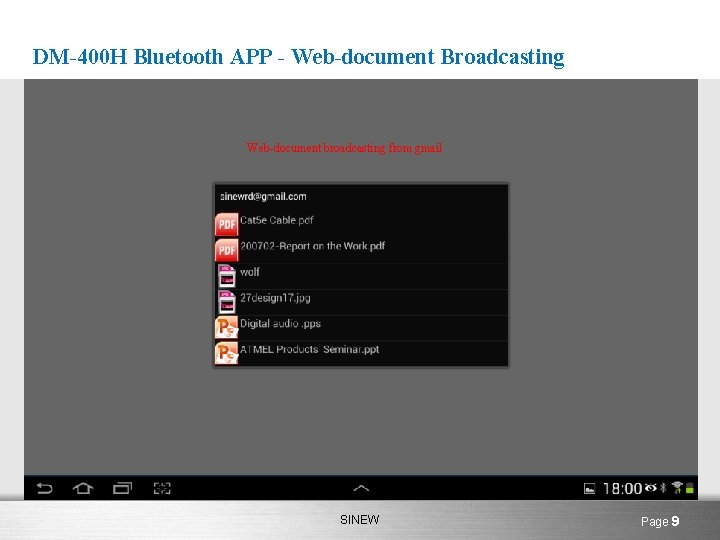

DM-400 H Bluetooth APP - Web-document Broadcasting Web-document broadcasting from gmail SINEW Page 9

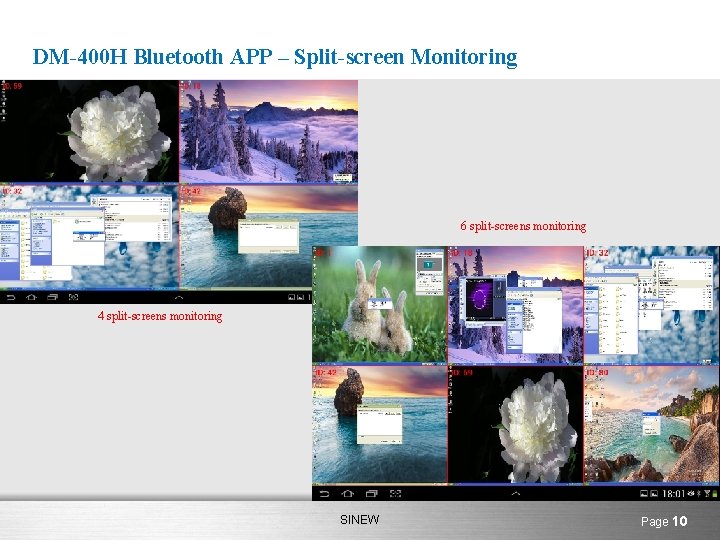

DM-400 H Bluetooth APP – Split-screen Monitoring 6 split-screens monitoring 4 split-screens monitoring SINEW Page 10

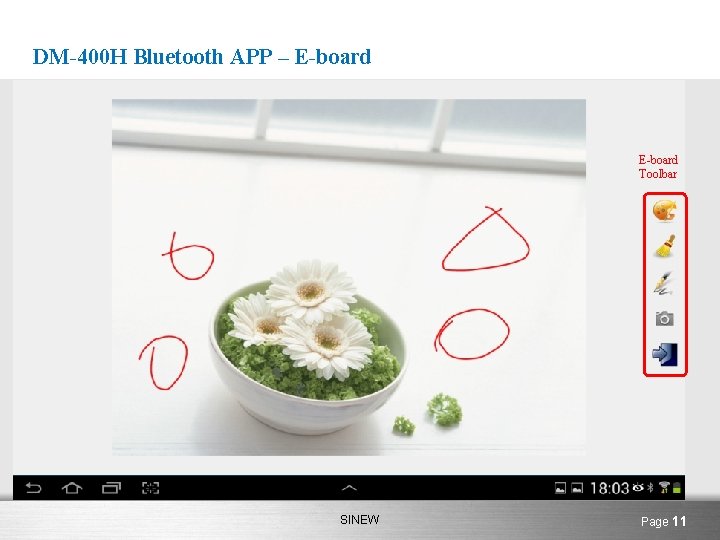

DM-400 H Bluetooth APP – E-board Toolbar SINEW Page 11

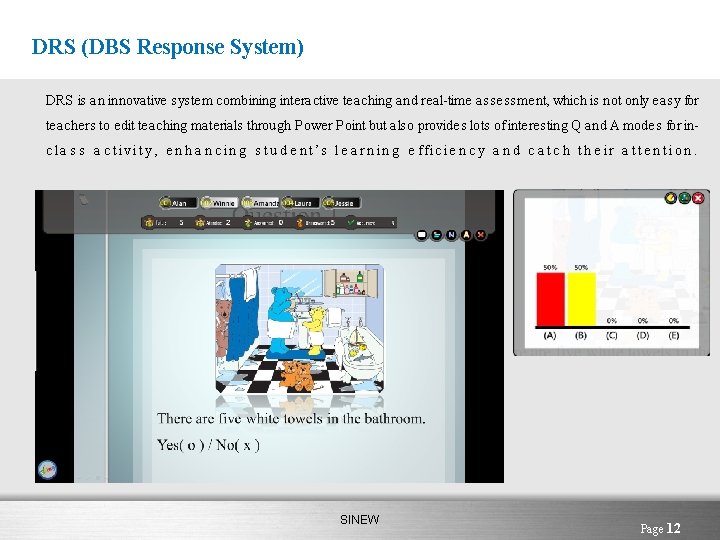

DRS (DBS Response System) DRS is an innovative system combining interactive teaching and real-time assessment, which is not only easy for teachers to edit teaching materials through Power Point but also provides lots of interesting Q and A modes for inc la s s a c t iv it y , e n h a n c in g s t u d e n t ’s le a r n in g e ffic ie n c y a n d c a t c h t h e ir a t t e n t io n. SINEW Page 12

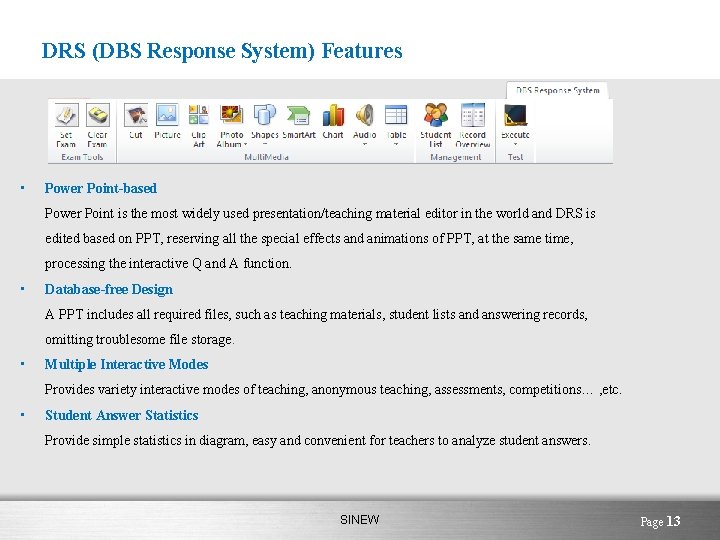

DRS (DBS Response System) Features • Power Point-based Power Point is the most widely used presentation/teaching material editor in the world and DRS is edited based on PPT, reserving all the special effects and animations of PPT, at the same time, processing the interactive Q and A function. • Database-free Design A PPT includes all required files, such as teaching materials, student lists and answering records, omitting troublesome file storage. • Multiple Interactive Modes Provides variety interactive modes of teaching, anonymous teaching, assessments, competitions… , etc. • Student Answer Statistics Provide simple statistics in diagram, easy and convenient for teachers to analyze student answers. SINEW Page 13

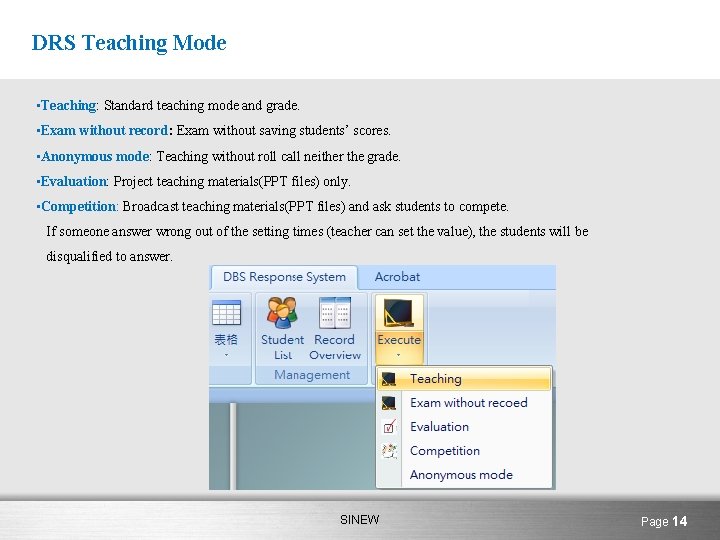

DRS Teaching Mode • Teaching: Standard teaching mode and grade. • Exam without record: Exam without saving students’ scores. • Anonymous mode: Teaching without roll call neither the grade. • Evaluation: Project teaching materials(PPT files) only. • Competition: Broadcast teaching materials(PPT files) and ask students to compete. If someone answer wrong out of the setting times (teacher can set the value), the students will be disqualified to answer. SINEW Page 14

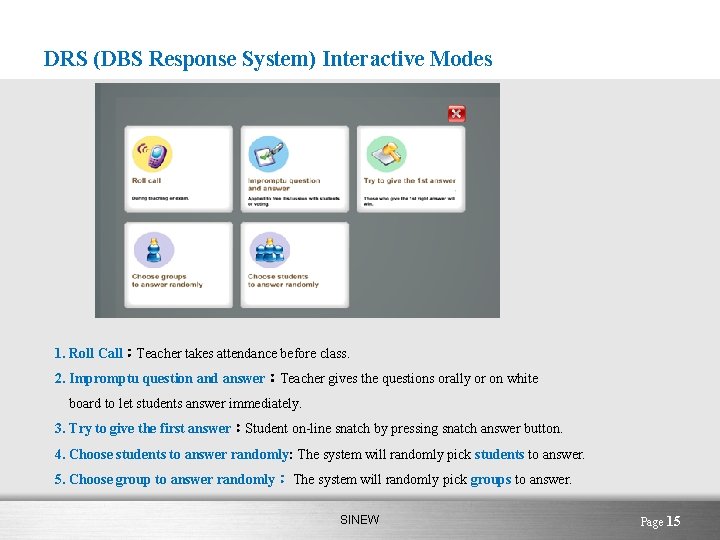

DRS (DBS Response System) Interactive Modes 1. Roll Call:Teacher takes attendance before class. 2. Impromptu question and answer:Teacher gives the questions orally or on white board to let students answer immediately. 3. Try to give the first answer:Student on-line snatch by pressing snatch answer button. 4. Choose students to answer randomly: The system will randomly pick students to answer. 5. Choose group to answer randomly: The system will randomly pick groups to answer. SINEW Page 15

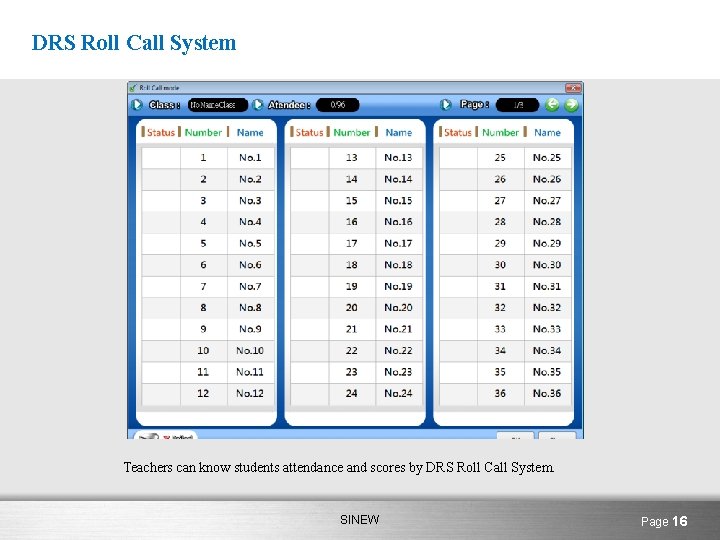

DRS Roll Call System Teachers can know students attendance and scores by DRS Roll Call System. SINEW Page 16

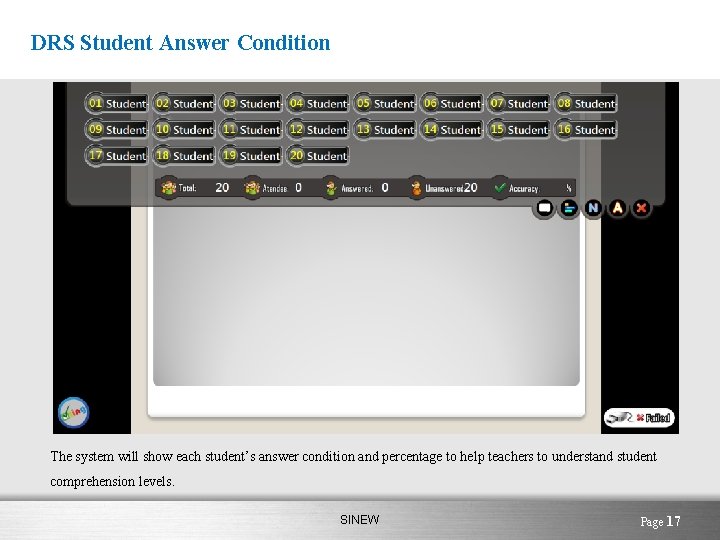

DRS Student Answer Condition The system will show each student’s answer condition and percentage to help teachers to understand student comprehension levels. SINEW Page 17

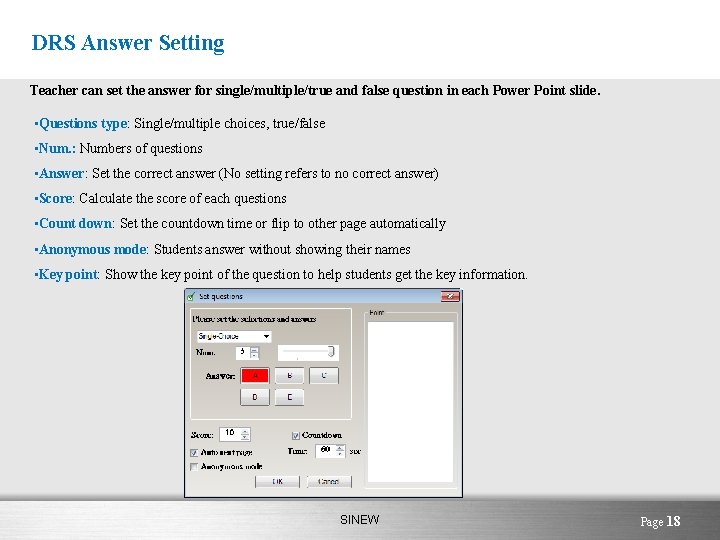

DRS Answer Setting Teacher can set the answer for single/multiple/true and false question in each Power Point slide. • Questions type: Single/multiple choices, true/false • Num. : Numbers of questions • Answer: Set the correct answer (No setting refers to no correct answer) • Score: Calculate the score of each questions • Count down: Set the countdown time or flip to other page automatically • Anonymous mode: Students answer without showing their names • Key point: Show the key point of the question to help students get the key information. SINEW Page 18

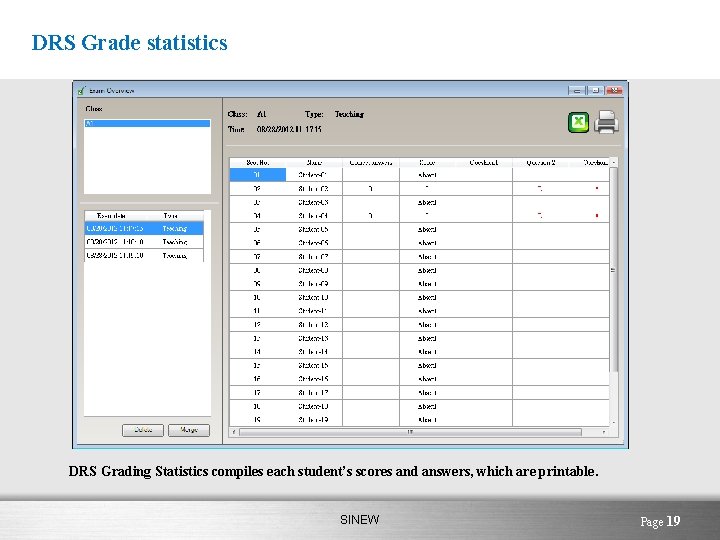

DRS Grade statistics DRS Grading Statistics compiles each student’s scores and answers, which are printable. SINEW Page 19

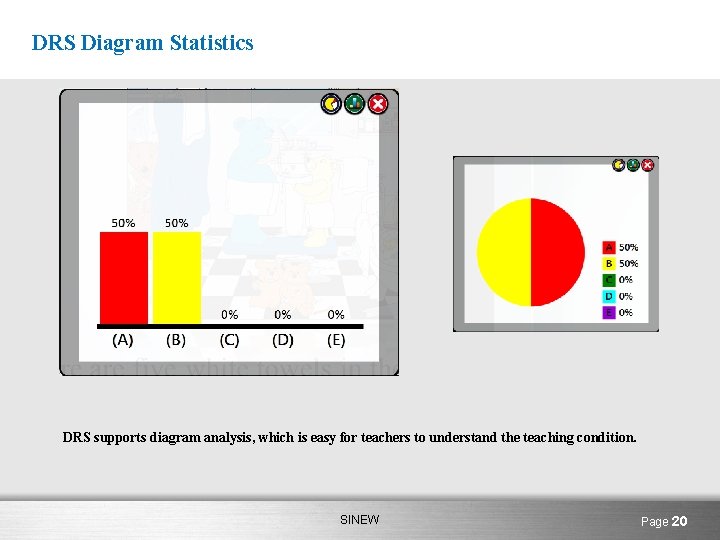

DRS Diagram Statistics DRS supports diagram analysis, which is easy for teachers to understand the teaching condition. SINEW Page 20

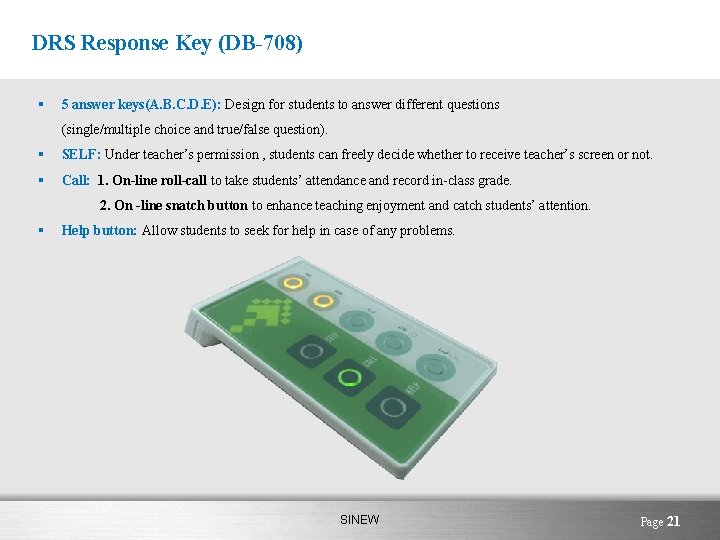

DRS Response Key (DB-708) § 5 answer keys(A. B. C. D. E): Design for students to answer different questions (single/multiple choice and true/false question). § SELF: Under teacher’s permission , students can freely decide whether to receive teacher’s screen or not. § Call: 1. On-line roll-call to take students’ attendance and record in-class grade. 2. On -line snatch button to enhance teaching enjoyment and catch students’ attention. § Help button: Allow students to seek for help in case of any problems. SINEW Page 21
