DBI 314 Logical Server SQL Azure Gateway Service

DBI 314

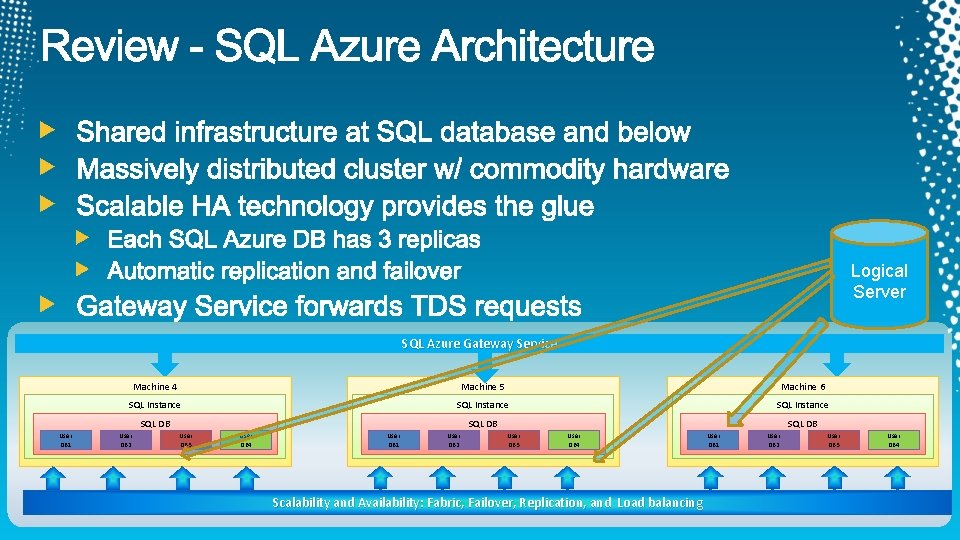

Logical Server SQL Azure Gateway Service Machine 4 Machine 5 Machine 6 SQL Instance SQL DB User DB 1 User DB 2 SQL DB User DB 3 User DB 4 Scalability and Availability: Fabric, Failover, Replication, and Load balancing User DB 1 User DB 2 User DB 3 User DB 4

North Europe North Central US West Europe South Central US East Asia Southeast Asia Regional hosting locations 200 ms Latency from 2 regional hosting locations Hosting locations within 100 ms of the customer At least one hosting location can be reached within 100 ms, but not two No points to test from or greater than 200 ms latency

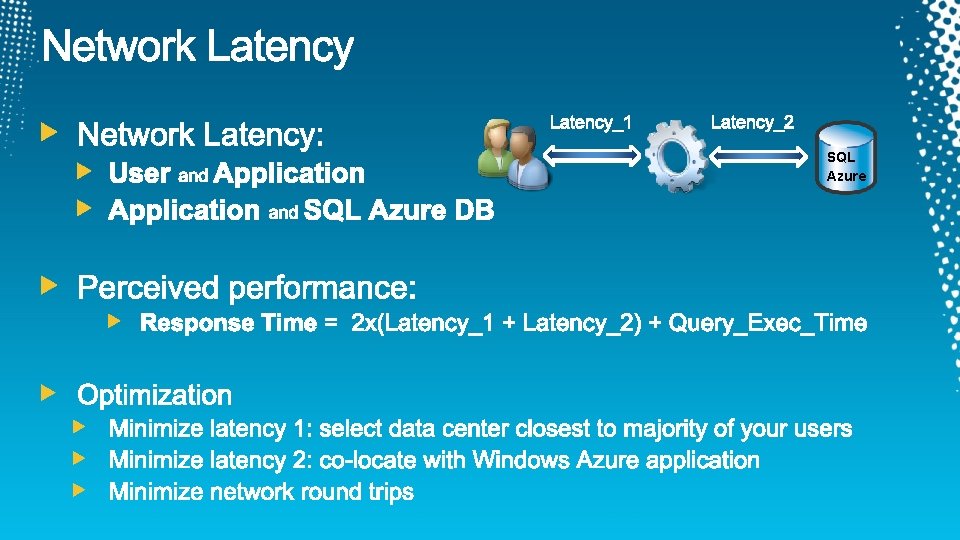

SQL Azure

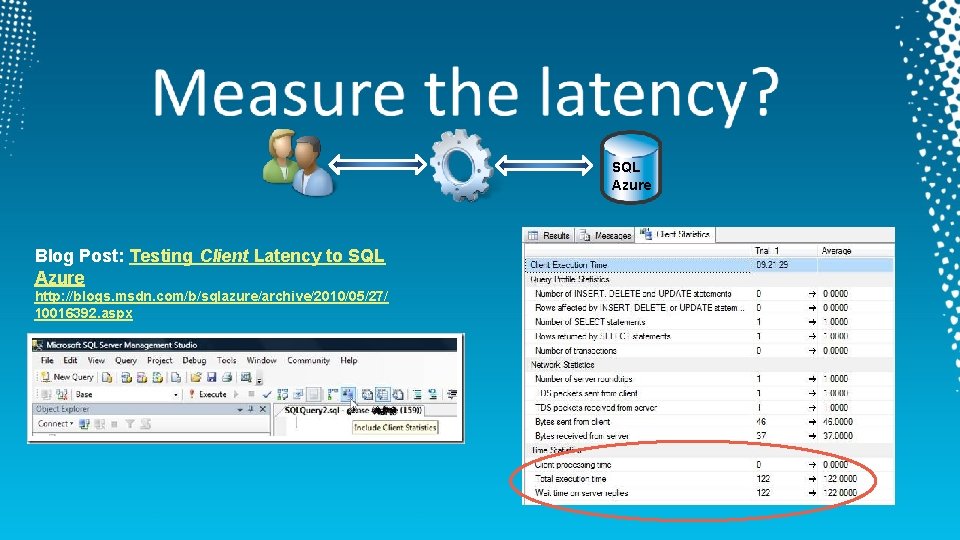

SQL Azure Blog Post: Testing Client Latency to SQL Azure http: //blogs. msdn. com/b/sqlazure/archive/2010/05/27/ 10016392. aspx

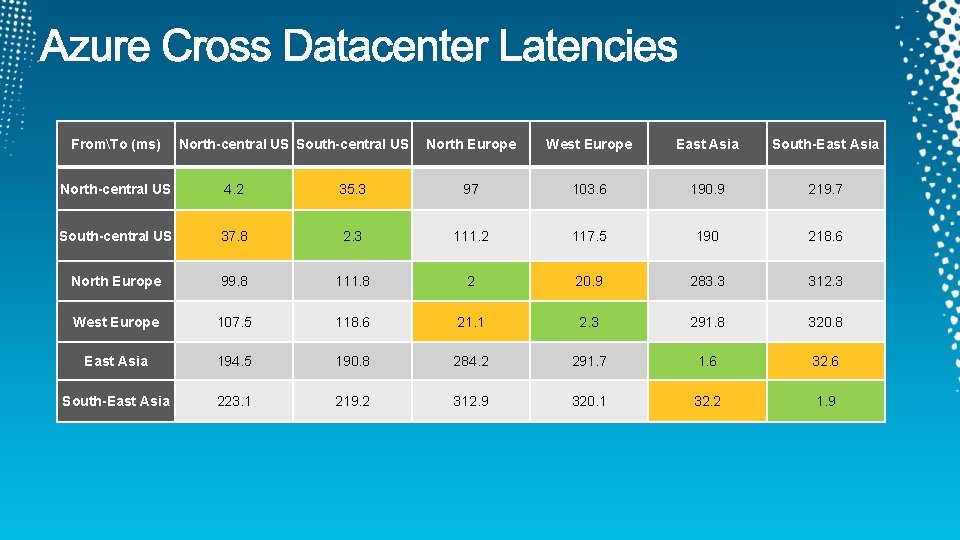

FromTo (ms) North-central US South-central US North Europe West Europe East Asia South-East Asia North-central US 4. 2 35. 3 97 103. 6 190. 9 219. 7 South-central US 37. 8 2. 3 111. 2 117. 5 190 218. 6 North Europe 99. 8 111. 8 2 20. 9 283. 3 312. 3 West Europe 107. 5 118. 6 21. 1 2. 3 291. 8 320. 8 East Asia 194. 5 190. 8 284. 2 291. 7 1. 6 32. 6 South-East Asia 223. 1 219. 2 312. 9 320. 1 32. 2 1. 9

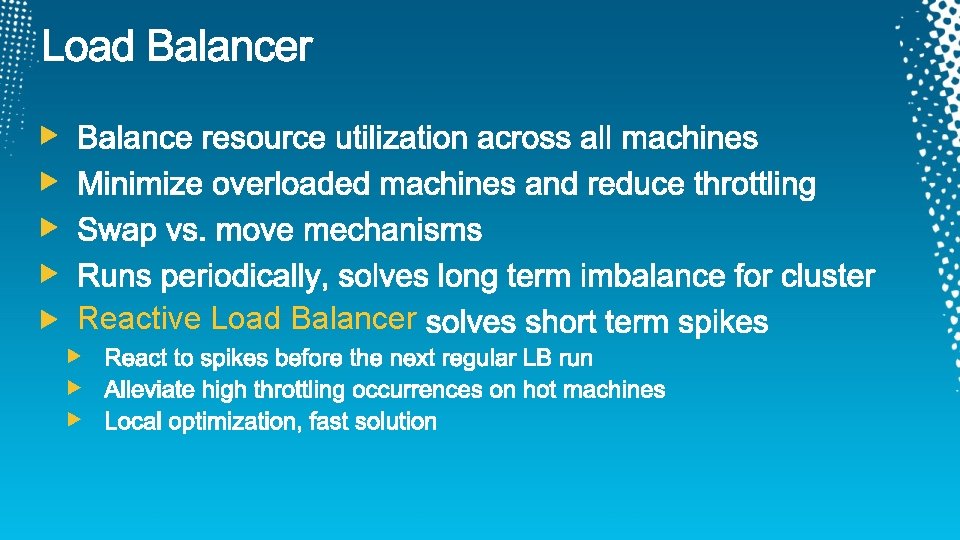

Reactive Load Balancer

%d

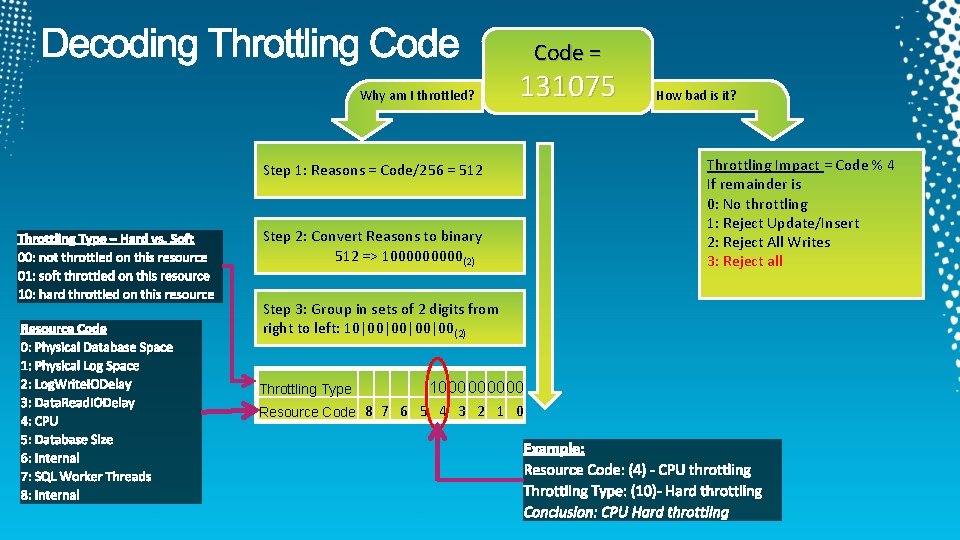

Code = Why am I throttled? 131075 Step 1: Reasons = Code/256 = 512 Step 2: Convert Reasons to binary 512 => 100000(2) Step 3: Group in sets of 2 digits from right to left: 10|00|00(2) 100000 Resource Code 8 7 6 5 4 3 2 1 0 Throttling Type How bad is it? Throttling Impact = Code % 4 If remainder is 0: No throttling 1: Reject Update/Insert 2: Reject All Writes 3: Reject all

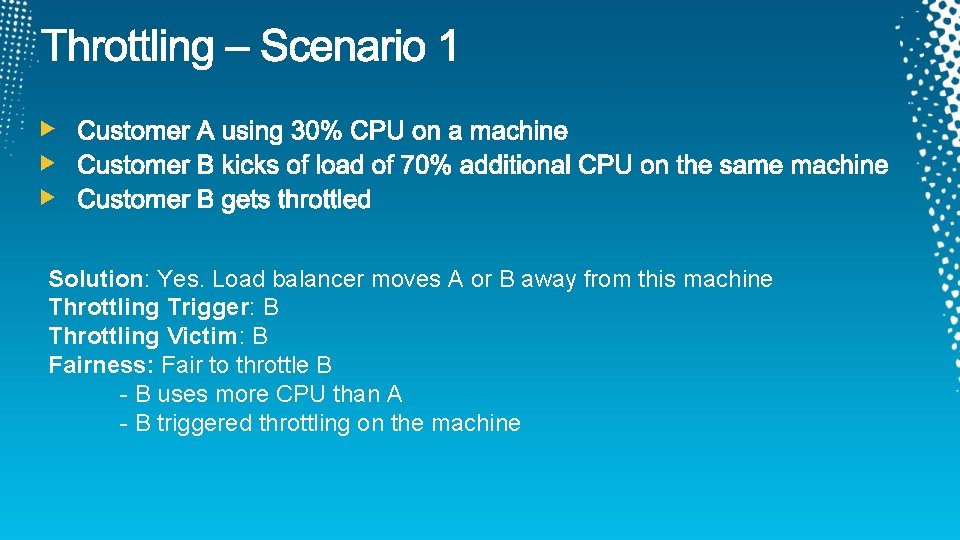

Solution: Yes. Load balancer moves A or B away from this machine Throttling Trigger: B Throttling Victim: B Fairness: Fair to throttle B - B uses more CPU than A - B triggered throttling on the machine

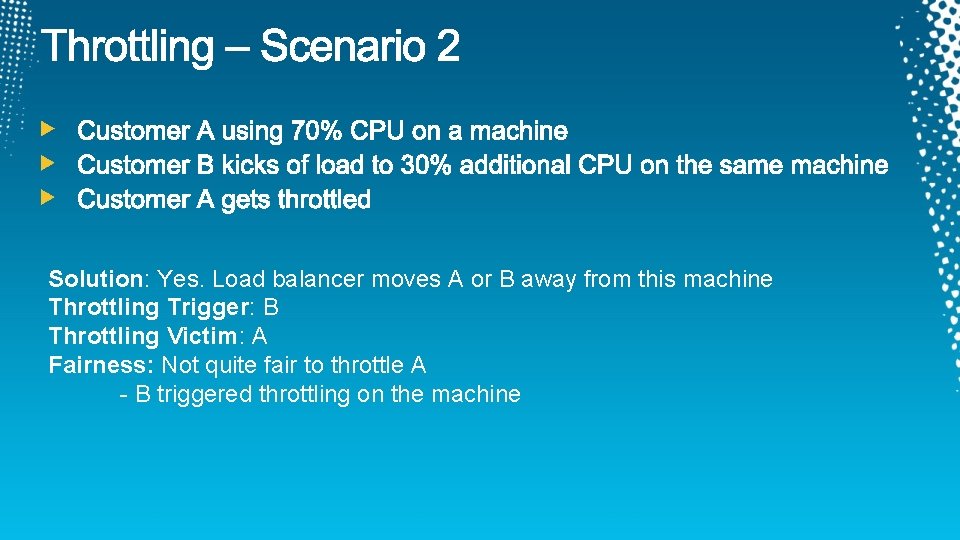

Solution: Yes. Load balancer moves A or B away from this machine Throttling Trigger: B Throttling Victim: A Fairness: Not quite fair to throttle A - B triggered throttling on the machine

Solution: No. A will get throttle anywhere it is placed. A exceeds a machine’s total CPU Throttling Trigger: A Throttling Victim: A Fairness: Fair from system perspective but customer will not be happy =( Customer A needs to optimize and reduce resource usage to fit within a SQL Azure machine

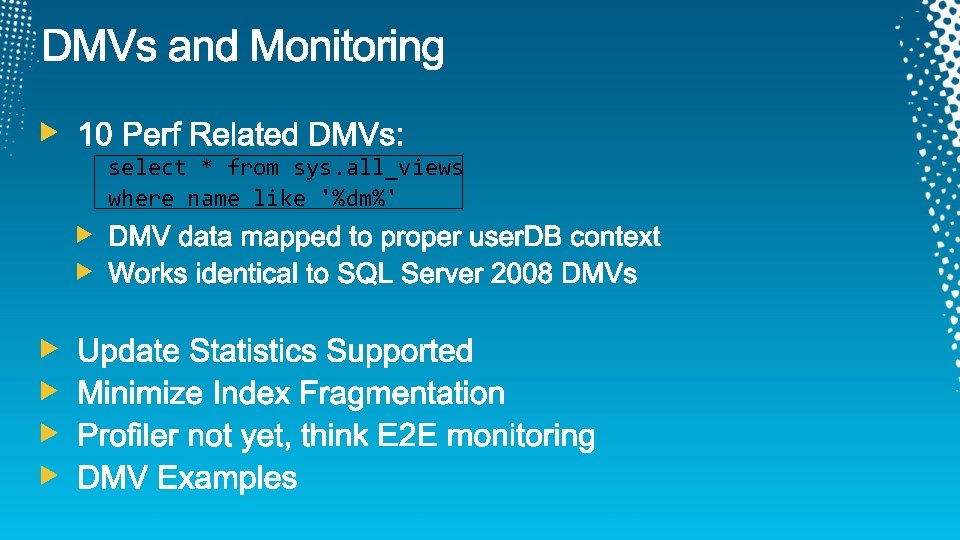

select * from sys. all_views where name like '%dm%'

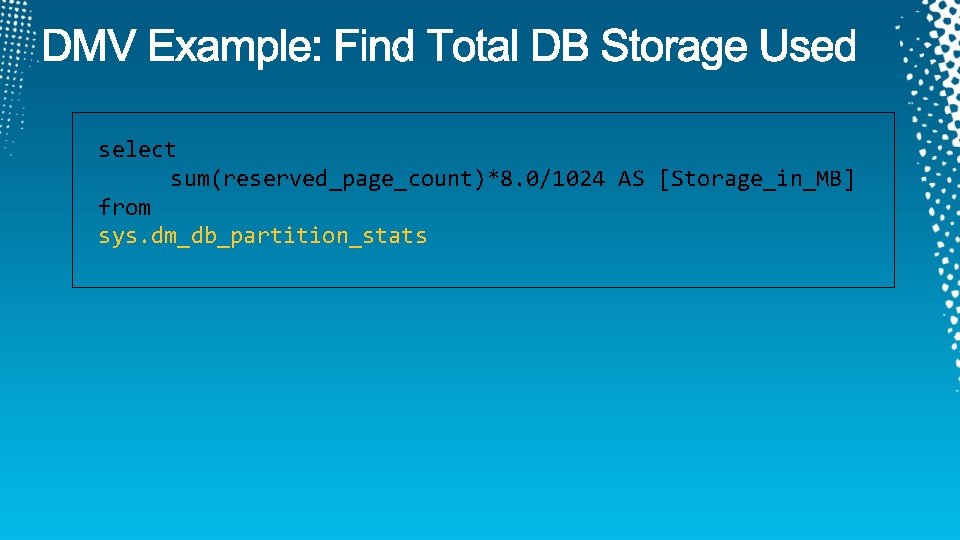

select sum(reserved_page_count)*8. 0/1024 AS [Storage_in_MB] from sys. dm_db_partition_stats

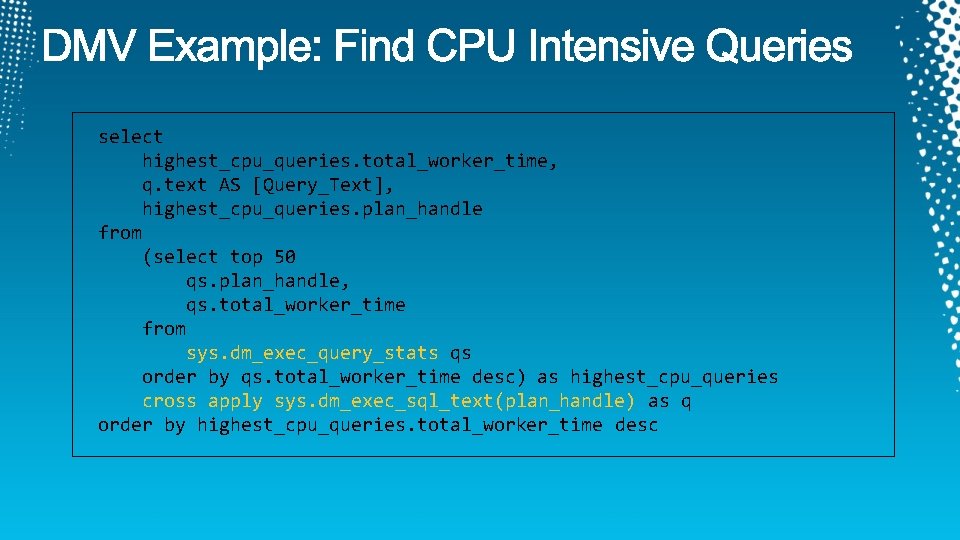

select highest_cpu_queries. total_worker_time, q. text AS [Query_Text], highest_cpu_queries. plan_handle from (select top 50 qs. plan_handle, qs. total_worker_time from sys. dm_exec_query_stats qs order by qs. total_worker_time desc) as highest_cpu_queries cross apply sys. dm_exec_sql_text(plan_handle) as q order by highest_cpu_queries. total_worker_time desc

select top 25 (total_logical_reads/execution_count) as avg_logical_reads, (total_logical_writes/execution_count) as avg_logical_writes, (total_physical_reads/execution_count) as avg_phys_reads, Execution_count, sql_handle, plan_handle from sys. dm_exec_query_stats order by (total_logical_reads + total_logical_writes) Desc
