DBA’s New Best Friend: Oracle Database 10 g and 11 g SQL Performance Analyzer Kurt Engeleiter Product Manager Database Manageability

Outline • SQL Performance Analyzer (SPA) – Introduction • Recommended Testing Methodology • Usage Scenarios – Evaluating Changes on Production System – 10. 2 11 g DB Upgrade • SPA Enhancements in Oracle Database 11 g Release 2 • SPA Exadata Simulation • Conclusion

SPA Motivation • Businesses need to adapt to changes to stay competitive, compliant and evolve – DB upgrades, schema, optimizer statistics refresh – SQL performance regressions: #1 cause of poor system perf. • Current testing landscape and limitations – Expensive capture, partial workload, non-production optimizer context, binds – Large workloads (100 Ks SQL stmts are common) – Manual and time consuming testing and regression tuning – No end-to-end testing solution – Test In Production is not too uncommon SQL Performance Analyzer (SPA) Ø Proactively detects ALL SQL regressions, BEFORE actual change is deployed Ø Integrated comprehensive solution for end-to-end SQL workload testing

SPA Overview • • Helps users predict the impact of system changes on SQL workload response time Low overhead capture of SQL workload to SQL Tuning Set (STS) on production system SQL Workload STS SQL plans + stats Pre-change Trial • Build different SQL trials (experiments) of SQL statements performance by test execution • Analyzes performance differences • Offers fine-grained performance analysis on individual SQL • Integrated with STS, SQL Plan Baselines, & SQL Tuning Advisor to form an end-to-end solution Compare SQL Performance Analysis Report SQL plans + stats Post-change Trial

SQL Trials • SQL Trials capture execution performance (plans and statistics) of the STS under a given environment • SPA Trials handle the SELECTS and query part of DML, DDL is skipped • There are 3 methods to build SQL Trials: – Execute SQL Locally or Remotely • Test execute statements in actual environment • For remote execution, database link needs to be specified – Generate Plans Locally or Remotely • Generated execution plans have bind visibility, so better than vanilla “explain” • Quick way to check if wide-spread changes to SQL plans – Build from STS • Convert STS to SQL Trial • Use for SQL centric analysis with DB Replay or other testing tools • Use for 9 i/10. 1 upgrade to higher releases

SPA: Common Usage Scenarios • Database upgrades and patch-set releases – 9. 2/10. 1 10. 2 or 11 g releases – 10. 2. 0. x 10. 2. 0. y or 11 g releases • Optimizer statistics refresh • Database parameter changes • Database schema changes (e. g. , add/drop indexes) • Implementation of tuning recommendations • I/O subsystem changes (e. g. , ASM, Exadata) SPA can be used for: Ø any change that affects SQL execution plan & performance Ø in production as well as test environments Information for use cases on OTN/ML Note: 560977. 1

SPA: Enterprise Manager Interface • Rich GUI through Enterprise Manager – New workflows added! • DBMS_SQLPA package PL/SQL API New Workflows !

Recommended Testing Methodology

Real Application Testing: Recommended Methodology 1. USE SPA FOR SQL RESPONSE TIME / UNIT TESTING DONE? No Yes 2. USE DB REPLAY FOR LOAD / CONCURRENCY TESTING DONE? No Yes DEPLOY CHANGE & TUNING

Recommended Testing Methodology with SPA 1. CAPTURE REPRESENTATIVE SQL WORKLOAD TO STS 2. ESTABLISH BASELINE (SQL TRIAL-1) WITHOUT CHANGE 3. MAKE CHANGE, ESTABLISH SQL TRIAL -N 4. COMPARE TRIALS & REVIEW SPA REPORT, REMEDIATE 5. Deploy Change & Tuning to PROD OR further testing thru DB Replay Yes DONE? No • Use Production or identical Test System • Test one change at a time to understand causality • Reports show deviations from production • Compare Baseline to Trial-N in the same environment • For incremental tuning: Compare Trial N-1 to Trial-N

Usage Scenario: Evaluating Changes On Production

Using SPA For Changes in Production: Example Prod +Add And so on… indexes 1. Fix Regression thru SPM Parameter change was bad in this case +Parameter +Index Change Unusable +New Stats Change +Validate Fix Regression SQL Profile +Partitioning Tuning +SQL Profile • Bubble following the arrow indicates the delta change on Production • SPA is used for testing every change

How to Minimize Impact on Production? • Generate Plan Vs Test Execute – Use Generate Plan Trial Method to subset SQL with plan changes – Only test execute SQL with plan changes • Limit testing scope to private session or schema where possible – Use alter session set <parameter> = <value>; (Vs system) – Example usage for SQL Profiles: • alter session set sqltune_category= ‘TEST’; – Implement SQL Profiles and test Only sessions with “TEST” sqltune_category see these Profiles - private scope!! • alter session set sqltune_category= ‘DEFAULT’; -- Now SQL Profiles visible globally to all sessions • Similarly for Invisible Indexes, Pending Stats • Use SPA time limit to control resource usage • Test during maintenance window or non-peak activity when spare resources are available

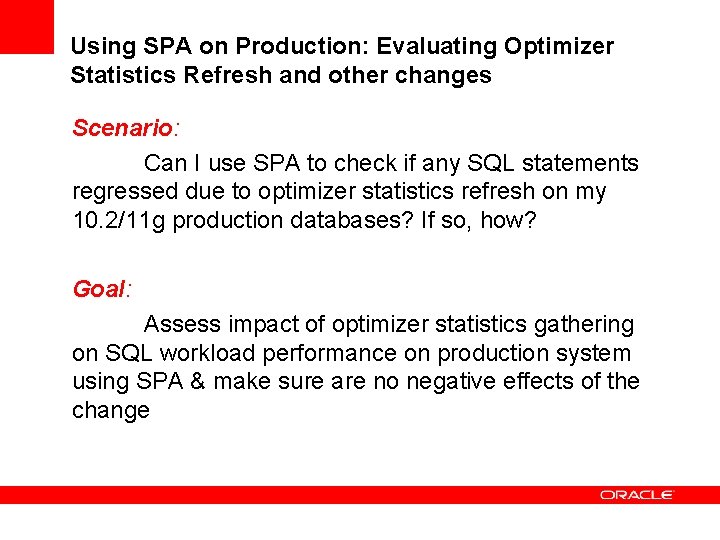

Using SPA on Production: Evaluating Optimizer Statistics Refresh and other changes Scenario: Can I use SPA to check if any SQL statements regressed due to optimizer statistics refresh on my 10. 2/11 g production databases? If so, how? Goal: Assess impact of optimizer statistics gathering on SQL workload performance on production system using SPA & make sure are no negative effects of the change

Evaluating Optimizer Statistics Refresh • Assumptions – – Statistics refreshed periodically through custom jobs No test system available, so evaluation is done on production Should impact end-users minimally Test using optimizer pending statistics feature • Use SPA remote trials capability (generate plan and test execute) to evaluate statistics refresh on 10. 2/11 g production database • Analyze SPA report and take appropriate action – Overall improvement but few SQL regressions • Solution: Use SQL Profiles or Plan Management – No improvement and many regressions • Solution: Revert to old statistics: Use optimizer statistics retention/history feature. Alternatively, configure optimizer statistics appropriately* – For Oracle Database 11 g, “publish pending” statistics after evaluation of statistics OBE Tutorial on OTN: Gathering and Publishing Stats Independently

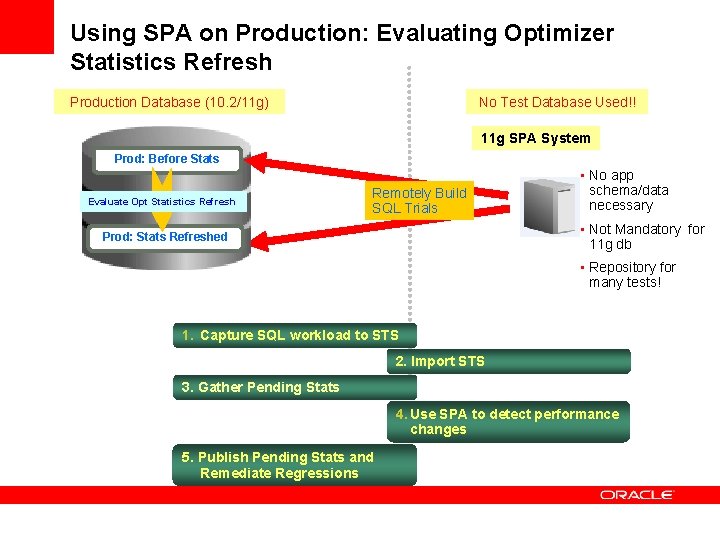

Using SPA on Production: Evaluating Optimizer Statistics Refresh Production Database (10. 2/11 g) No Test Database Used!! 11 g SPA System Prod: Before Stats Evaluate Opt Statistics Refresh Remotely Build SQL Trials • No app schema/data necessary • Not Mandatory for 11 g db Prod: Stats Refreshed • Repository for many tests! 1. Capture SQL workload to STS 2. Import STS 3. Gather Pending Stats 4. Use SPA to detect performance changes 5. Publish Pending Stats and Remediate Regressions

Usage Scenario: End-to-End Case Study for 10. 2 11 g Upgrade

10. 2 11 g DB Upgrade Using Enterprise Manager Grid Control (EMGC) 10. 2. 0. 5 Scenario: I want to upgrade from 10. 2 to 11 g database release to benefit from 11 g functionality. How can I best accomplish the upgrade? Goal: Assess impact of upgrade on SQL workload performance using SPA so that there are no surprises after upgrade. Once migrated to 11 g new features can be enabled one at a time. Use EMGC 10. 2. 0. 5 for this purpose…

10. 2 11 g DB Upgrade Production Database Test Database Prod DB (10. 2) Test DB (11 g) Upgrade Test DB (10. 2) Send SQL for Remote Execution 1. Capture SQL workload to STS 2. Transport STS Collect execution stats 3. Establish 10. 2 and 11 g Trials 11 g SPA System 5. Deploy Tuning and Change to Prod 4. Compare performance and generate SPA report

10. 2 11 g DB Upgrade (1) Capture Workload to STS Steps 1: Capture workload into STS through Incremental Capture Workload into STS: Preferred method Other sources for STS also possible: Top SQL in AWR / AWR Baseline

10. 2 11 g DB Upgrade (1) Capture Workload to STS

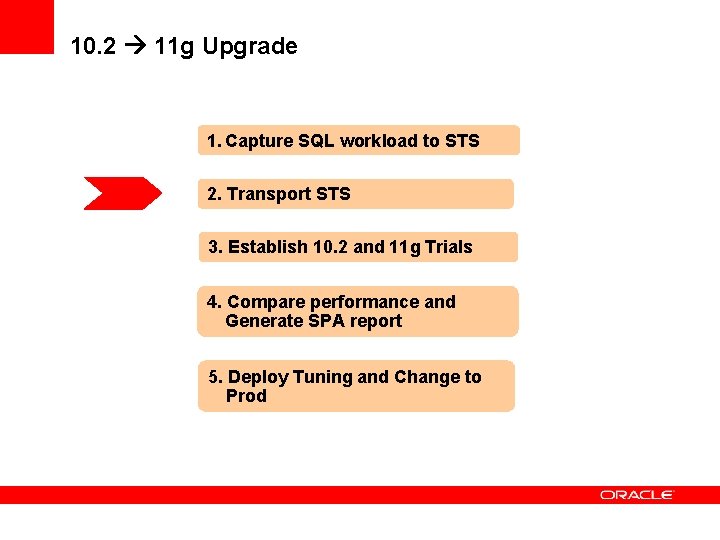

10. 2 11 g Upgrade 1. Capture SQL workload to STS 2. Transport STS 3. Establish 10. 2 and 11 g Trials 4. Compare performance and Generate SPA report 5. Deploy Tuning and Change to Prod

10. 2 11 g DB Upgrade (2) Transport STS Step 2: • Copy STS to SPA system • Setup Test DB (Copy of Prod) – 10. 2 • Upgrade Test DB from 10. 2 to 11 g

10. 2 11 g DB Upgrade 1. Capture SQL workload to STS 2. Transport STS 3. Establish 10. 2 and 11 g Trials 4. Compare performance and Generate SPA report 5. Deploy Tuning and Change to Prod

10. 2 11 g DB Upgrade (3) Establish 10. 2 and 11 g Trials

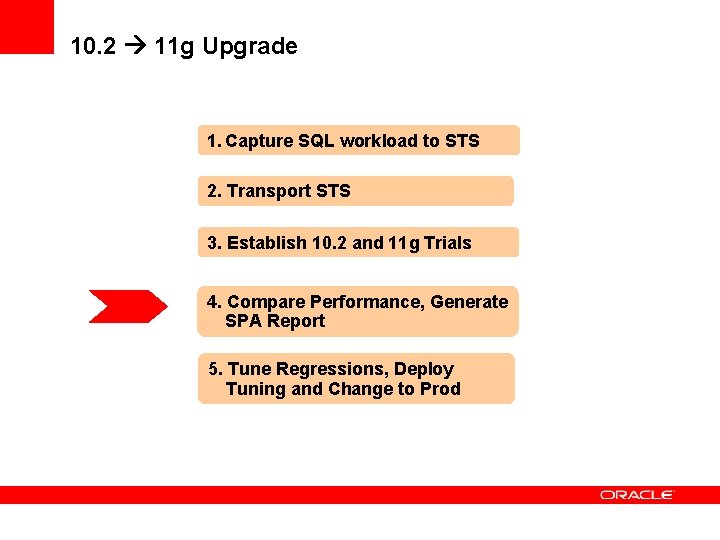

10. 2 11 g Upgrade 1. Capture SQL workload to STS 2. Transport STS 3. Establish 10. 2 and 11 g Trials 4. Compare Performance, Generate SPA Report 5. Tune Regressions, Deploy Tuning and Change to Prod

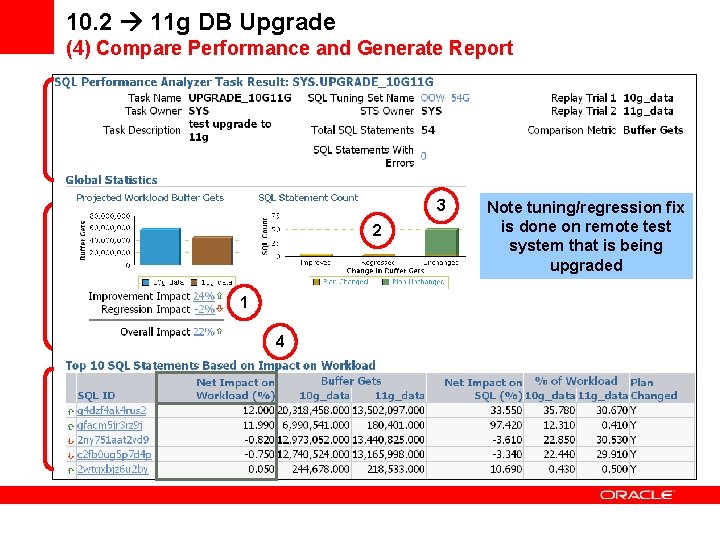

10. 2 11 g DB Upgrade (4) Compare Performance and Generate Report 3 2 1 4 Note tuning/regression fix is done on remote test system that is being upgraded 5*

SPA Report Regressed SQL Statements

10. 2 11 g Upgrade 1. Capture SQL workload to STS 2. Transport STS 3. Establish 10. 2 and 11 g Trials 4. Compare performance and Generate SPA report 5. Tune Regressions, Deploy Tuning and Change to Prod

10. 2 11 g DB Upgrade (5) Regression Remediation • If SPA system has application data/schema, tuning can be done locally on the same DB • If a separate SPA system is used, manually* subset SQL into a separate STS and then use EM to transport it to remote DB • Create SQL Plan Baselines: Helps revert to previously known, stable plans • SQL Tuning Advisor: Helps explore better execution plans • All regressed SQL are targeted automatically for remediation * Code snippet in Real Application Testing Users Guide (11. 2), Chapter 11 Page 23

10. 2 11 g DB Upgrade (5) Regression Remediation

10. 2 11 g DB Upgrade (5) Deploy Tuning and Change in Production

10. 2 11 g Upgrade 1. Capture SQL workload to STS 2. Transport STS 3. Establish 10. 2 and 11 g Trials 4. Compare performance and Generate SPA report 5. Tune Regressions, Deploy Tuning and Change to Prod

Demo SPA

SPA Enhancements in Oracle Database 11 g Release 2

SPA Enhancements: Oracle Database 11 g Release 2 • Multiple test executes for better trial accuracy – first execution ignored, averaged stats • Alternate Plans: New recommendation added for regression remediation – If a better execution plan was noticed in AWR or baseline SQL Trial then a SQL Plan Baseline can be created from it • Active Reports – New interactive, offline reports based on Adobe Flash Player UI – Customers can share reports internally or with Oracle Support • Save, email, View Reports • Support can diagnose problems more efficiently • Get EM UI without installing EM – useful for packaged apps and internal development teams – SPA Active Report Example

SPA Exadata Simulation: Estimating Exadata Server Performance Gains

Predicting performance gains with SPA • Existing SPA and Database Replay functionality can be used to compare non-Exadata to Exadata configurations – – SPA: Unit test to find SQL response time gains DB Replay: Stress test with concurrency to find throughput gains Measure improvements for your workload This approach requires you to provision Exadata HW • Oracle Database Release 11. 1. 0. 7: Adds SPA functionality to simulate Exadata on existing hardware to predict gains • Oracle Database Release 11. 2: Adds SPA GUI support • Simulation measures reduction in I/O interconnect usage that will in turn, reduce IO and CPU consumed on the DB server

SPA Exadata Simulation Workflow • SPA Exadata Simulation builds two SQL Trials: • Trial 1: Current configuration with No Exadata • Trial 2: Current configuration with Exadata simulation • Comparison metric – I/O Interconnect Bytes – Trial 1 value = I/O Interconnect (disk) bytes – Trial 2 value is reduced depending on SQL operation eligibility (for full table scans, index full scans, etc. ) – Plans will not change between trials

SPA Exadata Simulation Workflow

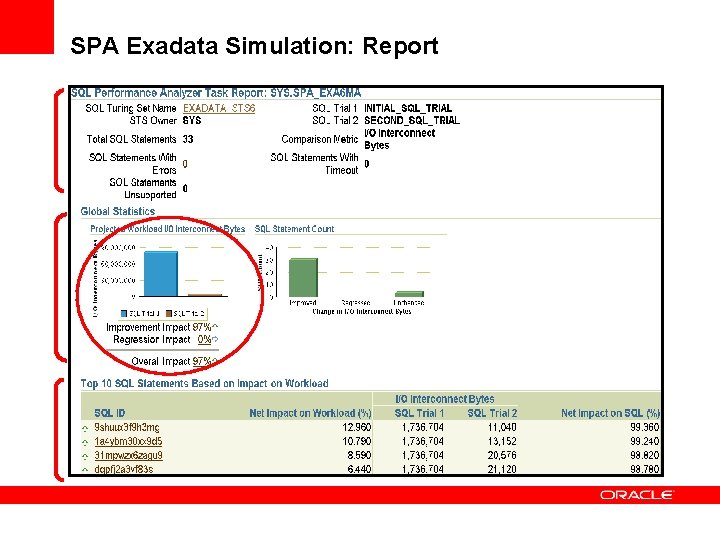

SPA Exadata Simulation: Report

SPA Report: SQL Details

Conclusion • SPA provides comprehensive and easy-to-use solution for SQL workload testing • SPA can be used for many changes both test and production environments • Helps adopt technology faster by significantly cutting down testing costs and production deployment risk • With SPA and Real Application Testing businesses can be stay competitive and improve profitability

Important Resources Oracle Database Manageability http: //www. oracle. com/technology/products/manageability/database/index. html Oracle Database 2 -Day DBA Guide http: //download. oracle. com/docs/cd/E 11882_01/server. 112/e 10897/toc. htm Oracle Real Application Testing User’s Guide http: //download. oracle. com/docs/cd/E 11882_01/server. 112/e 12254/toc. htm SPA Active Reports http: //www. oracle. com/technology/products/manageability/database/sqlpa. html
