Dawn NASA’s Dawn Mission Journey to the Asteroid Frontier Lucy Mc. Fadden, Co-Investigator University of Maryland College Park, MD July 30, 2007 Planetary Science Workshop, Montevideo, Uruguay
The Dawn Mission Dawn 9 th mission in NASA’s Discovery Program Discovery. nasa. gov
Dawn Traveling Back In Time

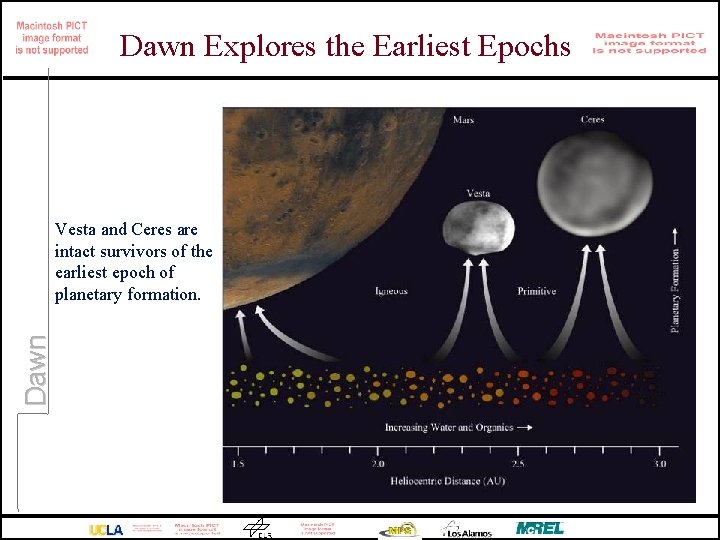

Dawn Explores the Earliest Epochs Dawn Vesta and Ceres are intact survivors of the earliest epoch of planetary formation.
Dawn The Asteroid Belt
Spacecraft Dawn Dry mass: 745 kg Wet mass: 1240 kg Solar array power (1 AU): 10. 3 k. W Solar array power (3 AU): 1. 3 k. W Delta II 7925 H-9. 5
Dawn Interplanetary Trajectory
Dawn Ion Propulsion Deep Space 1
Ion Propulsion System 2. 3 meters Hydrazine tank Dawn 45 kg capacity Xenon tank 450 kg capacity Ion thruster Folded solar arrays
Dawn Instruments HGA – High Gain Antenna LGA – Low Gain Antenna CSS – Coarse Sun Sensors GRa. ND – Gamma Ray and Neutron Detector IPS Thrusters – Ion Propulsion Thrusters RCS Thrusters – Reaction Control System Thrusters VIR – Visual and Infrared Spectrometers FC – Framing Camera
Dawn Map the Gravity Field Vesta Gravity from Shape Model
Framing Camera Supports: Imaging Science Navigation Topography Gravity Science These functions are mission critical Dawn Two identical units to fly for 100% redundancy § § § § 1024 x 1024 pixels frame-transfer CCD 14 µm pixel size F/8 system 5. 5° x 5. 5° Fo. V 93 µrad i. Fo. V (1 pixel) 7 filters + clear channel FC current design (left) FC EM (below)

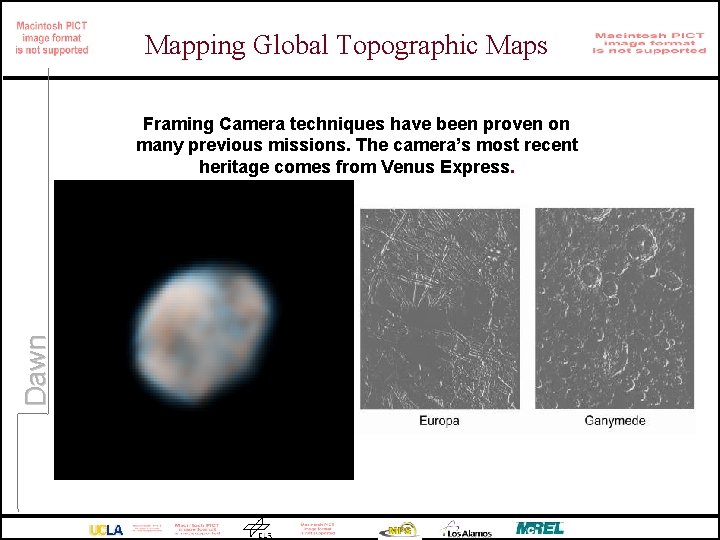

Mapping Global Topographic Maps Dawn Framing Camera techniques have been proven on many previous missions. The camera’s most recent heritage comes from Venus Express.
Mapping Spectrometer: VIR Dawn VIR experiment is a compact imaging spectrometer housing two data channels in the same optical head. It is made of 2 modules • Optical head • Electronics box VIR will allow to perform spectroscopic measurements of the Vesta and Ceres surface in the range 0. 35 -5. 01 um were most signatures of rock-forming minerals are present
GRa. ND Cutaway view of GRa. ND Features Dawn § Neutron spectroscopy using Li-loaded glass and boron-loaded plastic phoswich § Gamma ray spectroscopy using Bismuth Germanate and Cadmium Zinc Telluride (new technology) § Design enables measurement and suppression of background from the space environment Operating modes § Standby § Operating § Anneal 18. 0 cm 25. 7 cm
Map the Elemental Composition Dawn Gamma ray and neutron detector (GRa. ND) techniques have been proven on Lunar Prospector. GRa. ND’s most recent heritage is from Mars Odyssey
Exploring New Worlds Dawn’s Itinerary: Launch September, 2007 The Dawn Spacecraft will travel • 6. 3 billion kilometers (almost 4 billion miles) Dawn • In almost ten years • To the asteroids, 4 Vesta and 1 Ceres.
Dawn Hubble WFPC 2 Vesta May 2007 Color Composite http: //hubblesite. org/newscenter/archive/releases/2007/27
Dawn Ceres’ Rotation http: //hubblesite. org/newscenter/archive/releases/2005/27/
Learn More! Dawn http: //dawn. jpl. nasa. gov

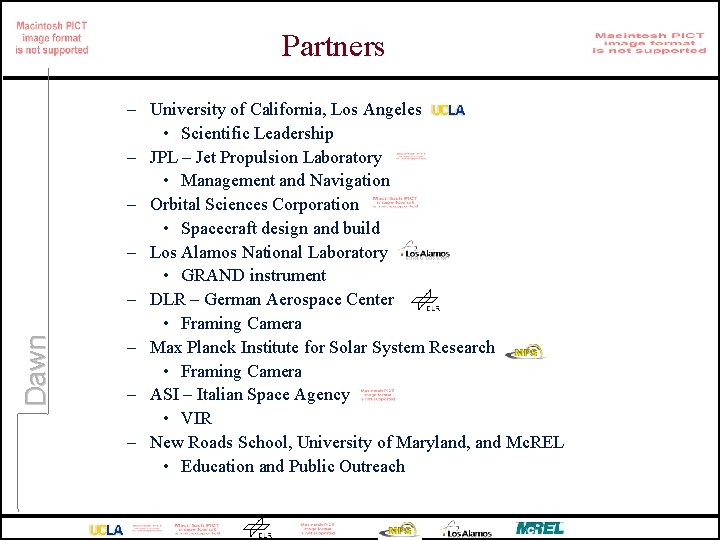

Dawn Partners – University of California, Los Angeles • Scientific Leadership – JPL – Jet Propulsion Laboratory • Management and Navigation – Orbital Sciences Corporation • Spacecraft design and build – Los Alamos National Laboratory • GRAND instrument – DLR – German Aerospace Center • Framing Camera – Max Planck Institute for Solar System Research • Framing Camera – ASI – Italian Space Agency • VIR – New Roads School, University of Maryland, and Mc. REL • Education and Public Outreach
Mission Timeline Baseline mission shown in green Minimum mission shown in blue Mars gravity assist Dawn Mar ‘ 09 (4) Vesta arrival Oct ‘ 11 (4) Vesta departure (1) Ceres arrival End of mission May ‘ 12 Aug ‘ 15 (4) Vesta departure (1) Ceres arrival Feb ‘ 12 Sep ‘ 15 Jan ‘ 16 Launch Jun ‘ 07 Note: There is a continuum of options between the baseline and minimum, varying in scientific return, cost, and technical robustness.

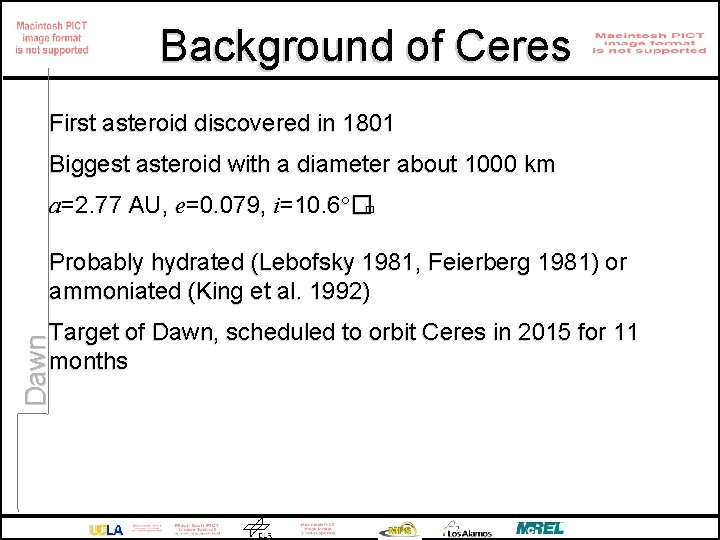

Background of Ceres First asteroid discovered in 1801 Biggest asteroid with a diameter about 1000 km a=2. 77 AU, e=0. 079, i=10. 6 �� Probably hydrated (Lebofsky 1981, Feierberg 1981) or ammoniated (King et al. 1992) Dawn Target of Dawn, scheduled to orbit Ceres in 2015 for 11 months
Dawn 2007 Vesta apparition • Vesta last made such a close approach to Earth in June, 1989.
Dawn Hubble Space Telesco
Vesta in May 2007 Wide Field Planetary Camera 2 (WFPC 2) • Four Filters: F 439 W, F 673 N, F 953 N, F 1042 M – Same filters as previous observations in 1994, 1996. • Preliminary image deconvolution – Maximum Entropy Method (MEM) • Color composite images: F 439 W+F 673 N Dawn •
Dawn Hubble WFPC 2 F 439 W image of asteroid Vesta in May 2007: raw
Dawn Hubble WFPC 2 F 439 W Vesta in May 2007: deconvolved (MEM)
Dawn Hubble WFPC 2 F 439 W images of asteroid Vesta in May 2007: raw
Dawn Hubble WFPC 2 F 439 W Vesta in May 2007: deconvolved (MEM)
Dawn 500 km
Ceres observations 2003 -2004 Dawn • • • Map Ceres through one complete rotation in multiple filters. Improve knowledge of its size, shape and pole orientation. Search for satellites Extend knowledge Apply to sequence planning for Dawn
Dawn Ceres 2003, 2004
Hubble images of Ceres in January 2004 Dawn • • • Advanced Camera for Surveys (ACS) High Resolution Channel (HRC) Filters: F 220 W, F 330 W, F 555 W Sub-sampled (dithered) images were drizzled to enhance resolution Color composite images: F 330 W+F 555 W Movies made from lower-resolution images (full phase coverage)
Dawn Hubble images of Ceres reveal roundness, surface features, and colors Three different faces of Ceres

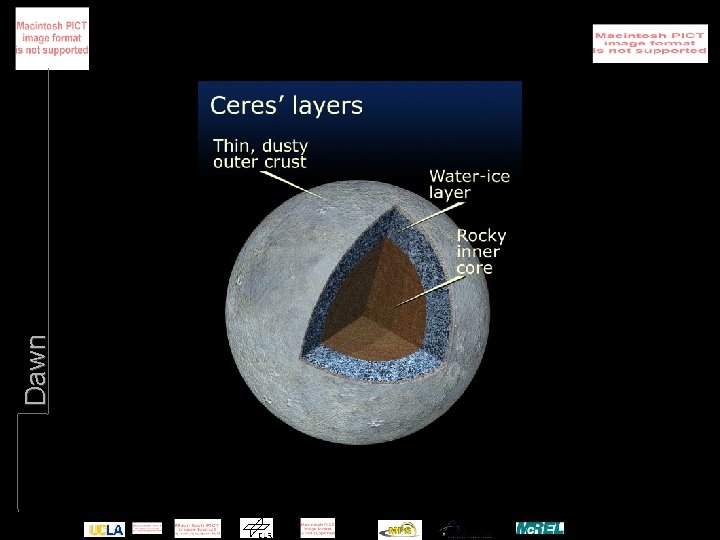

Dawn

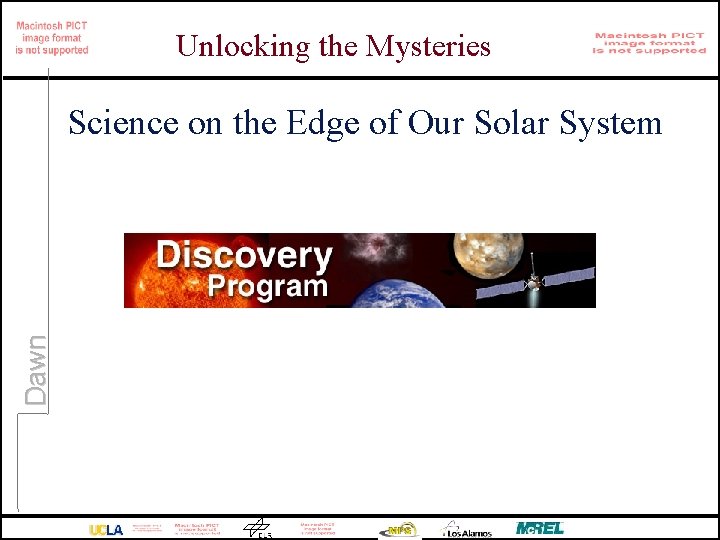

Unlocking the Mysteries Dawn Science on the Edge of Our Solar System
