Databasert dokumentasjon SCD Classification Internal 2011 02 06
Databasert dokumentasjon - SCD Classification: Internal 2011 -02 -06
Idar Pe Ingebrigtsen Spesialistfelt Metode og verktøy SAS/SCD/Alarmsystem Classification: Internal 2011 -02 -06 http: //no. wikipedia. org/wiki/Hullkort • 1979 - 1980 Forsvarets datasentral » IBM – PL 1 Hullkort • 1980 - 1984 Solberg & Andersen. AS » Osborne 1 • 1984 -1990 Gullfaks A/C » NOR 100 Notis 1. gen. eng. sys • 1990 -1991 Snorre A » PC 1 stk på en avd. 2. gen eng. sys • 1991 – 1995 Troll A • 1995 – 1999 Åsgard A • 1999 – 2002 Åsgard B • 2002 – 2004 Kristin • 2004 - 2007 Oseberg • 2007 – 2011 Basis http: //knowledgerush. com/kr/encyclopedia/Norsk_Data/ » PC 1 stk pr. mann » Shell egen intern mail » Access erstatter Dataease » Alle får email » Utvikling av PIM / WEB » 3. gen. eng. system WEB » Utskiftning av kontrolsystem » Internasjonal standarisering
Agenda - Databasert dokumentasjon Leksjon 1 –SAS Offshore prosjekt • Rammene rundt dokumentasjon – Safety and Automation System (SAS) – Prosjekt organisasjon –SAS databasert dokumentasjon • Verktøy og databaser Leksjon 2 –System Control Diagrams –Automasjon I Statoilhydro • Forventninger til nyansatt prosjektmedarbeider Classification: Internal 2011 -02 -06
SAS offshore prosjekt Safety and Automation System (SAS) Classification: Internal 2011 -02 -06
Safety and Automation Systemet (SAS) F&G panel PDCS IMS RIO SCS 3. rd party Nettverk PCS PSD ESD / F&G Classification: Internal 2011 -02 -06 Marine MCC Power Supply
SAS Hardware Classification: Internal 2011 -02 -06
System eksterne Grensesnitt Classification: Internal 2011 -02 -06
SKR 3 D NAS/F&G CAP Operatør stasjoner Classification: Internal 2011 -02 -06 Alarm liste Storskjermen Nøkkelalarmer
Bilder Classification: Internal 2011 -02 -06
SAS offshore prosjekt Prosjekt organisasjon Classification: Internal 2011 -02 -06
Project organisation Project organisasjon Classification: Internal 2011 -02 -06
Anleggets Livsløp Mange organisasjoner Project Organisasjon Engineering Byggeplass Operatør Platform Organisasjon Classification: Internal 2011 -02 -06 Drift Støtte Organisasjon
SAS databasert dokumentasjon Verktøy og databaser Classification: Internal 2011 -02 -06
P&ID Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Instrument Innkjøp av riktig instrument Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Instrument Innkjøp av riktig instrument Byggemål Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Instrument Innkjøp av riktig instrument Byggemål Elektrisk tilkopling Kabel Kontroll system grensesnitt Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Sløyfe tegning Classification: Internal 2011 -02 -06
Instrument Innkjøp av riktig instrument Uttesting hos instr. leverandø r Uttesting på byggeplass Byggemål Elektrisk tilkopling Kabel Kontroll system grensesnitt Uttesting hos kontroll system Igangkjøring på anlegget Delelager Vedlikehold Regelmessig Utprøving Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06

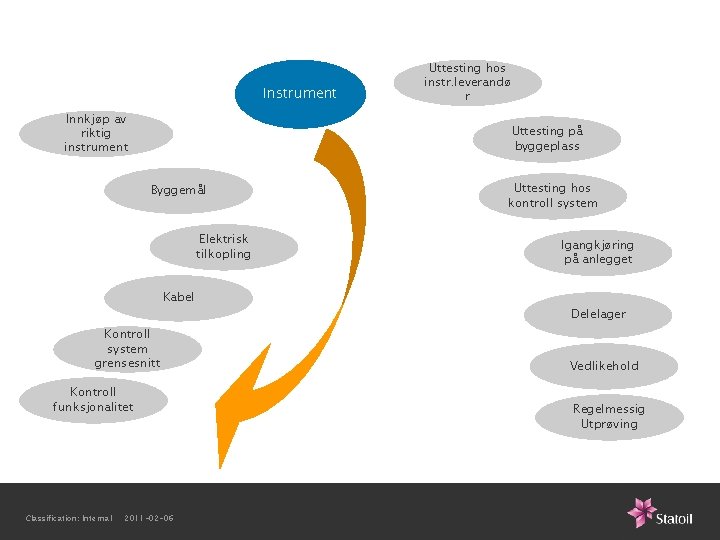

Instrument Innkjøp av riktig instrument Uttesting på byggeplass Byggemål Elektrisk tilkopling Kabel Kontroll system grensesnitt Kontroll funksjonalitet Classification: Internal Uttesting hos instr. leverandø r 2011 -02 -06 Uttesting hos kontroll system Igangkjøring på anlegget Delelager Vedlikehold Regelmessig Utprøving
P&ID Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Sikkerhets systemene • Prosess avstengnings systemet (PAS) • Nød avstengnings systemet (NAS) • Brann & Gass deteksjons systemet (B&G) Classification: Internal 2011 -02 -06
P&ID Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
Verktøy og databaser – Teknisk informasjons applikasjoner Hardware / Software tekniske detaljer Egenutviklet / WEB Frontend Alarm tekniske detaljer Egenutviklet / Excell frontend Grensesnitt tekniske detaljer Egenutviklet / Word frontend Classification: Internal 2011 -02 -06 Endringskontrol Egenutviklet / WEB Frontend Sybase Datavarehus
CAD applikasjoner Termineringsdetaljer Intergraph / Oracle P&ID / SCD CADCenter / Oracle Sybase Datavarehus l. Tag id l. Node l. Funksjon l. Beskrivelse l. Tegnings referanser l. Etc. Classification: Internal 2011 -02 -06 l. Tag Lokal Database id l. Lokasjon l. Beskrivelse l. Tegningsref. l. Etc.
Dataoverføring SAS Engineering Datavarehus Classification: Internal 2011 -02 -06
fra SCD til logikk og HMI Hvordan ser tilsvarende skjermbilde ut? Classification: Internal 2011 -02 -06
ABB Programming tool Classification: Internal 2011 -02 -06
ABB VDU picture Classification: Internal 2011 -02 -06
Example: Connection between SASdb and SAS Classification: Internal 2011 -02 -06
Export of alarm classification for lookup in SAS and also for reporting Classification: Internal 2011 -02 -06
Leksjon 2 System Control Diagrammer (SCD) Classification: Internal 2011 -02 -06
System Control Diagram - SCD I-005 • En metode for å definere kontrollogikk for kontrollsystemer • Består av 2 deler • Gjør kontroll logikken lettere Function templates tilgjengelig Diagrams Classification: Internal 2011 -02 -06
SCD diagrammet – forenklet P&ID m/ all kontroll logikk både Prosessavstengning & kontroll. Classification: Internal 2011 -02 -06
Det viktigste symbolet - Funksjonsblokk Typical/Control option Terminalkoder System/noderef. AAA Funksjonsblokk type (template) Classification: Internal Tekstfelt for Opsjon/Supplerende info 2011 -02 -06 Funksjonens Tagnummer
Andre basis symboler Classification: Internal 2011 -02 -06
Elementær logikk Classification: Internal 2011 -02 -06
Function Template – 11 stk • CA – Modulating control (PID controller) • CS – Step control • CB – Binary control • LB – Shutdown level • MA – Monitoring of analogue variables • MB – Monitoring of binary variables • SB – Single binary signal for shutdown • SBE – Controls of electrical equipment • SBV – Control of pneumatic/hydrauliv equipment • YA – Process input calculation • QA – Totalizer Classification: Internal 2011 -02 -06
CA Classification: Internal 2011 -02 -06
MA X og Y Normal Input og Normal Output navnes ikke på SCD. Classification: Internal 2011 -02 -06 Det gjør alle andre terminaler
SBV Classification: Internal 2011 -02 -06
LB Classification: Internal 2011 -02 -06
Separator Prosess kontroll Classification: Internal 2011 -02 -06
Seperator Prosess sikring instrumentering Classification: Internal 2011 -02 -06
Seperator Prosess sikring logikk Classification: Internal 2011 -02 -06
Seperator PSD PCS Interlock Classification: Internal 2011 -02 -06
Classification: Internal 2011 -02 -06
• Automasjon i Statoilhydro • Forventninger til nyansatt prosjektmedarbeider Classification: Internal 2011 -02 -06
Automatisering i Statoil Landets største automatiserings miljø Melkøya Drift (55 personer) Drift støtte (93 personer) Stjørdal S Bergen K S 2011 -02 -06 F&U (29 personer) Prosjekter (25 personer) TPD AUTTEX FOT ELA ATBO Oslo Porsgrunn Classification: Internal Trondheim B Kårstø Stavanger Teknologi ansvarlig (33 personer) Prosjekter
Forventninger til nyansatt prosjektmedarbeider • Ærlig • Ryddig • Lojal mot metodene • Omgjengelig – Kommunikativ – Delta og bidra • Proaktiv – Aktiv søke løsninger av egne problemstillinger – Varsle om problemstillinger uten eier • Lagspiller – Levere egne resultater – Gjøre andre gode – Fleksibel • Evne til å lytte til praktisk erfaring • Godt faglig fundament • + kan kontorautomasjon • Humor Statoil side om diplomoppgave/jobb muligheter I Statoil. http: //www. statoil. com/no/careers/students/pages/default. aspx Classification: Internal 2011 -02 -06
Thank you Databasert dokumentasjon -SCD Idar Pe Ingebrigtsen TNE PRT ELA AUT ipi@statoil. com, tel: +907 38 455 www. statoil. com Classification: Internal 2011 -02 -06
Acronymes SAS – Safety and Automation System C&E – Cause and Effect diagarms SCD – System Control Diagrams FS – Functional Spesification PCS – Process Control System PKS – Prosess Kontroll System PSD – Process Shutdown System PAS – Prosess Avstengnings System ESD – Emergency Shutdown System NAS – Nødavstengnings System F&G – Fire and Gas System B&G – Brann og Gass System SCS – Subsea Control System SW – Software PDCS – Power Distribution System HW – Hardware MCC – Motor Control Center I/O – Input / Output RIO – Remote Input / Output unit SIL – Safety Integrity Level IMS – Information Management System SRS – Safety Requirements Specification CAD – Computer Aided Design SAR – Safety Analysis Report Classification: Internal 2011 -02 -06
