Database Systems II Record Organization CMPT 454 Simon

Database Systems II Record Organization CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 75

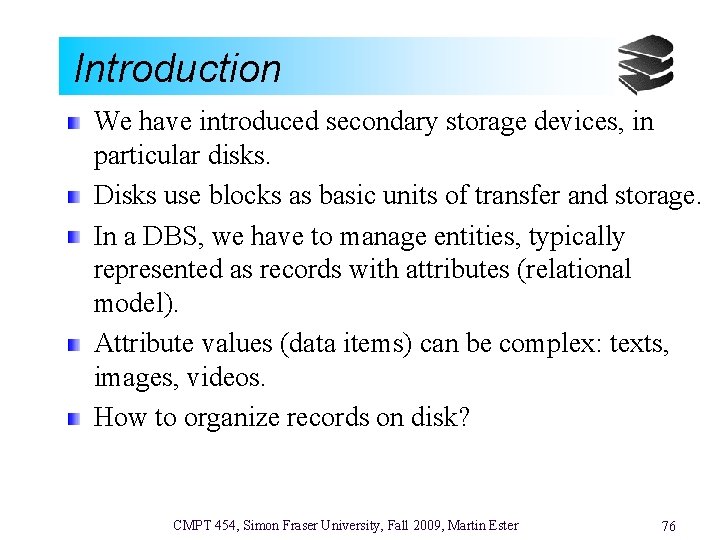

Introduction We have introduced secondary storage devices, in particular disks. Disks use blocks as basic units of transfer and storage. In a DBS, we have to manage entities, typically represented as records with attributes (relational model). Attribute values (data items) can be complex: texts, images, videos. How to organize records on disk? CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 76

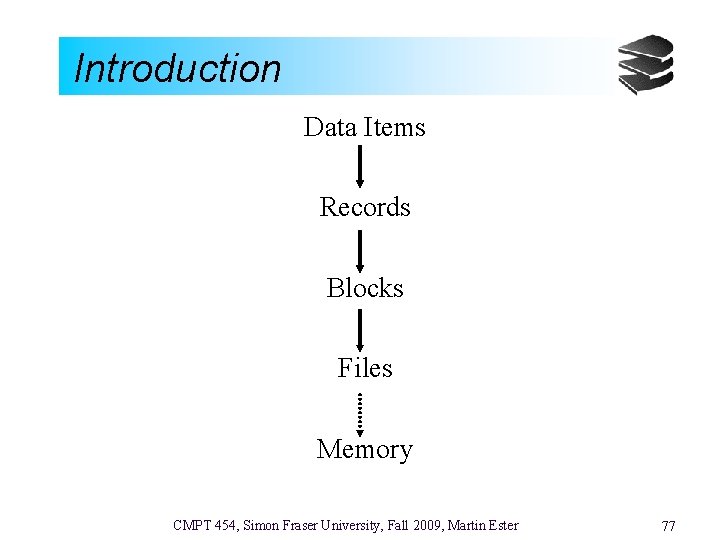

Introduction Data Items Records Blocks Files Memory CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 77

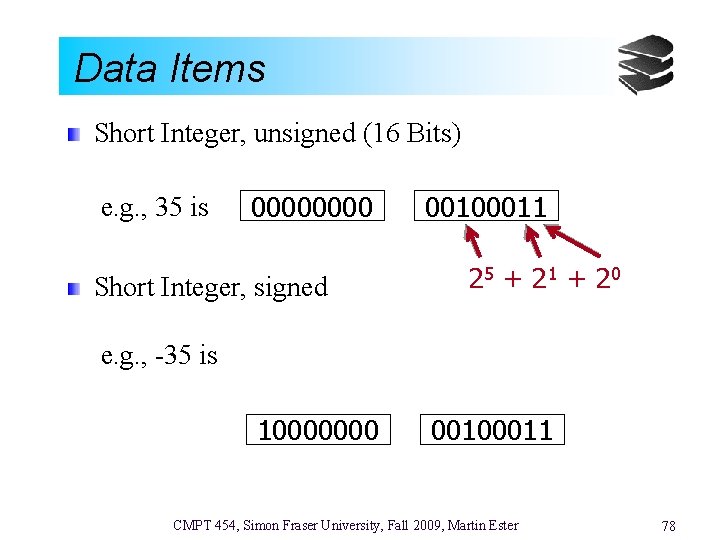

Data Items Short Integer, unsigned (16 Bits) e. g. , 35 is 0000 Short Integer, signed 00100011 25 + 2 1 + 2 0 e. g. , -35 is 10000000 00100011 CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 78

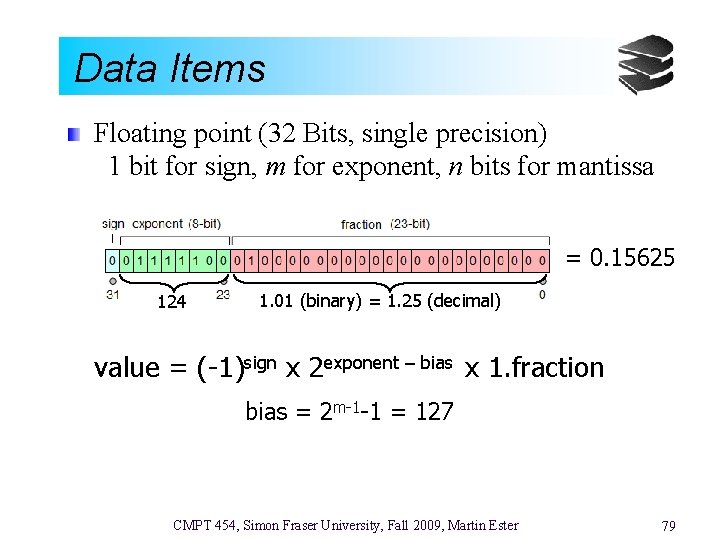

Data Items Floating point (32 Bits, single precision) 1 bit for sign, m for exponent, n bits for mantissa = 0. 15625 124 1. 01 (binary) = 1. 25 (decimal) value = (-1)sign x 2 exponent – bias x 1. fraction bias = 2 m-1 -1 = 127 CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 79

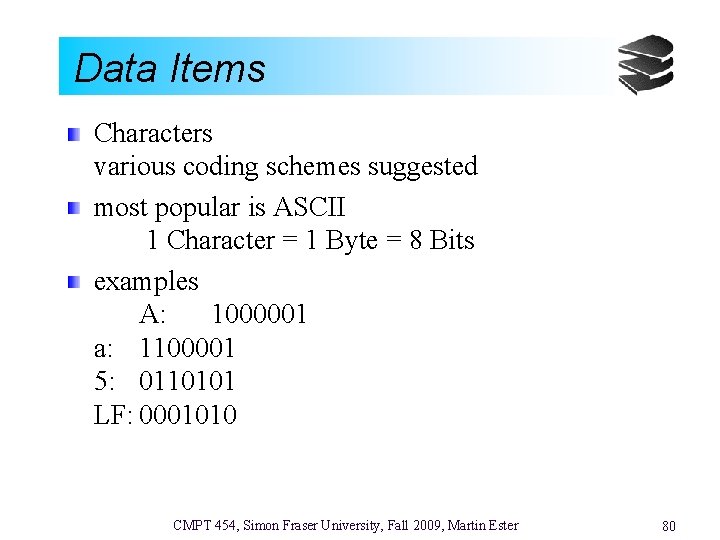

Data Items Characters various coding schemes suggested most popular is ASCII 1 Character = 1 Byte = 8 Bits examples A: 1000001 a: 1100001 5: 0110101 LF: 0001010 CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 80

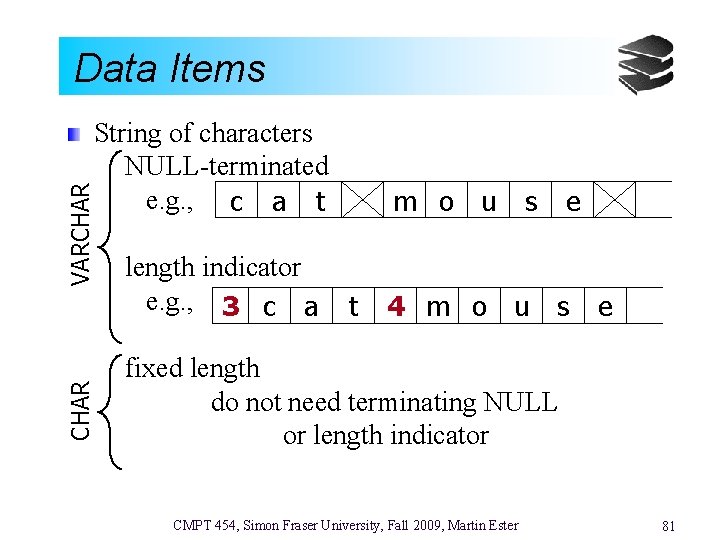

Data Items CHAR VARCHAR String of characters NULL-terminated e. g. , c a t length indicator e. g. , 3 c a m o u s t e 4 m o u s e fixed length do not need terminating NULL or length indicator CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 81

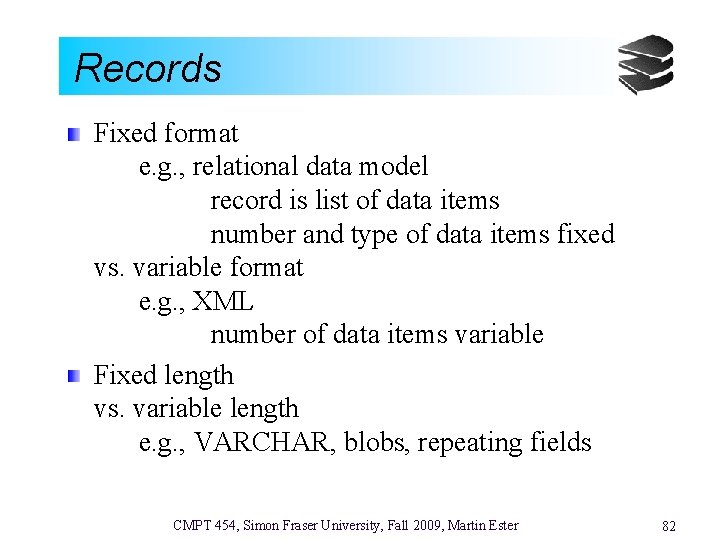

Records Fixed format e. g. , relational data model record is list of data items number and type of data items fixed vs. variable format e. g. , XML number of data items variable Fixed length vs. variable length e. g. , VARCHAR, blobs, repeating fields CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 82

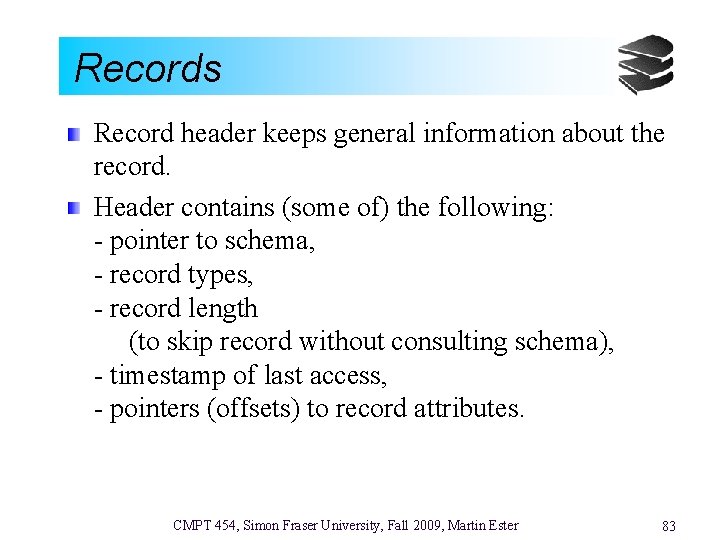

Records Record header keeps general information about the record. Header contains (some of) the following: - pointer to schema, - record types, - record length (to skip record without consulting schema), - timestamp of last access, - pointers (offsets) to record attributes. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 83

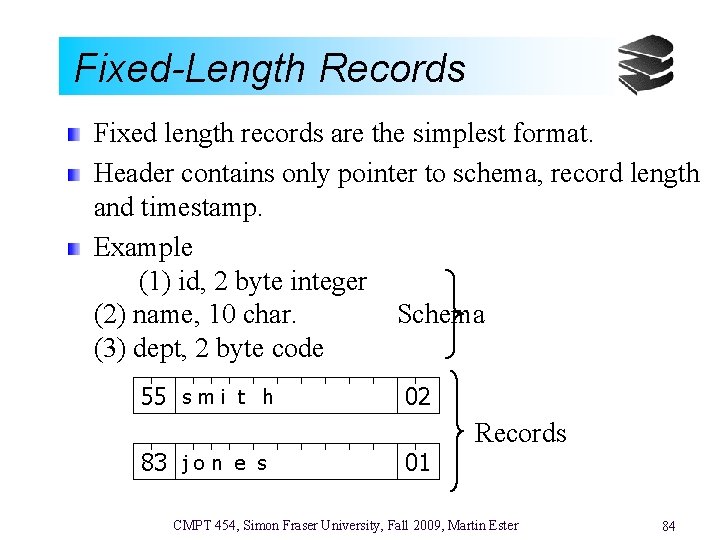

Fixed-Length Records Fixed length records are the simplest format. Header contains only pointer to schema, record length and timestamp. Example (1) id, 2 byte integer (2) name, 10 char. Schema (3) dept, 2 byte code 55 s m i t h 83 j o n e s 02 01 Records CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 84

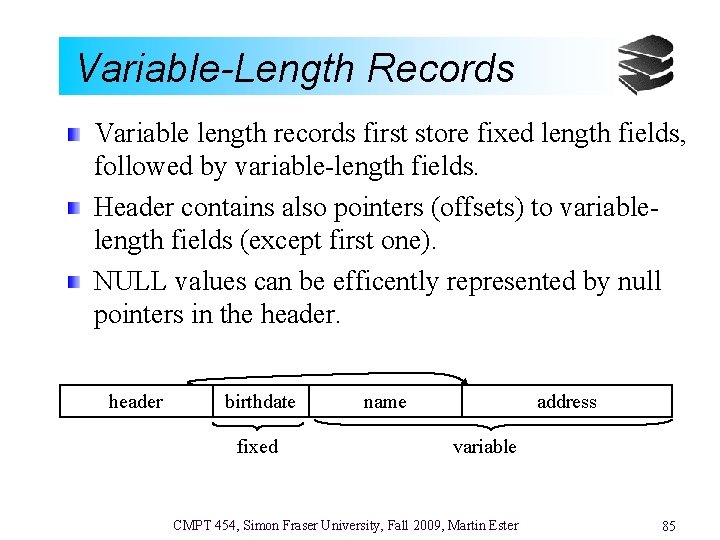

Variable-Length Records Variable length records first store fixed length fields, followed by variable-length fields. Header contains also pointers (offsets) to variablelength fields (except first one). NULL values can be efficently represented by null pointers in the header birthdate fixed name address variable CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 85

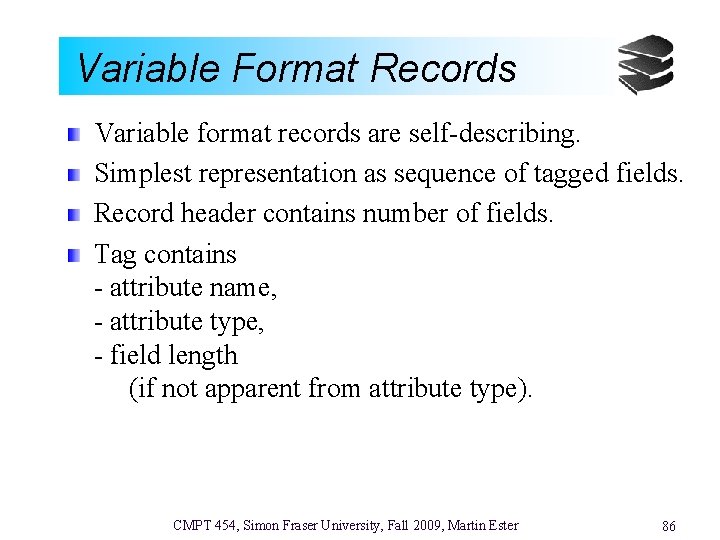

Variable Format Records Variable format records are self-describing. Simplest representation as sequence of tagged fields. Record header contains number of fields. Tag contains - attribute name, - attribute type, - field length (if not apparent from attribute type). CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 86

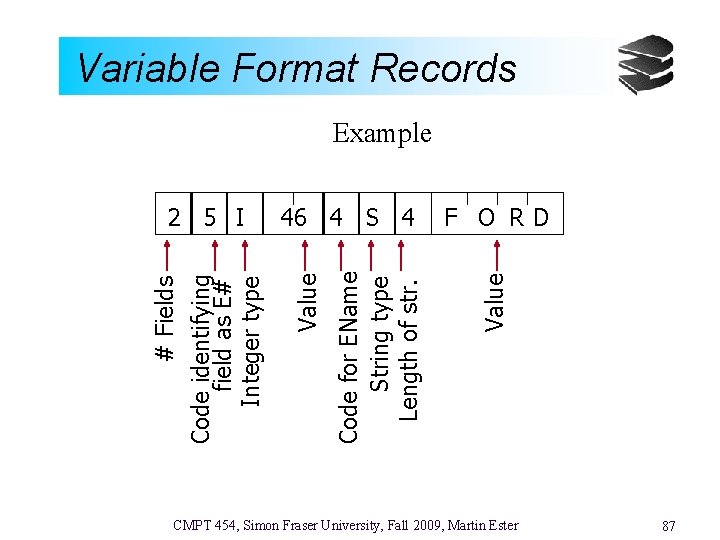

Variable Format Records Example F O RD Value Code for EName String type Length of str. 46 4 S 4 Value Code identifying field as E# Integer type # Fields 2 5 I CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 87

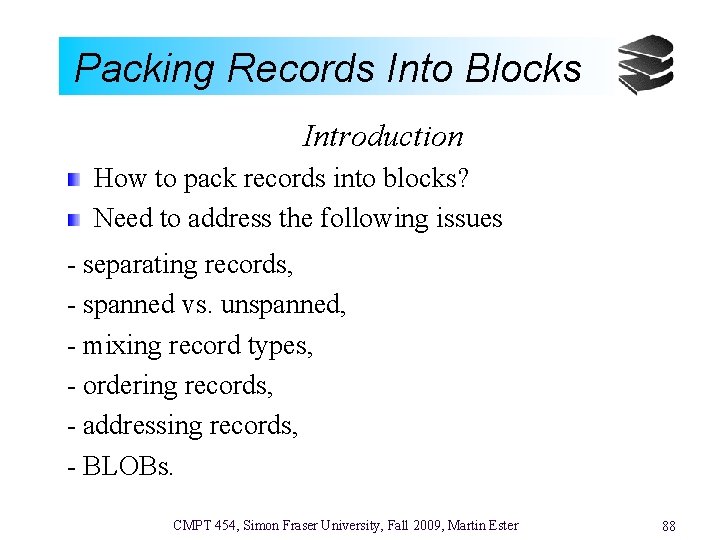

Packing Records Into Blocks Introduction How to pack records into blocks? Need to address the following issues - separating records, - spanned vs. unspanned, - mixing record types, - ordering records, - addressing records, - BLOBs. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 88

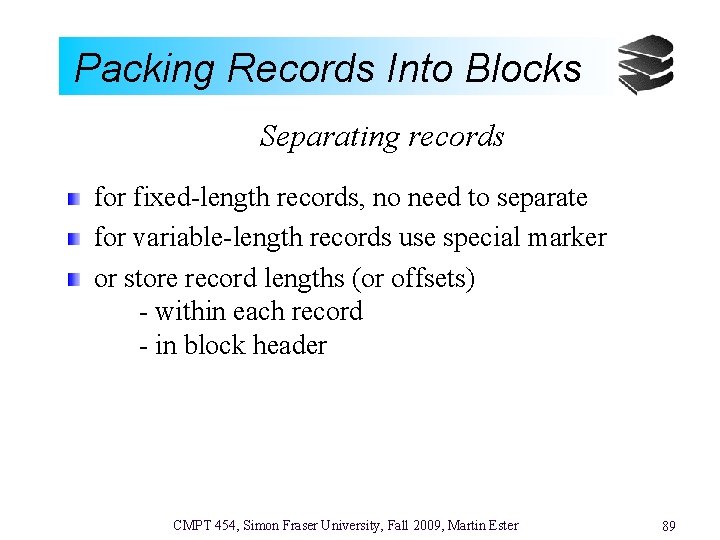

Packing Records Into Blocks Separating records for fixed-length records, no need to separate for variable-length records use special marker or store record lengths (or offsets) - within each record - in block header CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 89

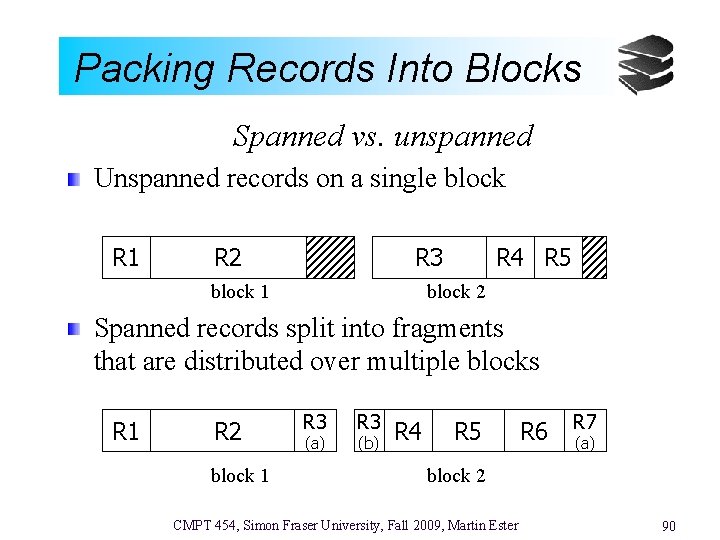

Packing Records Into Blocks Spanned vs. unspanned Unspanned records on a single block R 1 R 2 R 3 block 1 R 4 R 5 block 2 Spanned records split into fragments that are distributed over multiple blocks R 1 R 2 block 1 R 3 (a) R 3 (b) R 4 R 5 R 6 R 7 (a) block 2 CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 90

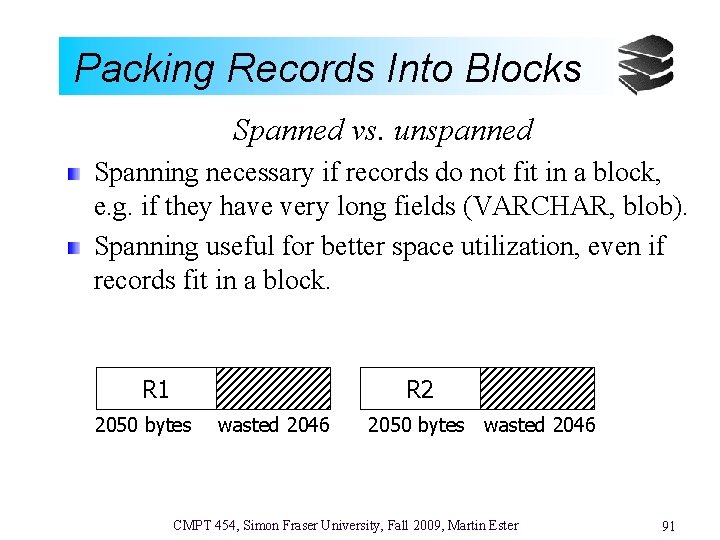

Packing Records Into Blocks Spanned vs. unspanned Spanning necessary if records do not fit in a block, e. g. if they have very long fields (VARCHAR, blob). Spanning useful for better space utilization, even if records fit in a block. R 1 R 2 2050 bytes wasted 2046 CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 91

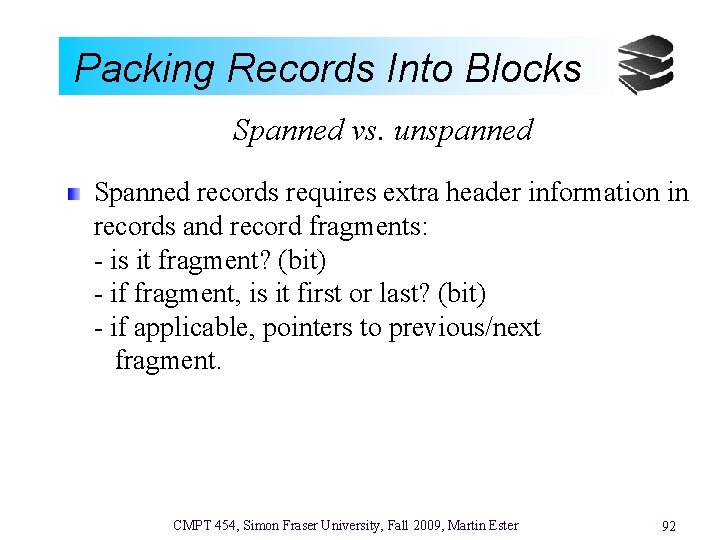

Packing Records Into Blocks Spanned vs. unspanned Spanned records requires extra header information in records and record fragments: - is it fragment? (bit) - if fragment, is it first or last? (bit) - if applicable, pointers to previous/next fragment. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 92

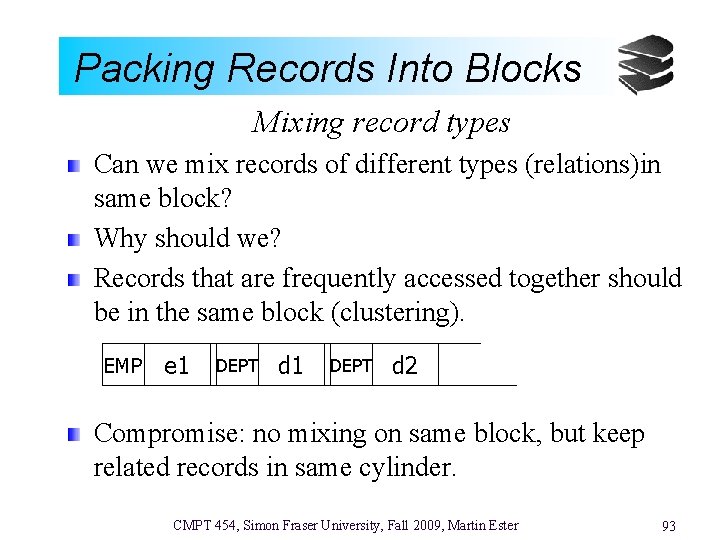

Packing Records Into Blocks Mixing record types Can we mix records of different types (relations)in same block? Why should we? Records that are frequently accessed together should be in the same block (clustering). EMP e 1 DEPT d 2 Compromise: no mixing on same block, but keep related records in same cylinder. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 93

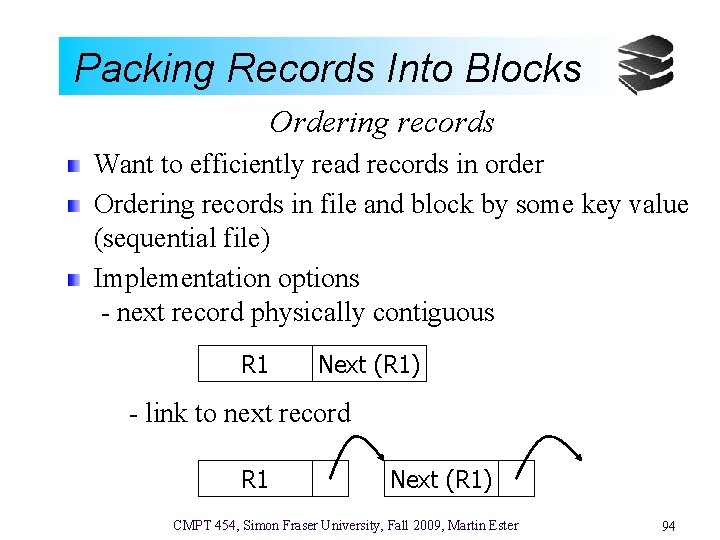

Packing Records Into Blocks Ordering records Want to efficiently read records in order Ordering records in file and block by some key value (sequential file) Implementation options - next record physically contiguous R 1 Next (R 1) - link to next record R 1 Next (R 1) CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 94

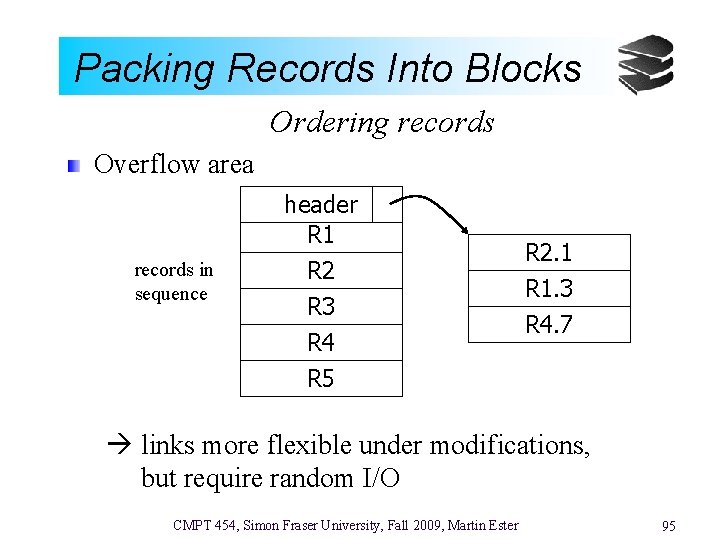

Packing Records Into Blocks Ordering records Overflow area records in sequence header R 1 R 2 R 3 R 4 R 5 R 2. 1 R 1. 3 R 4. 7 links more flexible under modifications, but require random I/O CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 95

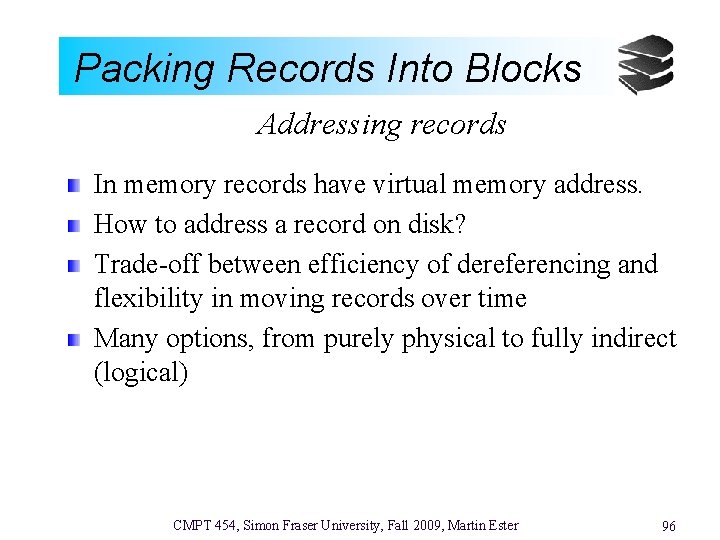

Packing Records Into Blocks Addressing records In memory records have virtual memory address. How to address a record on disk? Trade-off between efficiency of dereferencing and flexibility in moving records over time Many options, from purely physical to fully indirect (logical) CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 96

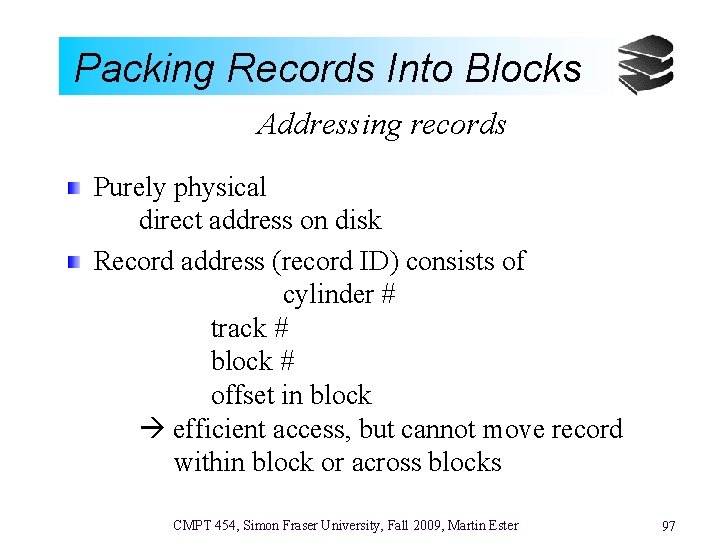

Packing Records Into Blocks Addressing records Purely physical direct address on disk Record address (record ID) consists of cylinder # track # block # offset in block efficient access, but cannot move record within block or across blocks CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 97

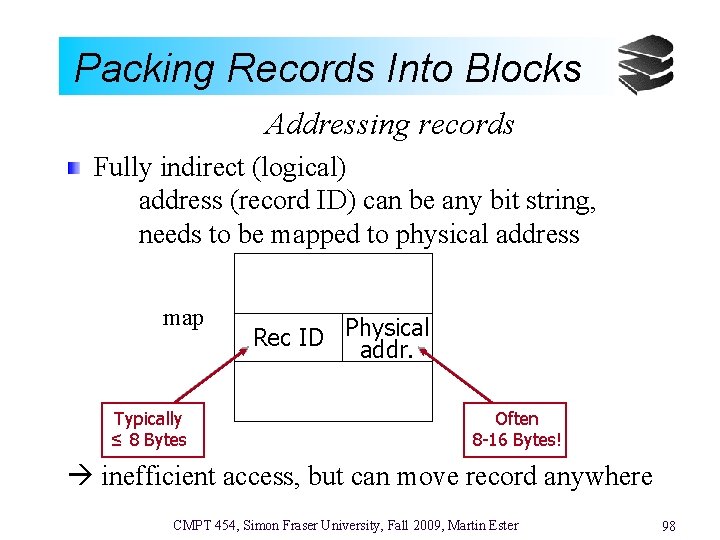

Packing Records Into Blocks Addressing records Fully indirect (logical) address (record ID) can be any bit string, needs to be mapped to physical address map Typically ≤ 8 Bytes Rec ID Physical addr. Often 8 -16 Bytes! inefficient access, but can move record anywhere CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 98

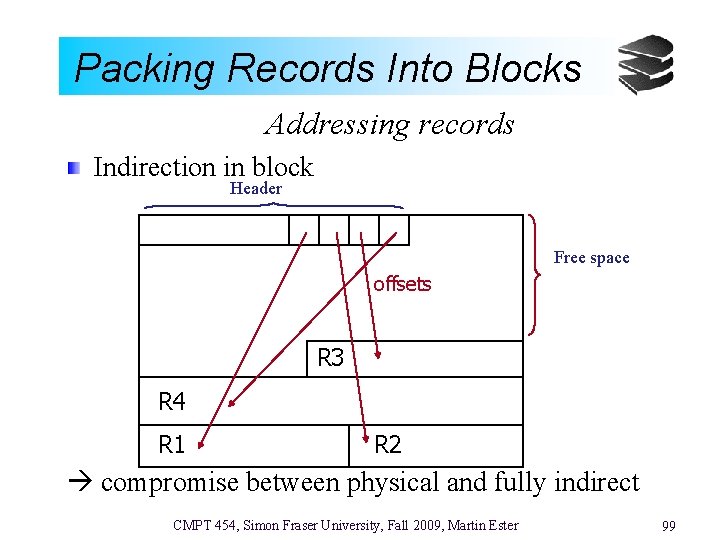

Packing Records Into Blocks Addressing records Indirection in block Header Free space offsets R 3 R 4 R 1 R 2 compromise between physical and fully indirect CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 99

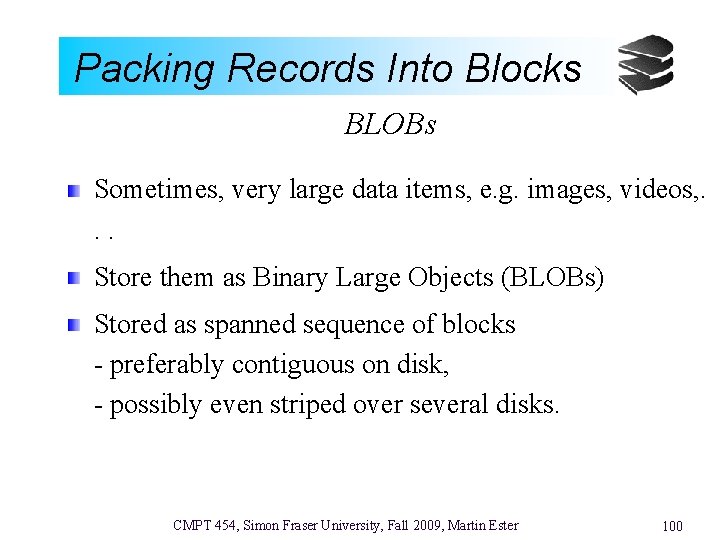

Packing Records Into Blocks BLOBs Sometimes, very large data items, e. g. images, videos, . . . Store them as Binary Large Objects (BLOBs) Stored as spanned sequence of blocks - preferably contiguous on disk, - possibly even striped over several disks. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 100

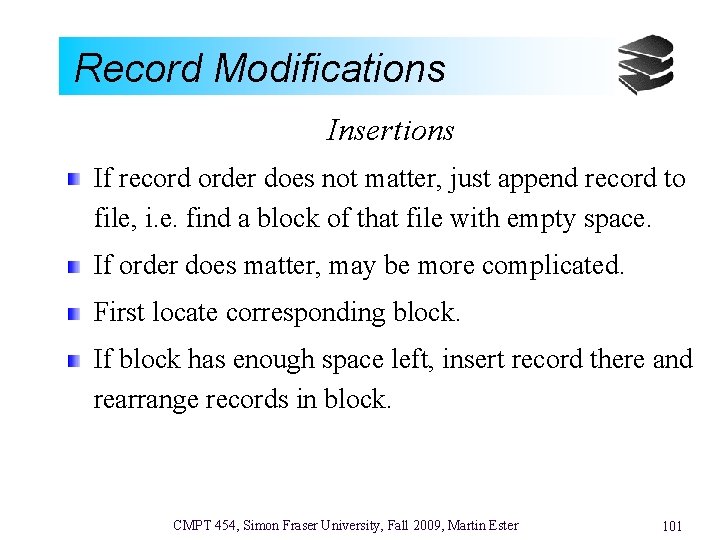

Record Modifications Insertions If record order does not matter, just append record to file, i. e. find a block of that file with empty space. If order does matter, may be more complicated. First locate corresponding block. If block has enough space left, insert record there and rearrange records in block. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 101

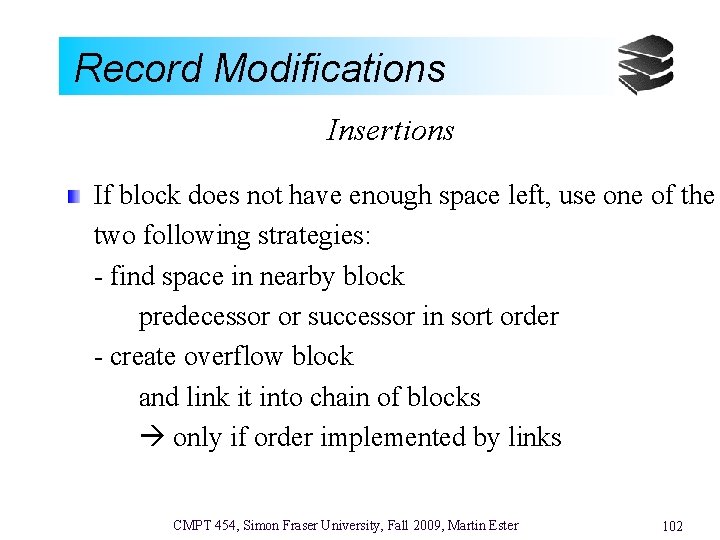

Record Modifications Insertions If block does not have enough space left, use one of the two following strategies: - find space in nearby block predecessor or successor in sort order - create overflow block and link it into chain of blocks only if order implemented by links CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 102

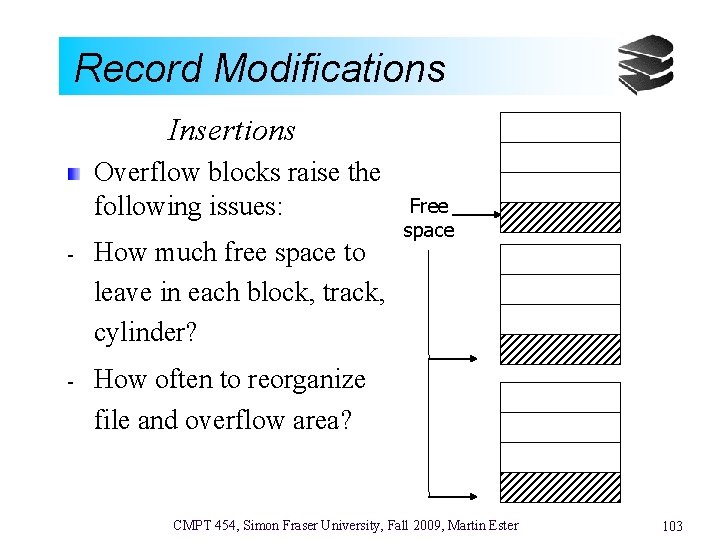

Record Modifications Insertions Overflow blocks raise the following issues: - How much free space to leave in each block, track, cylinder? - How often to reorganize file and overflow area? Free space CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 103

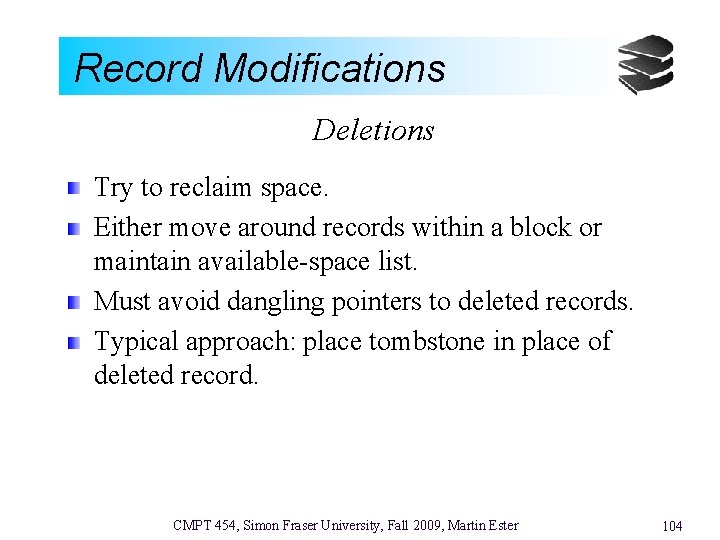

Record Modifications Deletions Try to reclaim space. Either move around records within a block or maintain available-space list. Must avoid dangling pointers to deleted records. Typical approach: place tombstone in place of deleted record. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 104

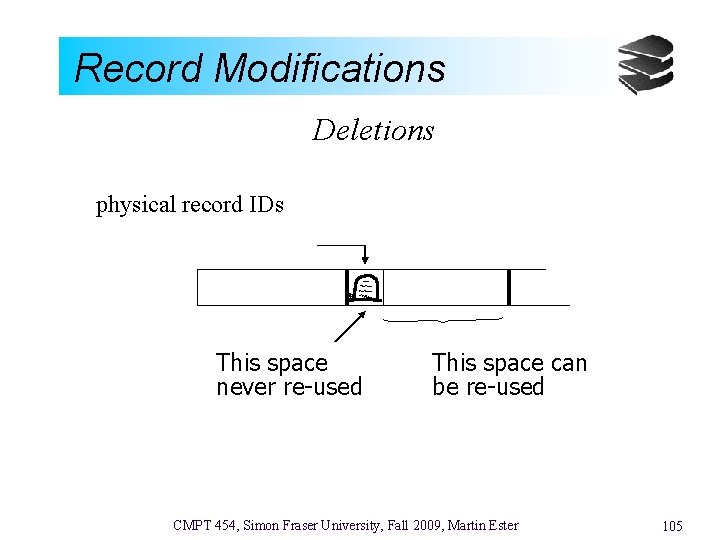

Record Modifications Deletions physical record IDs This space never re-used This space can be re-used CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 105

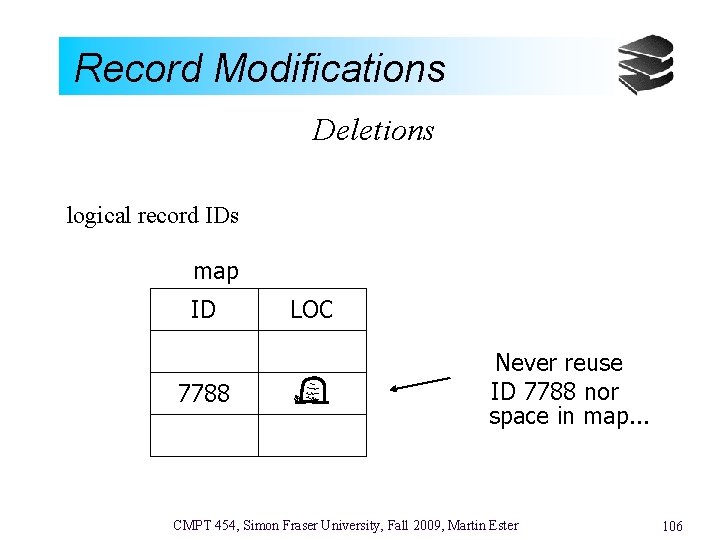

Record Modifications Deletions logical record IDs map ID 7788 LOC Never reuse ID 7788 nor space in map. . . CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 106

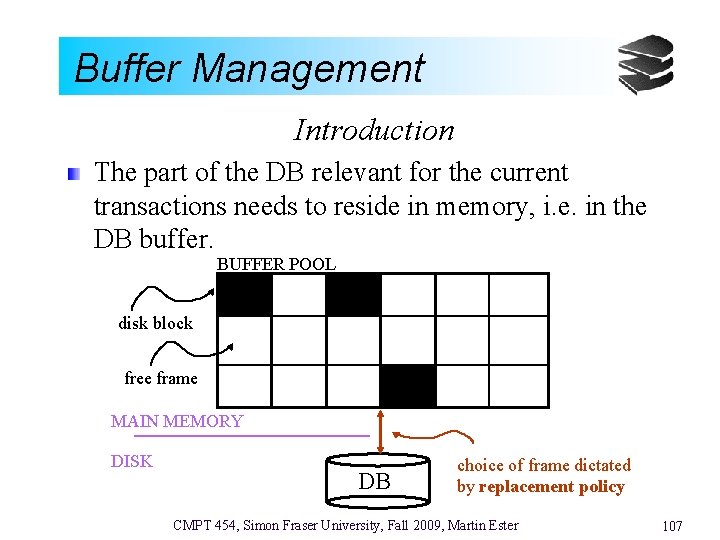

Buffer Management Introduction The part of the DB relevant for the current transactions needs to reside in memory, i. e. in the DB buffer. BUFFER POOL disk block free frame MAIN MEMORY DISK DB choice of frame dictated by replacement policy CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 107

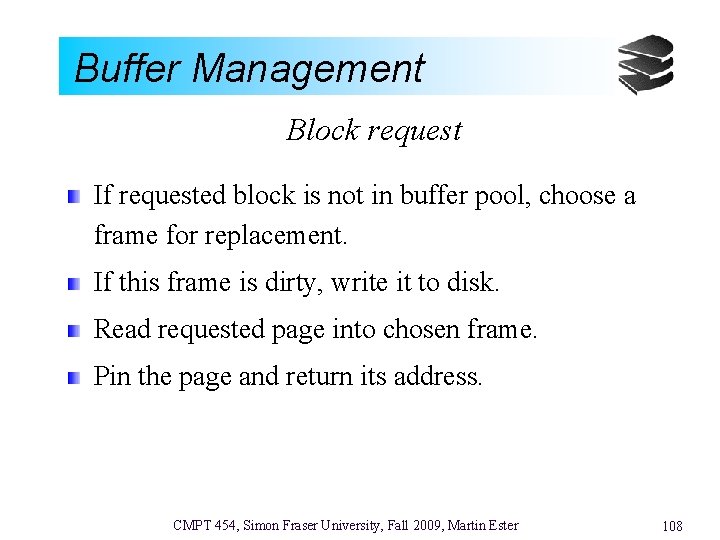

Buffer Management Block request If requested block is not in buffer pool, choose a frame for replacement. If this frame is dirty, write it to disk. Read requested page into chosen frame. Pin the page and return its address. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 108

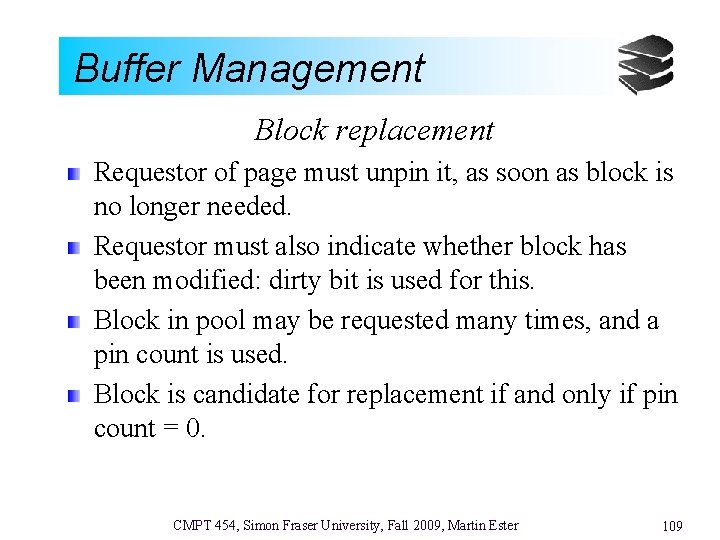

Buffer Management Block replacement Requestor of page must unpin it, as soon as block is no longer needed. Requestor must also indicate whether block has been modified: dirty bit is used for this. Block in pool may be requested many times, and a pin count is used. Block is candidate for replacement if and only if pin count = 0. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 109

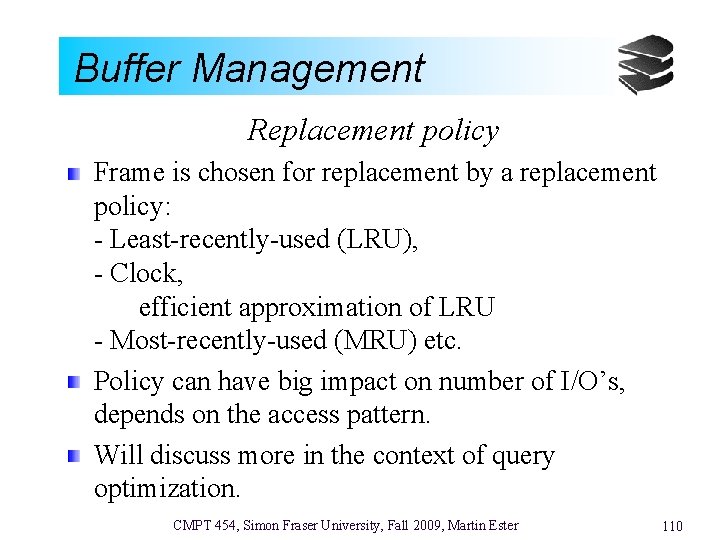

Buffer Management Replacement policy Frame is chosen for replacement by a replacement policy: - Least-recently-used (LRU), - Clock, efficient approximation of LRU - Most-recently-used (MRU) etc. Policy can have big impact on number of I/O’s, depends on the access pattern. Will discuss more in the context of query optimization. CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 110
