Database Searching BLAST Database Searching Sequence Alignment Scoring
Database Searching BLAST • Database Searching • Sequence Alignment • Scoring Matrices • Significance of an alignment • BLAST, algorithm • BLAST, parameters • BLAST, output • Alignment significance in BLAST ©CMBI 2005
Database Searching Identify similarities between novel query sequences whose structures and functions are unknown and uncharacterized sequences in (public) databases whose structures and functions have been elucidated. N. B. The similarity might span the entire query sequence or just part of it! ©CMBI 2005
Database searching (2) The query sequence is compared/aligned with every sequence in the database. High-scoring database sequences are assumed to be evolutionary related to the query sequence. If sequences are related by divergence from a common ancestor, there are said to be homologous. ©CMBI 2005
Sequence Alignment The purpose of a sequence alignment is to line up all residues in the sequence that were derived from the same residue position in the ancestral gene or protein in any number of sequences A B gap = insertion or deletion J. Leunissen
Scoring Matrix/Substitution Matrix To score quality of an alignment Contains scores for pairs of residues (amino acids or nucleic acids) in a sequence alignment For protein/protein comparisons: a 20 x 20 matrix of similarity scores where identical amino acids and those of similar character (e. g. Ile, Leu) give higher scores compared to those of different character (e. g. Ile, Asp). Symmetric ©CMBI 2005
Substitution Matrices Not all amino acids are equal Residues mutate more easily to similar ones Residues at surface mutate more easily Aromatics mutate preferably into aromatics Mutations tend to favor some substitutions Core tends to be hydrophobic Selection tends to favor some substitutions Cysteines are dangerous at the surface Cysteines in bridges seldom mutate ©CMBI 2005

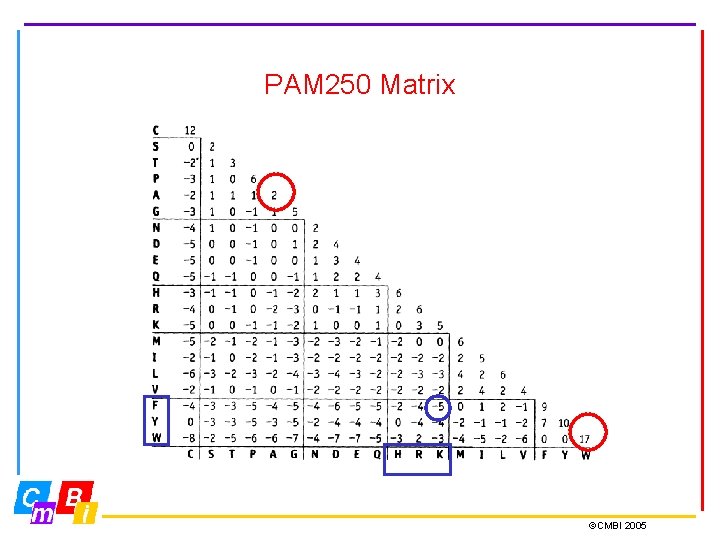

PAM 250 Matrix ©CMBI 2005
Scoring example Score of an alignment is the sum of the scores of all pairs of residues in the alignment sequence 1: TCCPSIVARSN sequence 2: SCCPSISARNT 1 12 12 6 2 5 -1 2 6 1 0 => alignment score = 46 ©CMBI 2005
Dayhoff Matrix (1) The group of Dayhoff created a scoring matrix from a dataset of closely similar protein sequences that could be aligned unambiguously. Then they counted all mutations (and non-mutations) and calculated the mutation frequencies With a bit of math, they converted these frequencies into the famous Dayhoff matrix (also called PAM matrix). ©CMBI 2005
Dayhoff Matrix (2) Given the frequency of Leu and Val in my sequences, do I see more mutations of V L than I would expect by chance? Score of mutation A B = log (observed a b mutation rate / expected number of mutations) This is called a log odd and can be negative, zero, or positive. When using a log odds matrix, the total score of the alignment is given by the sum of the scores for each aligned pair of residues. ©CMBI 2005
Dayhoff Matrix (3) This log odds matrix is called PAM 1. An evolutionary distance of 1 PAM (point accepted mutation) means there has been 1 point mutation per 100 residues PAM 1 may be used to generate matrices for greater evolutionary distances by multiplying it repeatedly by itself. PAM 250: – 2, 5 mutations per residue. – equivalent to 20% matches remaining between two sequences, i. e. 80% of the amino acid positions are observed to have changed (one or more times). – is default in many analysis packages. ©CMBI 2005
BLOSUM Matrix Limit of Dayhoff matrix: Matrices based on the Dayhoff model of evolutionary rates are derived from alignments of sequences that are at least 85% identical; that might not be optimal… An alternative approach has been developed by Henikoff and Henikoff using local multiple alignments of more distantly related sequences ©CMBI 2005
BLOSUM Matrix (2) The BLOSUM matrices (BLOcks SUbstitution Matrix) are based on the BLOCKS database. The BLOCKS database utilizes the concept of blocks (un-gapped amino acid pattern), that act as signatures of a family of proteins. Substitution frequencies for all pairs of amino acids were then calculated and this used to calculate a log odds BLOSUM matrix. Different matrices are obtained by varying the identity threshold. For example, BLOSUM 80 was derived using blocks of 80% identity. ©CMBI 2005

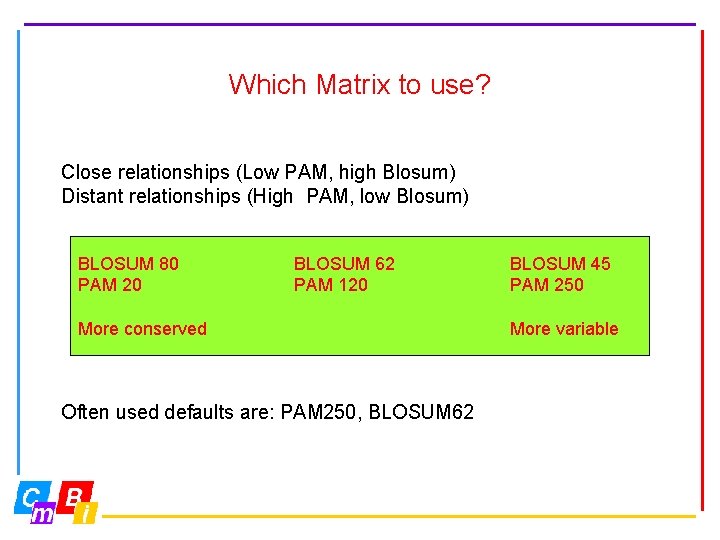

Which Matrix to use? Close relationships (Low PAM, high Blosum) Distant relationships (High PAM, low Blosum) BLOSUM 80 PAM 20 BLOSUM 62 PAM 120 More conserved Often used defaults are: PAM 250, BLOSUM 62 BLOSUM 45 PAM 250 More variable
Significance of alignment (1) When is an alignment statistically significant? In other words: How much different is the alignment score found from scores obtained by aligning random sequences to the query sequence? Or: What is the probability that an alignment with this score could have arisen by chance? ©CMBI 2005
Significance of alignment (2) Database size= 20 x 106 letters peptide #hits A AP IAP LIAP WLIAP KWLIAPY 1 x 106 50000 2500 125 6 0, 3 0, 015 ©CMBI 2005
BLAST Question: What database sequences are most similar to (or contain the most similar regions to) my previously uncharacterised sequence? • BLAST finds the highest scoring locally optimal alignments between a query sequence and a database. • Very fast algorithm • Can be used to search extremely large databases • Sufficiently sensitive and selective for most purposes • Robust – the default parameters can usually be used ©CMBI 2005
BLAST – Algorithme Step 1: Read/understand user query sequence. Step 2: Use hashing technology to select several thousand likely candidates. Step 3: Do a real alignment between the query sequence and those likely candidate. ‘Real alignment’ is a main topic of this course. Step 4: Present output to user. ©CMBI 2005
BLAST Algorithm, Step 2 For a given word length w and a given score matrix: Create a list of all words (w-mers) that can score >T when compared to w-mers from the query. Query Sequence LNKCKTPQGQRLVNQ P Q G 18 P E G 15 P R G 14 P K G 14 P N G 13 P D G 13 P M G 13 Below Threshold (T=13) Word Neighborhood Words P Q A 12 P Q N 12 etc. ©CMBI 2005
BLAST Algorithm, Step 2 • Each neighbourhood word gives all positions in the database where it is found (hit list). P Q G 18 P E G 15 P R G 14 P K G 14 P N G 13 P D G 13 P M G 13 PMG Database ©CMBI 2005

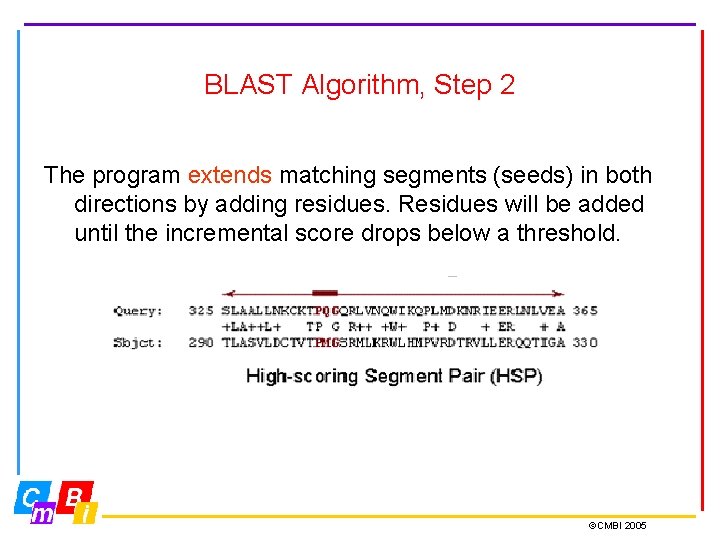

BLAST Algorithm, Step 2 The program extends matching segments (seeds) in both directions by adding residues. Residues will be added until the incremental score drops below a threshold. ©CMBI 2005
Basic BLAST Algorithms Program Query Database BLASTP Protein BLASTN DNA BLASTX translated. DNA protein TBLASTN protein translated. DNA TBLASTX translated. DNA ©CMBI 2005
PSI-BLAST Position-Specific Iterated BLAST • Distant relationships are often best detected by motif or profile searches rather than pair-wise comparisons • PSI-BLAST first performs a BLAST search. • PSI-BLAST uses the information from significant BLAST alignments returned to construct a position specific score matrix, which replaces the query sequence for the next round of database searching. • PSI-BLAST may be iterated until no new significant alignments are found. ©CMBI 2005
BLAST Input Steps in running BLAST: • Entering your query sequence (cut-and-paste) • Select the database(s) you want to search • Choose output parameters • Choose alignment parameters (scoring matrix, filters, …. ) Example query= MAFIWLLSCYALLGTTFGCGVNAIHPVLTGLSKIVNGEEAVPGTWPWQVTLQDRSGFHFC GGSLISEDWVVTAAHCGVRTSEILIAGEFDQGSDEDNIQVLRIAKVFKQPKYSILTVNND ITLLKLASPARYSQTISAVCLPSVDDDAGSLCATTGWGRTKYNANKSPDKLERAALPLLT NAECKRSWGRRLTDVMICGAASGVSSCMGDSGGPLVCQKDGAYTLVAIVSWASDTCSASS GGVYAKVTKIIPWVQKILSSN ©CMBI 2005

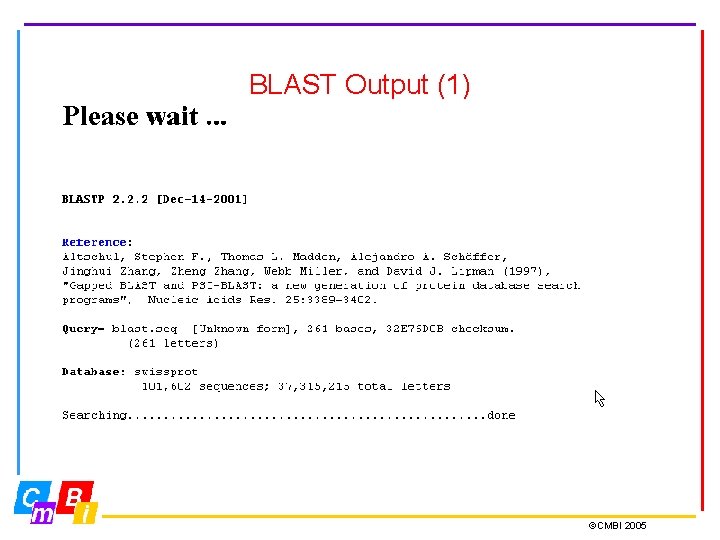

BLAST Output (1) ©CMBI 2005
BLAST Output (2) A low probability indicates that a match is unlikely to ave arisen by chance A high score, or preferably, clusters of high scores, indicates a likely relationship ©CMBI 2005
BLAST Output (3) Low scores with high probabilities suggest that matches have arisen by chance ©CMBI 2005
Alignment Significance in BLAST P-value (probability) Relates the score for an alignment to the likelihood that it arose by chance. The closer to zero, the greater the confidence that the hit is real. E-value (expect value) The number of alignments with E that would be expected by chance in that database (e. g. if E=10, 10 matches with scores this high are expected to be found by chance). A match will be reported if its E is below the threshold. Lower E thresholds are more stringent, and report fewer matches. ©CMBI 2005
BLAST Output (4) ©CMBI 2005
BLAST Output (5) ©CMBI 2005
BLAST Output (6) ©CMBI 2005
Low complexity filter ©CMBI 2005
Low complexity filter ©CMBI 2005
Low complexity filter ©CMBI 2005
Local implementation - Blast in MRS also contains a BLAST. This BLAST is simpler, has fewer options, knows fewer databases, but is faster. ©CMBI 2005
Blast in MRS Blast remembers all your queries from one session, and stores them in a table. The one you are running is in that table too. Multiple BLASTs can run at one time. Still running Ready ©CMBI 2005
Blast hitlist in MRS ©CMBI 2005
Blast hitlist expansion in MRS ©CMBI 2005
Blast hitlist expansion in MRS ©CMBI 2005

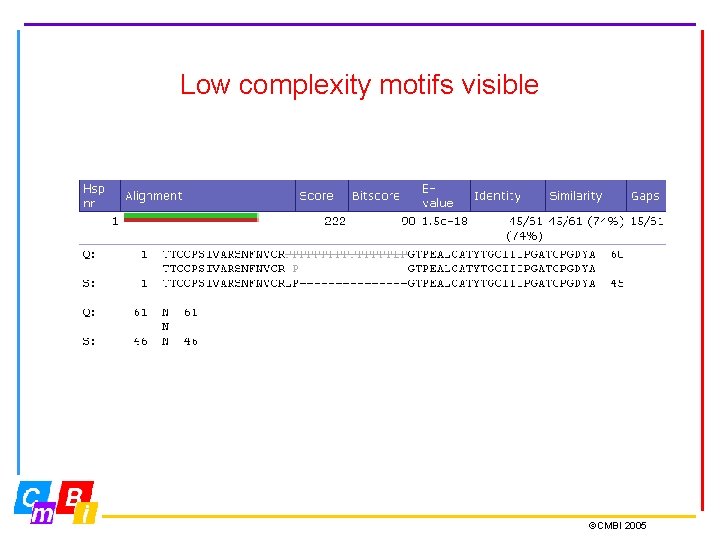

Low complexity motifs visible ©CMBI 2005

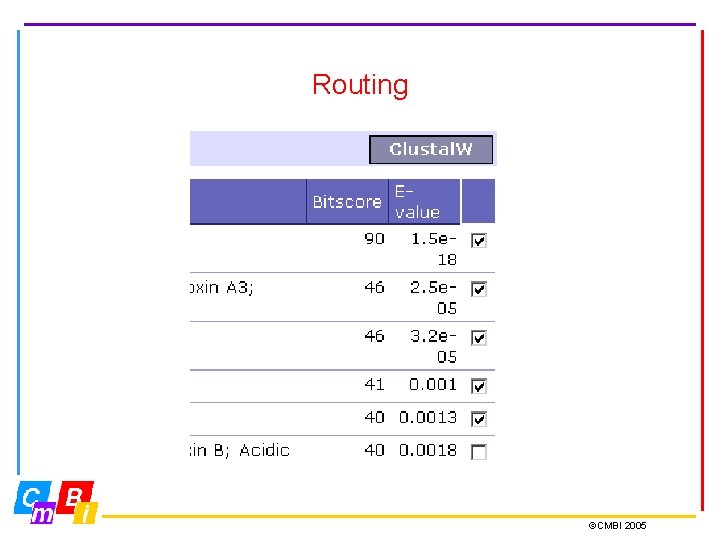

Routing ©CMBI 2005
Routing to Clustal ©CMBI 2005
Routing MRS to Blast ©CMBI 2005
