Database Programming Using Oracle 11 g Structured Query

Database Programming Using Oracle 11 g Structured Query Language Recap

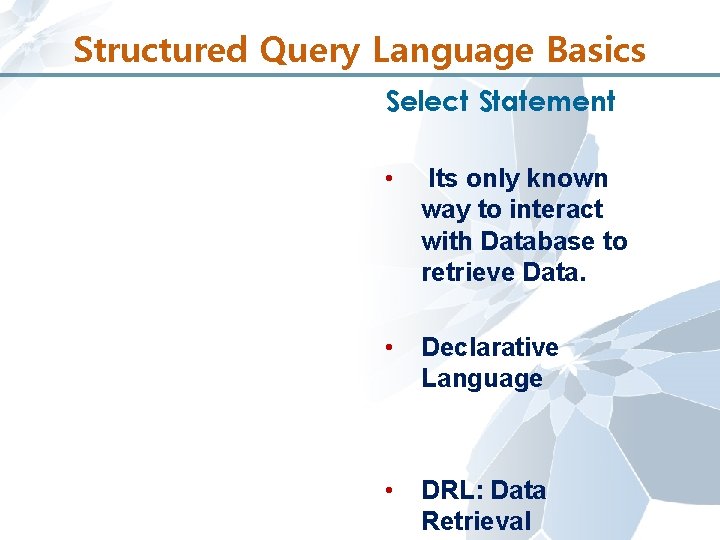

Structured Query Language Basics Select Statement • Its only known way to interact with Database to retrieve Data. • Declarative Language • DRL: Data Retrieval

Structured Query Language Basics • Select distinct * | Column. Name from Table. Name; • * mean all the column • Column. Name is one or more column from table • Distinct mean unique values from column

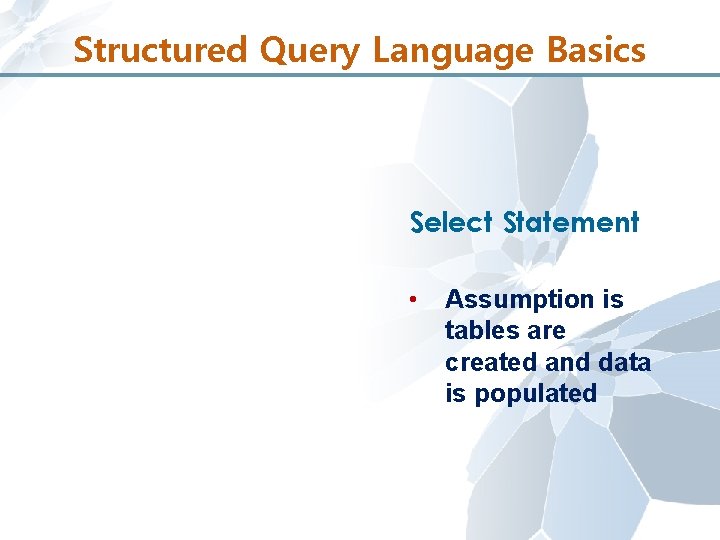

Structured Query Language Basics Select Statement • Assumption is tables are created and data is populated

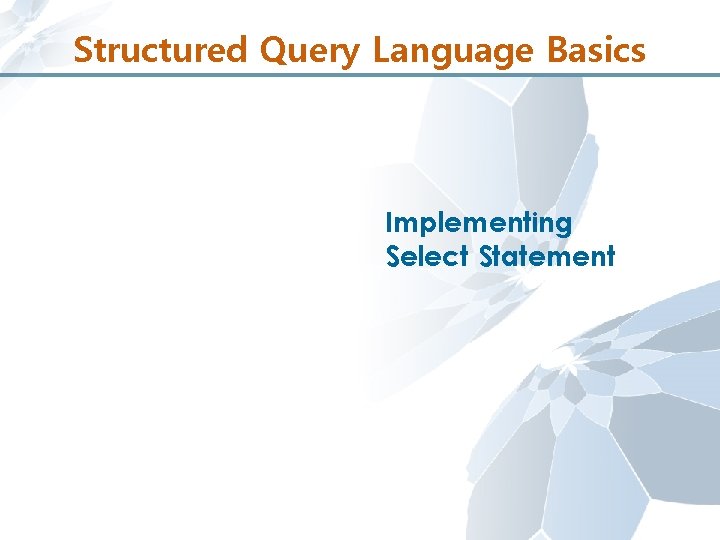

Structured Query Language Basics Implementing Select Statement

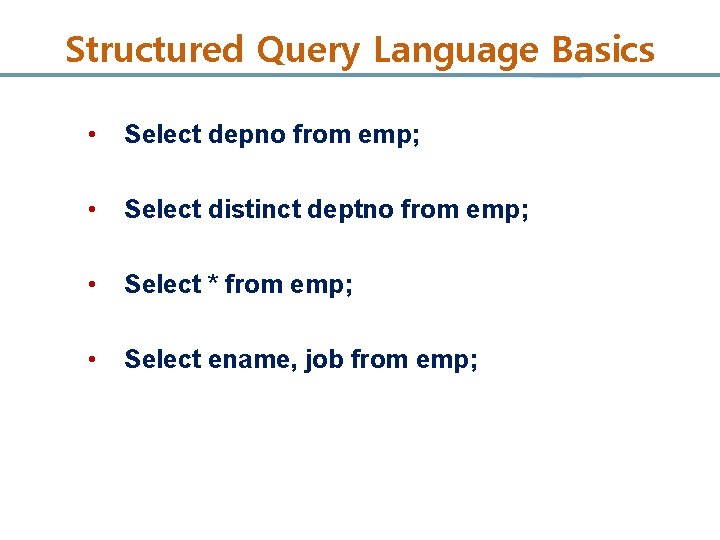

Structured Query Language Basics • Select depno from emp; • Select distinct deptno from emp; • Select * from emp; • Select ename, job from emp;

Structured Query Language Basics Select Statement • Assumption is tables are created and data is populated

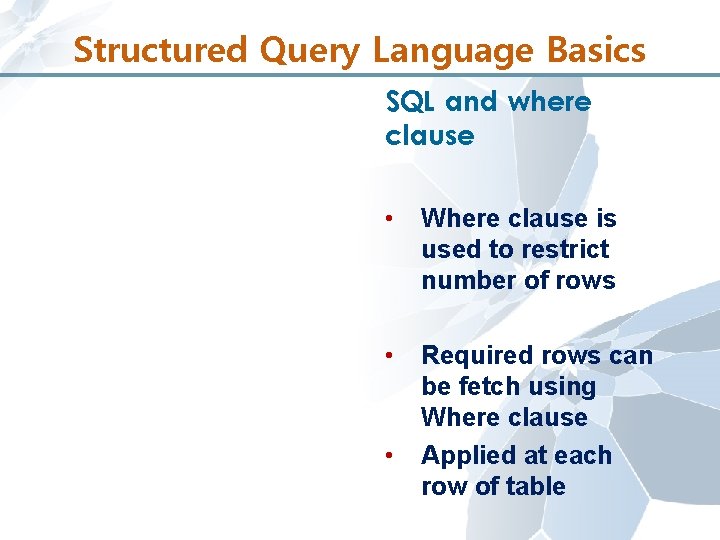

Structured Query Language Basics SQL and where clause • Where clause is used to restrict number of rows • Required rows can be fetch using Where clause Applied at each row of table •

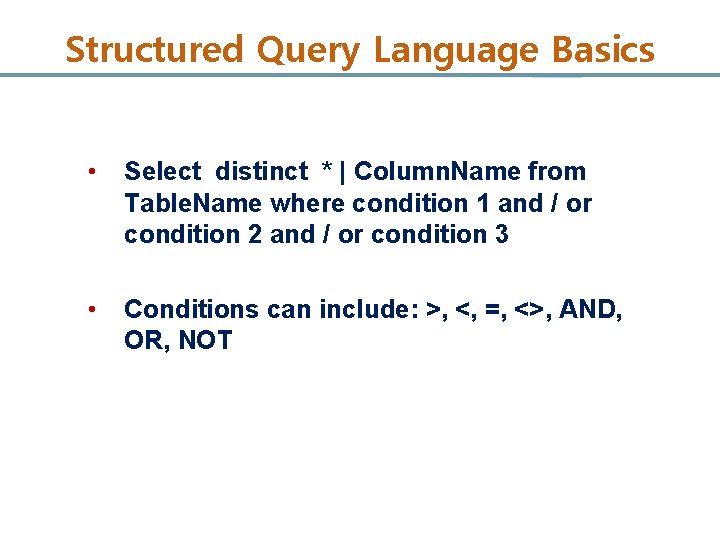

Structured Query Language Basics • Select distinct * | Column. Name from Table. Name where condition 1 and / or condition 2 and / or condition 3 • Conditions can include: >, <, =, <>, AND, OR, NOT

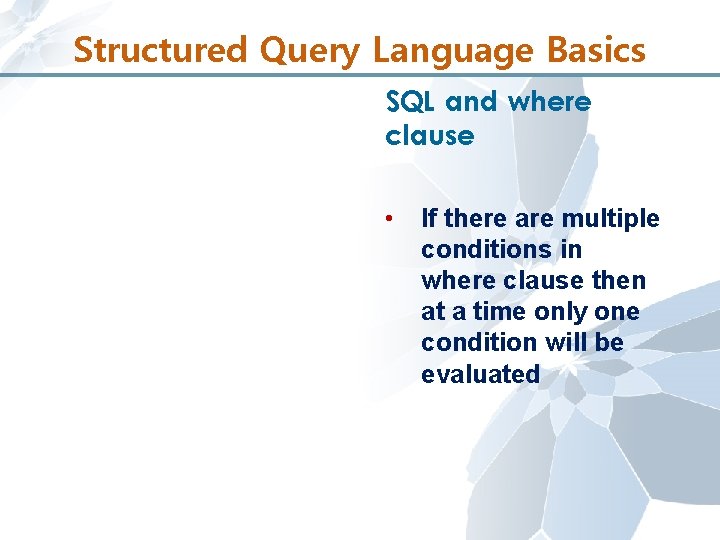

Structured Query Language Basics SQL and where clause • If there are multiple conditions in where clause then at a time only one condition will be evaluated

Structured Query Language Basics Implementing Where Clause

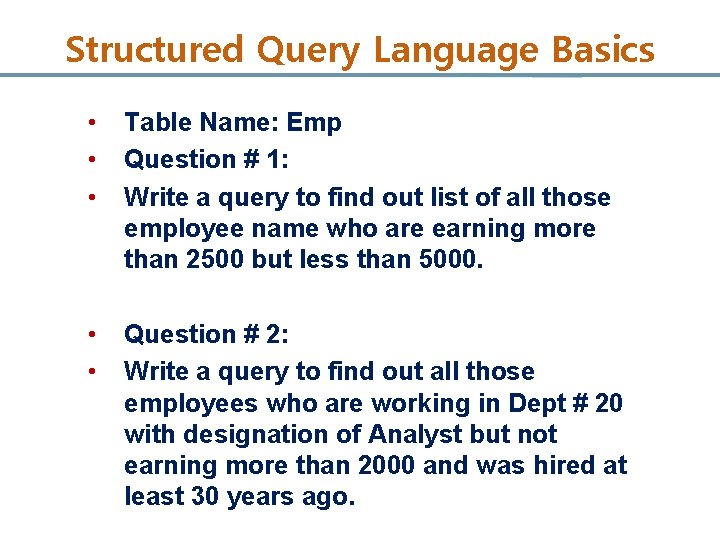

Structured Query Language Basics • • • Table Name: Emp Question # 1: Write a query to find out list of all those employee name who are earning more than 2500 but less than 5000. • • Question # 2: Write a query to find out all those employees who are working in Dept # 20 with designation of Analyst but not earning more than 2000 and was hired at least 30 years ago.

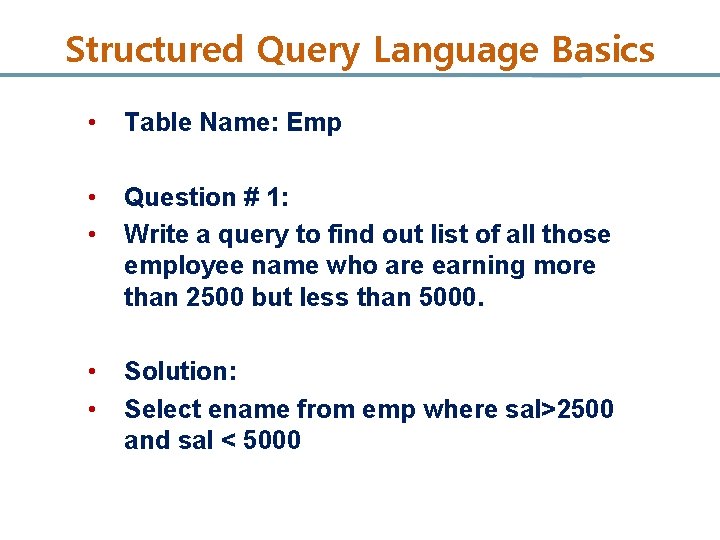

Structured Query Language Basics • Table Name: Emp • • Question # 1: Write a query to find out list of all those employee name who are earning more than 2500 but less than 5000. • • Solution: Select ename from emp where sal>2500 and sal < 5000

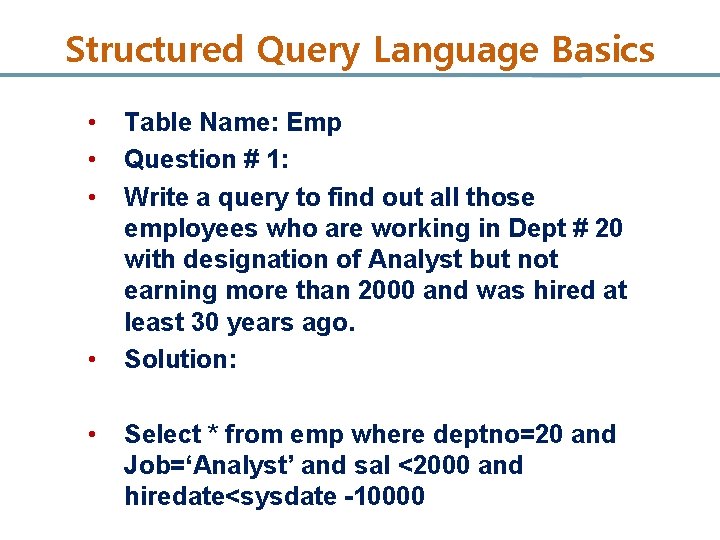

Structured Query Language Basics • • • Table Name: Emp Question # 1: Write a query to find out all those employees who are working in Dept # 20 with designation of Analyst but not earning more than 2000 and was hired at least 30 years ago. Solution: Select * from emp where deptno=20 and Job=‘Analyst’ and sal <2000 and hiredate<sysdate -10000

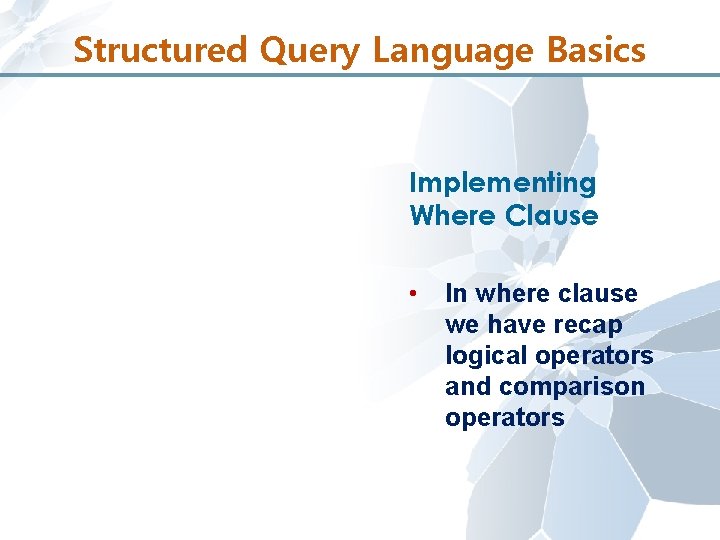

Structured Query Language Basics Implementing Where Clause • In where clause we have recap logical operators and comparison operators

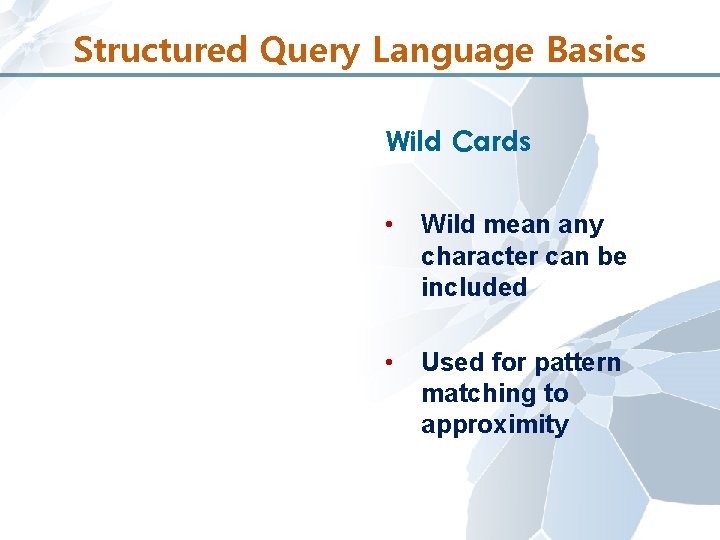

Structured Query Language Basics Wild Cards • Wild mean any character can be included • Used for pattern matching to approximity

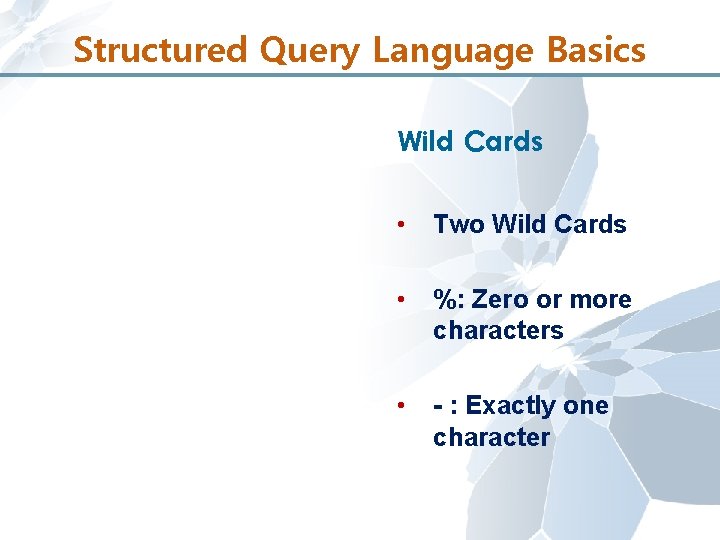

Structured Query Language Basics Wild Cards • Two Wild Cards • %: Zero or more characters • - : Exactly one character

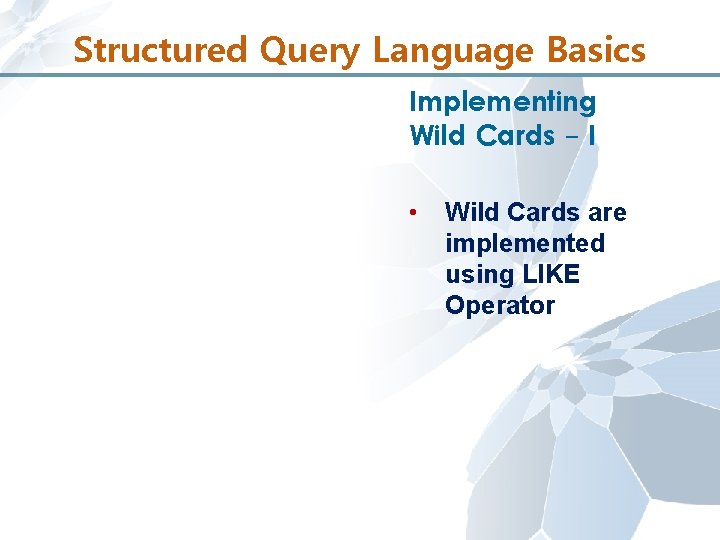

Structured Query Language Basics Implementing Wild Cards - I • Wild Cards are implemented using LIKE Operator

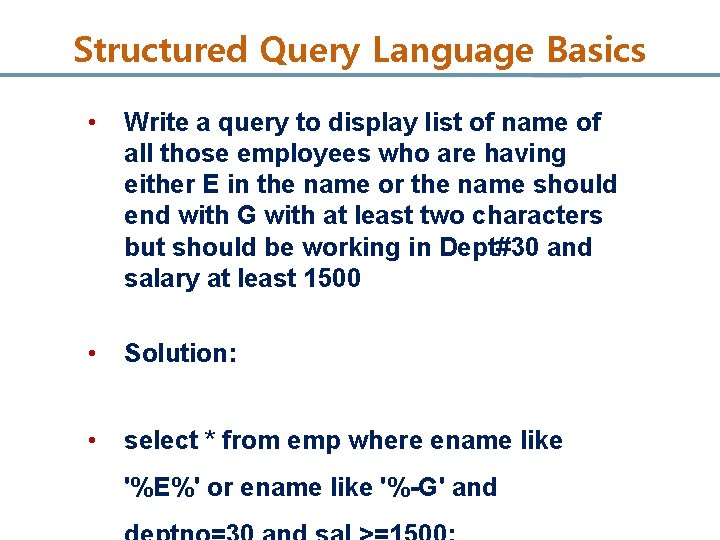

Structured Query Language Basics • Write a query to display list of name of all those employees who are having either E in the name or the name should end with G with at least two characters but should be working in Dept#30 and salary at least 1500 • Solution: • select * from emp where ename like '%E%' or ename like '%-G' and

Structured Query Language Basics Implementing Wild Cards - II

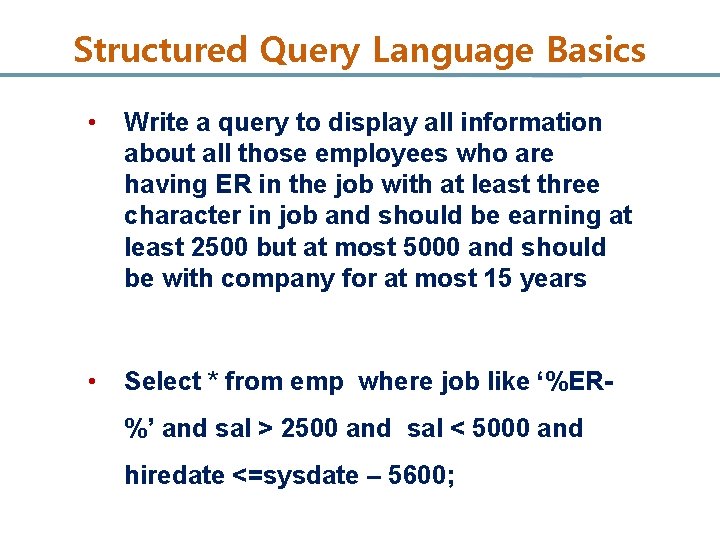

Structured Query Language Basics • Write a query to display all information about all those employees who are having ER in the job with at least three character in job and should be earning at least 2500 but at most 5000 and should be with company for at most 15 years • Select * from emp where job like ‘%ER%’ and sal > 2500 and sal < 5000 and hiredate <=sysdate – 5600;

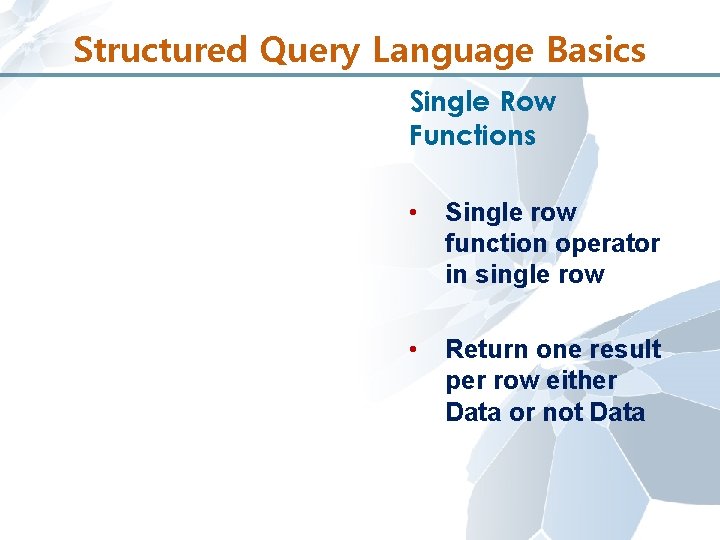

Structured Query Language Basics Single Row Functions • Single row function operator in single row • Return one result per row either Data or not Data

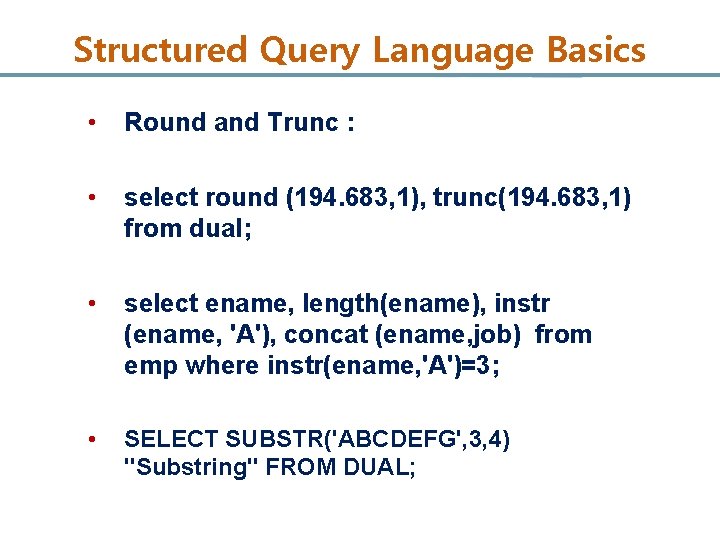

Structured Query Language Basics • Round and Trunc : • select round (194. 683, 1), trunc(194. 683, 1) from dual; • select ename, length(ename), instr (ename, 'A'), concat (ename, job) from emp where instr(ename, 'A')=3; • SELECT SUBSTR('ABCDEFG', 3, 4) "Substring" FROM DUAL;

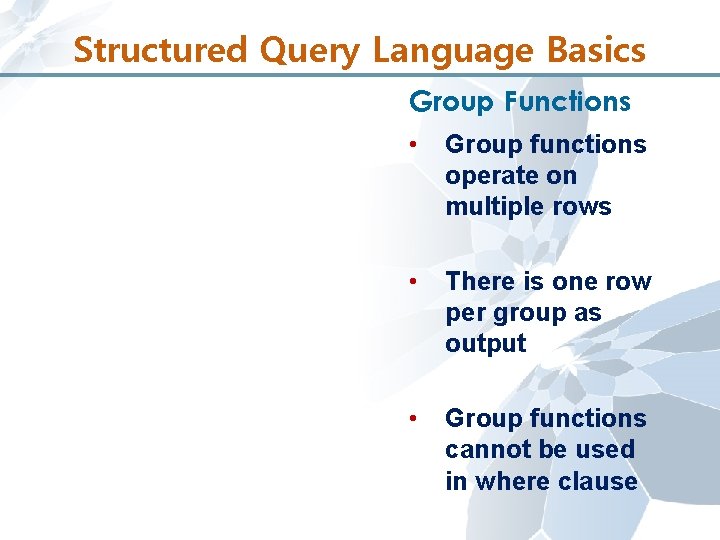

Structured Query Language Basics Group Functions • Group functions operate on multiple rows • There is one row per group as output • Group functions cannot be used in where clause

Structured Query Language Basics Implementing Group Functions-I

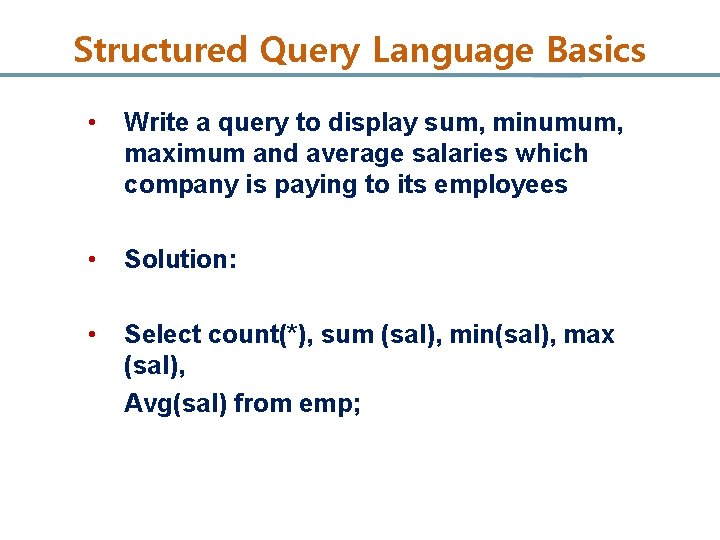

Structured Query Language Basics • Write a query to display sum, minumum, maximum and average salaries which company is paying to its employees • Solution: • Select count(*), sum (sal), min(sal), max (sal), Avg(sal) from emp;

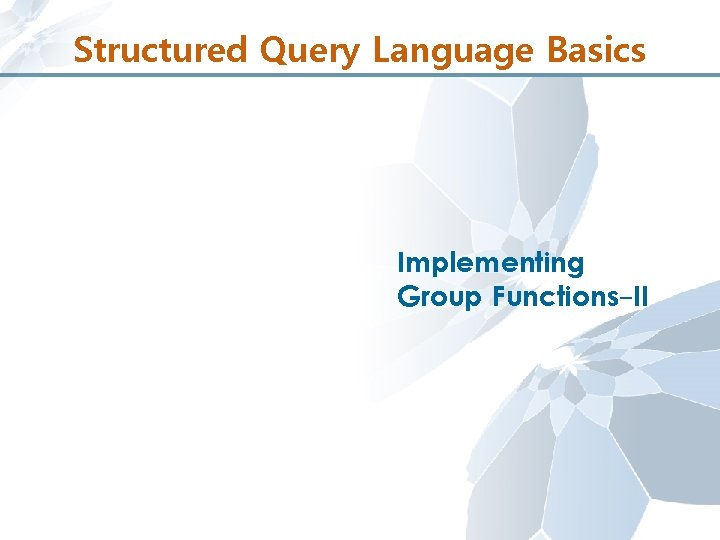

Structured Query Language Basics Implementing Group Functions-II

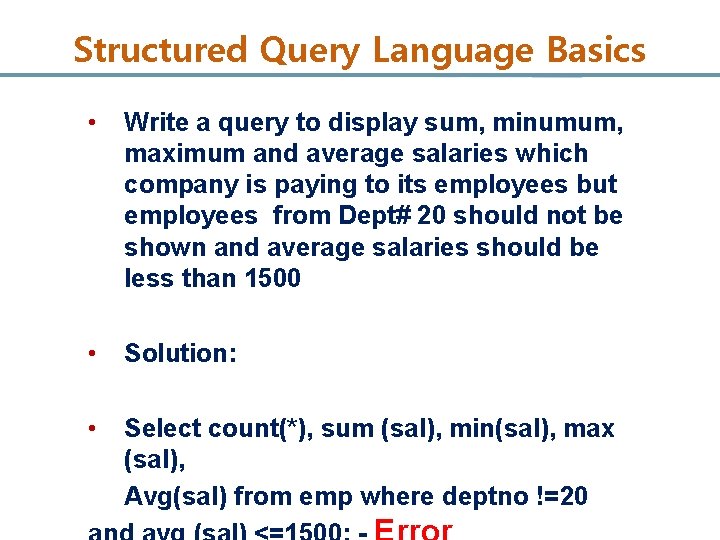

Structured Query Language Basics • Write a query to display sum, minumum, maximum and average salaries which company is paying to its employees but employees from Dept# 20 should not be shown and average salaries should be less than 1500 • Solution: • Select count(*), sum (sal), min(sal), max (sal), Avg(sal) from emp where deptno !=20

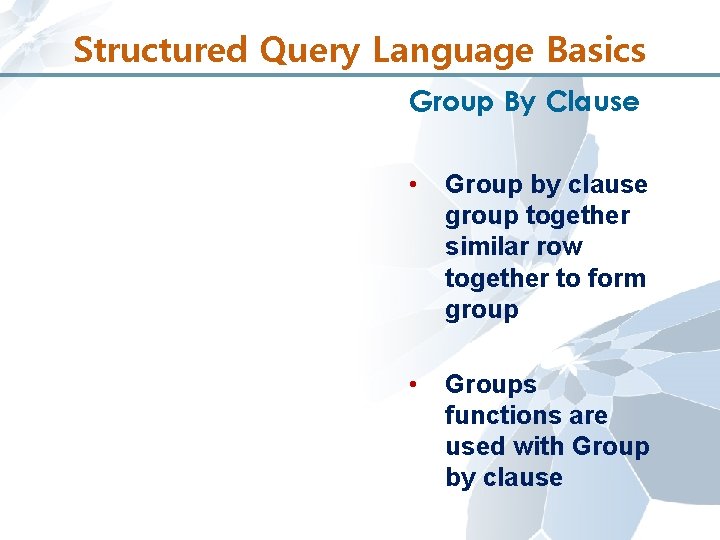

Structured Query Language Basics Group By Clause • Group by clause group together similar row together to form group • Groups functions are used with Group by clause

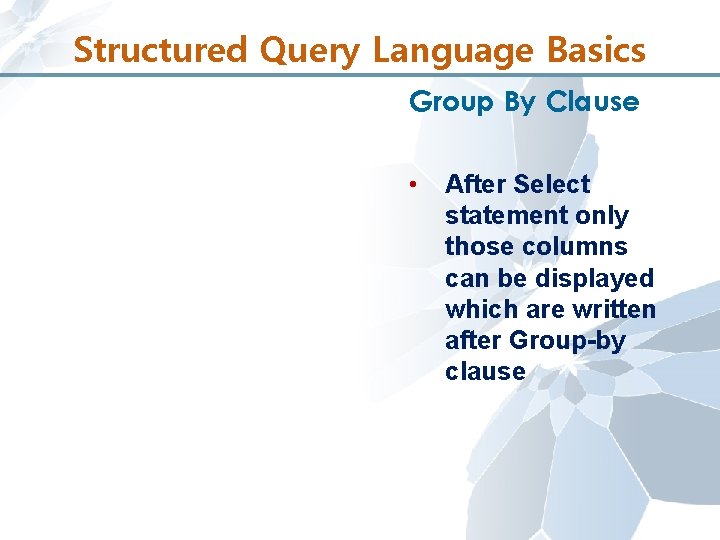

Structured Query Language Basics Group By Clause • After Select statement only those columns can be displayed which are written after Group-by clause

Structured Query Language Basics Implementing Group By Clause

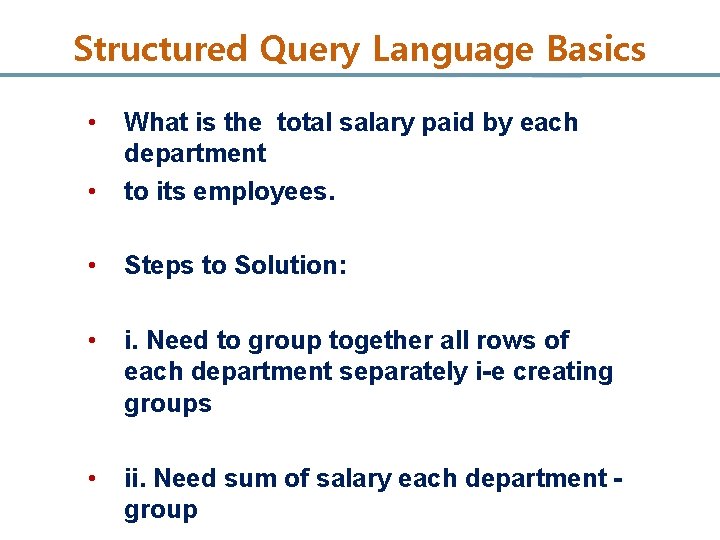

Structured Query Language Basics • • What is the total salary paid by each department to its employees. • Steps to Solution: • i. Need to group together all rows of each department separately i-e creating groups • ii. Need sum of salary each department group

Structured Query Language Basics

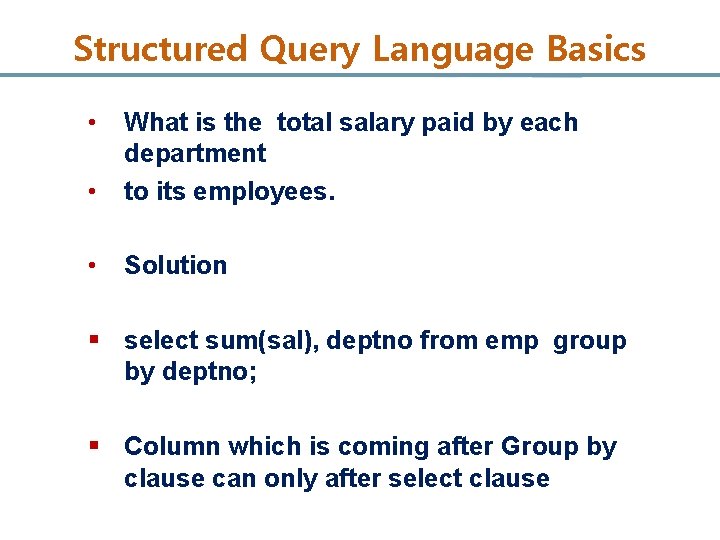

Structured Query Language Basics • • What is the total salary paid by each department to its employees. • Solution § select sum(sal), deptno from emp group by deptno; § Column which is coming after Group by clause can only after select clause

Structured Query Language Basics Implementing Group By Clause-II

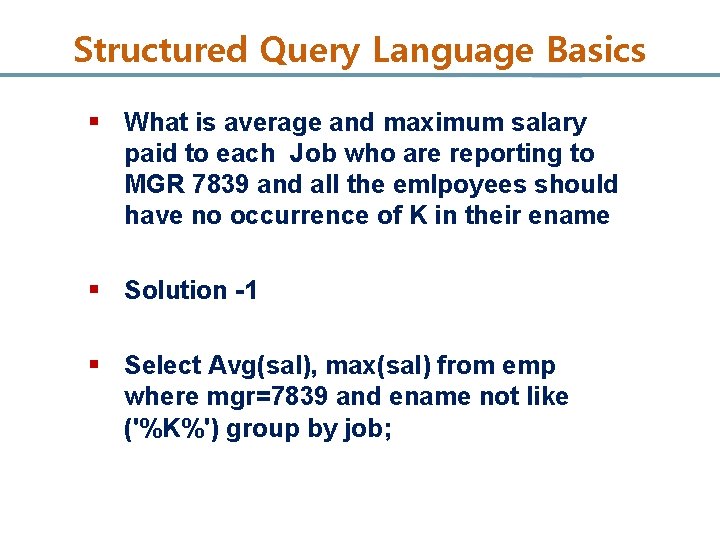

Structured Query Language Basics § What is average and maximum salary paid to each Job who are reporting to MGR 7839 and all the emlpoyees should have no occurrence of K in their ename § Solution -1 § Select Avg(sal), max(sal) from emp where mgr=7839 and ename not like ('%K%') group by job;

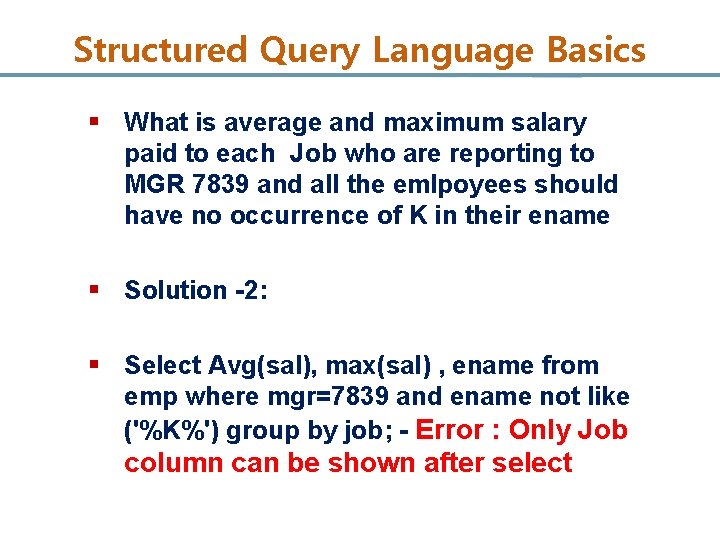

Structured Query Language Basics § What is average and maximum salary paid to each Job who are reporting to MGR 7839 and all the emlpoyees should have no occurrence of K in their ename § Solution -2: § Select Avg(sal), max(sal) , ename from emp where mgr=7839 and ename not like ('%K%') group by job; - Error : Only Job column can be shown after select

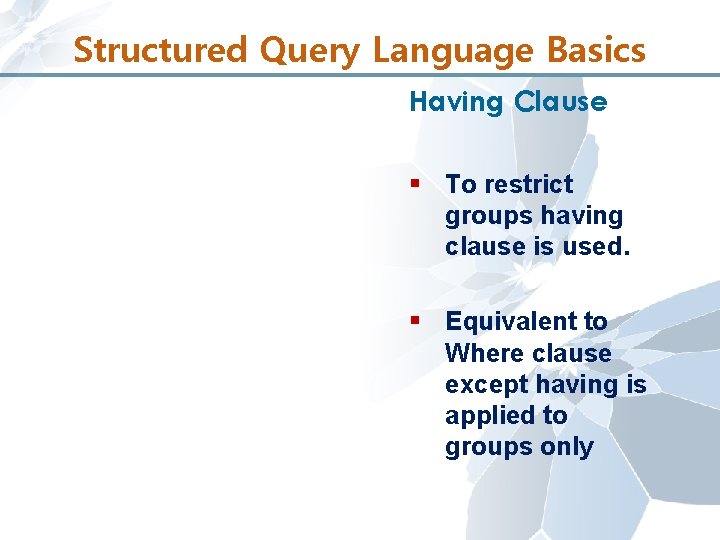

Structured Query Language Basics Having Clause § To restrict groups having clause is used. § Equivalent to Where clause except having is applied to groups only

Structured Query Language Basics Implementing Having Clause-I

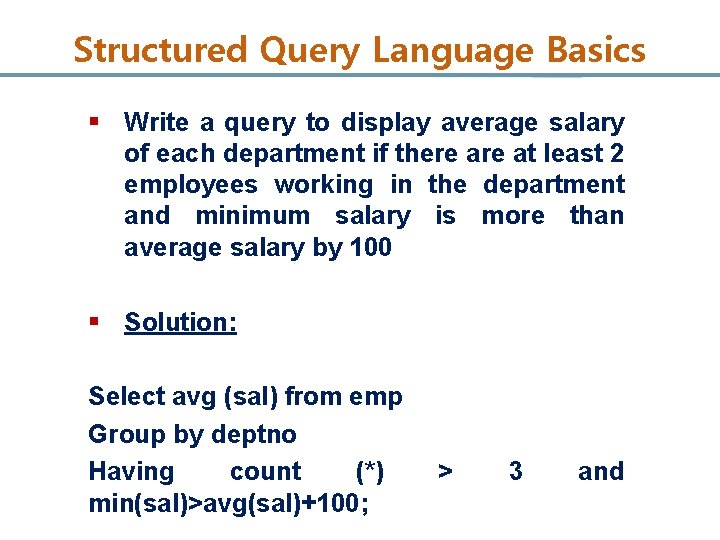

Structured Query Language Basics § Write a query to display average salary of each department if there at least 2 employees working in the department and minimum salary is more than average salary by 100 § Solution: Select avg (sal) from emp Group by deptno Having count (*) min(sal)>avg(sal)+100; > 3 and

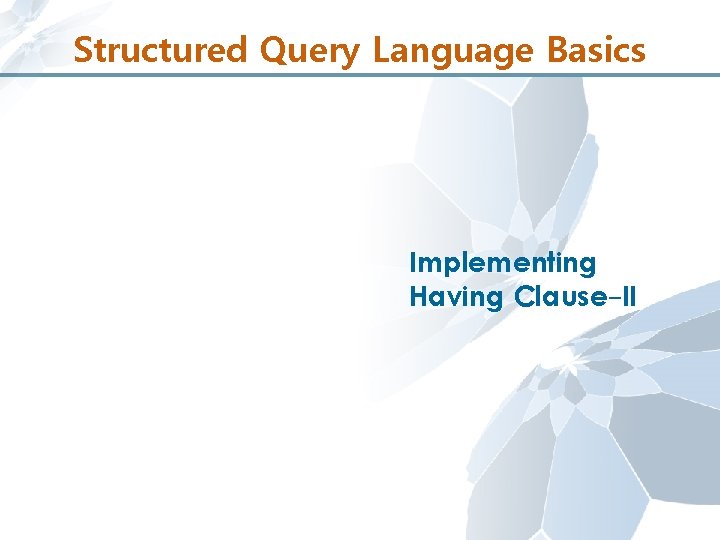

Structured Query Language Basics Implementing Having Clause-II

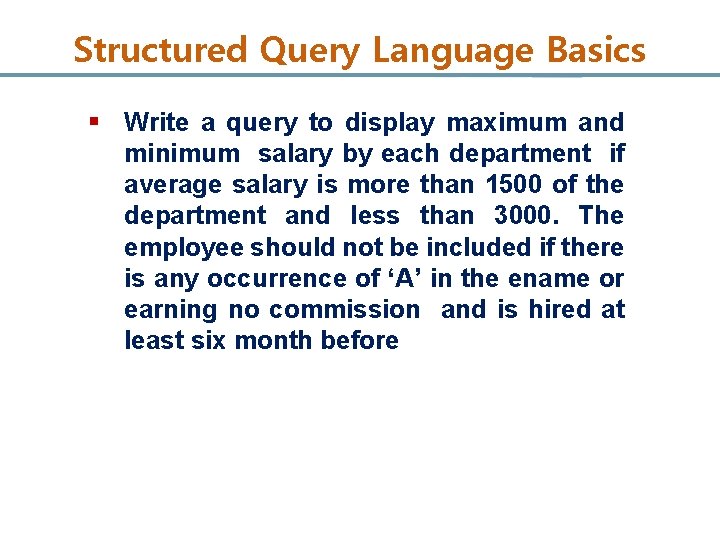

Structured Query Language Basics § Write a query to display maximum and minimum salary by each department if average salary is more than 1500 of the department and less than 3000. The employee should not be included if there is any occurrence of ‘A’ in the ename or earning no commission and is hired at least six month before

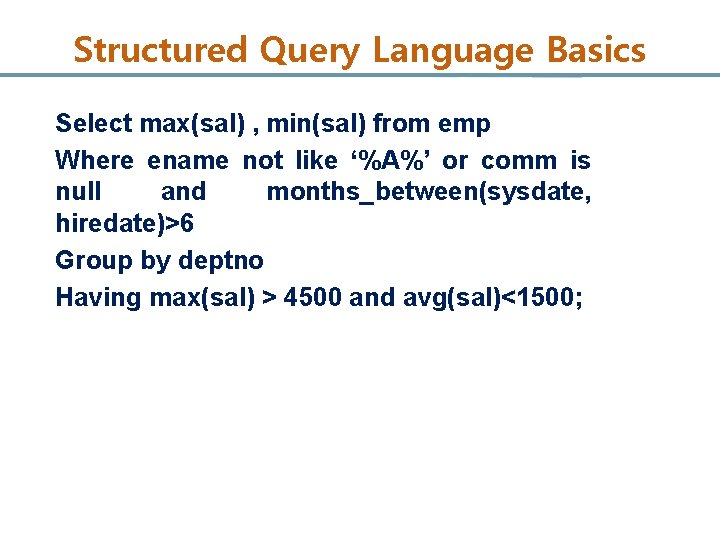

Structured Query Language Basics Select max(sal) , min(sal) from emp Where ename not like ‘%A%’ or comm is null and months_between(sysdate, hiredate)>6 Group by deptno Having max(sal) > 4500 and avg(sal)<1500;

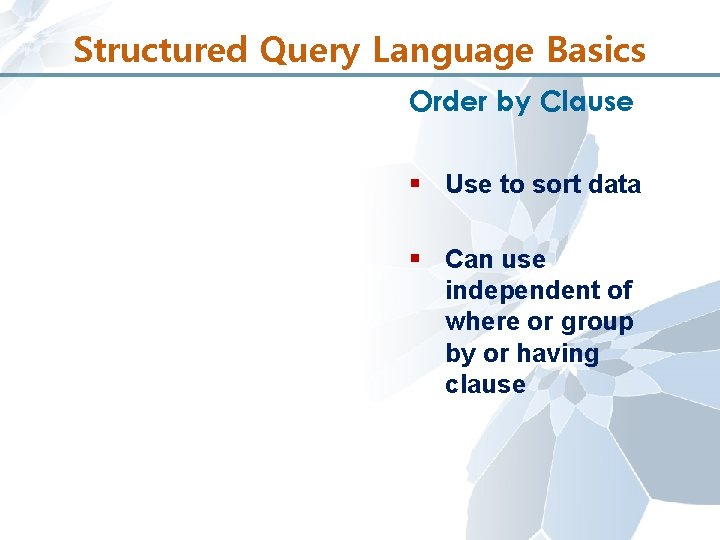

Structured Query Language Basics Order by Clause § Use to sort data § Can use independent of where or group by or having clause

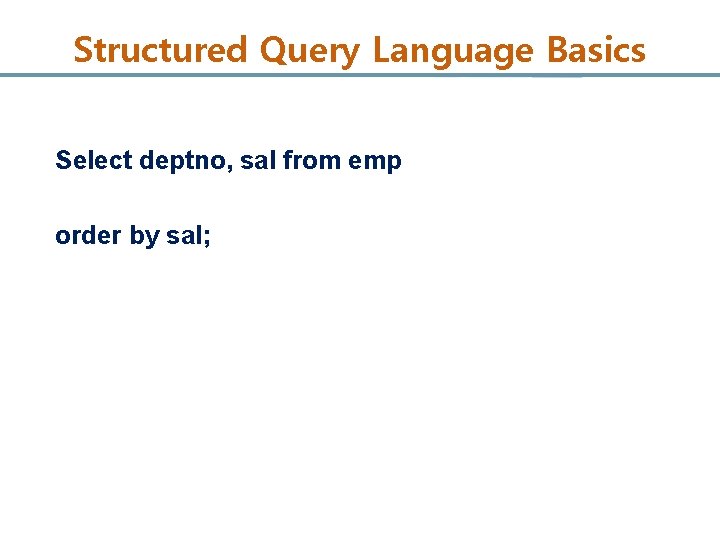

Structured Query Language Basics Select deptno, sal from emp order by sal;

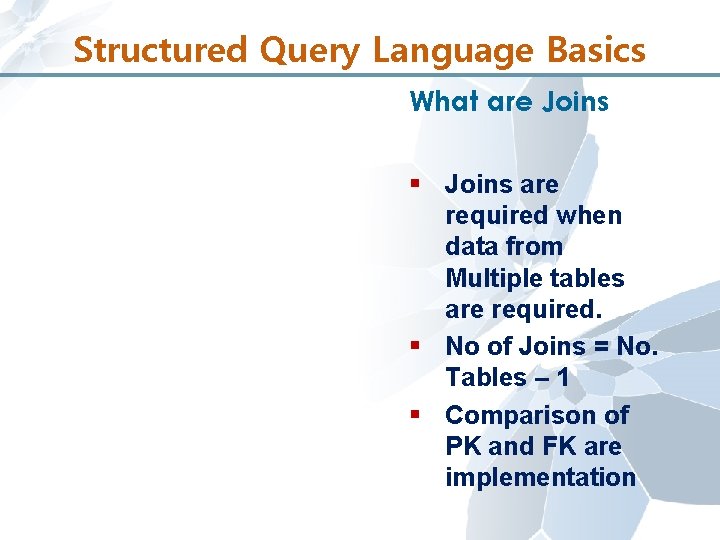

Structured Query Language Basics What are Joins § Joins are required when data from Multiple tables are required. § No of Joins = No. Tables – 1 § Comparison of PK and FK are implementation

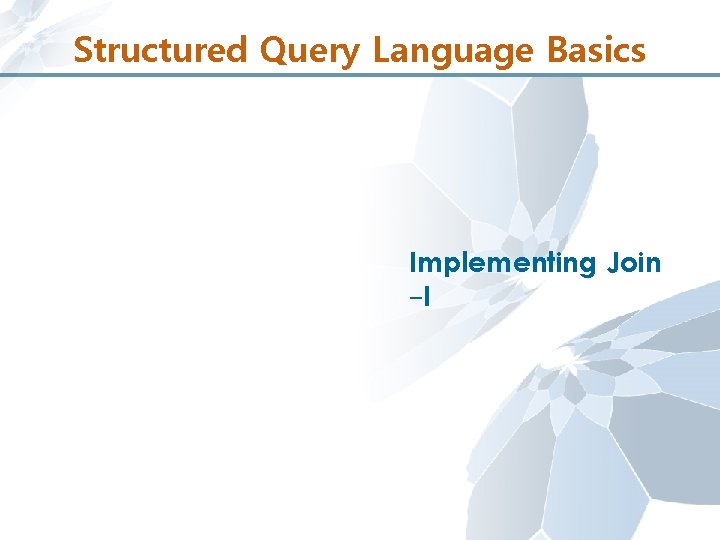

Structured Query Language Basics Implementing Join -I

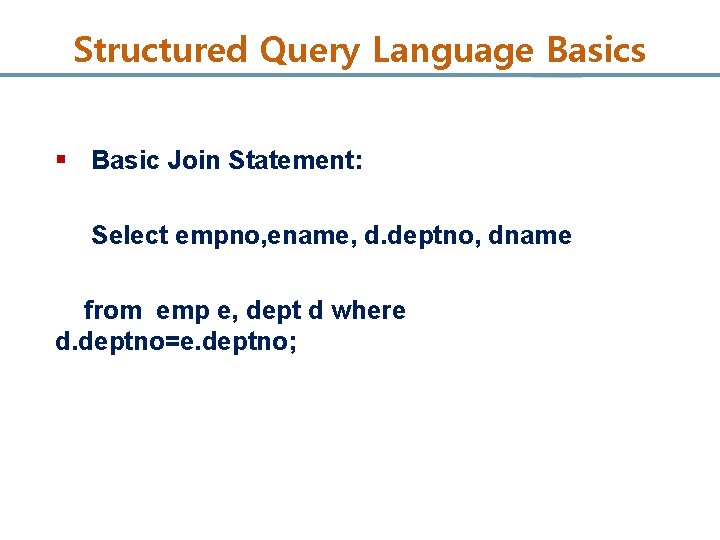

Structured Query Language Basics § Basic Join Statement: Select empno, ename, d. deptno, dname from emp e, dept d where d. deptno=e. deptno;

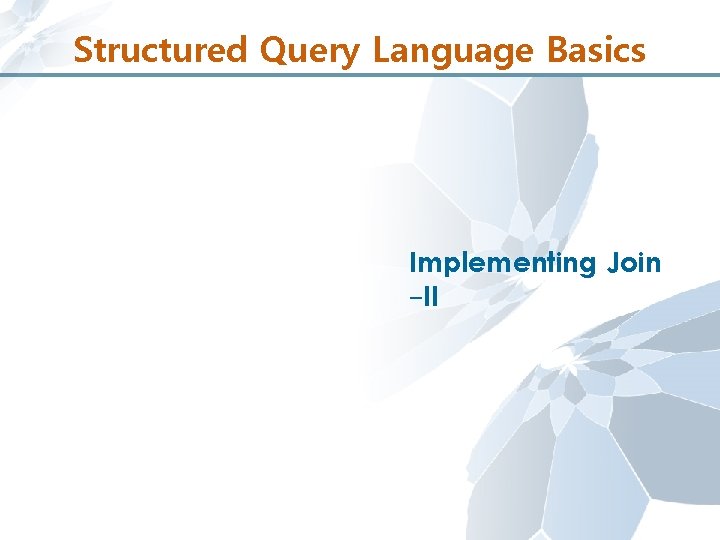

Structured Query Language Basics Implementing Join -II

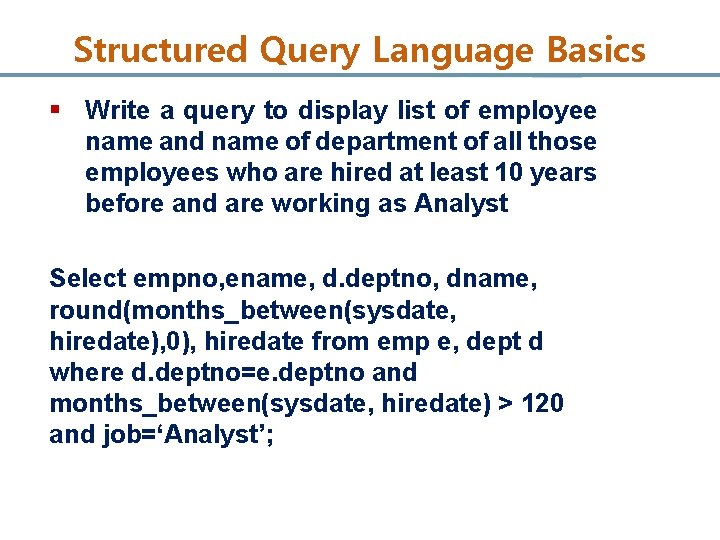

Structured Query Language Basics § Write a query to display list of employee name and name of department of all those employees who are hired at least 10 years before and are working as Analyst Select empno, ename, d. deptno, dname, round(months_between(sysdate, hiredate), 0), hiredate from emp e, dept d where d. deptno=e. deptno and months_between(sysdate, hiredate) > 120 and job=‘Analyst’;

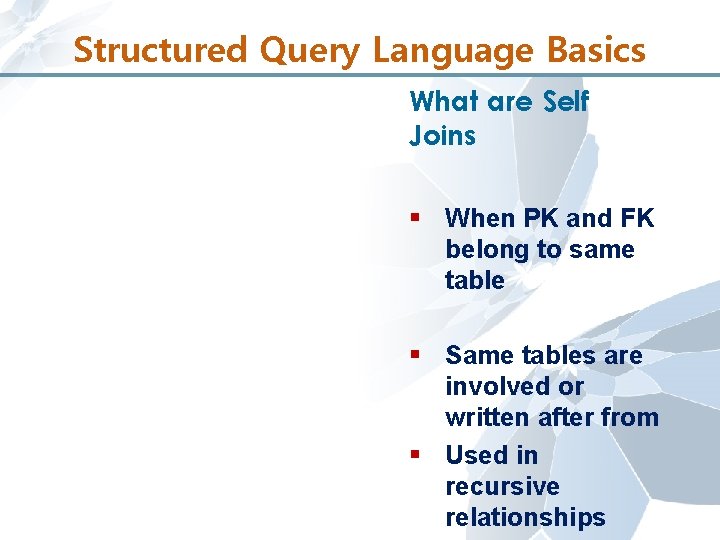

Structured Query Language Basics What are Self Joins § When PK and FK belong to same table § Same tables are involved or written after from § Used in recursive relationships

Structured Query Language Basics Implementing Self Join-I

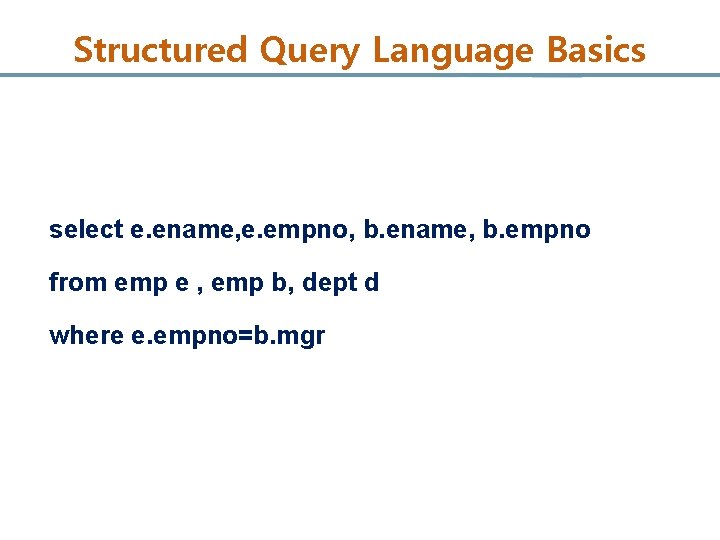

Structured Query Language Basics select e. ename, e. empno, b. ename, b. empno from emp e , emp b, dept d where e. empno=b. mgr

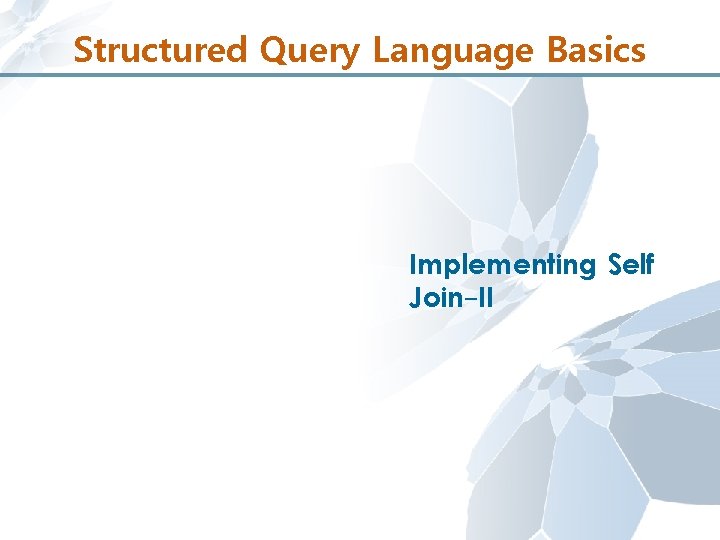

Structured Query Language Basics Implementing Self Join-II

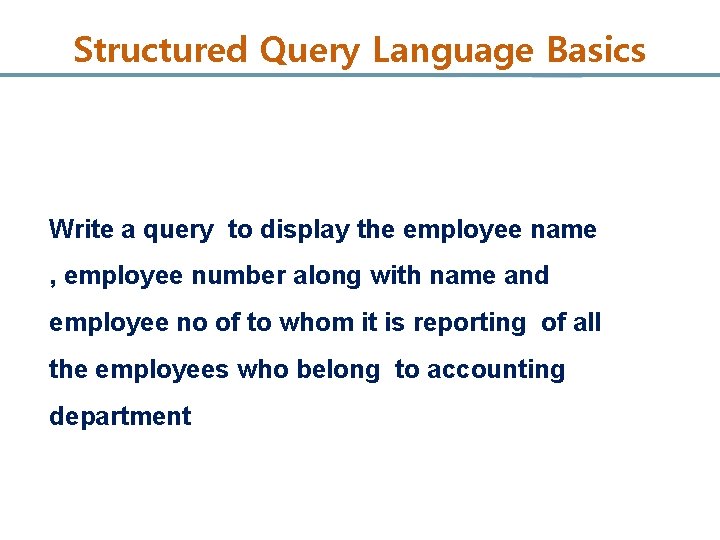

Structured Query Language Basics Write a query to display the employee name , employee number along with name and employee no of to whom it is reporting of all the employees who belong to accounting department

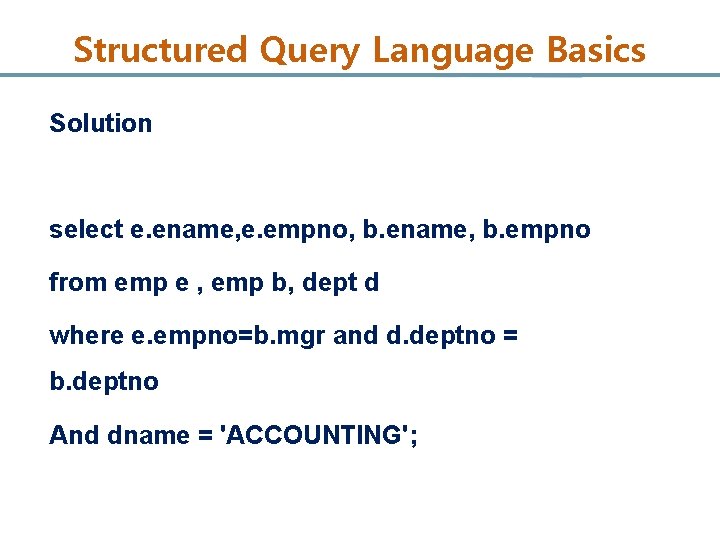

Structured Query Language Basics Solution select e. ename, e. empno, b. ename, b. empno from emp e , emp b, dept d where e. empno=b. mgr and d. deptno = b. deptno And dname = 'ACCOUNTING';

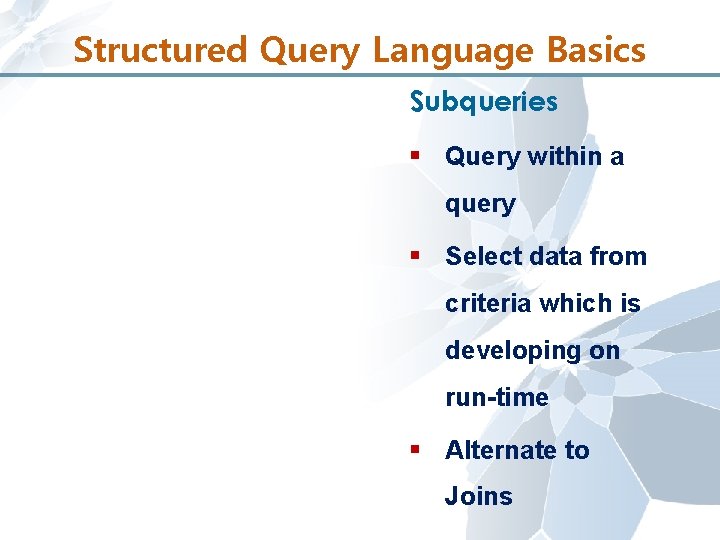

Structured Query Language Basics Subqueries § Query within a query § Select data from criteria which is developing on run-time § Alternate to Joins

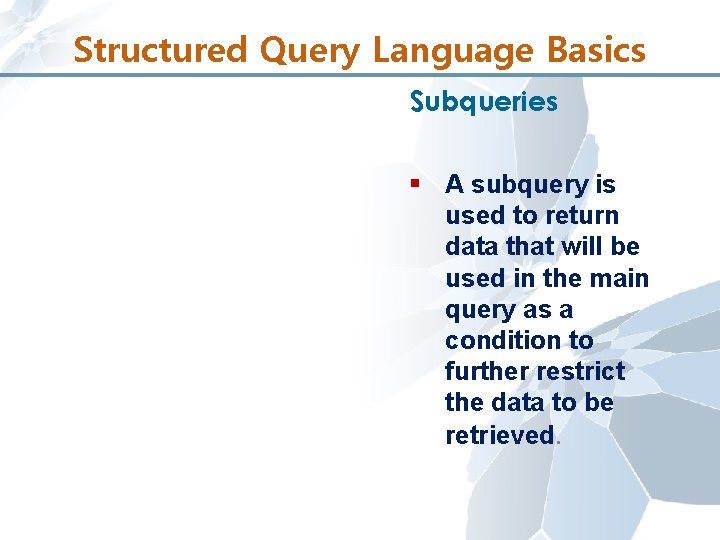

Structured Query Language Basics Subqueries § A subquery is used to return data that will be used in the main query as a condition to further restrict the data to be retrieved.

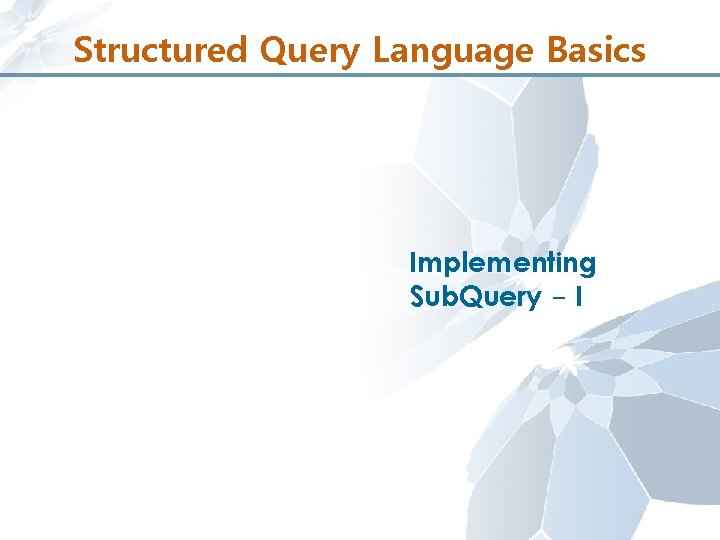

Structured Query Language Basics Implementing Sub. Query - I

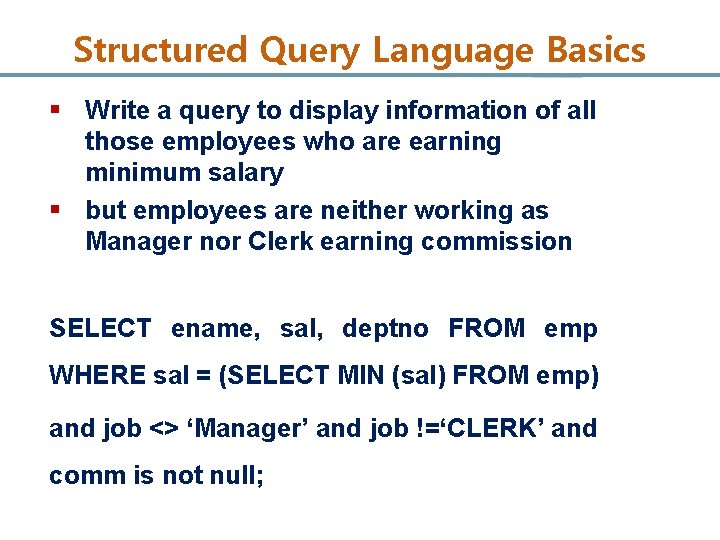

Structured Query Language Basics § Write a query to display information of all those employees who are earning minimum salary § but employees are neither working as Manager nor Clerk earning commission SELECT ename, sal, deptno FROM emp WHERE sal = (SELECT MIN (sal) FROM emp) and job <> ‘Manager’ and job !=‘CLERK’ and comm is not null;

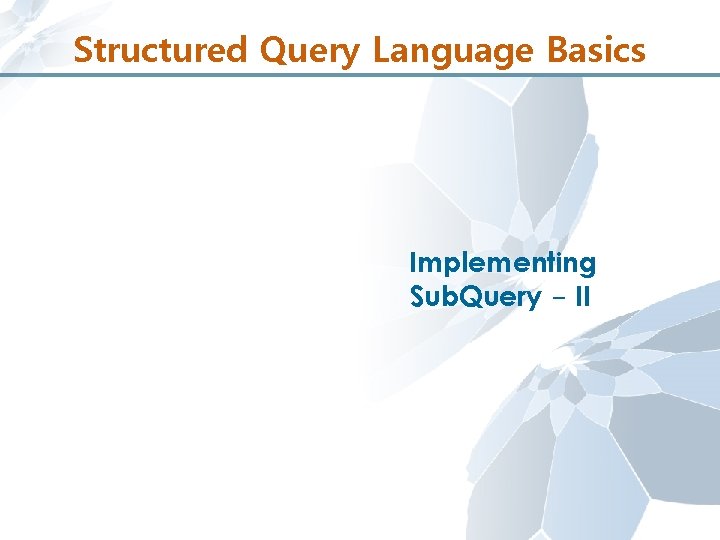

Structured Query Language Basics Implementing Sub. Query - II

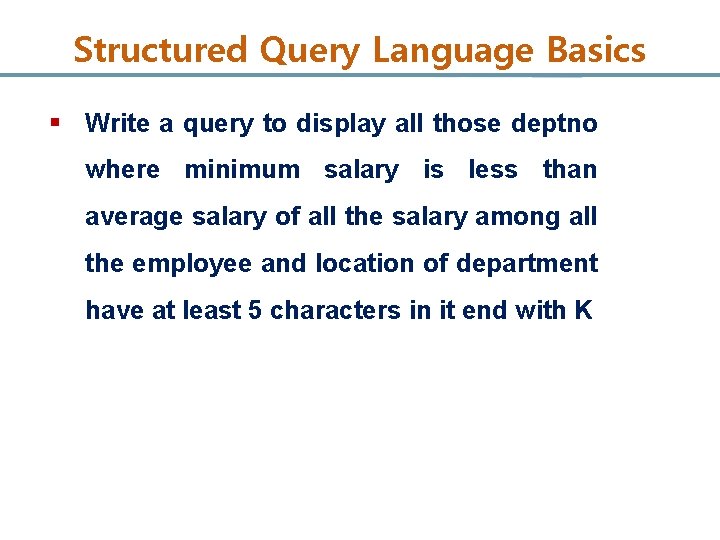

Structured Query Language Basics § Write a query to display all those deptno where minimum salary is less than average salary of all the salary among all the employee and location of department have at least 5 characters in it end with K

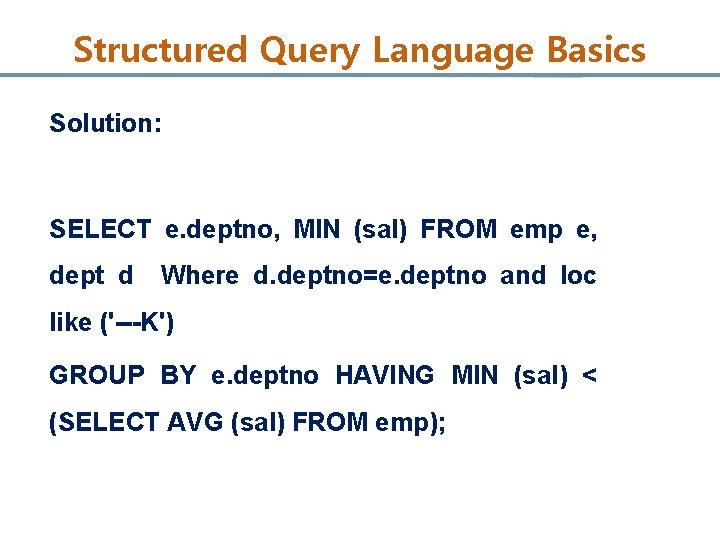

Structured Query Language Basics Solution: SELECT e. deptno, MIN (sal) FROM emp e, dept d Where d. deptno=e. deptno and loc like ('---K') GROUP BY e. deptno HAVING MIN (sal) < (SELECT AVG (sal) FROM emp);
