Database Overview Evolution of Database System Evolution of

Database Overview Evolution of Database System

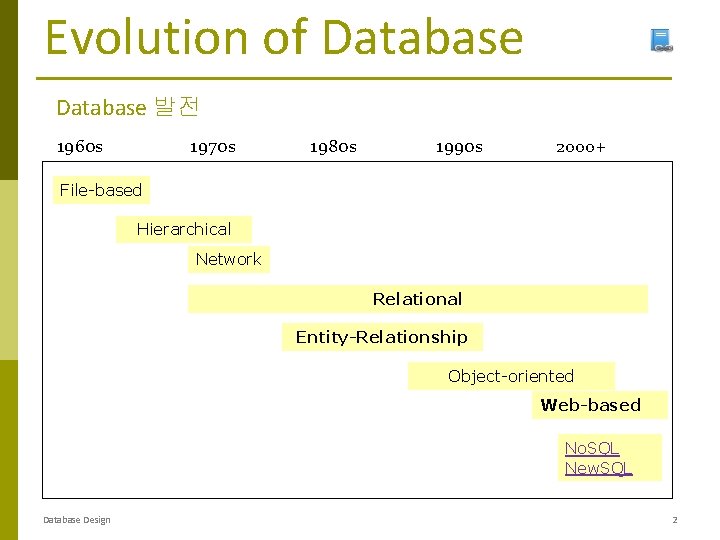

Evolution of Database 발전 1960 s 1970 s 1980 s 1990 s 2000+ File-based Hierarchical Network Relational Entity-Relationship Object-oriented Web-based No. SQL New. SQL Database Design 2

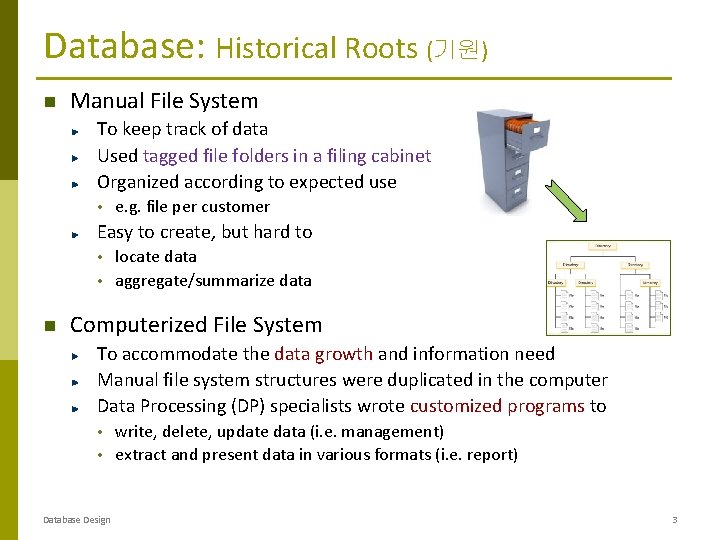

Database: Historical Roots (기원) Manual File System To keep track of data Used tagged file folders in a filing cabinet Organized according to expected use • e. g. file per customer Easy to create, but hard to locate data • aggregate/summarize data • Computerized File System To accommodate the data growth and information need Manual file system structures were duplicated in the computer Data Processing (DP) specialists wrote customized programs to write, delete, update data (i. e. management) • extract and present data in various formats (i. e. report) • Database Design 3

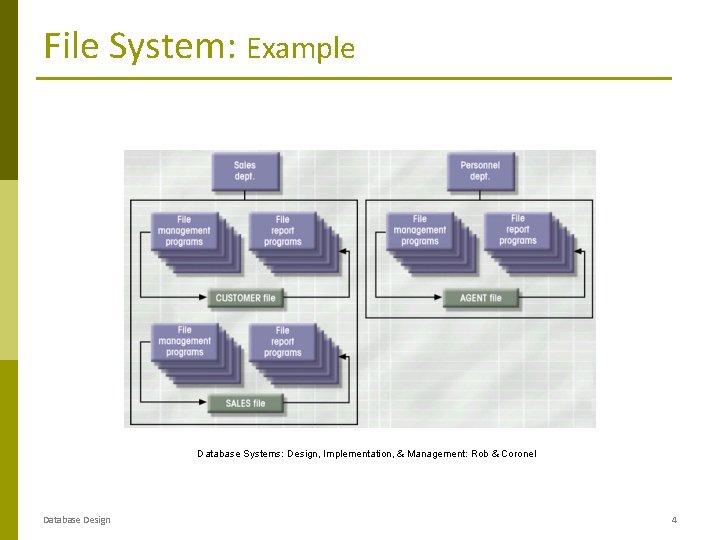

File System: Example Database Systems: Design, Implementation, & Management: Rob & Coronel Database Design 4

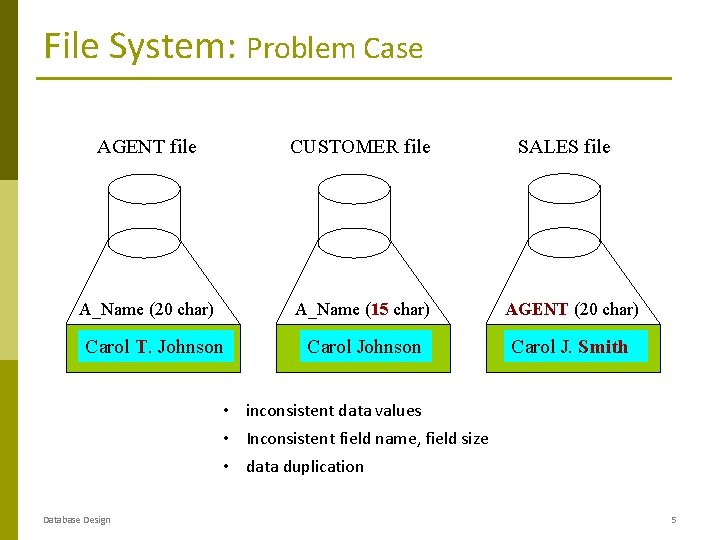

File System: Problem Case AGENT file CUSTOMER file A_Name (20 char) A_Name (15 char) AGENT (20 char) Carol Johnson Carol J. Smith Carol T. Johnson SALES file • inconsistent data values • Inconsistent field name, field size • data duplication Database Design 5

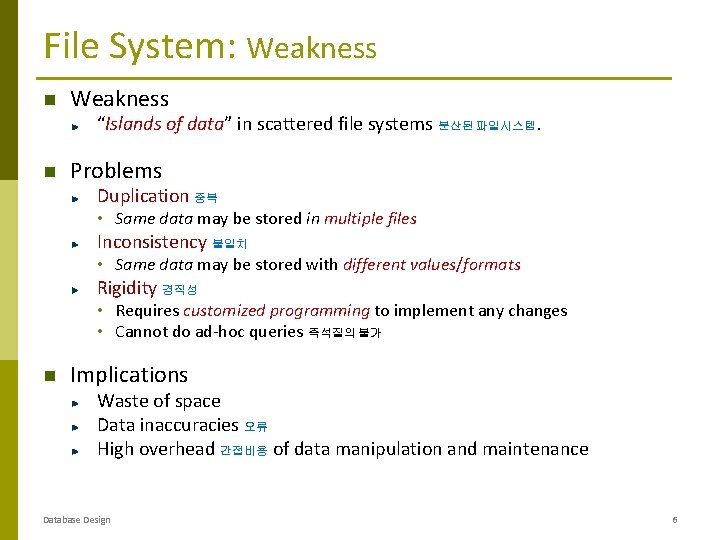

File System: Weakness “Islands of data” in scattered file systems 분산된 파일시스템. Problems Duplication 중복 • Same data may be stored in multiple files Inconsistency 불일치 • Same data may be stored with different values/formats Rigidity 경직성 • Requires customized programming to implement any changes • Cannot do ad-hoc queries 즉석질의 불가 Implications Waste of space Data inaccuracies 오류 High overhead 간접비용 of data manipulation and maintenance Database Design 6

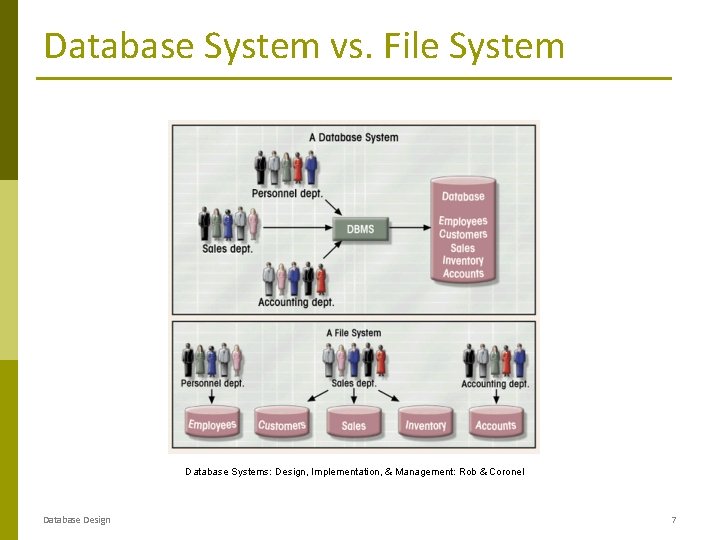

Database System vs. File System Database Systems: Design, Implementation, & Management: Rob & Coronel Database Design 7

Hierarchical Data Model 계층적 데이터 모델 Hierarchical Model To manage large amount of data for complex manufacturing projects • → Information Management System developed by Rockwell & IBM Files connected in Parent-Child (1: M) relationships • 1 Parent - Multiple Children Database Systems: Design, Implementation, & Management: Rob & Coronel Database Design 8

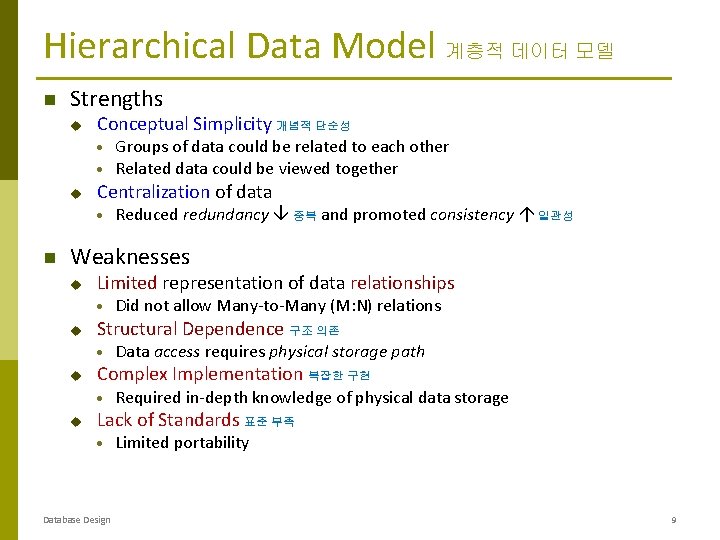

Hierarchical Data Model 계층적 데이터 모델 Strengths u Conceptual Simplicity 개념적 단순성 · · u Centralization of data · Groups of data could be related to each other Related data could be viewed together Reduced redundancy 중복 and promoted consistency 일관성 Weaknesses u Limited representation of data relationships · u Structural Dependence 구조 의존 · u Data access requires physical storage path Complex Implementation 복잡한 구현 · u Did not allow Many-to-Many (M: N) relations Required in-depth knowledge of physical data storage Lack of Standards 표준 부족 · Database Design Limited portability 9

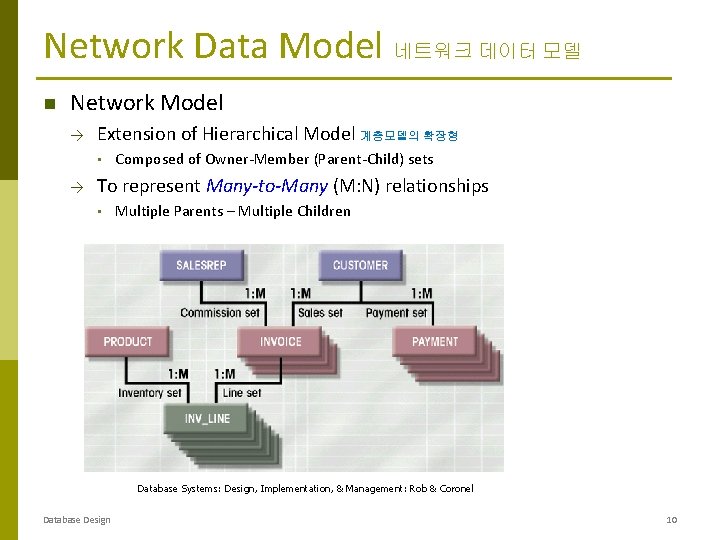

Network Data Model 네트워크 데이터 모델 Network Model → Extension of Hierarchical Model 계층모델의 확장형 • → Composed of Owner-Member (Parent-Child) sets To represent Many-to-Many (M: N) relationships • Multiple Parents – Multiple Children Database Systems: Design, Implementation, & Management: Rob & Coronel Database Design 10

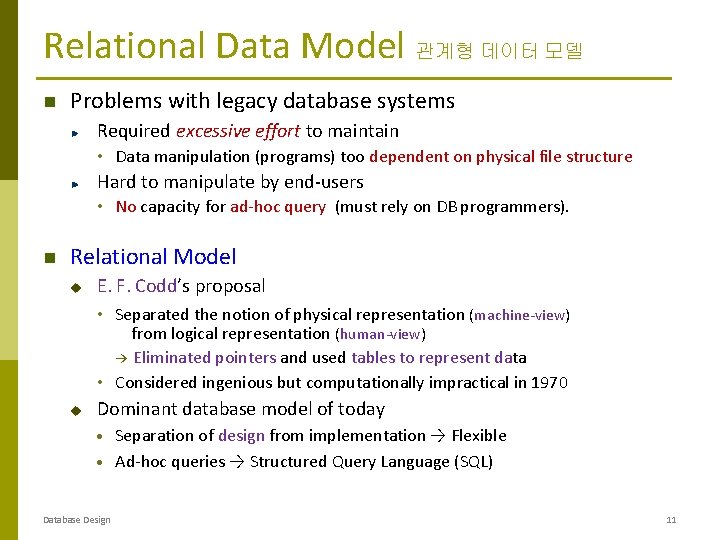

Relational Data Model 관계형 데이터 모델 Problems with legacy database systems Required excessive effort to maintain • Data manipulation (programs) too dependent on physical file structure Hard to manipulate by end-users • No capacity for ad-hoc query (must rely on DB programmers). Relational Model u E. F. Codd’s proposal • Separated the notion of physical representation (machine-view) from logical representation (human-view) → Eliminated pointers and used tables to represent data • Considered ingenious but computationally impractical in 1970 u Dominant database model of today Separation of design from implementation → Flexible · Ad-hoc queries → Structured Query Language (SQL) · Database Design 11

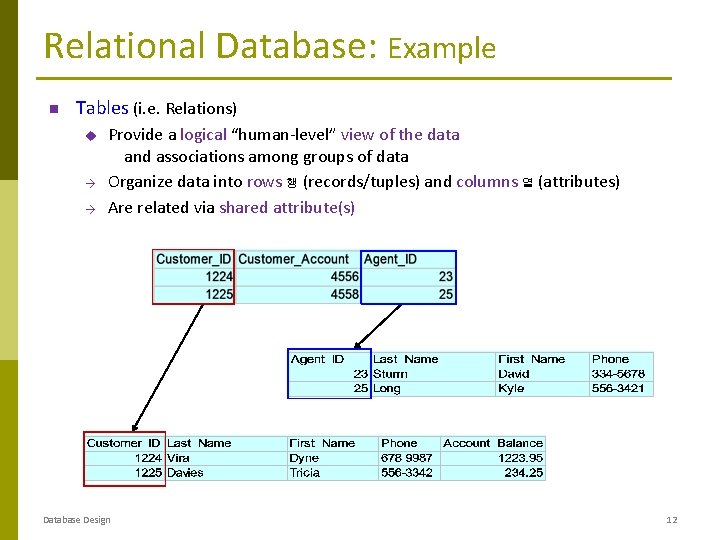

Relational Database: Example Tables (i. e. Relations) u → → Provide a logical “human-level” view of the data and associations among groups of data Organize data into rows 행 (records/tuples) and columns 열 (attributes) Are related via shared attribute(s) Database Design 12

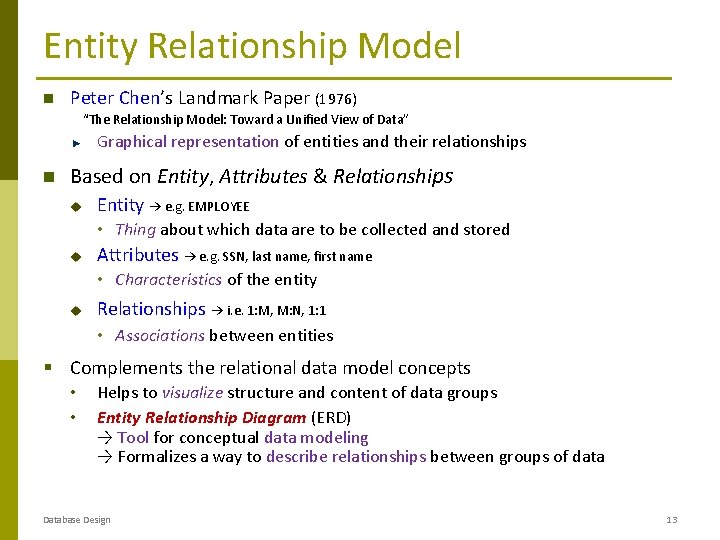

Entity Relationship Model Peter Chen’s Landmark Paper (1976) “The Relationship Model: Toward a Unified View of Data” Graphical representation of entities and their relationships Based on Entity, Attributes & Relationships u Entity → e. g. EMPLOYEE • Thing about which data are to be collected and stored u Attributes → e. g. SSN, last name, first name • Characteristics of the entity u Relationships → i. e. 1: M, M: N, 1: 1 • Associations between entities § Complements the relational data model concepts • • Helps to visualize structure and content of data groups Entity Relationship Diagram (ERD) → Tool for conceptual data modeling → Formalizes a way to describe relationships between groups of data Database Design 13

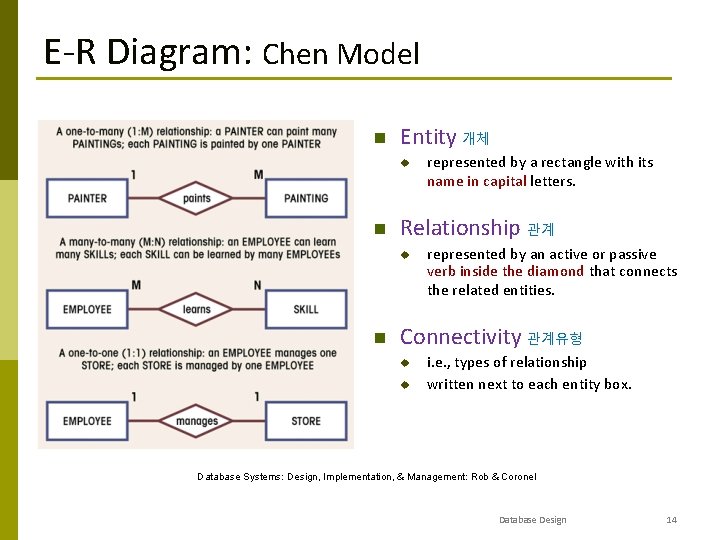

E-R Diagram: Chen Model Entity 개체 u Relationship 관계 u represented by a rectangle with its name in capital letters. represented by an active or passive verb inside the diamond that connects the related entities. Connectivity 관계유형 u u i. e. , types of relationship written next to each entity box. Database Systems: Design, Implementation, & Management: Rob & Coronel Database Design 14

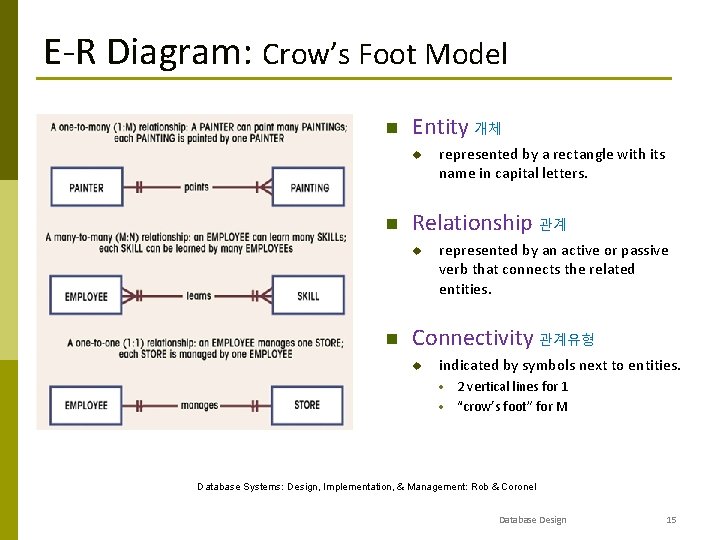

E-R Diagram: Crow’s Foot Model Entity 개체 u Relationship 관계 u represented by a rectangle with its name in capital letters. represented by an active or passive verb that connects the related entities. Connectivity 관계유형 u indicated by symbols next to entities. · · 2 vertical lines for 1 “crow’s foot” for M Database Systems: Design, Implementation, & Management: Rob & Coronel Database Design 15

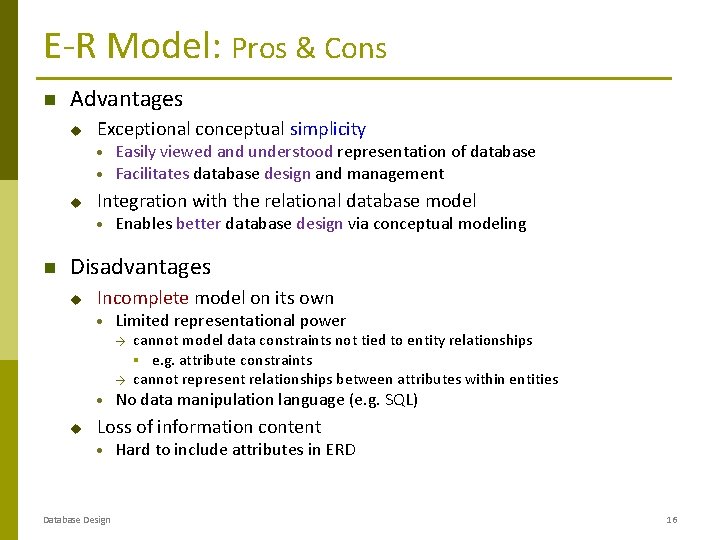

E-R Model: Pros & Cons Advantages u Exceptional conceptual simplicity · · u Integration with the relational database model · Easily viewed and understood representation of database Facilitates database design and management Enables better database design via conceptual modeling Disadvantages u Incomplete model on its own · Limited representational power → → · u cannot model data constraints not tied to entity relationships § e. g. attribute constraints cannot represent relationships between attributes within entities No data manipulation language (e. g. SQL) Loss of information content · Database Design Hard to include attributes in ERD 16

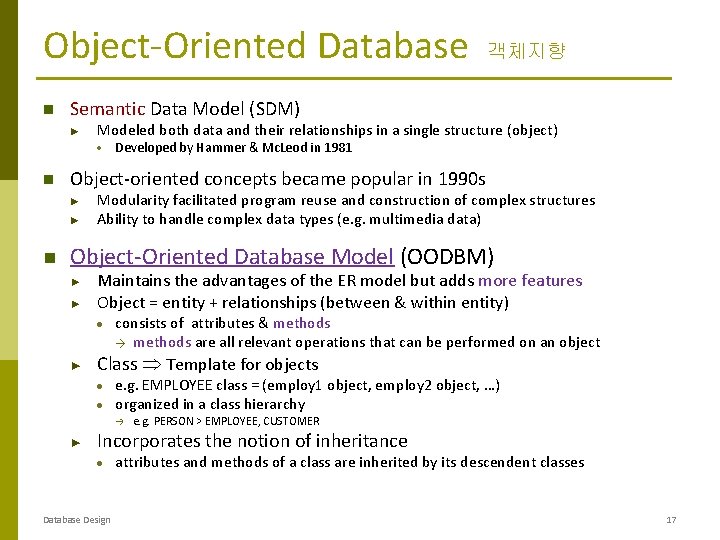

Object-Oriented Database Semantic Data Model (SDM) ► Modeled both data and their relationships in a single structure (object) · Developed by Hammer & Mc. Leod in 1981 Object-oriented concepts became popular in 1990 s ► ► 객체지향 Modularity facilitated program reuse and construction of complex structures Ability to handle complex data types (e. g. multimedia data) Object-Oriented Database Model (OODBM) ► ► Maintains the advantages of the ER model but adds more features Object = entity + relationships (between & within entity) · ► consists of attributes & methods → methods are all relevant operations that can be performed on an object Class Template for objects · · e. g. EMPLOYEE class = (employ 1 object, employ 2 object, …) organized in a class hierarchy → ► e. g. PERSON > EMPLOYEE, CUSTOMER Incorporates the notion of inheritance · Database Design attributes and methods of a class are inherited by its descendent classes 17

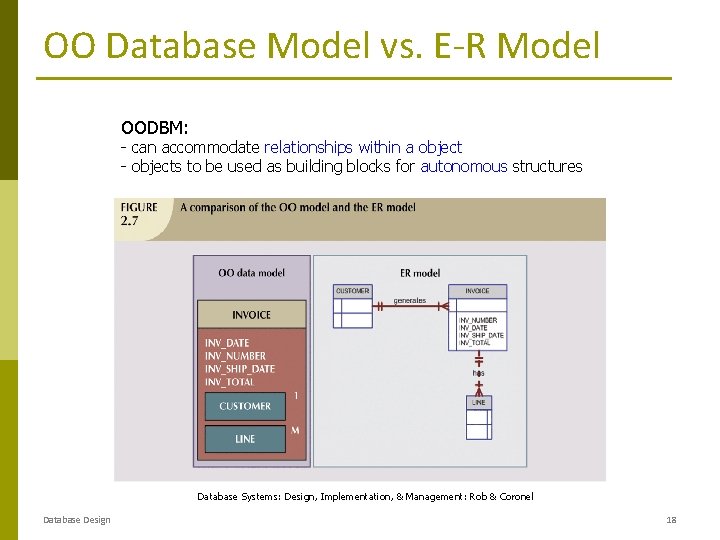

OO Database Model vs. E-R Model OODBM: - can accommodate relationships within a object - objects to be used as building blocks for autonomous structures Database Systems: Design, Implementation, & Management: Rob & Coronel Database Design 18

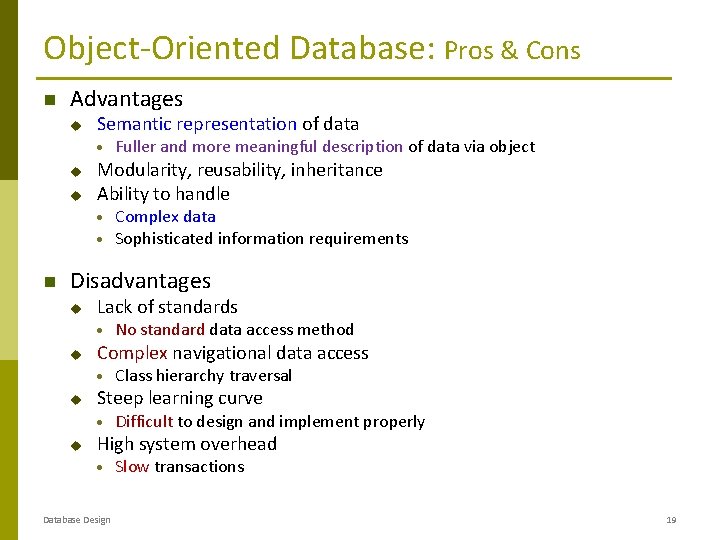

Object-Oriented Database: Pros & Cons Advantages u Semantic representation of data · u u Modularity, reusability, inheritance Ability to handle · · Fuller and more meaningful description of data via object Complex data Sophisticated information requirements Disadvantages u Lack of standards · u Complex navigational data access · u Class hierarchy traversal Steep learning curve · u No standard data access method Difficult to design and implement properly High system overhead · Database Design Slow transactions 19

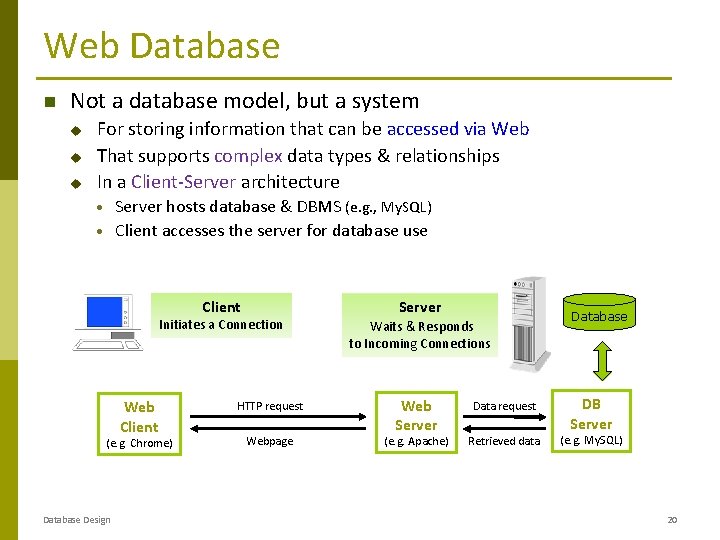

Web Database Not a database model, but a system u u u For storing information that can be accessed via Web That supports complex data types & relationships In a Client-Server architecture Server hosts database & DBMS (e. g. , My. SQL) · Client accesses the server for database use · Client Initiates a Connection Web Client (e. g. Chrome) Database Design HTTP request Webpage Server Waits & Responds to Incoming Connections Web Server (e. g. Apache) Data request Retrieved data Database DB Server (e. g. My. SQL) 20

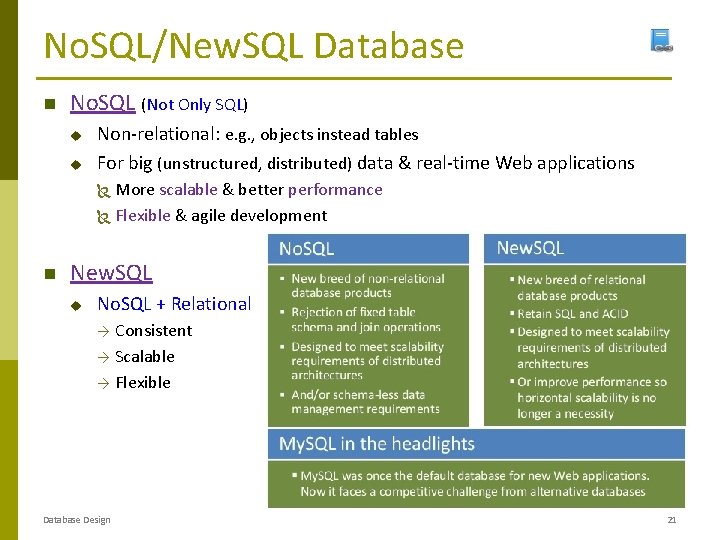

No. SQL/New. SQL Database No. SQL (Not Only SQL) u u Non-relational: e. g. , objects instead tables For big (unstructured, distributed) data & real-time Web applications More scalable & better performance Flexible & agile development New. SQL u No. SQL + Relational Consistent → Scalable → Flexible → Database Design 21

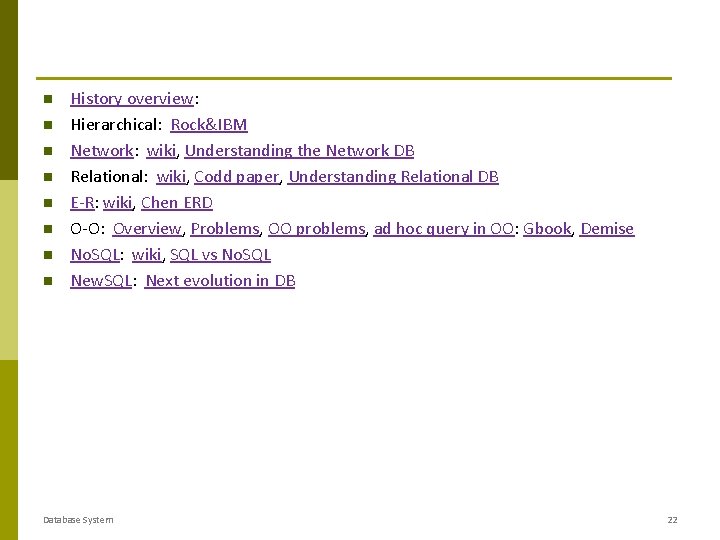

History overview: Hierarchical: Rock&IBM Network: wiki, Understanding the Network DB Relational: wiki, Codd paper, Understanding Relational DB E-R: wiki, Chen ERD O-O: Overview, Problems, OO problems, ad hoc query in OO: Gbook, Demise No. SQL: wiki, SQL vs No. SQL New. SQL: Next evolution in DB Database System 22
