Database Java Beans Feng Chen 2021613 MSE presentation

Database Java Beans Feng Chen 2021/6/13 MSE presentation III 1

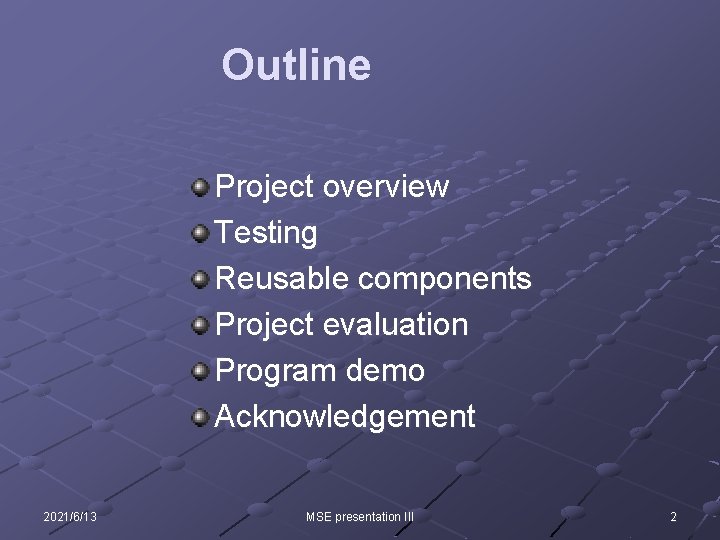

Outline Project overview Testing Reusable components Project evaluation Program demo Acknowledgement 2021/6/13 MSE presentation III 2

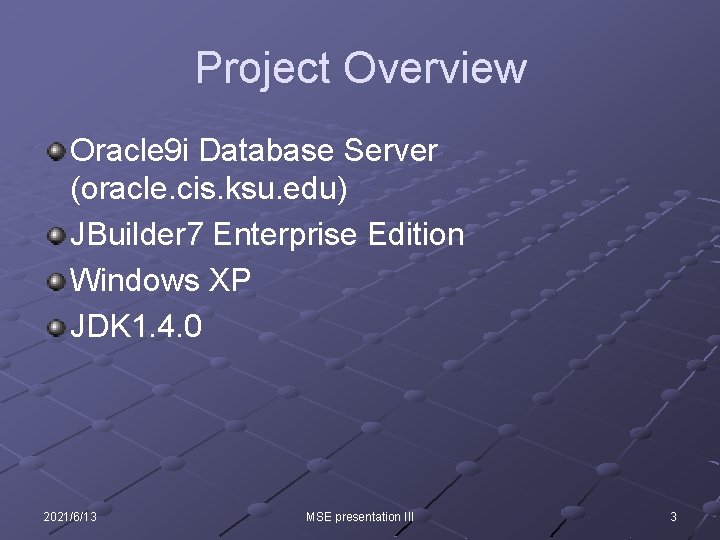

Project Overview Oracle 9 i Database Server (oracle. cis. ksu. edu) JBuilder 7 Enterprise Edition Windows XP JDK 1. 4. 0 2021/6/13 MSE presentation III 3

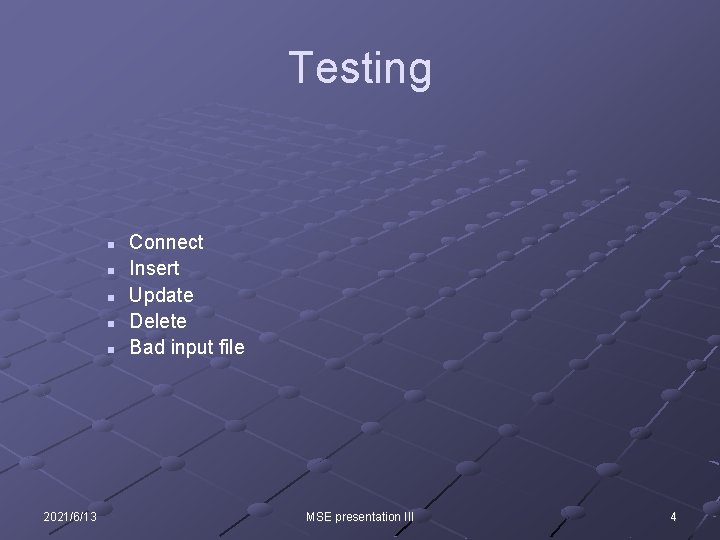

Testing n n n 2021/6/13 Connect Insert Update Delete Bad input file MSE presentation III 4

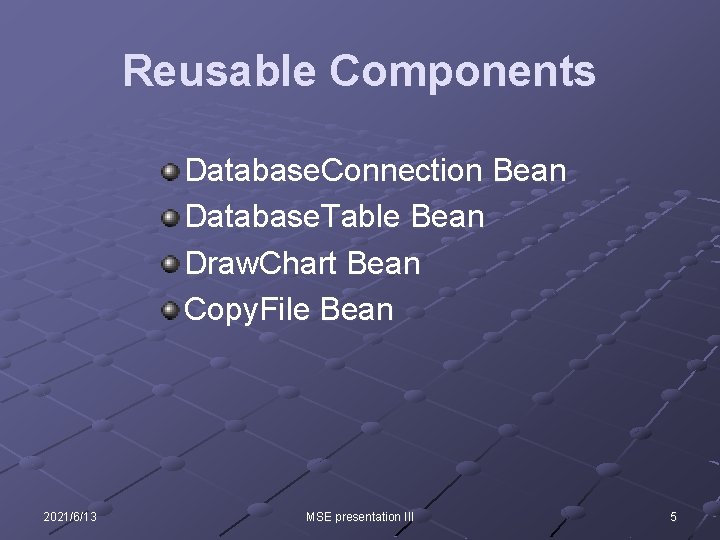

Reusable Components Database. Connection Bean Database. Table Bean Draw. Chart Bean Copy. File Bean 2021/6/13 MSE presentation III 5

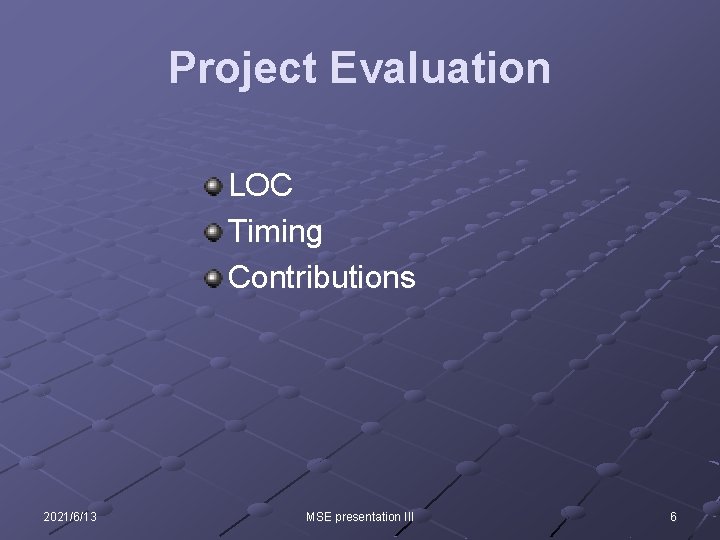

Project Evaluation LOC Timing Contributions 2021/6/13 MSE presentation III 6

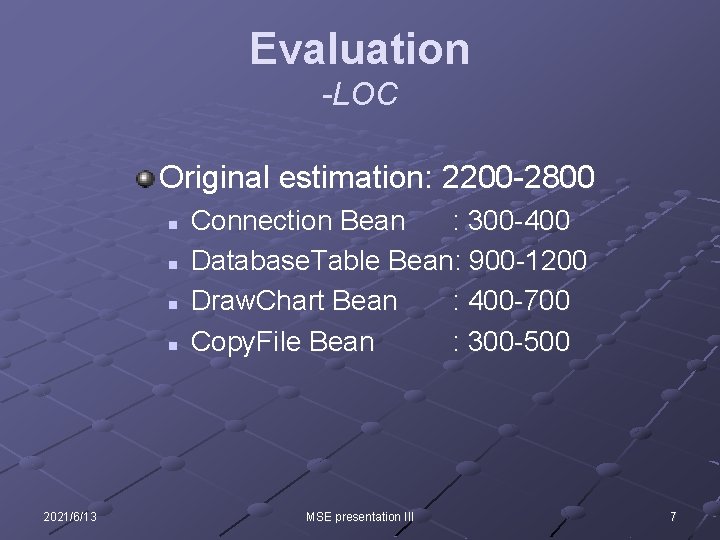

Evaluation -LOC Original estimation: 2200 -2800 n n 2021/6/13 Connection Bean : 300 -400 Database. Table Bean: 900 -1200 Draw. Chart Bean : 400 -700 Copy. File Bean : 300 -500 MSE presentation III 7

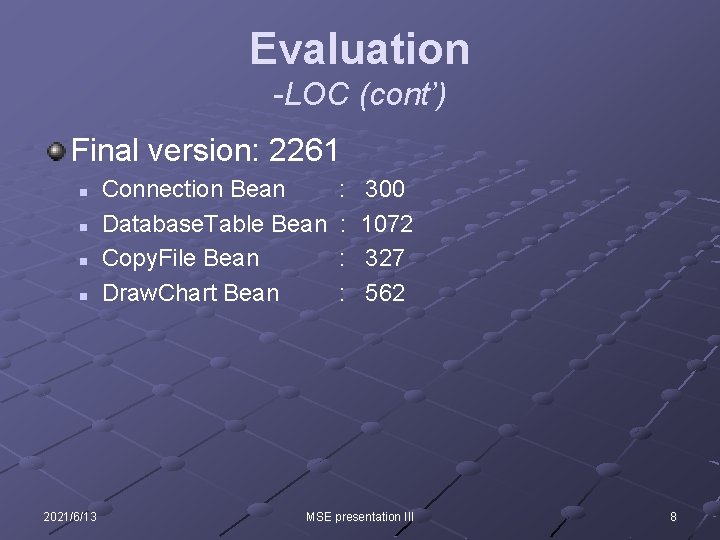

Evaluation -LOC (cont’) Final version: 2261 n n 2021/6/13 Connection Bean Database. Table Bean Copy. File Bean Draw. Chart Bean : : 300 1072 327 562 MSE presentation III 8

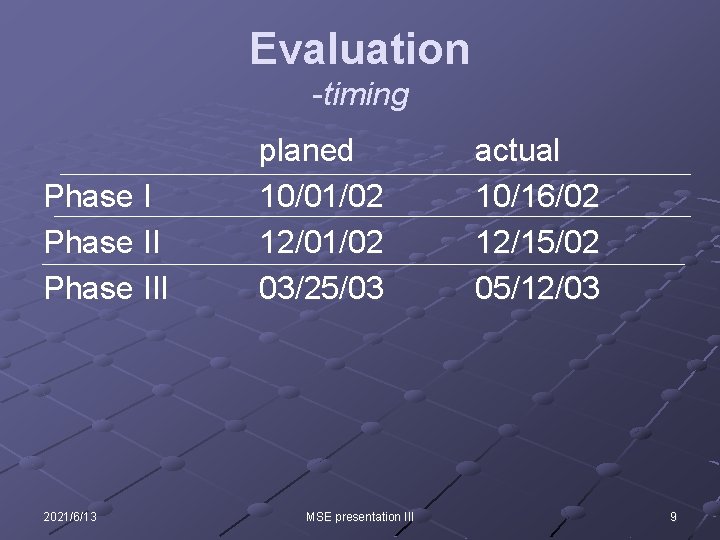

Evaluation -timing Phase III 2021/6/13 planed 10/01/02 12/01/02 03/25/03 MSE presentation III actual 10/16/02 12/15/02 05/12/03 9

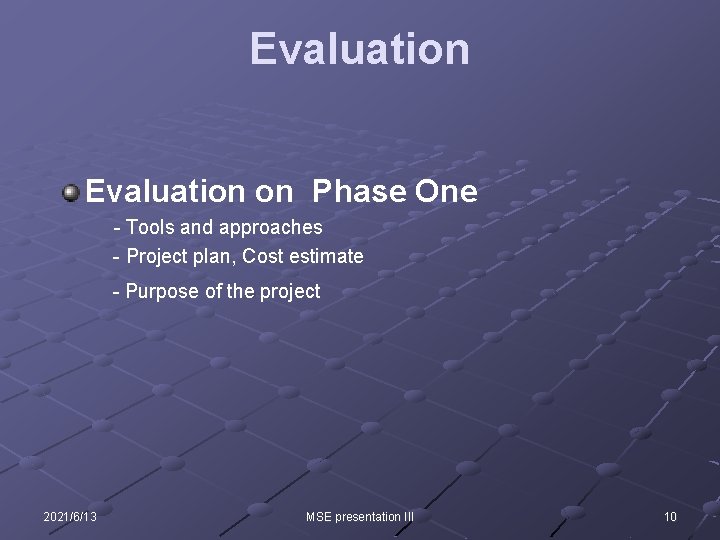

Evaluation on Phase One - Tools and approaches - Project plan, Cost estimate - Purpose of the project 2021/6/13 MSE presentation III 10

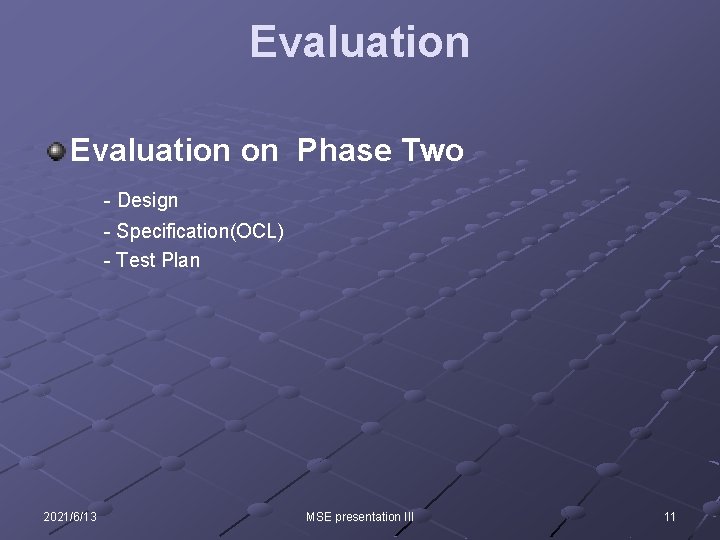

Evaluation on Phase Two - Design - Specification(OCL) - Test Plan 2021/6/13 MSE presentation III 11

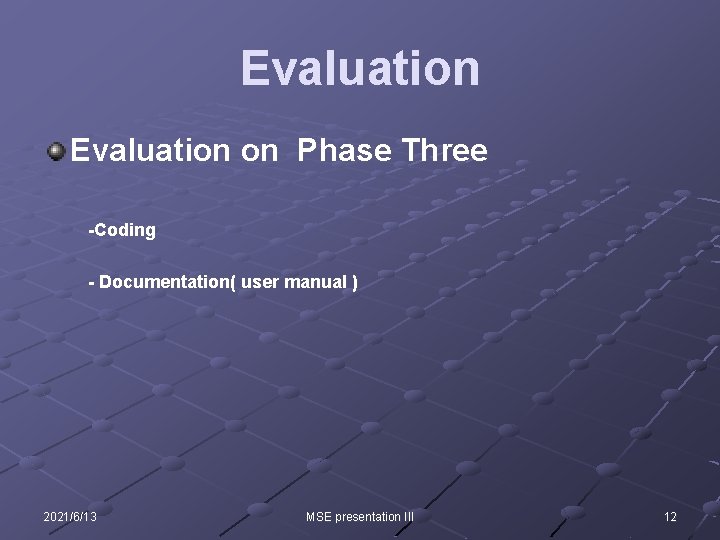

Evaluation on Phase Three -Coding - Documentation( user manual ) 2021/6/13 MSE presentation III 12

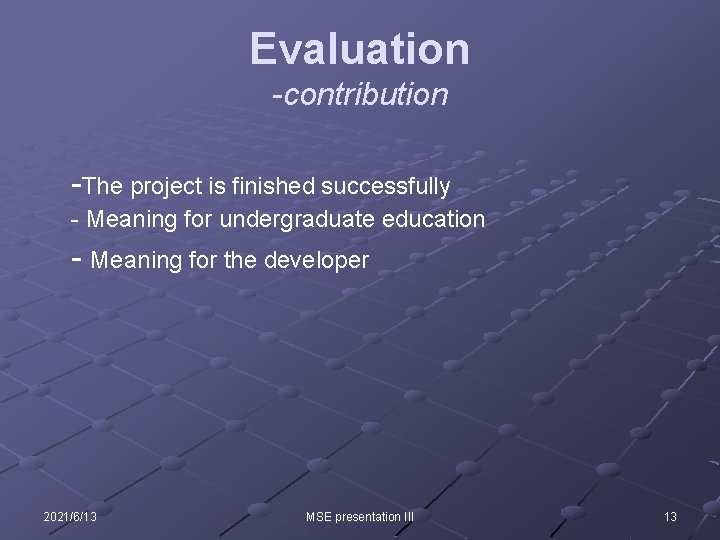

Evaluation -contribution -The project is finished successfully - Meaning for undergraduate education - Meaning for the developer 2021/6/13 MSE presentation III 13

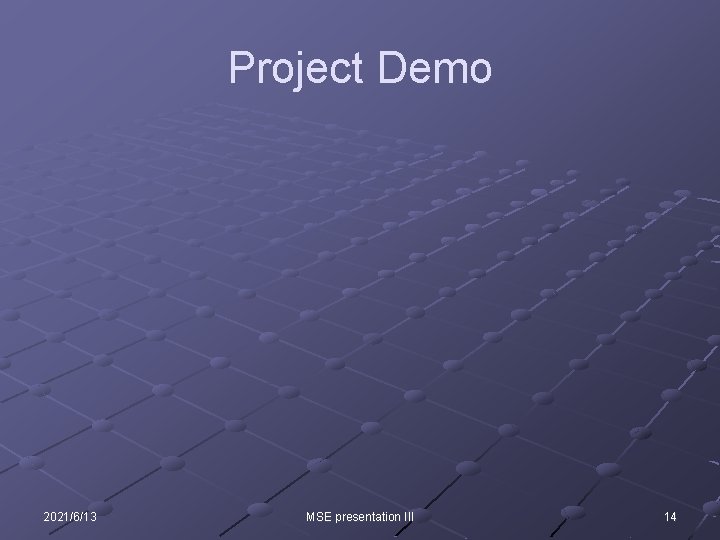

Project Demo 2021/6/13 MSE presentation III 14

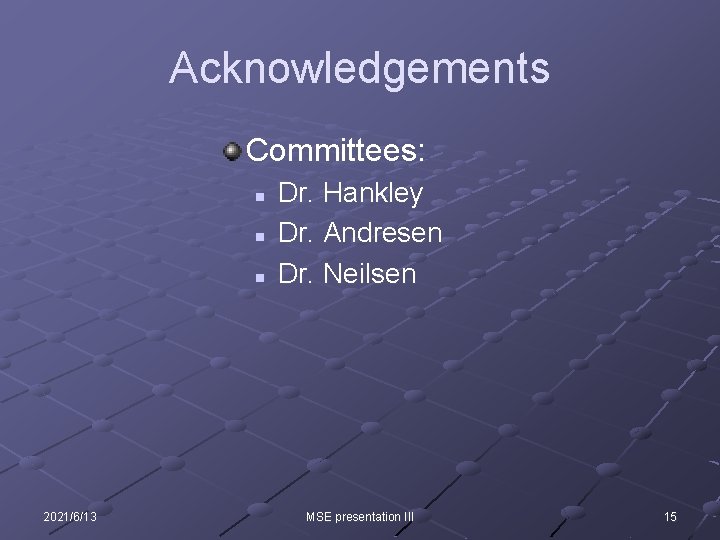

Acknowledgements Committees: n n n 2021/6/13 Dr. Hankley Dr. Andresen Dr. Neilsen MSE presentation III 15
