Database Design Relational Database Relational DB Table Characteristics

Database Design Relational Database

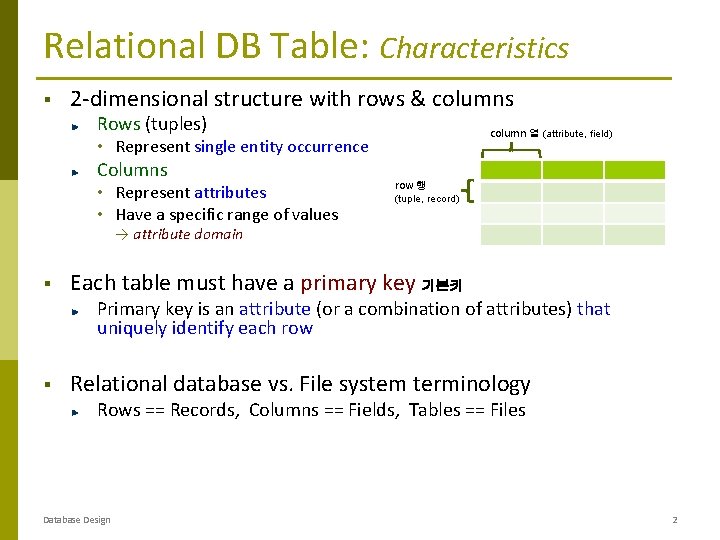

Relational DB Table: Characteristics § 2 -dimensional structure with rows & columns Rows (tuples) column 열 (attribute, field) • Represent single entity occurrence Columns • Represent attributes • Have a specific range of values row 행 (tuple, record) → attribute domain § Each table must have a primary key 기본키 Primary key is an attribute (or a combination of attributes) that uniquely identify each row § Relational database vs. File system terminology Rows == Records, Columns == Fields, Tables == Files Database Design 2

Relational DB Table: Example 8 rows & 9 columns Row = single entity occurrence u row 1 describes a student named Jone Doe Column = an attribute u has specific characteristics (data type, format, value range) u st. Class: char(2), {fr, jr, so, sr} all values adhere to the attribute characteristics Each row/column intersection contains a single data value Primary key = st. ID Database Design 3

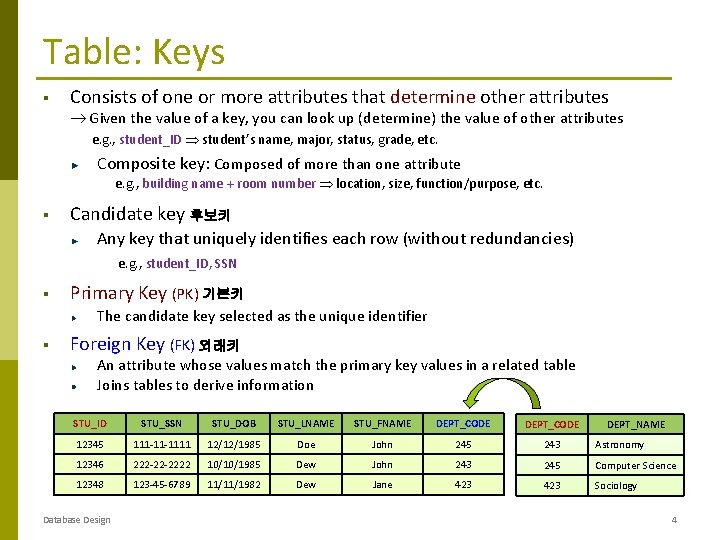

Table: Keys § Consists of one or more attributes that determine other attributes Given the value of a key, you can look up (determine) the value of other attributes e. g. , student_ID student’s name, major, status, grade, etc. Composite key: Composed of more than one attribute e. g. , building name + room number location, size, function/purpose, etc. § Candidate key 후보키 Any key that uniquely identifies each row (without redundancies) e. g. , student_ID, SSN § Primary Key (PK) 기본키 The candidate key selected as the unique identifier § Foreign Key (FK) 외래키 An attribute whose values match the primary key values in a related table Joins tables to derive information STU_ID STU_SSN STU_DOB STU_LNAME STU_FNAME DEPT_CODE 12345 111 -11 -1111 12/12/1985 Doe John 245 243 Astronomy 12346 222 -22 -2222 10/10/1985 Dew John 243 245 Computer Science 12348 123 -45 -6789 11/11/1982 Dew Jane 423 Sociology Database Design DEPT_NAME 4

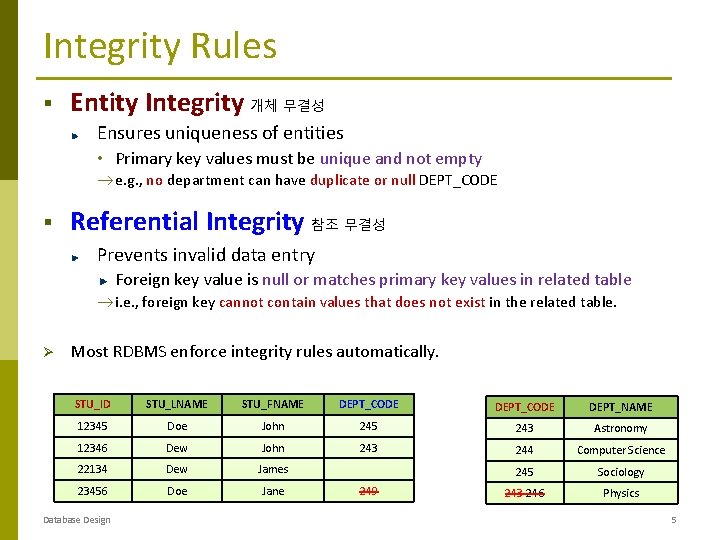

Integrity Rules § Entity Integrity 개체 무결성 Ensures uniqueness of entities • Primary key values must be unique and not empty e. g. , no department can have duplicate or null DEPT_CODE § Referential Integrity 참조 무결성 Prevents invalid data entry Foreign key value is null or matches primary key values in related table i. e. , foreign key cannot contain values that does not exist in the related table. Ø Most RDBMS enforce integrity rules automatically. STU_ID STU_LNAME STU_FNAME DEPT_CODE DEPT_NAME 12345 Doe John 245 243 Astronomy 12346 Dew John 243 244 Computer Science 22134 Dew James 245 Sociology 23456 Doe Jane 243 246 Physics Database Design 249 5

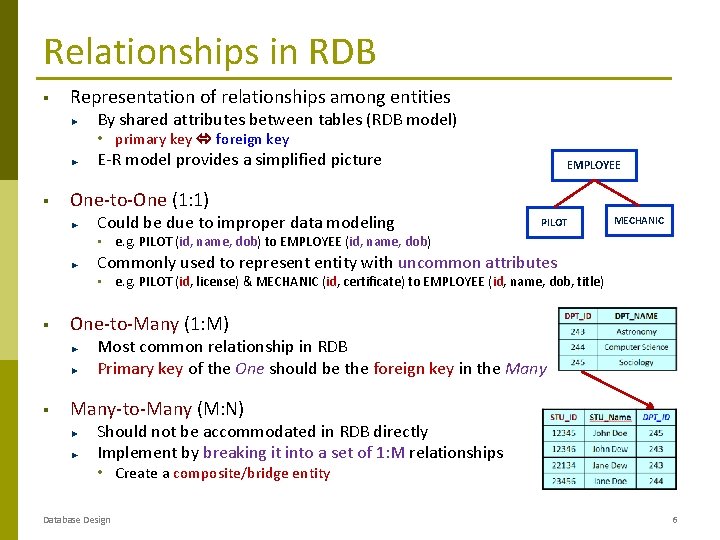

Relationships in RDB § Representation of relationships among entities By shared attributes between tables (RDB model) • primary key foreign key E-R model provides a simplified picture § EMPLOYEE One-to-One (1: 1) Could be due to improper data modeling PILOT MECHANIC • e. g. PILOT (id, name, dob) to EMPLOYEE (id, name, dob) Commonly used to represent entity with uncommon attributes • e. g. PILOT (id, license) & MECHANIC (id, certificate) to EMPLOYEE (id, name, dob, title) § One-to-Many (1: M) Most common relationship in RDB Primary key of the One should be the foreign key in the Many § Many-to-Many (M: N) Should not be accommodated in RDB directly Implement by breaking it into a set of 1: M relationships • Create a composite/bridge entity Database Design 6

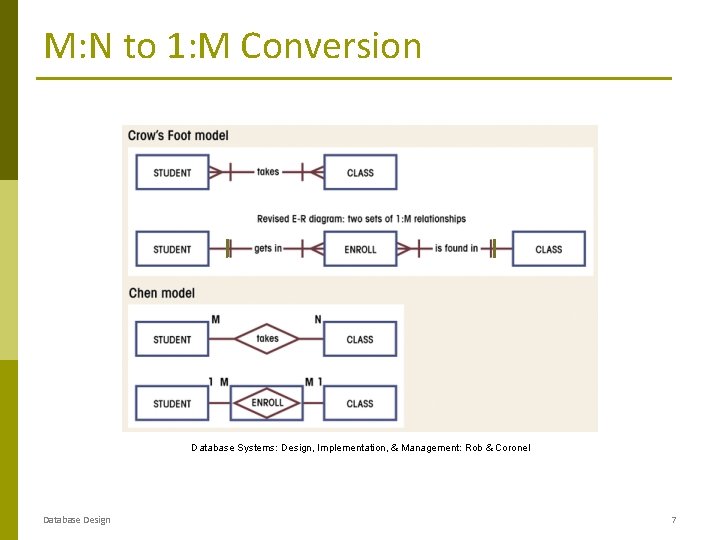

M: N to 1: M Conversion Database Systems: Design, Implementation, & Management: Rob & Coronel Database Design 7

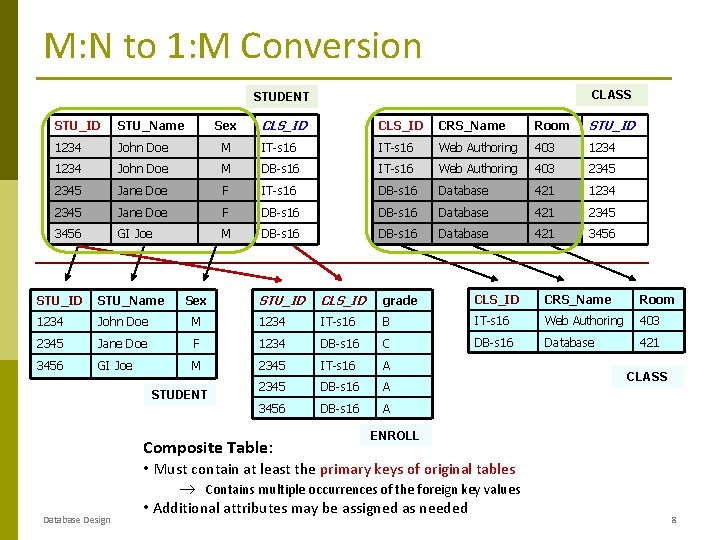

M: N to 1: M Conversion CLASS STUDENT CLS_ID CRS_Name Room STU_ID M IT-s 16 Web Authoring 403 1234 John Doe M DB-s 16 IT-s 16 Web Authoring 403 2345 Jane Doe F IT-s 16 DB-s 16 Database 421 1234 2345 Jane Doe F DB-s 16 Database 421 2345 3456 GI Joe M DB-s 16 Database 421 3456 STU_ID STU_Name 1234 John Doe 1234 Sex STU_ID CLS_ID grade CLS_ID CRS_Name Room M 1234 IT-s 16 B IT-s 16 Web Authoring 403 Jane Doe F 1234 DB-s 16 C DB-s 16 Database 421 GI Joe M 2345 IT-s 16 A 2345 DB-s 16 A 3456 DB-s 16 A STU_ID STU_Name 1234 John Doe 2345 3456 Sex STUDENT CLASS ENROLL Composite Table: • Must contain at least the primary keys of original tables Database Design Contains multiple occurrences of the foreign key values • Additional attributes may be assigned as needed 8

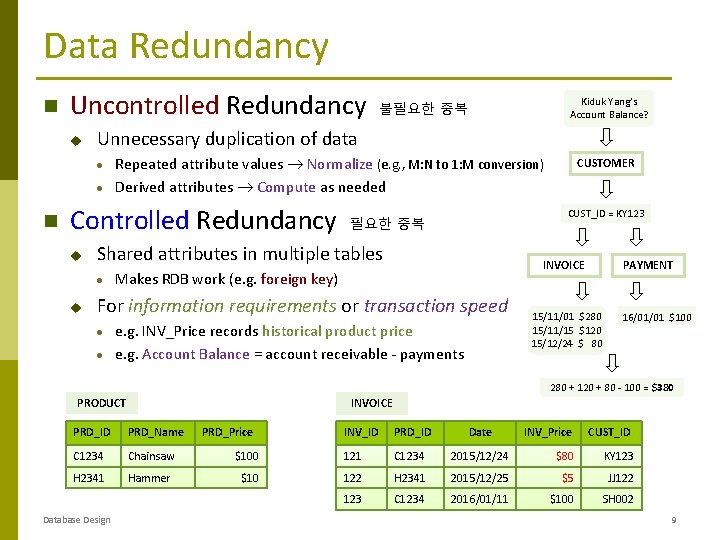

Data Redundancy Uncontrolled Redundancy u Kiduk Yang’s Account Balance? 불필요한 중복 Unnecessary duplication of data Repeated attribute values Normalize (e. g. , M: N to 1: M conversion) Derived attributes Compute as needed Controlled Redundancy u u CUST_ID = KY 123 필요한 중복 Shared attributes in multiple tables CUSTOMER PAYMENT INVOICE Makes RDB work (e. g. foreign key) For information requirements or transaction speed e. g. INV_Price records historical product price e. g. Account Balance = account receivable - payments 15/11/01 $280 15/11/15 $120 15/12/24 $ 80 16/01/01 $100 280 + 120 + 80 - 100 = $380 PRODUCT INVOICE PRD_ID PRD_Name C 1234 Chainsaw H 2341 Hammer Database Design PRD_Price INV_ID PRD_ID Date INV_Price CUST_ID $100 121 C 1234 2015/12/24 $80 KY 123 $10 122 H 2341 2015/12/25 $5 JJ 122 123 C 1234 2016/01/11 $100 SH 002 9

Exercises

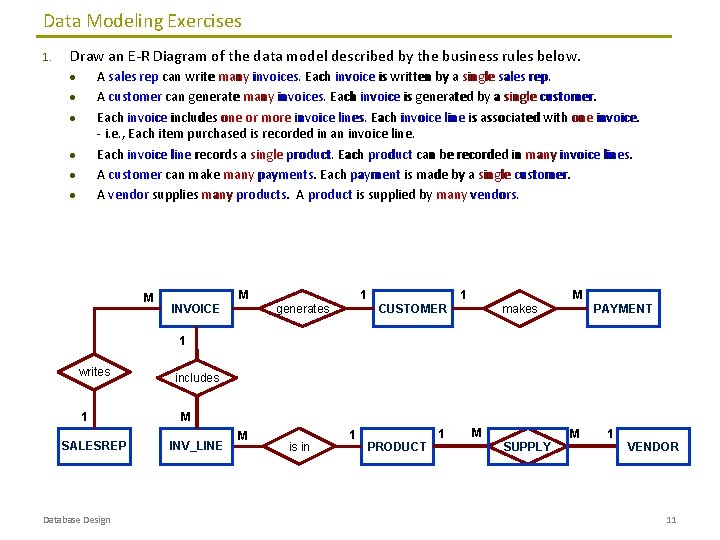

Data Modeling Exercises 1. Draw an E-R Diagram of the data model described by the business rules below. A sales rep can write many invoices. Each invoice is written by a single sales rep. A customer can generate many invoices. Each invoice is generated by a single customer. Each invoice includes one or more invoice lines. Each invoice line is associated with one invoice. - i. e. , Each item purchased is recorded in an invoice line. Each invoice line records a single product. Each product can be recorded in many invoice lines. A customer can make many payments. Each payment is made by a single customer. A vendor supplies many products. A product is supplied by many vendors. M generates INVOICE 1 1 M M makes CUSTOMER PAYMENT 1 writes 1 SALESREP Database Design includes M INV_LINE M is in 1 PRODUCT 1 M SUPPLY M 1 VENDOR 11

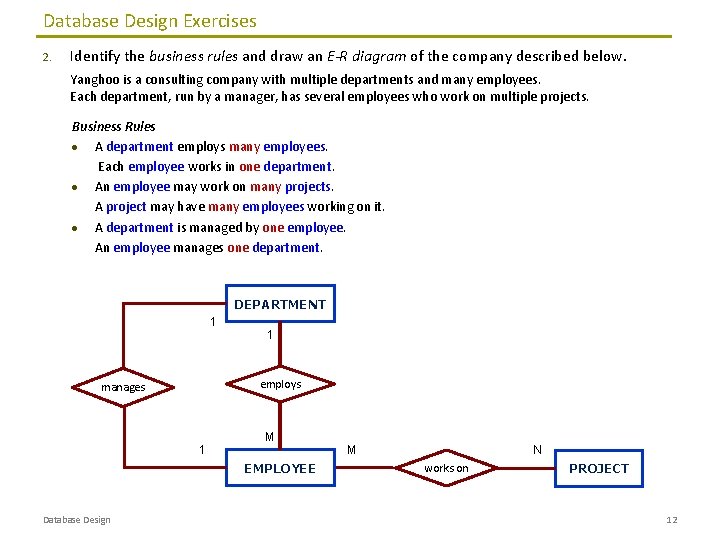

Database Design Exercises 2. Identify the business rules and draw an E-R diagram of the company described below. Yanghoo is a consulting company with multiple departments and many employees. Each department, run by a manager, has several employees who work on multiple projects. Business Rules A department employs many employees. Each employee works in one department. An employee may work on many projects. A project may have many employees working on it. A department is managed by one employee. An employee manages one department. DEPARTMENT 1 1 employs manages 1 M EMPLOYEE Database Design N M works on PROJECT 12

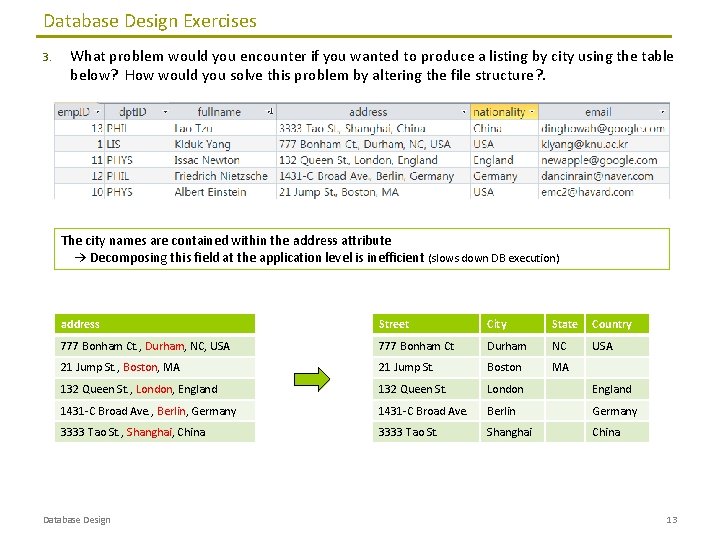

Database Design Exercises 3. What problem would you encounter if you wanted to produce a listing by city using the table below? How would you solve this problem by altering the file structure? . The city names are contained within the address attribute → Decomposing this field at the application level is inefficient (slows down DB execution) address Street City State Country 777 Bonham Ct. , Durham, NC, USA 777 Bonham Ct Durham NC USA 21 Jump St. , Boston, MA 21 Jump St. Boston MA 132 Queen St. , London, England 132 Queen St. London England 1431 -C Broad Ave. , Berlin, Germany 1431 -C Broad Ave. Berlin Germany 3333 Tao St. , Shanghai, China 3333 Tao St. Shanghai China Database Design 13

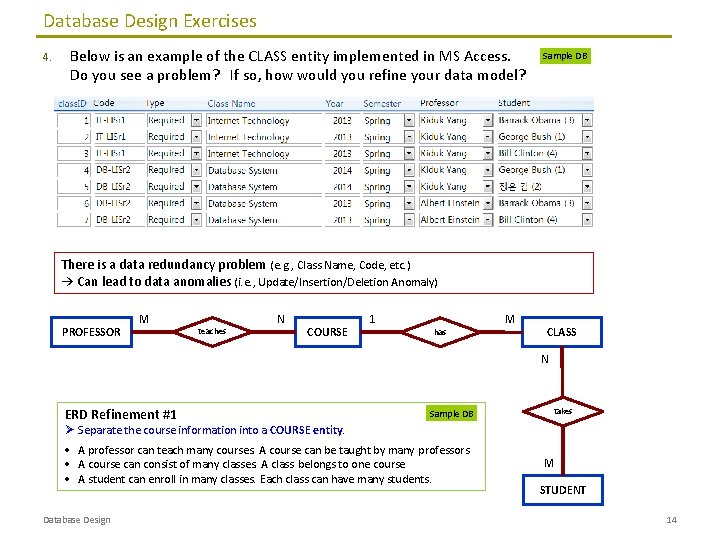

Database Design Exercises 4. Below is an example of the CLASS entity implemented in MS Access. Do you see a problem? If so, how would you refine your data model? Sample DB There is a data redundancy problem (e. g. , Class Name, Code, etc. ) → Can lead to data anomalies (i. e. , Update/Insertion/Deletion Anomaly) PROFESSOR M teaches N COURSE 1 has M CLASS N ERD Refinement #1 Sample DB takes Ø Separate the course information into a COURSE entity. A professor can teach many courses. A course can be taught by many professors A course can consist of many classes. A class belongs to one course A student can enroll in many classes. Each class can have many students. Database Design M STUDENT 14

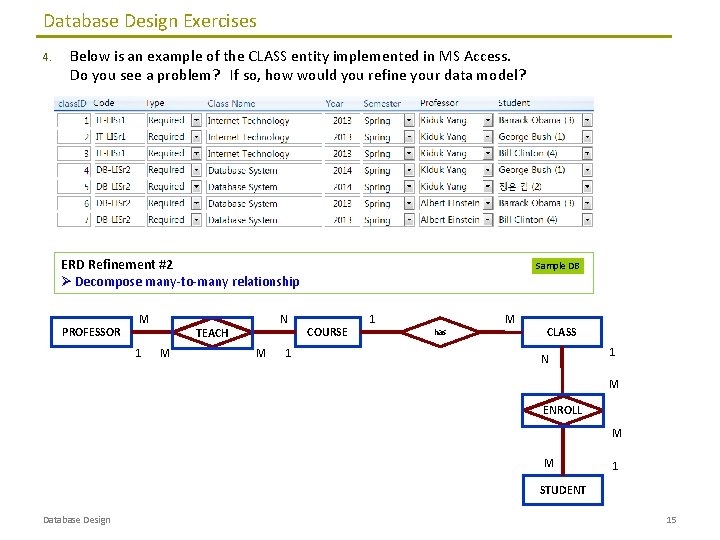

Database Design Exercises 4. Below is an example of the CLASS entity implemented in MS Access. Do you see a problem? If so, how would you refine your data model? ERD Refinement #2 Ø Decompose many-to-many relationship PROFESSOR M 1 N teaches TEACH M M 1 Sample DB COURSE 1 has M CLASS N 1 M takes ENROLL M M 1 STUDENT Database Design 15

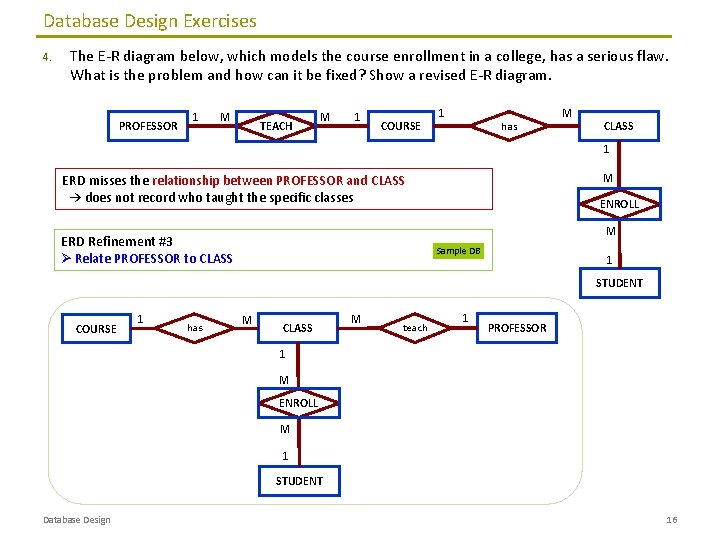

Database Design Exercises 4. The E-R diagram below, which models the course enrollment in a college, has a serious flaw. What is the problem and how can it be fixed? Show a revised E-R diagram. PROFESSOR 1 M teaches TEACH M 1 COURSE 1 has M CLASS 1 M ERD misses the relationship between PROFESSOR and CLASS → does not record who taught the specific classes takes ENROLL M ERD Refinement #3 Ø Relate PROFESSOR to CLASS Sample DB 1 STUDENT COURSE 1 has M CLASS M teach 1 PROFESSOR 1 M ENROLL M 1 STUDENT Database Design 16
