Lecture Outline • Review – Application of Object Relational DBMS – the Berkeley Environmental Digital Library • Data Warehouses • Introduction to Data Warehouses • Data Warehousing – (Based on lecture notes from Joachim Hammer, University of Florida, and Joe Hellerstein and Mike Stonebraker of UCB) IS 257 – Fall 2005. 11. 14 - SLIDE 2
Lecture Outline • Review – Application of Object Relational DBMS – the Berkeley Environmental Digital Library • Data Warehouses • Introduction to Data Warehouses • Data Warehousing – (Based on lecture notes from Joachim Hammer, University of Florida, and Joe Hellerstein and Mike Stonebraker of UCB) IS 257 – Fall 2005. 11. 14 - SLIDE 3
A Digital Library Infrastructure Model Originators Index Services Repositories Network Users 2005. 11. 14 - SLIDE 4
UC Berkeley Digital Library Project • Focus: Work-centered digital information services • Testbed: Digital Library for the California Environment • Research: Technical agenda supporting user-oriented access to large distributed collections of diverse data types. • Part of the NSF/NASA/DARPA Digital Library Initiative (Phases 1 and 2) IS 257 – Fall 2005. 11. 14 - SLIDE 5
The Environmental Library - Contents • As of late 2002, the collection represents over one terabyte of data, including over 183, 000 digital images, about 300, 000 pages of environmental documents, and over 2 million records in geographical and botanical databases. IS 257 – Fall 2005. 11. 14 - SLIDE 6
Botanical Data: • The Cal. Flora Database contains taxonomical and distribution information for more than 8000 native California plants. The Occurrence Database includes over 600, 000 records of California plant sightings from many federal, state, and private sources. The botanical databases are linked to the Cal. Photos collection of California plants, and are also linked to external collections of data, maps, and photos. IS 257 – Fall 2005. 11. 14 - SLIDE 7
Geographical Data: • Much of the geographical data in the collection has been used to develop our web-based GIS Viewer. The Street Finder uses 500, 000 Tiger records of S. F. Bay Area streets along with the 70, 000 -records from the USGS GNIS database. California Dams is a database of information about the 1395 dams under state jurisdiction. An additional 11 GB of geographical data represents maps and imagery that have been processed for inclusion as layers in our GIS Viewer. This includes Digital Ortho Quads and DRG maps for the S. F. Bay Area. IS 257 – Fall 2005. 11. 14 - SLIDE 8
Documents: • Most of the 300, 000 pages of digital documents are environmental reports and plans that were provided by California state agencies. This collection includes documents, maps, articles, and reports on the California environment including Environmental Impact Reports (EIRs), educational pamphlets, water usage bulletins, and county plans. Documents in this collection come from the California Department of Water Resources (DWR), California Department of Fish and Game (DFG), San Diego Association of Governments (SANDAG), and many other agencies. Among the most frequently accessed documents are County General Plans for every California county and a survey of 125 Sacramento Delta fish species. IS 257 – Fall 2005. 11. 14 - SLIDE 9
Multivalent Documents Cheshire Layer GIS Layer Valence: 2: The relative capacity to unite, react, or interact (as with antigens or a biological substrate). Webster’s 7 th Collegiate Dictionary Table Layer History of The Classical World kdk dkd kdk The jsfj sjjhfjs jsjj jsjhfsjf sjhfjksh sshf jsfksfjk sjs jsjfs kj sjfkjsfhskjf sjfhjksh skjfhkjshfjksh jsfhkjshfjkskjfhsfh skjfksjflksjflksf sjfkjskfjklsslk slfjlskfjklsfklkkkdsj ksfksjfkskflk sjfjksf kjsfkjshf sjfsjfjks ksfjksjfkthsjir\ ks ksfjksjfkksjkls’ks klsjfkskfksjjjhsjhuu sfsjfkjs taksksh sksksk skksksk Network Protocols & Resources OCR Layer OCR Mapping Layer Modernjsfj sjjhfjs jsjj jsjhfsjf sslfjksh sshf jsfksfjk sjs jsjfs kj sjfkjsfhskjf sjfhjksh skjfhkjshfjksh jsfhkjshfjkskjfhsfh skjfksjflksjflksf sjfkjskfjklsslk slfjlskfjklsfklkkkdsj Scanned Page Image kdjjdkd kdjkdjkd kj kdkdk kdkd dkk jdjjdj clclc ldldl Table 1. 2005. 11. 14 - SLIDE 10
IS 257 – Fall 2005. 11. 14 - SLIDE 11
IS 257 – Fall 2005. 11. 14 - SLIDE 12
IS 257 – Fall 2005. 11. 14 - SLIDE 13
GIS Viewer Example http: //elib. cs. berkeley. edu/annotations/gis/buildings. html IS 257 – Fall 2005. 11. 14 - SLIDE 14
IS 257 – Fall 2005. 11. 14 - SLIDE 15
IS 257 – Fall 2005. 11. 14 - SLIDE 16
IS 257 – Fall 2005. 11. 14 - SLIDE 17
Blobworld: use regions for retrieval • We want to find general objects Represent images based on coherent regions IS 257 – Fall 2005. 11. 14 - SLIDE 18
IS 257 – Fall 2005. 11. 14 - SLIDE 19
IS 257 – Fall 2005. 11. 14 - SLIDE 20
Lecture Outline • Review – Application of Object Relational DBMS – the Berkeley Environmental Digital Library • Data Warehouses • Introduction to Data Warehouses • Data Warehousing – (Based on lecture notes from Joachim Hammer, University of Florida, and Joe Hellerstein and Mike Stonebraker of UCB) IS 257 – Fall 2005. 11. 14 - SLIDE 21
Overview • Data Warehouses and Merging Information Resources • What is a Data Warehouse? • History of Data Warehousing • Types of Data and Their Uses • Data Warehouse Architectures • Data Warehousing Problems and Issues IS 257 – Fall 2005. 11. 14 - SLIDE 22
Problem: Heterogeneous Information Sources “Heterogeneities are everywhere” Personal Databases Scientific Databases Digital Libraries Different interfaces p Different data representations p Duplicate and inconsistent information p IS 257 – Fall 2005 World Wide Web Slide credit: J. Hammer 2005. 11. 14 - SLIDE 23
Problem: Data Management in Large Enterprises • Vertical fragmentation of informational systems (vertical stove pipes) • Result of application (user)-driven development of operational systems Sales Planning Suppliers Num. Control Stock Mngmt Debt Mngmt Inventory. . Sales Administration IS 257 – Fall 2005 Finance Manufacturing . . . Slide credit: J. Hammer 2005. 11. 14 - SLIDE 24
Goal: Unified Access to Data Integration System World Wide Web Digital Libraries Scientific Databases Personal Databases • Collects and combines information • Provides integrated view, uniform user interface • Supports sharing Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 25
The Traditional Research Approach • Query-driven (lazy, on-demand) Clients Metadata Integration System . . . Wrapper Source Wrapper . . . Source Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 26
Disadvantages of Query-Driven Approach • Delay in query processing – Slow or unavailable information sources – Complex filtering and integration • Inefficient and potentially expensive for frequent queries • Competes with local processing at sources • Hasn’t caught on in industry Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 27
The Warehousing Approach • Information integrated in advance • Stored in WH for direct querying and analysis Extractor/ Monitor Source IS 257 – Fall 2005 Clients Data Warehouse Integration System Metadata . . . Extractor/ Monitor Source Extractor/ Monitor . . . Source Slide credit: J. Hammer 2005. 11. 14 - SLIDE 28
Advantages of Warehousing Approach • High query performance – But not necessarily most current information • Doesn’t interfere with local processing at sources – Complex queries at warehouse – OLTP at information sources • Information copied at warehouse – Can modify, annotate, summarize, restructure, etc. – Can store historical information – Security, no auditing • Has caught on in industry Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 29
Not Either-Or Decision • Query-driven approach still better for – Rapidly changing information sources – Truly vast amounts of data from large numbers of sources – Clients with unpredictable needs Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 30
Data Warehouse Evolution Relational Databases 1960 1975 Company DWs 1980 PC’s and Spreadsheets End-user Interfaces 1985 1990 Data Replication Tools 1995 2000 Information“Middle Data Based Revolution Ages” Management 1 st DW Article DW Confs. TIME “Prehistoric Times” “Building the DW” Inmon (1992) Vendor DW Frameworks Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 31
What is a Data Warehouse? “A Data Warehouse is a – subject-oriented, – integrated, – time-variant, – non-volatile collection of data used in support of management decision making processes. ” -- Inmon & Hackathorn, 1994: viz. Hoffer, Chap 11 IS 257 – Fall 2005. 11. 14 - SLIDE 32
DW Definition… • Subject-Oriented: – The data warehouse is organized around the key subjects (or high-level entities) of the enterprise. Major subjects include • • • IS 257 – Fall 2005 Customers Patients Students Products Etc. 2005. 11. 14 - SLIDE 33
DW Definition… • Integrated – The data housed in the data warehouse are defined using consistent • • IS 257 – Fall 2005 Naming conventions Formats Encoding Structures Related Characteristics 2005. 11. 14 - SLIDE 34
DW Definition… • Time-variant – The data in the warehouse contain a time dimension so that they may be used as a historical record of the business IS 257 – Fall 2005. 11. 14 - SLIDE 35
DW Definition… • Non-volatile – Data in the data warehouse are loaded and refreshed from operational systems, but cannot be updated by end-users IS 257 – Fall 2005. 11. 14 - SLIDE 36
What is a Data Warehouse? A Practitioners Viewpoint • “A data warehouse is simply a single, complete, and consistent store of data obtained from a variety of sources and made available to end users in a way they can understand use it in a business context. ” • -- Barry Devlin, IBM Consultant IS 257 – Fall 2005. 11. 1437 Slide credit: J. SLIDE Hammer
A Data Warehouse is. . . • Stored collection of diverse data – A solution to data integration problem – Single repository of information • Subject-oriented – Organized by subject, not by application – Used for analysis, data mining, etc. • Optimized differently from transactionoriented db • User interface aimed at executive decision makers and analysts IS 257 – Fall 2005. 11. 14 - SLIDE 38
… Cont’d • Large volume of data (Gb, Tb) • Non-volatile – Historical – Time attributes are important • Updates infrequent • May be append-only • Examples – All transactions ever at Wal. Mart – Complete client histories at insurance firm – Stockbroker financial information and portfolios Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 39
Warehouse is a Specialized DB Standard DB • • Mostly updates Many small transactions Mb - Gb of data Current snapshot Index/hash on p. k. Raw data Thousands of users (e. g. , clerical users) Warehouse • Mostly reads • Queries are long and complex • Gb - Tb of data • History • Lots of scans • Summarized, reconciled data • Hundreds of users (e. g. , decision-makers, analysts) Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 40
Summary Business Information Guide Data Warehouse Catalog Business Information Interface Data Warehouse Population Enterprise Modeling Operational Systems Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 41
Warehousing and Industry • Warehousing is big business – $2 billion in 1995 – $3. 5 billion in early 1997 – Predicted: $8 billion in 1998 [Metagroup] • Wal. Mart has largest warehouse – (OLD Info) 900 -CPU, 2, 700 disk, TB Teradata system – “Hundreds of Terabytes” in warehouse (Oct 2004) – 40 -50 GB per day (old) Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 42
Types of Data • Business Data - represents meaning – Real-time data (ultimate source of all business data) – Reconciled data – Derived data • Metadata - describes meaning – Build-time metadata – Control metadata – Usage metadata • Data as a product* - intrinsic meaning – Produced and stored for its own intrinsic value – e. g. , the contents of a text-book Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 43
Data Warehousing Architecture IS 257 – Fall 2005. 11. 14 - SLIDE 44
“Ingest” Clients Data Warehouse Integration System Metadata . . . Extractor/ Monitor Source/ File IS 257 – Fall 2005 Extractor/ Monitor Source / DB Extractor/ Monitor . . . Source / External 2005. 11. 14 - SLIDE 45
Data Warehouse Architectures: Conceptual View • Single-layer Operational systems Informational systems – Every data element is stored once only “Real-time data” – Virtual warehouse • Two-layer – Real-time + derived data – Most commonly used approach in – industry today Operational systems Informational systems Derived Data Real-time data Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 46
Three-layer Architecture: Conceptual View • Transformation of real-time data to derived data really requires two steps Operational systems Informational systems Derived Data Reconciled Data View level “Particular informational needs” Physical Implementation of the Data Warehouse Real-time data Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 47
Issues in Data Warehousing • Warehouse Design • Extraction – Wrappers, monitors (change detectors) • Integration – Cleansing & merging • Warehousing specification & Maintenance • Optimizations • Miscellaneous (e. g. , evolution) Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 48
Data Warehousing: Two Distinct Issues • (1) How to get information into warehouse – “Data warehousing” • (2) What to do with data once it’s in warehouse – “Warehouse DBMS” • Both rich research areas • Industry has focused on (2) Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 49
Data Extraction • Source types – Relational, flat file, WWW, etc. • How to get data out? – Replication tool – Dump file – Create report – ODBC or third-party “wrappers” Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 50
Wrapper p Converts data and queries from one data model to another Data Model A Queries Data Model B p Extends query capabilities for sources with limited capabilities Queries Wrapper Source Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 51

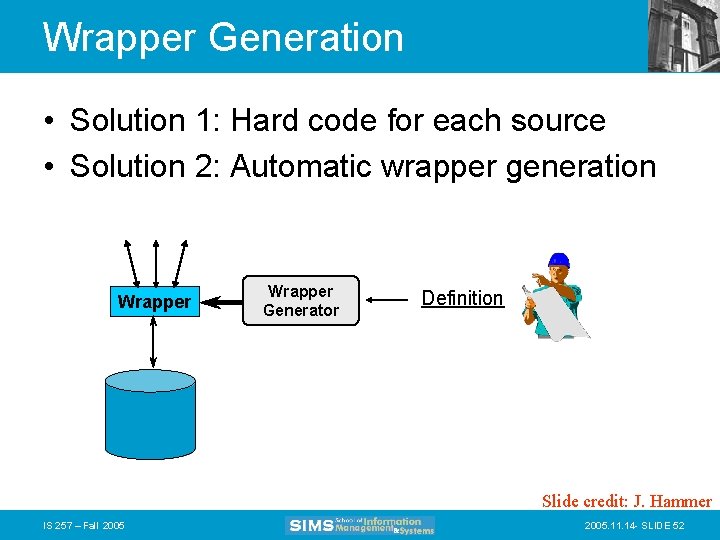

Wrapper Generation • Solution 1: Hard code for each source • Solution 2: Automatic wrapper generation Wrapper Generator Definition Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 52
Data Transformations • Convert data to uniformat – Byte ordering, string termination – Internal layout • Remove, add & reorder attributes – Add key – Add data to get history • Sort tuples Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 53
Monitors • Goal: Detect changes of interest and propagate to integrator • How? – Triggers – Replication server – Log sniffer – Compare query results – Compare snapshots/dumps Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 54
Data Integration • Receive data (changes) from multiple wrappers/monitors and integrate into warehouse • Rule-based • Actions – – – Resolve inconsistencies Eliminate duplicates Integrate into warehouse (may not be empty) Summarize data Fetch more data from sources (wh updates) etc. Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 55
Data Cleansing • Find (& remove) duplicate tuples – e. g. , Jane Doe vs. Jane Q. Doe • Detect inconsistent, wrong data – Attribute values that don’t match • Patch missing, unreadable data • Notify sources of errors found Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 56
Warehouse Maintenance • Warehouse data materialized view – Initial loading – View maintenance • View maintenance Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 57
Differs from Conventional View Maintenance. . . • Warehouses may be highly aggregated and summarized • Warehouse views may be over history of base data • Process large batch updates • Schema may evolve Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 58
Differs from Conventional View Maintenance. . . • Base data doesn’t participate in view maintenance – Simply reports changes – Loosely coupled – Absence of locking, global transactions – May not be queriable Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 59
Warehouse Maintenance Anomalies • Materialized view maintenance in loosely coupled, non-transactional environment • Simple example Data Warehouse Sold (item, clerk, age) Sold = Sale Emp Integrator Sales Sale(item, clerk) IS 257 – Fall 2005 Comp. Emp(clerk, age) Slide credit: J. Hammer 2005. 11. 14 - SLIDE 60
Warehouse Maintenance Anomalies Data Warehouse Sold (item, clerk, age) Integrator Sales Sale(item, clerk) Comp. Emp(clerk, age) 1. Insert into Emp(Mary, 25), notify integrator 2. Insert into Sale (Computer, Mary), notify integrator 3. (1) integrator adds Sale (Mary, 25) 4. (2) integrator adds (Computer, Mary) Emp 5. View incorrect (duplicate tuple) Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 61
Maintenance Anomaly - Solutions • Incremental update algorithms (ECA, Strobe, etc. ) • Research issues: Self-maintainable views – What views are self-maintainable – Store auxiliary views so original + auxiliary views are self-maintainable Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 62
Self-Maintainability: Examples Sold(item, clerk, age) = Sale(item, clerk) Emp(clerk, age) • Inserts into Emp – If Emp. clerk is key and Sale. clerk is foreign key (with ref. int. ) then no effect • Inserts into Sale – Maintain auxiliary view: – Emp- clerk, age(Sold) • Deletes from Emp – Delete from Sold based on clerk Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 63
Self-Maintainability: Examples • Deletes from Sale Delete from Sold based on {item, clerk} Unless age at time of sale is relevant • Auxiliary views for self-maintainability – Must themselves be self-maintainable – One solution: all source data – But want minimal set Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 64
Partial Self-Maintainability • Avoid (but don’t prohibit) going to sources Sold=Sale(item, clerk) Emp(clerk, age) • Inserts into Sale – Check if clerk already in Sold, go to source if not – Or replicate all clerks over age 30 – Or. . . Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 65
Warehouse Specification (ideally) View Definitions Warehouse Configuration Module Integration rules Warehouse Change Detection Requirements Integrator Extractor/ Monitor Metadata Extractor/ Monitor . . . Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 66
Optimization • Update filtering at extractor – Similar to irrelevant updates in constraint and view maintenance • Multiple view maintenance – If warehouse contains several views – Exploit shared sub-views Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 67
Additional Research Issues • • Historical views of non-historical data Expiring outdated information Crash recovery Addition and removal of information sources – Schema evolution Slide credit: J. Hammer IS 257 – Fall 2005. 11. 14 - SLIDE 68
More Information on DW • Agosta, Lou, The Essential Guide to Data Warehousing. Prentise Hall PTR, 1999. • Devlin, Barry, Data Warehouse, from Architecture to Implementation. Addison-Wesley, 1997. • Inmon, W. H. , Building the Data Warehouse. John Wiley, 1992. • Widom, J. , “Research Problems in Data Warehousing. ” Proc. of the 4 th Intl. CIKM Conf. , 1995. • Chaudhuri, S. , Dayal, U. , “An Overview of Data Warehousing and OLAP Technology. ” ACM SIGMOD Record, March 1997. IS 257 – Fall 2005. 11. 14 - SLIDE 69
