Data Structures and Database Applications Stacks in C

Data Structures and Database Applications Stacks in C# 1

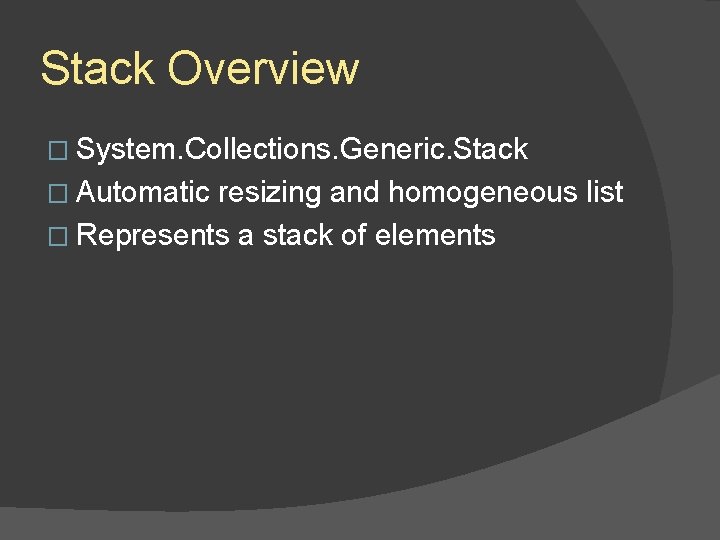

Stack Overview � System. Collections. Generic. Stack � Automatic resizing and homogeneous list � Represents a stack of elements

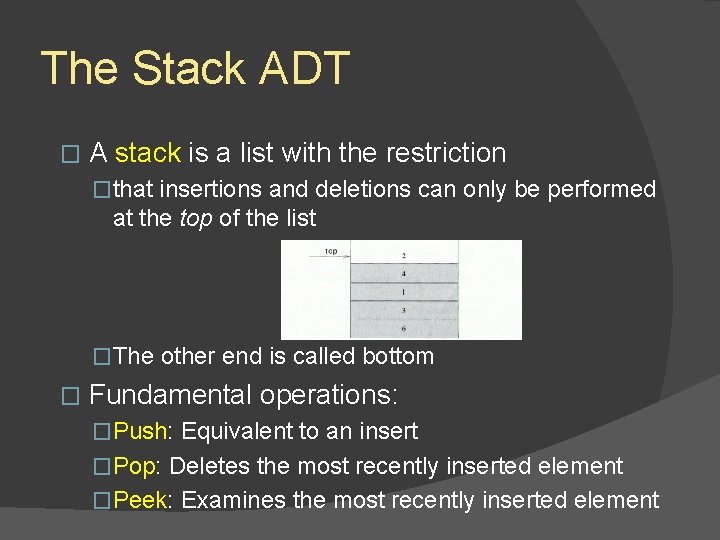

The Stack ADT � A stack is a list with the restriction �that insertions and deletions can only be performed at the top of the list �The other end is called bottom � Fundamental operations: �Push: Equivalent to an insert �Pop: Deletes the most recently inserted element �Peek: Examines the most recently inserted element

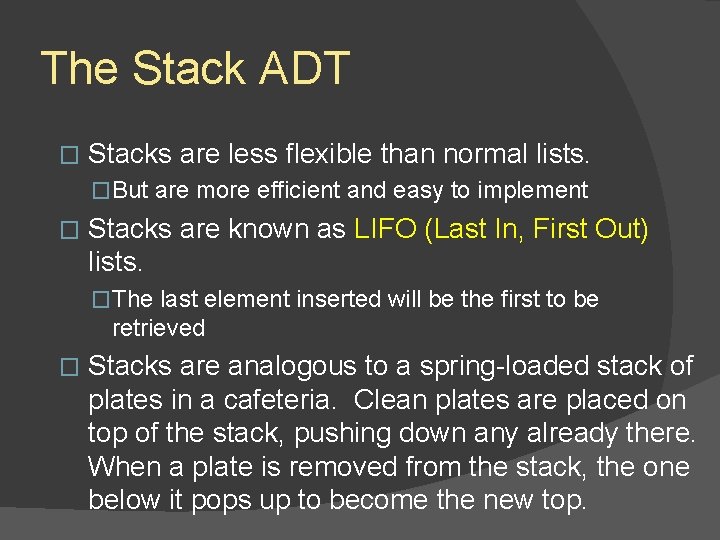

The Stack ADT � Stacks are less flexible than normal lists. �But are more efficient and easy to implement � Stacks are known as LIFO (Last In, First Out) lists. �The last element inserted will be the first to be retrieved � Stacks are analogous to a spring-loaded stack of plates in a cafeteria. Clean plates are placed on top of the stack, pushing down any already there. When a plate is removed from the stack, the one below it pops up to become the new top.

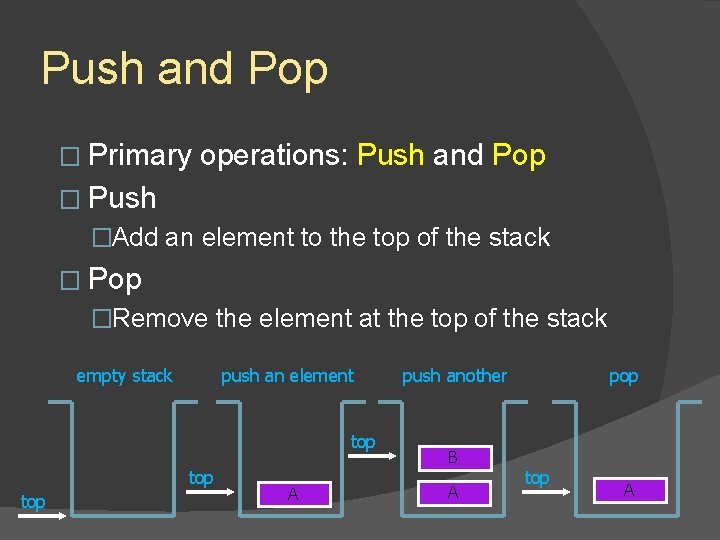

Push and Pop � Primary operations: Push and Pop � Push �Add an element to the top of the stack � Pop �Remove the element at the top of the stack empty stack push an element top top A push another B A pop top A

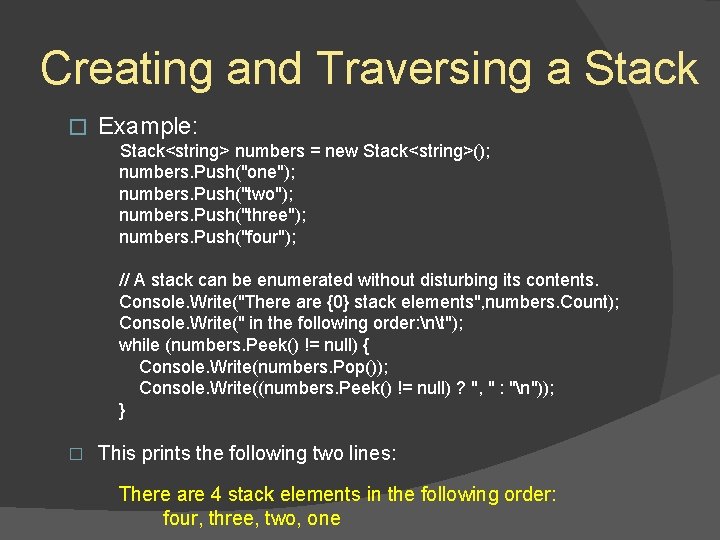

Creating and Traversing a Stack � Example: Stack<string> numbers = new Stack<string>(); numbers. Push("one"); numbers. Push("two"); numbers. Push("three"); numbers. Push("four"); // A stack can be enumerated without disturbing its contents. Console. Write("There are {0} stack elements", numbers. Count); Console. Write(" in the following order: nt"); while (numbers. Peek() != null) { Console. Write(numbers. Pop()); Console. Write((numbers. Peek() != null) ? ", " : "n")); } � This prints the following two lines: There are 4 stack elements in the following order: four, three, two, one

Common C# Stack Methods � Push() � Pop() � Peek() � Clear()

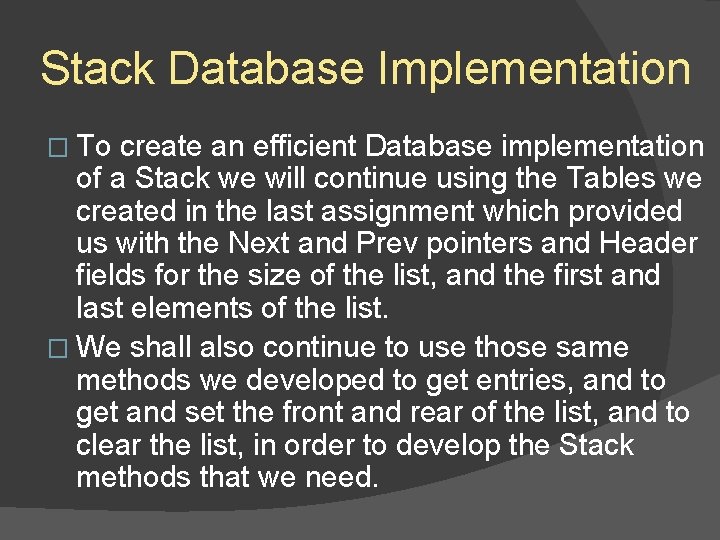

Stack Database Implementation � To create an efficient Database implementation of a Stack we will continue using the Tables we created in the last assignment which provided us with the Next and Prev pointers and Header fields for the size of the list, and the first and last elements of the list. � We shall also continue to use those same methods we developed to get entries, and to get and set the front and rear of the list, and to clear the list, in order to develop the Stack methods that we need.

Stack Database Implementation � The following implements the Push operation using the Entry Data Model and some of the get and set operations for the Linked List.

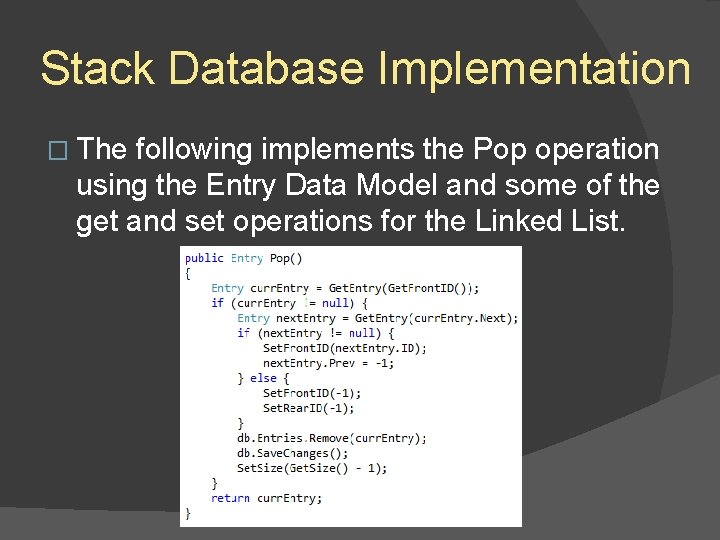

Stack Database Implementation � The following implements the Pop operation using the Entry Data Model and some of the get and set operations for the Linked List.

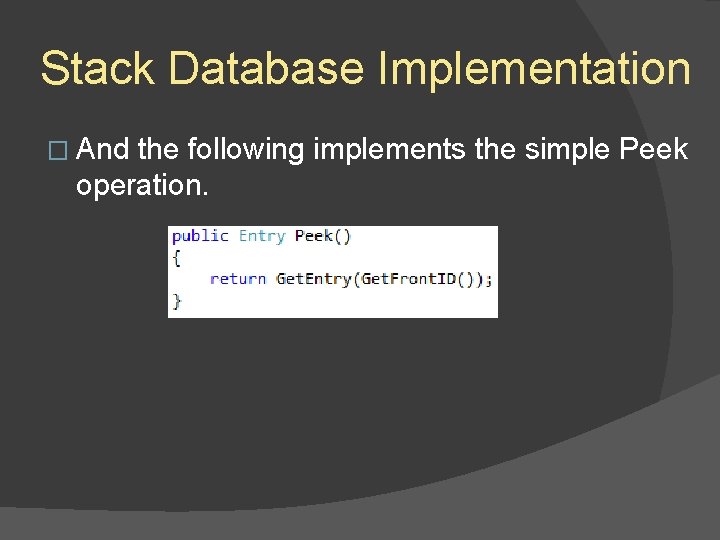

Stack Database Implementation � And the following implements the simple Peek operation.
