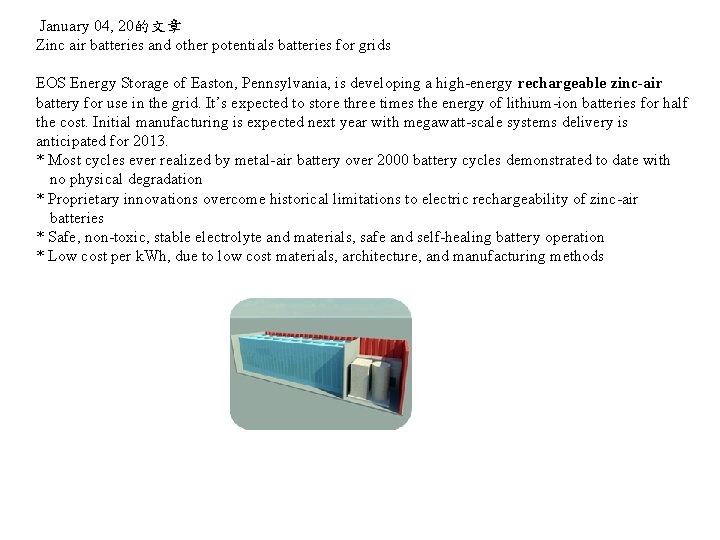

January 04, 20的文章 Zinc air batteries and other potentials batteries for grids EOS Energy Storage of Easton, Pennsylvania, is developing a high-energy rechargeable zinc-air battery for use in the grid. It’s expected to store three times the energy of lithium-ion batteries for half the cost. Initial manufacturing is expected next year with megawatt-scale systems delivery is anticipated for 2013. * Most cycles ever realized by metal-air battery over 2000 battery cycles demonstrated to date with no physical degradation * Proprietary innovations overcome historical limitations to electric rechargeability of zinc-air batteries * Safe, non-toxic, stable electrolyte and materials, safe and self-healing battery operation * Low cost per k. Wh, due to low cost materials, architecture, and manufacturing methods

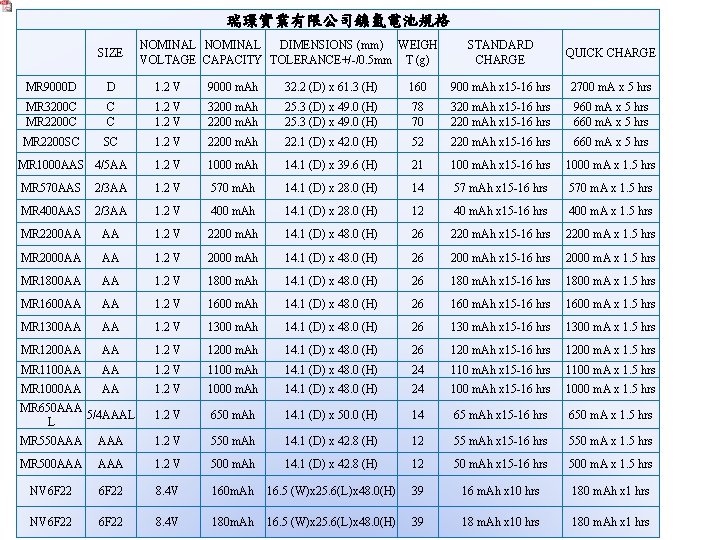

瑞璟實業有限公司鎳氫電池規格 NOMINAL DIMENSIONS (mm) WEIGH VOLTAGE CAPACITY TOLERANCE+/-/0. 5 mm T (g) STANDARD CHARGE QUICK CHARGE 160 900 m. Ah x 15 -16 hrs 2700 m. A x 5 hrs 25. 3 (D) x 49. 0 (H) 78 70 320 m. Ah x 15 -16 hrs 220 m. Ah x 15 -16 hrs 960 m. A x 5 hrs 660 m. A x 5 hrs 2200 m. Ah 22. 1 (D) x 42. 0 (H) 52 220 m. Ah x 15 -16 hrs 660 m. A x 5 hrs 1. 2 V 1000 m. Ah 14. 1 (D) x 39. 6 (H) 21 100 m. Ah x 15 -16 hrs 1000 m. A x 1. 5 hrs 2/3 AA 1. 2 V 570 m. Ah 14. 1 (D) x 28. 0 (H) 14 57 m. Ah x 15 -16 hrs 570 m. A x 1. 5 hrs MR 400 AAS 2/3 AA 1. 2 V 400 m. Ah 14. 1 (D) x 28. 0 (H) 12 40 m. Ah x 15 -16 hrs 400 m. A x 1. 5 hrs MR 2200 AA AA 1. 2 V 2200 m. Ah 14. 1 (D) x 48. 0 (H) 26 220 m. Ah x 15 -16 hrs 2200 m. A x 1. 5 hrs MR 2000 AA AA 1. 2 V 2000 m. Ah 14. 1 (D) x 48. 0 (H) 26 200 m. Ah x 15 -16 hrs 2000 m. A x 1. 5 hrs MR 1800 AA AA 1. 2 V 1800 m. Ah 14. 1 (D) x 48. 0 (H) 26 180 m. Ah x 15 -16 hrs 1800 m. A x 1. 5 hrs MR 1600 AA AA 1. 2 V 1600 m. Ah 14. 1 (D) x 48. 0 (H) 26 160 m. Ah x 15 -16 hrs 1600 m. A x 1. 5 hrs MR 1300 AA AA 1. 2 V 1300 m. Ah 14. 1 (D) x 48. 0 (H) 26 130 m. Ah x 15 -16 hrs 1300 m. A x 1. 5 hrs MR 1200 AA AA 1. 2 V 1200 m. Ah 14. 1 (D) x 48. 0 (H) 26 120 m. Ah x 15 -16 hrs 1200 m. A x 1. 5 hrs MR 1100 AA AA 1. 2 V 1100 m. Ah 14. 1 (D) x 48. 0 (H) 24 110 m. Ah x 15 -16 hrs 1100 m. A x 1. 5 hrs MR 1000 AA AA 1. 2 V 1000 m. Ah 14. 1 (D) x 48. 0 (H) 24 100 m. Ah x 15 -16 hrs 1000 m. A x 1. 5 hrs MR 650 AAA 5/4 AAAL L 1. 2 V 650 m. Ah 14. 1 (D) x 50. 0 (H) 14 65 m. Ah x 15 -16 hrs 650 m. A x 1. 5 hrs MR 550 AAA 1. 2 V 550 m. Ah 14. 1 (D) x 42. 8 (H) 12 55 m. Ah x 15 -16 hrs 550 m. A x 1. 5 hrs MR 500 AAA 1. 2 V 500 m. Ah 14. 1 (D) x 42. 8 (H) 12 50 m. Ah x 15 -16 hrs 500 m. A x 1. 5 hrs NV 6 F 22 8. 4 V 160 m. Ah 16. 5 (W)x 25. 6(L)x 48. 0(H) 39 16 m. Ah x 10 hrs 180 m. Ah x 1 hrs NV 6 F 22 8. 4 V 180 m. Ah 16. 5 (W)x 25. 6(L)x 48. 0(H) 39 18 m. Ah x 10 hrs 180 m. Ah x 1 hrs 　 SIZE MR 9000 D D 1. 2 V 9000 m. Ah 32. 2 (D) x 61. 3 (H) MR 3200 C MR 2200 C C C 1. 2 V 3200 m. Ah 2200 m. Ah MR 2200 SC SC 1. 2 V MR 1000 AAS 4/5 AA MR 570 AAS

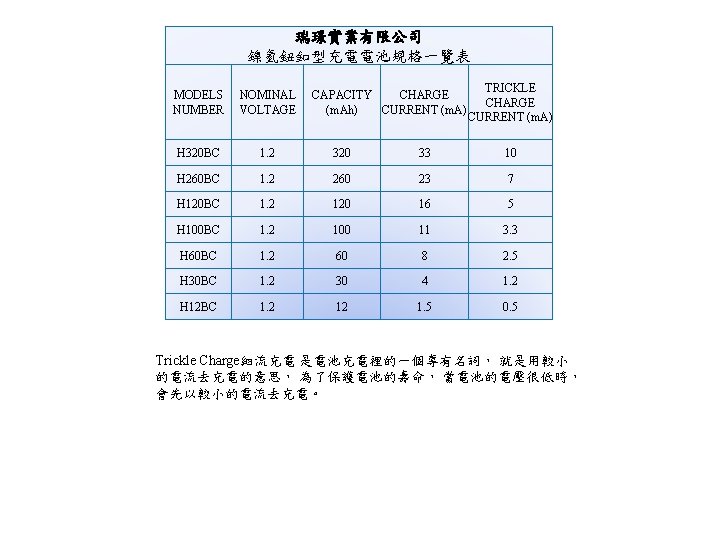

瑞璟實業有限公司 鎳氫鈕釦型充電電池規格一覽表 CAPACITY CHARGE (m. Ah) CURRENT (m. A) TRICKLE CHARGE CURRENT (m. A) MODELS NUMBER NOMINAL VOLTAGE H 320 BC 1. 2 320 33 10 H 260 BC 1. 2 260 23 7 H 120 BC 1. 2 120 16 5 H 100 BC 1. 2 100 11 3. 3 H 60 BC 1. 2 60 8 2. 5 H 30 BC 1. 2 30 4 1. 2 H 12 BC 1. 2 12 1. 5 0. 5 Trickle Charge細流充電 是電池充電裡的一個專有名詞， 就是用較小 的電流去充電的意思， 為了保護電池的壽命， 當電池的電壓很低時， 會先以較小的電流去充電。

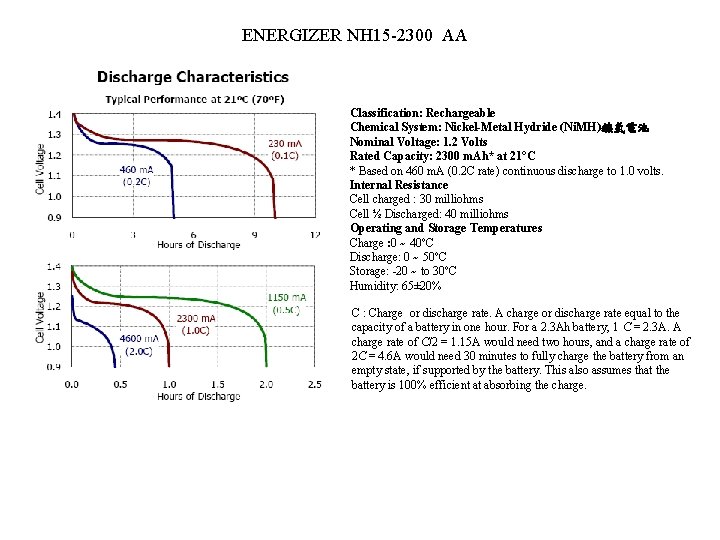

ENERGIZER NH 15 -2300 AA Classification: Rechargeable Chemical System: Nickel-Metal Hydride (Ni. MH)鎳氫電池 Nominal Voltage: 1. 2 Volts Rated Capacity: 2300 m. Ah* at 21°C * Based on 460 m. A (0. 2 C rate) continuous discharge to 1. 0 volts. Internal Resistance: Cell charged : 30 milliohms Cell ½ Discharged: 40 milliohms Operating and Storage Temperatures Charge : 0 ~ 40ºC Discharge: 0 ~ 50ºC Storage: -20 ~ to 30ºC Humidity: 65± 20% C : Charge or discharge rate. A charge or discharge rate equal to the capacity of a battery in one hour. For a 2. 3 Ah battery, 1 C = 2. 3 A. A charge rate of C/2 = 1. 15 A would need two hours, and a charge rate of 2 C = 4. 6 A would need 30 minutes to fully charge the battery from an empty state, if supported by the battery. This also assumes that the battery is 100% efficient at absorbing the charge.

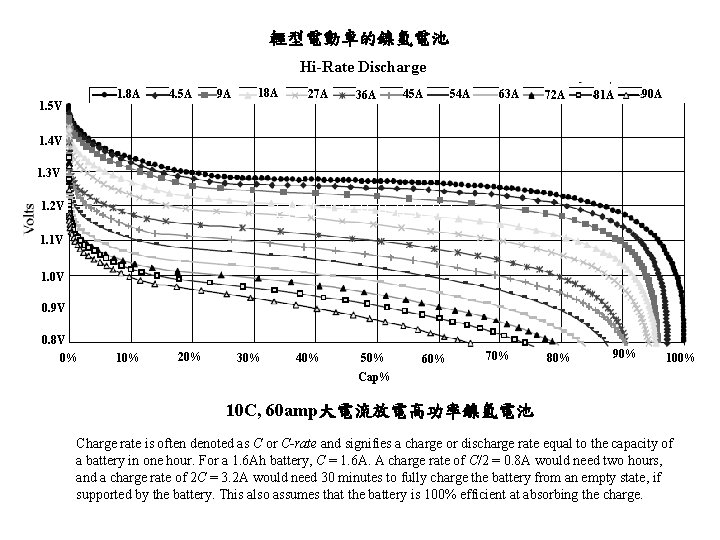

輕型電動車的鎳氫電池 Hi-Rate Discharge 1. 8 A 1. 5 V 4. 5 A 9 A 18 A 27 A 36 A 45 A 54 A 63 A 72 A 81 A 90 A 1. 4 V 1. 3 V 1. 2 V ����� 1. 1 V 1. 0 V 0. 9 V 0. 8 V 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Cap% 10 C, 60 amp大電流放電高功率鎳氫電池 Charge rate is often denoted as C or C-rate and signifies a charge or discharge rate equal to the capacity of a battery in one hour. For a 1. 6 Ah battery, C = 1. 6 A. A charge rate of C/2 = 0. 8 A would need two hours, and a charge rate of 2 C = 3. 2 A would need 30 minutes to fully charge the battery from an empty state, if supported by the battery. This also assumes that the battery is 100% efficient at absorbing the charge.

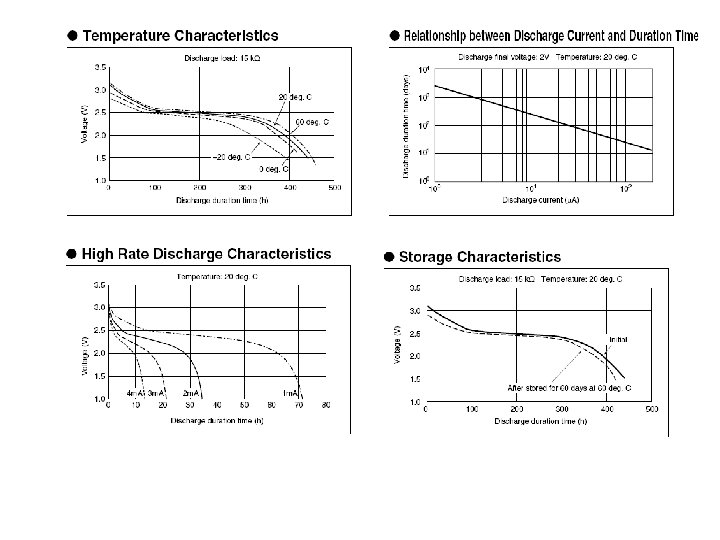

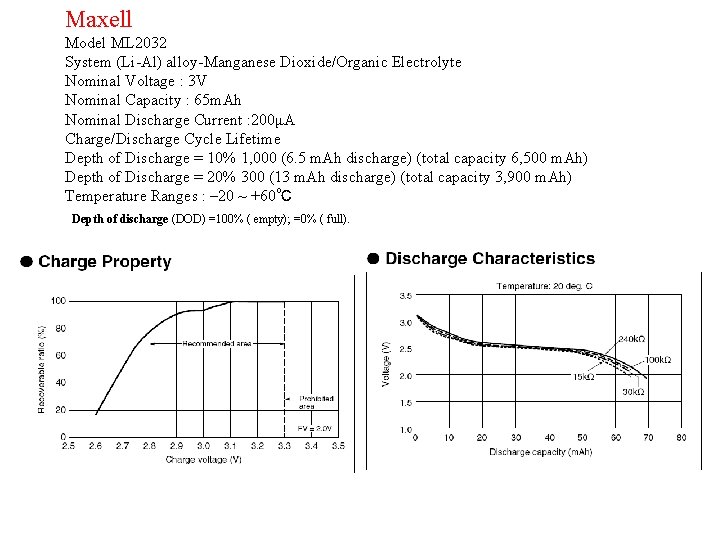

Maxell Model ML 2032 System (Li-Al) alloy-Manganese Dioxide/Organic Electrolyte Nominal Voltage : 3 V Nominal Capacity : 65 m. Ah Nominal Discharge Current : 200μA Charge/Discharge Cycle Lifetime Depth of Discharge = 10% 1, 000 (6. 5 m. Ah discharge) (total capacity 6, 500 m. Ah) Depth of Discharge = 20% 300 (13 m. Ah discharge) (total capacity 3, 900 m. Ah) Temperature Ranges : – 20 ~ +60℃ Depth of discharge (DOD) =100% ( empty); =0% ( full).
