DATA MODELS Siti Nurbaya Ismail Senior Lecturer Faculty of Computer & Mathematical Sciences Universiti Teknologi MARA Kedah (e): sitinurbaya{at}kedah{dot}uitm {dot}edu{dot}my (u): https: //sitinur 151. wordpress. com
Chapter 2: Data Models 2. 0 DATA MODELS 2. 1 The Importance of Data Models 2. 2 Data Model Basic Building Blocks 2. 3 Business Rules 2. 4 The Evolution of Data Models 2. 5 Degrees of Data Abstraction 2

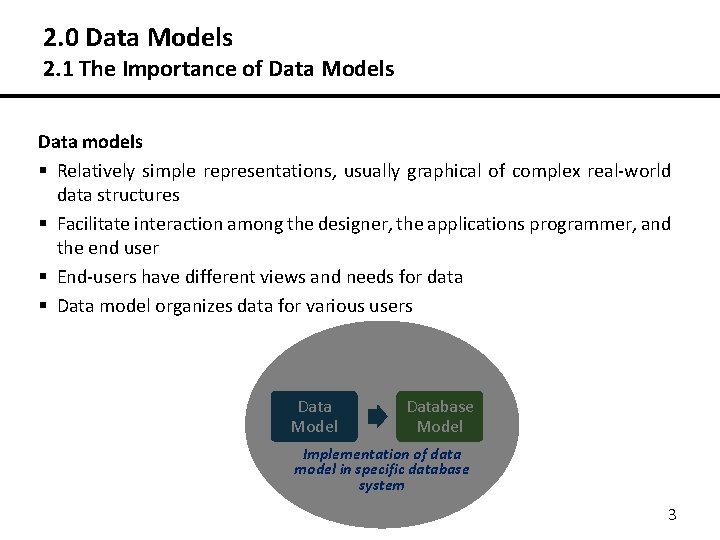

2. 0 Data Models 2. 1 The Importance of Data Models Data models § Relatively simple representations, usually graphical of complex real-world data structures § Facilitate interaction among the designer, the applications programmer, and the end user § End-users have different views and needs for data § Data model organizes data for various users Data Model Database Model Implementation of data model in specific database system 3

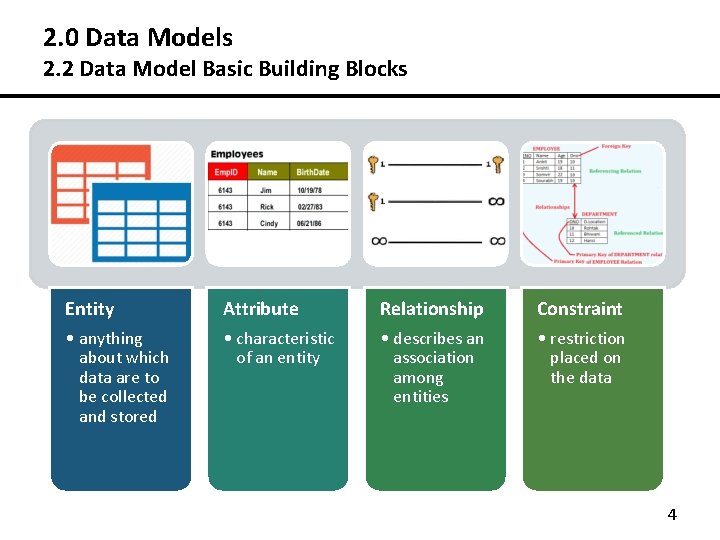

2. 0 Data Models 2. 2 Data Model Basic Building Blocks Entity Attribute Relationship Constraint • anything about which data are to be collected and stored • characteristic of an entity • describes an association among entities • restriction placed on the data 4
2. 0 Data Models 2. 2 Data Model Basic Building Blocks Entity Attribute Relationship Constraint 5

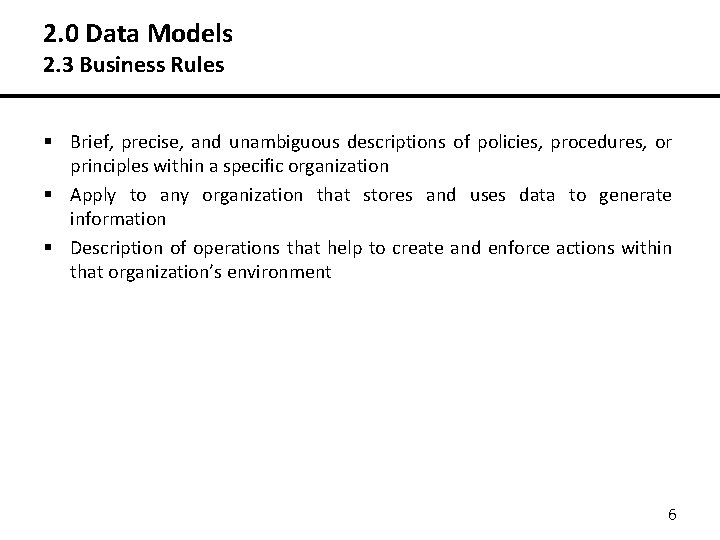

2. 0 Data Models 2. 3 Business Rules § Brief, precise, and unambiguous descriptions of policies, procedures, or principles within a specific organization § Apply to any organization that stores and uses data to generate information § Description of operations that help to create and enforce actions within that organization’s environment 6

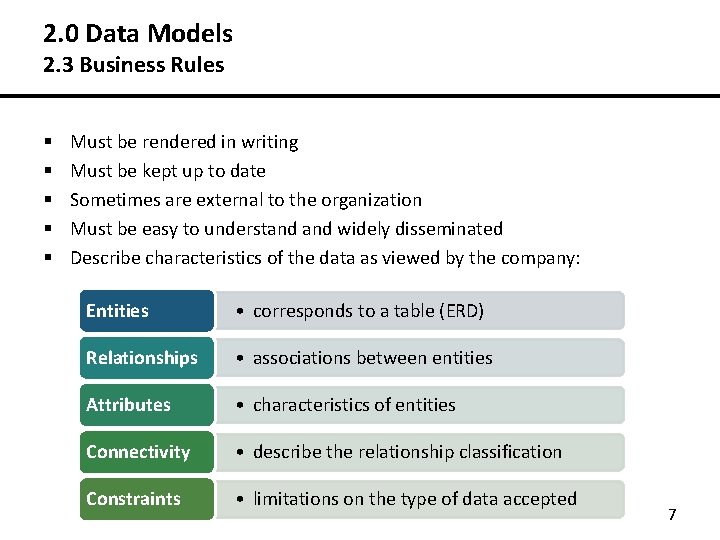

2. 0 Data Models 2. 3 Business Rules § § § Must be rendered in writing Must be kept up to date Sometimes are external to the organization Must be easy to understand widely disseminated Describe characteristics of the data as viewed by the company: Entities • corresponds to a table (ERD) Relationships • associations between entities Attributes • characteristics of entities Connectivity • describe the relationship classification Constraints • limitations on the type of data accepted 7

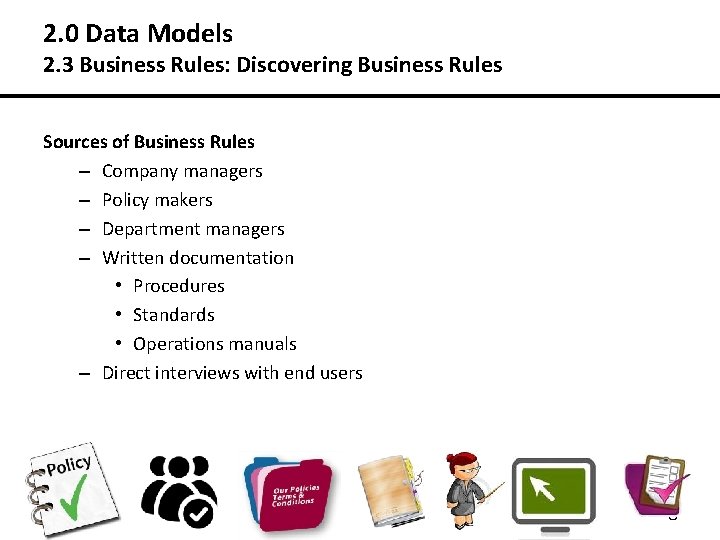

2. 0 Data Models 2. 3 Business Rules: Discovering Business Rules Sources of Business Rules – Company managers – Policy makers – Department managers – Written documentation • Procedures • Standards • Operations manuals – Direct interviews with end users 8

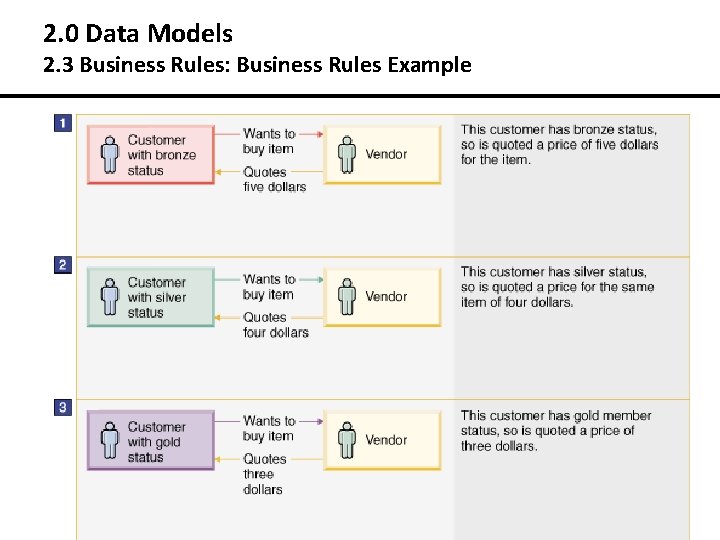

2. 0 Data Models 2. 3 Business Rules: Business Rules Example § One student can register many subjects § A painter can paint many paintings; each paining is painted by one painter. A gallery can have many paintings. A painting can be exhibited by a gallery. 9
2. 0 Data Models 2. 3 Business Rules: Translating Business Rules into Data Model Components § Standardize company’s view of data § Act as a communications tool between users and designers § Allow designer to understand the nature, role, and scope of data § Allow designer to understand business processes § Allow designer to develop appropriate relationship participation rules and constraints § Promote creation of an accurate data model 10

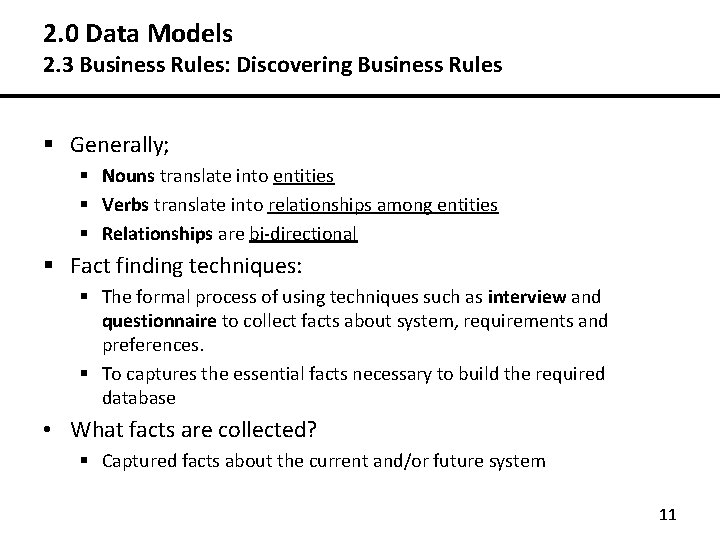

2. 0 Data Models 2. 3 Business Rules: Discovering Business Rules § Generally; § Nouns translate into entities § Verbs translate into relationships among entities § Relationships are bi-directional § Fact finding techniques: § The formal process of using techniques such as interview and questionnaire to collect facts about system, requirements and preferences. § To captures the essential facts necessary to build the required database • What facts are collected? § Captured facts about the current and/or future system 11
2. 0 Data Models 2. 3 Business Rules: Fact Finding Techniques Examining documents Questionnaire 5 commonly used fact finding techniques Research Interviewing Observation the organization in operations 12
The Evolution of Data Models 13
2. 0 Data Models 2. 4 The Evolution of Data Models Hierarchical Model Hierarchical. Database Model • • Represented a group of records that to relates to each Represented byby a group of records that relates each others by a pointer Root & Child others Network Database Model • Based on set theory, a set consists a collection of records Owner & Member Relational Model Relational. Database Model Based on mathematical concept of relational • • Based onthe mathematical concept of relational Object-Oriented. Model • • Based onobject oriented concepts Based on oriented concepts 14

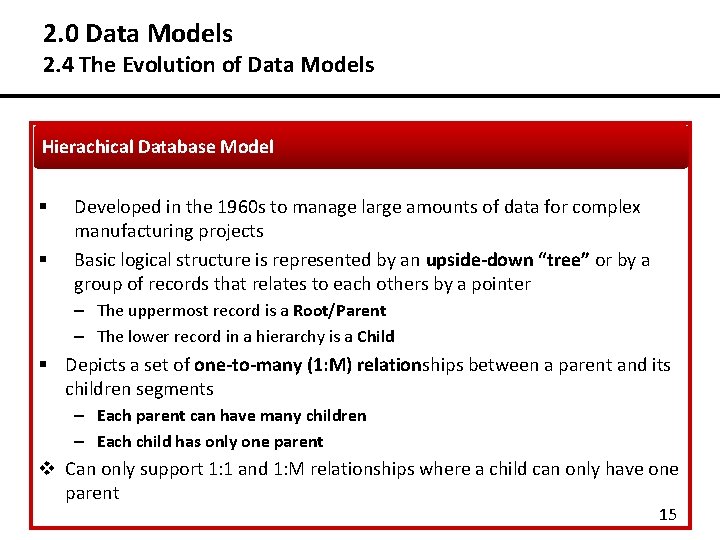

2. 0 Data Models 2. 4 The Evolution of Data Models Hierachical Database Model § § Developed in the 1960 s to manage large amounts of data for complex manufacturing projects Basic logical structure is represented by an upside-down “tree” or by a group of records that relates to each others by a pointer – The uppermost record is a Root/Parent – The lower record in a hierarchy is a Child § Depicts a set of one-to-many (1: M) relationships between a parent and its children segments – Each parent can have many children – Each child has only one parent v Can only support 1: 1 and 1: M relationships where a child can only have one parent 15

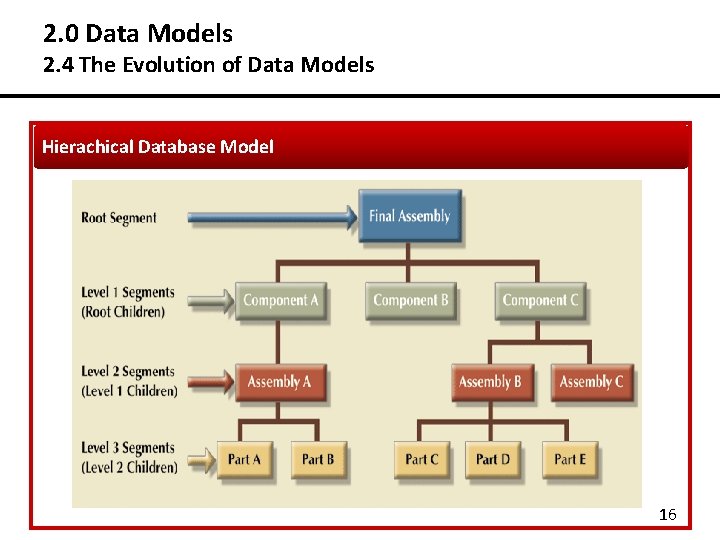

2. 0 Data Models 2. 4 The Evolution of Data Models Hierachical Database Model 16
Data Models The Evolution of Data Models Hierachical Database Model Root Abu Johor 3000 A 001 Nut Washer Samad Kedah A 002 Washer 2500 Zaitun Melaka 4500 A 003 Hammer Nut A 004 Bolt Nut 17

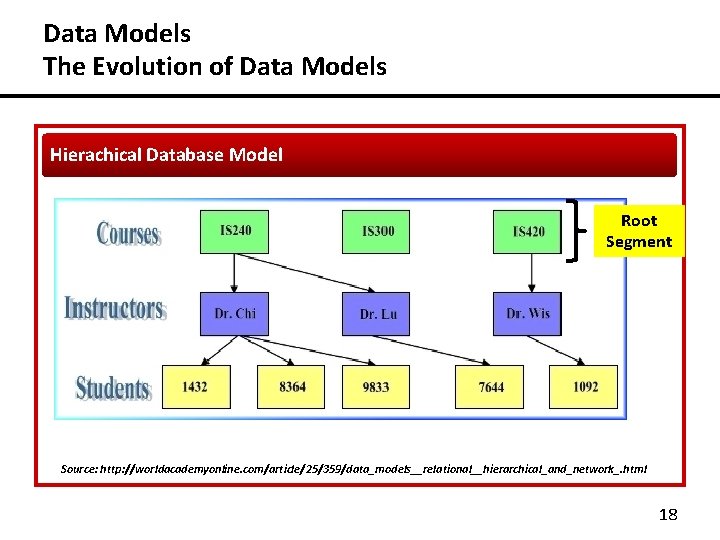

Data Models The Evolution of Data Models Hierachical Database Model Root Segment Source: http: //worldacademyonline. com/article/25/359/data_models__relational__hierarchical_and_network_. html 18

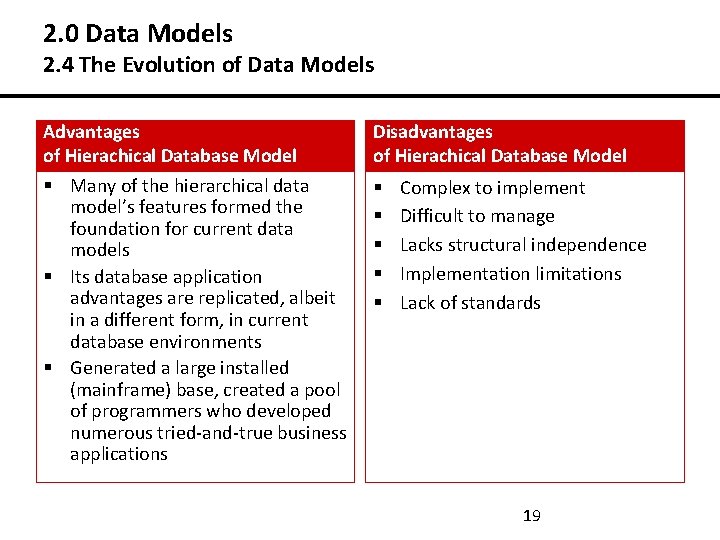

2. 0 Data Models 2. 4 The Evolution of Data Models Advantages of Hierachical Database Model § Many of the hierarchical data model’s features formed the foundation for current data models § Its database application advantages are replicated, albeit in a different form, in current database environments § Generated a large installed (mainframe) base, created a pool of programmers who developed numerous tried-and-true business applications Disadvantages of Hierachical Database Model § § § Complex to implement Difficult to manage Lacks structural independence Implementation limitations Lack of standards 19

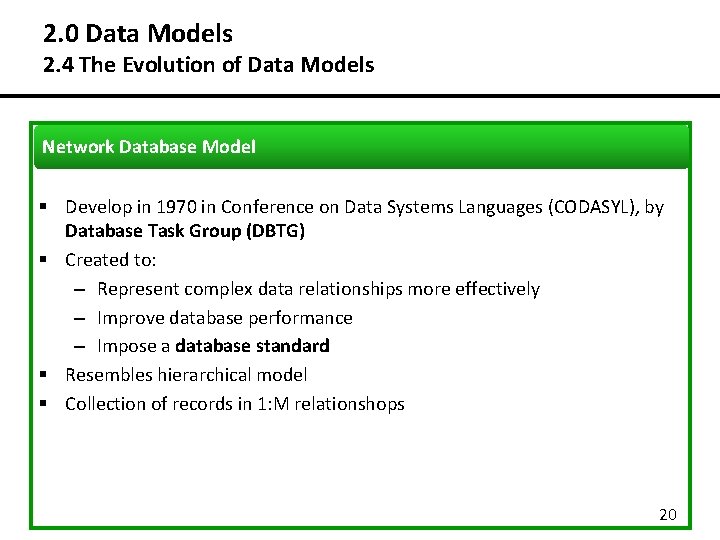

2. 0 Data Models 2. 4 The Evolution of Data Models Network Database Model § Develop in 1970 in Conference on Data Systems Languages (CODASYL), by Database Task Group (DBTG) § Created to: – Represent complex data relationships more effectively – Improve database performance – Impose a database standard § Resembles hierarchical model § Collection of records in 1: M relationshops 20

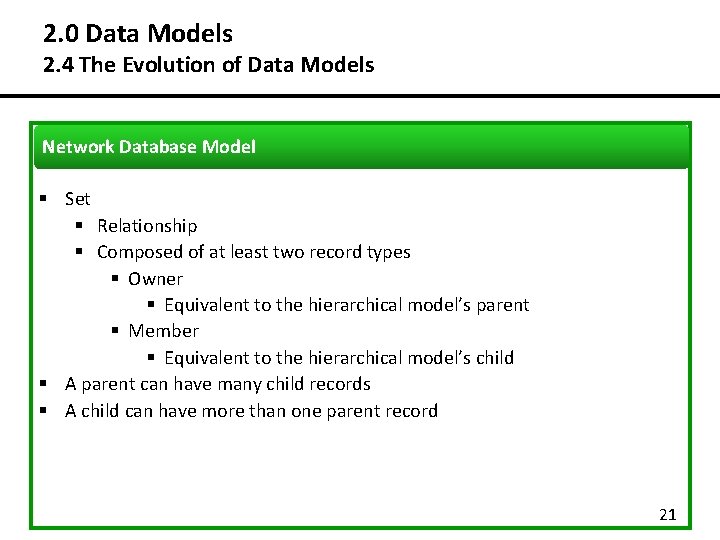

2. 0 Data Models 2. 4 The Evolution of Data Models Network Database Model § Set § Relationship § Composed of at least two record types § Owner § Equivalent to the hierarchical model’s parent § Member § Equivalent to the hierarchical model’s child § A parent can have many child records § A child can have more than one parent record 21

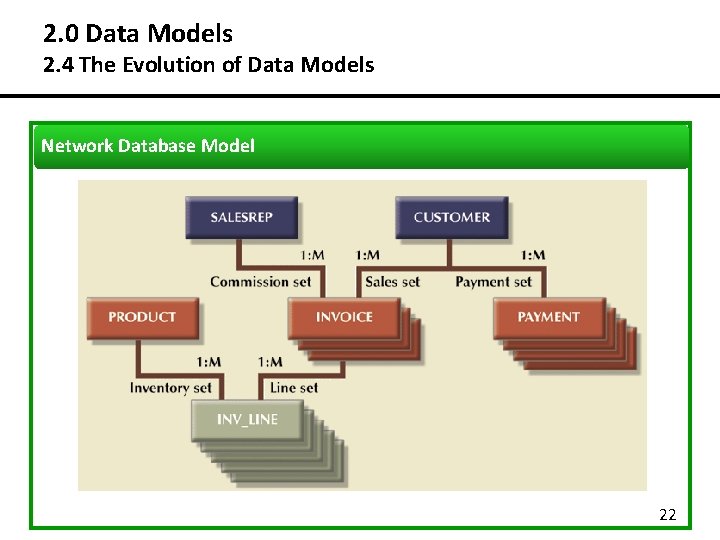

2. 0 Data Models 2. 4 The Evolution of Data Models Network Database Model 22

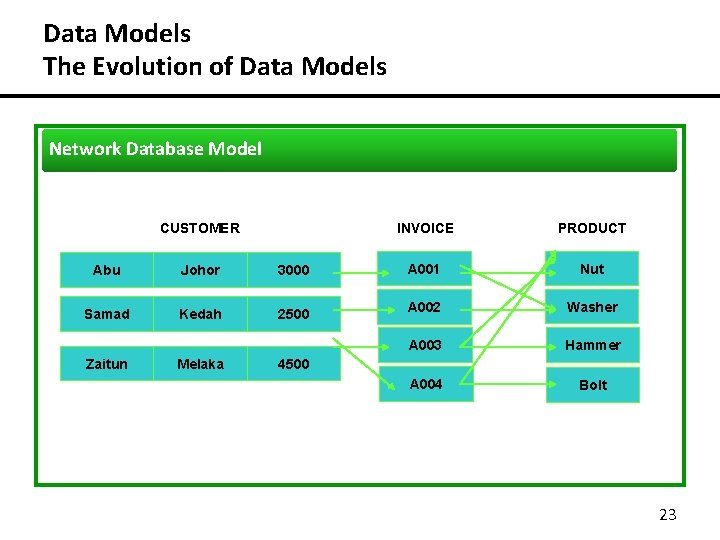

Data Models The Evolution of Data Models Network Database Model CUSTOMER Abu Johor 3000 Samad Kedah 2500 Zaitun Melaka INVOICE PRODUCT A 001 Nut A 002 Washer A 003 Hammer A 004 Bolt 4500 23
Data Models The Evolution of Data Models Network Database Model Source: http: //worldacademyonline. com/article/25/359/data_models__relational__hierarchical_and_network_. html 24
2. 0 Data Models 2. 4 The Evolution of Data Models Network Database Model § Disadvantages – Too cumbersome / difficult to handle – The lack of ad hoc query capability put heavy pressure on programmers – Any structural change in the database could produce havoc in all application programs that drew data from the database – Many database old-timers can recall the interminable information delays 25

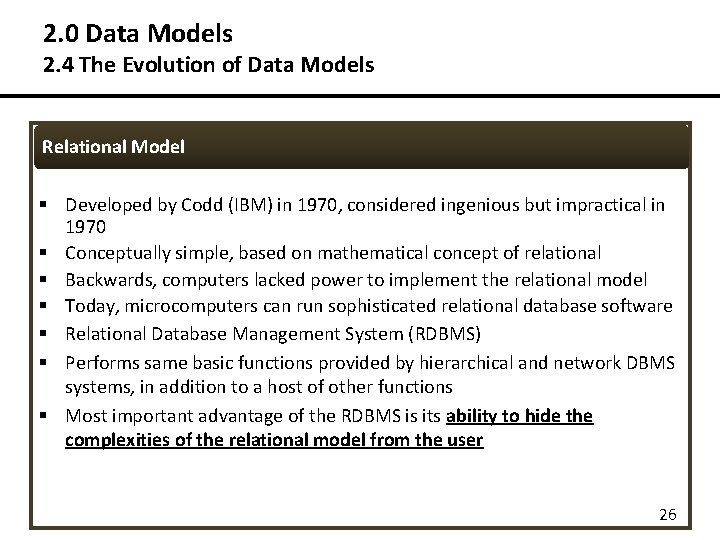

2. 0 Data Models 2. 4 The Evolution of Data Models Relational Model § Developed by Codd (IBM) in 1970, considered ingenious but impractical in 1970 § Conceptually simple, based on mathematical concept of relational § Backwards, computers lacked power to implement the relational model § Today, microcomputers can run sophisticated relational database software § Relational Database Management System (RDBMS) § Performs same basic functions provided by hierarchical and network DBMS systems, in addition to a host of other functions § Most important advantage of the RDBMS is its ability to hide the complexities of the relational model from the user 26

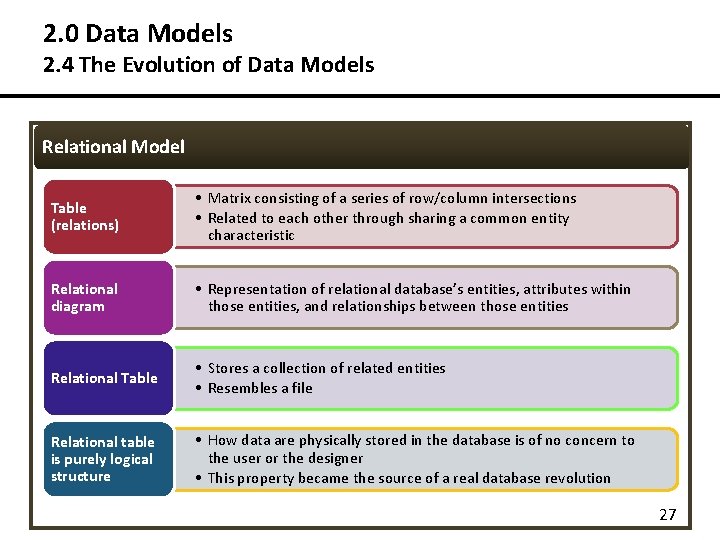

2. 0 Data Models 2. 4 The Evolution of Data Models Relational Model Table (relations) • Matrix consisting of a series of row/column intersections • Related to each other through sharing a common entity characteristic Relational diagram • Representation of relational database’s entities, attributes within those entities, and relationships between those entities Relational Table • Stores a collection of related entities • Resembles a file Relational table is purely logical structure • How data are physically stored in the database is of no concern to the user or the designer • This property became the source of a real database revolution 27

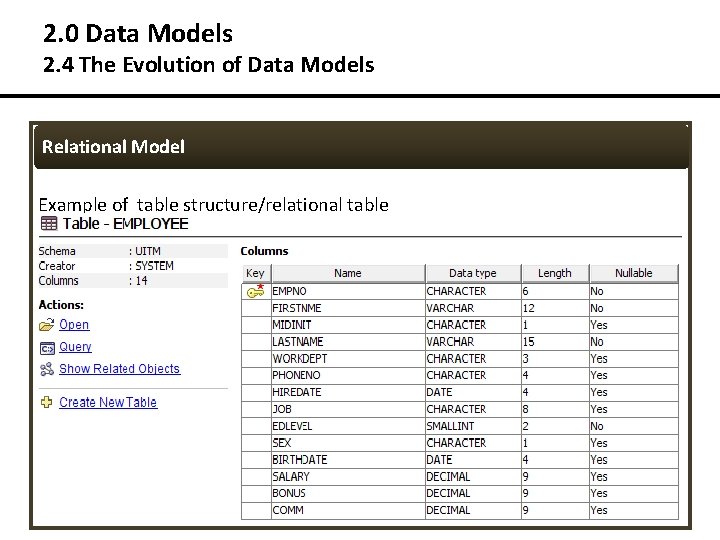

2. 0 Data Models 2. 4 The Evolution of Data Models Relational Model Example of table structure/relational table 28

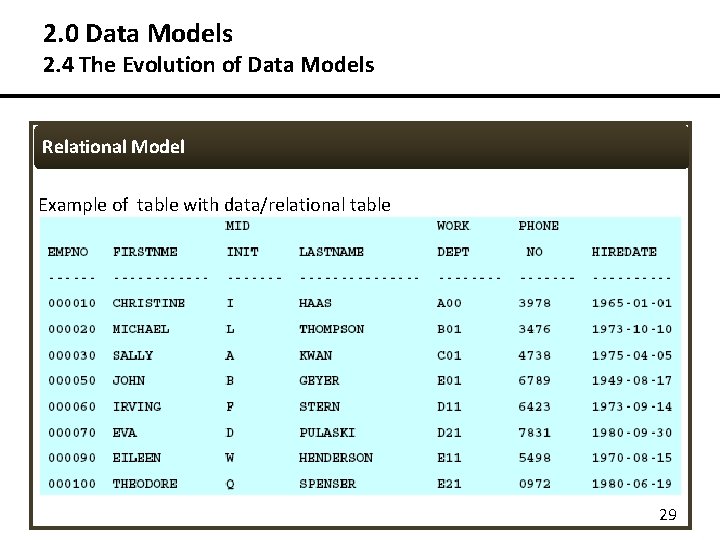

2. 0 Data Models 2. 4 The Evolution of Data Models Relational Model Example of table with data/relational table 29

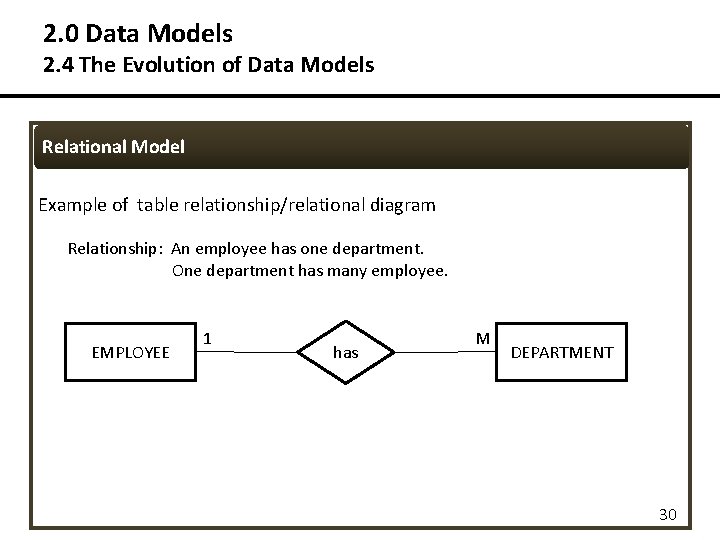

2. 0 Data Models 2. 4 The Evolution of Data Models Relational Model Example of table relationship/relational diagram Relationship: An employee has one department. One department has many employee. EMPLOYEE 1 has M DEPARTMENT 30
2. 0 Data Models 2. 4 The Evolution of Data Models Relational Model § Rise to dominance due in part to its powerful and flexible query language § Structured Query Language (SQL) allows the user to specify what must be done without specifying how it must be done § SQL-based relational database application involves: – User interface – A set of tables stored in the database – SQL engine 31

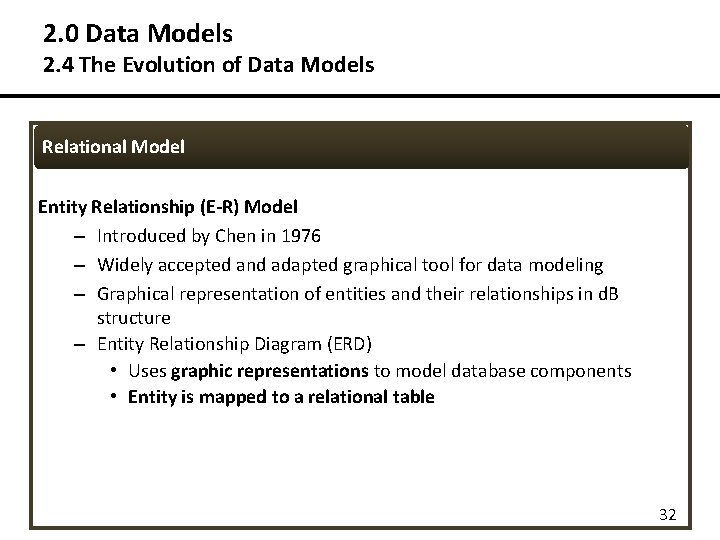

2. 0 Data Models 2. 4 The Evolution of Data Models Relational Model Entity Relationship (E-R) Model – Introduced by Chen in 1976 – Widely accepted and adapted graphical tool for data modeling – Graphical representation of entities and their relationships in d. B structure – Entity Relationship Diagram (ERD) • Uses graphic representations to model database components • Entity is mapped to a relational table 32

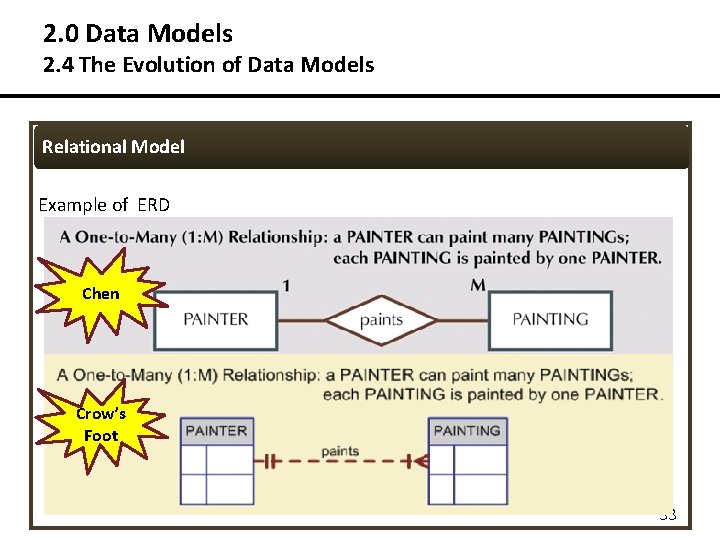

2. 0 Data Models 2. 4 The Evolution of Data Models Relational Model Example of ERD Chen Crow’s Foot 33
2. 0 Data Models 2. 4 The Evolution of Data Models Object Oriented Model § Modeled both data and their relationships in a single structure known as an object § OO data model (OODM) is the basis for the OO database management system (OODBMS) 34
2. 0 Data Models 2. 4 The Evolution of Data Models Object Oriented Model § Object described by its factual content – Like relational model’s entity § Includes information about relationships between facts within object, and relationships with other objects – Unlike relational model’s entity § Subsequent OODM development allowed an object to also contain all operations § Object becomes basic building block for autonomous structures 35

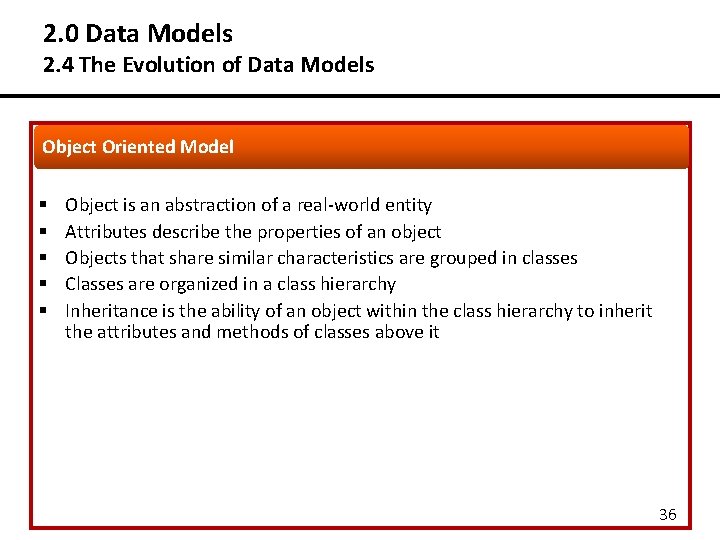

2. 0 Data Models 2. 4 The Evolution of Data Models Object Oriented Model § § § Object is an abstraction of a real-world entity Attributes describe the properties of an object Objects that share similar characteristics are grouped in classes Classes are organized in a class hierarchy Inheritance is the ability of an object within the class hierarchy to inherit the attributes and methods of classes above it 36

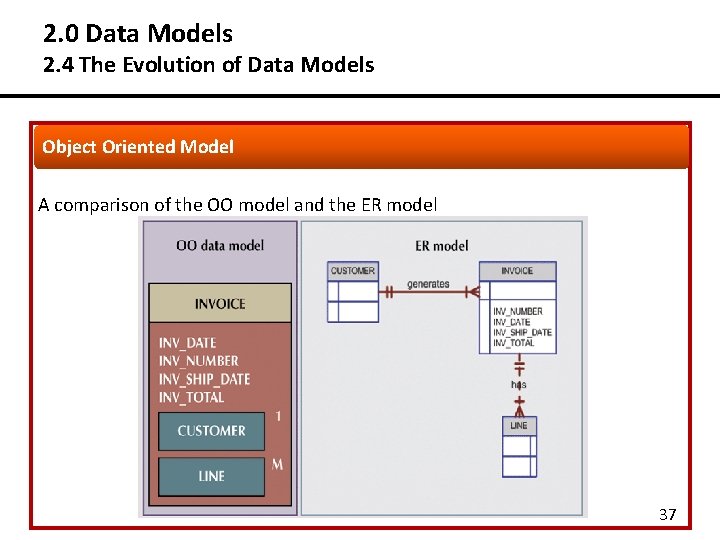

2. 0 Data Models 2. 4 The Evolution of Data Models Object Oriented Model A comparison of the OO model and the ER model 37

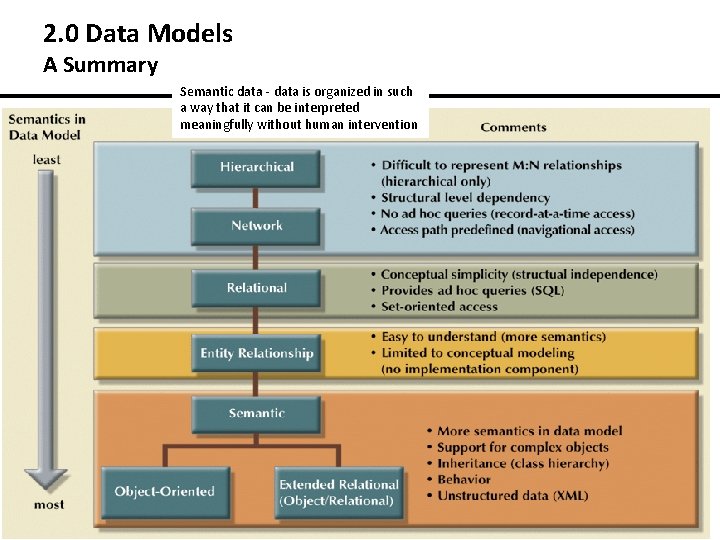

2. 0 Data Models A Summary § Each new data model capitalized on the shortcomings of previous models § Common characteristics: – Conceptual simplicity without compromising the semantic completeness of the database – Represent the real world as closely as possible – Representation of real-world transformations (behavior) must comply with consistency and integrity characteristics of any data model 38
2. 0 Data Models A Summary Semantic data - data is organized in such a way that it can be interpreted meaningfully without human intervention 39

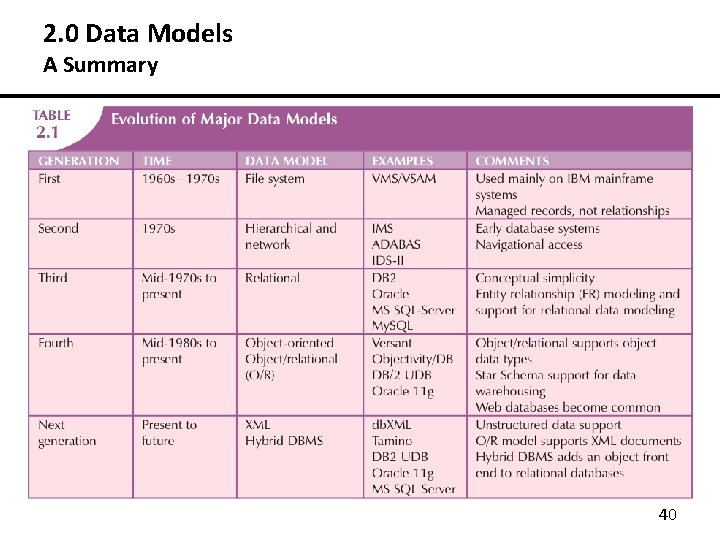

2. 0 Data Models A Summary 40
Degrees of Data Abstraction 41
2. 0 Data Models 2. 5 Degrees of Data Abstraction § Way of classifying data models – Data abstraction: • hides extraneous information regarding data storage away from database user § Many processes begin at high level of abstraction and proceed to an everincreasing level of detail • Designing a usable database follows the same basic process • The major purpose of a database system is to provide users with an abstract view of the system. • The system hides certain details of how data is stored and created and maintained • Complexity should be hidden from database users. 42
2. 0 Data Models 2. 5 Degrees of Data Abstraction § American National Standards Institute (ANSI) Standards Planning and Requirements Committee (SPARC) § Three Level ANSI-SPARC Architecture – Defined a framework for data modeling based on degrees of data abstraction(1970 s): External Conceptual Internal • The famous “Three Level ANSI-SPARC Architecture” 43
2. 0 Data Models 2. 5 Degrees of Data Abstraction: Data Abstraction Levels 44

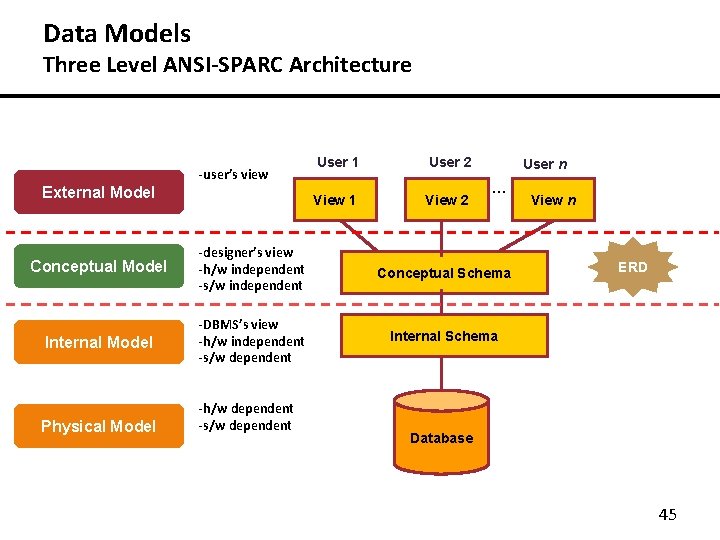

Data Models Three Level ANSI-SPARC Architecture -user’s view External Model 1. External level User 1 User 2 View 1 View 2 User n … Model 2. Conceptual level -designer’s view -h/w independent -s/w independent Conceptual Schema 3. Internal level Model -DBMS’s view -h/w independent -s/w dependent Internal Schema Physical data Physical Model organization -h/w dependent -s/w dependent View n ERD Database 45

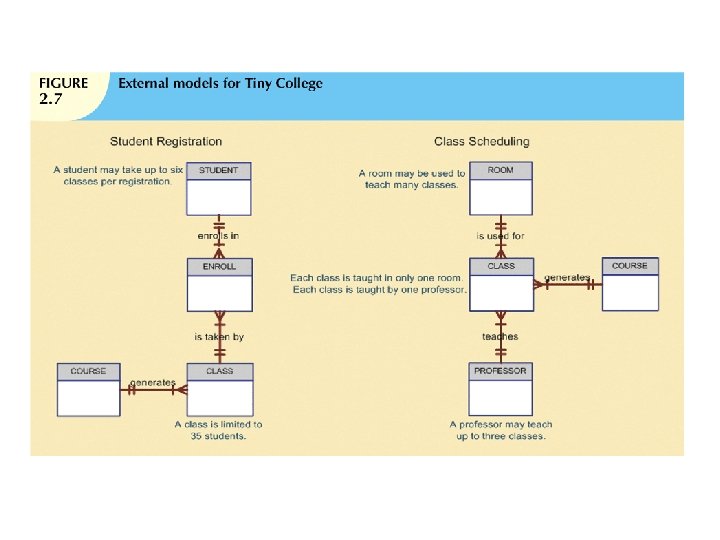

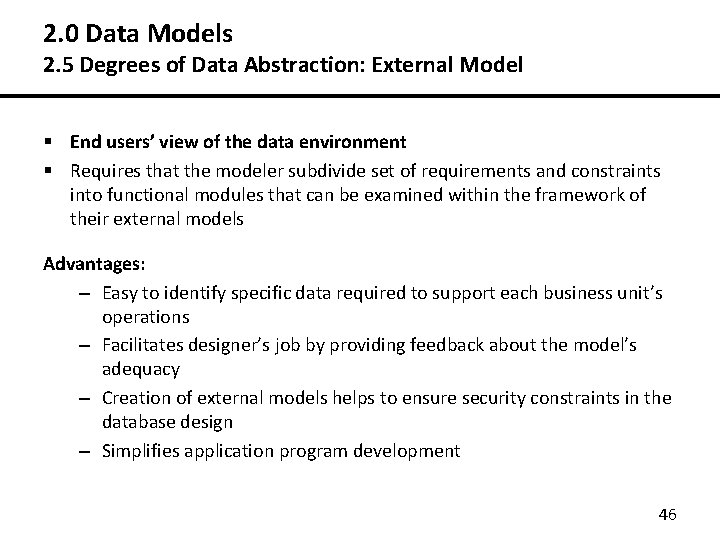

2. 0 Data Models 2. 5 Degrees of Data Abstraction: External Model § End users’ view of the data environment § Requires that the modeler subdivide set of requirements and constraints into functional modules that can be examined within the framework of their external models Advantages: – Easy to identify specific data required to support each business unit’s operations – Facilitates designer’s job by providing feedback about the model’s adequacy – Creation of external models helps to ensure security constraints in the database design – Simplifies application program development 46

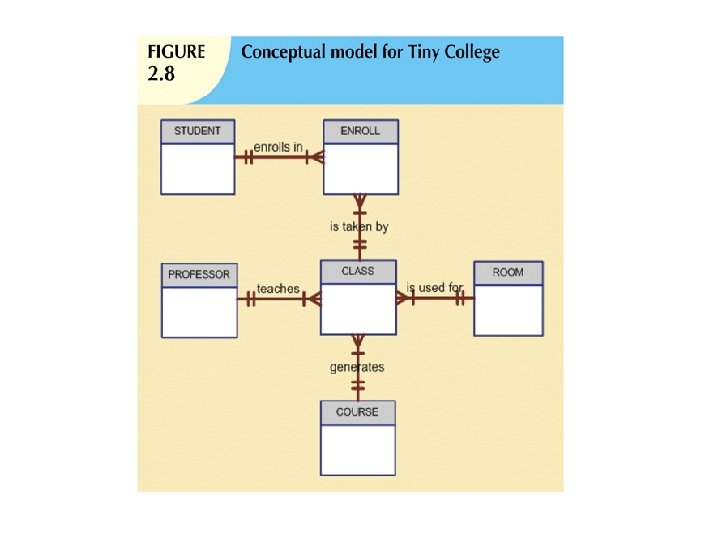

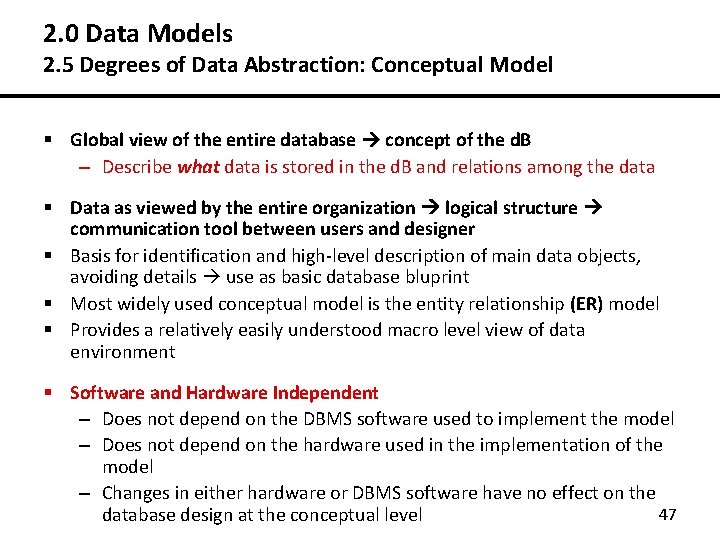

2. 0 Data Models 2. 5 Degrees of Data Abstraction: Conceptual Model § Global view of the entire database concept of the d. B – Describe what data is stored in the d. B and relations among the data § Data as viewed by the entire organization logical structure communication tool between users and designer § Basis for identification and high-level description of main data objects, avoiding details use as basic database bluprint § Most widely used conceptual model is the entity relationship (ER) model § Provides a relatively easily understood macro level view of data environment § Software and Hardware Independent – Does not depend on the DBMS software used to implement the model – Does not depend on the hardware used in the implementation of the model – Changes in either hardware or DBMS software have no effect on the 47 database design at the conceptual level

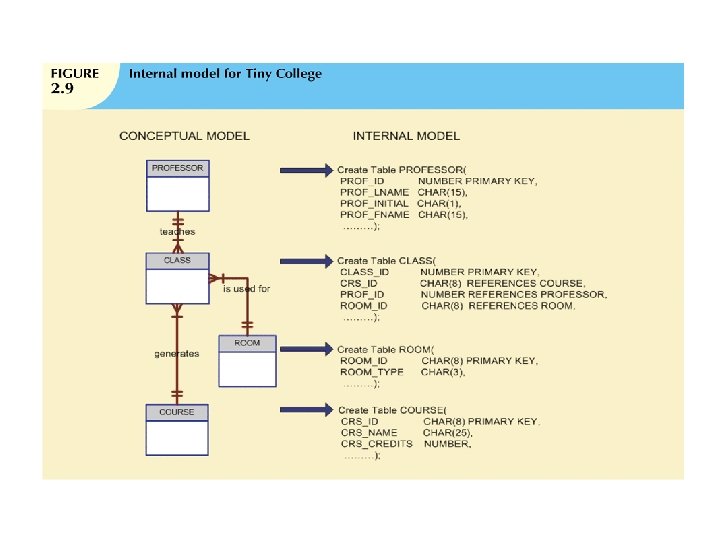

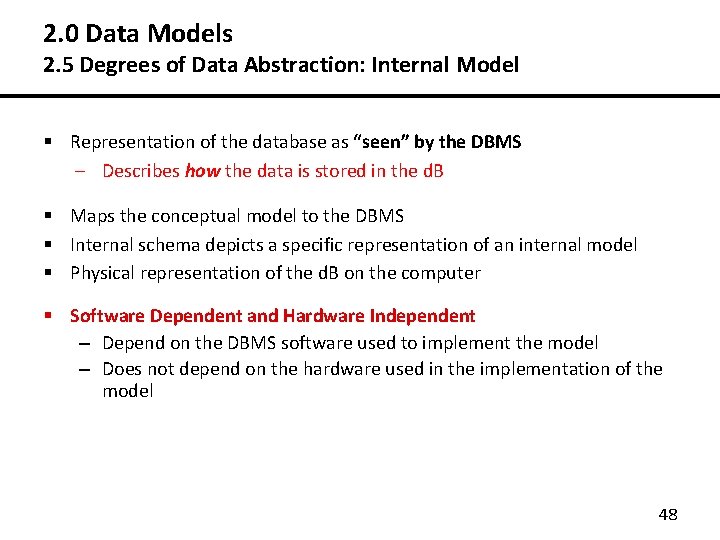

2. 0 Data Models 2. 5 Degrees of Data Abstraction: Internal Model § Representation of the database as “seen” by the DBMS – Describes how the data is stored in the d. B § Maps the conceptual model to the DBMS § Internal schema depicts a specific representation of an internal model § Physical representation of the d. B on the computer § Software Dependent and Hardware Independent – Depend on the DBMS software used to implement the model – Does not depend on the hardware used in the implementation of the model 48

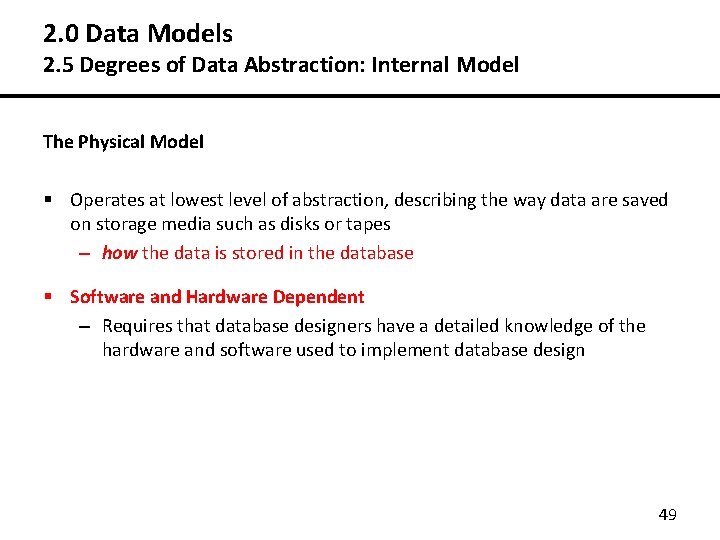

2. 0 Data Models 2. 5 Degrees of Data Abstraction: Internal Model The Physical Model § Operates at lowest level of abstraction, describing the way data are saved on storage media such as disks or tapes – how the data is stored in the database § Software and Hardware Dependent – Requires that database designers have a detailed knowledge of the hardware and software used to implement database design 49

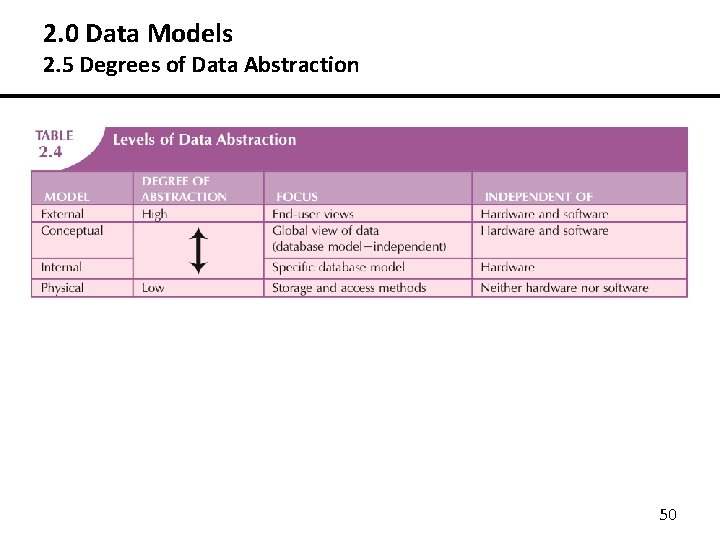

2. 0 Data Models 2. 5 Degrees of Data Abstraction 50
2. 0 Data Models Summary § A data model is a (relatively) simple abstraction of a complex real-world data environment § Basic data modeling components are: – Entities – Attributes – Relationships – Constraints § Data modeling requirements are a function of different data views (global vs. local) and level of data abstraction 54

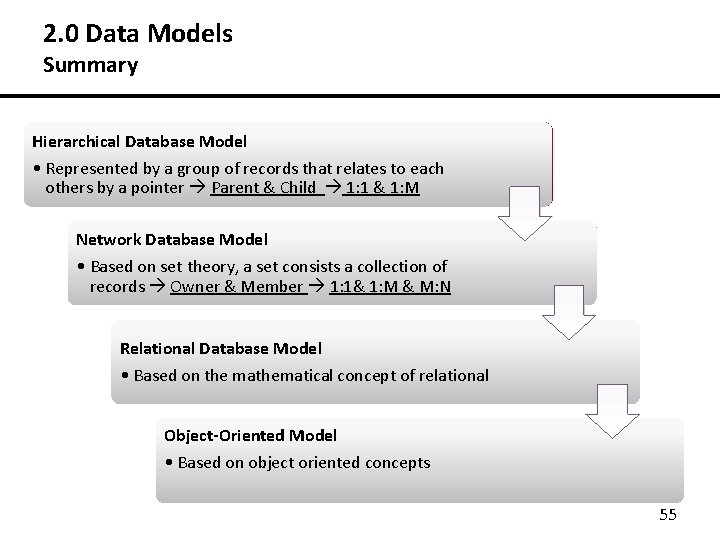

2. 0 Data Models Summary Hierarchical Model Hierarchical. Database Model • • Represented a group of records that to relates to each Represented byby a group of records that relates each others by a pointer Parent & Child 1: 1 & 1: M others Network Database Model • Based on set theory, a set consists a collection of records Owner & Member 1: 1& 1: M & M: N Relational Model Relational. Database Model Based on mathematical concept of relational • • Based onthe mathematical concept of relational Object-Oriented. Model • • Based onobject oriented concepts Based on oriented concepts 55
Exercise 1 It is important to understand business rules when designing a database. § Define business rules. (1 mark) § State TWO (2) reasons the importance of business rules in database design. (2 marks) § Give ONE (1) example of business rules. (1 mark) 56
Exercise 2 Briefly explain the hierarchical and network database model, and what is the difference between those two database models? (6 marks) 57

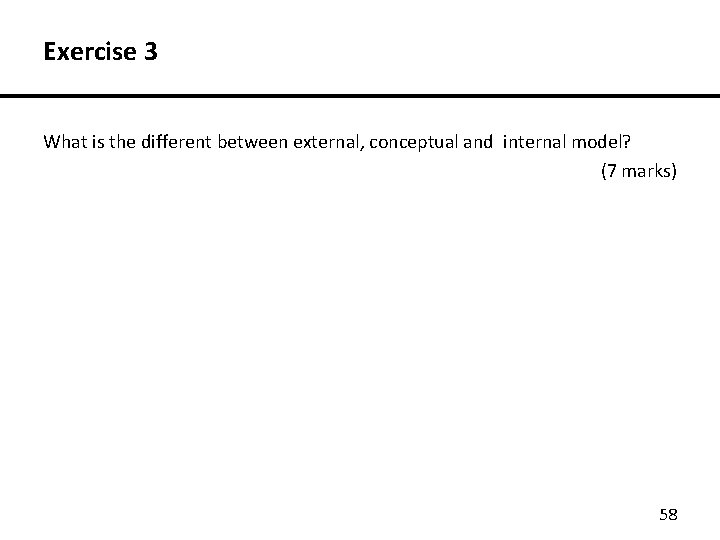

Exercise 3 What is the different between external, conceptual and internal model? (7 marks) 58
Exercise 4 What is a conceptual model and why it is important in database design? (4 marks) 59
